Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#39462) — 348 parça

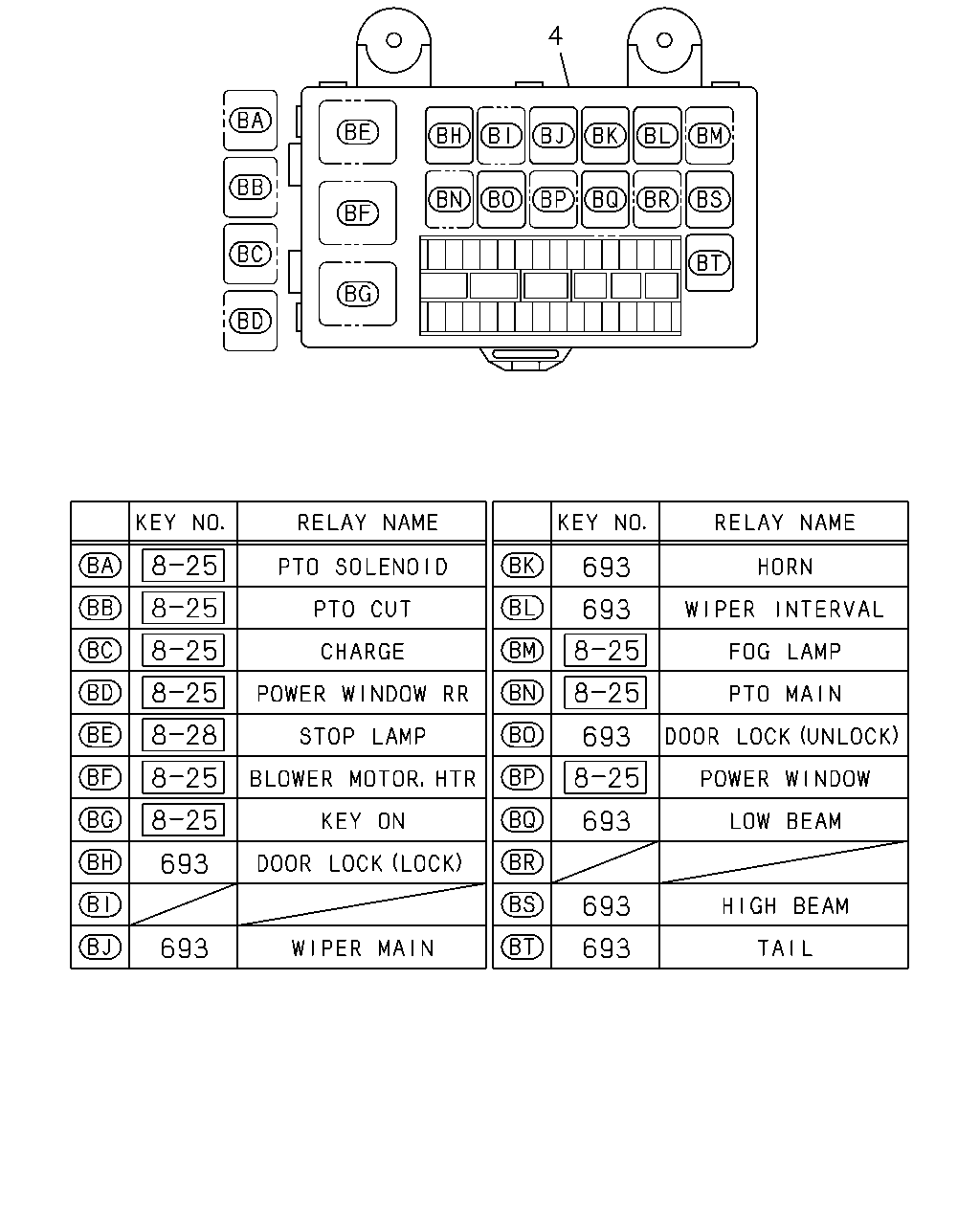

4 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0710-	●	●	●	●	●	●
	693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0710-	●	●	●	●	●	●

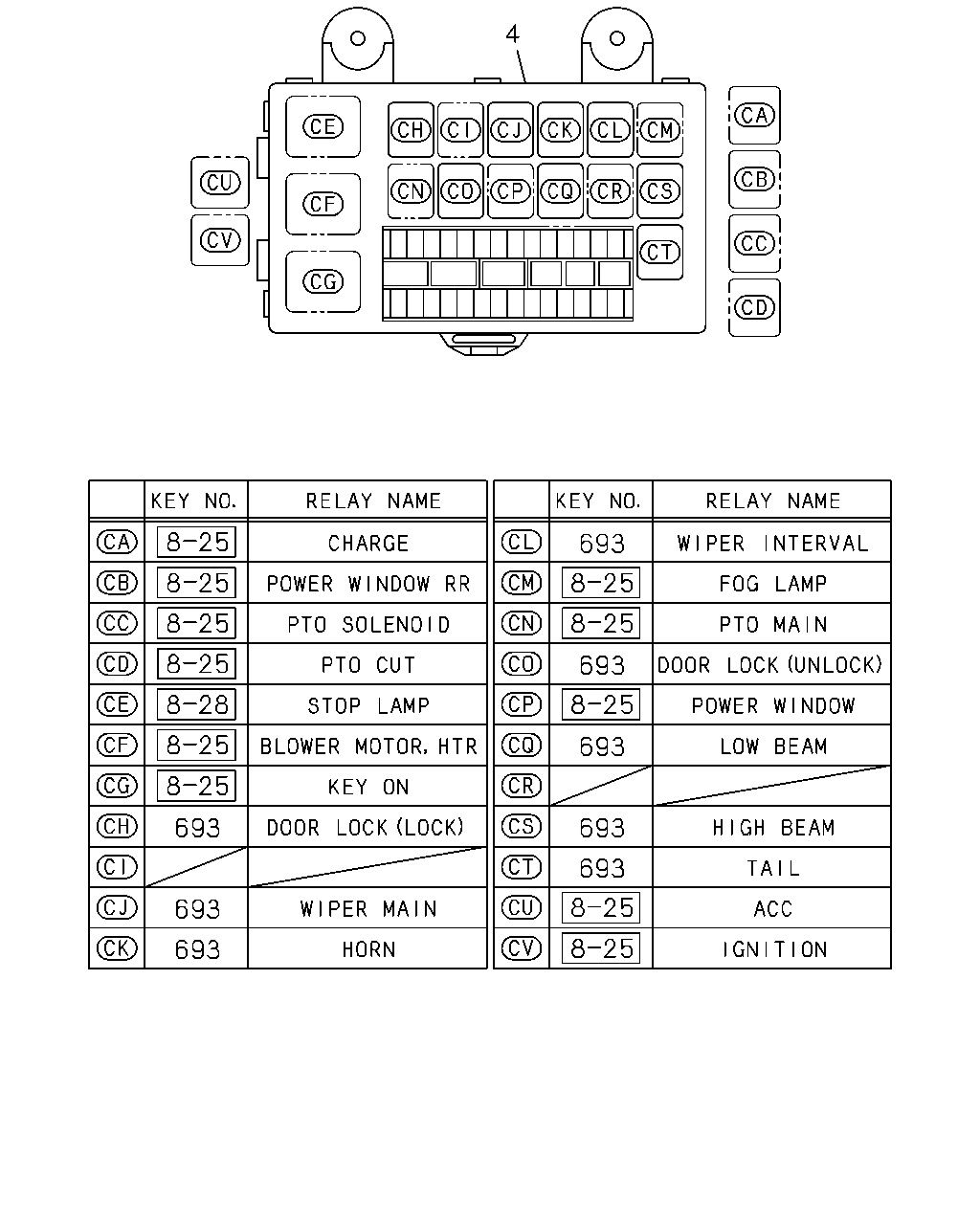

4 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0710-	●	●	●	●	●	●
	693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0710-	●	●	●	●	●	●

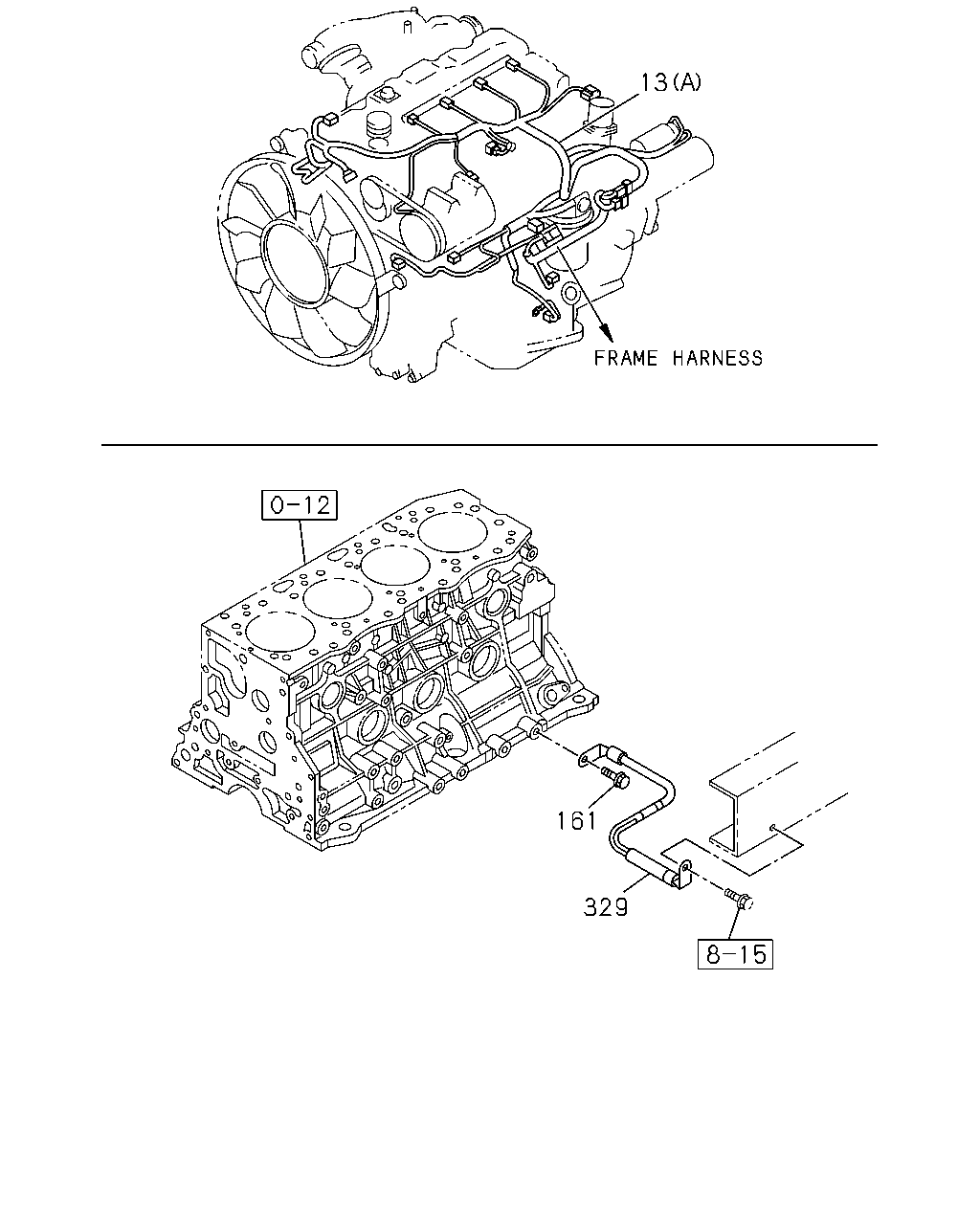

13 161 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (C)	8-98090-070-2	01	1	0710-		●	●		●	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (C)	8-98090-071-2	01	1	0710-		●	●		●	●
13	02.525 HARNESS; ENG 4JJ1-TCS ENG(LFB) (A)	8-98094-802-4	01	1	0710-1006	●			●
13	02.525 HARNESS; ENG 4JJ1-TCS ENG(LFB) (A)	8-98147-725-0	01	1	1007-	●			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97332-133-3	01	1	0710-1007		●	●		●	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98171-638-0	01	1	1008-		●	●		●	●
161	02.559 BOLT; GROUND,HARNESS 4JJ1-TCS ENG(LFB) 02.483 M10X16 FLANGE	0-28051-016-0	01	1	0710-	●			●
161	02.559 BOLT; GROUND,HARNESS 4HK1-TCN ENG(RDQ) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0710-		●			●
161	02.559 BOLT; GROUND,HARNESS 4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0710-			●			●
329	02.480 CABLE; ENG TO FRAME 4JJ1-TCS ENG(LFB)	8-98030-126-1	01	1	0710-	●			●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ)	8-98039-304-2	01	1	0710-0710		●			●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCS ENG(RJS)	8-98039-304-2	01	1	0710-0710			●			●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ)	8-98039-304-2	01	1	0711-0804		●			●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98039-304-2	01	1	0711-0804			●			●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98102-465-0	01	1	0711-0804			●			●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ)	8-98102-465-0	01	1	0805-		●			●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCS ENG(RJS)	8-98102-465-0	01	1	0805-			●			●

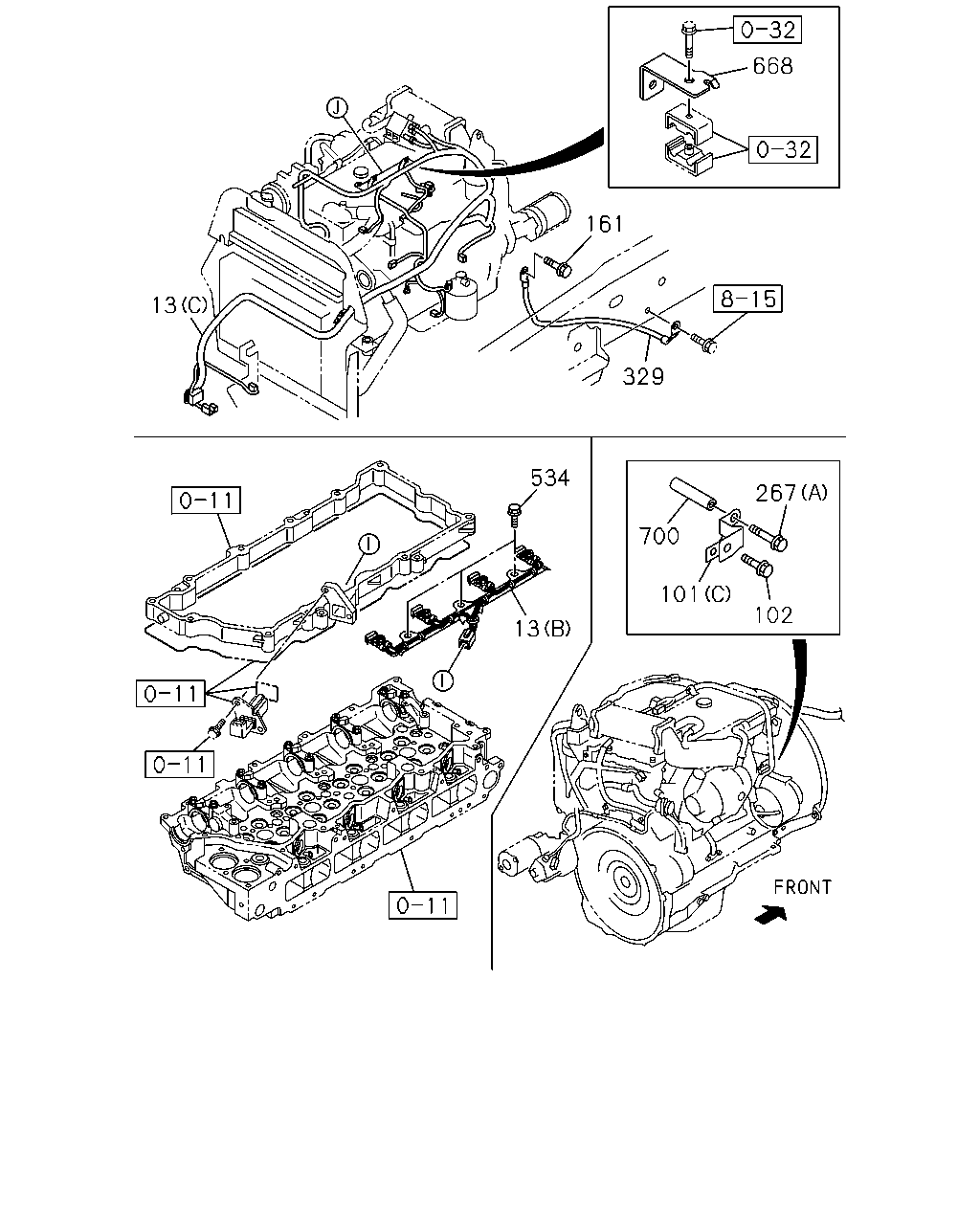

668 161 13 329 534 267 700 101 102 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (C)	8-98090-070-2	01	1	0710-		●	●		●	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (C)	8-98090-071-2	01	1	0710-		●	●		●	●
13	02.525 HARNESS; ENG 4JJ1-TCS ENG(LFB) (A)	8-98094-802-4	01	1	0710-1006	●			●
13	02.525 HARNESS; ENG 4JJ1-TCS ENG(LFB) (A)	8-98147-725-0	01	1	1007-	●			●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97332-133-3	01	1	0710-1007		●	●		●	●
13	02.525 HARNESS; ENG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98171-638-0	01	1	1008-		●	●		●	●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (A)	8-98030-725-1	01	1	0710-	●			●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98032-447-1	01	1	0710-	●			●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (C)	8-98052-805-0	01	1	0710-		●			●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCS ENG(RJS) (C)	8-98052-805-0	01	1	0710-			●			●
101	02.483 BRACKET; HARNESS CONNECTOR (D)	8-98079-137-1	01	1	0710-0710		●	●		●	●
101	02.483 BRACKET; HARNESS CONNECTOR (E)	8-98094-483-1	01	1	0710-		●	●		●	●
102	08.900 BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 M10X16 FLANGE	0-28151-016-0	01	1	0710-0801		●	●		●	●
102	08.900 BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.042 M10X25 FLANGE	0-28151-025-0	01	1	0710-0801		●	●		●	●
161	02.559 BOLT; GROUND,HARNESS 4JJ1-TCS ENG(LFB) 02.483 M10X16 FLANGE	0-28051-016-0	01	1	0710-	●			●
161	02.559 BOLT; GROUND,HARNESS 4HK1-TCN ENG(RDQ) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0710-		●			●
161	02.559 BOLT; GROUND,HARNESS 4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0710-			●			●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0710-		●			●
267	02.483 BOLT; BRKT 4HK1-TCS ENG(RJS) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0710-			●			●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 09.171 (A) M10X120 FLANGE	0-28156-012-0	01	1	0710-		●			●
267	02.483 BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) FULLAUTO AIR CONDITIONER(C68) 09.171 (A) M10X120 FLANGE	0-28156-012-0	01	1	0710-			●			●
329	02.480 CABLE; ENG TO FRAME 4JJ1-TCS ENG(LFB)	8-98030-126-1	01	1	0710-	●			●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ)	8-98039-304-2	01	1	0710-0710		●			●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCS ENG(RJS)	8-98039-304-2	01	1	0710-0710			●			●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ)	8-98039-304-2	01	1	0711-0804		●			●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98039-304-2	01	1	0711-0804			●			●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98102-465-0	01	1	0711-0804			●			●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCN ENG(RDQ)	8-98102-465-0	01	1	0805-		●			●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCS ENG(RJS)	8-98102-465-0	01	1	0805-			●			●
534	02.483 BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.683 M10X55 FLANGE	8-94399-863-1	03	1	0710-0805		●	●		●	●
534	02.483 BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.683 M10X55 FLANGE	8-97365-449-0	03	1	0806-		●	●		●	●
668	02.559 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98001-095-0	01	1	0710-		●	●		●	●
700	02.483 TUBE; DISTANCE 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68)	8-98084-726-0	01	1	0710-		●			●
700	02.483 TUBE; DISTANCE 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) FULLAUTO AIR CONDITIONER(C68)	8-98084-726-0	01	1	0710-			●			●

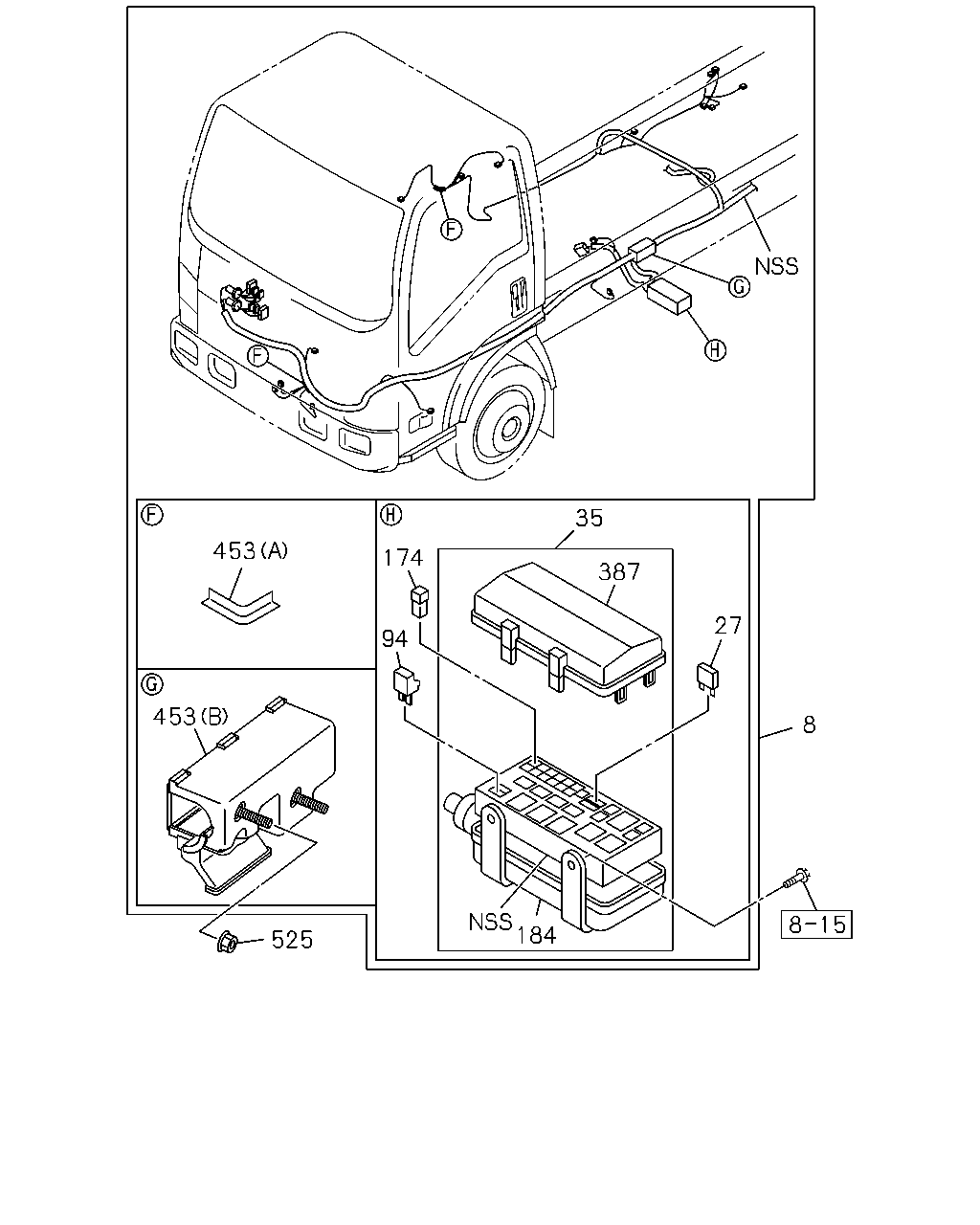

35 453 174 387 27 94 453 8 184 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-270-7	01	1	0710-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-264-7	01	1	0710-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-239-8	01	1	0710-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-271-6	01	1	0710-				●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-265-6	01	1	0710-				●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-240-8	01	1	0710-					●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-299-8	01	1	0710-						●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-292-8	01	1	0710-						●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-298-7	01	1	0710-0805			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-298-7	01	1	0806-0806			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-298-7	01	1	0806-0903			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4>	8-98070-298-8	01	1	0904-			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-291-8	01	1	0710-0805			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-291-8	01	1	0806-0806			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-291-8	01	1	0806-			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98074-237-7	01	1	0710-0903		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98074-237-8	01	1	0904-		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98074-238-7	01	1	0710-0903					●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98074-238-8	01	1	0904-					●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98145-511-0	01	1	0904-		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98145-513-0	01	1	0904-			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98145-512-0	01	1	0904-					●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	0710-	●	●	●	●	●	●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	0710-	●	●	●	●	●	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	AR	1	0710-	●	●	●	●	●	●
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	0710-	●	●	●	●	●	●
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	0710-	●	●	●	●	●	●
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	0710-	●	●	●	●	●	●
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	0710-	●	●	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	0710-	●	●	●	●	●	●
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	0710-	●	●	●	●	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	0710-	●	●	●	●	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	02	1	0710-	●	●	●	●	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	0710-	●	●	●	●	●	●
525	08.919 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-	●	●	●	●	●	●

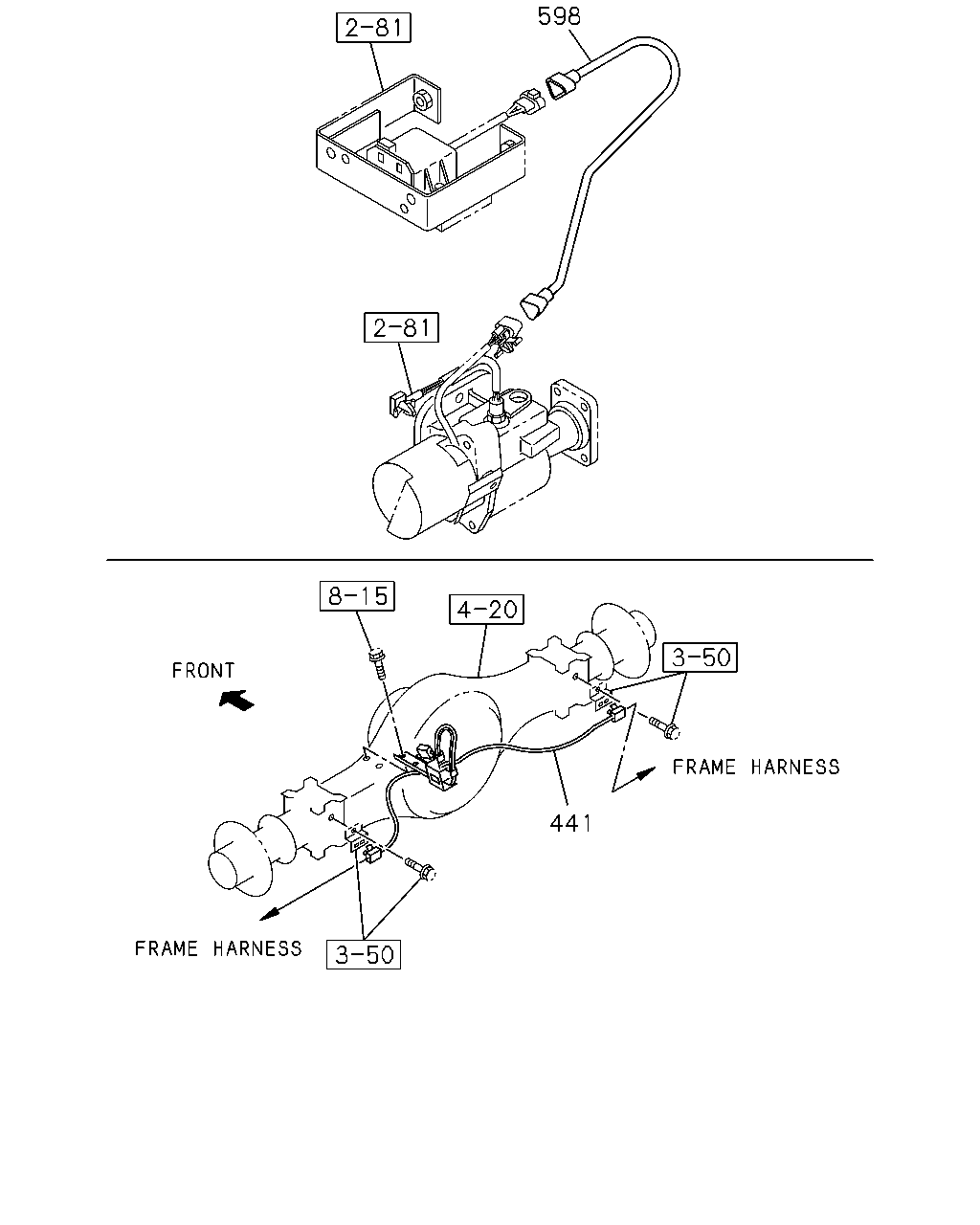

598 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D	E
441	02.480 HARNESS; CABLE,SPEED SENSOR	8-97308-225-4	01	1	0710-	●		●
598	02.480 HARNESS; EXT,PTO M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98123-454-1	01	1	0904-		●
598	02.480 HARNESS; EXT,PTO M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98123-454-1	01	1	0904-				●
598	02.480 HARNESS; EXT,PTO 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98151-082-0	01	1	0906-				●

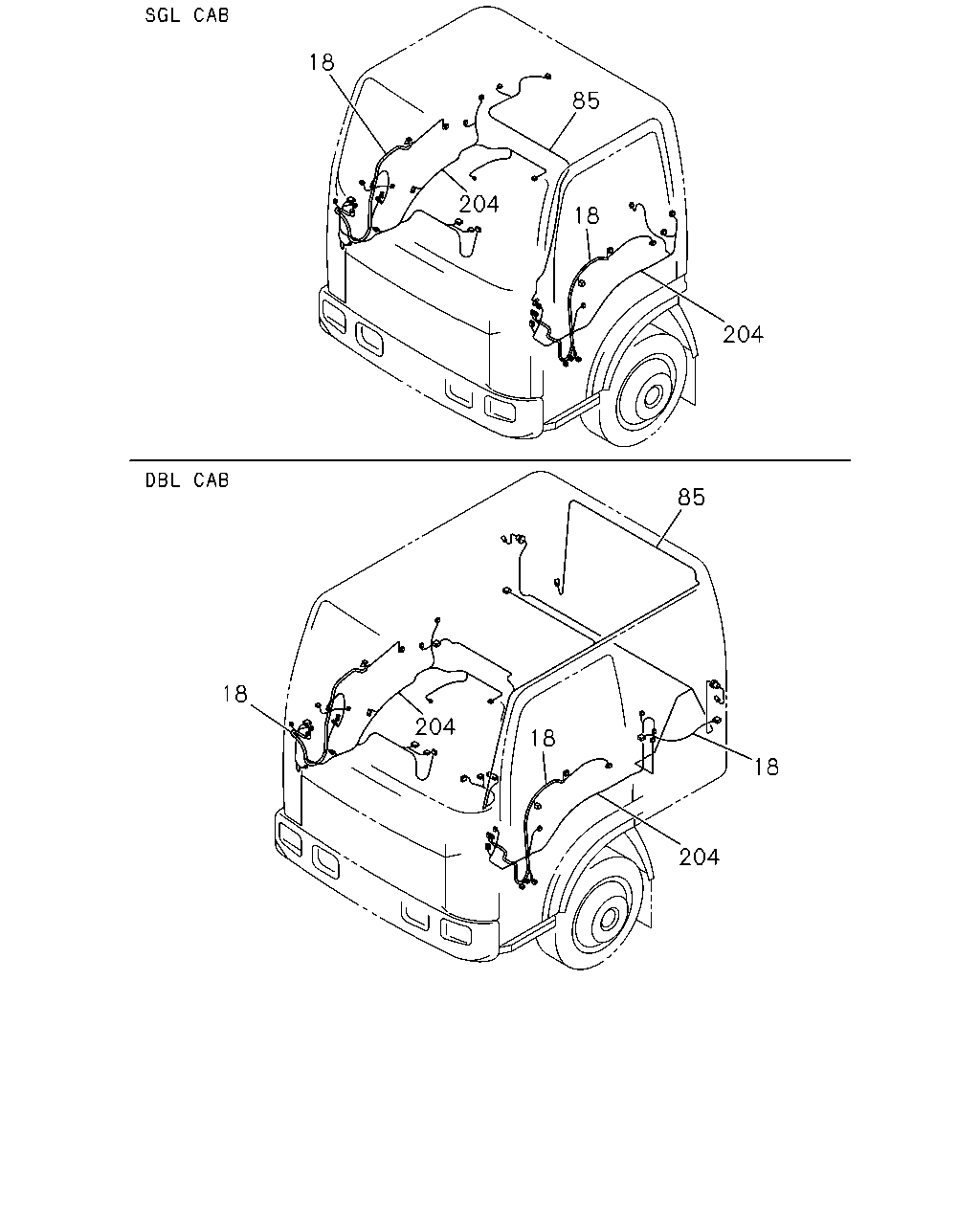

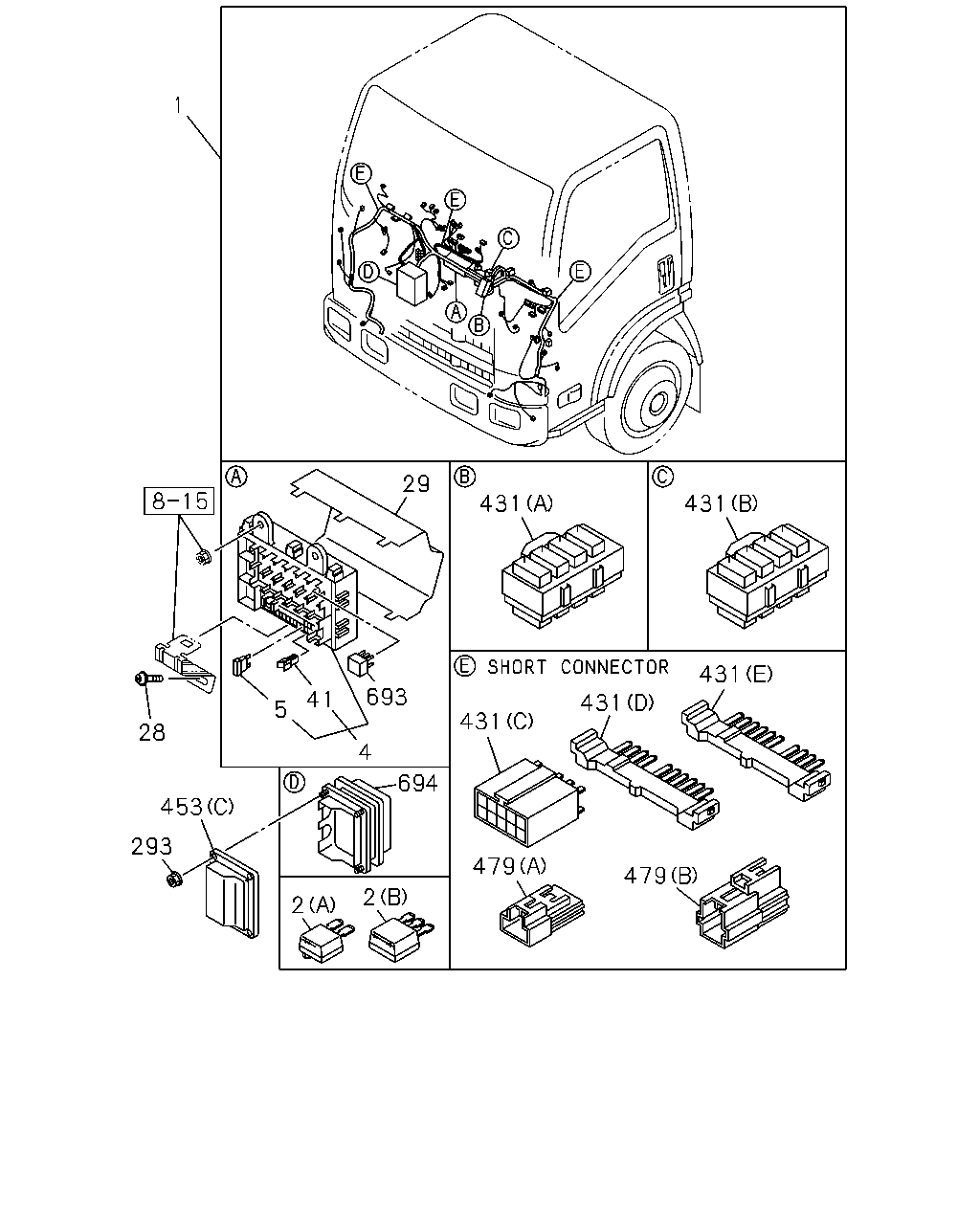

1 29 431 431 431 693 41 431 5 431 28 4 694 453 293 479 479 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98087-879-1	01	1	0710-0801	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98087-879-2	01	1	0802-0903	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>	8-98087-879-6	01	1	0904-1204	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>	8-98207-672-0	01	1	1205-	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98087-874-1	01	1	0710-0801	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98087-874-2	01	1	0802-0903	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>	8-98087-874-6	01	1	0904-1204	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>	8-98207-679-0	01	1	1205-	●	●	●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-871-1	01	1	0710-0801	●	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68)	8-98087-871-6	01	1	0802-1204	●	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68)	8-98207-671-0	01	1	1205-	●	●	●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-869-1	01	1	0710-0801	●	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68)	8-98087-869-6	01	1	0802-1204	●	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68)	8-98207-659-0	01	1	1205-	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98087-895-1	01	1	0710-0801				●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98087-895-6	01	1	0802-1204				●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98207-678-0	01	1	1205-				●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98087-892-1	01	1	0710-0801				●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98087-892-6	01	1	0802-1204				●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98207-665-0	01	1	1205-				●	●	●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-886-1	01	1	0710-0801				●	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68)	8-98087-886-6	01	1	0802-1204				●	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68)	8-98207-677-0	01	1	1205-				●	●	●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-884-1	01	1	0710-0801				●	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68)	8-98087-884-6	01	1	0802-1204				●	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68)	8-98207-664-0	01	1	1205-				●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98087-880-6	01	1	0710-	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98087-876-3	01	1	0710-0805	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98087-876-6	01	1	0806-	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68), REMOTE CONT DOOR LOCK<6NF>	8-98087-878-2	01	1	0806-0806			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), REMOTE CONT DOOR LOCK<6NF>	8-98087-872-2	01	1	0806-0806			●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68),REMOTE CONT DOOR LOCK<6NF>	8-98087-870-2	01	1	0806-0806			●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68),REMOTE CONT DOOR LOCK<6NF>	8-98087-867-2	01	1	0806-0806			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98087-896-6	01	1	0710-				●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98087-893-6	01	1	0710-1204				●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-666-0	01	1	1205-				●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98146-286-3	01	1	0904-		●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98146-284-3	01	1	0904-		●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98146-285-3	01	1	0904-1204					●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	0710-	●	●	●	●	●	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	0710-	●	●	●	●	●	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0710-	●	●	●	●	●	●
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	0710-	●	●	●	●	●	●
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	0710-	●	●	●	●	●	●
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	0710-	●	●	●	●	●	●
28	02.483 SCREW; FUSE BOX 16.090 T25 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0710-1101	●	●	●	●	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-	●	●	●	●	●	●
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	0710-	●	●	●	●	●	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	0710-	●	●	●	●	●	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	0710-	●	●	●	●	●	●
431	02.530 CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	02	1	0710-1005	●	●	●	●	●	●
431	02.530 CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	01	1	1006-	●	●	●	●	●	●
431	02.530 CONNECTOR; JOINT (E) 10P GREEN	1-82699-599-0	01	1	0710-	●	●	●	●	●	●
431	02.530 CONNECTOR; JOINT (C) 10P	8-97077-943-0	02	1	0710-	●	●	●	●	●	●
431	02.530 CONNECTOR; JOINT (A)	8-98046-205-0	01	1	0710-	●	●	●	●	●	●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	0710-	●	●	●	●	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-98034-039-1	01	1	0710-	●	●	●	●	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-94417-716-0	02	1	0710-	●	●	●	●	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	0710-	●	●	●	●	●	●
479	02.530 CAP; CONNECTOR EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (A)	8-98108-678-0	01	1	0802-	●	●	●	●	●	●
479	02.530 CAP; CONNECTOR EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) (B)	8-98108-679-0	01	1	0802-	●	●	●	●	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A PANASONIC	8-97173-035-1	AR	1	0710-	●	●	●	●	●	●
694	02.483 BOX ASM; CONNECTOR	8-98057-772-0	01	1	0710-	●	●	●	●	●	●

8 231 9 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-270-7	01	1	0710-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-264-7	01	1	0710-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-239-8	01	1	0710-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-271-6	01	1	0710-				●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-265-6	01	1	0710-				●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-240-8	01	1	0710-					●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-299-8	01	1	0710-						●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-292-8	01	1	0710-						●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-298-7	01	1	0710-0805			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-298-7	01	1	0806-0806			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-298-7	01	1	0806-0903			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4>	8-98070-298-8	01	1	0904-			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-291-8	01	1	0710-0805			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-291-8	01	1	0806-0806			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-291-8	01	1	0806-			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98074-237-7	01	1	0710-0903		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98074-237-8	01	1	0904-		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98074-238-7	01	1	0710-0903					●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98074-238-8	01	1	0904-					●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98145-511-0	01	1	0904-		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98145-513-0	01	1	0904-			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98145-512-0	01	1	0904-					●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2700MM(27W)	8-98046-995-1	01	1	0710-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W)	8-98047-002-1	01	1	0710-	●
9	02.480 HARNESS; FRAME,RR	8-98047-002-1	01	1	0710-				●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2700MM(27W)	8-98070-314-2	01	1	0710-0805		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2700MM(27W)	8-98117-252-0	01	1	0806-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W)	8-98070-315-2	01	1	0710-0805		●	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W)	8-98117-253-0	01	1	0806-		●	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 4100MM(41W)	8-98070-317-1	01	1	0710-0805		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 4100MM(41W)	8-98117-255-0	01	1	0806-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 4400MM(44W)	8-98070-318-2	01	1	0710-0805			●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 4400MM(44W)	8-98117-256-0	01	1	0806-			●
9	02.480 HARNESS; FRAME,RR	8-98080-016-1	01	1	0710-0805					●
9	02.480 HARNESS; FRAME,RR	8-98117-258-0	01	1	0806-					●
9	02.480 HARNESS; FRAME,RR	8-98080-017-1	01	1	0710-0805						●
9	02.480 HARNESS; FRAME,RR	8-98117-259-0	01	1	0806-						●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98070-319-1	01	1	0710-1006	●	●	●	●	●	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-027-0	01	1	1007-	●	●	●	●	●	●
231	02.480 HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-598-1	01	1	0710-	●			●
231	02.480 HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98080-121-1	01	1	0710-0904		●	●		●	●
231	02.480 HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98080-121-1	01	1	0905-0905		●			●
231	02.480 HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98080-121-1	01	1	0905-0905			●			●
231	02.480 HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4>,POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98080-121-2	01	1	0906-		●			●
231	02.480 HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4>	8-98080-121-2	01	1	0906-			●
231	02.480 HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98080-121-2	01	1	0906-						●
231	02.480 HARNESS; TRANS POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98150-063-0	01	1	0905-0905		●			●
231	02.480 HARNESS; TRANS DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98150-063-1	01	1	0906-		●	●		●
231	02.480 HARNESS; TRANS POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4>	8-98150-063-1	01	1	0906-		●			●

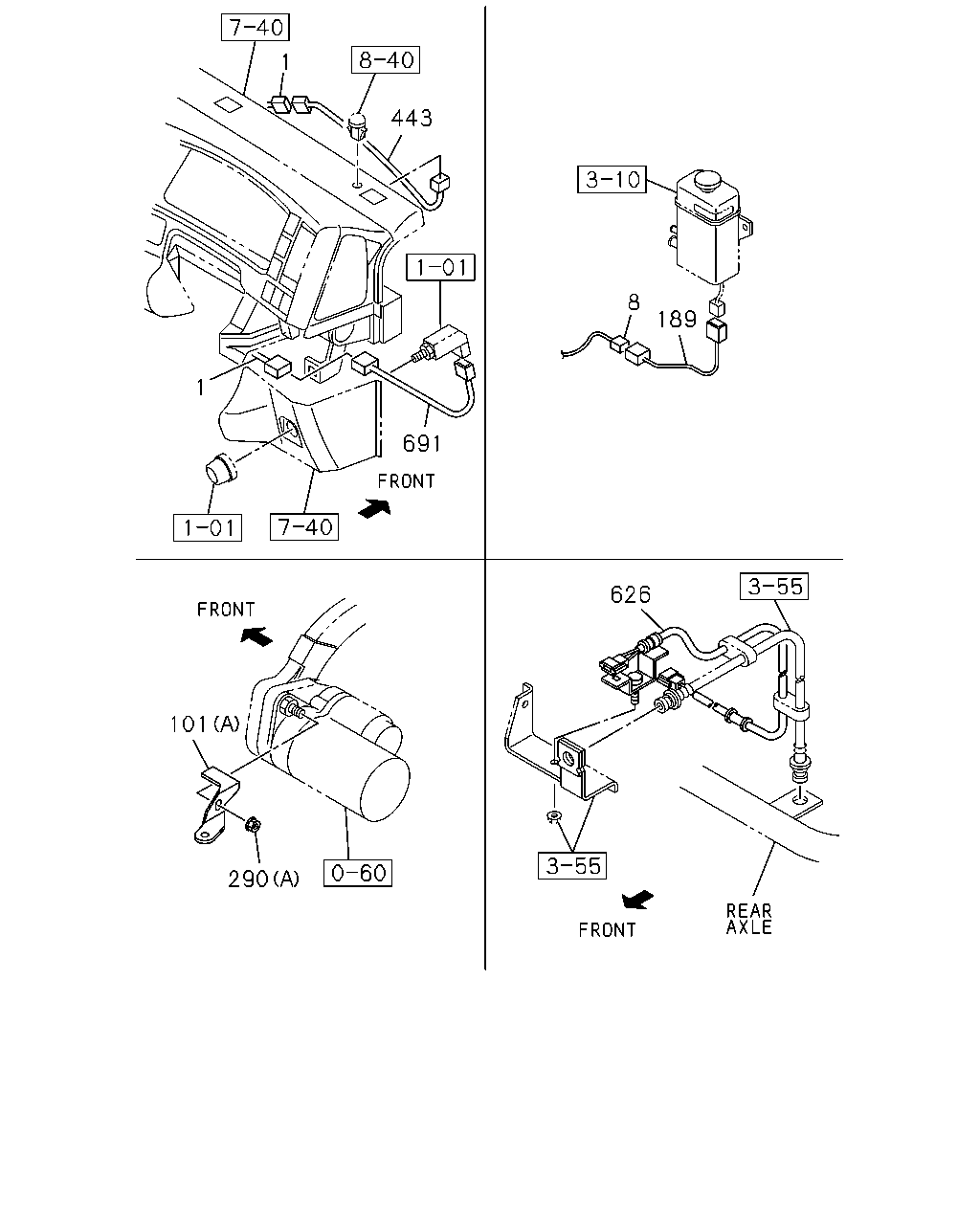

1 443 8 189 1 691 626 101 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98087-879-1	01	1	0710-0801	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98087-879-2	01	1	0802-0903	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>	8-98087-879-6	01	1	0904-1204	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>	8-98207-672-0	01	1	1205-	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98087-874-1	01	1	0710-0801	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98087-874-2	01	1	0802-0903	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>	8-98087-874-6	01	1	0904-1204	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), DUMP CONTROL LEVER<RC4>	8-98207-679-0	01	1	1205-	●	●	●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-871-1	01	1	0710-0801	●	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68)	8-98087-871-6	01	1	0802-1204	●	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68)	8-98207-671-0	01	1	1205-	●	●	●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-869-1	01	1	0710-0801	●	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68)	8-98087-869-6	01	1	0802-1204	●	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68)	8-98207-659-0	01	1	1205-	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98087-895-1	01	1	0710-0801				●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98087-895-6	01	1	0802-1204				●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98207-678-0	01	1	1205-				●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98087-892-1	01	1	0710-0801				●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98087-892-6	01	1	0802-1204				●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98207-665-0	01	1	1205-				●	●	●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-886-1	01	1	0710-0801				●	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68)	8-98087-886-6	01	1	0802-1204				●	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68)	8-98207-677-0	01	1	1205-				●	●	●
1	02.480 HARNESS; CAB AIR CONDITIONER MANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98087-884-1	01	1	0710-0801				●	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68)	8-98087-884-6	01	1	0802-1204				●	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68)	8-98207-664-0	01	1	1205-				●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98087-880-6	01	1	0710-	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98087-876-3	01	1	0710-0805	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98087-876-6	01	1	0806-	●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68), REMOTE CONT DOOR LOCK<6NF>	8-98087-878-2	01	1	0806-0806			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68), REMOTE CONT DOOR LOCK<6NF>	8-98087-872-2	01	1	0806-0806			●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68),REMOTE CONT DOOR LOCK<6NF>	8-98087-870-2	01	1	0806-0806			●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>,FULLAUTO AIR COND ITIONER(C68),REMOTE CONT DOOR LOCK<6NF>	8-98087-867-2	01	1	0806-0806			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98087-896-6	01	1	0710-				●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98087-893-6	01	1	0710-1204				●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> FULLAUTO AIR CONDITIONER(C68) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98207-666-0	01	1	1205-				●	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98146-286-3	01	1	0904-		●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98146-284-3	01	1	0904-		●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98146-285-3	01	1	0904-1204					●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-270-7	01	1	0710-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-264-7	01	1	0710-	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-239-8	01	1	0710-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-271-6	01	1	0710-				●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-265-6	01	1	0710-				●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-240-8	01	1	0710-					●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-299-8	01	1	0710-						●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-292-8	01	1	0710-						●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-298-7	01	1	0710-0805			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-298-7	01	1	0806-0806			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-298-7	01	1	0806-0903			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CONTROL LEVER<RC4>	8-98070-298-8	01	1	0904-			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-291-8	01	1	0710-0805			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-291-8	01	1	0806-0806			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-291-8	01	1	0806-			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98074-237-7	01	1	0710-0903		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98074-237-8	01	1	0904-		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98074-238-7	01	1	0710-0903					●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98074-238-8	01	1	0904-					●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98145-511-0	01	1	0904-		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) DUMP CONTROL LEVER<RC4> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98145-513-0	01	1	0904-			●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98145-512-0	01	1	0904-					●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (A)	8-98030-725-1	01	1	0710-	●			●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98032-447-1	01	1	0710-	●			●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (C)	8-98052-805-0	01	1	0710-		●			●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCS ENG(RJS) (C)	8-98052-805-0	01	1	0710-			●			●
101	02.483 BRACKET; HARNESS CONNECTOR (D)	8-98079-137-1	01	1	0710-0710		●	●		●	●
101	02.483 BRACKET; HARNESS CONNECTOR (E)	8-98094-483-1	01	1	0710-		●	●		●	●
189	02.480 HARNESS; EXT	8-98095-676-0	01	1	0710-1006						●
189	02.480 HARNESS; EXT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0)	8-98095-676-0	01	1	1007-						●
189	02.480 HARNESS; EXT 4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98095-676-0	01	1	1007-						●
189	02.480 HARNESS; EXT 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98166-888-0	01	1	1007-						●
290	02.483 NUT; BRKT 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0710-	●			●
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0710-	●	●	●	●	●	●
443	02.480 HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98029-830-0	01	1	0710-	●	●	●	●	●	●
626	02.480 HARNESS; FLEX HOSE	8-97253-968-1	01	1	0710-		●	●		●	●
626	02.480 HARNESS; FLEX HOSE	8-97253-969-1	01	1	0710-		●	●		●	●
691	02.480 HARNESS; IDLE CONT SWITCH HIGH IDLE ENGINE SPEED CONTROL <NMT>	8-98049-014-2	01	1	0710-	●	●	●	●	●	●

18 85 204 18 204 85 18 204 18 18 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
18	02.480 HARNESS; DOOR REAR	8-98056-047-1	02	1	0710-1203				●	●	●
18	02.480 HARNESS; DOOR REAR	8-98202-555-0	02	1	1204-				●	●	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT	8-98071-078-2	01	1	0710-0805	●	●	●	●	●	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT	8-98071-078-2	01	1	0806-0806	●	●		●	●	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT	8-98071-078-2	01	1	0806-0806			●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT	8-98071-078-2	01	1	0806-	●	●	●	●	●	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT	8-98071-086-3	01	1	0710-0805	●	●	●	●	●	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT	8-98071-086-3	01	1	0806-0806	●	●		●	●	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT	8-98071-086-3	01	1	0806-0806			●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT	8-98071-086-3	01	1	0806-	●	●	●	●	●	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT	8-98071-076-2	01	1	0710-0805	●	●	●	●	●	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT	8-98071-076-2	01	1	0806-0806	●	●		●	●	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> FRONT	8-98071-076-2	01	1	0806-0806			●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT	8-98071-076-2	01	1	0806-	●	●	●	●	●	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT	8-98071-084-3	01	1	0710-0805	●	●	●	●	●	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT	8-98071-084-3	01	1	0806-0806	●	●		●	●	●
18	02.480 HARNESS; DOOR POWER WINDOW FRT DOOR<A32> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> FRONT	8-98071-084-3	01	1	0806-0806			●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT	8-98071-084-3	01	1	0806-	●	●	●	●	●	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32> FRONT	8-98071-077-1	01	1	0806-0806			●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> EXC. POWER WINDOW FRT DOOR<A32> FRONT	8-98071-085-2	01	1	0806-0806			●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT	8-98071-075-1	01	1	0806-0806			●
18	02.480 HARNESS; DOOR EXC. POWER WINDOW FRT DOOR<A32>, O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>, MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT	8-98071-083-1	01	1	0806-0806			●
85	06.495 HARNESS; ROOM LAMP	8-98071-092-2	01	1	0710-	●	●	●
85	06.495 HARNESS; ROOM LAMP	8-98071-094-2	01	1	0710-				●	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98047-157-5	01	1	0710-	●	●	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-789-3	01	1	0710-	●	●	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-787-3	01	1	0710-	●	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-727-5	01	1	0710-				●	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98029-726-5	01	1	0710-				●	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98074-594-2	01	1	0710-				●	●	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-796-2	01	1	0710-				●	●	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98070-792-2	01	1	0710-				●	●	●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-810-2	01	1	0710-				●	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98074-592-3	01	1	0710-0805	●	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98074-592-3	01	1	0806-0806	●	●
204	02.559 HARNESS; CABLE,FLOOR H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER<AK5> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-592-3	01	1	0806-0806			●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-592-3	01	1	0806-0806			●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> ROOM LAMP W/ALL DOORS SW(SDF) EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMO OTHER(8GF)	8-98074-592-3	01	1	0806-0806			●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> REMOTE CONT DOOR LOCK<6NF> EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98074-592-3	01	1	0806-0806			●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98074-592-3	01	1	0806-	●	●	●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-807-3	01	1	0710-0805	●	●	●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-807-3	01	1	0806-0806	●	●
204	02.559 HARNESS; CABLE,FLOOR H.S.A SYSTEM<6EP> EXC. AIR BAG DRIVER & PASSENGER<AK5>, TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-807-3	01	1	0806-0806			●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-807-3	01	1	0806-0806			●
204	02.559 HARNESS; CABLE,FLOOR ROOM LAMP W/ALL DOORS SW(SDF) EXC. AIR BAG DRIVER & PASSENGER<AK5>, H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER (8GF)	8-98070-807-3	01	1	0806-0806			●
204	02.559 HARNESS; CABLE,FLOOR REMOTE CONT DOOR LOCK<6NF> EXC. AIR BAG DRIVER & PASSENGER<AK5>, H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-807-3	01	1	0806-0806			●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98070-807-3	01	1	0806-	●	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5> EXC. ROOM LAMP W/ALL DOORS SW(SDF), H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK <6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98075-612-1	01	1	0806-0806			●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98047-156-5	01	1	0710-	●	●	●

267 666 101 101 101 290 374 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (A)	8-98030-725-1	01	1	0710-	●			●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98032-447-1	01	1	0710-	●			●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCN ENG(RDQ) (C)	8-98052-805-0	01	1	0710-		●			●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCS ENG(RJS) (C)	8-98052-805-0	01	1	0710-			●			●
101	02.483 BRACKET; HARNESS CONNECTOR (D)	8-98079-137-1	01	1	0710-0710		●	●		●	●
101	02.483 BRACKET; HARNESS CONNECTOR (E)	8-98094-483-1	01	1	0710-		●	●		●	●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0710-		●			●
267	02.483 BOLT; BRKT 4HK1-TCS ENG(RJS) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0710-			●			●
267	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ) EXC. AIR CONDITIONER MANUAL CONT(C60) ,FULLAUTO AIR CONDITIONER(C68) 09.171 (A) M10X120 FLANGE	0-28156-012-0	01	1	0710-		●			●
267	02.483 BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) FULLAUTO AIR CONDITIONER(C68) 09.171 (A) M10X120 FLANGE	0-28156-012-0	01	1	0710-			●			●
290	02.483 NUT; BRKT 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0710-	●			●
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0710-	●	●	●	●	●	●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 (B) OD=24.5 T=7.5	8-97224-683-0	01	1	0710-				●	●	●
374	02.530 PLUG; HARNESS CONNECTOR EXC. ROOM LAMP W/ALL DOORS SW(SDF), H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) 16.545 (A) OD=32 BLACK	8-98031-126-0	01	1	0806-0806			●
666	02.483 BRACKET; CLIP 4HK1-TCN ENG(RDQ)	8-98098-185-0	01	1	0710-		●			●
666	02.483 BRACKET; CLIP 4HK1-TCS ENG(RJS)	8-98098-185-0	01	1	0710-			●			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
