7-60 — SEAT BELT (#39458) — 59 parça

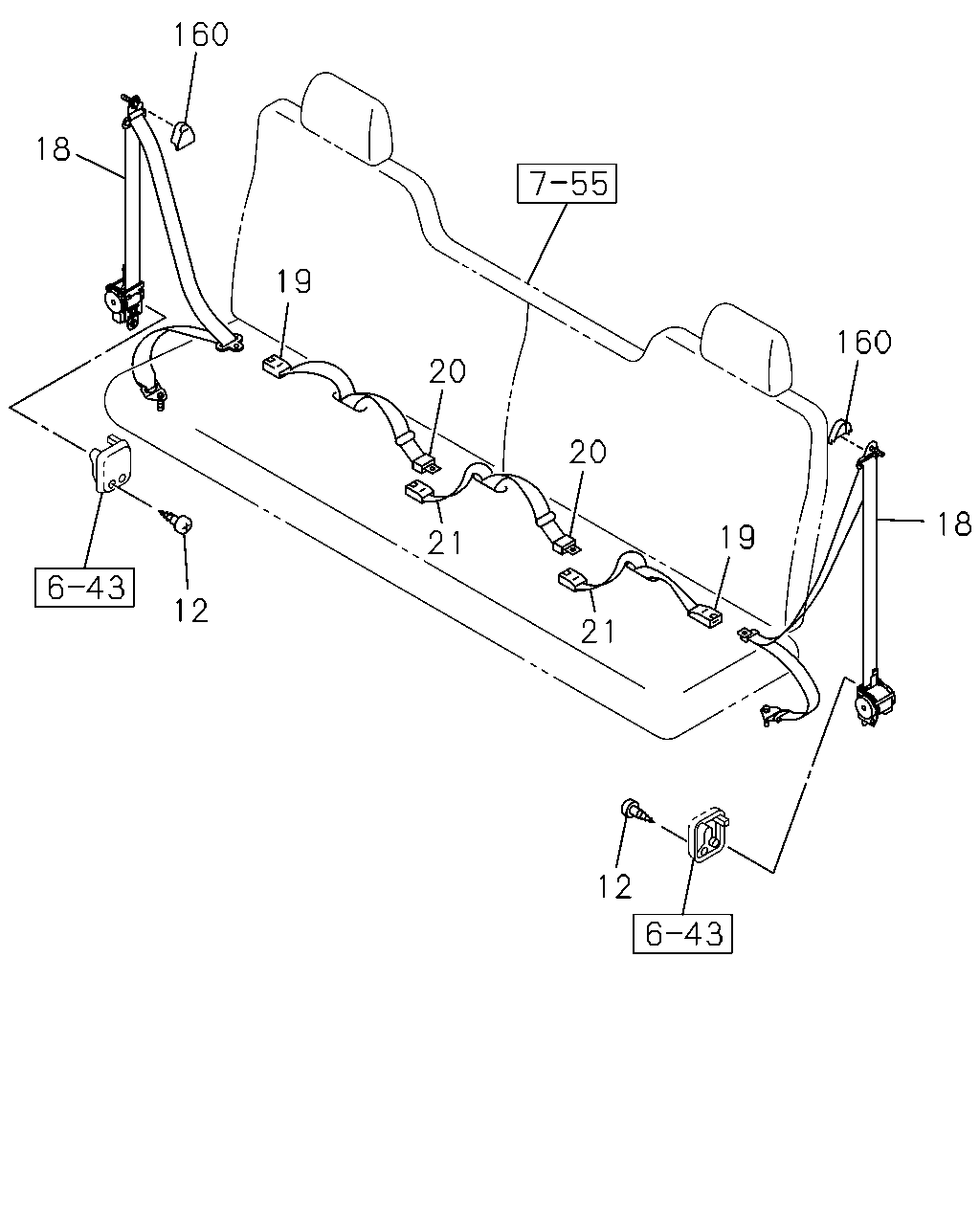

çizim 35104
160 18 19 160 20 20 18 19 21 12 21 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 0710- ● ● ●
18 16.714 BELT; SEAT,RR
GRAY 		8-97405-185-7 02 1 0710- ● ● ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
GRAY 		8-97405-992-3 02 1 0710- ● ● ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97411-511-1 01 1 0710- ● ● ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97411-512-1 01 1 0710- ● ● ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97405-993-0 01 1 0710- ● ● ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97407-144-0 01 1 0710- ● ● ●
160 16.714 COVER; THROUGH ANCHOR
REAR GRAY 		8-97405-991-0 02 1 0710- ● ● ●
160 16.714 COVER; THROUGH ANCHOR
FRONT PASSENGER SIDE GRAY 		8-97405-991-0 01 1 0710-0805 ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
FRONT PASSENGER SIDE GRAY 		8-97405-991-0 01 1 0806- ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
EXC. SEAT PASSENGER DELETE<APL> FRONT PASSENGER SIDE GRAY 		8-97405-991-0 01 1 0806- ●

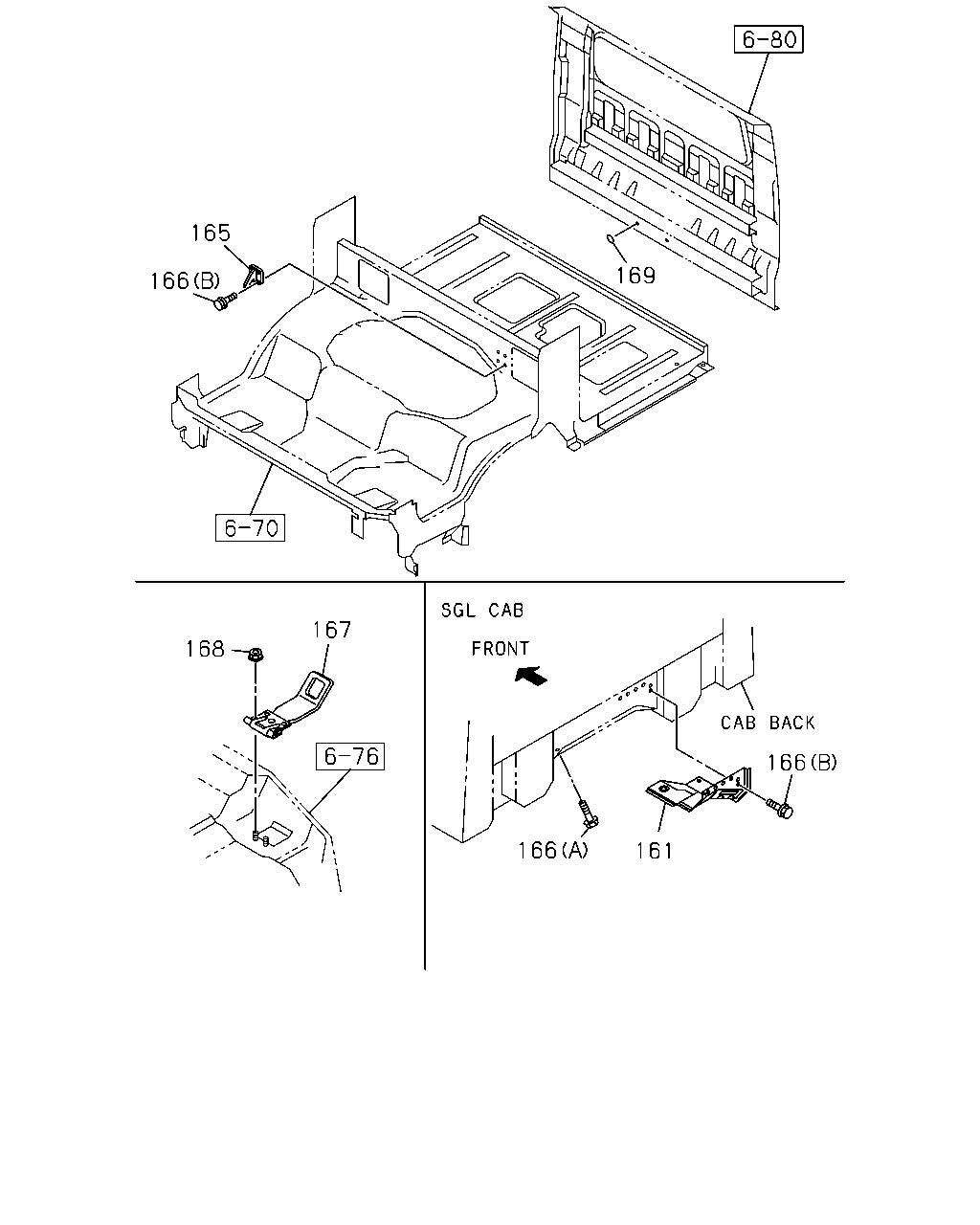

çizim 35164
165 169 166 167 168 166 166 161
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 16.545 		8-98015-216-2 01 1 0710-0805 ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 16.545 		8-98015-216-2 01 1 0806- ●
165 16.714 HOOK; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98040-143-0 01 1 0710-0805 ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-98040-143-0 01 1 0710-0805 ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98040-143-0 01 1 0806- ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-98040-143-0 01 1 0806- ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 05 1 0710-0805 ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 05 1 0806- ●
166 16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 0710-0805 ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 0710-0805 ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 0806- ●
166 16.714 BOLT; SEAT BELT ANCHOR
06.216 (B) M8X25 FLANGE 		0-28650-825-0 04 1 0806- ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 0710-0805 ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 0806- ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> 04.338 (A) M8X20 FLANGE 		0-28050-820-0 02 1 0806- ●
167 16.714 PLATE; ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-97589-140-0 01 1 0710-0805 ● ● ●
167 16.714 PLATE; ANCHOR 8-97589-140-0 01 1 0710-0805 ● ● ●
167 16.714 PLATE; ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-97589-140-0 01 1 0806- ●
167 16.714 PLATE; ANCHOR 8-97589-140-0 01 1 0806- ● ● ●
168 16.714 NUT; ANCHOR PLATE
INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0805 ● ● ●
168 16.714 NUT; ANCHOR PLATE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-0805 ● ● ●
168 16.714 NUT; ANCHOR PLATE
INSPECTION ENGINE COVER<8GA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0806- ●
168 16.714 NUT; ANCHOR PLATE
01.062 M8 FLANGE 		0-91180-108-0 02 1 0806- ● ● ●
169 16.650 SEAL
02.580 OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0710- ● ● ●

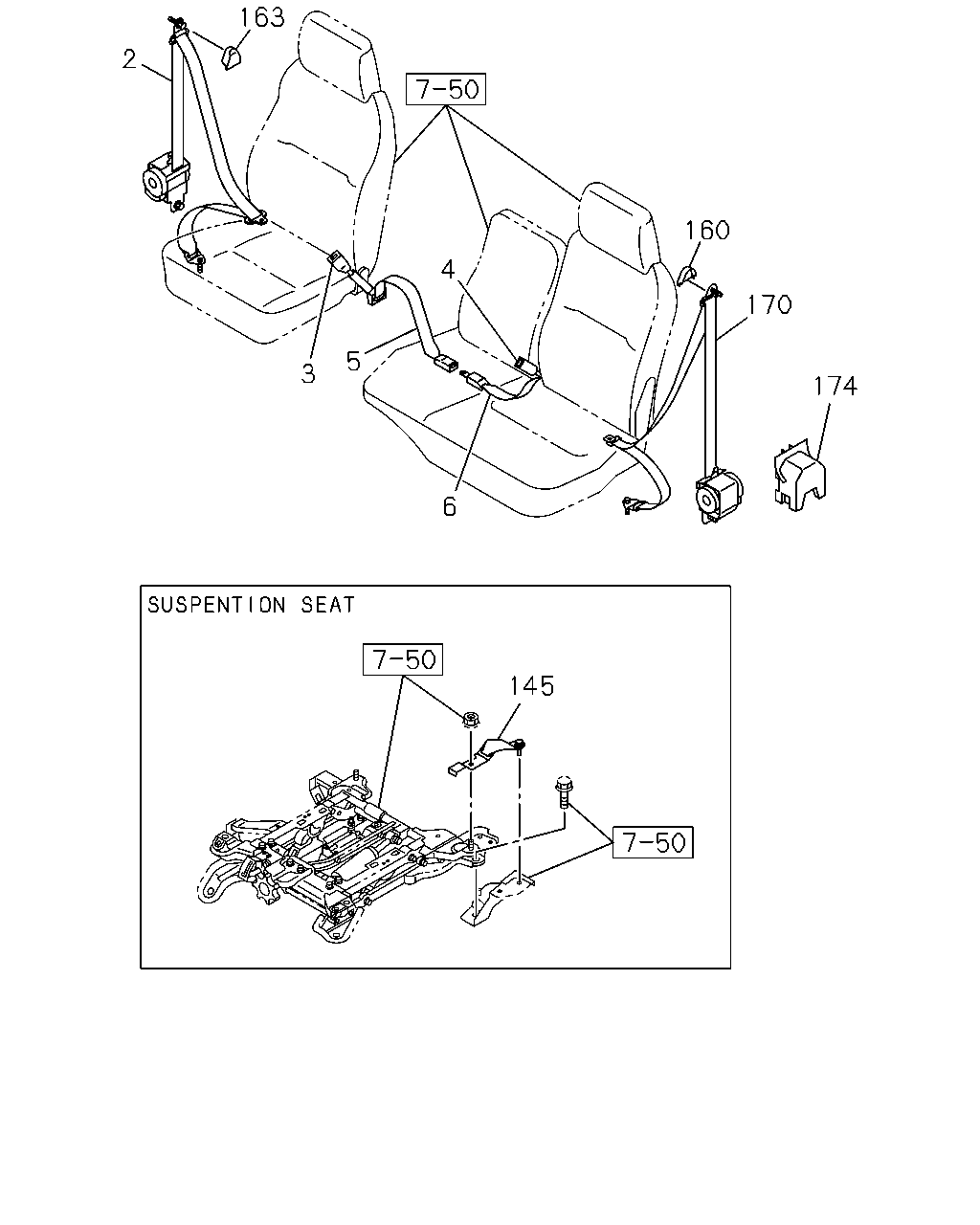

çizim 35342
163 2 160 4 170 5 3 174 6 145
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.714 BELT; SEAT,TONGUE SIDE
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-179-7 01 1 0710- ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-180-6 01 1 0710- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97405-175-2 01 1 0710- ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97405-178-0 01 1 0710-0805 ● ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97405-178-0 01 1 0806- ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
EXC. SEAT PASSENGER DELETE<APL> GRAY 		8-97405-178-0 01 1 0806- ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97405-182-1 01 1 0710-0805 ● ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97405-182-1 01 1 0806- ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
EXC. SEAT PASSENGER DELETE<APL> GRAY 		8-97405-182-1 01 1 0806- ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97411-507-1 01 1 0710-0805 ● ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97411-507-2 01 1 0806- ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
EXC. SEAT PASSENGER DELETE<APL> GRAY 		8-97411-507-2 01 1 0806- ●
145 16.714 BELT; TETHER,DRIVER
SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY 		8-97415-840-0 01 1 0804- ● ● ●
160 16.714 COVER; THROUGH ANCHOR
REAR GRAY 		8-97405-991-0 02 1 0710- ● ● ●
160 16.714 COVER; THROUGH ANCHOR
FRONT PASSENGER SIDE GRAY 		8-97405-991-0 01 1 0710-0805 ● ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
FRONT PASSENGER SIDE GRAY 		8-97405-991-0 01 1 0806- ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
EXC. SEAT PASSENGER DELETE<APL> FRONT PASSENGER SIDE GRAY 		8-97405-991-0 01 1 0806- ●
163 16.714 COVER; ADJUSTER
GRAY 		8-97405-991-0 02 1 0710-0802 ● ● ● ● ● ●
163 16.714 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 0803- ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-179-7 01 1 0710- ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-180-5 01 1 0710-0805 ● ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-180-6 01 1 0806- ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. AIR BAG DRIVER & PASSENGER<AK5>, SEAT PASSENGER DELETE<APL> GRAY 		8-97405-180-6 01 1 0806- ●
174 16.714 COVER; RETRACTOR,SEAT BELT 8-98039-376-1 01 1 0710- ● ● ●
