7-20 — MIRROR AND MIRROR STAY (#39450) — 63 parça

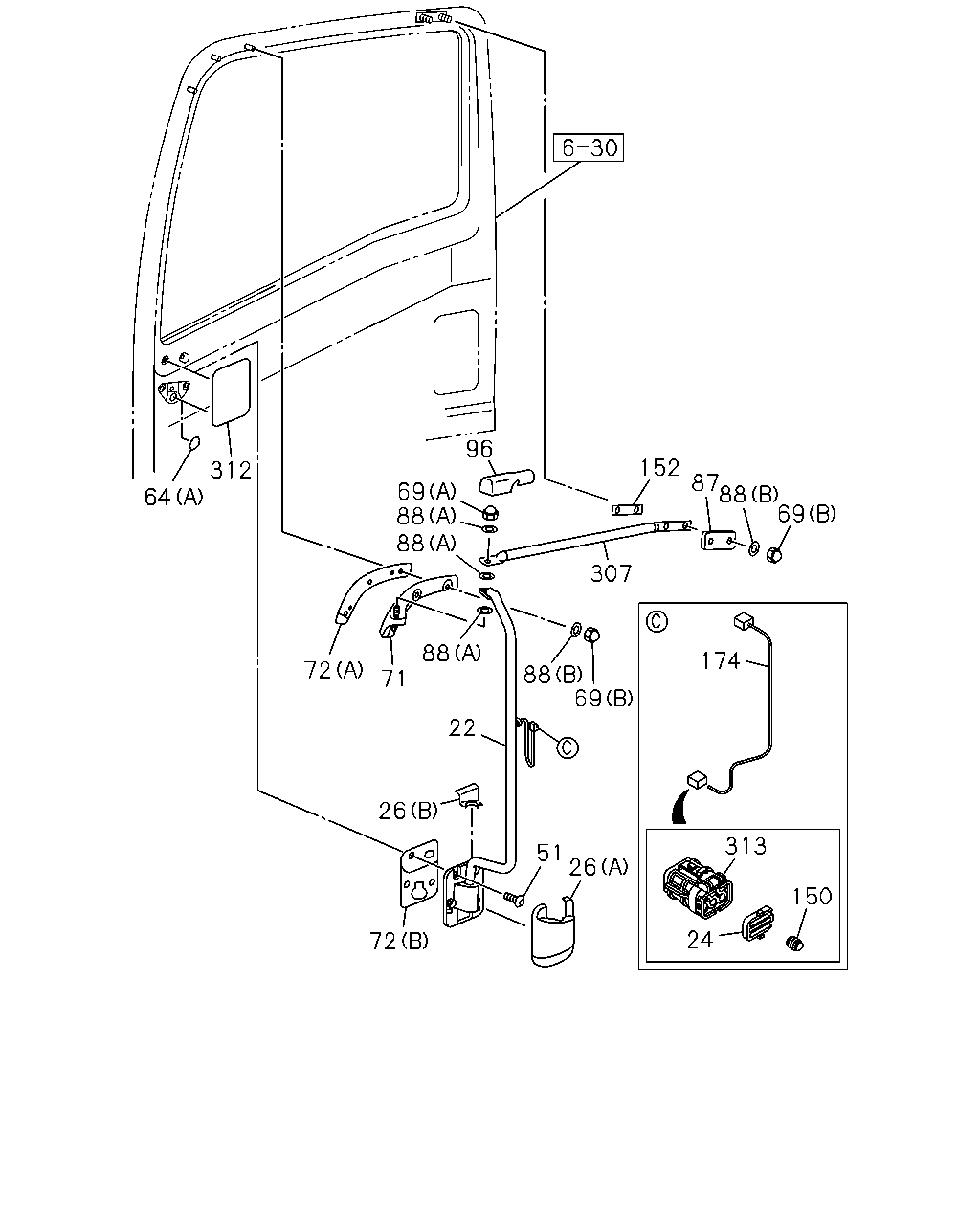

çizim 35161
96 152 312 87 88 69 69 88 88 64 307 88 174 72 88 69 71 22 26 313 51 26 150 24 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-98075-048-0 01 1 0710-1202 ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-98166-184-0 01 1 1203- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-98075-049-0 01 1 0710-1202 ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-98166-185-0 01 1 1203- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> 		8-98075-046-0 01 1 0710-1202 ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> 		8-98166-182-0 01 1 1203- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> 		8-98075-047-0 01 1 0710-1202 ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> 		8-98166-183-0 01 1 1203- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> 		8-98075-034-0 01 1 0710-1204 ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> 		8-98166-176-0 01 1 1205- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> 		8-98075-035-0 01 1 0710-1204 ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> 		8-98166-177-0 01 1 1205- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-041-0 01 1 0710-1202 ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-178-0 01 1 1203- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-042-0 01 1 0710-1202 ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-179-0 01 1 1203- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> 		8-98075-032-0 01 1 0710-1204 ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> 		8-98158-846-0 01 1 1205- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> 		8-98075-033-0 01 1 0710-1204 ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> 		8-98158-847-0 01 1 1205- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> 		8-98075-039-0 01 1 0710-1202 ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> 		8-98158-848-0 01 1 1203- ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> 		8-98075-040-0 01 1 0710-1202 ● ● ● ● ● ●
22 16.069 STAY; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> 		8-98158-849-0 01 1 1203- ● ● ● ● ● ●
24 16.069 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-94447-536-0 02 1 0901- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) 		8-98031-802-2 01 1 0710- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) 		8-98031-803-2 01 1 0710- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B) 		8-98031-805-0 01 1 0710- ● ● ● ● ● ●
26 16.069 COVER; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B) 		8-98031-806-0 01 1 0710- ● ● ● ● ● ●
51 16.069 SCREW; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 16.323 M8X23 		8-97310-216-1 08 1 0710- ● ● ● ● ● ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 16.165 (B) OD=25 BLACK 		1-76798-019-0 02 1 0710- ● ● ● ● ● ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> 16.332 (A) OD=52 BLACK 		1-76798-041-0 02 1 0803- ● ● ● ● ● ●
69 16.069 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) M10 CAP NUT 		8-98059-913-0 02 1 0710- ● ● ● ● ● ●
69 16.069 NUT; CAP
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B) M8 CAP NUT 		8-98059-914-0 10 1 0710- ● ● ● ● ● ●
71 16.069 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98031-793-2 01 1 0710- ● ● ● ● ● ●
71 16.069 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98031-794-2 01 1 0710- ● ● ● ● ● ●
72 16.069 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) 		8-98031-796-0 01 1 0710- ● ● ● ● ● ●
72 16.069 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) 		8-98031-797-0 01 1 0710- ● ● ● ● ● ●
72 16.069 SHEET
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B) 		8-98080-418-0 02 1 0710- ● ● ● ● ● ●
87 16.069 SPACER
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98063-789-0 02 1 0710- ● ● ● ● ● ●
88 16.069 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (B) ID=8.4 OD=16.0 T=1.6 		1-09985-191-0 10 1 0710- ● ● ● ● ● ●
88 16.069 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0710-0812 ● ● ● ● ● ●
88 16.069 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> DOOR MIRROR<6VE> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 0901-0901 ● ● ● ● ● ●
88 16.069 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0902- ● ● ● ● ● ●
88 16.069 WASHER; PL,SUPPORT STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0901-0901 ● ● ● ● ● ●
88 16.069 WASHER; PL,SUPPORT STAY
DOOR MIRROR<6VE> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> (A) ID=10.5 OD=26 T=2.6 		1-09985-204-0 06 1 0901-0901 ● ● ● ● ● ●
96 16.069 CAP; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98080-173-0 02 1 0710- ● ● ● ● ● ●
150 08.155 PLUG; MIRROR HOLE
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		1-82691-026-0 02 1 0901- ● ● ● ● ● ●
152 16.069 SHEET; MIRROR STAY
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98063-786-0 02 1 0710- ● ● ● ● ● ●
174 16.068 HARNESS; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 02.480 		8-98079-660-0 02 1 0710-0812 ● ● ● ● ● ●
174 16.068 HARNESS; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-98137-208-0 02 1 0901- ● ● ● ● ● ●
307 16.069 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98063-784-2 01 1 0710- ● ● ● ● ● ●
307 16.069 STAY; MIRROR SUPPORT
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98063-785-2 01 1 0710- ● ● ● ● ● ●
312 16.081 TAPE
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 		8-98164-812-0 02 1 1003- ● ● ● ● ● ●
313 02.195 CONNECTOR; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> 		8-94447-532-0 02 1 0901- ● ● ● ● ● ●

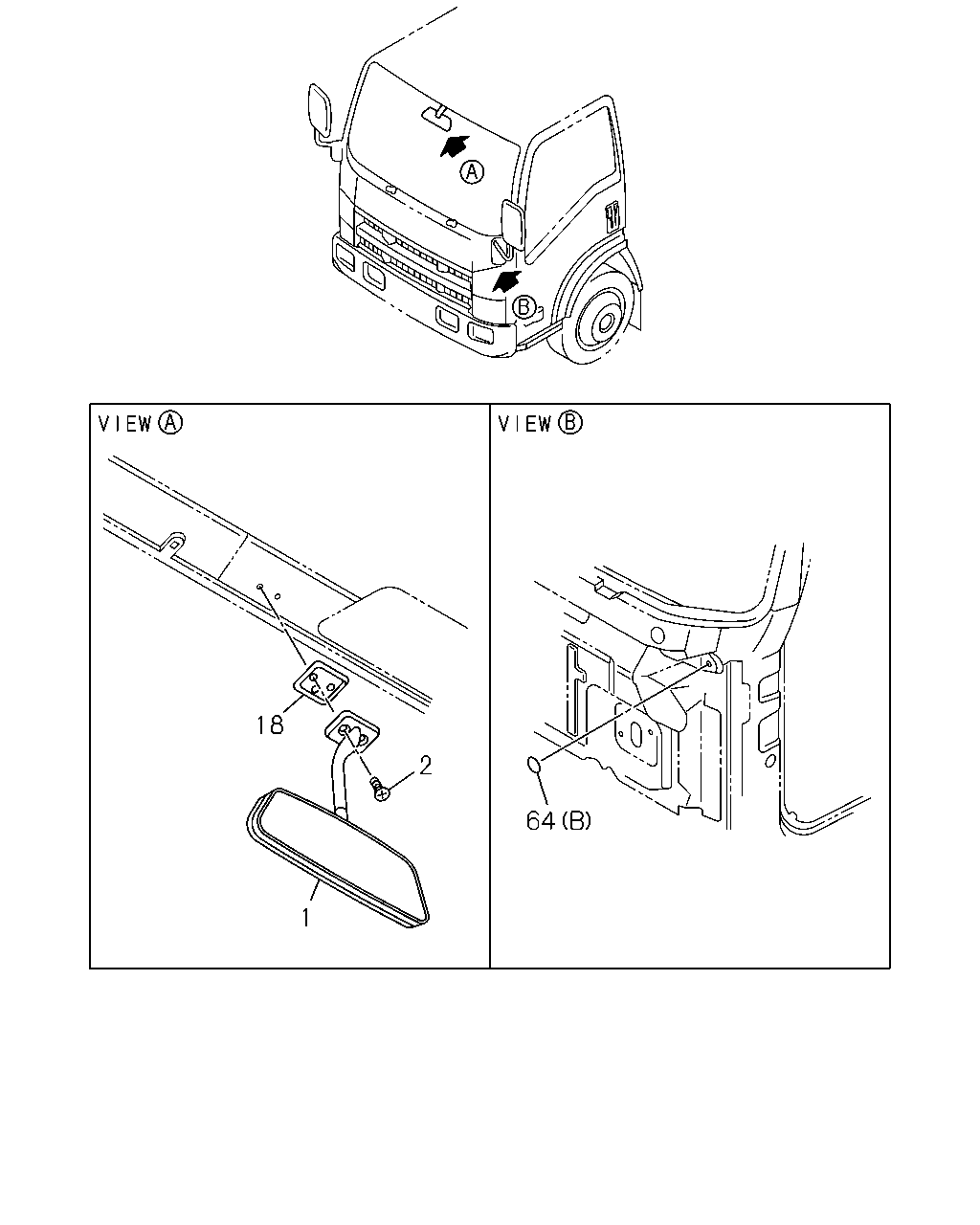

çizim 100174
18 2 64 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.068 MIRROR; ROOM
DARK GRAY 		8-97414-309-0 01 1 0710-0802 ● ●
1 16.068 MIRROR; ROOM
DARK GRAY 		8-97405-193-1 01 1 0710-0802 ● ● ● ●
1 16.068 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 0803- ● ● ● ● ● ●
2 16.069 SCREW; MIRROR TO BODY
16.070 M6X26 		8-98033-674-0 02 1 0710- ● ● ● ● ● ●
18 16.069 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 0710- ● ●
18 16.069 CLIP; MIRROR
INTERIOR TRIM-FULL TRIMMING<WM3> DARK GRAY 		8-97408-241-0 01 1 0710- ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> 16.165 (B) OD=25 BLACK 		1-76798-019-0 02 1 0710- ● ● ● ● ● ●
64 16.069 SEAL; MIRROR
O/SIDE MIRROR RR VIEW LONG ARM<DH2>, DOOR MIRROR<6VE>,O/SIDE MIRROR RR VIEWMIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATE D<7SV> 16.332 (A) OD=52 BLACK 		1-76798-041-0 02 1 0803- ● ● ● ● ● ●
