0-82 — BOOST COMPENSATOR; INJECTION GOVERNOR (#3945) — 79 parça

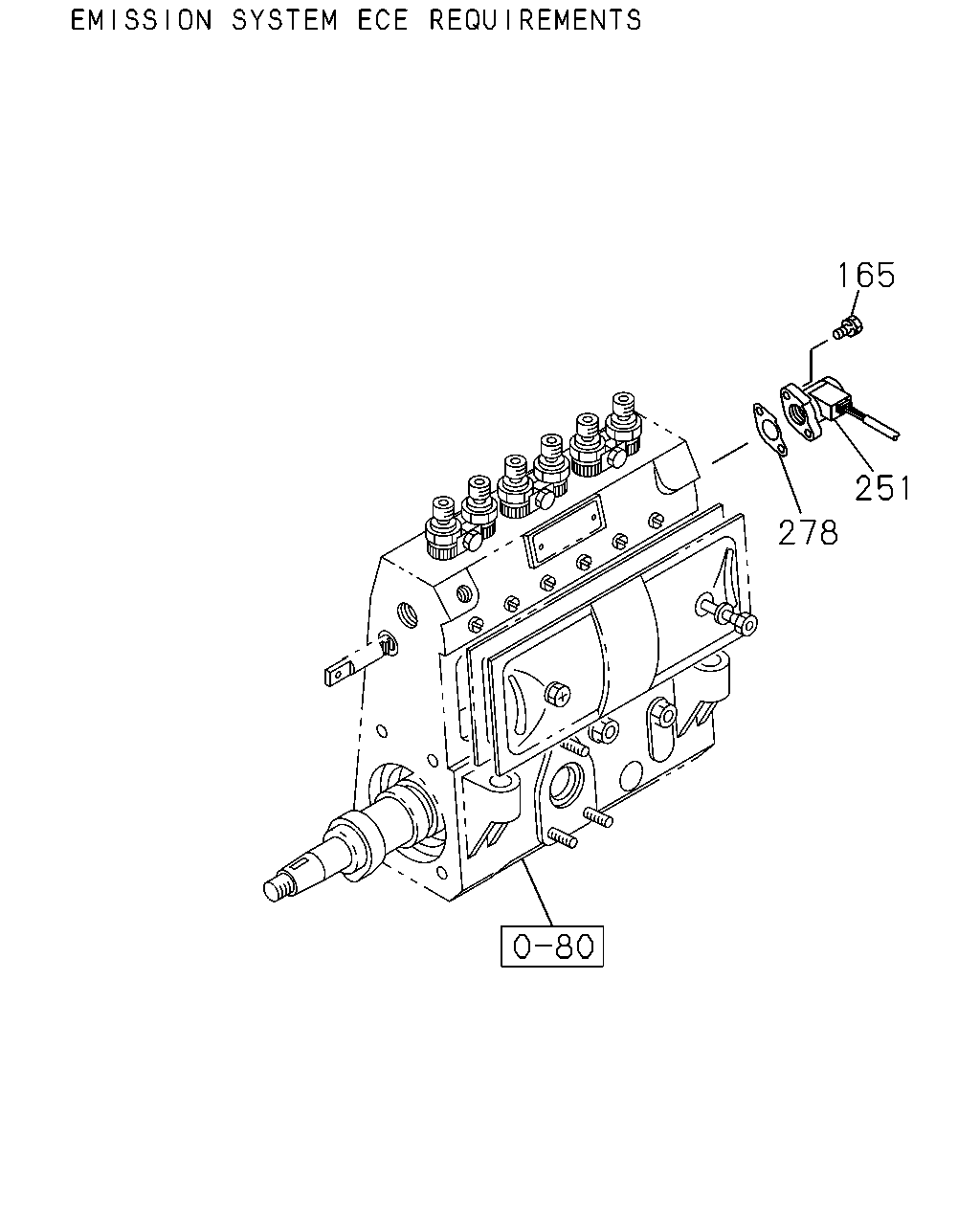

165 251 278

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
165	BOLT; SENSOR ASM PART: D = 8-94392-219-3	1-83579-438-0	02	1	-
251	SENSOR; RACK,GOV ASM PART: B = 8-94392-008-1	1-15637-035-0	01	1	-0007
251	SENSOR; RACK,GOV ASM PART: C = 8-94392-009-1	1-15637-035-0	01	1	-9802
251	SENSOR; RACK,GOV ASM PART: G = 8-97600-576-1, H = 8-97602-131-0	1-15637-045-2	01	1	-
251	SENSOR; RACK,GOV ASM PART: E = 8-94392-231-8	1-15637-046-5	01	1	-
251	SENSOR; RACK,GOV ASM PART: B = 8-94392-008-1	1-15637-054-0	01	1	0008-
251	SENSOR; RACK,GOV ASM PART: C = 8-94392-009-1	1-15637-054-0	01	1	9803-
251	SENSOR; RACK,GOV ASM PART: D = 8-94392-219-3	1-15779-664-0	01	1	-
278	GASKET; SENSOR ASM PART: D = 8-94392-219-3	8-97121-637-0	01	1	-
278	GASKET; SENSOR ASM PART: B = 8-94392-008-1, C = 8-94392-009-1, E = 8-94392-231-8, G = 8-97600-576-1, H = 8-97602-131-0	9-81325-528-0	01	1	-

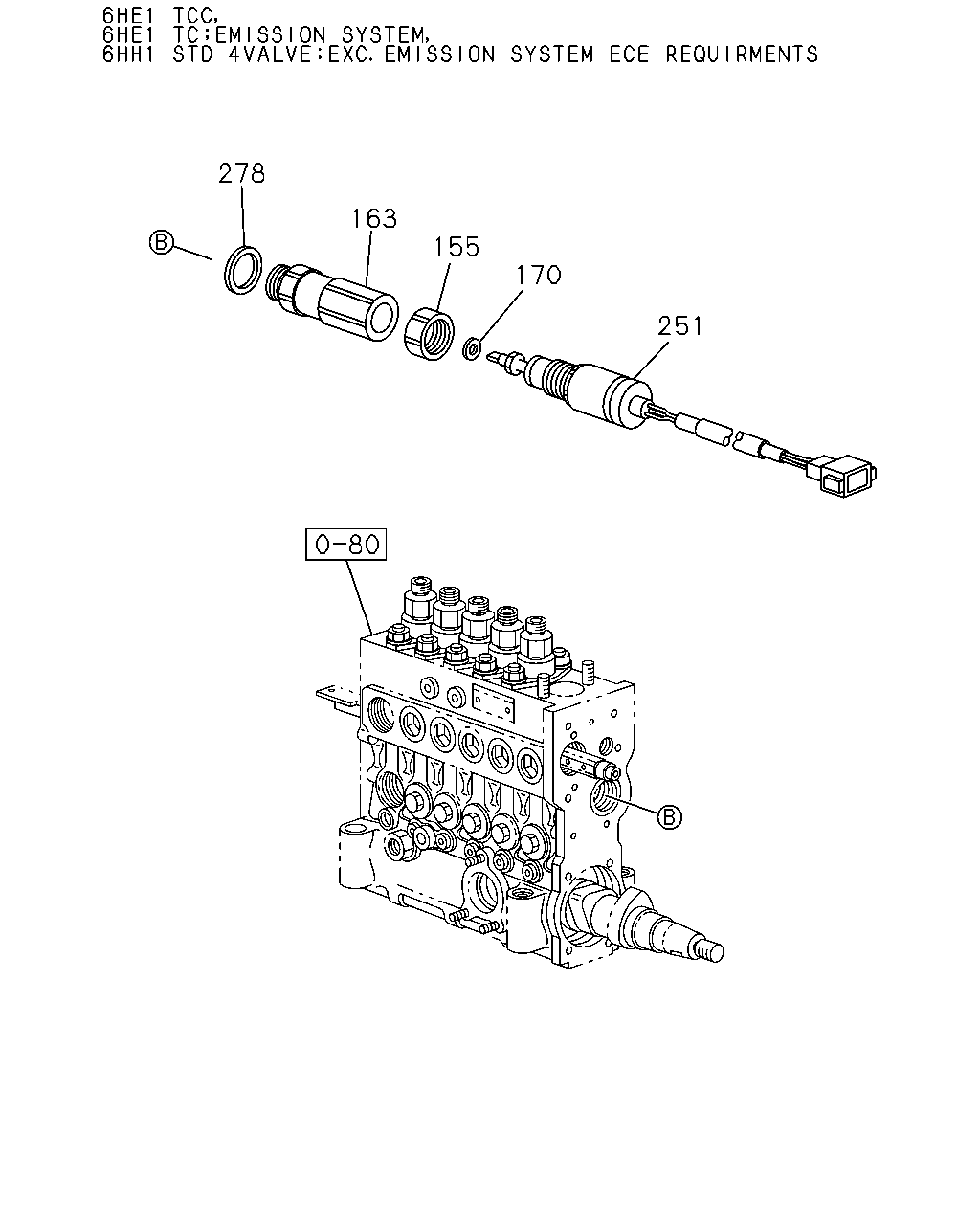

278 163 155 170 251

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	NUT; SENSOR ASM PART: B = 8-94392-008-1, C = 8-94392-009-1, E = 8-94392-231-8, G = 8-97600-576-1, H = 8-97602-131-0	1-15779-179-0	01	1	-
163	JOINT; LOAD SENSOR,SENSOR SIDE ASM PART: B = 8-94392-008-1, C = 8-94392-009-1, E = 8-94392-231-8, G = 8-97600-576-1, H = 8-97602-131-0	1-15779-551-0	01	1	-
170	SHIM; CONN PIN,LOAD SENSOR,GOV ASM PART: B = 8-94392-008-1, C = 8-94392-009-1, E = 8-94392-231-8, G = 8-97600-576-1, H = 8-97602-131-0	1-15729-673-0	01	1	-
251	SENSOR; RACK,GOV ASM PART: B = 8-94392-008-1	1-15637-035-0	01	1	-0007
251	SENSOR; RACK,GOV ASM PART: C = 8-94392-009-1	1-15637-035-0	01	1	-9802
251	SENSOR; RACK,GOV ASM PART: G = 8-97600-576-1, H = 8-97602-131-0	1-15637-045-2	01	1	-
251	SENSOR; RACK,GOV ASM PART: E = 8-94392-231-8	1-15637-046-5	01	1	-
251	SENSOR; RACK,GOV ASM PART: B = 8-94392-008-1	1-15637-054-0	01	1	0008-
251	SENSOR; RACK,GOV ASM PART: C = 8-94392-009-1	1-15637-054-0	01	1	9803-
251	SENSOR; RACK,GOV ASM PART: D = 8-94392-219-3	1-15779-664-0	01	1	-
278	GASKET; SENSOR ASM PART: D = 8-94392-219-3	8-97121-637-0	01	1	-
278	GASKET; SENSOR ASM PART: B = 8-94392-008-1, C = 8-94392-009-1, E = 8-94392-231-8, G = 8-97600-576-1, H = 8-97602-131-0	9-81325-528-0	01	1	-

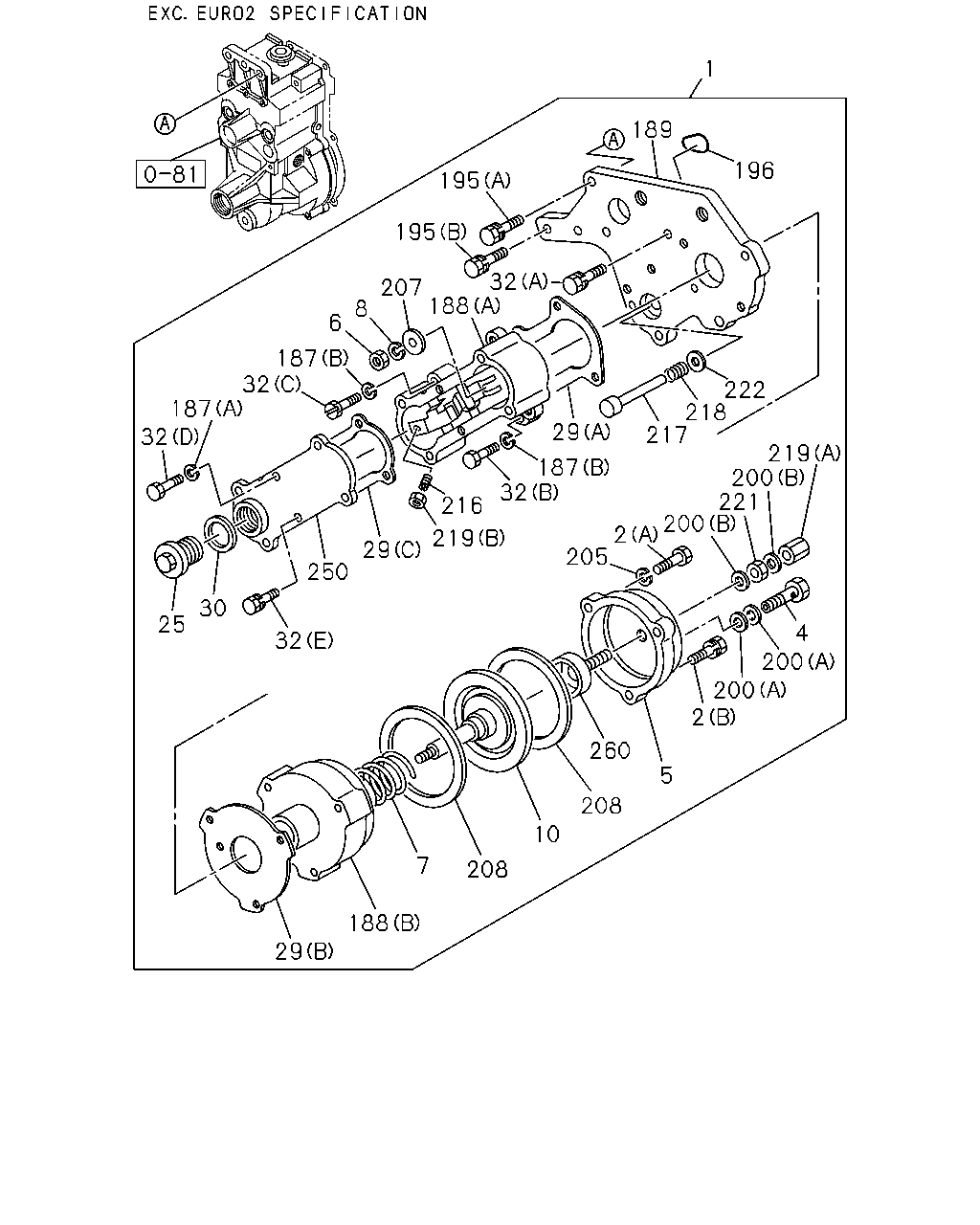

1 189 196 195 195 32 207 188 8 6 187 32 222 218 217 187 32 29 219 200 221 200 187 32 216 2 205 219 29 250 30 25 4 32 200 200 2 260 5 208 10 7 208 188 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: F = 8-94395-921-2	1-15728-094-1	01	1	9605-
1	COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: A = 8-94391-170-1	1-15728-094-1	01	1	-
1	COMPENSATOR ASM; BOOST,INJ PUMP ASM PART: F = 8-94395-921-2	1-15728-095-0	01	1	-9604
2	BOLT; COVER FIX,BOOST COMPENSATOR (A) ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15779-202-0	01	1	-
2	BOLT; COVER FIX,BOOST COMPENSATOR (B) ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	9-88410-094-0	02	1	-
4	BOLT; EYE,BOOST PIPE,COMPENSATOR ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15729-325-0	01	1	-
5	COVER; HSG,BOOST COMPENSATOR,GOV ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15619-283-0	01	1	-
6	NUT; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15729-249-0	01	1	-
7	SPRING; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15713-007-0	01	1	9907-
7	SPRING; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-94391-170-1	1-15723-483-0	01	1	-9906
7	SPRING; DIAPH,BOOST COMPENSATOR ASM PART: F = 8-94395-921-2	1-15723-483-0	01	1	9605-9906
7	SPRING; DIAPH,BOOST COMPENSATOR ASM PART: F = 8-94395-921-2	1-15723-504-0	01	1	-9604
8	WASHER; LK,DIAPH,BOOST COMPENSATOR ID=6.1 ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	9-09150-506-0	01	1	-
10	DIAPHRAGM; BOOST COMPENSATOR,GOV ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15712-006-0	01	1	-
25	PLUG; HSG,BOOST COMPENSATOR ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15779-124-1	01	1	-
29	GASKET; HSG,BOOST COMPENSATOR (A) ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15779-122-0	01	1	-
29	GASKET; HSG,BOOST COMPENSATOR (B) ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15779-123-0	01	1	-
29	GASKET; HSG,BOOST COMPENSATOR (C) ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15779-126-0	01	1	-
30	GASKET; HSG PLUG,BOOST COMPENSATOR ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	9-19139-024-0	01	1	-
32	BOLT; BOOST COMPENSATOR FIX,INJ PUMP (B) ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15619-217-0	01	1	-
32	BOLT; BOOST COMPENSATOR FIX,INJ PUMP (D) ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15729-413-0	01	1	-
32	BOLT; BOOST COMPENSATOR FIX,INJ PUMP (C) ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15779-202-0	01	1	-
32	BOLT; BOOST COMPENSATOR FIX,INJ PUMP (A) ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	9-88410-094-0	05	1	-
32	BOLT; BOOST COMPENSATOR FIX,INJ PUMP (E) ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	9-92040-612-0	04	1	-
187	WASHER; LK,BOOST COMPENSATOR FIX (A), ID=5 ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-83539-044-0	05	1	-
187	WASHER; LK,BOOST COMPENSATOR FIX (B), ID=6.1 ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	9-09150-506-0	02	1	-
188	HOUSING; BOOST COMPENSATOR,INJ PUMP (A) ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15721-279-0	01	1	-
188	HOUSING; BOOST COMPENSATOR,INJ PUMP (B) ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15721-280-0	01	1	-
189	SPACER; BOOST COMPENSATOR HSG ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15779-109-0	01	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (A), M8X30 ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15729-243-0	01	1	-
195	BOLT; SPACER FIX,BOOST COMPENSATOR (B), M6X20 ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	9-81325-187-0	03	1	-
196	GASKET; SPACER,BOOST COMPENSATOR ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	8-94424-220-0	01	1	-
200	GASKET; EYE BOLT,BOOST COMPENSATOR (A) ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15729-849-0	02	1	-
200	GASKET; EYE BOLT,BOOST COMPENSATOR (B) ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15729-868-0	02	1	-
205	WASHER; LK,COVER FIX,BOOST COMPENSATOR ID=6.1 ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	9-09150-506-0	01	1	-
207	DISC; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15779-121-0	01	1	-
208	GASKET; DIAPH,BOOST COMPENSATOR ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15779-129-0	02	1	-
216	SCREW; ADJ,DIAPH,BOOST COMPENSATOR ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	8-94171-179-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=108.5 ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15779-110-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=109.5 ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15779-111-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=110.5 ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15779-112-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=111.5 ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15779-113-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=112.5 ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15779-114-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=113.5 ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15779-115-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=114.5 ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15779-116-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=115.5 ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15779-117-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=116.5 ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15779-118-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=117.5 ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15779-119-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=118.5 ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15779-120-0	01	1	-
217	ROD; PUSH,BOOST COMPENSATOR L=119.5 ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	8-94172-290-0	01	1	-
218	SPRING; PUSH ROD,BOOST COMPENSATOR ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	8-94171-176-0	01	1	-
219	NUT; CAP,ADJ SCREW,BOOST COMPENSATOR (A) ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15729-093-0	01	1	-
219	NUT; CAP,ADJ SCREW,BOOST COMPENSATOR (B) ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	9-88410-525-0	01	1	-
221	NUT; ADJ SCREW LOCK,BOOST COMPENSATOR ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	9-88410-525-0	01	1	-
222	WASHER; PUSH ROD,BOOST COMPENSATOR ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-83539-045-0	01	1	-
250	COVER; HSG ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15721-281-0	01	1	-
260	SCREW; DIAPHRAGM ASM PART: A = 8-94391-170-1, F = 8-94395-921-2	1-15729-386-0	01	1	-
