Isuzu WW
▶
TRUCKS
▶
NNR
▶
51398 - NNR/NPR/NQR(AUST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

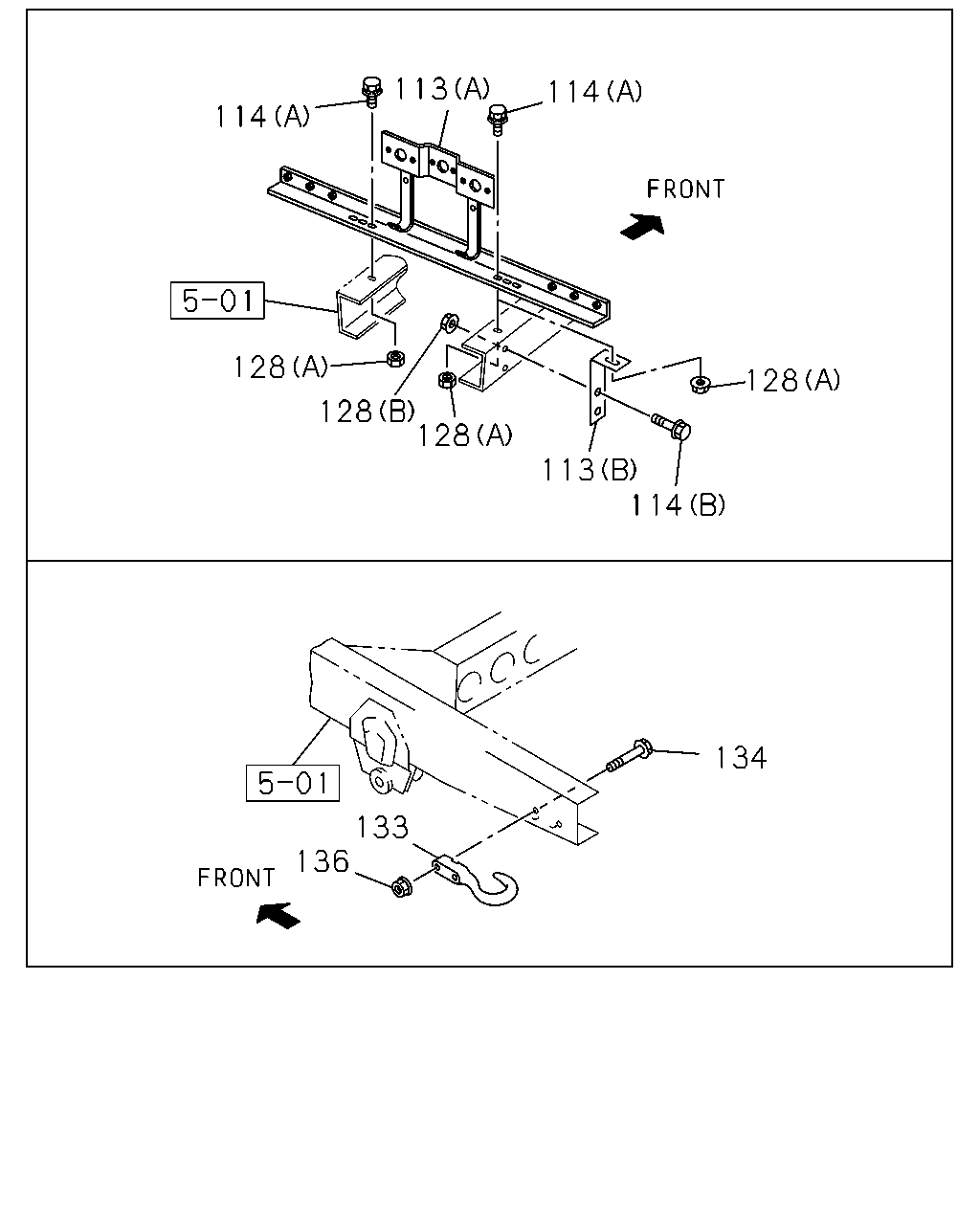

6-90 — REAR BUMPER
(#39447) — 17 parça
Tümü
A - NPR5SE
B - NPR5SN
C - NPR5SS
D - NPR5WE
E - NPR5WN
F - NPR5WS
113
114
114
128
128
128
128
113
114
134
133
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
113
07.800 BRACKET; LICENSE PLATE
(A)
8-98029-390-3
01
1
0710-
●
●
●
●
●
●
113
07.800 BRACKET; LICENSE PLATE
WHEEL BASE 4100MM(41W) (B)
8-98091-681-0
02
1
0710-
●
113
07.800 BRACKET; LICENSE PLATE
WHEEL BASE 4400MM(44W) (B)
8-98091-681-0
02
1
0710-
●
113
07.800 BRACKET; LICENSE PLATE
(B)
8-98091-681-0
02
1
0710-
●
●
114
07.800 BOLT; BRKT,LICENSE PLATE
00.685 (A) M8X40 FLANGE
0-28650-840-0
02
1
0710-
●
●
●
●
●
●
114
07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4100MM(41W) 07.833 (B) M10X25 FLANGE
0-28661-025-0
04
1
0710-
●
114
07.800 BOLT; BRKT,LICENSE PLATE
WHEEL BASE 4400MM(44W) 07.833 (B) M10X25 FLANGE
0-28661-025-0
04
1
0710-
●
114
07.800 BOLT; BRKT,LICENSE PLATE
07.833 (B) M10X25 FLANGE
0-28661-025-0
04
1
0710-
●
●
128
02.662 NUT; CROSS PLATE
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
0710-
●
●
●
●
●
●
128
02.662 NUT; CROSS PLATE
WHEEL BASE 4100MM(41W) 03.162 (B) M10 FLANGE
0-91180-110-0
04
1
0710-
●
128
02.662 NUT; CROSS PLATE
WHEEL BASE 4400MM(44W) 03.162 (B) M10 FLANGE
0-91180-110-0
04
1
0710-
●
128
02.662 NUT; CROSS PLATE
03.162 (B) M10 FLANGE
0-91180-110-0
04
1
0710-
●
●
133
07.112 HOOK
07.068
8-97387-665-0
01
1
0710-
●
●
133
07.112 HOOK
07.068
8-94249-270-2
01
1
0710-
●
●
●
●
134
07.068 BOLT; HOOK
07.039 M14X50
0-10856-450-0
02
1
0710-1011
●
●
●
●
●
●
134
07.068 BOLT; HOOK
M14X60
0-10861-460-0
02
1
1012-
●
●
●
●
●
●
136
07.068 NUT; HOOK
00.429 M14 FLANGE
0-91180-214-0
02
1
0710-
●
●
●
●
●
●
