6-80 — BACK PANEL (#39444) — 96 parça

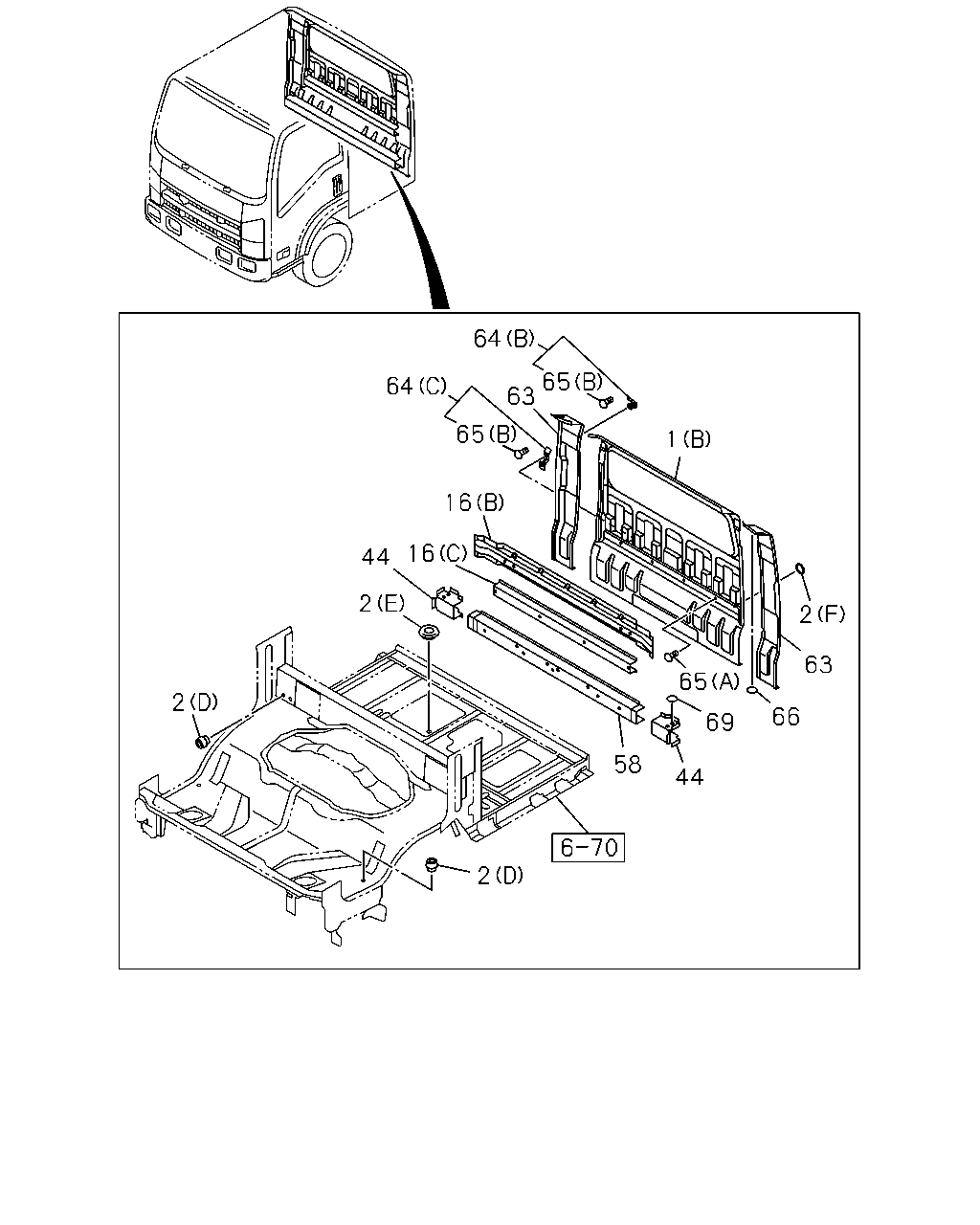

çizim 35231
64 65 63 64 65 1 16 16 44 2 2 63 65 2 66 69 58 44 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.587 PANEL; BACK OUTER
(A) 		8-97584-304-3 01 1 0710- ● ● ●
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-749-5 01 1 0710- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 0710- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 0710- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0710-0710 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0711-0805 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0806-1109 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0806-1109 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1110- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 10 1 0710-0805 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 10 1 0806- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0710-0805 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0806-1109 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0806-1109 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1110- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 0710-0805 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 0806- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 0806- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (F) OD=16.2 		8-94492-493-0 02 1 0710-0908 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (F) OD=15.0 		8-94279-040-0 02 1 0909- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-608-2 01 1 0710- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97583-754-0 01 1 0710- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-98006-213-0 01 1 0710- ● ● ●
44 16.587 BRACKET; RR SEAT ANCHOR
16.714 		8-98055-947-0 01 1 0710- ● ● ●
44 16.587 BRACKET; RR SEAT ANCHOR
16.714 		8-98055-949-0 01 1 0710- ● ● ●
58 16.575 REINFORCEMENT; SEAT BELT ANCHOR 8-98006-720-0 01 1 0710- ● ● ●
63 16.575 PANEL; BACK,SIDE 8-97583-750-6 01 1 0710- ● ● ●
63 16.575 PANEL; BACK,SIDE 8-97583-751-5 01 1 0710- ● ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 0710- ● ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 0710- ● ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 0710- ● ● ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 0710-1001 ● ● ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 0710- ● ● ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 02 1 0710- ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR FT ORANGE(609),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0710-0802 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR FT ORANGE(609),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0710-0802 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0803-0903 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0803-0903 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),B ODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEA TLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890) ,BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0904- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),B ODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEA TLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890) ,BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0904- ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0710-0903 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0710-0903 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0904- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0904- ● ● ●
69 16.587 SEAL; LOCATION HOLE
16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0710- ● ● ●

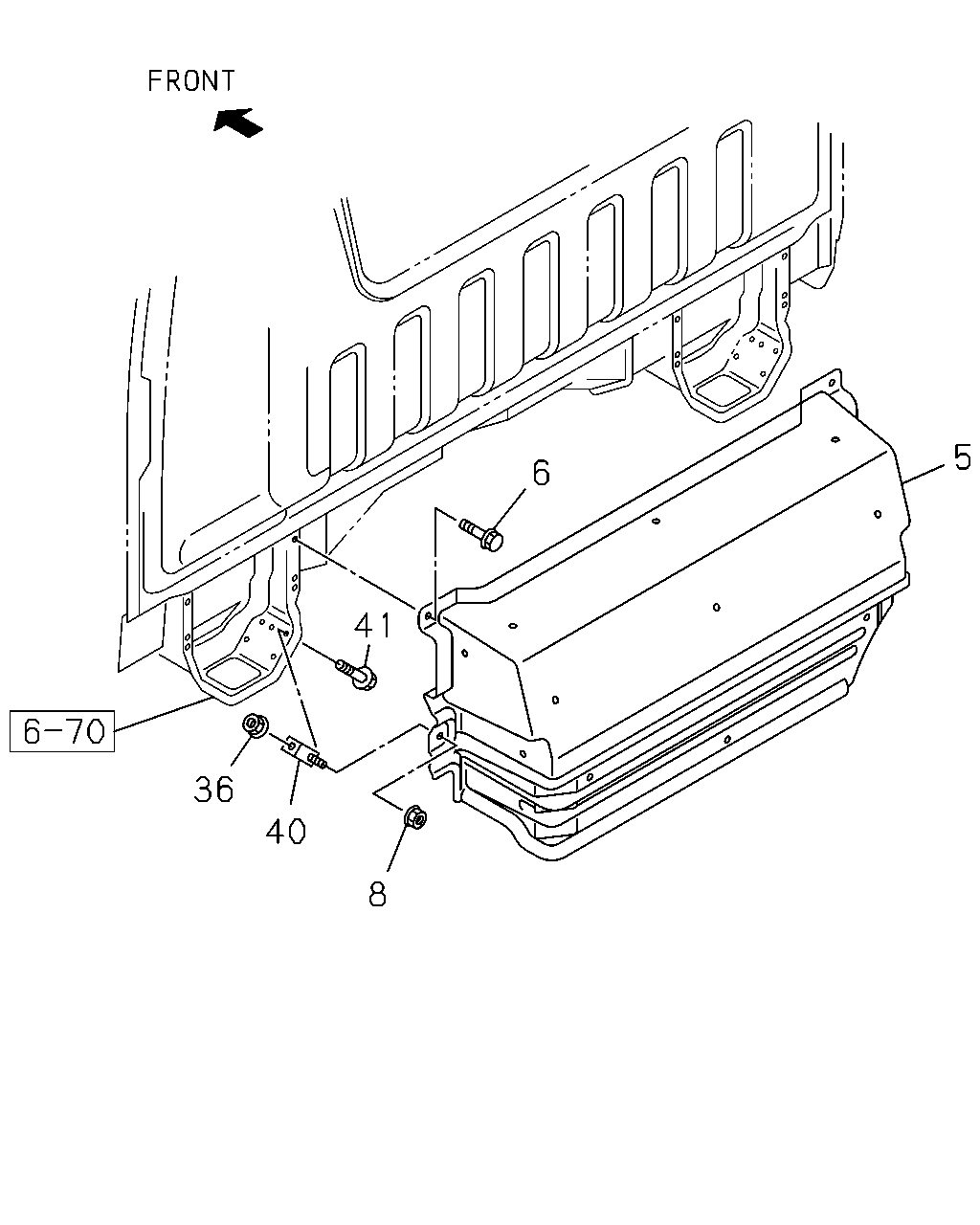

çizim 35500
5 6 41 36 40 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 16.587 PANEL; CAB BACK
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98011-595-0 01 1 0710- ●
5 16.587 PANEL; CAB BACK
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98011-595-0 01 1 0710- ●
6 16.587 BOLT; BACK PANEL
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.155 M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 0710- ●
6 16.587 BOLT; BACK PANEL
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 08.155 M8X25 W/LK&PL WASHER 		1-09030-093-0 02 1 0710- ●
8 16.587 NUT; BACK PANEL
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 0710- ●
8 16.587 NUT; BACK PANEL
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 0710- ●
36 16.587 NUT; BRKT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710- ●
36 16.587 NUT; BRKT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710- ●
40 16.587 BRACKET; BACK PANEL
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97322-264-0 02 1 0710- ●
40 16.587 BRACKET; BACK PANEL
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97322-264-0 02 1 0710- ●
41 16.587 BOLT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●
41 16.587 BOLT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0710- ●

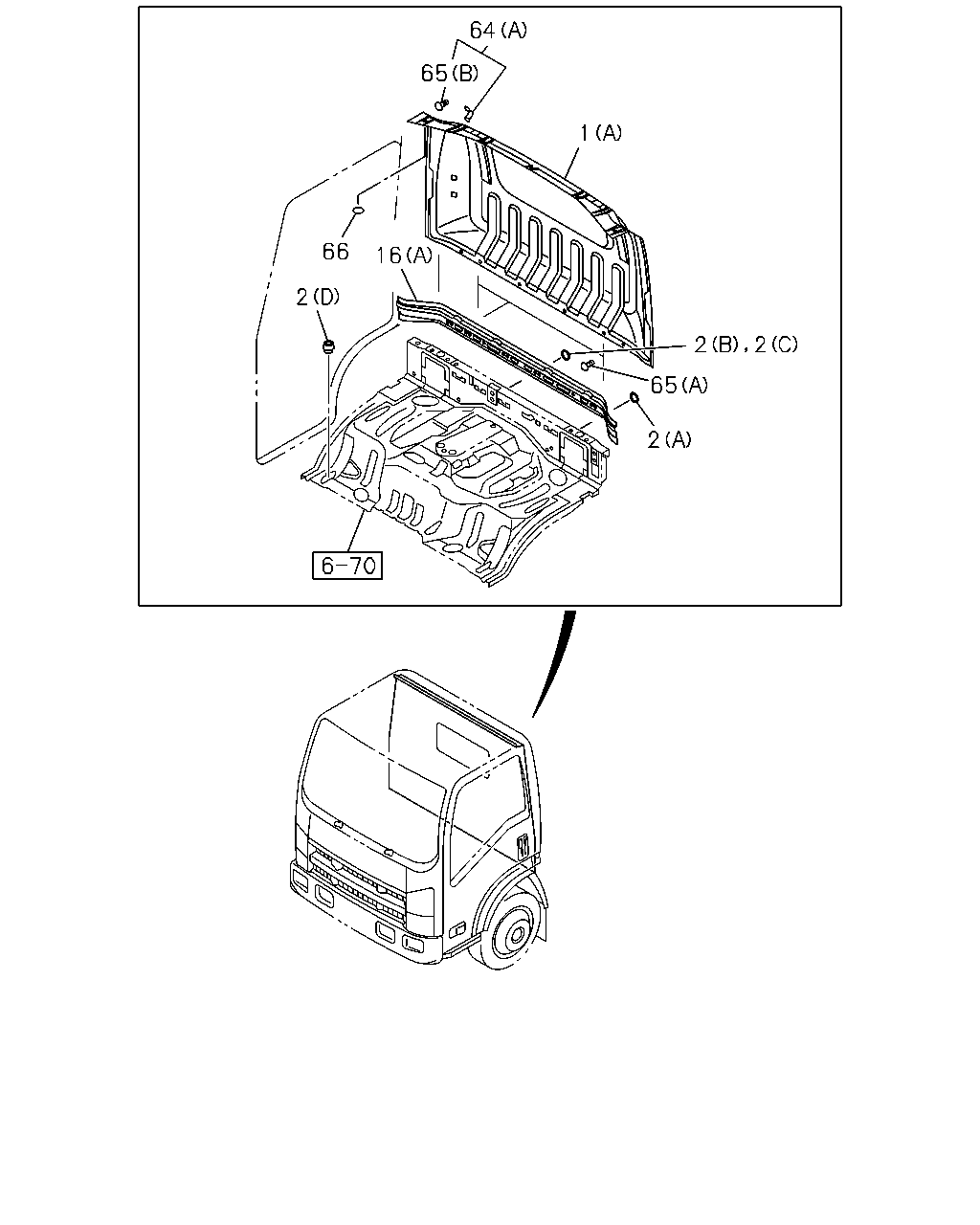

çizim 35522
64 65 1 66 16 2 65 2 2 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 16.587 PANEL; BACK OUTER
(A) 		8-97584-304-3 01 1 0710- ● ● ●
1 16.587 PANEL; BACK OUTER
(B) 		8-97583-749-5 01 1 0710- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (D) OD=12.1 		8-97898-423-0 04 1 0710- ● ● ● ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
15.222 (E) OD=35 		8-94122-971-0 04 1 0710- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 02.580 (B) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0710-0710 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0711-0805 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0806-1109 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 0806-1109 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 02 1 1110- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 10 1 0710-0805 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 10 1 0806- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0710-0805 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0806-1109 ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 0806-1109 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 02 1 1110- ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 0710-0805 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 0806- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
EXC. INSPECTION ENGINE COVER<8GA> 16.545 (C) OD=32 BLACK 		8-98031-126-0 06 1 0806- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
00.785 (F) OD=16.2 		8-94492-493-0 02 1 0710-0908 ● ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (F) OD=15.0 		8-94279-040-0 02 1 0909- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(A) 		8-97584-608-2 01 1 0710- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(B) 		8-97583-754-0 01 1 0710- ● ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
(C) 		8-98006-213-0 01 1 0710- ● ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
16.570 (A) 		8-97584-611-1 01 1 0710- ● ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(B) 		8-98054-615-0 01 1 0710- ● ● ●
64 16.587 BRACKET; AIR INTAKE DUCT
(C) 		8-98054-617-0 01 1 0710- ● ● ●
65 17.198 STUD; BACK PANEL
16.588 (A) M6X12 		8-98013-112-0 04 1 0710-1001 ● ● ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 01 1 0710- ● ● ●
65 17.198 STUD; BACK PANEL
(B) 		8-94389-701-0 02 1 0710- ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR FT ORANGE(609),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0710-0802 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR FT ORANGE(609),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0710-0802 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0803-0903 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR FT ORANGE(609),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0803-0903 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),B ODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEA TLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890) ,BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0904- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR BRIGHT YELLOW(538),BODY COLOR TELEMAGENTA(539),B ODY COLOR FT ORANGE(609),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),B ODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEA TLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890) ,BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0904- ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0710-0903 ●
66 16.587 SEAL; BACK PANEL
BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0710-0903 ● ● ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. INTERIOR TRIM-FULL TRIMMING<WM3> 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0904- ●
66 16.587 SEAL; BACK PANEL
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0904- ● ● ●
