Sayfa 6-76 - Isuzu EPC

6-76 — FLOOR EQUIPMENT AND SEALING (#39442) — 285 parça

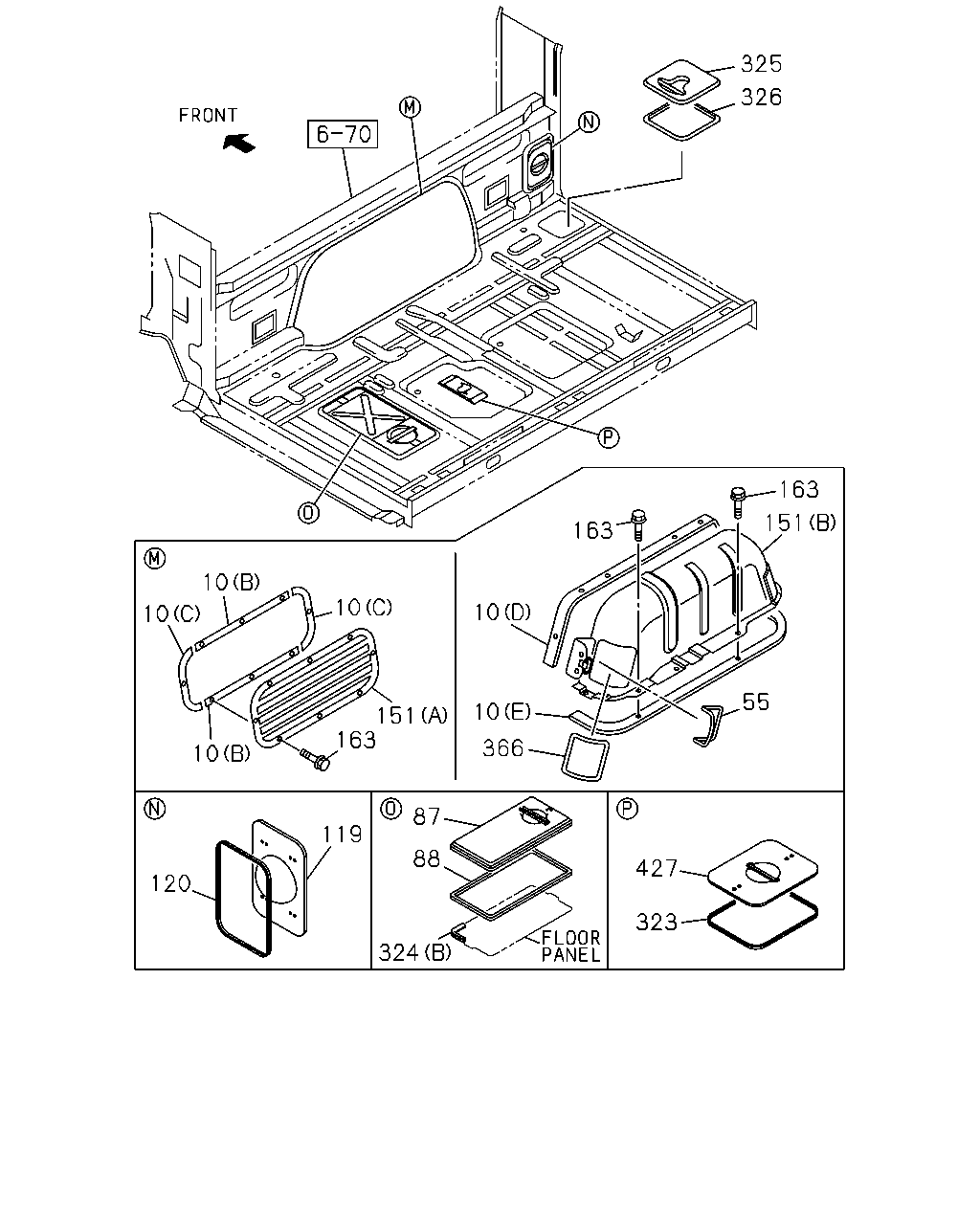

325 326 163 151 163 10 10 10 10 55 10 151 163 366 10 87 119 88 427 120 323 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
10	16.549 SEAL; ENG COVER 4JJ1-TCS ENG(LFB) (B)	8-97853-660-0	02	1	0710-	●
10	16.549 SEAL; ENG COVER 4JJ1-TCS ENG(LFB) (C)	8-97853-661-0	02	1	0710-	●
10	16.549 SEAL; ENG COVER 4HK1-TCN ENG(RDQ) (D)	8-98006-847-0	01	1	0710-		●
10	16.549 SEAL; ENG COVER 4HK1-TCS ENG(RJS) (D)	8-98006-847-0	01	1	0710-			●
10	16.549 SEAL; ENG COVER 4HK1-TCN ENG(RDQ) (E)	8-98006-852-0	01	1	0710-		●
10	16.549 SEAL; ENG COVER 4HK1-TCS ENG(RJS) (E)	8-98006-852-0	01	1	0710-			●
10	16.549 SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	0710-0805				●	●	●
10	16.549 SEAL; ENG COVER (A)	8-98029-377-0	01	1	0710-0805	●	●	●
10	16.549 SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	0806-						●
10	16.549 SEAL; ENG COVER (A)	8-98029-377-0	01	1	0806-	●	●	●
55	16.549 SEAL; SUPPORT COVER 4HK1-TCN ENG(RDQ)	8-97583-500-1	01	1	0710-		●
55	16.549 SEAL; SUPPORT COVER 4HK1-TCS ENG(RJS)	8-97583-500-1	01	1	0710-			●
87	16.549 COVER; BATTERY CHECK HOLE	8-97856-332-4	01	1	0710-	●	●	●
88	16.549 SEAL; BATTERY CHECK HOLE COVER	8-97853-725-1	01	1	0710-	●	●	●
119	16.090 LID; P/S OIL TANK	8-97853-440-2	01	1	0710-	●	●	●
120	16.090 SEAL; LID,P/S	8-97853-441-1	01	1	0710-	●	●	●
151	16.549 COVER ASM; ENG 4JJ1-TCS ENG(LFB) (A)	8-97850-241-3	01	1	0710-	●
151	16.549 COVER ASM; ENG 4HK1-TCN ENG(RDQ) (B)	8-98043-008-4	01	1	0710-		●
151	16.549 COVER ASM; ENG 4HK1-TCS ENG(RJS) (B)	8-98043-008-4	01	1	0710-			●
163	16.549 BOLT; RR,ENG COVER,FRT 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0710-	●	●	●
163	16.549 BOLT; RR,ENG COVER,FRT 4HK1-TCN ENG(RDQ) 02.343 M6X16 FLANGE	0-28650-616-0	11	1	0710-		●
163	16.549 BOLT; RR,ENG COVER,FRT 4HK1-TCS ENG(RJS) 02.343 M6X16 FLANGE	0-28650-616-0	11	1	0710-			●
163	16.549 BOLT; RR,ENG COVER,FRT 4JJ1-TCS ENG(LFB) 02.343 M6X16 FLANGE	0-28650-616-0	08	1	0710-0901	●
163	16.549 BOLT; RR,ENG COVER,FRT 4HK1-TCN ENG(RDQ) 02.343 M6X16 FLANGE	0-28650-616-0	08	1	0710-0901		●
163	16.549 BOLT; RR,ENG COVER,FRT 4JJ1-TCS ENG(LFB) 02.343 M6X16 FLANGE	0-28650-616-0	08	1	0902-	●
323	16.549 SEAL; COVER,A/T OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97853-443-2	01	1	0710-0901	●	●	●
323	16.549 SEAL; COVER,A/T OIL 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97853-443-2	01	1	0902-	●
324	16.545 FINISHER; FLOOR PANEL 16.570 (B) L=73 SERVICED BY L=190	1-71998-300-0	02	1	0710-	●	●	●
324	16.545 FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140	8-97892-742-0	03	1	0710-0805				●	●	●
324	16.545 FINISHER; FLOOR PANEL (A) L=140	8-97892-742-0	03	1	0710-0805	●	●	●
324	16.545 FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140	8-97892-742-0	03	1	0806-						●
324	16.545 FINISHER; FLOOR PANEL (A) L=140	8-97892-742-0	03	1	0806-	●	●	●
325	16.549 COVER; LLC	8-97856-974-0	01	1	0710-	●	●	●
326	16.549 SEAL; COVER	8-97856-975-1	01	1	0710-	●	●	●
366	16.545 FINISHER; COVER 4HK1-TCN ENG(RDQ)	8-97583-501-0	01	1	0710-		●
366	16.545 FINISHER; COVER 4HK1-TCS ENG(RJS)	8-97583-501-0	01	1	0710-			●
427	16.549 COVER; SMOOTHER OIL 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97853-442-2	01	1	0710-	●

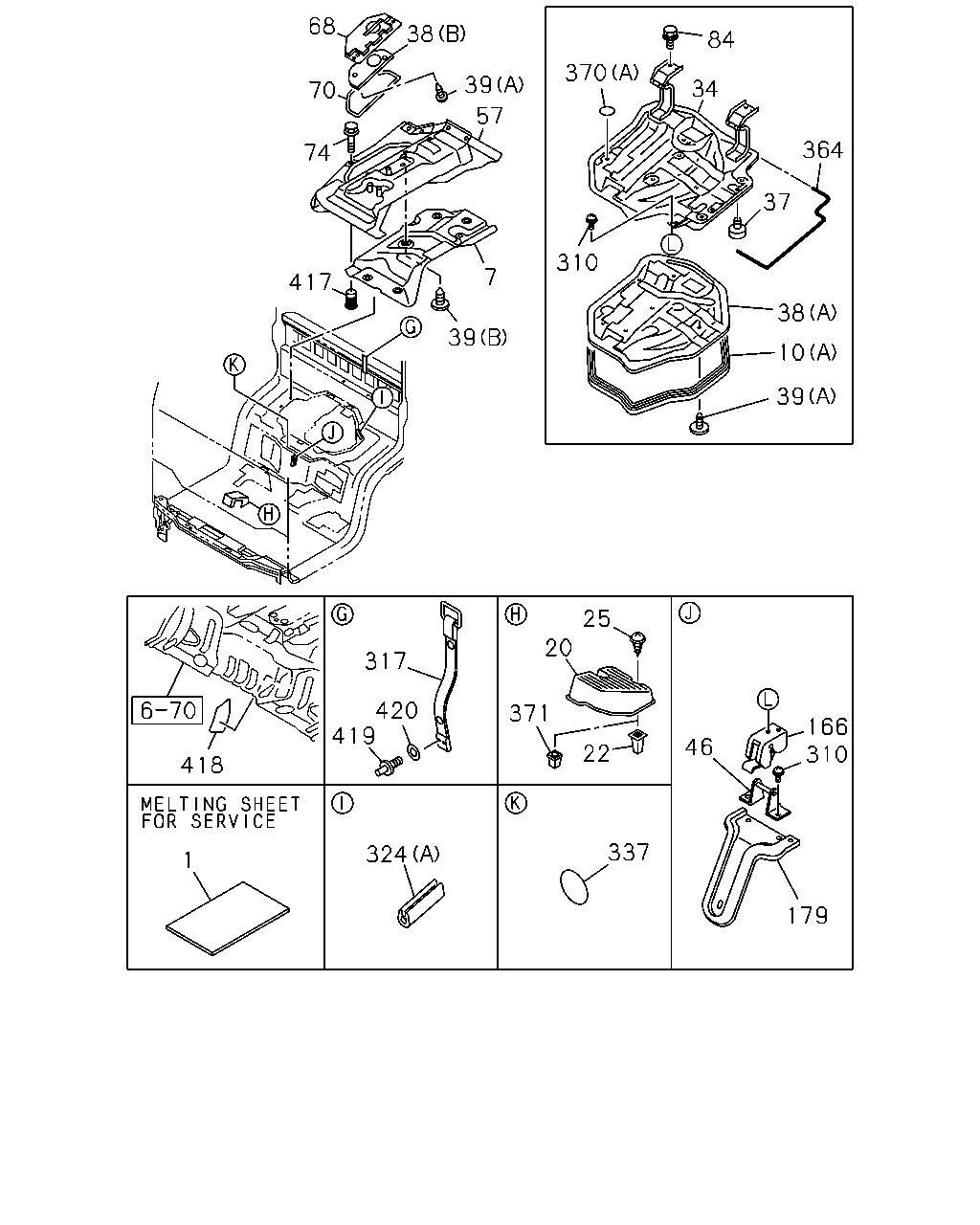

68 38 84 370 39 34 70 57 364 74 37 310 7 417 38 39 10 39 25 20 317 420 419 371 166 310 46 22 418 337 324 1 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.850 SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ON LY	8-94262-093-0	AR	1	0710-	●	●	●	●	●	●
7	16.545 INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA>	8-97586-175-1	01	1	0710-0805				●	●	●
7	16.545 INSULATOR; SUPPORT COVER	8-97586-175-1	01	1	0710-0805	●	●	●
7	16.545 INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA>	8-97586-175-1	01	1	0806-						●
7	16.545 INSULATOR; SUPPORT COVER	8-97586-175-1	01	1	0806-	●	●	●
10	16.549 SEAL; ENG COVER 4JJ1-TCS ENG(LFB) (B)	8-97853-660-0	02	1	0710-	●
10	16.549 SEAL; ENG COVER 4JJ1-TCS ENG(LFB) (C)	8-97853-661-0	02	1	0710-	●
10	16.549 SEAL; ENG COVER 4HK1-TCN ENG(RDQ) (D)	8-98006-847-0	01	1	0710-		●
10	16.549 SEAL; ENG COVER 4HK1-TCS ENG(RJS) (D)	8-98006-847-0	01	1	0710-			●
10	16.549 SEAL; ENG COVER 4HK1-TCN ENG(RDQ) (E)	8-98006-852-0	01	1	0710-		●
10	16.549 SEAL; ENG COVER 4HK1-TCS ENG(RJS) (E)	8-98006-852-0	01	1	0710-			●
10	16.549 SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	0710-0805				●	●	●
10	16.549 SEAL; ENG COVER (A)	8-98029-377-0	01	1	0710-0805	●	●	●
10	16.549 SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	0806-						●
10	16.549 SEAL; ENG COVER (A)	8-98029-377-0	01	1	0806-	●	●	●
20	16.547 REST; FOOT EXC. TRANSMISSION CONTROL-SMOOTHER DE LETE(8GJ)	8-98032-754-0	01	1	0710-	●	●	●	●	●	●
22	16.547 GROMMET; SCREW,FOOT REST EXC. TRANSMISSION CONTROL-SMOOTHER DE LETE(8GJ) 04.931 H=15	8-94463-268-1	02	1	0710-	●	●	●	●	●	●
25	16.549 SCREW; FOOT REST EXC. TRANSMISSION CONTROL-SMOOTHER DE LETE(8GJ) 16.570 T25 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	02	1	0710-	●	●	●	●	●	●
34	16.549 COVER ASM; ENG,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97587-395-3	01	1	0710-0805				●	●	●
34	16.549 COVER ASM; ENG,CAB FLOOR	8-97587-395-3	01	1	0710-0805	●	●	●
34	16.549 COVER ASM; ENG,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97587-395-3	01	1	0806-						●
34	16.549 COVER ASM; ENG,CAB FLOOR	8-97587-395-3	01	1	0806-	●	●	●
37	16.549 RUBBER; BUFFER,ENG COVER INSPECTION ENGINE COVER<8GA> 16.155 OD=30 T=10	5-74917-001-2	02	1	0710-0805				●	●	●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	0710-0805	●	●	●
37	16.549 RUBBER; BUFFER,ENG COVER INSPECTION ENGINE COVER<8GA> 16.155 OD=30 T=10	5-74917-001-2	02	1	0806-						●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	0806-	●	●	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (B)	8-97586-169-2	01	1	0710-0805				●	●	●
38	16.549 INSULATOR; ENG COVER (B)	8-97586-169-2	01	1	0710-0805	●	●	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (B)	8-97586-169-2	01	1	0806-						●
38	16.549 INSULATOR; ENG COVER (B)	8-97586-169-2	01	1	0806-	●	●	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-97586-182-2	01	1	0710-0805				●	●	●
38	16.549 INSULATOR; ENG COVER (A)	8-97586-182-2	01	1	0710-0805	●	●	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-97586-182-2	01	1	0806-						●
38	16.549 INSULATOR; ENG COVER (A)	8-97586-182-2	01	1	0806-	●	●	●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> (B) OD=30	8-94279-952-0	07	1	0710-0805				●	●	●
39	16.549 CLIP; INSULATOR,COVER (B) OD=30	8-94279-952-0	07	1	0710-0805	●	●	●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> (B) OD=30	8-94279-952-0	07	1	0806-						●
39	16.549 CLIP; INSULATOR,COVER (B) OD=30	8-94279-952-0	07	1	0806-	●	●	●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	0710-0805				●	●	●
39	16.549 CLIP; INSULATOR,COVER 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	0710-0805	●	●	●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	0806-						●
39	16.549 CLIP; INSULATOR,COVER 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	0806-	●	●	●
46	16.549 HOOK ASM; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-145-0	02	1	0710-0805				●	●	●
46	16.549 HOOK ASM; ENG COVER	8-98040-145-0	02	1	0710-0805	●	●	●
46	16.549 HOOK ASM; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-145-0	02	1	0806-						●
46	16.549 HOOK ASM; ENG COVER	8-98040-145-0	02	1	0806-	●	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97587-400-3	01	1	0710-0805				●	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR	8-97587-400-3	01	1	0710-0805	●	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97587-400-3	01	1	0806-						●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR	8-97587-400-3	01	1	0806-	●	●	●
68	16.549 COVER ASM; SUB,ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-141-0	01	1	0710-0805				●	●	●
68	16.549 COVER ASM; SUB,ENG COVER	8-98040-141-0	01	1	0710-0805	●	●	●
68	16.549 COVER ASM; SUB,ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-141-0	01	1	0806-						●
68	16.549 COVER ASM; SUB,ENG COVER	8-98040-141-0	01	1	0806-	●	●	●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97853-050-1	01	1	0710-0805				●	●	●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR	8-97853-050-1	01	1	0710-0805	●	●	●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97853-050-1	01	1	0806-						●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR	8-97853-050-1	01	1	0806-	●	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE	0-28650-820-0	10	1	0710-0805				●	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 01.531 M8X20 FLANGE	0-28650-820-0	10	1	0710-0805	●	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE	0-28650-820-0	10	1	0806-						●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 01.531 M8X20 FLANGE	0-28650-820-0	10	1	0806-	●	●	●
84	16.549 BOLT; ENG COVER HINGE INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0710-0805				●	●	●
84	16.549 BOLT; ENG COVER HINGE 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0710-0805	●	●	●
84	16.549 BOLT; ENG COVER HINGE INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0806-						●
84	16.549 BOLT; ENG COVER HINGE 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0806-	●	●	●
166	16.549 LOCK; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-152-0	02	1	0710-0805				●	●	●
166	16.549 LOCK; ENG COVER	8-98040-152-0	02	1	0710-0805	●	●	●
166	16.549 LOCK; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-152-0	02	1	0806-						●
166	16.549 LOCK; ENG COVER	8-98040-152-0	02	1	0806-	●	●	●
179	16.549 REINFORCEMENT; COVER INSPECTION ENGINE COVER<8GA>	8-98048-301-1	01	1	0710-0805				●	●	●
179	16.549 REINFORCEMENT; COVER	8-98048-301-1	01	1	0710-0805	●	●	●
179	16.549 REINFORCEMENT; COVER INSPECTION ENGINE COVER<8GA>	8-98048-301-1	01	1	0806-						●
179	16.549 REINFORCEMENT; COVER	8-98048-301-1	01	1	0806-	●	●	●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 16.570 M6X16	0-38050-616-0	09	1	0710-0805				●	●	●
310	16.549 SCREW; ENG COVER HOOK 16.570 M6X16	0-38050-616-0	09	1	0710-0805	●	●	●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 16.570 M6X16	0-38050-616-0	09	1	0806-0810						●
310	16.549 SCREW; ENG COVER HOOK 16.570 M6X16	0-38050-616-0	09	1	0806-0810	●	●	●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 16.570 M6X16	0-38050-616-0	05	1	0811-						●
310	16.549 SCREW; ENG COVER HOOK 16.570 M6X16	0-38050-616-0	05	1	0811-	●	●	●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0811-						●
310	16.549 SCREW; ENG COVER HOOK 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0811-	●	●	●
317	16.549 BAND; ENGINE COVER INSPECTION ENGINE COVER<8GA>	8-97585-575-0	01	1	0710-0805				●	●	●
317	16.549 BAND; ENGINE COVER	8-97585-575-0	01	1	0710-0805	●	●	●
317	16.549 BAND; ENGINE COVER INSPECTION ENGINE COVER<8GA>	8-97585-575-0	01	1	0806-						●
317	16.549 BAND; ENGINE COVER	8-97585-575-0	01	1	0806-	●	●	●
324	16.545 FINISHER; FLOOR PANEL 16.570 (B) L=73 SERVICED BY L=190	1-71998-300-0	02	1	0710-	●	●	●
324	16.545 FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140	8-97892-742-0	03	1	0710-0805				●	●	●
324	16.545 FINISHER; FLOOR PANEL (A) L=140	8-97892-742-0	03	1	0710-0805	●	●	●
324	16.545 FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140	8-97892-742-0	03	1	0806-						●
324	16.545 FINISHER; FLOOR PANEL (A) L=140	8-97892-742-0	03	1	0806-	●	●	●
337	16.545 SEAL; CLIP HOLE OD=32 BLACK	8-98031-126-0	04	1	0710-	●	●	●	●	●	●
337	16.545 SEAL; CLIP HOLE OD=32 BLACK	8-98031-126-0	08	1	0710-	●	●	●	●	●	●
337	16.545 SEAL; CLIP HOLE 16.165 OD=25 BLACK	1-76798-019-0	23	1	0710-	●	●	●
337	16.545 SEAL; CLIP HOLE INSPECTION ENGINE COVER<8GA> OD=32 BLACK	8-98031-126-0	01	1	0710-0805				●	●	●
337	16.545 SEAL; CLIP HOLE INSPECTION ENGINE COVER<8GA> OD=32 BLACK	8-98031-126-0	01	1	0806-						●
364	16.545 FINISHER; ENG COVER SIDE INSPECTION ENGINE COVER<8GA> L=1100	8-97892-744-0	01	1	0710-0805				●	●	●
364	16.545 FINISHER; ENG COVER SIDE L=1100	8-97892-744-0	01	1	0710-0805	●	●	●
364	16.545 FINISHER; ENG COVER SIDE INSPECTION ENGINE COVER<8GA> L=1100	8-97892-744-0	01	1	0806-						●
364	16.545 FINISHER; ENG COVER SIDE L=1100	8-97892-744-0	01	1	0806-	●	●	●
370	16.549 SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	03	1	0710-0805				●	●	●
370	16.549 SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	03	1	0806-						●
370	16.549 SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	0710-0805				●	●	●
370	16.549 SEAL; LOCATION HOLE 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	0710-0805	●	●	●
370	16.549 SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	0806-						●
370	16.549 SEAL; LOCATION HOLE 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	0806-	●	●	●
371	16.549 GROMMET; LOCATION HOLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 16.547 14.5X14.5 BLACK	8-94279-714-0	02	1	0710-	●	●	●	●	●	●
417	16.549 NUT; POP INSPECTION ENGINE COVER<8GA> 09.786 M6 POP NUT	8-98013-752-0	01	1	0710-0805				●	●	●
417	16.549 NUT; POP 09.786 M6 POP NUT	8-98013-752-0	01	1	0710-0805	●	●	●
417	16.549 NUT; POP INSPECTION ENGINE COVER<8GA> 09.786 M6 POP NUT	8-98013-752-0	01	1	0806-						●
417	16.549 NUT; POP 09.786 M6 POP NUT	8-98013-752-0	01	1	0806-	●	●	●
418	16.549 SEAL; PROTECTOR	8-98090-191-1	01	1	0710-	●	●	●	●	●	●
418	16.549 SEAL; PROTECTOR	8-98090-192-1	01	1	0710-	●	●	●	●	●	●
419	09.786 RIVET; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98065-262-0	01	1	0710-0805				●	●	●
419	09.786 RIVET; ENG COVER	8-98065-262-0	01	1	0710-0805	●	●	●
419	09.786 RIVET; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98065-262-0	01	1	0806-						●
419	09.786 RIVET; ENG COVER	8-98065-262-0	01	1	0806-	●	●	●
420	09.786 WASHER; ENG COVER INSPECTION ENGINE COVER<8GA> 02.335 ID=5.3 OD=16	0-91614-705-0	01	1	0710-0805				●	●	●
420	09.786 WASHER; ENG COVER 02.335 ID=5.3 OD=16	0-91614-705-0	01	1	0710-0805	●	●	●
420	09.786 WASHER; ENG COVER INSPECTION ENGINE COVER<8GA> 02.335 ID=5.3 OD=16	0-91614-705-0	01	1	0806-						●
420	09.786 WASHER; ENG COVER 02.335 ID=5.3 OD=16	0-91614-705-0	01	1	0806-	●	●	●

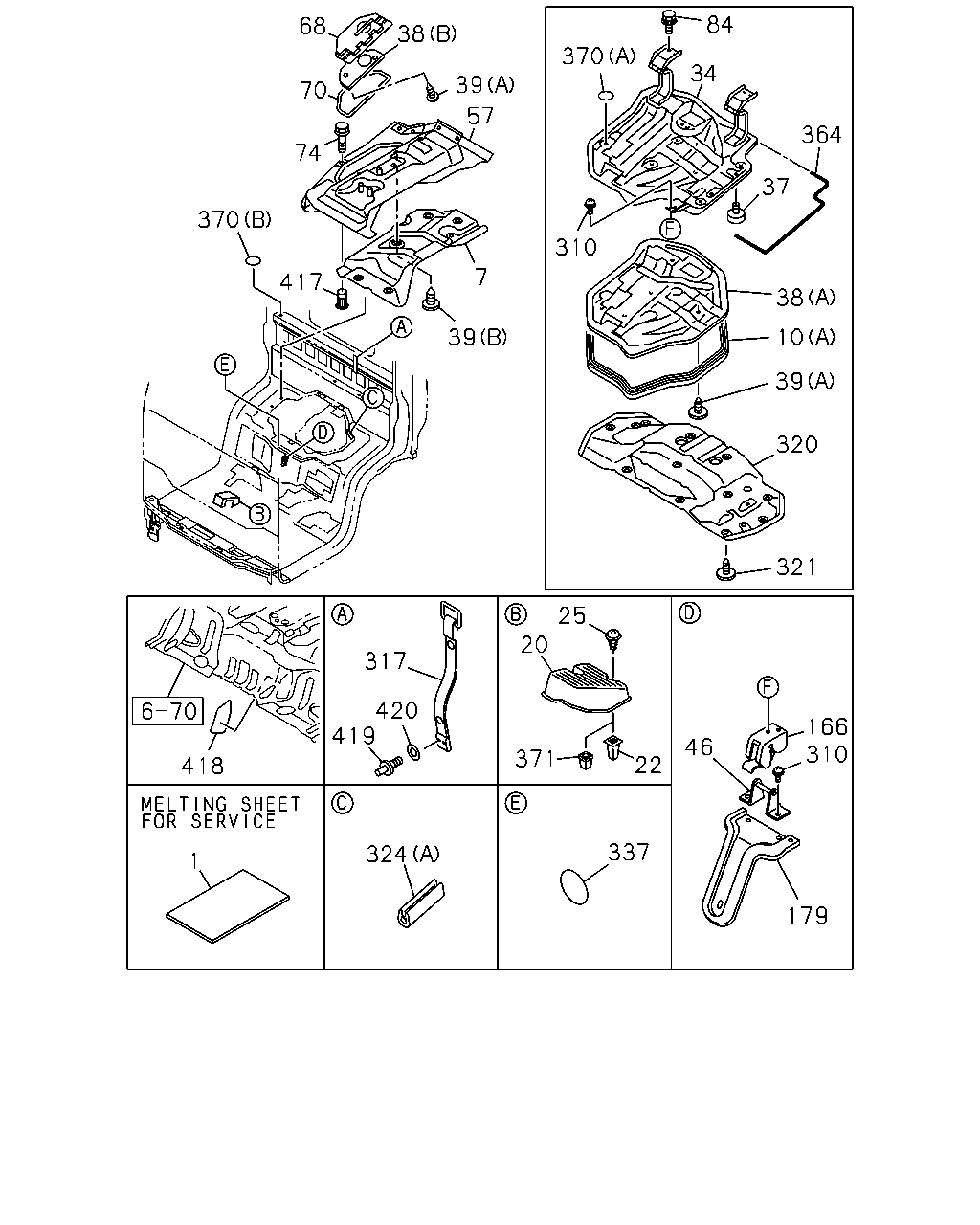

84 68 38 370 34 39 70 57 364 74 37 370 310 7 417 38 10 39 39 320 321 25 20 317 420 419 166 310 46 371 22 418 337 324 1 179

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.850 SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ON LY	8-94262-093-0	AR	1	0710-	●	●	●	●	●	●
7	16.545 INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA>	8-97586-175-1	01	1	0710-0805				●	●	●
7	16.545 INSULATOR; SUPPORT COVER	8-97586-175-1	01	1	0710-0805	●	●	●
7	16.545 INSULATOR; SUPPORT COVER INSPECTION ENGINE COVER<8GA>	8-97586-175-1	01	1	0806-						●
7	16.545 INSULATOR; SUPPORT COVER	8-97586-175-1	01	1	0806-	●	●	●
10	16.549 SEAL; ENG COVER 4JJ1-TCS ENG(LFB) (B)	8-97853-660-0	02	1	0710-	●
10	16.549 SEAL; ENG COVER 4JJ1-TCS ENG(LFB) (C)	8-97853-661-0	02	1	0710-	●
10	16.549 SEAL; ENG COVER 4HK1-TCN ENG(RDQ) (D)	8-98006-847-0	01	1	0710-		●
10	16.549 SEAL; ENG COVER 4HK1-TCS ENG(RJS) (D)	8-98006-847-0	01	1	0710-			●
10	16.549 SEAL; ENG COVER 4HK1-TCN ENG(RDQ) (E)	8-98006-852-0	01	1	0710-		●
10	16.549 SEAL; ENG COVER 4HK1-TCS ENG(RJS) (E)	8-98006-852-0	01	1	0710-			●
10	16.549 SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	0710-0805				●	●	●
10	16.549 SEAL; ENG COVER (A)	8-98029-377-0	01	1	0710-0805	●	●	●
10	16.549 SEAL; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-98029-377-0	01	1	0806-						●
10	16.549 SEAL; ENG COVER (A)	8-98029-377-0	01	1	0806-	●	●	●
20	16.547 REST; FOOT EXC. TRANSMISSION CONTROL-SMOOTHER DE LETE(8GJ)	8-98032-754-0	01	1	0710-	●	●	●	●	●	●
22	16.547 GROMMET; SCREW,FOOT REST EXC. TRANSMISSION CONTROL-SMOOTHER DE LETE(8GJ) 04.931 H=15	8-94463-268-1	02	1	0710-	●	●	●	●	●	●
25	16.549 SCREW; FOOT REST EXC. TRANSMISSION CONTROL-SMOOTHER DE LETE(8GJ) 16.570 T25 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	02	1	0710-	●	●	●	●	●	●
34	16.549 COVER ASM; ENG,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97587-395-3	01	1	0710-0805				●	●	●
34	16.549 COVER ASM; ENG,CAB FLOOR	8-97587-395-3	01	1	0710-0805	●	●	●
34	16.549 COVER ASM; ENG,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97587-395-3	01	1	0806-						●
34	16.549 COVER ASM; ENG,CAB FLOOR	8-97587-395-3	01	1	0806-	●	●	●
37	16.549 RUBBER; BUFFER,ENG COVER INSPECTION ENGINE COVER<8GA> 16.155 OD=30 T=10	5-74917-001-2	02	1	0710-0805				●	●	●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	0710-0805	●	●	●
37	16.549 RUBBER; BUFFER,ENG COVER INSPECTION ENGINE COVER<8GA> 16.155 OD=30 T=10	5-74917-001-2	02	1	0806-						●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	0806-	●	●	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (B)	8-97586-169-2	01	1	0710-0805				●	●	●
38	16.549 INSULATOR; ENG COVER (B)	8-97586-169-2	01	1	0710-0805	●	●	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (B)	8-97586-169-2	01	1	0806-						●
38	16.549 INSULATOR; ENG COVER (B)	8-97586-169-2	01	1	0806-	●	●	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-97586-182-2	01	1	0710-0805				●	●	●
38	16.549 INSULATOR; ENG COVER (A)	8-97586-182-2	01	1	0710-0805	●	●	●
38	16.549 INSULATOR; ENG COVER INSPECTION ENGINE COVER<8GA> (A)	8-97586-182-2	01	1	0806-						●
38	16.549 INSULATOR; ENG COVER (A)	8-97586-182-2	01	1	0806-	●	●	●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> (B) OD=30	8-94279-952-0	07	1	0710-0805				●	●	●
39	16.549 CLIP; INSULATOR,COVER (B) OD=30	8-94279-952-0	07	1	0710-0805	●	●	●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> (B) OD=30	8-94279-952-0	07	1	0806-						●
39	16.549 CLIP; INSULATOR,COVER (B) OD=30	8-94279-952-0	07	1	0806-	●	●	●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	0710-0805				●	●	●
39	16.549 CLIP; INSULATOR,COVER 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	0710-0805	●	●	●
39	16.549 CLIP; INSULATOR,COVER INSPECTION ENGINE COVER<8GA> 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	0806-						●
39	16.549 CLIP; INSULATOR,COVER 08.021 (A) ID=6.2 L=11.4	8-97808-623-0	05	1	0806-	●	●	●
46	16.549 HOOK ASM; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-145-0	02	1	0710-0805				●	●	●
46	16.549 HOOK ASM; ENG COVER	8-98040-145-0	02	1	0710-0805	●	●	●
46	16.549 HOOK ASM; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-145-0	02	1	0806-						●
46	16.549 HOOK ASM; ENG COVER	8-98040-145-0	02	1	0806-	●	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97587-400-3	01	1	0710-0805				●	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR	8-97587-400-3	01	1	0710-0805	●	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97587-400-3	01	1	0806-						●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR	8-97587-400-3	01	1	0806-	●	●	●
68	16.549 COVER ASM; SUB,ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-141-0	01	1	0710-0805				●	●	●
68	16.549 COVER ASM; SUB,ENG COVER	8-98040-141-0	01	1	0710-0805	●	●	●
68	16.549 COVER ASM; SUB,ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-141-0	01	1	0806-						●
68	16.549 COVER ASM; SUB,ENG COVER	8-98040-141-0	01	1	0806-	●	●	●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97853-050-1	01	1	0710-0805				●	●	●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR	8-97853-050-1	01	1	0710-0805	●	●	●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR INSPECTION ENGINE COVER<8GA>	8-97853-050-1	01	1	0806-						●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR	8-97853-050-1	01	1	0806-	●	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE	0-28650-820-0	10	1	0710-0805				●	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 01.531 M8X20 FLANGE	0-28650-820-0	10	1	0710-0805	●	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE	0-28650-820-0	10	1	0806-						●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 01.531 M8X20 FLANGE	0-28650-820-0	10	1	0806-	●	●	●
84	16.549 BOLT; ENG COVER HINGE INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0710-0805				●	●	●
84	16.549 BOLT; ENG COVER HINGE 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0710-0805	●	●	●
84	16.549 BOLT; ENG COVER HINGE INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0806-						●
84	16.549 BOLT; ENG COVER HINGE 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0806-	●	●	●
166	16.549 LOCK; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-152-0	02	1	0710-0805				●	●	●
166	16.549 LOCK; ENG COVER	8-98040-152-0	02	1	0710-0805	●	●	●
166	16.549 LOCK; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98040-152-0	02	1	0806-						●
166	16.549 LOCK; ENG COVER	8-98040-152-0	02	1	0806-	●	●	●
179	16.549 REINFORCEMENT; COVER INSPECTION ENGINE COVER<8GA>	8-98048-301-1	01	1	0710-0805				●	●	●
179	16.549 REINFORCEMENT; COVER	8-98048-301-1	01	1	0710-0805	●	●	●
179	16.549 REINFORCEMENT; COVER INSPECTION ENGINE COVER<8GA>	8-98048-301-1	01	1	0806-						●
179	16.549 REINFORCEMENT; COVER	8-98048-301-1	01	1	0806-	●	●	●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 16.570 M6X16	0-38050-616-0	09	1	0710-0805				●	●	●
310	16.549 SCREW; ENG COVER HOOK 16.570 M6X16	0-38050-616-0	09	1	0710-0805	●	●	●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 16.570 M6X16	0-38050-616-0	09	1	0806-0810						●
310	16.549 SCREW; ENG COVER HOOK 16.570 M6X16	0-38050-616-0	09	1	0806-0810	●	●	●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 16.570 M6X16	0-38050-616-0	05	1	0811-						●
310	16.549 SCREW; ENG COVER HOOK 16.570 M6X16	0-38050-616-0	05	1	0811-	●	●	●
310	16.549 SCREW; ENG COVER HOOK INSPECTION ENGINE COVER<8GA> 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0811-						●
310	16.549 SCREW; ENG COVER HOOK 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0811-	●	●	●
317	16.549 BAND; ENGINE COVER INSPECTION ENGINE COVER<8GA>	8-97585-575-0	01	1	0710-0805				●	●	●
317	16.549 BAND; ENGINE COVER	8-97585-575-0	01	1	0710-0805	●	●	●
317	16.549 BAND; ENGINE COVER INSPECTION ENGINE COVER<8GA>	8-97585-575-0	01	1	0806-						●
317	16.549 BAND; ENGINE COVER	8-97585-575-0	01	1	0806-	●	●	●
320	16.549 INSULATOR; FLOOR,FRT EXC. INSPECTION ENGINE COVER<8GA>	8-97586-164-7	01	1	0710-0805				●	●	●
320	16.549 INSULATOR; FLOOR,FRT	8-97586-164-7	01	1	0806-				●	●
320	16.549 INSULATOR; FLOOR,FRT EXC. INSPECTION ENGINE COVER<8GA>	8-97586-164-7	01	1	0806-						●
321	16.549 CLIP; INSULATOR,FLOOR EXC. INSPECTION ENGINE COVER<8GA> 08.021 ID=6.2 L=11.4	8-97808-623-0	15	1	0710-0805				●	●	●
321	16.549 CLIP; INSULATOR,FLOOR 08.021 ID=6.2 L=11.4	8-97808-623-0	15	1	0806-				●	●
321	16.549 CLIP; INSULATOR,FLOOR EXC. INSPECTION ENGINE COVER<8GA> 08.021 ID=6.2 L=11.4	8-97808-623-0	15	1	0806-						●
324	16.545 FINISHER; FLOOR PANEL 16.570 (B) L=73 SERVICED BY L=190	1-71998-300-0	02	1	0710-	●	●	●
324	16.545 FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140	8-97892-742-0	03	1	0710-0805				●	●	●
324	16.545 FINISHER; FLOOR PANEL (A) L=140	8-97892-742-0	03	1	0710-0805	●	●	●
324	16.545 FINISHER; FLOOR PANEL INSPECTION ENGINE COVER<8GA> (A) L=140	8-97892-742-0	03	1	0806-						●
324	16.545 FINISHER; FLOOR PANEL (A) L=140	8-97892-742-0	03	1	0806-	●	●	●
337	16.545 SEAL; CLIP HOLE OD=32 BLACK	8-98031-126-0	04	1	0710-	●	●	●	●	●	●
337	16.545 SEAL; CLIP HOLE OD=32 BLACK	8-98031-126-0	08	1	0710-	●	●	●	●	●	●
337	16.545 SEAL; CLIP HOLE 16.165 OD=25 BLACK	1-76798-019-0	23	1	0710-	●	●	●
337	16.545 SEAL; CLIP HOLE INSPECTION ENGINE COVER<8GA> OD=32 BLACK	8-98031-126-0	01	1	0710-0805				●	●	●
337	16.545 SEAL; CLIP HOLE INSPECTION ENGINE COVER<8GA> OD=32 BLACK	8-98031-126-0	01	1	0806-						●
364	16.545 FINISHER; ENG COVER SIDE INSPECTION ENGINE COVER<8GA> L=1100	8-97892-744-0	01	1	0710-0805				●	●	●
364	16.545 FINISHER; ENG COVER SIDE L=1100	8-97892-744-0	01	1	0710-0805	●	●	●
364	16.545 FINISHER; ENG COVER SIDE INSPECTION ENGINE COVER<8GA> L=1100	8-97892-744-0	01	1	0806-						●
364	16.545 FINISHER; ENG COVER SIDE L=1100	8-97892-744-0	01	1	0806-	●	●	●
370	16.549 SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	03	1	0710-0805				●	●	●
370	16.549 SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	03	1	0806-						●
370	16.549 SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	0710-0805				●	●	●
370	16.549 SEAL; LOCATION HOLE 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	0710-0805	●	●	●
370	16.549 SEAL; LOCATION HOLE INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	0806-						●
370	16.549 SEAL; LOCATION HOLE 16.165 (A) OD=25 BLACK	1-76798-019-0	01	1	0806-	●	●	●
371	16.549 GROMMET; LOCATION HOLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 16.547 14.5X14.5 BLACK	8-94279-714-0	02	1	0710-	●	●	●	●	●	●
417	16.549 NUT; POP INSPECTION ENGINE COVER<8GA> 09.786 M6 POP NUT	8-98013-752-0	01	1	0710-0805				●	●	●
417	16.549 NUT; POP 09.786 M6 POP NUT	8-98013-752-0	01	1	0710-0805	●	●	●
417	16.549 NUT; POP INSPECTION ENGINE COVER<8GA> 09.786 M6 POP NUT	8-98013-752-0	01	1	0806-						●
417	16.549 NUT; POP 09.786 M6 POP NUT	8-98013-752-0	01	1	0806-	●	●	●
418	16.549 SEAL; PROTECTOR	8-98090-191-1	01	1	0710-	●	●	●	●	●	●
418	16.549 SEAL; PROTECTOR	8-98090-192-1	01	1	0710-	●	●	●	●	●	●
419	09.786 RIVET; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98065-262-0	01	1	0710-0805				●	●	●
419	09.786 RIVET; ENG COVER	8-98065-262-0	01	1	0710-0805	●	●	●
419	09.786 RIVET; ENG COVER INSPECTION ENGINE COVER<8GA>	8-98065-262-0	01	1	0806-						●
419	09.786 RIVET; ENG COVER	8-98065-262-0	01	1	0806-	●	●	●
420	09.786 WASHER; ENG COVER INSPECTION ENGINE COVER<8GA> 02.335 ID=5.3 OD=16	0-91614-705-0	01	1	0710-0805				●	●	●
420	09.786 WASHER; ENG COVER 02.335 ID=5.3 OD=16	0-91614-705-0	01	1	0710-0805	●	●	●
420	09.786 WASHER; ENG COVER INSPECTION ENGINE COVER<8GA> 02.335 ID=5.3 OD=16	0-91614-705-0	01	1	0806-						●
420	09.786 WASHER; ENG COVER 02.335 ID=5.3 OD=16	0-91614-705-0	01	1	0806-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
