0-57 — EMISSION PIPING (#39433) — 151 parça

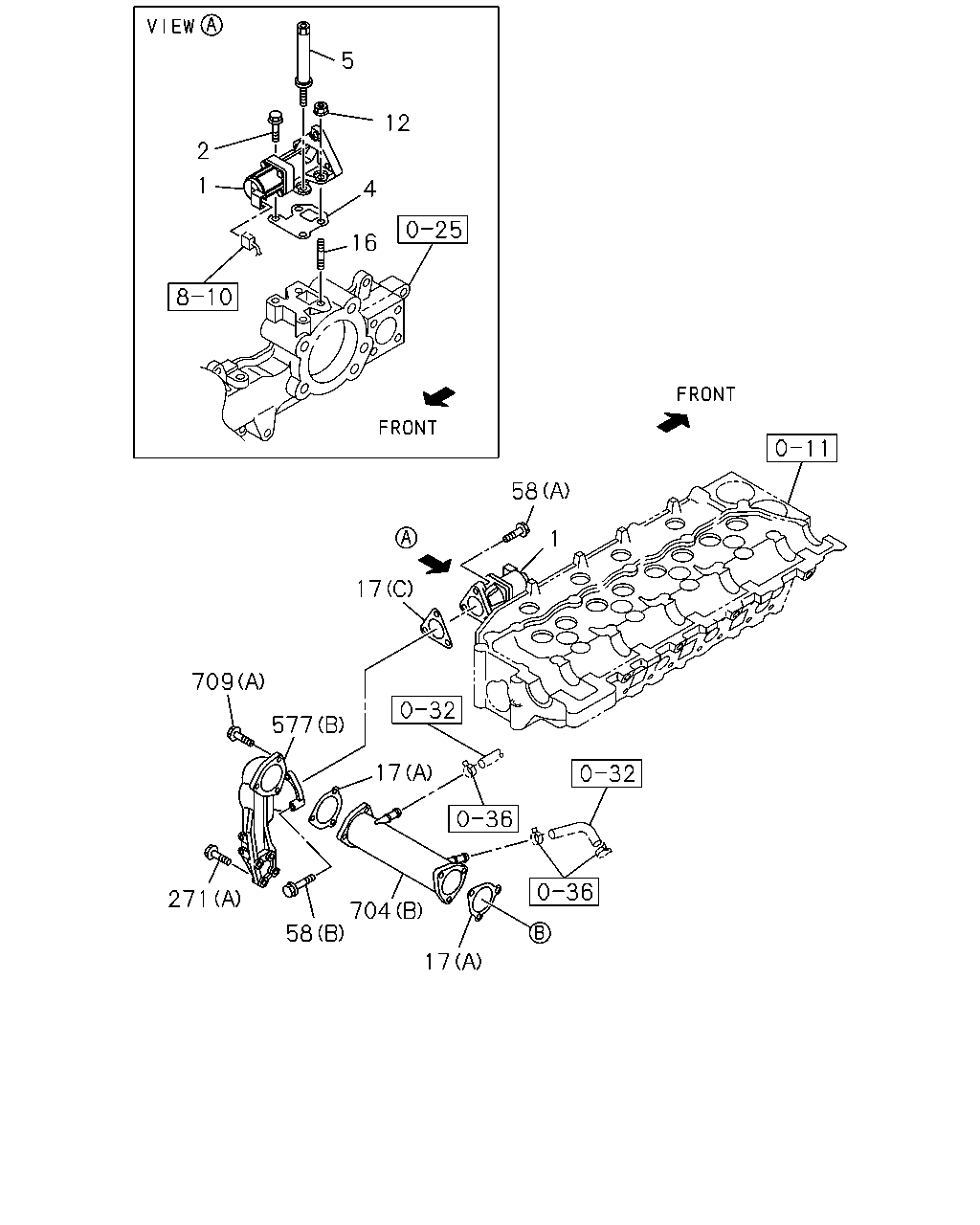

5 12 2 1 4 16 58 1 17 709 577 17 271 704 58 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR	8-98018-264-5	01	1	0710-0808	●
1	VALVE; EGR EURO4 SPECIFICATION<NT4>	8-98018-264-6	01	1	0809-	●
2	BOLT; EGR VLV M8X25 FLANGE	0-28650-825-0	01	1	0710-0808	●
2	BOLT; EGR VLV EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28650-825-0	01	1	0809-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0710-1011	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	1012-	●	●
5	ADAPTER ASM	8-97377-804-0	01	1	0905-1007	●
5	ADAPTER ASM EURO4 SPECIFICATION<NT4>	8-97377-804-0	01	1	1008-1011	●
5	ADAPTER ASM EURO4 SPECIFICATION<NT4>	8-97377-804-0	01	1	1012-	●
5	ADAPTER ASM	8-97377-804-0	01	1	1012-		●
5	ADAPTER ASM	8-97377-804-0	01	1	0710-0711	●
12	NUT; EGR VLV M8 FLANGE	0-91180-108-0	02	1	0710-0808	●
12	NUT; EGR VLV EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	02	1	0809-	●
16	STUD; EGR VLV M8X20 L=32	0-41010-820-0	02	1	0710-0808	●
16	STUD; EGR VLV EURO4 SPECIFICATION<NT4> M8X20 L=32	0-41010-820-0	02	1	0809-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97388-919-0	04	1	0710-0808	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A)	8-97388-919-0	04	1	0809-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97601-836-0	01	1	0710-0808	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B)	8-97601-836-0	01	1	0809-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98036-507-0	01	1	0710-0808	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C)	8-98036-507-0	01	1	0809-	●
58	BOLT; PIPE (B) M8X45 FLANGE	0-28050-845-0	02	1	0710-0808	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (B) M8X45 FLANGE	0-28050-845-0	02	1	0809-	●
58	BOLT; PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0710-0808	●
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28650-830-0	02	1	0809-	●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	0809-1011	●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	1012-	●
271	BOLT; BRKT (D) M8X20 FLANGE	0-28050-820-0	02	1	1012-		●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (E) M12X30 FLANGE	0-28151-230-0	03	1	0809-1011	●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (E) M12X30 FLANGE	0-28151-230-0	03	1	1012-	●
271	BOLT; BRKT (E) M12X30 FLANGE	0-28151-230-0	03	1	1012-		●
271	BOLT; BRKT (A) M12X50 FLANGE	0-28151-250-0	03	1	0710-0808	●
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M12X50 FLANGE	0-28151-250-0	03	1	0809-	●
271	BOLT; BRKT (B) M12X60 FLANGE	0-28151-260-0	01	1	0710-0808	●
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M12X60 FLANGE	0-28151-260-0	01	1	0809-	●
271	BOLT; BRKT (C) M8X25 FLANGE	0-28660-825-0	02	1	0710-0808	●
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X25 FLANGE	0-28660-825-0	02	1	0809-	●
577	PIPE; AIR,EGR (A)	8-98028-113-2	01	1	0710-0808	●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> (A)	8-98028-113-2	01	1	0809-	●
577	PIPE; AIR,EGR (B)	8-98055-858-1	01	1	0710-0808	●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> (B)	8-98055-858-2	01	1	0809-	●
704	COOLER ASM; EGR (A)	8-98028-110-1	01	1	0710-0808	●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (A)	8-98028-110-1	01	1	0809-1306	●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (A)	8-98244-305-0	01	1	1307-	●
704	COOLER ASM; EGR (B)	8-98028-112-1	01	1	0710-0808	●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (B)	8-98028-112-1	01	1	0809-1204	●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (B)	8-98212-715-0	01	1	1205-	●
709	BOLT; EGR COOLER (A) M10X30 FLANGE	0-28751-030-0	06	1	0710-0808	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (A) M10X30 FLANGE	0-28751-030-0	06	1	0809-0809	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (A) M10X35 FLANGE	0-28751-035-0	06	1	0809-	●
709	BOLT; EGR COOLER (B) M10X30 FLANGE	8-98032-158-0	03	1	0710-0808	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	8-98032-158-0	03	1	0809-	●

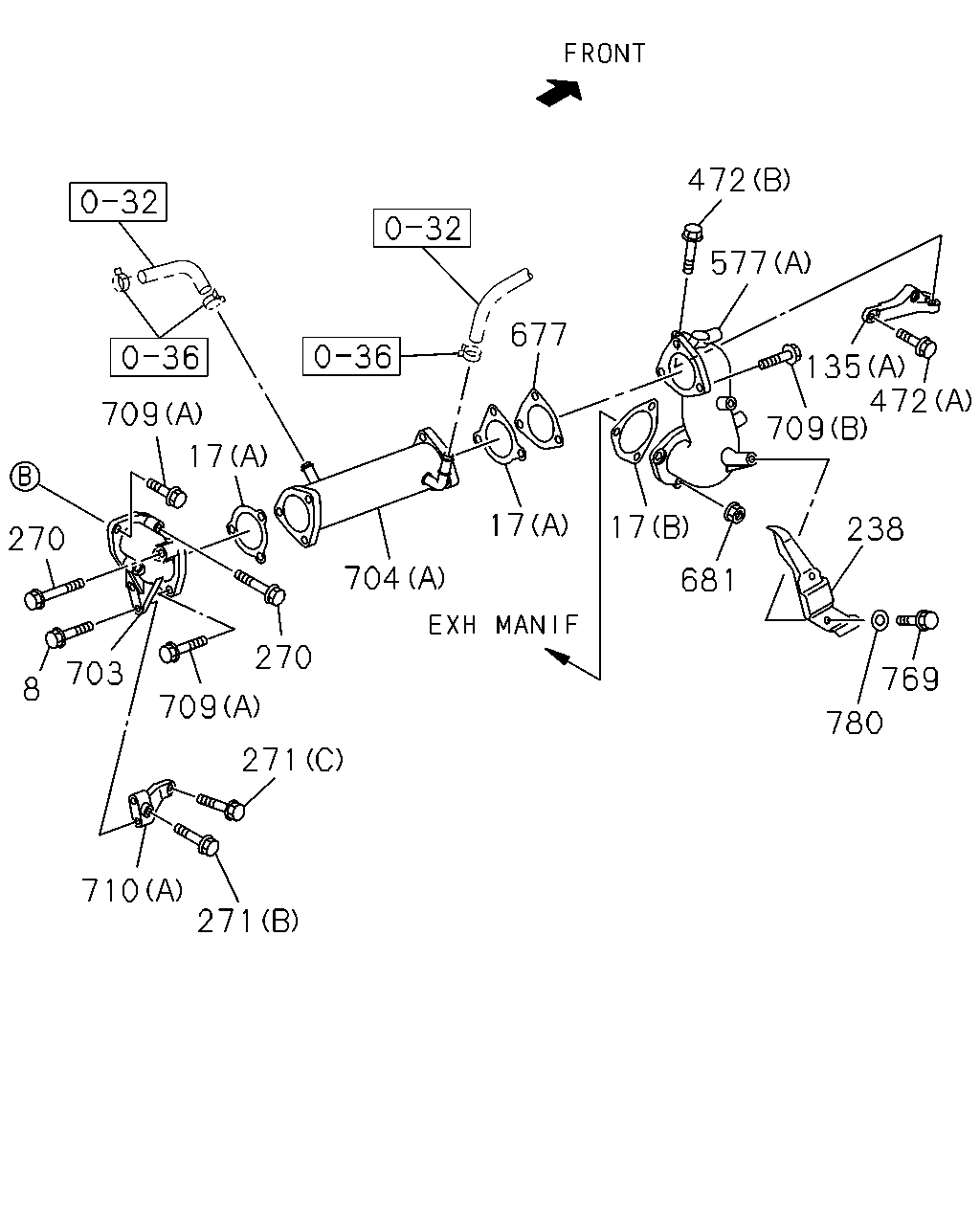

472 577 677 135 472 709 709 17 17 17 238 270 704 681 270 703 769 8 709 780 271 710 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	BOLT; EGR ADAPTER M10X40 FLANGE	0-28751-040-0	02	1	0710-0808	●
8	BOLT; EGR ADAPTER EURO4 SPECIFICATION<NT4> M10X40 FLANGE	0-28751-040-0	02	1	0809-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97388-919-0	04	1	0710-0808	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A)	8-97388-919-0	04	1	0809-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97601-836-0	01	1	0710-0808	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B)	8-97601-836-0	01	1	0809-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98036-507-0	01	1	0710-0808	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C)	8-98036-507-0	01	1	0809-	●
135	BRACKET; EGR EURO2 SPECIFICATION<NT2> (B)	8-97310-498-2	01	1	0809-1011	●
135	BRACKET; EGR EURO2 SPECIFICATION<NT2> (B)	8-97310-498-2	01	1	1012-	●
135	BRACKET; EGR (B)	8-97310-498-2	01	1	1012-		●
135	BRACKET; EGR (A)	8-98025-253-2	01	1	0710-0808	●
135	BRACKET; EGR EURO4 SPECIFICATION<NT4> (A)	8-98025-253-2	01	1	0809-	●
238	PROTECTOR; HEAT,EGR	8-97386-177-0	01	1	0710-0808	●
238	PROTECTOR; HEAT,EGR EURO4 SPECIFICATION<NT4>	8-97386-177-0	01	1	0809-	●
270	BOLT M10X60 FLANGE	0-28151-060-0	03	1	0710-0808	●
270	BOLT EURO4 SPECIFICATION<NT4> M10X60 FLANGE	0-28151-060-0	03	1	0809-	●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	0809-1011	●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	1012-	●
271	BOLT; BRKT (D) M8X20 FLANGE	0-28050-820-0	02	1	1012-		●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (E) M12X30 FLANGE	0-28151-230-0	03	1	0809-1011	●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (E) M12X30 FLANGE	0-28151-230-0	03	1	1012-	●
271	BOLT; BRKT (E) M12X30 FLANGE	0-28151-230-0	03	1	1012-		●
271	BOLT; BRKT (A) M12X50 FLANGE	0-28151-250-0	03	1	0710-0808	●
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M12X50 FLANGE	0-28151-250-0	03	1	0809-	●
271	BOLT; BRKT (B) M12X60 FLANGE	0-28151-260-0	01	1	0710-0808	●
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M12X60 FLANGE	0-28151-260-0	01	1	0809-	●
271	BOLT; BRKT (C) M8X25 FLANGE	0-28660-825-0	02	1	0710-0808	●
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X25 FLANGE	0-28660-825-0	02	1	0809-	●
472	BOLT; BRKT (A) M8X25 FLANGE	0-28660-825-0	03	1	0710-0808	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X25 FLANGE	0-28660-825-0	03	1	0809-	●
472	BOLT; BRKT (B) M10X40 FLANGE	0-28751-040-0	01	1	0710-0808	●
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M10X40 FLANGE	0-28751-040-0	01	1	0809-	●
577	PIPE; AIR,EGR (A)	8-98028-113-2	01	1	0710-0808	●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> (A)	8-98028-113-2	01	1	0809-	●
577	PIPE; AIR,EGR (B)	8-98055-858-1	01	1	0710-0808	●
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> (B)	8-98055-858-2	01	1	0809-	●
677	PLATE; DUCT	8-98015-035-0	01	1	0710-0808	●
677	PLATE; DUCT EURO4 SPECIFICATION<NT4>	8-98015-035-0	01	1	0809-	●
681	NUT; EGR PIPE EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-208-0	02	1	0809-1011	●
681	NUT; EGR PIPE EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-208-0	02	1	1012-	●
681	NUT; EGR PIPE M8 FLANGE	0-91180-208-0	02	1	1012-		●
681	NUT; EGR PIPE M8 FLANGE	8-97061-401-1	03	1	0710-0808	●
681	NUT; EGR PIPE EURO4 SPECIFICATION<NT4> M8 FLANGE	8-97061-401-1	03	1	0809-	●
703	DUCT; EGR	8-98028-114-0	01	1	0710-0808	●
703	DUCT; EGR EURO4 SPECIFICATION<NT4>	8-98028-114-0	01	1	0809-	●
704	COOLER ASM; EGR (A)	8-98028-110-1	01	1	0710-0808	●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (A)	8-98028-110-1	01	1	0809-1306	●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (A)	8-98244-305-0	01	1	1307-	●
704	COOLER ASM; EGR (B)	8-98028-112-1	01	1	0710-0808	●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (B)	8-98028-112-1	01	1	0809-1204	●
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (B)	8-98212-715-0	01	1	1205-	●
709	BOLT; EGR COOLER (A) M10X30 FLANGE	0-28751-030-0	06	1	0710-0808	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (A) M10X30 FLANGE	0-28751-030-0	06	1	0809-0809	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (A) M10X35 FLANGE	0-28751-035-0	06	1	0809-	●
709	BOLT; EGR COOLER (B) M10X30 FLANGE	8-98032-158-0	03	1	0710-0808	●
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	8-98032-158-0	03	1	0809-	●
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (B)	8-98079-255-0	01	1	0809-1011	●
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (B)	8-98079-255-1	01	1	1012-	●
710	BRACKET; EGR COOLER (B)	8-98079-255-1	01	1	1012-		●
710	BRACKET; EGR COOLER (A)	8-98025-254-1	01	1	0710-0808	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-98025-254-1	01	1	0809-	●
769	BOLT; HEAT PROTECTOR M6X12 FLANGE	8-97108-669-0	04	1	0710-0808	●
769	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> M6X12 FLANGE	8-97108-669-0	04	1	0809-1107	●
769	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> M6X12 W/PL WASHER	8-98054-289-0	04	1	1108-	●
780	WASHER; PROTECTOR ID=6.4 OD=18	0-91610-706-0	04	1	0710-0808	●
780	WASHER; PROTECTOR EURO4 SPECIFICATION<NT4> ID=6.4 OD=18	0-91610-706-0	04	1	0809-1107	●

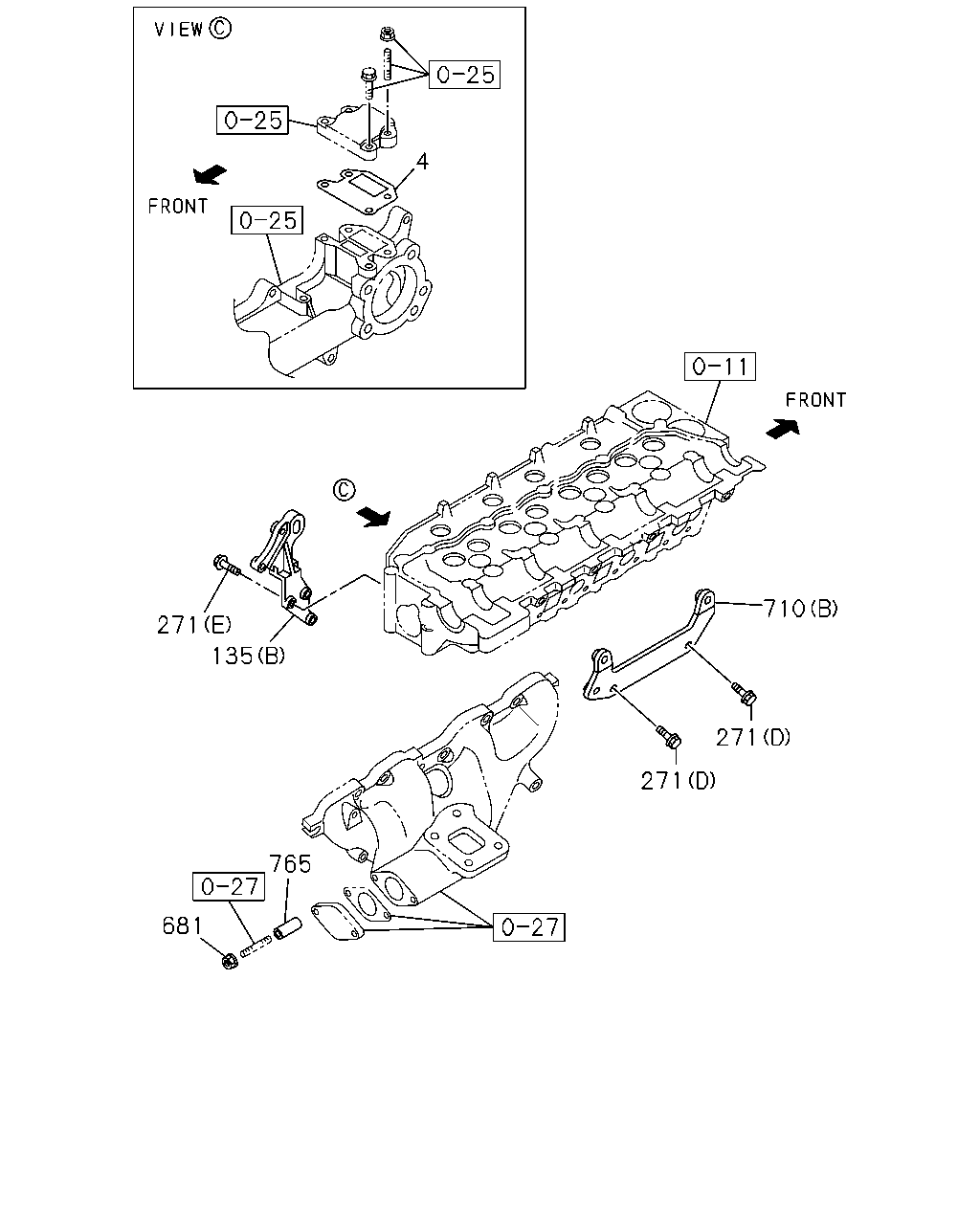

4 710 271 135 271 271 765 681

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0710-1011	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	1012-	●	●
135	BRACKET; EGR EURO2 SPECIFICATION<NT2> (B)	8-97310-498-2	01	1	0809-1011	●
135	BRACKET; EGR EURO2 SPECIFICATION<NT2> (B)	8-97310-498-2	01	1	1012-	●
135	BRACKET; EGR (B)	8-97310-498-2	01	1	1012-		●
135	BRACKET; EGR (A)	8-98025-253-2	01	1	0710-0808	●
135	BRACKET; EGR EURO4 SPECIFICATION<NT4> (A)	8-98025-253-2	01	1	0809-	●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	0809-1011	●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	1012-	●
271	BOLT; BRKT (D) M8X20 FLANGE	0-28050-820-0	02	1	1012-		●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (E) M12X30 FLANGE	0-28151-230-0	03	1	0809-1011	●
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (E) M12X30 FLANGE	0-28151-230-0	03	1	1012-	●
271	BOLT; BRKT (E) M12X30 FLANGE	0-28151-230-0	03	1	1012-		●
271	BOLT; BRKT (A) M12X50 FLANGE	0-28151-250-0	03	1	0710-0808	●
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M12X50 FLANGE	0-28151-250-0	03	1	0809-	●
271	BOLT; BRKT (B) M12X60 FLANGE	0-28151-260-0	01	1	0710-0808	●
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M12X60 FLANGE	0-28151-260-0	01	1	0809-	●
271	BOLT; BRKT (C) M8X25 FLANGE	0-28660-825-0	02	1	0710-0808	●
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X25 FLANGE	0-28660-825-0	02	1	0809-	●
681	NUT; EGR PIPE EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-208-0	02	1	0809-1011	●
681	NUT; EGR PIPE EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-208-0	02	1	1012-	●
681	NUT; EGR PIPE M8 FLANGE	0-91180-208-0	02	1	1012-		●
681	NUT; EGR PIPE M8 FLANGE	8-97061-401-1	03	1	0710-0808	●
681	NUT; EGR PIPE EURO4 SPECIFICATION<NT4> M8 FLANGE	8-97061-401-1	03	1	0809-	●
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (B)	8-98079-255-0	01	1	0809-1011	●
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (B)	8-98079-255-1	01	1	1012-	●
710	BRACKET; EGR COOLER (B)	8-98079-255-1	01	1	1012-		●
710	BRACKET; EGR COOLER (A)	8-98025-254-1	01	1	0710-0808	●
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-98025-254-1	01	1	0809-	●
765	SPACER; EGR PIPE EURO2 SPECIFICATION<NT2>	8-94225-562-0	02	1	0809-1011	●
765	SPACER; EGR PIPE EURO2 SPECIFICATION<NT2>	8-94225-562-0	02	1	1012-	●
765	SPACER; EGR PIPE	8-94225-562-0	02	1	1012-		●
