Sayfa 0-38 - Isuzu EPC

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#39426) — 290 parça

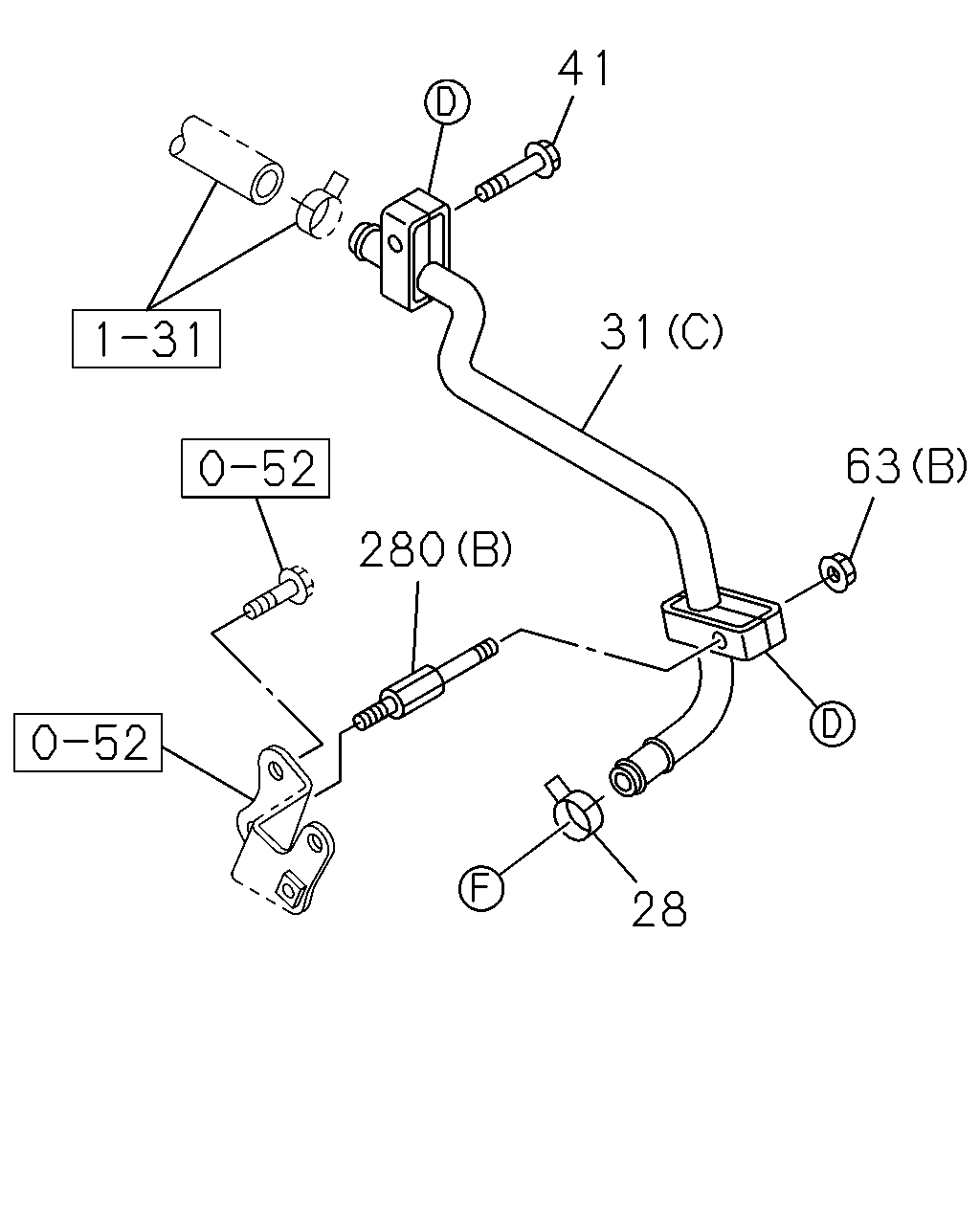

41 31 63 280 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	CLIP; HOSE,AIR CMPR ID=24	8-98025-921-0	02	1	0710-0808	●
28	CLIP; HOSE,AIR CMPR EURO4 SPECIFICATION<NT4> ID=24	8-98025-921-0	02	1	0809-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (D)	8-98067-830-1	01	1	0809-1011	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (D)	8-98067-830-1	01	1	1012-	●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-98067-830-1	01	1	1012-		●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-98023-170-0	01	1	0710-0808	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (B)	8-98023-170-0	01	1	0809-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98076-324-0	01	1	0809-	●
31	PIPE; AIR,AIR CMPR SUCTION POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98077-513-0	01	1	0710-0808	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98077-513-0	01	1	0809-	●
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	0710-1011	●
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	1012-	●	●
41	BOLT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) M6X40 FLANGE	0-28650-640-0	02	1	0710-0808	●
41	BOLT; CLIP EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) M6X40 FLANGE	0-28650-640-0	02	1	0809-	●
63	NUT; CLIP (A) M6 FLANGE	0-91180-106-0	03	1	0710-0710	●
63	NUT; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	03	1	0711-1011	●
63	NUT; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	03	1	1012-	●	●
63	NUT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	01	1	0710-0710	●
63	NUT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	04	1	0711-0808	●
63	NUT; CLIP EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	04	1	0809-	●
63	NUT; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8 FLANGE	0-91180-108-0	01	1	0710-0710	●
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	0711-1011	●
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
280	STUD; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X15,M8X17 L=40	8-97320-627-0	02	1	0710-0805	●
280	STUD; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X15,M8X17 L=40	8-98009-913-0	02	1	0806-0808	●
280	STUD; BRKT EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X15,M8X17 L=40	8-98009-913-0	02	1	0809-	●
280	STUD; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98080-971-0	01	1	0710-0808	●
280	STUD; BRKT EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98080-971-0	01	1	0809-	●

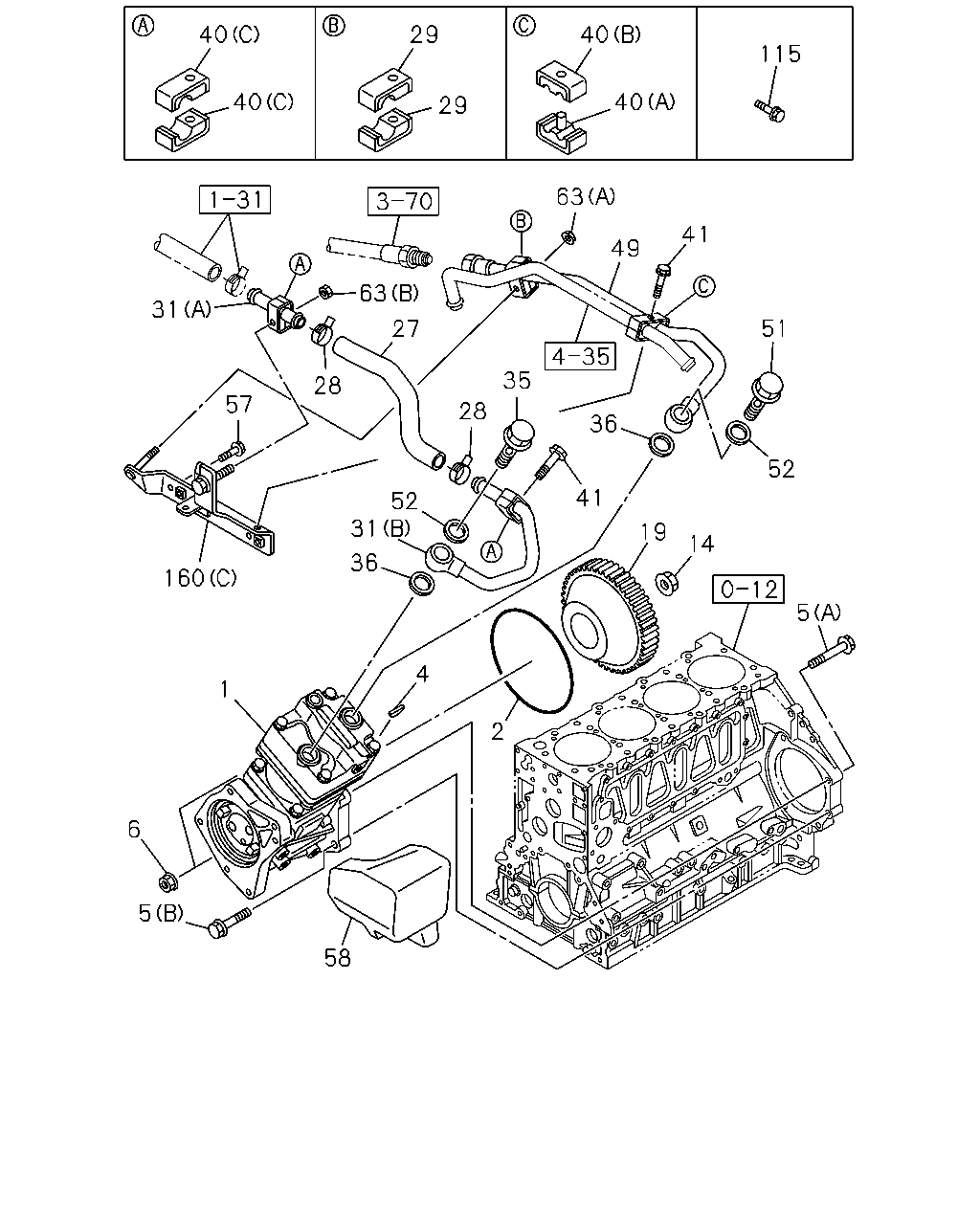

40 29 40 115 40 40 29 63 41 49 63 31 51 27 35 28 57 28 36 52 41 52 31 19 14 36 160 5 4 1 2 6 5 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-4	01	1	0710-1011	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-5	01	1	1012-1109	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1110-1405	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0710-1011	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1012-	●	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0710-1011	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1012-	●	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	0710-1011	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1012-	●	●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	0710-1011	●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1012-	●	●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	0710-1011	●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1012-	●	●
14	NUT; GEAR M18	8-97141-154-0	01	1	0710-1011	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1012-	●	●
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	0710-1011	●
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	1012-	●	●
27	HOSE; AIR CMPR,SUCTION POWER TAKE OFF-FLYWHEEL(6SZ)	8-98077-516-0	01	1	0710-0808	●
27	HOSE; AIR CMPR,SUCTION EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ)	8-98077-516-0	01	1	0809-	●
27	HOSE; AIR CMPR,SUCTION EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-031-0	01	1	0710-0808	●
27	HOSE; AIR CMPR,SUCTION EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-031-1	01	1	0809-	●
28	CLIP; HOSE,AIR CMPR ID=24	8-98025-921-0	02	1	0710-0808	●
28	CLIP; HOSE,AIR CMPR EURO4 SPECIFICATION<NT4> ID=24	8-98025-921-0	02	1	0809-	●
29	CLIP; AIR PIPE	1-09701-282-0	04	1	0710-0710	●
29	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	02	1	0711-1011	●
29	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	02	1	1012-	●	●
29	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	02	1	0710-0710	●
29	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	06	1	0711-0808	●
29	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	06	1	0809-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (D)	8-98067-830-1	01	1	0809-1011	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (D)	8-98067-830-1	01	1	1012-	●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-98067-830-1	01	1	1012-		●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-98023-170-0	01	1	0710-0808	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (B)	8-98023-170-0	01	1	0809-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98076-324-0	01	1	0809-	●
31	PIPE; AIR,AIR CMPR SUCTION POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98077-513-0	01	1	0710-0808	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98077-513-0	01	1	0809-	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	0710-1011	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	1012-1404	●	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0710-1011	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1012-	●	●
40	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C)	1-09701-284-0	06	1	0710-0808	●
40	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C)	1-09701-284-0	06	1	0809-	●
40	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	1-09701-284-0	04	1	0710-1011	●
40	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	1-09701-284-0	04	1	1012-	●	●
40	CLIP; AIR PIPE (A)	8-97619-417-0	01	1	0710-1011	●
40	CLIP; AIR PIPE (A)	8-97619-417-0	01	1	1012-	●	●
40	CLIP; AIR PIPE (B)	8-97619-418-0	01	1	0710-1011	●
40	CLIP; AIR PIPE (B)	8-97619-418-0	01	1	1012-	●	●
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	0710-1011	●
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	1012-	●	●
41	BOLT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) M6X40 FLANGE	0-28650-640-0	02	1	0710-0808	●
41	BOLT; CLIP EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) M6X40 FLANGE	0-28650-640-0	02	1	0809-	●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2>	8-98069-425-0	01	1	0809-1011	●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2>	8-98069-425-0	01	1	1012-	●
49	PIPE; AIR,CHARGE	8-98069-425-0	01	1	1012-		●
49	PIPE; AIR,CHARGE POWER TAKE OFF-FLYWHEEL(6SZ)	8-98055-847-0	01	1	0710-0710	●
49	PIPE; AIR,CHARGE POWER TAKE OFF-FLYWHEEL(6SZ)	8-98078-212-0	01	1	0710-0808	●
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ)	8-98078-212-0	01	1	0809-	●
49	PIPE; AIR,CHARGE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-015-0	01	1	0710-0808	●
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-015-0	01	1	0809-	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0710-1011	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1012-1404	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0710-1011	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1012-	●	●
57	BOLT; BRKT,AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X16 FLANGE	0-28050-816-0	02	1	0710-1011	●
57	BOLT; BRKT,AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X16 FLANGE	0-28050-816-0	02	1	1012-	●	●
58	SPACER; AIR CMPR	8-98059-817-0	01	1	0710-0808	●
58	SPACER; AIR CMPR EURO4 SPECIFICATION<NT4>	8-98059-817-1	01	1	0809-	●
63	NUT; CLIP (A) M6 FLANGE	0-91180-106-0	03	1	0710-0710	●
63	NUT; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	03	1	0711-1011	●
63	NUT; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	03	1	1012-	●	●
63	NUT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	01	1	0710-0710	●
63	NUT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	04	1	0711-0808	●
63	NUT; CLIP EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	04	1	0809-	●
63	NUT; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8 FLANGE	0-91180-108-0	01	1	0710-0710	●
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	0711-1011	●
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
115	BOLT; AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0710-0710	●
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98054-929-1	01	1	0710-0808	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98054-929-1	01	1	0809-	●
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98078-211-1	01	1	0710-0808	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98078-211-1	01	1	0809-	●
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98076-098-0	01	1	0710-1011	●
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98076-098-0	01	1	1012-	●	●

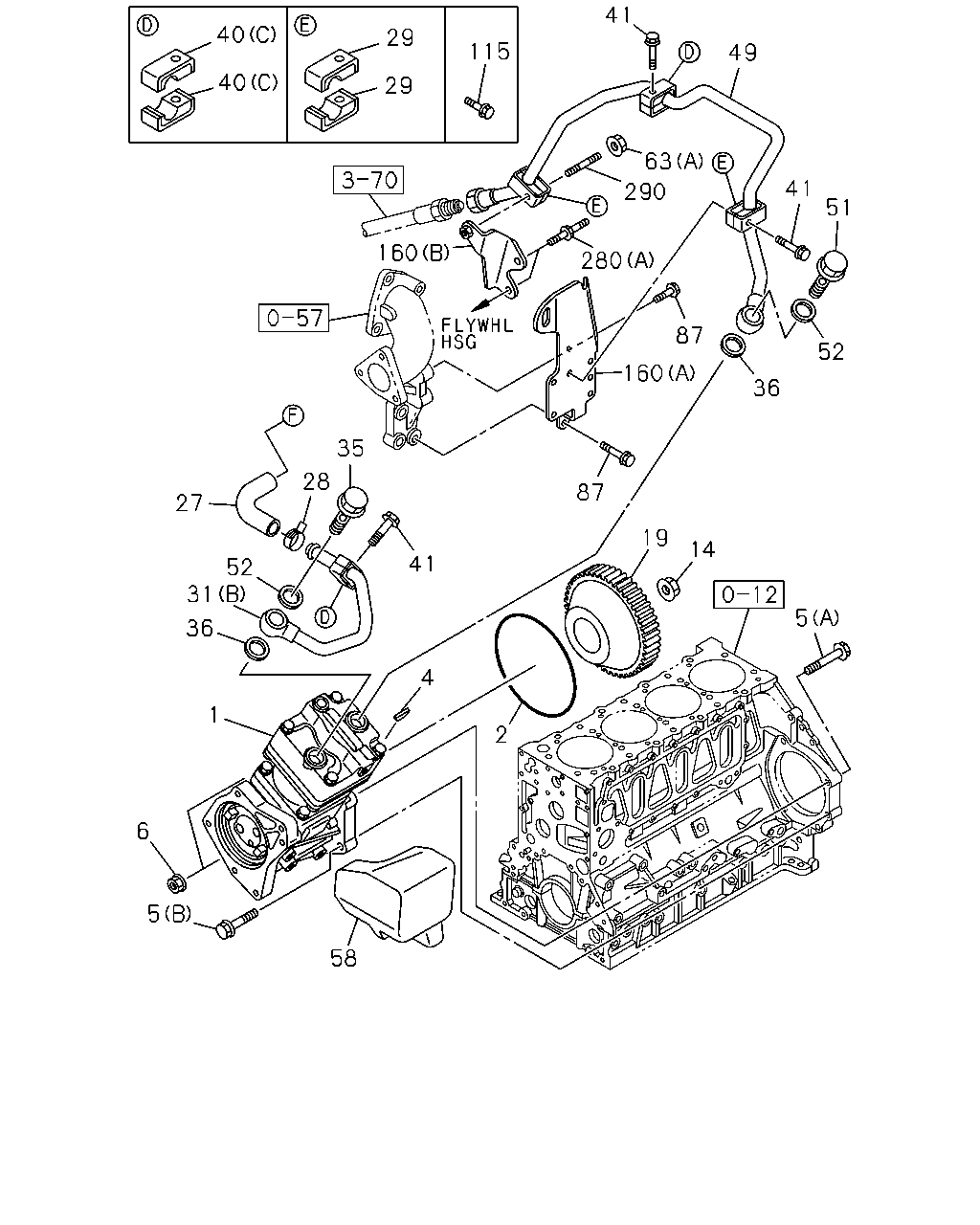

41 40 29 115 49 40 29 63 41 290 51 160 280 87 52 160 36 35 28 87 27 19 14 41 52 31 5 36 4 1 2 6 5 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-4	01	1	0710-1011	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-5	01	1	1012-1109	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1110-1405	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0710-1011	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1012-	●	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0710-1011	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1012-	●	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	0710-1011	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1012-	●	●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	0710-1011	●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1012-	●	●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	0710-1011	●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1012-	●	●
14	NUT; GEAR M18	8-97141-154-0	01	1	0710-1011	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1012-	●	●
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	0710-1011	●
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	1012-	●	●
27	HOSE; AIR CMPR,SUCTION POWER TAKE OFF-FLYWHEEL(6SZ)	8-98077-516-0	01	1	0710-0808	●
27	HOSE; AIR CMPR,SUCTION EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ)	8-98077-516-0	01	1	0809-	●
27	HOSE; AIR CMPR,SUCTION EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-031-0	01	1	0710-0808	●
27	HOSE; AIR CMPR,SUCTION EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-031-1	01	1	0809-	●
28	CLIP; HOSE,AIR CMPR ID=24	8-98025-921-0	02	1	0710-0808	●
28	CLIP; HOSE,AIR CMPR EURO4 SPECIFICATION<NT4> ID=24	8-98025-921-0	02	1	0809-	●
29	CLIP; AIR PIPE	1-09701-282-0	04	1	0710-0710	●
29	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	02	1	0711-1011	●
29	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	02	1	1012-	●	●
29	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	02	1	0710-0710	●
29	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	06	1	0711-0808	●
29	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	06	1	0809-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (D)	8-98067-830-1	01	1	0809-1011	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (D)	8-98067-830-1	01	1	1012-	●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-98067-830-1	01	1	1012-		●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-98023-170-0	01	1	0710-0808	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (B)	8-98023-170-0	01	1	0809-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98076-324-0	01	1	0809-	●
31	PIPE; AIR,AIR CMPR SUCTION POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98077-513-0	01	1	0710-0808	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98077-513-0	01	1	0809-	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	0710-1011	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	1012-1404	●	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0710-1011	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1012-	●	●
40	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C)	1-09701-284-0	06	1	0710-0808	●
40	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C)	1-09701-284-0	06	1	0809-	●
40	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	1-09701-284-0	04	1	0710-1011	●
40	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	1-09701-284-0	04	1	1012-	●	●
40	CLIP; AIR PIPE (A)	8-97619-417-0	01	1	0710-1011	●
40	CLIP; AIR PIPE (A)	8-97619-417-0	01	1	1012-	●	●
40	CLIP; AIR PIPE (B)	8-97619-418-0	01	1	0710-1011	●
40	CLIP; AIR PIPE (B)	8-97619-418-0	01	1	1012-	●	●
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	0710-1011	●
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	1012-	●	●
41	BOLT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) M6X40 FLANGE	0-28650-640-0	02	1	0710-0808	●
41	BOLT; CLIP EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) M6X40 FLANGE	0-28650-640-0	02	1	0809-	●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2>	8-98069-425-0	01	1	0809-1011	●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2>	8-98069-425-0	01	1	1012-	●
49	PIPE; AIR,CHARGE	8-98069-425-0	01	1	1012-		●
49	PIPE; AIR,CHARGE POWER TAKE OFF-FLYWHEEL(6SZ)	8-98055-847-0	01	1	0710-0710	●
49	PIPE; AIR,CHARGE POWER TAKE OFF-FLYWHEEL(6SZ)	8-98078-212-0	01	1	0710-0808	●
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ)	8-98078-212-0	01	1	0809-	●
49	PIPE; AIR,CHARGE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-015-0	01	1	0710-0808	●
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-015-0	01	1	0809-	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0710-1011	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1012-1404	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0710-1011	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1012-	●	●
58	SPACER; AIR CMPR	8-98059-817-0	01	1	0710-0808	●
58	SPACER; AIR CMPR EURO4 SPECIFICATION<NT4>	8-98059-817-1	01	1	0809-	●
63	NUT; CLIP (A) M6 FLANGE	0-91180-106-0	03	1	0710-0710	●
63	NUT; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	03	1	0711-1011	●
63	NUT; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	03	1	1012-	●	●
63	NUT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	01	1	0710-0710	●
63	NUT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	04	1	0711-0808	●
63	NUT; CLIP EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	04	1	0809-	●
63	NUT; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8 FLANGE	0-91180-108-0	01	1	0710-0710	●
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	0711-1011	●
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
87	BOLT; BRKT FIX POWER TAKE OFF-FLYWHEEL(6SZ) M12X30 FLANGE	0-28151-230-0	02	1	0710-0808	●
87	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) M12X30 FLANGE	0-28151-230-0	02	1	0809-	●
115	BOLT; AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0710-0710	●
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98054-929-1	01	1	0710-0808	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98054-929-1	01	1	0809-	●
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98078-211-1	01	1	0710-0808	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98078-211-1	01	1	0809-	●
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98076-098-0	01	1	0710-1011	●
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98076-098-0	01	1	1012-	●	●
280	STUD; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X15,M8X17 L=40	8-97320-627-0	02	1	0710-0805	●
280	STUD; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X15,M8X17 L=40	8-98009-913-0	02	1	0806-0808	●
280	STUD; BRKT EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A) M8X15,M8X17 L=40	8-98009-913-0	02	1	0809-	●
280	STUD; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98080-971-0	01	1	0710-0808	●
280	STUD; BRKT EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98080-971-0	01	1	0809-	●
290	STUD; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) M6X40 L=50	0-41010-640-0	01	1	0710-0710	●

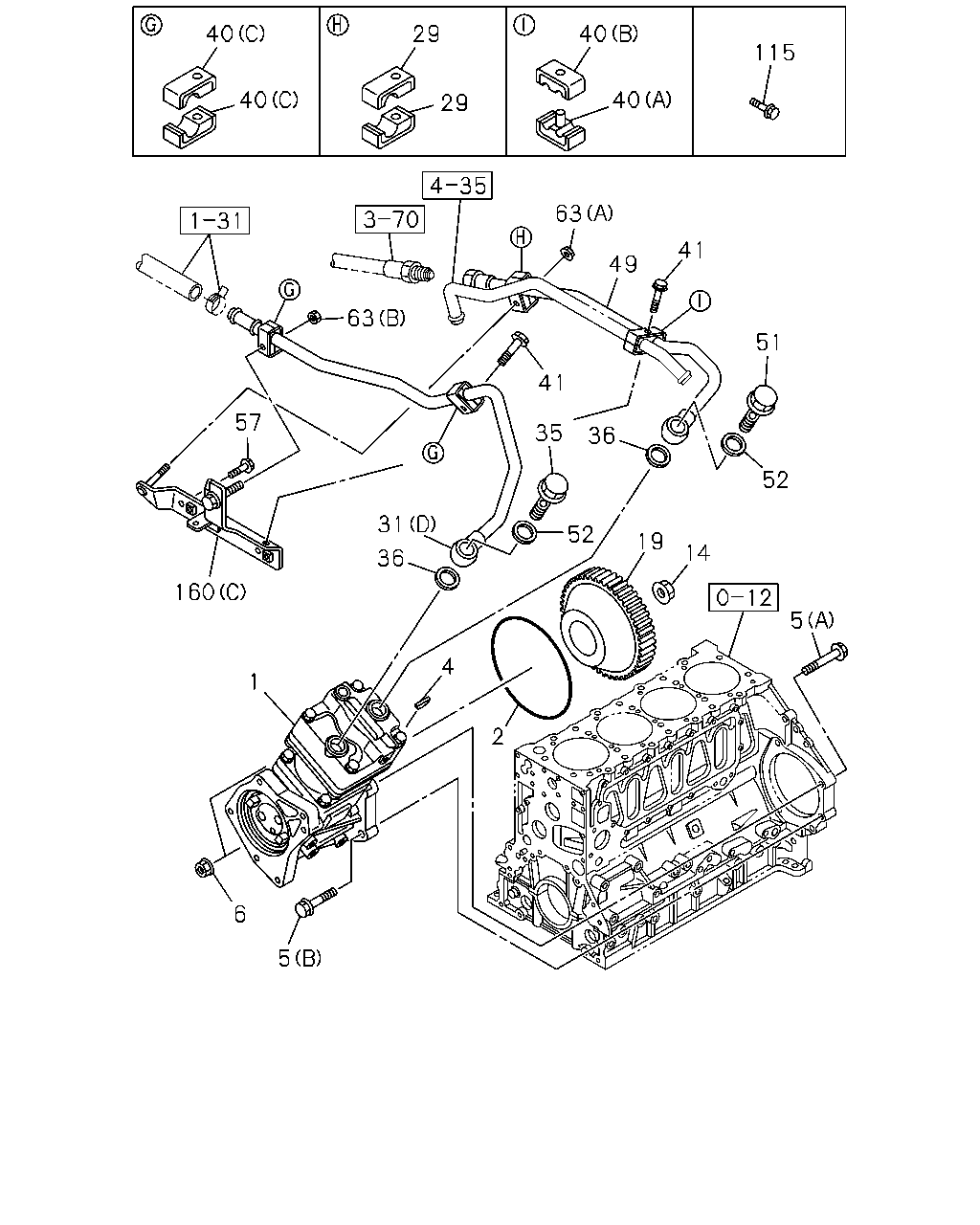

40 29 40 115 40 40 29 63 41 49 63 51 41 57 35 36 52 31 52 19 14 36 160 5 4 1 2 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-4	01	1	0710-1011	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-5	01	1	1012-1109	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1110-1405	●	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0710-1011	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	1012-	●	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0710-1011	●
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	1012-	●	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	0710-1011	●
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	1012-	●	●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	0710-1011	●
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	1012-	●	●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	0710-1011	●
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	1012-	●	●
14	NUT; GEAR M18	8-97141-154-0	01	1	0710-1011	●
14	NUT; GEAR M18	8-97141-154-0	01	1	1012-	●	●
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	0710-1011	●
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	1012-	●	●
29	CLIP; AIR PIPE	1-09701-282-0	04	1	0710-0710	●
29	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	02	1	0711-1011	●
29	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	02	1	1012-	●	●
29	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	02	1	0710-0710	●
29	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	06	1	0711-0808	●
29	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ)	1-09701-282-0	06	1	0809-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (D)	8-98067-830-1	01	1	0809-1011	●
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (D)	8-98067-830-1	01	1	1012-	●
31	PIPE; AIR,AIR CMPR SUCTION (D)	8-98067-830-1	01	1	1012-		●
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-98023-170-0	01	1	0710-0808	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> (B)	8-98023-170-0	01	1	0809-	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98076-324-0	01	1	0809-	●
31	PIPE; AIR,AIR CMPR SUCTION POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98077-513-0	01	1	0710-0808	●
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98077-513-0	01	1	0809-	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	0710-1011	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	1012-1404	●	●
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-	●	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0710-1011	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1012-	●	●
40	CLIP; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (C)	1-09701-284-0	06	1	0710-0808	●
40	CLIP; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (C)	1-09701-284-0	06	1	0809-	●
40	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	1-09701-284-0	04	1	0710-1011	●
40	CLIP; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	1-09701-284-0	04	1	1012-	●	●
40	CLIP; AIR PIPE (A)	8-97619-417-0	01	1	0710-1011	●
40	CLIP; AIR PIPE (A)	8-97619-417-0	01	1	1012-	●	●
40	CLIP; AIR PIPE (B)	8-97619-418-0	01	1	0710-1011	●
40	CLIP; AIR PIPE (B)	8-97619-418-0	01	1	1012-	●	●
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	0710-1011	●
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	1012-	●	●
41	BOLT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) M6X40 FLANGE	0-28650-640-0	02	1	0710-0808	●
41	BOLT; CLIP EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) M6X40 FLANGE	0-28650-640-0	02	1	0809-	●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2>	8-98069-425-0	01	1	0809-1011	●
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2>	8-98069-425-0	01	1	1012-	●
49	PIPE; AIR,CHARGE	8-98069-425-0	01	1	1012-		●
49	PIPE; AIR,CHARGE POWER TAKE OFF-FLYWHEEL(6SZ)	8-98055-847-0	01	1	0710-0710	●
49	PIPE; AIR,CHARGE POWER TAKE OFF-FLYWHEEL(6SZ)	8-98078-212-0	01	1	0710-0808	●
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ)	8-98078-212-0	01	1	0809-	●
49	PIPE; AIR,CHARGE EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-015-0	01	1	0710-0808	●
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-98057-015-0	01	1	0809-	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0710-1011	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	1012-1404	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0710-1011	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1012-	●	●
57	BOLT; BRKT,AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X16 FLANGE	0-28050-816-0	02	1	0710-1011	●
57	BOLT; BRKT,AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M8X16 FLANGE	0-28050-816-0	02	1	1012-	●	●
63	NUT; CLIP (A) M6 FLANGE	0-91180-106-0	03	1	0710-0710	●
63	NUT; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	03	1	0711-1011	●
63	NUT; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	03	1	1012-	●	●
63	NUT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	01	1	0710-0710	●
63	NUT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	04	1	0711-0808	●
63	NUT; CLIP EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A) M6 FLANGE	0-91180-106-0	04	1	0809-	●
63	NUT; CLIP EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8 FLANGE	0-91180-108-0	01	1	0710-0710	●
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	0711-1011	●
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
115	BOLT; AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0710-0710	●
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98054-929-1	01	1	0710-0808	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98054-929-1	01	1	0809-	●
160	BRACKET; AIR PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98078-211-1	01	1	0710-0808	●
160	BRACKET; AIR PIPE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98078-211-1	01	1	0809-	●
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98076-098-0	01	1	0710-1011	●
160	BRACKET; AIR PIPE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C)	8-98076-098-0	01	1	1012-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
