0-36 — TURBOCHARGER SYSTEM (#39424) — 288 parça

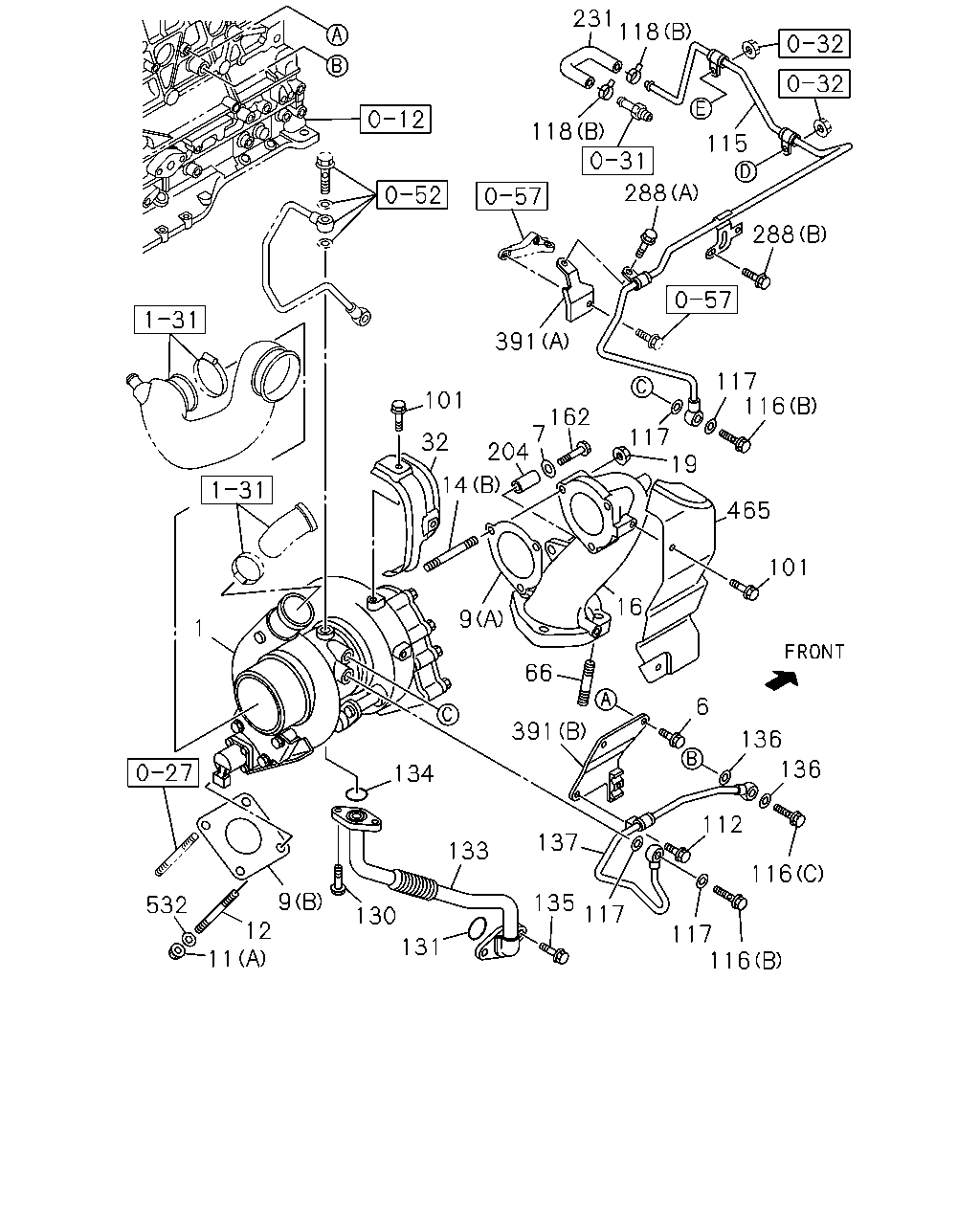

çizim 178249
231 118 118 115 288 288 391 117 116 101 162 7 204 117 19 32 14 465 101 16 9 1 66 6 391 136 136 134 112 137 133 116 9 12 11 135 532 117 130 117 116 131
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98070-143-2 01 1 0809-1011 ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> 		8-98070-143-2 01 1 1012- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98070-143-2 01 1 1012- ●
1 TURBOCHARGER ASM 8-98027-772-5 01 1 0710-0808 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-98027-772-5 01 1 0809- ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE 		0-28050-816-0 02 1 0710-1011 ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE 		0-28050-816-0 02 1 1012- ● ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 0710-1011 ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 1012- ● ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> (C) 		8-97039-777-1 01 1 0809-1011 ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) 		8-97039-777-1 01 1 1012- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) 		8-97039-777-1 01 1 1012- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> (D) 		8-97374-412-0 01 1 0809-1011 ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) 		8-97374-412-0 01 1 1012- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) 		8-97374-412-0 01 1 1012- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97376-758-0 01 1 0710-0808 ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (A) 		8-97376-758-0 01 1 0809- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-98046-241-0 01 1 0710-0808 ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (B) 		8-98046-241-0 01 1 0809- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (C) M10 P=1.5 H=8 		9-09842-007-0 04 1 0809-1011 ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (C) M10 P=1.5 H=8 		9-09842-007-0 04 1 1012- ●
11 NUT; TURBOCHARGER
(C) M10 P=1.5 H=8 		9-09842-007-0 04 1 1012- ●
11 NUT; TURBOCHARGER
(B) M6 FLANGE 		0-91180-106-0 02 1 0710-0808 ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M6 FLANGE 		0-91180-106-0 02 1 0809- ●
11 NUT; TURBOCHARGER
(A) M10 		1-09420-005-0 04 1 0710-0805 ●
11 NUT; TURBOCHARGER
(A) M10 FLANGE 		8-97381-617-0 04 1 0806-0808 ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		8-97381-617-0 04 1 0809- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> M10X28 		9-04731-028-0 02 1 0809-1011 ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> M10X28 		9-04731-028-0 02 1 1012- ●
12 STUD; TURBOCHARGER
M10X28 		9-04731-028-0 02 1 1012- ●
12 STUD; TURBOCHARGER
M10X30,M10X22.5 L=45 		9-04731-030-0 02 1 0710-0805 ●
12 STUD; TURBOCHARGER
M10X30 L=45 		1-09302-106-0 02 1 0806-0808 ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> M10X30 L=45 		1-09302-106-0 02 1 0809- ●
14 STUD; TURBOCHARGER TO EXH PIPE
EURO2 SPECIFICATION<NT2> (A) M8X94 L=108 		8-97019-477-0 02 1 0809-1011 ●
14 STUD; TURBOCHARGER TO EXH PIPE
EURO2 SPECIFICATION<NT2> (A) M8X94 L=108 		8-97019-477-0 02 1 1012- ●
14 STUD; TURBOCHARGER TO EXH PIPE
(A) M8X94 L=108 		8-97019-477-0 02 1 1012- ●
14 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 0710-1011 ●
14 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 1012- ● ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> 		8-97039-749-2 01 1 0809-1011 ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> 		8-97039-749-2 01 1 1012- ●
16 ADAPTER; EXH PIPE 8-97039-749-2 01 1 1012- ●
16 ADAPTER; EXH PIPE 8-98030-080-2 01 1 0710-0808 ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> 		8-98030-080-3 01 1 0809- ●
19 NUT; EXH PIPE,TURBOCHARGER
EURO2 SPECIFICATION<NT2> M8 FLANGE 		8-94170-486-0 05 1 0809-1011 ●
19 NUT; EXH PIPE,TURBOCHARGER
EURO2 SPECIFICATION<NT2> M8 FLANGE 		8-94170-486-0 05 1 1012- ●
19 NUT; EXH PIPE,TURBOCHARGER
M8 FLANGE 		8-94170-486-0 05 1 1012- ●
19 NUT; EXH PIPE,TURBOCHARGER
M8 FLANGE 		8-94170-486-0 03 1 0710-0808 ●
19 NUT; EXH PIPE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> M8 FLANGE 		8-94170-486-0 03 1 0809- ●
32 PROTECTOR; HEAT,TURBOCHARGER
EURO2 SPECIFICATION<NT2> 		8-97351-168-0 01 1 0809-1011 ●
32 PROTECTOR; HEAT,TURBOCHARGER
EURO2 SPECIFICATION<NT2> 		8-97351-168-0 01 1 1012- ●
32 PROTECTOR; HEAT,TURBOCHARGER 8-97351-168-0 01 1 1012- ●
32 PROTECTOR; HEAT,TURBOCHARGER 8-98031-888-3 01 1 0710-0808 ●
32 PROTECTOR; HEAT,TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98031-888-3 01 1 0809- ●
66 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 0710-1011 ●
66 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 1012- ● ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 0710-1011 ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 1012- ● ●
112 BOLT; CLIP
M8X12 FLANGE 		0-28050-812-0 01 1 0710-0808 ●
112 BOLT; CLIP
EURO4 SPECIFICATION<NT4> M8X12 FLANGE 		0-28050-812-0 01 1 0809- ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> 		8-98063-841-0 01 1 0809-1011 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> 		8-98063-841-0 01 1 1012- ●
115 PIPE; WATER,TURBOCHARGER OUT 8-98063-841-0 01 1 1012- ●
115 PIPE; WATER,TURBOCHARGER OUT 8-97387-270-2 01 1 0710-0808 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> 		8-97387-270-2 01 1 0809- ●
116 BOLT; WATER PIPE
(C) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0710-1011 ●
116 BOLT; WATER PIPE
(C) M14X30 EYE-BOLT 		8-94455-144-0 01 1 1012- ● ●
116 BOLT; WATER PIPE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0808 ●
116 BOLT; WATER PIPE
EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0809- ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 0710-1011 ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 1012- ● ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		9-09571-412-0 04 1 0710-1011 ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		9-09571-412-0 04 1 1012- ● ●
118 CLIP; WATER HOSE
(A) ID=20 		1-09707-084-1 06 1 0710-0808 ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (A) ID=20 		1-09707-084-1 06 1 0809- ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 06 1 0710-1011 ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 06 1 1012- ● ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER 		0-50540-620-0 02 1 0710-1011 ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER 		0-50540-620-0 02 1 1012- ● ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		9-09566-228-0 01 1 0710-1006 ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1007-1011 ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1012- ● ●
133 PIPE; OIL DRAIN,TURBOCHARGER
EURO2 SPECIFICATION<NT2> 		8-98062-762-1 01 1 0809-1006 ●
133 PIPE; OIL DRAIN,TURBOCHARGER
EURO2 SPECIFICATION<NT2> 		8-98172-662-0 01 1 1007-1011 ●
133 PIPE; OIL DRAIN,TURBOCHARGER
EURO2 SPECIFICATION<NT2> 		8-98172-662-0 01 1 1012- ●
133 PIPE; OIL DRAIN,TURBOCHARGER 8-98172-662-0 01 1 1012- ●
133 PIPE; OIL DRAIN,TURBOCHARGER 8-97386-642-1 01 1 0710-0808 ●
133 PIPE; OIL DRAIN,TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-97386-642-1 01 1 0809-1006 ●
133 PIPE; OIL DRAIN,TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98172-661-0 01 1 1007- ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 0710-1011 ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 1012- ● ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE 		0-28050-820-0 02 1 0710-1011 ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE 		0-28050-820-0 02 1 1012- ● ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 0710-1011 ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 1012-1312 ● ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
137 PIPE; WATER,TURBOCHARGER IN
EURO2 SPECIFICATION<NT2> 		8-98063-007-0 01 1 0809-1011 ●
137 PIPE; WATER,TURBOCHARGER IN
EURO2 SPECIFICATION<NT2> 		8-98063-007-0 01 1 1012- ●
137 PIPE; WATER,TURBOCHARGER IN 8-98063-007-0 01 1 1012- ●
137 PIPE; WATER,TURBOCHARGER IN 8-97387-271-0 01 1 0710-0808 ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> 		8-97387-271-0 01 1 0809- ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 01 1 0710-1011 ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 01 1 1012- ● ●
204 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 0710-1011 ●
204 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 1012- ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 0710-1011 ●
231 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1012- ● ●
288 BOLT; WATER PIPE CLIP
EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE 		0-28050-816-0 02 1 0809-1011 ●
288 BOLT; WATER PIPE CLIP
EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012- ●
288 BOLT; WATER PIPE CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1012- ●
288 BOLT; WATER PIPE CLIP
(A) M8X10 FLANGE 		0-28050-810-0 01 1 0710-0808 ●
288 BOLT; WATER PIPE CLIP
EURO4 SPECIFICATION<NT4> (A) M8X10 FLANGE 		0-28050-810-0 01 1 0809- ●
288 BOLT; WATER PIPE CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0803 ●
288 BOLT; WATER PIPE CLIP
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0804-0808 ●
288 BOLT; WATER PIPE CLIP
EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE 		0-28050-816-0 01 1 0809- ●
391 BRACKET; WATER PIPE
(A) 		8-98013-958-0 01 1 0710-1011 ●
391 BRACKET; WATER PIPE
(A) 		8-98013-958-0 01 1 1012-1303 ● ●
391 BRACKET; WATER PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98013-958-0 01 1 1304- ●
391 BRACKET; WATER PIPE
(B) 		8-98057-168-2 01 1 0710-1011 ●
391 BRACKET; WATER PIPE
(B) 		8-98057-168-2 01 1 1012- ● ●
465 PROTECTOR; HEAT,EXH ADAPTER
EURO2 SPECIFICATION<NT2> 		8-97351-167-0 01 1 0809-1011 ●
465 PROTECTOR; HEAT,EXH ADAPTER
EURO2 SPECIFICATION<NT2> 		8-97351-167-0 01 1 1012-1204 ●
465 PROTECTOR; HEAT,EXH ADAPTER 8-97351-167-0 01 1 1012-1204 ●
465 PROTECTOR; HEAT,EXH ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98176-248-0 01 1 1205- ●
465 PROTECTOR; HEAT,EXH ADAPTER 8-98176-248-0 01 1 1205- ●
465 PROTECTOR; HEAT,EXH ADAPTER 8-98052-394-0 01 1 0710-0808 ●
465 PROTECTOR; HEAT,EXH ADAPTER
EURO4 SPECIFICATION<NT4> 		8-98052-394-0 01 1 0809- ●
532 WASHER; TURBOCHARGER
ID=10 		1-09503-033-1 04 1 0710-0805 ●

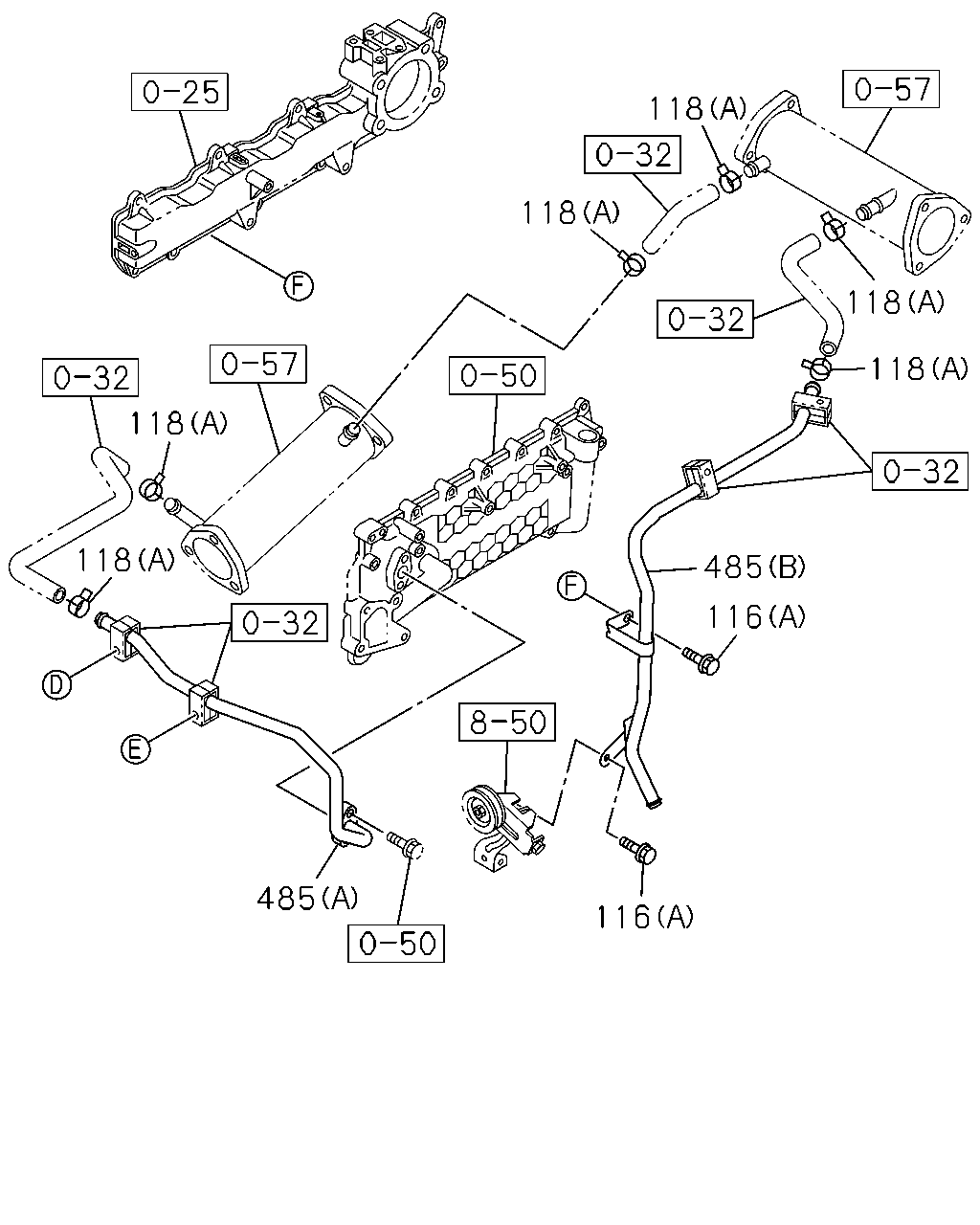

çizim 178255
118 118 118 118 118 118 485 116 485 116
BalonParca AdiParca NoAdetTipApplied Date A B
116 BOLT; WATER PIPE
(C) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0710-1011 ●
116 BOLT; WATER PIPE
(C) M14X30 EYE-BOLT 		8-94455-144-0 01 1 1012- ● ●
116 BOLT; WATER PIPE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0808 ●
116 BOLT; WATER PIPE
EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0809- ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 0710-1011 ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 1012- ● ●
118 CLIP; WATER HOSE
(A) ID=20 		1-09707-084-1 06 1 0710-0808 ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (A) ID=20 		1-09707-084-1 06 1 0809- ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 06 1 0710-1011 ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 06 1 1012- ● ●
485 PIPE; WATER EGR
(A) 		8-97376-773-0 01 1 0710-0808 ●
485 PIPE; WATER EGR
EURO4 SPECIFICATION<NT4> (A) 		8-97376-773-0 01 1 0809- ●
485 PIPE; WATER EGR
(B) 		8-97376-775-2 01 1 0710-0808 ●
485 PIPE; WATER EGR
EURO4 SPECIFICATION<NT4> (B) 		8-97376-775-2 01 1 0809- ●
çizim 178259
118 118 118 118 460 11 309 309 527
BalonParca AdiParca NoAdetTipApplied Date A B
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (C) M10 P=1.5 H=8 		9-09842-007-0 04 1 0809-1011 ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (C) M10 P=1.5 H=8 		9-09842-007-0 04 1 1012- ●
11 NUT; TURBOCHARGER
(C) M10 P=1.5 H=8 		9-09842-007-0 04 1 1012- ●
11 NUT; TURBOCHARGER
(B) M6 FLANGE 		0-91180-106-0 02 1 0710-0808 ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M6 FLANGE 		0-91180-106-0 02 1 0809- ●
11 NUT; TURBOCHARGER
(A) M10 		1-09420-005-0 04 1 0710-0805 ●
11 NUT; TURBOCHARGER
(A) M10 FLANGE 		8-97381-617-0 04 1 0806-0808 ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		8-97381-617-0 04 1 0809- ●
118 CLIP; WATER HOSE
(A) ID=20 		1-09707-084-1 06 1 0710-0808 ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (A) ID=20 		1-09707-084-1 06 1 0809- ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 06 1 0710-1011 ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 06 1 1012- ● ●
309 BOLT; TURBOCHARGER
(A) M6X20 FLANGE 		0-28650-620-0 02 1 0710-0808 ●
309 BOLT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (A) M6X20 FLANGE 		0-28650-620-0 02 1 0809- ●
309 BOLT; TURBOCHARGER
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0808 ●
309 BOLT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M8X25 FLANGE 		0-28650-825-0 02 1 0809-0901 ●
460 NUT; PIPE
M6 FLANGE 		0-91180-106-0 01 1 0710-1011 ●
460 NUT; PIPE
M6 FLANGE 		0-91180-106-0 01 1 1012- ● ●
527 BRACKET; TURBOCHARGER 8-98036-206-1 01 1 0710-0808 ●
527 BRACKET; TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98036-206-1 01 1 0809- ●

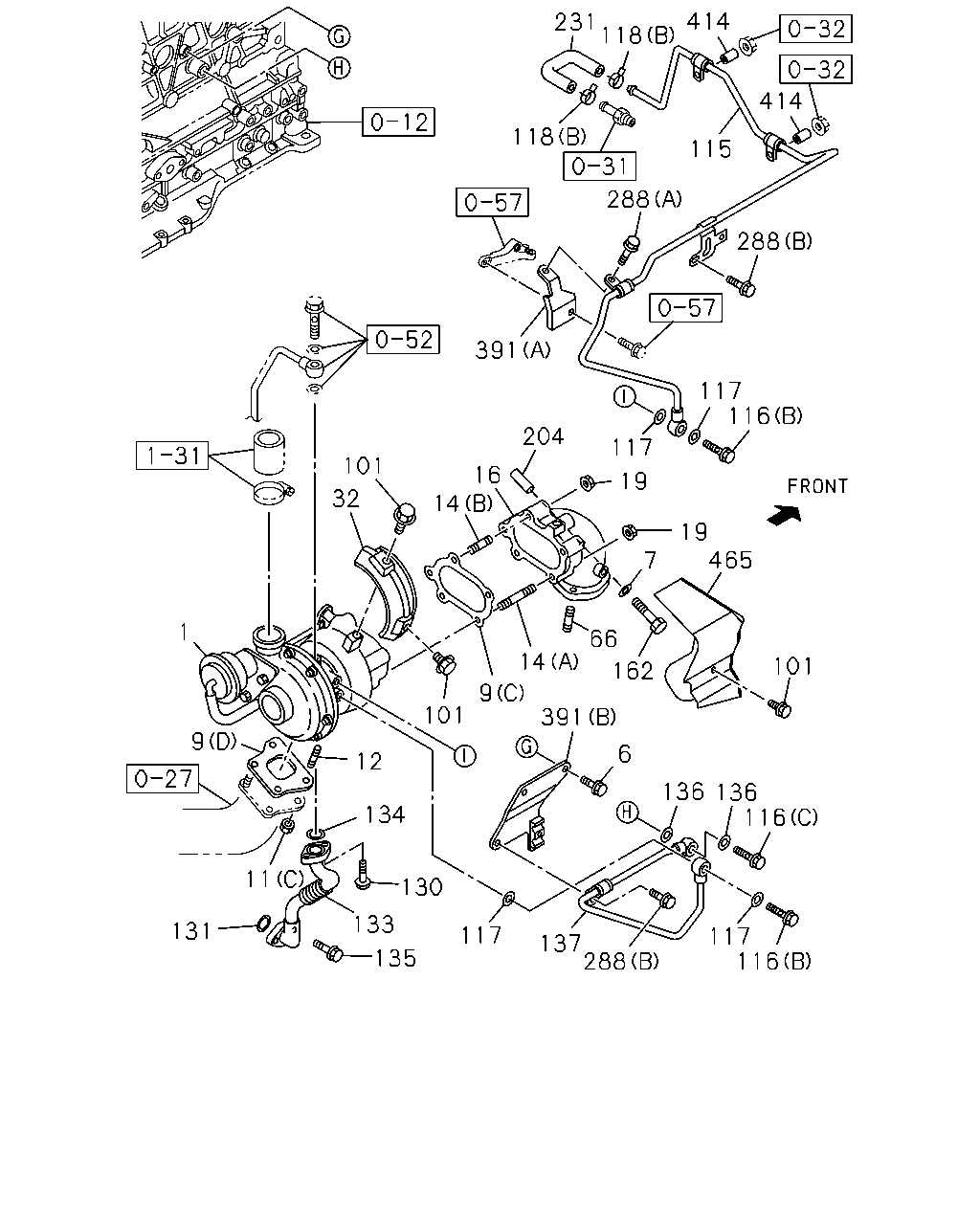

çizim 178479
231 118 414 414 118 115 288 288 391 117 116 204 117 101 16 14 19 32 19 465 7 1 66 14 101 162 9 101 391 9 6 12 136 136 116 134 11 130 133 131 117 117 116 137 288 135
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT. 		8-98070-143-2 01 1 0809-1011 ●
1 TURBOCHARGER ASM
EURO2 SPECIFICATION<NT2> 		8-98070-143-2 01 1 1012- ●
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. 		8-98070-143-2 01 1 1012- ●
1 TURBOCHARGER ASM 8-98027-772-5 01 1 0710-0808 ●
1 TURBOCHARGER ASM
EURO4 SPECIFICATION<NT4> 		8-98027-772-5 01 1 0809- ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE 		0-28050-816-0 02 1 0710-1011 ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE 		0-28050-816-0 02 1 1012- ● ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 0710-1011 ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 1012- ● ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> (C) 		8-97039-777-1 01 1 0809-1011 ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) 		8-97039-777-1 01 1 1012- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) 		8-97039-777-1 01 1 1012- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> (D) 		8-97374-412-0 01 1 0809-1011 ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) 		8-97374-412-0 01 1 1012- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) 		8-97374-412-0 01 1 1012- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) 		8-97376-758-0 01 1 0710-0808 ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (A) 		8-97376-758-0 01 1 0809- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		8-98046-241-0 01 1 0710-0808 ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4> (B) 		8-98046-241-0 01 1 0809- ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (C) M10 P=1.5 H=8 		9-09842-007-0 04 1 0809-1011 ●
11 NUT; TURBOCHARGER
EURO2 SPECIFICATION<NT2> (C) M10 P=1.5 H=8 		9-09842-007-0 04 1 1012- ●
11 NUT; TURBOCHARGER
(C) M10 P=1.5 H=8 		9-09842-007-0 04 1 1012- ●
11 NUT; TURBOCHARGER
(B) M6 FLANGE 		0-91180-106-0 02 1 0710-0808 ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (B) M6 FLANGE 		0-91180-106-0 02 1 0809- ●
11 NUT; TURBOCHARGER
(A) M10 		1-09420-005-0 04 1 0710-0805 ●
11 NUT; TURBOCHARGER
(A) M10 FLANGE 		8-97381-617-0 04 1 0806-0808 ●
11 NUT; TURBOCHARGER
EURO4 SPECIFICATION<NT4> (A) M10 FLANGE 		8-97381-617-0 04 1 0809- ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> M10X28 		9-04731-028-0 02 1 0809-1011 ●
12 STUD; TURBOCHARGER
EURO2 SPECIFICATION<NT2> M10X28 		9-04731-028-0 02 1 1012- ●
12 STUD; TURBOCHARGER
M10X28 		9-04731-028-0 02 1 1012- ●
12 STUD; TURBOCHARGER
M10X30,M10X22.5 L=45 		9-04731-030-0 02 1 0710-0805 ●
12 STUD; TURBOCHARGER
M10X30 L=45 		1-09302-106-0 02 1 0806-0808 ●
12 STUD; TURBOCHARGER
EURO4 SPECIFICATION<NT4> M10X30 L=45 		1-09302-106-0 02 1 0809- ●
14 STUD; TURBOCHARGER TO EXH PIPE
EURO2 SPECIFICATION<NT2> (A) M8X94 L=108 		8-97019-477-0 02 1 0809-1011 ●
14 STUD; TURBOCHARGER TO EXH PIPE
EURO2 SPECIFICATION<NT2> (A) M8X94 L=108 		8-97019-477-0 02 1 1012- ●
14 STUD; TURBOCHARGER TO EXH PIPE
(A) M8X94 L=108 		8-97019-477-0 02 1 1012- ●
14 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 0710-1011 ●
14 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 		8-97019-478-0 03 1 1012- ● ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> 		8-97039-749-2 01 1 0809-1011 ●
16 ADAPTER; EXH PIPE
EURO2 SPECIFICATION<NT2> 		8-97039-749-2 01 1 1012- ●
16 ADAPTER; EXH PIPE 8-97039-749-2 01 1 1012- ●
16 ADAPTER; EXH PIPE 8-98030-080-2 01 1 0710-0808 ●
16 ADAPTER; EXH PIPE
EURO4 SPECIFICATION<NT4> 		8-98030-080-3 01 1 0809- ●
19 NUT; EXH PIPE,TURBOCHARGER
EURO2 SPECIFICATION<NT2> M8 FLANGE 		8-94170-486-0 05 1 0809-1011 ●
19 NUT; EXH PIPE,TURBOCHARGER
EURO2 SPECIFICATION<NT2> M8 FLANGE 		8-94170-486-0 05 1 1012- ●
19 NUT; EXH PIPE,TURBOCHARGER
M8 FLANGE 		8-94170-486-0 05 1 1012- ●
19 NUT; EXH PIPE,TURBOCHARGER
M8 FLANGE 		8-94170-486-0 03 1 0710-0808 ●
19 NUT; EXH PIPE,TURBOCHARGER
EURO4 SPECIFICATION<NT4> M8 FLANGE 		8-94170-486-0 03 1 0809- ●
32 PROTECTOR; HEAT,TURBOCHARGER
EURO2 SPECIFICATION<NT2> 		8-97351-168-0 01 1 0809-1011 ●
32 PROTECTOR; HEAT,TURBOCHARGER
EURO2 SPECIFICATION<NT2> 		8-97351-168-0 01 1 1012- ●
32 PROTECTOR; HEAT,TURBOCHARGER 8-97351-168-0 01 1 1012- ●
32 PROTECTOR; HEAT,TURBOCHARGER 8-98031-888-3 01 1 0710-0808 ●
32 PROTECTOR; HEAT,TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98031-888-3 01 1 0809- ●
66 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 0710-1011 ●
66 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 1012- ● ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 0710-1011 ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 1012- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> 		8-98063-841-0 01 1 0809-1011 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO2 SPECIFICATION<NT2> 		8-98063-841-0 01 1 1012- ●
115 PIPE; WATER,TURBOCHARGER OUT 8-98063-841-0 01 1 1012- ●
115 PIPE; WATER,TURBOCHARGER OUT 8-97387-270-2 01 1 0710-0808 ●
115 PIPE; WATER,TURBOCHARGER OUT
EURO4 SPECIFICATION<NT4> 		8-97387-270-2 01 1 0809- ●
116 BOLT; WATER PIPE
(C) M14X30 EYE-BOLT 		8-94455-144-0 01 1 0710-1011 ●
116 BOLT; WATER PIPE
(C) M14X30 EYE-BOLT 		8-94455-144-0 01 1 1012- ● ●
116 BOLT; WATER PIPE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0808 ●
116 BOLT; WATER PIPE
EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0809- ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 0710-1011 ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 1012- ● ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		9-09571-412-0 04 1 0710-1011 ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		9-09571-412-0 04 1 1012- ● ●
118 CLIP; WATER HOSE
(A) ID=20 		1-09707-084-1 06 1 0710-0808 ●
118 CLIP; WATER HOSE
EURO4 SPECIFICATION<NT4> (A) ID=20 		1-09707-084-1 06 1 0809- ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 06 1 0710-1011 ●
118 CLIP; WATER HOSE
(B) ID=15.5 		8-94221-519-0 06 1 1012- ● ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER 		0-50540-620-0 02 1 0710-1011 ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER 		0-50540-620-0 02 1 1012- ● ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		9-09566-228-0 01 1 0710-1006 ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1007-1011 ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1012- ● ●
133 PIPE; OIL DRAIN,TURBOCHARGER
EURO2 SPECIFICATION<NT2> 		8-98062-762-1 01 1 0809-1006 ●
133 PIPE; OIL DRAIN,TURBOCHARGER
EURO2 SPECIFICATION<NT2> 		8-98172-662-0 01 1 1007-1011 ●
133 PIPE; OIL DRAIN,TURBOCHARGER
EURO2 SPECIFICATION<NT2> 		8-98172-662-0 01 1 1012- ●
133 PIPE; OIL DRAIN,TURBOCHARGER 8-98172-662-0 01 1 1012- ●
133 PIPE; OIL DRAIN,TURBOCHARGER 8-97386-642-1 01 1 0710-0808 ●
133 PIPE; OIL DRAIN,TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-97386-642-1 01 1 0809-1006 ●
133 PIPE; OIL DRAIN,TURBOCHARGER
EURO4 SPECIFICATION<NT4> 		8-98172-661-0 01 1 1007- ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 0710-1011 ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 1012- ● ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE 		0-28050-820-0 02 1 0710-1011 ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE 		0-28050-820-0 02 1 1012- ● ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 0710-1011 ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 02 1 1012-1312 ● ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
137 PIPE; WATER,TURBOCHARGER IN
EURO2 SPECIFICATION<NT2> 		8-98063-007-0 01 1 0809-1011 ●
137 PIPE; WATER,TURBOCHARGER IN
EURO2 SPECIFICATION<NT2> 		8-98063-007-0 01 1 1012- ●
137 PIPE; WATER,TURBOCHARGER IN 8-98063-007-0 01 1 1012- ●
137 PIPE; WATER,TURBOCHARGER IN 8-97387-271-0 01 1 0710-0808 ●
137 PIPE; WATER,TURBOCHARGER IN
EURO4 SPECIFICATION<NT4> 		8-97387-271-0 01 1 0809- ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 01 1 0710-1011 ●
162 BOLT; ADAPTER
M8X57 		5-09000-275-0 01 1 1012- ● ●
204 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 0710-1011 ●
204 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 1012- ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 0710-1011 ●
231 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1012- ● ●
288 BOLT; WATER PIPE CLIP
EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE 		0-28050-816-0 02 1 0809-1011 ●
288 BOLT; WATER PIPE CLIP
EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE 		0-28050-816-0 02 1 1012- ●
288 BOLT; WATER PIPE CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1012- ●
288 BOLT; WATER PIPE CLIP
(A) M8X10 FLANGE 		0-28050-810-0 01 1 0710-0808 ●
288 BOLT; WATER PIPE CLIP
EURO4 SPECIFICATION<NT4> (A) M8X10 FLANGE 		0-28050-810-0 01 1 0809- ●
288 BOLT; WATER PIPE CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 0710-0803 ●
288 BOLT; WATER PIPE CLIP
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0804-0808 ●
288 BOLT; WATER PIPE CLIP
EURO4 SPECIFICATION<NT4> (B) M8X16 FLANGE 		0-28050-816-0 01 1 0809- ●
391 BRACKET; WATER PIPE
(A) 		8-98013-958-0 01 1 0710-1011 ●
391 BRACKET; WATER PIPE
(A) 		8-98013-958-0 01 1 1012-1303 ● ●
391 BRACKET; WATER PIPE
EURO4 SPECIFICATION<NT4> (A) 		8-98013-958-0 01 1 1304- ●
391 BRACKET; WATER PIPE
(B) 		8-98057-168-2 01 1 0710-1011 ●
391 BRACKET; WATER PIPE
(B) 		8-98057-168-2 01 1 1012- ● ●
414 SPACER
EURO2 SPECIFICATION<NT2> M8X10 		1-11369-081-0 02 1 0809-1011 ●
414 SPACER
EURO2 SPECIFICATION<NT2> M8X10 		1-11369-081-0 02 1 1012- ●
414 SPACER
M8X10 		1-11369-081-0 02 1 1012- ●
465 PROTECTOR; HEAT,EXH ADAPTER
EURO2 SPECIFICATION<NT2> 		8-97351-167-0 01 1 0809-1011 ●
465 PROTECTOR; HEAT,EXH ADAPTER
EURO2 SPECIFICATION<NT2> 		8-97351-167-0 01 1 1012-1204 ●
465 PROTECTOR; HEAT,EXH ADAPTER 8-97351-167-0 01 1 1012-1204 ●
465 PROTECTOR; HEAT,EXH ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98176-248-0 01 1 1205- ●
465 PROTECTOR; HEAT,EXH ADAPTER 8-98176-248-0 01 1 1205- ●
465 PROTECTOR; HEAT,EXH ADAPTER 8-98052-394-0 01 1 0710-0808 ●
465 PROTECTOR; HEAT,EXH ADAPTER
EURO4 SPECIFICATION<NT4> 		8-98052-394-0 01 1 0809- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
