0-25 — INLET MANIFOLD (#39416) — 110 parça

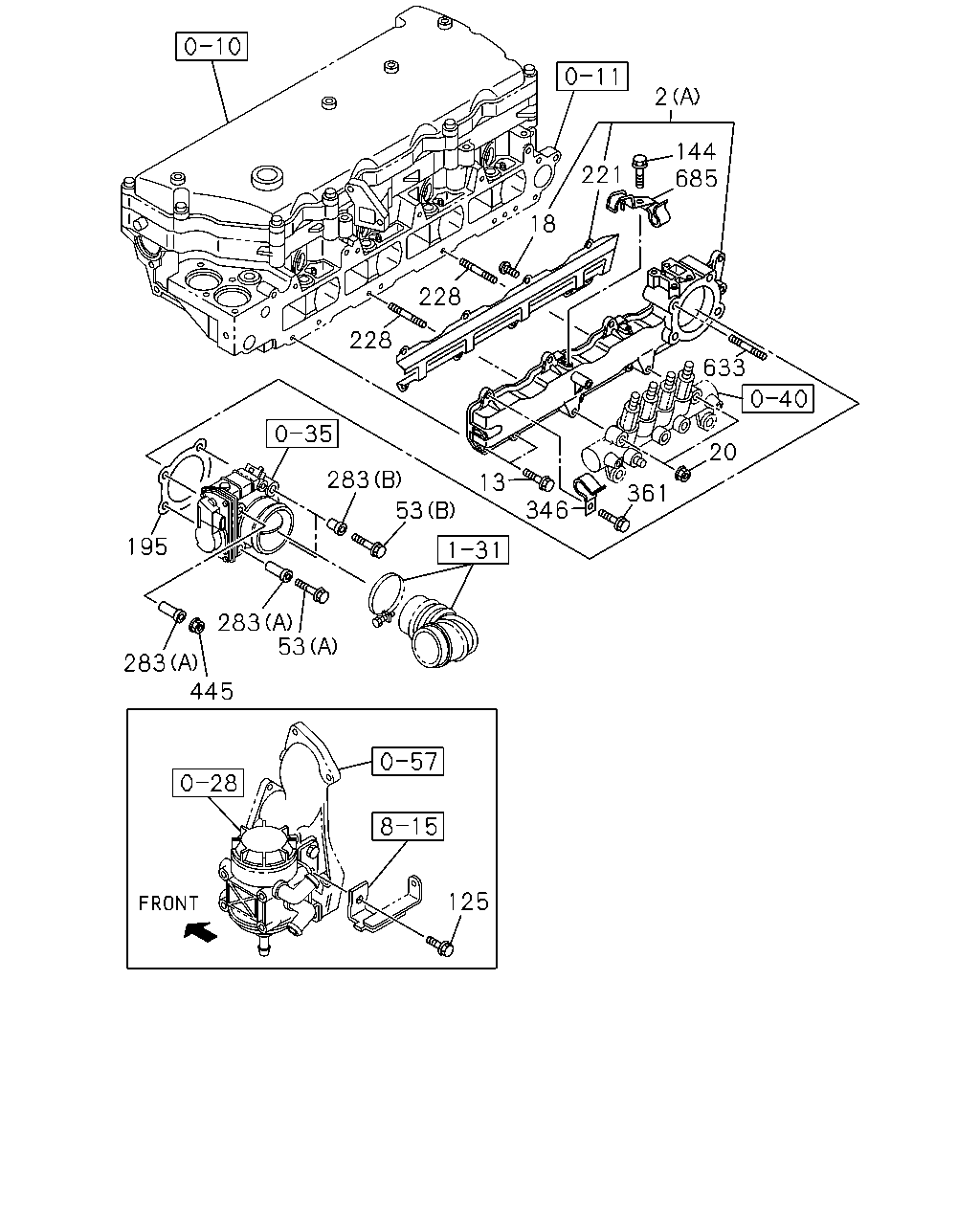

2 144 685 221 18 228 228 13 346 361 20 633 283 53 283 53 283 445 195 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL (B)	8-97387-039-0	01	1	0907-1011	●
2	COVER; INL (B)	8-97387-039-0	01	1	1012-	●	●
2	COVER; INL (A)	8-97387-038-0	01	1	0710-1011	●
2	COVER; INL (A)	8-97387-038-0	01	1	1012-1409	●	●
2	COVER; INL EURO4 SPECIFICATION<NT4> (A)	8-97387-038-0	01	1	1410-	●
13	BOLT; INL MANIF M8X30 FLANGE	0-28050-830-0	09	1	0710-1011	●
13	BOLT; INL MANIF M8X30 FLANGE	0-28050-830-0	09	1	1012-	●	●
13	BOLT; INL MANIF M8X80 FLANGE	0-28050-880-0	01	1	0710-1011	●
13	BOLT; INL MANIF M8X80 FLANGE	0-28050-880-0	01	1	1012-	●	●
18	SCREW; PLATE,INL CVR M6X10	9-03490-610-0	09	1	0710-1011	●
18	SCREW; PLATE,INL CVR M6X10	9-03490-610-0	09	1	1012-1409	●	●
18	SCREW; PLATE,INL CVR EURO4 SPECIFICATION<NT4> M6X10	9-03490-610-0	09	1	1410-	●
20	NUT; INL MANIF M8 FLANGE	0-91180-108-0	02	1	0710-1011	●
20	NUT; INL MANIF M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
53	BOLT; INL PIPE EURO2 SPECIFICATION<NT2> (B) M8X30 FLANGE	0-28650-830-0	01	1	0809-1011	●
53	BOLT; INL PIPE EURO2 SPECIFICATION<NT2> (B) M8X30 FLANGE	0-28650-830-0	01	1	1012-	●
53	BOLT; INL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	1012-		●
53	BOLT; INL PIPE (A) M8X70 FLANGE	0-28050-870-0	01	1	0710-0808	●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (A) M8X70 FLANGE	0-28050-870-0	01	1	0809-	●
53	BOLT; INL PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	0710-1011	●
53	BOLT; INL PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	1012-	●	●
125	BOLT; BRKT TO INL MANIF M12X30 FLANGE	0-28151-230-0	01	1	0710-0803	●
144	BOLT; BRKT FIX M8X12 FLANGE	0-28050-812-0	01	1	0710-1011	●
144	BOLT; BRKT FIX M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
195	GASKET; THROTTLE BODY INJECTOR ALSO INCLUDED IN GASKET SET(ENGINE). ID=88	8-97387-009-0	01	1	0710-0808	●
195	GASKET; THROTTLE BODY INJECTOR ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> ID=88	8-97387-009-0	01	1	0809-	●
221	PLATE; INL COVER	8-97379-202-0	01	1	0710-1011	●
221	PLATE; INL COVER	8-97379-202-0	01	1	1012-1409	●	●
221	PLATE; INL COVER EURO4 SPECIFICATION<NT4>	8-97379-202-0	01	1	1410-	●
228	STUD; INL COVER M8X117 L=128	8-97111-477-0	02	1	0710-1011	●
228	STUD; INL COVER M8X117 L=128	8-97111-477-0	02	1	1012-	●	●
283	RUBBER (B) L=18	8-97219-650-0	02	1	0710-0808	●
283	RUBBER EURO4 SPECIFICATION<NT4> (B) L=18	8-97219-650-0	02	1	0809-	●
283	RUBBER (A) L=58	8-97387-995-0	02	1	0710-0808	●
283	RUBBER EURO4 SPECIFICATION<NT4> (A) L=58	8-97387-995-1	02	1	0809-	●
346	CLIP; ENG HARNESS ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0710-0801	●
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-1011	●
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●	●
361	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	01	1	0710-0803	●
445	NUT; THROTTLE BODY TO MANIF M8 FLANGE	0-91180-108-0	01	1	0710-1011	●
445	NUT; THROTTLE BODY TO MANIF M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
633	STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	0710-1011	●
633	STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	1012-	●	●
685	BRACKET; HARNESS	8-97331-921-1	01	1	0710-1011	●
685	BRACKET; HARNESS	8-97331-921-1	01	1	1012-	●	●

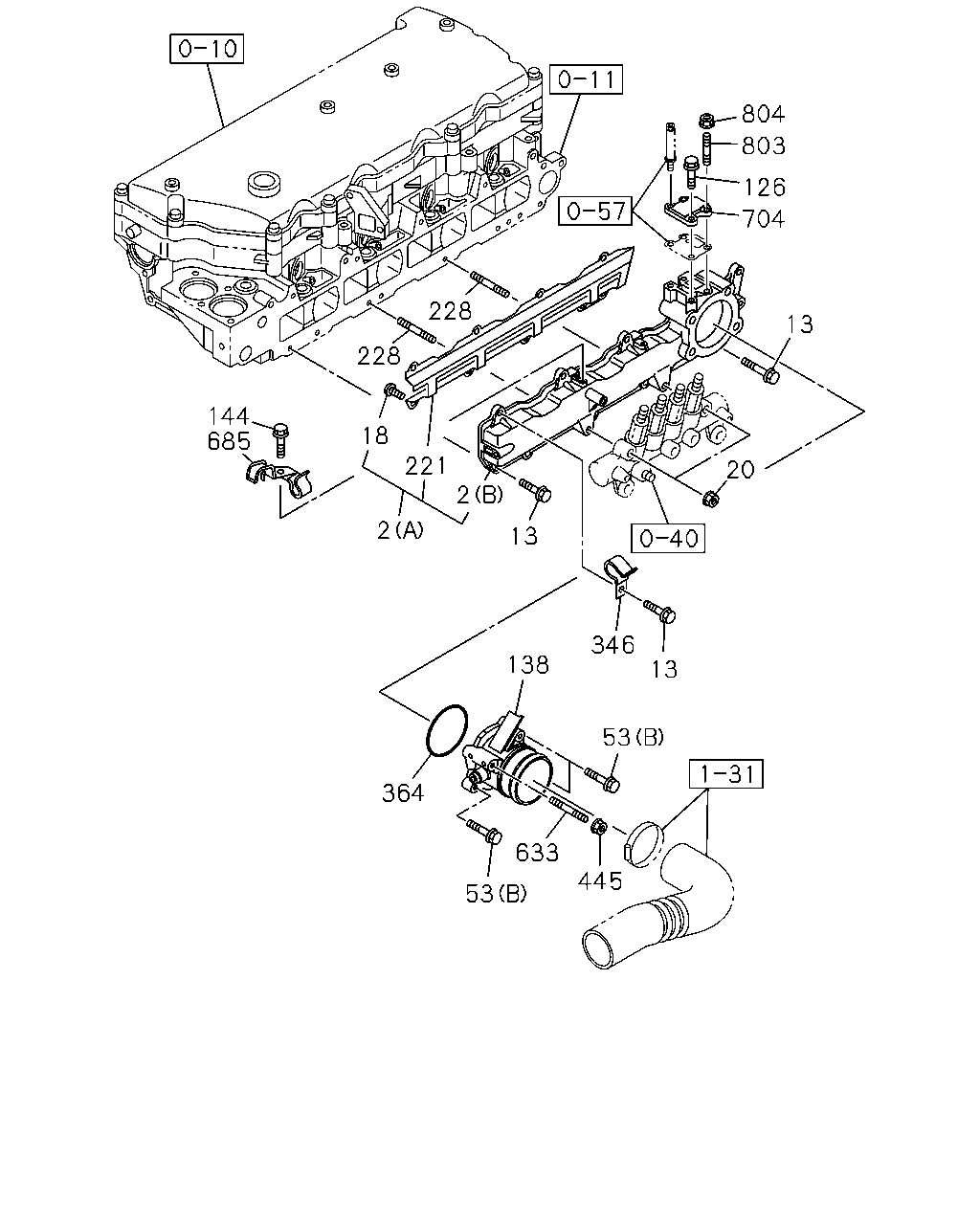

144 685 2 221 18 228 228 2 13 138 13 346 53 633 364 53 445 20 13 704 126 803 804

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	COVER; INL (B)	8-97387-039-0	01	1	0907-1011	●
2	COVER; INL (B)	8-97387-039-0	01	1	1012-	●	●
2	COVER; INL (A)	8-97387-038-0	01	1	0710-1011	●
2	COVER; INL (A)	8-97387-038-0	01	1	1012-1409	●	●
2	COVER; INL EURO4 SPECIFICATION<NT4> (A)	8-97387-038-0	01	1	1410-	●
13	BOLT; INL MANIF M8X30 FLANGE	0-28050-830-0	09	1	0710-1011	●
13	BOLT; INL MANIF M8X30 FLANGE	0-28050-830-0	09	1	1012-	●	●
13	BOLT; INL MANIF M8X80 FLANGE	0-28050-880-0	01	1	0710-1011	●
13	BOLT; INL MANIF M8X80 FLANGE	0-28050-880-0	01	1	1012-	●	●
18	SCREW; PLATE,INL CVR M6X10	9-03490-610-0	09	1	0710-1011	●
18	SCREW; PLATE,INL CVR M6X10	9-03490-610-0	09	1	1012-1409	●	●
18	SCREW; PLATE,INL CVR EURO4 SPECIFICATION<NT4> M6X10	9-03490-610-0	09	1	1410-	●
20	NUT; INL MANIF M8 FLANGE	0-91180-108-0	02	1	0710-1011	●
20	NUT; INL MANIF M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
53	BOLT; INL PIPE EURO2 SPECIFICATION<NT2> (B) M8X30 FLANGE	0-28650-830-0	01	1	0809-1011	●
53	BOLT; INL PIPE EURO2 SPECIFICATION<NT2> (B) M8X30 FLANGE	0-28650-830-0	01	1	1012-	●
53	BOLT; INL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	1012-		●
53	BOLT; INL PIPE (A) M8X70 FLANGE	0-28050-870-0	01	1	0710-0808	●
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (A) M8X70 FLANGE	0-28050-870-0	01	1	0809-	●
53	BOLT; INL PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	0710-1011	●
53	BOLT; INL PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	1012-	●	●
126	BOLT; COVER EURO2 SPECIFICATION<NT2> M8X25 FLANGE	0-28650-825-0	01	1	0809-1011	●
126	BOLT; COVER EURO2 SPECIFICATION<NT2> M8X25 FLANGE	0-28650-825-0	01	1	1012-	●
126	BOLT; COVER M8X25 FLANGE	0-28650-825-0	01	1	1012-		●
138	PIPE; INL EURO2 SPECIFICATION<NT2>	8-98101-477-0	01	1	0809-1011	●
138	PIPE; INL EURO2 SPECIFICATION<NT2>	8-98101-477-0	01	1	1012-1212	●
138	PIPE; INL	8-98101-477-0	01	1	1012-1212		●
138	PIPE; INL EURO2 SPECIFICATION<NT2>	8-98217-016-0	01	1	1301-	●
138	PIPE; INL	8-98217-016-0	01	1	1301-		●
144	BOLT; BRKT FIX M8X12 FLANGE	0-28050-812-0	01	1	0710-1011	●
144	BOLT; BRKT FIX M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●
221	PLATE; INL COVER	8-97379-202-0	01	1	0710-1011	●
221	PLATE; INL COVER	8-97379-202-0	01	1	1012-1409	●	●
221	PLATE; INL COVER EURO4 SPECIFICATION<NT4>	8-97379-202-0	01	1	1410-	●
228	STUD; INL COVER M8X117 L=128	8-97111-477-0	02	1	0710-1011	●
228	STUD; INL COVER M8X117 L=128	8-97111-477-0	02	1	1012-	●	●
346	CLIP; ENG HARNESS ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0710-0801	●
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-1011	●
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●	●
364	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>	8-97363-723-0	01	1	0809-1011	●
364	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>.	8-97363-723-0	01	1	1012-1212	●
364	GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	8-97363-723-0	01	1	1012-1212		●
445	NUT; THROTTLE BODY TO MANIF M8 FLANGE	0-91180-108-0	01	1	0710-1011	●
445	NUT; THROTTLE BODY TO MANIF M8 FLANGE	0-91180-108-0	01	1	1012-	●	●
633	STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	0710-1011	●
633	STUD; THROTTLE BODY M8X71 L=83	9-09830-212-0	01	1	1012-	●	●
685	BRACKET; HARNESS	8-97331-921-1	01	1	0710-1011	●
685	BRACKET; HARNESS	8-97331-921-1	01	1	1012-	●	●
704	COVER EURO2 SPECIFICATION<NT2>	8-98062-651-1	01	1	0809-1011	●
704	COVER EURO2 SPECIFICATION<NT2>	8-98062-651-1	01	1	1012-1408	●
704	COVER	8-98062-651-1	01	1	1012-1408		●
704	COVER EURO2 SPECIFICATION<NT2>	8-98260-138-0	01	1	1409-	●
704	COVER	8-98260-138-0	01	1	1409-		●
803	STUD; COVER EURO2 SPECIFICATION<NT2> M8X20 L=32	0-41010-820-0	02	1	0809-1011	●
803	STUD; COVER EURO2 SPECIFICATION<NT2> M8X20 L=32	0-41010-820-0	02	1	1012-	●
803	STUD; COVER M8X20 L=32	0-41010-820-0	02	1	1012-		●
804	NUT; COVER EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	02	1	0809-1011	●
804	NUT; COVER EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	02	1	1012-	●
804	NUT; COVER M8 FLANGE	0-91180-108-0	02	1	1012-		●

203 208

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
203	TANK; CATCH,PRESSURE CONT VLV EURO2 SPECIFICATION<NT2>	8-97088-685-1	01	1	0809-1011	●
203	TANK; CATCH,PRESSURE CONT VLV EURO2 SPECIFICATION<NT2>	8-97088-685-1	01	1	1012-	●
203	TANK; CATCH,PRESSURE CONT VLV	8-97088-685-1	01	1	1012-		●
208	BRACKET; CATCH TANK,OIL EURO2 SPECIFICATION<NT2>	8-98075-767-0	01	1	0809-1011	●
208	BRACKET; CATCH TANK,OIL EURO2 SPECIFICATION<NT2>	8-98075-767-0	01	1	1012-	●
208	BRACKET; CATCH TANK,OIL	8-98075-767-0	01	1	1012-		●
