Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#39414) — 221 parça

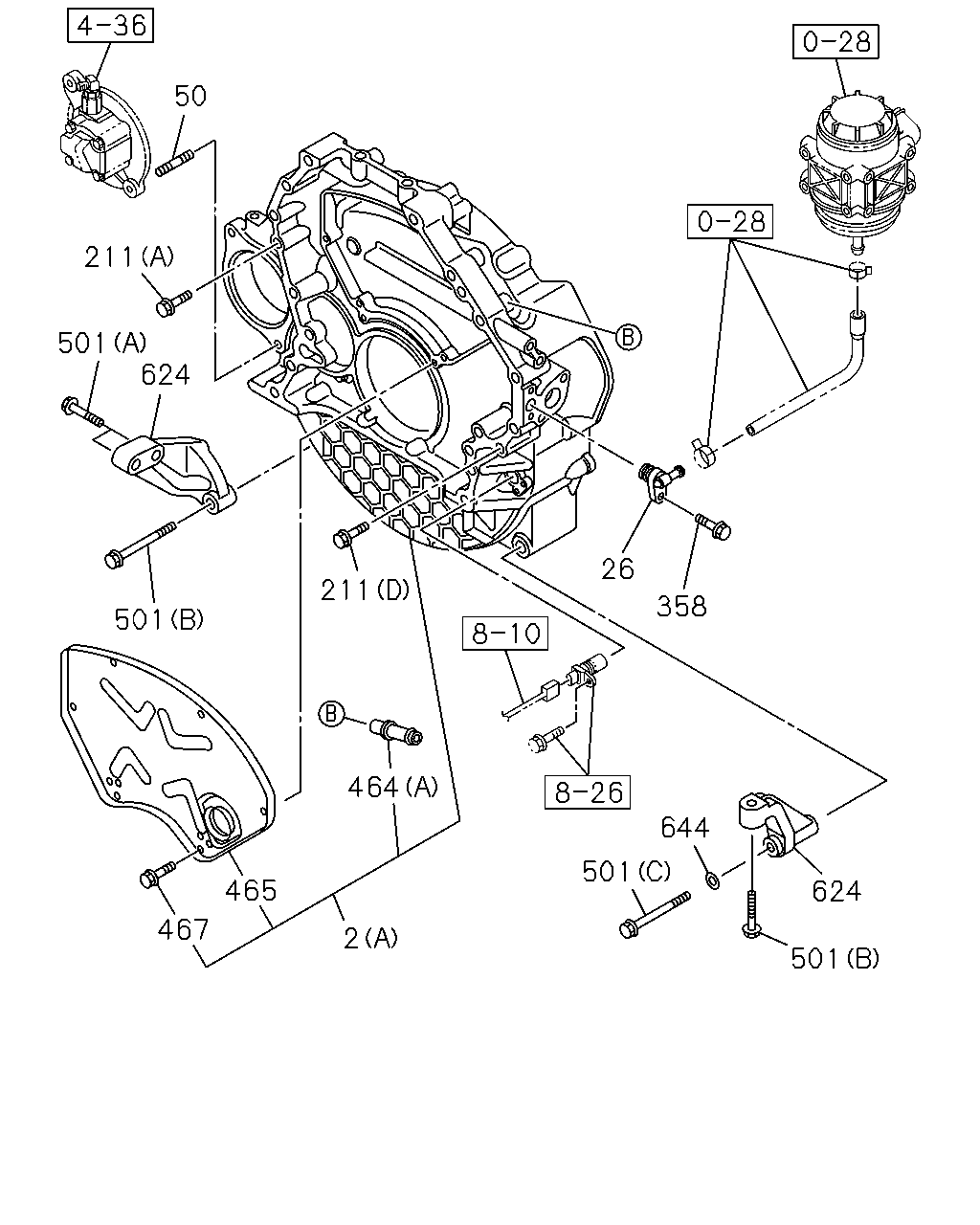

50 211 501 624 26 211 358 501 464 644 501 465 624 467 2 501

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98044-975-5	01	1	0710-0808	●
2	HOUSING; FLYWHEEL EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98044-975-5	01	1	0809-0810	●
2	HOUSING; FLYWHEEL EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98135-151-0	01	1	0811-	●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98032-562-1	01	1	0710-1011	●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98032-562-4	01	1	1012-	●	●
26	ADAPTER	8-97354-819-0	01	1	0710-1011	●
26	ADAPTER	8-97354-819-0	01	1	1012-	●	●
50	STUD M10X25 L=48.5	0-49241-025-0	01	1	0710-1011	●
50	STUD M10X25 L=48.5	0-49241-025-0	01	1	1012-	●	●
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (F) M10X45 FLANGE	0-28151-045-0	06	1	0710-0808	●
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (F) M10X45 FLANGE	0-28151-045-0	06	1	0809-	●
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (I) M12X15	0-28156-215-0	01	1	0710-0808	●
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (I) M12X15	0-28156-215-0	01	1	0809-	●
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (E) M12X125 FLANGE	1-09044-099-0	10	1	0710-0808	●
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (E) M12X125 FLANGE	1-09044-099-0	10	1	0809-	●
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (G) M10X20,M10X45 L=75	1-09049-015-0	04	1	0710-0805	●
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (G) M10X20,M10X45 L=75	8-98010-335-0	04	1	0806-0808	●
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (G) M10X20,M10X45 L=75	8-98010-335-0	04	1	0809-	●
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (H) M12X75	9-01666-275-0	01	1	0710-0808	●
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (H) M12X75	9-01666-275-0	01	1	0809-	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) M10X50 FLANGE	0-28151-050-0	01	1	0710-1011	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) M10X50 FLANGE	0-28151-050-0	01	1	1012-	●	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M10X40 FLANGE	0-28751-040-0	01	1	0710-1011	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M10X40 FLANGE	0-28751-040-0	01	1	1012-	●	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0710-1011	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	1012-1102	●	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1103-	●	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M12X30 FLANGE	8-97135-419-0	01	1	0710-0711	●
211	BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	0712-1011	●
211	BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	1012-	●	●
358	BOLT; ADAPTER M6X16 FLANGE	0-28050-616-0	01	1	0710-1011	●
358	BOLT; ADAPTER M6X16 FLANGE	0-28050-616-0	01	1	1012-	●	●
464	PIPE; PCV,FLYWHEEL HSG POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-97358-501-0	01	1	0710-0808	●
464	PIPE; PCV,FLYWHEEL HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-97358-501-0	01	1	0809-	●
464	PIPE; PCV,FLYWHEEL HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-94373-246-3	01	1	0710-1011	●
464	PIPE; PCV,FLYWHEEL HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-94373-246-3	01	1	1012-	●	●
465	PLATE; FLYWHEEL HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-97388-568-1	01	1	0710-1011	●
465	PLATE; FLYWHEEL HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ)	8-97388-568-1	01	1	1012-	●	●
467	BOLT; PLATE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M6X10	0-20800-610-0	06	1	0710-0805	●
467	BOLT; PLATE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M6X10	8-98030-649-0	06	1	0806-1011	●
467	BOLT; PLATE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M6X10	8-98030-649-0	06	1	1012-	●	●
501	BOLT; STIFFENER (B) M12X50 FLANGE	0-28151-250-0	02	1	0710-0906	●
501	BOLT; STIFFENER (B) M12X50 FLANGE	0-28151-250-0	02	1	0907-1011	●
501	BOLT; STIFFENER (B) M12X50 FLANGE	0-28151-250-0	02	1	1012-1308	●	●
501	BOLT; STIFFENER POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X50 FLANGE	0-28151-250-0	02	1	1309-	●
501	BOLT; STIFFENER (C) M12X90 FLANGE	0-28151-290-0	01	1	0710-0906	●
501	BOLT; STIFFENER (C) M12X90 FLANGE	0-28151-290-0	01	1	0907-1011	●
501	BOLT; STIFFENER (C) M12X90 FLANGE	0-28151-290-0	01	1	1012-1308	●	●
501	BOLT; STIFFENER POWER TAKE OFF-FLYWHEEL(6SZ) (C) M12X90 FLANGE	0-28151-290-0	01	1	1309-	●
501	BOLT; STIFFENER (A) M10X40 FLANGE	0-28151-040-0	02	1	0710-0906	●
501	BOLT; STIFFENER (A) M10X40 FLANGE	0-28151-040-0	02	1	0907-1011	●
501	BOLT; STIFFENER (A) M10X40 FLANGE	0-28151-040-0	02	1	1012-1308	●	●
501	BOLT; STIFFENER POWER TAKE OFF-FLYWHEEL(6SZ) (A) M10X40 FLANGE	0-28151-040-0	02	1	1309-	●
624	STIFFENER	8-97380-613-1	01	1	0710-0906	●
624	STIFFENER	8-97380-613-1	01	1	0907-1008	●
624	STIFFENER	8-97380-613-1	01	1	1009-1011	●
624	STIFFENER	8-97380-613-1	01	1	1012-1308	●	●
624	STIFFENER POWER TAKE OFF-FLYWHEEL(6SZ)	8-97380-613-1	01	1	1309-	●
624	STIFFENER	8-97380-614-1	01	1	0710-0906	●
624	STIFFENER	8-97380-614-1	01	1	0907-1008	●
624	STIFFENER	8-97380-614-1	01	1	1009-1011	●
624	STIFFENER	8-97380-614-1	01	1	1012-1308	●	●
624	STIFFENER POWER TAKE OFF-FLYWHEEL(6SZ)	8-97380-614-1	01	1	1309-	●
644	WASHER; STIFFENER EURO2 SPECIFICATION<NT2> ID=12.5 OD=22	8-94279-627-0	01	1	0809-1011	●
644	WASHER; STIFFENER EURO2 SPECIFICATION<NT2> ID=12.5 OD=22	8-94279-627-0	01	1	1012-1308	●
644	WASHER; STIFFENER ID=12.5 OD=22	8-94279-627-0	01	1	1012-1308		●

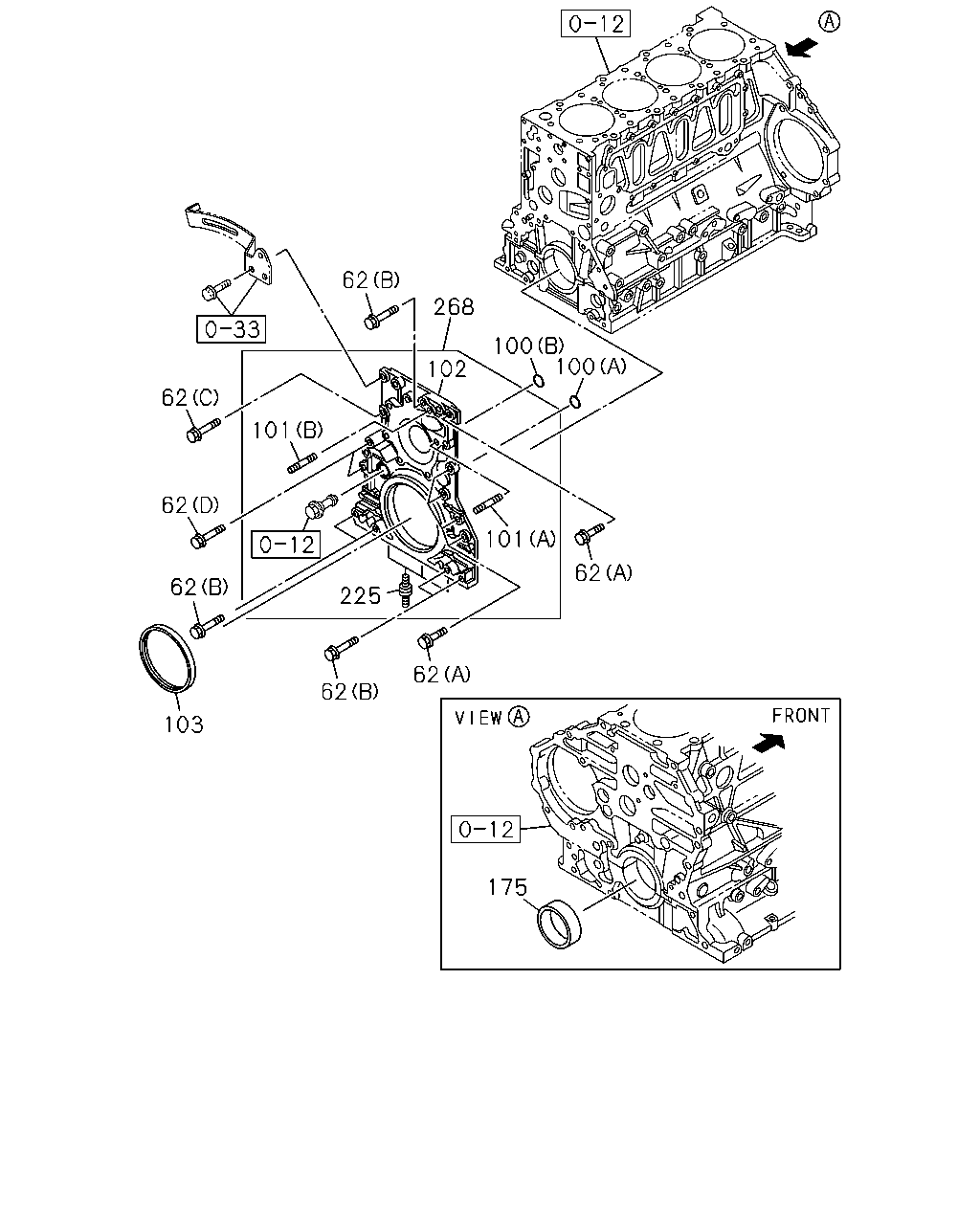

62 268 100 100 102 62 101 62 101 62 62 225 62 62 103 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	BOLT; COVER GENERATOR 24V90A(K44) (B) M8X35 FLANGE	0-28650-835-0	04	1	0901-1004	●
62	BOLT; COVER (D) M8X65 FLANGE	1-09044-072-1	02	1	0711-1011	●
62	BOLT; COVER (D) M8X65 FLANGE	1-09044-072-1	02	1	1012-	●	●
62	BOLT; COVER GENERATOR 24V90A(K44) (C) M8X30 FLANGE	0-28650-830-0	03	1	0804-	●
62	BOLT; COVER POWER TAKE OFF-FLYWHEEL(6SZ) (E) M8X16 FLANGE	0-28050-816-0	02	1	0710-0808	●
62	BOLT; COVER EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (E) M8X16 FLANGE	0-28050-816-0	02	1	0809-	●
62	BOLT; COVER (A) M8X25 FLANGE	0-28650-825-0	06	1	0710-1011	●
62	BOLT; COVER (A) M8X25 FLANGE	0-28650-825-0	06	1	1012-	●	●
62	BOLT; COVER (C) M8X30 FLANGE	0-28650-830-0	01	1	0710-0803	●
62	BOLT; COVER GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) M8X30 FLANGE	0-28650-830-0	01	1	0804-1011	●
62	BOLT; COVER GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) M8X30 FLANGE	0-28650-830-0	01	1	1012-	●	●
62	BOLT; COVER (B) M8X35 FLANGE	0-28650-835-0	06	1	0710-0812	●
62	BOLT; COVER GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) M8X35 FLANGE	0-28650-835-0	06	1	0901-1004	●
62	BOLT; COVER (B) M8X35 FLANGE	0-28650-835-0	06	1	1005-1011	●
62	BOLT; COVER (B) M8X35 FLANGE	0-28650-835-0	06	1	1012-	●	●
100	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1	8-97028-748-1	01	1	0710-1011	●
100	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1	8-97028-748-1	01	1	1012-	●	●
100	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8	9-09561-318-0	01	1	0710-1011	●
100	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8	9-09561-318-0	01	1	1012-	●	●
101	STUD; WATER PUMP (B) M8X18 L=30	0-41010-818-0	01	1	0907-1011	●
101	STUD; WATER PUMP (B) M8X18 L=30	0-41010-818-0	01	1	1012-	●	●
101	STUD; WATER PUMP (A) M8X18 L=29	8-97028-541-0	01	1	0907-1011	●
101	STUD; WATER PUMP (A) M8X18 L=29	8-97028-541-0	01	1	1012-	●	●
101	STUD; WATER PUMP (B) M8X18 L=30	0-41010-818-0	01	1	0710-0906	●
101	STUD; WATER PUMP (A) M8X18 L=29	8-97028-541-0	01	1	0710-0906	●
102	RETAINER; FRT	8-98039-932-1	01	1	0710-1011	●
102	RETAINER; FRT	8-98039-932-2	01	1	1012-	●	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-97329-780-0	01	1	0710-1011	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137	8-97329-780-0	01	1	1012-	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0710-1011	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	1012-	●	●
225	STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0710-1011	●
225	STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	1012-1107	●	●
225	STUD; OIL PAN EURO4 SPECIFICATION<NT4> M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	1108-	●
268	COVER; FRT EURO2 SPECIFICATION<NT2>	8-97148-937-3	01	1	1108-	●
268	COVER; FRT	8-97148-937-3	01	1	1108-		●
268	COVER; FRT	8-98039-931-1	01	1	0710-1011	●
268	COVER; FRT	8-98039-931-1	01	1	1012-1107	●	●
268	COVER; FRT EURO4 SPECIFICATION<NT4>	8-98039-931-2	01	1	1108-	●

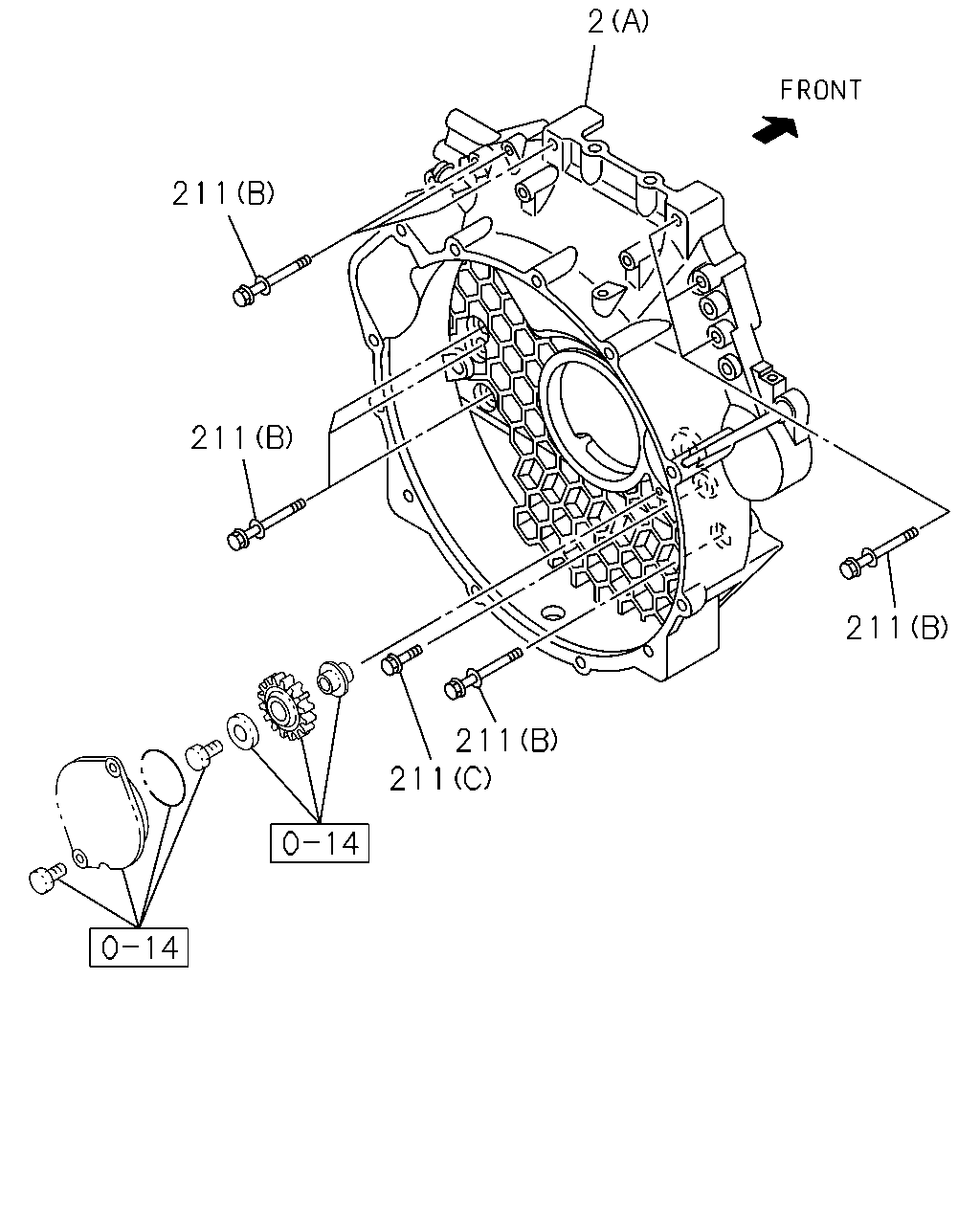

2 211 211 211 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98044-975-5	01	1	0710-0808	●
2	HOUSING; FLYWHEEL EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98044-975-5	01	1	0809-0810	●
2	HOUSING; FLYWHEEL EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98135-151-0	01	1	0811-	●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98032-562-1	01	1	0710-1011	●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98032-562-4	01	1	1012-	●	●
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (F) M10X45 FLANGE	0-28151-045-0	06	1	0710-0808	●
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (F) M10X45 FLANGE	0-28151-045-0	06	1	0809-	●
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (I) M12X15	0-28156-215-0	01	1	0710-0808	●
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (I) M12X15	0-28156-215-0	01	1	0809-	●
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (E) M12X125 FLANGE	1-09044-099-0	10	1	0710-0808	●
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (E) M12X125 FLANGE	1-09044-099-0	10	1	0809-	●
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (G) M10X20,M10X45 L=75	1-09049-015-0	04	1	0710-0805	●
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (G) M10X20,M10X45 L=75	8-98010-335-0	04	1	0806-0808	●
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (G) M10X20,M10X45 L=75	8-98010-335-0	04	1	0809-	●
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (H) M12X75	9-01666-275-0	01	1	0710-0808	●
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (H) M12X75	9-01666-275-0	01	1	0809-	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) M10X50 FLANGE	0-28151-050-0	01	1	0710-1011	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) M10X50 FLANGE	0-28151-050-0	01	1	1012-	●	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M10X40 FLANGE	0-28751-040-0	01	1	0710-1011	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M10X40 FLANGE	0-28751-040-0	01	1	1012-	●	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0710-1011	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	1012-1102	●	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1103-	●	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M12X30 FLANGE	8-97135-419-0	01	1	0710-0711	●
211	BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	0712-1011	●
211	BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	1012-	●	●

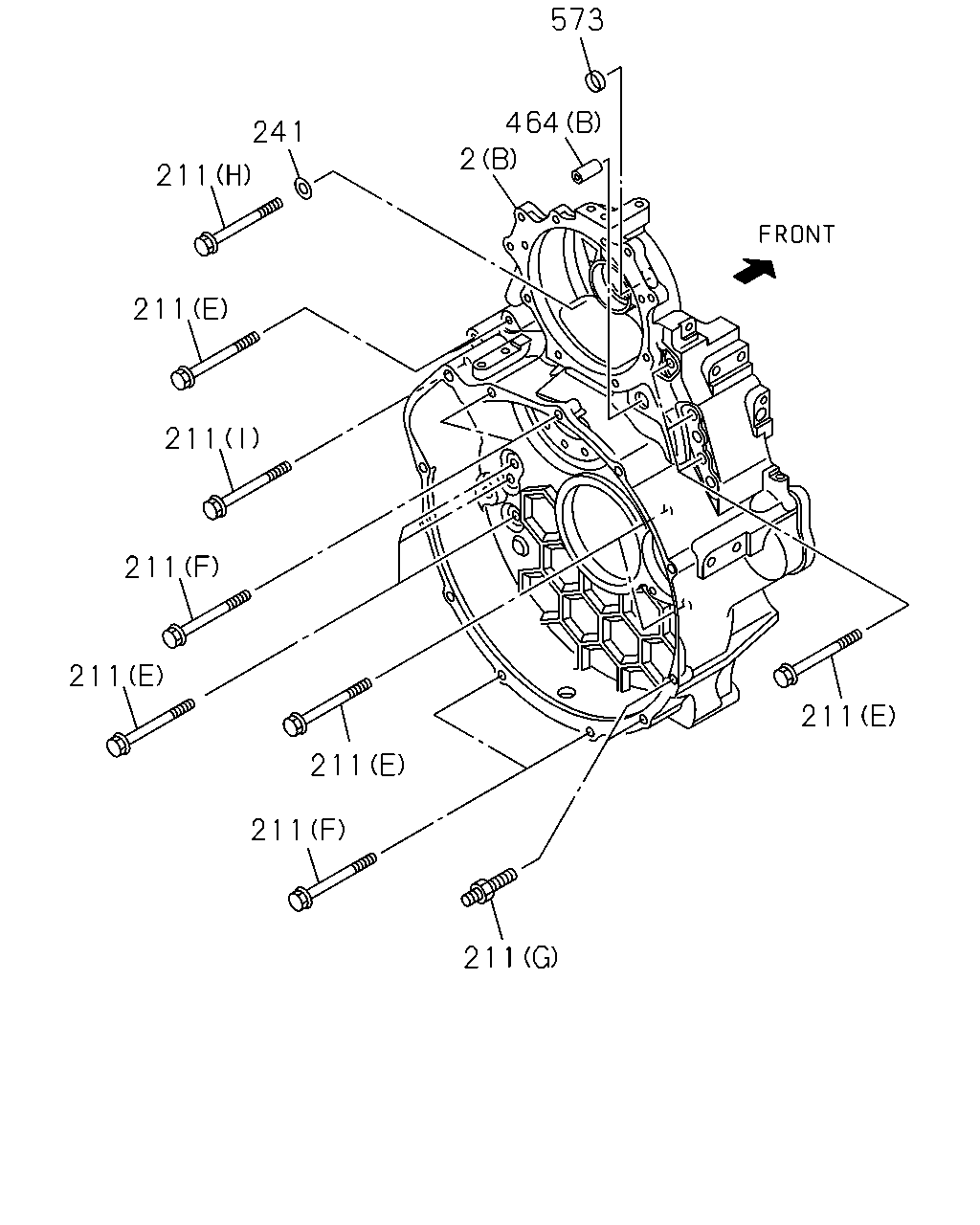

573 464 2 241 211 211 211 211 211 211 211 211 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98044-975-5	01	1	0710-0808	●
2	HOUSING; FLYWHEEL EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98044-975-5	01	1	0809-0810	●
2	HOUSING; FLYWHEEL EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98135-151-0	01	1	0811-	●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98032-562-1	01	1	0710-1011	●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98032-562-4	01	1	1012-	●	●
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (F) M10X45 FLANGE	0-28151-045-0	06	1	0710-0808	●
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (F) M10X45 FLANGE	0-28151-045-0	06	1	0809-	●
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (I) M12X15	0-28156-215-0	01	1	0710-0808	●
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (I) M12X15	0-28156-215-0	01	1	0809-	●
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (E) M12X125 FLANGE	1-09044-099-0	10	1	0710-0808	●
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (E) M12X125 FLANGE	1-09044-099-0	10	1	0809-	●
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (G) M10X20,M10X45 L=75	1-09049-015-0	04	1	0710-0805	●
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (G) M10X20,M10X45 L=75	8-98010-335-0	04	1	0806-0808	●
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (G) M10X20,M10X45 L=75	8-98010-335-0	04	1	0809-	●
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (H) M12X75	9-01666-275-0	01	1	0710-0808	●
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (H) M12X75	9-01666-275-0	01	1	0809-	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) M10X50 FLANGE	0-28151-050-0	01	1	0710-1011	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) M10X50 FLANGE	0-28151-050-0	01	1	1012-	●	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M10X40 FLANGE	0-28751-040-0	01	1	0710-1011	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) M10X40 FLANGE	0-28751-040-0	01	1	1012-	●	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0710-1011	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	1012-1102	●	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1103-	●	●
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) M12X30 FLANGE	8-97135-419-0	01	1	0710-0711	●
211	BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	0712-1011	●
211	BOLT; HSG (C) M12X30 FLANGE	8-97135-419-0	01	1	1012-	●	●
241	WASHER; PL,HSG POWER TAKE OFF-FLYWHEEL(6SZ) ID=12.5 OD=22	8-94393-140-1	01	1	0710-0808	●
241	WASHER; PL,HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) ID=12.5 OD=22	8-94393-140-1	01	1	0809-	●
464	PIPE; PCV,FLYWHEEL HSG POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-97358-501-0	01	1	0710-0808	●
464	PIPE; PCV,FLYWHEEL HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-97358-501-0	01	1	0809-	●
464	PIPE; PCV,FLYWHEEL HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-94373-246-3	01	1	0710-1011	●
464	PIPE; PCV,FLYWHEEL HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-94373-246-3	01	1	1012-	●	●
573	CUP; SEALING POWER TAKE OFF-FLYWHEEL(6SZ) OD=36	5-11219-018-0	01	1	0710-0808	●
573	CUP; SEALING EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) OD=36	5-11219-018-0	01	1	0809-	●

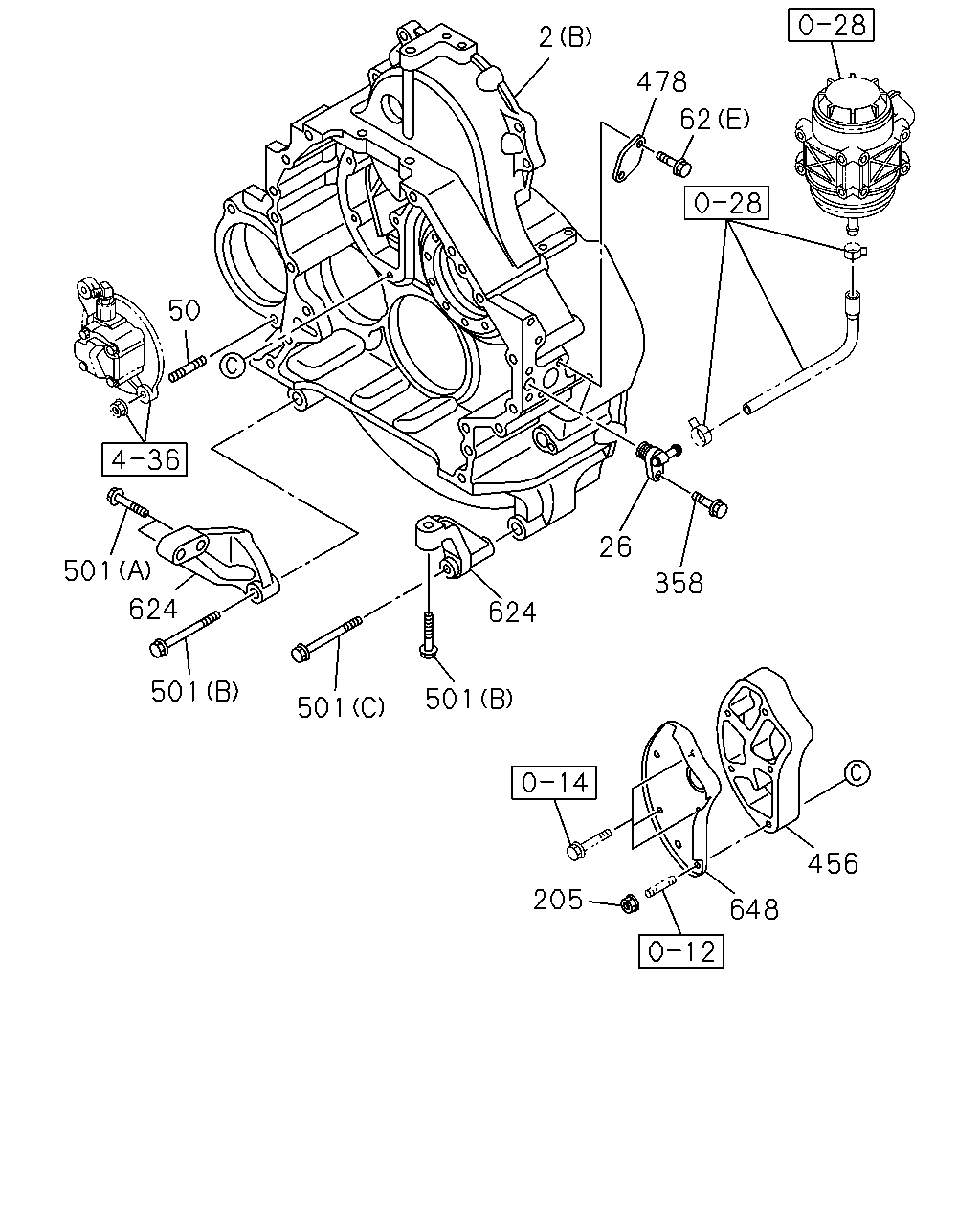

2 478 62 50 26 501 358 624 624 501 501 501 456 205 648

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98044-975-5	01	1	0710-0808	●
2	HOUSING; FLYWHEEL EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98044-975-5	01	1	0809-0810	●
2	HOUSING; FLYWHEEL EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98135-151-0	01	1	0811-	●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98032-562-1	01	1	0710-1011	●
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98032-562-4	01	1	1012-	●	●
26	ADAPTER	8-97354-819-0	01	1	0710-1011	●
26	ADAPTER	8-97354-819-0	01	1	1012-	●	●
50	STUD M10X25 L=48.5	0-49241-025-0	01	1	0710-1011	●
50	STUD M10X25 L=48.5	0-49241-025-0	01	1	1012-	●	●
62	BOLT; COVER GENERATOR 24V90A(K44) (B) M8X35 FLANGE	0-28650-835-0	04	1	0901-1004	●
62	BOLT; COVER (D) M8X65 FLANGE	1-09044-072-1	02	1	0711-1011	●
62	BOLT; COVER (D) M8X65 FLANGE	1-09044-072-1	02	1	1012-	●	●
62	BOLT; COVER GENERATOR 24V90A(K44) (C) M8X30 FLANGE	0-28650-830-0	03	1	0804-	●
62	BOLT; COVER POWER TAKE OFF-FLYWHEEL(6SZ) (E) M8X16 FLANGE	0-28050-816-0	02	1	0710-0808	●
62	BOLT; COVER EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (E) M8X16 FLANGE	0-28050-816-0	02	1	0809-	●
62	BOLT; COVER (A) M8X25 FLANGE	0-28650-825-0	06	1	0710-1011	●
62	BOLT; COVER (A) M8X25 FLANGE	0-28650-825-0	06	1	1012-	●	●
62	BOLT; COVER (C) M8X30 FLANGE	0-28650-830-0	01	1	0710-0803	●
62	BOLT; COVER GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) M8X30 FLANGE	0-28650-830-0	01	1	0804-1011	●
62	BOLT; COVER GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) M8X30 FLANGE	0-28650-830-0	01	1	1012-	●	●
62	BOLT; COVER (B) M8X35 FLANGE	0-28650-835-0	06	1	0710-0812	●
62	BOLT; COVER GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) M8X35 FLANGE	0-28650-835-0	06	1	0901-1004	●
62	BOLT; COVER (B) M8X35 FLANGE	0-28650-835-0	06	1	1005-1011	●
62	BOLT; COVER (B) M8X35 FLANGE	0-28650-835-0	06	1	1012-	●	●
205	NUT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	1-09440-049-0	02	1	0710-0808	●
205	NUT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) M8 FLANGE	1-09440-049-0	02	1	0809-	●
358	BOLT; ADAPTER M6X16 FLANGE	0-28050-616-0	01	1	0710-1011	●
358	BOLT; ADAPTER M6X16 FLANGE	0-28050-616-0	01	1	1012-	●	●
456	ADAPTER; PTO POWER TAKE OFF-FLYWHEEL(6SZ)	8-98088-019-0	01	1	0710-0808	●
456	ADAPTER; PTO EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ)	8-98088-019-0	01	1	0809-	●
478	COVER; FLYWHEEL HSG POWER TAKE OFF-FLYWHEEL(6SZ)	1-11219-163-0	01	1	0710-0808	●
478	COVER; FLYWHEEL HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ)	1-11219-163-0	01	1	0809-	●
501	BOLT; STIFFENER (B) M12X50 FLANGE	0-28151-250-0	02	1	0710-0906	●
501	BOLT; STIFFENER (B) M12X50 FLANGE	0-28151-250-0	02	1	0907-1011	●
501	BOLT; STIFFENER (B) M12X50 FLANGE	0-28151-250-0	02	1	1012-1308	●	●
501	BOLT; STIFFENER POWER TAKE OFF-FLYWHEEL(6SZ) (B) M12X50 FLANGE	0-28151-250-0	02	1	1309-	●
501	BOLT; STIFFENER (C) M12X90 FLANGE	0-28151-290-0	01	1	0710-0906	●
501	BOLT; STIFFENER (C) M12X90 FLANGE	0-28151-290-0	01	1	0907-1011	●
501	BOLT; STIFFENER (C) M12X90 FLANGE	0-28151-290-0	01	1	1012-1308	●	●
501	BOLT; STIFFENER POWER TAKE OFF-FLYWHEEL(6SZ) (C) M12X90 FLANGE	0-28151-290-0	01	1	1309-	●
501	BOLT; STIFFENER (A) M10X40 FLANGE	0-28151-040-0	02	1	0710-0906	●
501	BOLT; STIFFENER (A) M10X40 FLANGE	0-28151-040-0	02	1	0907-1011	●
501	BOLT; STIFFENER (A) M10X40 FLANGE	0-28151-040-0	02	1	1012-1308	●	●
501	BOLT; STIFFENER POWER TAKE OFF-FLYWHEEL(6SZ) (A) M10X40 FLANGE	0-28151-040-0	02	1	1309-	●
624	STIFFENER	8-97380-613-1	01	1	0710-0906	●
624	STIFFENER	8-97380-613-1	01	1	0907-1008	●
624	STIFFENER	8-97380-613-1	01	1	1009-1011	●
624	STIFFENER	8-97380-613-1	01	1	1012-1308	●	●
624	STIFFENER POWER TAKE OFF-FLYWHEEL(6SZ)	8-97380-613-1	01	1	1309-	●
624	STIFFENER	8-97380-614-1	01	1	0710-0906	●
624	STIFFENER	8-97380-614-1	01	1	0907-1008	●
624	STIFFENER	8-97380-614-1	01	1	1009-1011	●
624	STIFFENER	8-97380-614-1	01	1	1012-1308	●	●
624	STIFFENER POWER TAKE OFF-FLYWHEEL(6SZ)	8-97380-614-1	01	1	1309-	●
648	PLATE; BAFFLE,PTO POWER TAKE OFF-FLYWHEEL(6SZ)	8-98088-017-0	01	1	0710-0808	●
648	PLATE; BAFFLE,PTO EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ)	8-98088-017-0	01	1	0809-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
