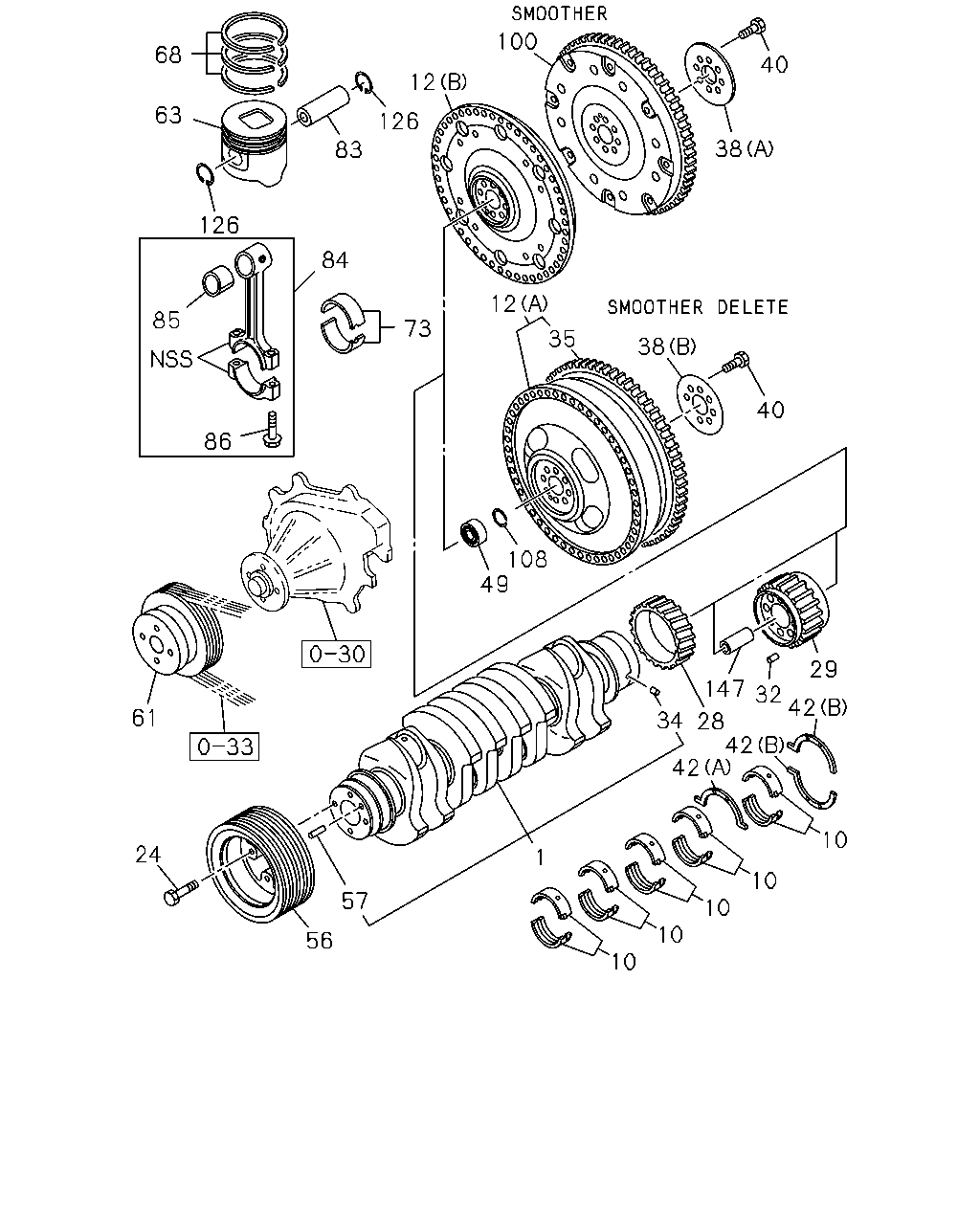

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#39413) — 74 parça

40 38 100 12 126 83 68 63 126 84 85 73 86 61 24 56 57 49 108 12 35 40 38 147 32 29 42 28 34 42 42 10 10 10 10 10 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-98029-270-0	01	1	0710-1011	●
1	CRANKSHAFT	8-98029-270-0	01	1	1012-	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	0710-1011	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1012-	●	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	0710-1011	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1012-	●	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	0710-1011	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1012-	●	●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98020-543-1	01	1	0710-	●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98056-355-2	01	1	0710-1011	●
12	FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98056-355-2	01	1	1012-	●
12	FLYWHEEL (A)	8-98056-355-2	01	1	1012-		●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	0710-1011	●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	1012-	●	●
28	GEAR; CR/SHF Z=42	8-94394-342-4	01	1	0710-1011	●
28	GEAR; CR/SHF Z=42	8-94394-342-4	01	1	1012-	●	●
29	GEAR; CR/SHF,PTO POWER TAKE OFF-FLYWHEEL(6SZ) Z=42	8-98089-224-1	01	1	0710-0808	●
29	GEAR; CR/SHF,PTO EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) Z=42	8-98089-224-1	01	1	0809-1006	●
29	GEAR; CR/SHF,PTO EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) Z=42	8-98011-443-1	01	1	1007-	●
32	PIN; FLYWHEEL POWER TAKE OFF-FLYWHEEL(6SZ) OD=8 L=20	9-08150-820-0	01	1	0710-0808	●
32	PIN; FLYWHEEL EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) OD=8 L=20	9-08150-820-0	01	1	0809-	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	0710-1011	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1012-	●	●
35	GEAR; RING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=143	8-97375-675-1	01	1	0710-1011	●
35	GEAR; RING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=143	8-97375-675-1	01	1	1012-	●
35	GEAR; RING Z=143	8-97375-675-1	01	1	1012-		●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98001-510-0	01	1	0710-1009	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=50 OD=120	8-98176-500-0	01	1	1010-	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=55 OD=110	8-94397-496-1	01	1	0710-1011	●
38	WASHER; FLYWHEEL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=55 OD=110	8-94397-496-1	01	1	1012-	●
38	WASHER; FLYWHEEL (B) ID=55 OD=110	8-94397-496-1	01	1	1012-		●
40	BOLT; FLYWHEEL POWER TAKE OFF-FLYWHEEL(6SZ) M16X108	8-97142-880-0	08	1	0710-0808	●
40	BOLT; FLYWHEEL EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) M16X108	8-97142-880-0	08	1	0809-	●
40	BOLT; FLYWHEEL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M16X51	8-94334-870-1	08	1	0710-1011	●
40	BOLT; FLYWHEEL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M16X51	8-94334-870-1	08	1	1012-	●	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0710-1011	●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1012-	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0710-1011	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1012-	●	●
49	BEARING; PILOT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97258-239-0	01	1	0710-1011	●
49	BEARING; PILOT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97258-239-0	01	1	1012-	●
49	BEARING; PILOT	8-97258-239-0	01	1	1012-		●
49	BEARING; PILOT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-164-0	01	1	0907-1011	●
49	BEARING; PILOT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	5-87610-164-0	01	1	1012-	●
49	BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	1012-		●
56	PULLEY; CR/SHF DAMPER 3-GROOVE	8-98004-024-3	01	1	0710-1011	●
56	PULLEY; CR/SHF DAMPER 3-GROOVE	8-98004-024-3	01	1	1012-	●	●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	0710-1011	●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	1012-	●	●
61	PULLEY; FAN DRIVE 1-GROOVE	8-98003-384-1	01	1	0710-1011	●
61	PULLEY; FAN DRIVE 1-GROOVE	8-98003-384-1	01	1	1012-	●	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-0	04	1	0710-1011	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	04	1	1012-	●	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	0710-1011	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1012-	●	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	0710-1011	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1012-	●	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	0710-1011	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1012-	●	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	0710-1011	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1012-	●	●
84	ROD ASM; CONN	8-98018-425-2	04	1	0710-1011	●
84	ROD ASM; CONN	8-98018-425-3	04	1	1012-	●	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	0710-1011	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1012-	●	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0710-1004	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1005-1011	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1012-	●	●
100	PLATE; FLEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-542-2	01	1	0710-	●
108	RING; SNAP,BRG SET TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=59.2	9-09180-155-0	01	1	0710-1006	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	0710-1011	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	1012-	●	●
147	SPACER; CRANK GEAR POWER TAKE OFF-FLYWHEEL(6SZ)	8-97064-107-1	01	1	0710-0808	●
147	SPACER; CRANK GEAR EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ)	8-97064-107-1	01	1	0809-1006	●
