9-01 — TOOLS (#39405) — 71 parça
çizim 178059
193 208 227 237 230 229 245 246 247 248 249 250
BalonParca AdiParca NoAdetTipApplied Date
193 JACK ASM
TOOL A KIT(SK9),TOOL B KIT(SL1) 15TON 		1-85510-019-2 01 1 0707-
208 HANDLE; JACK
TOOL A KIT(SK9),TOOL B KIT(SL1) L=600 		1-85515-009-0 01 1 0707-1107
208 HANDLE; JACK
TOOL A KIT(SK9),TOOL B KIT(SL1) L=600 		8-98181-437-0 01 1 1108-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0707-
229 FUNNEL; RAD
TOOL B KIT(SL1) 		9-85531-110-1 01 1 0707-
230 PUMP; GREASE
TOOL B KIT(SL1) 		1-85556-007-5 01 1 0707-
237 BAG; TOOL
TOOL B KIT(SL1) 		8-97130-902-1 01 1 0707-
245 CHAIN; TIRE,SINGLE
9.00-20 SINGLE TYPE 		9-85591-254-0 AR 1 0707-
246 CHAIN; TIRE,1000-20,SINGLE
10.00-20 SINGLE TYPE 		9-85591-239-0 AR 1 0707-
246 CHAIN; TIRE,1000-20,SINGLE
11.00-20 SINGLE TYPE 		9-85591-259-0 AR 1 0707-
247 CHAIN; TIRE,750-20,DOUBLE
9.00-20 DOUBLE TYPE 		9-85591-255-0 AR 1 0707-
248 CHAIN; TIRE,1000-20,DOUBLE
10.00-20 DOUBLE TYPE 		9-85591-240-0 AR 1 0707-
248 CHAIN; TIRE,1000-20,DOUBLE
11.00-20 DOUBLE TYPE 		9-85591-260-0 AR 1 0707-
249 CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE 		9-85591-256-0 AR 1 0707-
250 CHAIN; TIRE,1000-20,TRIPLE
10.00-20 TRIPLE TYPE 		9-85591-241-0 AR 1 0707-
250 CHAIN; TIRE,1000-20,TRIPLE
11.00-20 TRIPLE TYPE 		9-85591-261-0 AR 1 0707-
çizim 178061
125 115 127 129 128 142 130 135 146 146 148 12 141
BalonParca AdiParca NoAdetTipApplied Date
12 HANDLE; WRENCH,WHEEL PIN
TOOL A KIT(SK9),TOOL B KIT(SL1) OD=25 L=480 		1-85116-011-0 01 1 0707-1501
12 HANDLE; WRENCH,WHEEL PIN
TOOL A KIT(SK9),TOOL B KIT(SL1) OD=25 L=480 		8-98257-407-0 01 1 1502-
115 PLIER
TOOL B KIT(SL1) 		5-85171-002-0 01 1 0707-1410
115 PLIER
TOOL B KIT(SL1) 		8-98282-845-0 01 1 1411-
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 0707-
127 WRENCH ASM; HUB BRG NUT
L=400 B=105 		9-85113-509-0 01 1 0707-
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 0707-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0707-
130 WRENCH; BOX
B=63 		9-85111-368-0 01 1 0707-
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 0707-
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 0707-1501
141 HANDLE; WRENCH
OD=25 L=480 		8-98257-407-0 01 1 1502-
141 HANDLE; WRENCH
OD=16 L=200 		9-85111-934-0 01 1 0707-
142 PULLER ASM; TRANS BRG 9-85210-148-0 01 1 0707-
146 REPLACER KIT; LEAF SPR
(B) 		1-85237-017-0 01 1 0707-
146 REPLACER KIT; LEAF SPR
(A) 		9-85231-556-0 01 1 0707-
148 PULLER; COUNTER SHAFT BRG 9-85210-195-0 01 1 0707-
çizim 178062
151 152 153 154 171 166 158 167 180 178 179 189 192
BalonParca AdiParca NoAdetTipApplied Date
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 0707-
152 DRIVER; NEEDLE,KING PIN
L=220 		1-85238-001-0 01 1 0707-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0707-
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0707-
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0707-
166 ALIGNER; CLU RELEASE LEVER
L=550 H=12.5 		1-85253-001-0 01 1 0707-
167 ALIGNER; CLU PILOT 9-85241-409-0 01 1 0707-
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 0707-
178 BAR; TRANS GUIDE 9-85291-203-0 01 1 0707-
179 PULLER; SPD METER GEAR 9-85210-091-0 01 1 0707-
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 0707-
189 TUBE; AIR BREATHER
TOOL B KIT(SL1) L=460 		9-85291-414-0 01 1 0707-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0707-

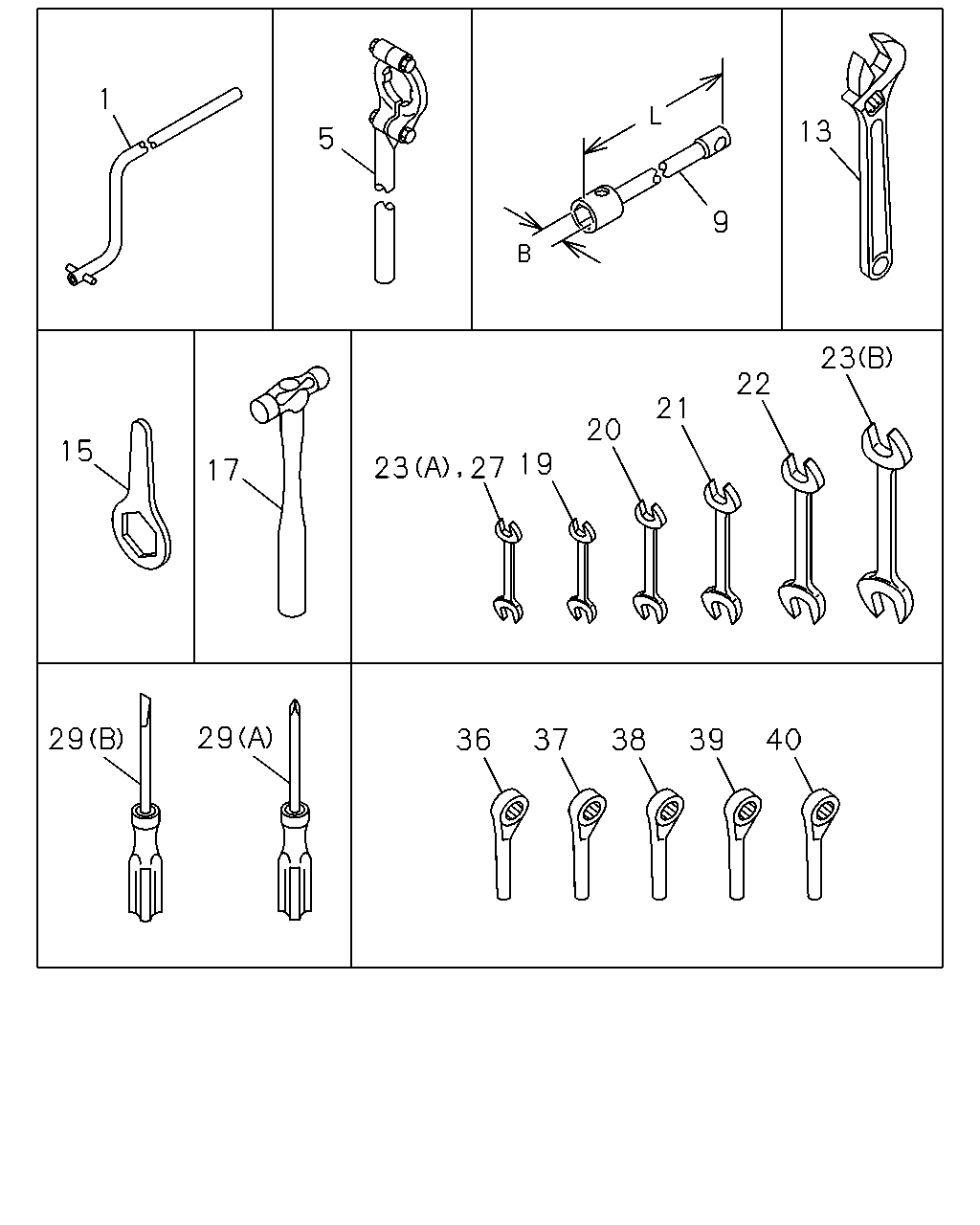

çizim 178064
1 5 9 13 23 22 21 20 19 27 23 17 15 29 29 36 37 38 39 40
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER
SPARE WHEEL CARRIER<SFB> 		1-23111-004-0 01 1 0707-
5 WRENCH ASM; NUT,MAINSHAFT 1-85110-010-0 01 1 0707-
9 WRENCH; WHEEL PIN
INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL A KIT(SK9),TOOL B KIT(SL1) B=33X30 L=450 		1-85111-033-1 01 1 0707-
9 WRENCH; WHEEL PIN
TOOL A KIT(SK9),TOOL B KIT(SL1) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> B=41X21 L=440 		1-85113-015-1 01 1 0707-
13 WRENCH; MONKEY
TOOL B KIT(SL1) L=255 		1-85117-002-1 01 1 0707-0907
13 WRENCH; MONKEY
TOOL B KIT(SL1) L=247 		1-85117-006-0 01 1 0908-1407
13 WRENCH; MONKEY
TOOL B KIT(SL1) L=255 		8-98270-303-0 01 1 1408-
15 WRENCH; TOP GEAR NUT 9-85111-330-0 01 1 0707-
17 HAMMER
TOOL B KIT(SL1) 		9-85121-406-0 01 1 0707-
19 WRENCH; 7X8
TOOL B KIT(SL1) 7X8 		9-09592-107-0 01 1 0707-
20 WRENCH; 10X12
TOOL B KIT(SL1) 10X12 		0-95902-510-0 01 1 0707-
21 WRENCH; 14X17
TOOL B KIT(SL1) 14X17 		0-95902-514-0 01 1 0707-
22 WRENCH; 19X22
TOOL B KIT(SL1) 19X22 		0-95902-519-0 01 1 0707-
23 WRENCH; 24X27
INTERNATIONAL STANDARD ISO 10STUD<B3V> TOOL B KIT(SL1) (A) 5.5X7 		9-09592-105-0 01 1 0707-
23 WRENCH; 24X27
TOOL B KIT(SL1) (B) 24X27 		0-95902-524-0 01 1 0707-
27 WRENCH; OPEN END 5.5X7
TOOL B KIT(SL1) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> 5.5X7 		9-09592-105-0 01 1 0707-
29 DRIVER; SCREW
TOOL B KIT(SL1) (A) <+> L=205 		9-09595-022-0 01 1 0707-
29 DRIVER; SCREW
TOOL B KIT(SL1) (A) <+> L=275 		9-09595-023-0 01 1 0707-
29 DRIVER; SCREW
TOOL B KIT(SL1) (B) <-> L=205 		9-09595-126-0 01 1 0707-
29 DRIVER; SCREW
TOOL B KIT(SL1) (B) <-> L=325 		9-09595-129-0 01 1 0707-
36 WRENCH; 24 9-85111-377-0 01 1 0707-
37 WRENCH; 27 9-85111-375-0 01 1 0707-
38 WRENCH; 32 9-85111-358-0 01 1 0707-
39 WRENCH; 36 9-85111-374-0 01 1 0707-
40 WRENCH; 41 9-85111-356-0 01 1 0707-
