5-01 — FRAME AND OTHER PARTS (#394) — 118 parça

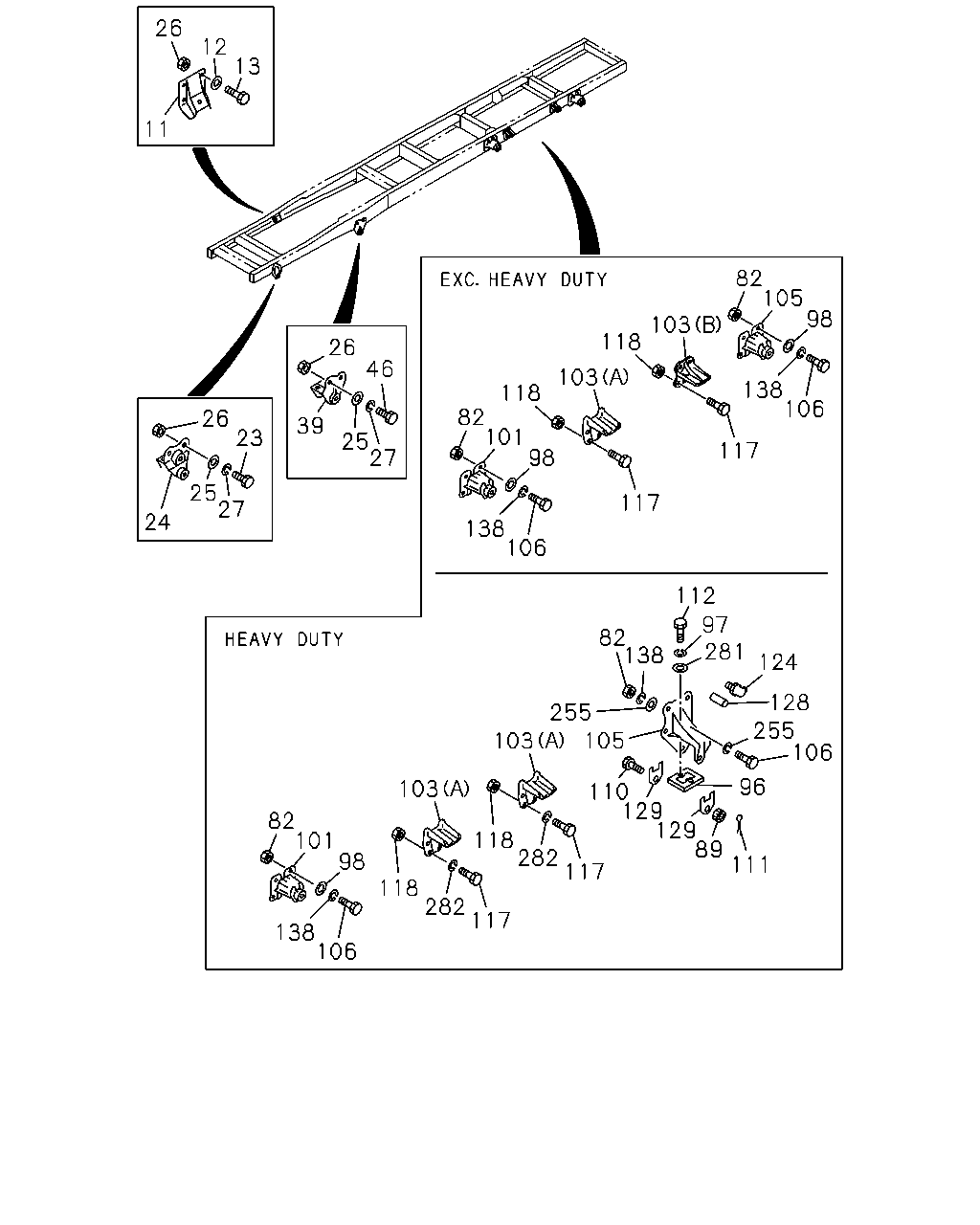

26 12 13 11 82 105 98 103 118 26 46 103 138 106 118 82 101 98 26 23 39 25 27 117 25 27 117 24 138 106 112 97 281 82 138 124 128 255 255 106 105 103 96 103 110 129 129 89 82 101 98 118 282 117 111 118 282 117 138 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
11	BRACKET; ENG MTG	1-53211-185-0	02	1	9202-	●	●	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=12.5	1-09503-171-0	08	1	9202-	●	●	●	●	●
13	BOLT; BRKT,ENG MTG M12X28	9-92061-228-0	08	1	9202-	●	●	●	●	●
23	BOLT; BRKT,SPR M14X50	9-92061-450-0	06	1	9202-	●	●	●	●	●
23	BOLT; BRKT,SPR M16X50	9-92061-650-0	04	1	9202-	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-149-3	01	1	9202-	●	●	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-148-3	01	1	9202-	●	●	●	●	●
25	WASHER; PL,BRKT ID=16.2	1-09503-223-0	08	1	9202-	●	●	●	●	●
25	WASHER; PL,BRKT ID=15.0	9-09651-069-0	24	1	9202-	●	●	●	●	●
26	NUT; BRKT,SPR M14	9-99110-514-0	12	1	9202-	●	●	●	●	●
26	NUT; BRKT,SPR M16	9-99110-516-0	04	1	9202-	●	●	●	●	●
27	WASHER; LK,BRKT,FRT SPR ID=14.2	9-09150-614-0	12	1	9202-	●	●	●	●	●
27	WASHER; LK,BRKT,FRT SPR ID=16.2	9-09150-616-0	04	1	9202-	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-125-2	01	1	9202-	●	●	●	●	●
39	BRACKET; FRT SPR,RR	1-53352-124-2	01	1	9202-	●	●	●	●	●
46	BOLT; BRKT FIX M14X40	9-92061-440-0	06	1	9202-9205	●	●	●	●
46	BOLT; BRKT FIX M14X50	9-92061-450-0	06	1	9202-9205					●
46	BOLT; BRKT FIX M14X50	9-92061-450-0	06	1	9206-	●	●	●	●	●
82	NUT; BRKT M14	9-99110-514-0	20	1	9202-	●		●	●	●
82	NUT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14	9-99110-514-0	20	1	9202-		●
82	NUT; BRKT HEAVY DUTY PACKAGE TRUCK<RD2> M14	9-99110-514-0	24	1	9202-		●
89	NUT; LEAF SPR STOPPER SUSPENSION HEAVY DUTY VAR2(F41) M14	9-99116-414-0	02	1	9202-		●
96	PAD; RR SPR SUSPENSION HEAVY DUTY VAR2(F41)	1-53359-047-0	02	1	9202-		●
97	WASHER; LK,PAD SUSPENSION HEAVY DUTY VAR2(F41) ID=14.2	9-09150-514-0	04	1	9202-		●
98	WASHER; LK,STOPPER ID=14.2	9-09150-614-0	16	1	9202-	●	●	●	●	●
101	BRACKET; RR SPR,FRT	1-53353-072-1	02	1	9202-	●		●	●	●
101	BRACKET; RR SPR,FRT EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53353-072-1	02	1	9202-		●
101	BRACKET; RR SPR,FRT HEAVY DUTY PACKAGE TRUCK<RD2>	1-53353-078-1	02	1	9202-		●
103	STOPPER; SUB SPR (A)	1-53356-038-1	02	1	9202-	●		●	●	●
103	STOPPER; SUB SPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-53356-038-1	02	1	9202-		●
103	STOPPER; SUB SPR (B)	1-53357-029-1	02	1	9202-	●		●	●	●
103	STOPPER; SUB SPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B)	1-53357-029-1	02	1	9202-		●
103	STOPPER; SUB SPR HEAVY DUTY PACKAGE TRUCK<RD2> (A)	1-53356-057-0	04	1	9202-		●
105	BRACKET; RR SPR,RR	1-53353-072-1	02	1	9202-	●		●	●	●
105	BRACKET; RR SPR,RR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53353-072-1	02	1	9202-		●
105	BRACKET; RR SPR,RR HEAVY DUTY PACKAGE TRUCK<RD2>	1-53354-064-1	02	1	9202-		●
106	BOLT; BRKT M14X40	0-20801-440-0	20	1	9202-9207	●		●	●	●
106	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X40	0-20801-440-0	20	1	9202-9207		●
106	BOLT; BRKT M14X50	0-20801-450-0	20	1	9208-	●		●	●	●
106	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X50	0-20801-450-0	20	1	9208-		●
106	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK<RD2> M14X50	9-92061-450-0	24	1	9202-		●
110	BOLT; LEAF SPR STOPPER SUSPENSION HEAVY DUTY VAR2(F41)	1-09000-007-0	02	1	9202-		●
111	PIN; SPLIT,LEAF SPR STOPPER SUSPENSION HEAVY DUTY VAR2(F41) OD=2.8 L=28	9-08113-028-0	02	1	9202-		●
112	BOLT; PAD SUSPENSION HEAVY DUTY VAR2(F41) M14X35	0-20801-435-0	04	1	9202-		●
117	BOLT; STOPPER M14X50	0-20801-450-0	16	1	9202-	●		●	●	●
117	BOLT; STOPPER EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X50	0-20801-450-0	16	1	9202-		●
117	BOLT; STOPPER HEAVY DUTY PACKAGE TRUCK<RD2> M14X50	9-92061-450-0	16	1	9202-		●
118	NUT; STOPPER M14	9-99110-514-0	16	1	9202-	●	●	●	●	●
124	NIPPLE; GREASE SUSPENSION HEAVY DUTY VAR2(F41) PT1/8 ELBOW	9-09031-210-0	02	1	9202-		●
128	COLLAR; RUBBER SUSPENSION HEAVY DUTY VAR2(F41)	1-53359-058-0	02	1	9202-9209		●
128	COLLAR; RUBBER SUSPENSION HEAVY DUTY VAR2(F41)	1-53359-004-0	02	1	9210-		●
129	SHIM; SIDE SUSPENSION HEAVY DUTY VAR2(F41) T=4.5	1-53359-061-1	02	1	9202-		●
129	SHIM; SIDE SUSPENSION HEAVY DUTY VAR2(F41) T=3.2	1-53359-062-1	02	1	9202-		●
138	WASHER; LK,BRKT ID=14.2	9-09150-614-0	20	1	9202-	●		●	●	●
138	WASHER; LK,BRKT EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2	9-09150-614-0	20	1	9202-		●
138	WASHER; LK,BRKT HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2	9-09150-614-0	24	1	9202-		●
255	WASHER; PL,BRKT HEAVY DUTY PACKAGE TRUCK<RD2> ID=15	9-09651-069-0	48	1	9202-		●
281	WASHER; LEAF SPR STOPPER SUSPENSION HEAVY DUTY VAR2(F41) ID=15 OD=30	9-09160-614-0	04	1	9202-		●
282	WASHER; PL,STOPPER HEAVY DUTY PACKAGE TRUCK<RD2> ID=15	9-09651-069-0	32	1	9202-		●

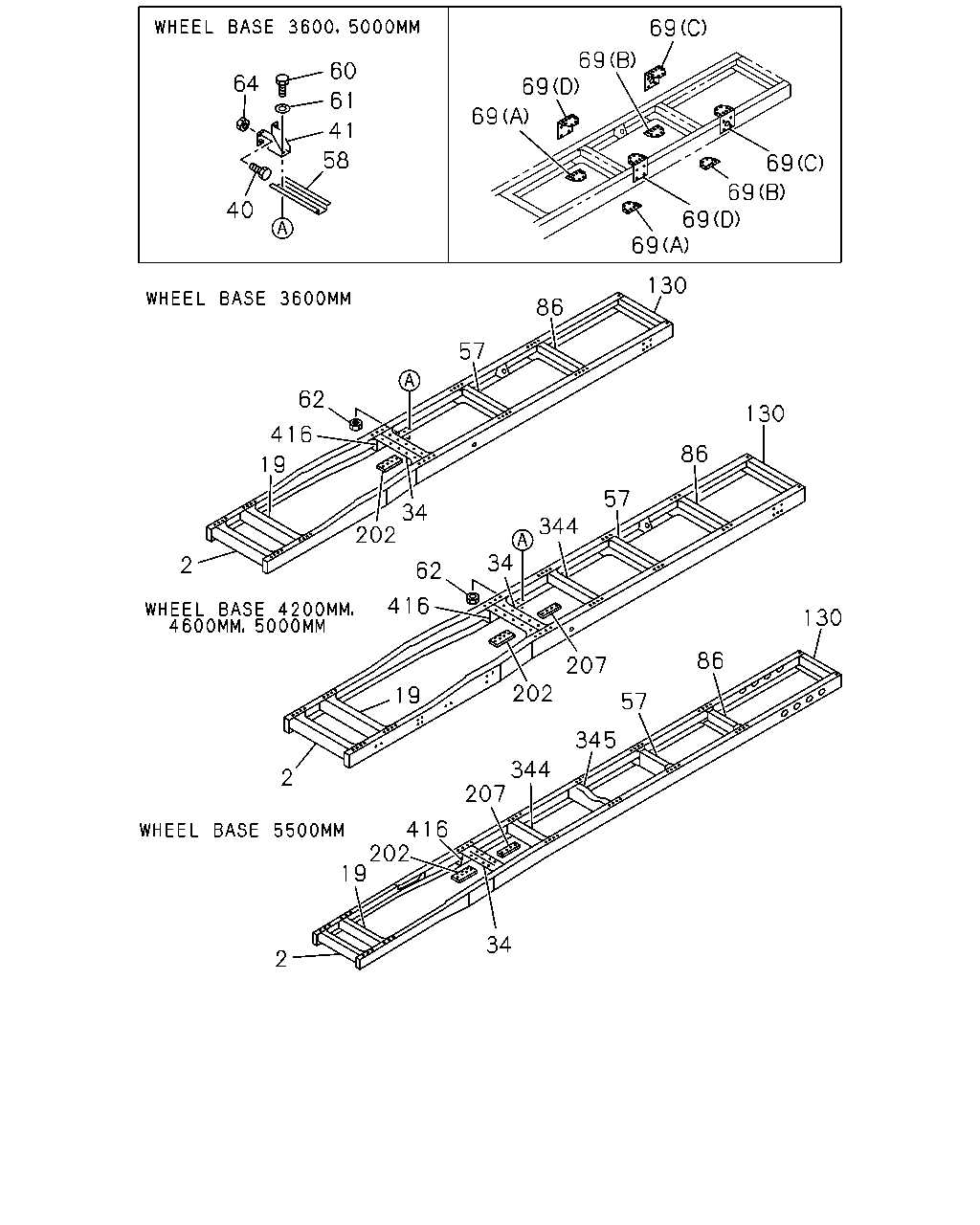

69 69 69 60 64 61 69 41 58 69 69 69 40 69 130 86 57 62 130 416 86 19 57 34 202 344 34 2 62 416 130 86 207 202 19 57 345 344 207 2 416 202 19 34 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	MEMBER; CROSS,1ST	1-53181-419-3	01	1	9202-	●	●	●	●	●
19	MEMBER; CROSS,2ND	1-53181-430-3	01	1	9202-	●	●	●	●	●
34	MEMBER; CROSS,3RD	1-53174-155-0	01	1	9202-9404	●	●	●	●	●
34	MEMBER; CROSS,3RD	1-53174-231-1	01	1	9405-	●	●	●	●	●
40	BOLT; BRKT TO FRAME M10X30 W/LK WASHER	0-50041-030-0	08	1	9202-	●			●
41	BRACKET; CENTER BRG,FRAME SIDE	1-37515-085-0	02	1	9202-	●			●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-279-2	01	1	9202-9404	●	●	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	1-53181-691-0	01	1	9405-	●	●	●	●	●
58	MEMBER; CENTER BRG	1-37529-063-1	01	1	9202-	●			●
60	BOLT; MBR M10X25 W/LK WASHER	0-50041-025-0	08	1	9202-	●			●
61	WASHER; PL,MBR ID=10.5 OD=22	9-09164-610-0	08	1	9202-	●			●
62	NUT; MBR M10	9-09110-410-0	08	1	9202-	●			●
64	NUT; BRKT TO FRAME M10	9-09110-410-0	08	1	9202-	●			●
69	GUSSET; RR SUSP,UPR (D)	1-53167-284-0	01	1	9204-9501	●
69	GUSSET; RR SUSP,UPR (D)	1-53167-309-0	01	1	9502-	●		●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D)	1-53167-309-0	01	1	9502-		●
69	GUSSET; RR SUSP,UPR (B)	1-53167-099-4	02	1	9202-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR (A)	1-53167-100-3	02	1	9202-	●	●	●	●	●
69	GUSSET; RR SUSP,UPR (D)	1-53167-142-1	01	1	9202-9501	●		●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D)	1-53167-142-1	01	1	9202-9501		●
69	GUSSET; RR SUSP,UPR (D)	1-53167-310-0	01	1	9502-	●		●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D)	1-53167-310-0	01	1	9502-		●
69	GUSSET; RR SUSP,UPR (C)	1-53167-248-1	01	1	9202-	●		●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-53167-248-1	01	1	9202-		●
69	GUSSET; RR SUSP,UPR (D)	1-53167-141-1	01	1	9202-9203	●		●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D)	1-53167-141-1	01	1	9202-9203		●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D)	1-53167-141-1	01	1	9204-9501		●
69	GUSSET; RR SUSP,UPR (D)	1-53167-141-1	01	1	9204-9501			●	●	●
69	GUSSET; RR SUSP,UPR (C)	1-53167-247-1	01	1	9202-	●		●	●	●
69	GUSSET; RR SUSP,UPR EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-53167-247-1	01	1	9202-		●
69	GUSSET; RR SUSP,UPR HEAVY DUTY PACKAGE TRUCK<RD2> (D)	1-53167-095-4	01	1	9202-		●
69	GUSSET; RR SUSP,UPR HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-53167-098-5	01	1	9202-		●
69	GUSSET; RR SUSP,UPR HEAVY DUTY PACKAGE TRUCK<RD2> (D)	1-53167-096-4	01	1	9202-		●
69	GUSSET; RR SUSP,UPR HEAVY DUTY PACKAGE TRUCK<RD2> (C)	1-53167-097-5	01	1	9202-		●
86	MEMBER; CROSS,RR SUSP RR	1-53181-279-2	01	1	9202-9404	●	●	●	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-691-0	01	1	9405-	●	●	●	●	●
130	MEMBER; CROSS,END	1-53171-948-2	01	1	9202-9211	●	●	●	●	●
130	MEMBER; CROSS,END	1-53181-151-1	01	1	9212-	●	●	●	●	●
202	SPACER; 3RD C/MBR	1-53168-101-0	02	1	9202-9404	●	●	●	●	●
202	SPACER; 3RD C/MBR	1-53168-351-1	02	1	9405-	●	●	●	●	●
207	SPACER; 4TH C/MBR	1-53168-163-1	02	1	9407-		●
207	SPACER; 4TH C/MBR AUSTRALIA EQUIPMENT(RR3)	1-53168-163-1	02	1	9407-					●
207	SPACER; 4TH C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53168-162-0	02	1	9202-9203			●	●	●
207	SPACER; 4TH C/MBR EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53168-162-2	02	1	9204-			●
207	SPACER; 4TH C/MBR	1-53168-162-2	02	1	9204-				●
207	SPACER; 4TH C/MBR EXC. AUSTRALIA EQUIPMENT(RR3)	1-53168-162-2	02	1	9204-					●
344	MEMBER; CROSS,4TH	1-53171-947-3	01	1	9202-9404		●	●	●	●
344	MEMBER; CROSS,4TH BUMPER W/HEADLAMPS<SLB>	1-53171-947-3	01	1	9405-9406		●			●
344	MEMBER; CROSS,4TH EXC. BUMPER W/HEADLAMPS<SLB>	1-53181-580-1	01	1	9405-9406		●			●
344	MEMBER; CROSS,4TH	1-53181-580-1	01	1	9405-9406			●	●
344	MEMBER; CROSS,4TH	1-53181-580-1	01	1	9407-		●	●	●	●
345	MEMBER; CROSS,5TH	1-53171-947-3	01	1	9202-9404					●
345	MEMBER; CROSS,5TH BUMPER W/HEADLAMPS<SLB>	1-53171-947-3	01	1	9405-9406					●
345	MEMBER; CROSS,5TH EXC. BUMPER W/HEADLAMPS<SLB>	1-53181-580-1	01	1	9405-9406					●
345	MEMBER; CROSS,5TH	1-53181-580-1	01	1	9407-					●
416	GUSSET; 3RD C/MBR	1-53164-182-0	01	1	9202-9404	●	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-214-0	01	1	9405-	●	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-151-1	01	1	9202-9404	●	●	●	●	●
416	GUSSET; 3RD C/MBR	1-53164-213-0	01	1	9405-	●	●	●	●	●
