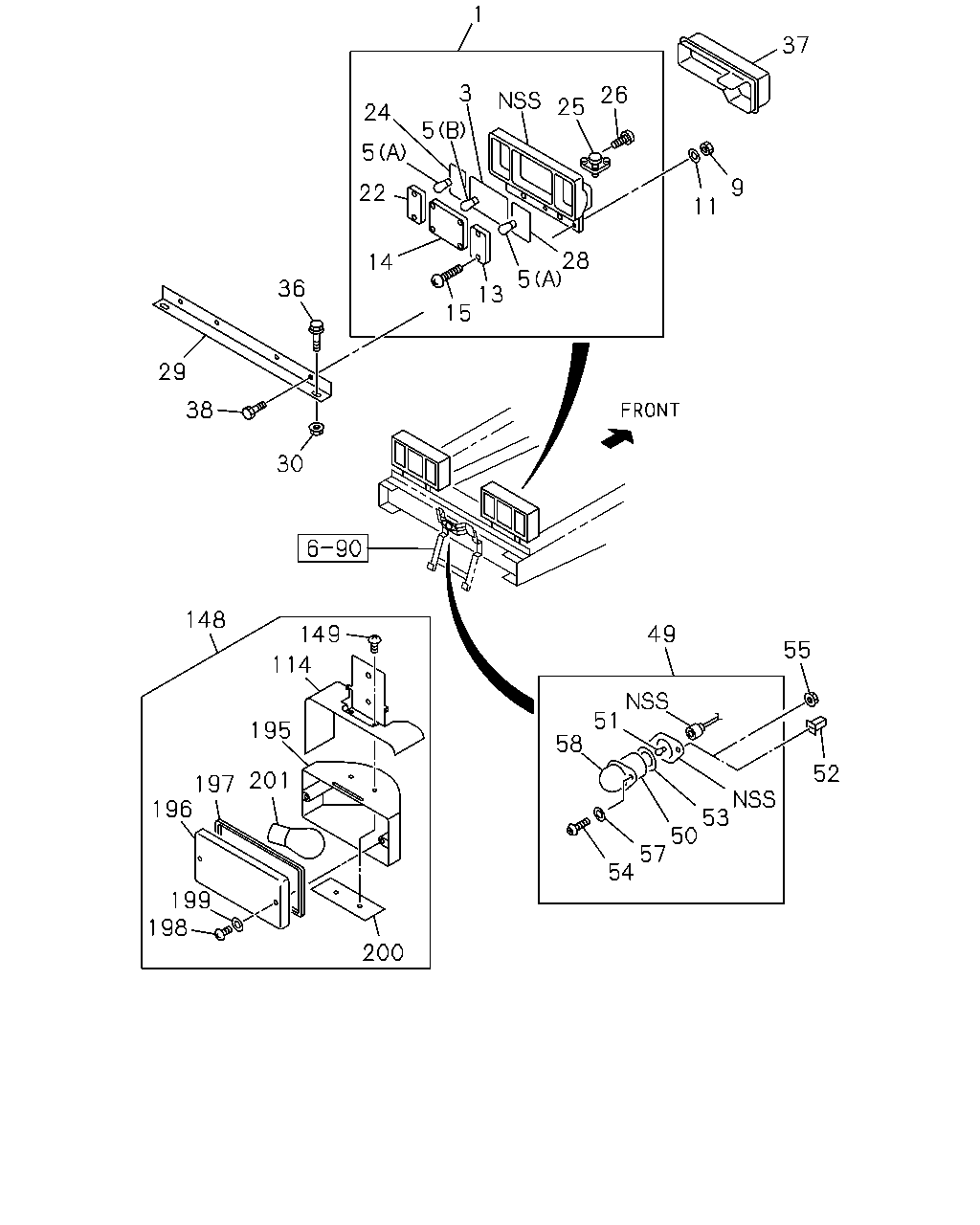

1 |
LAMP ASM; RR COMB
|
8-98034-325-0 |
01 |
1 |
0707- |
| |
1 |
LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9>
|
8-98034-328-0 |
01 |
1 |
0707- |
| |
1 |
LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9>
|
8-98034-324-0 |
01 |
1 |
0707- |
| |
3 |
GASKET; RR COMB LAMP
|
8-94257-505-0 |
01 |
1 |
0707- |
| |
5 |
BULB; RR COMB LAMP
(A)
24V 21W
|
1-82194-108-0 |
02 |
1 |
0707- |
| |
5 |
BULB; RR COMB LAMP
(B)
24V 21/5W
|
1-82194-109-0 |
01 |
1 |
0707- |
| |
9 |
NUT; LAMP,RR COMB
M6
|
0-91110-506-0 |
04 |
1 |
0707- |
| |
11 |
WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18
|
0-91610-706-0 |
04 |
1 |
0707- |
| |
13 |
LENS; TURN SIGNAL
|
8-94174-638-0 |
01 |
1 |
0707- |
| |
13 |
LENS; TURN SIGNAL
|
8-94174-639-0 |
01 |
1 |
0707- |
| |
14 |
LENS; TAIL & STOP,RR COMB LAMP
|
8-94178-624-0 |
01 |
1 |
0707- |
| |
14 |
LENS; TAIL & STOP,RR COMB LAMP
|
8-94178-625-0 |
01 |
1 |
0707- |
| |
15 |
SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS
|
0-71190-420-0 |
08 |
1 |
0707- |
| |
22 |
LENS; BACKUP,RR COMB LAMP
|
8-94257-512-1 |
01 |
1 |
0707- |
| |
24 |
GASKET; BACK,LAMP
|
8-94257-506-0 |
01 |
1 |
0707- |
| |
25 |
HORN ASM; BACK
REVERSING WARNING BUZZER<YM9>
|
8-94257-518-0 |
01 |
1 |
0707- |
| |
26 |
SCREW; BACK HORN
M4X14 TAPPING
|
9-07076-414-0 |
01 |
1 |
0707- |
| |
26 |
SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9>
M4X12 TAPPING
|
9-07076-412-0 |
02 |
1 |
0707- |
| |
26 |
SCREW; BACK HORN
EXC. REVERSING WARNING BUZZER<YM9>
M4X12 TAPPING
|
9-07076-412-0 |
01 |
1 |
0707- |
| |
28 |
GASKET; TURN,LAMP
|
8-94257-507-0 |
01 |
1 |
0707- |
| |
29 |
BRACKET; LAMP,RR COMB
|
1-82698-653-0 |
01 |
1 |
0707- |
| |
30 |
NUT; BRKT,RR COMB
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0707- |
| |
36 |
BOLT; BRKT,RR COMB
M10X25 FLANGE
|
0-28651-025-0 |
02 |
1 |
0707- |
| |
37 |
COVER; RR COMB LAMP
|
1-82239-008-0 |
01 |
1 |
0707- |
| |
37 |
COVER; RR COMB LAMP
|
1-82239-007-0 |
01 |
1 |
0707- |
| |
38 |
BOLT; LAMP,RR COMB
M6X30 W/LK&PL WASHER
|
0-50640-630-0 |
04 |
1 |
0707- |
| |
49 |
LAMP; LICENSE PLATE
24V 10W
|
1-82120-024-1 |
01 |
1 |
0707- |
| |
50 |
LENS; LICENSE PLATE LAMP
|
1-82235-006-0 |
01 |
1 |
0707- |
| |
51 |
BULB; LICENSE PLATE LAMP
24V 10W
|
1-82194-037-0 |
01 |
1 |
0707- |
| |
52 |
GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK
|
8-94275-946-0 |
02 |
1 |
0801- |
| |
53 |
GASKET; LICENSE LAMP
|
1-82126-005-0 |
01 |
1 |
0707- |
| |
54 |
SCREW; LICENSE PLATE LAMP
M5X20
|
1-82129-007-0 |
02 |
1 |
0707- |
| |
55 |
NUT; LICENSE PLATE LAMP
M5 FLANGE
|
1-09984-170-0 |
02 |
1 |
0707-0712 |
| |
57 |
WASHER; PL,LICENSE PLATE LAMP
|
1-82129-008-0 |
02 |
1 |
0707- |
| |
58 |
COVER; LICENSE PLATE LAMP
|
1-82129-005-0 |
01 |
1 |
0707- |
| |
114 |
BRACKET; RR FOG LAMP
LIGHTING SYSTEM ECE<SLC>
|
8-97108-583-0 |
01 |
1 |
0707- |
| |
148 |
LAMP ASM; RR FOG
LIGHTING SYSTEM ECE<SLC>
|
8-97181-002-0 |
01 |
1 |
0707-0712 |
| |
148 |
LAMP ASM; RR FOG
LIGHTING SYSTEM ECE<SLC>
|
1-82110-477-0 |
01 |
1 |
0801- |
| |
149 |
SCREW; BRKT TO LAMP BODY
LIGHTING SYSTEM ECE<SLC>
|
8-94336-372-0 |
02 |
1 |
0707- |
| |
195 |
LAMP UNIT; RR FOG
LIGHTING SYSTEM ECE<SLC>
|
8-94336-322-0 |
01 |
1 |
0707- |
| |
196 |
LENS; RR FOG LAMP
LIGHTING SYSTEM ECE<SLC>
|
8-94336-325-0 |
01 |
1 |
0707- |
| |
197 |
GASKET; RR FOG LAMP
LIGHTING SYSTEM ECE<SLC>
|
8-94336-324-0 |
01 |
1 |
0707- |
| |
198 |
SCREW; LENS TO BODY
LIGHTING SYSTEM ECE<SLC>
|
0-71190-416-0 |
02 |
1 |
0707- |
| |
199 |
WASHER; LENS,RR FOG LAMP
LIGHTING SYSTEM ECE<SLC>
|
8-94336-326-0 |
02 |
1 |
0707- |
| |
200 |
PLATE; SET,RR FOG LAMP
LIGHTING SYSTEM ECE<SLC>
|
8-94336-323-0 |
01 |
1 |
0707- |
| |
201 |
BULB; RR FOG LAMP
LIGHTING SYSTEM ECE<SLC>
24V 21W
|
1-82194-036-0 |
01 |
1 |
0707- |
