◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11100 - LV434(LHD) EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#39395) — 89 parça

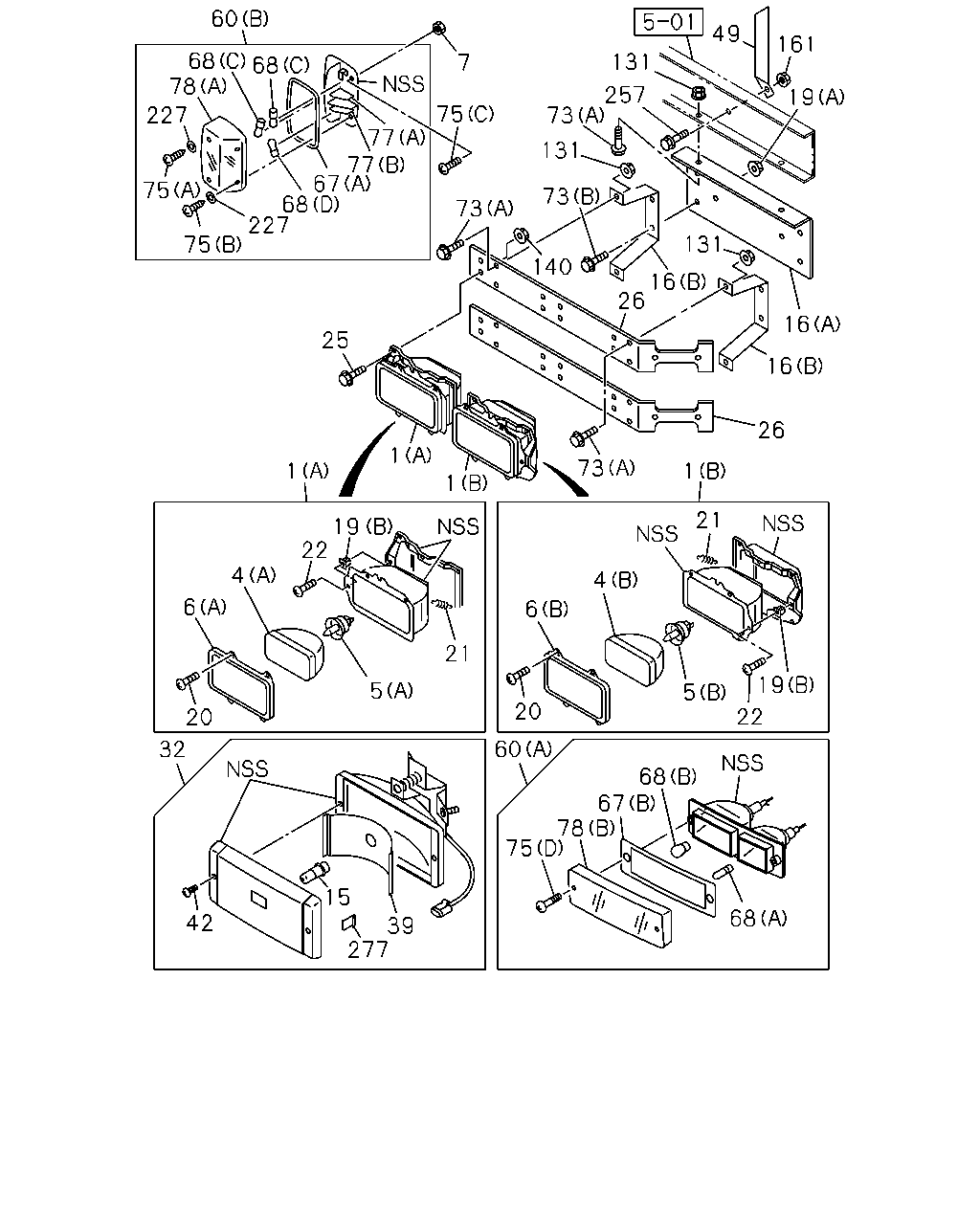

çizim 178060
60 5 49 161 68 68 78 131 7 257 19 75 227 73 77 77 67 68 227 75 131 75 73 73 131 140 16 26 16 25 16 26 1 73 1 1 1 21 19 22 4 4 6 6 21 19 5 5 20 22 20 32 60 68 67 78 75 15 68 42 39 277
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 70W 		1-82110-256-2 01 1 0707-0712
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 70W 		1-82110-482-0 01 1 0801-
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 70W 		1-82110-257-2 01 1 0707-0712
1 LAMP ASM; HEAD
(A) INNER TYPE 1 24V 70W 		1-82110-484-0 01 1 0801-
1 LAMP ASM; HEAD
(B) OUTER TYPE 2 24V 75/70W 		1-82110-259-2 01 1 0707-0712
1 LAMP ASM; HEAD
(B) OUTER TYPE 2 24V 75/70W 		1-82110-483-0 01 1 0801-
1 LAMP ASM; HEAD
(B) OUTER TYPE 2 24V 75/70W 		1-82110-261-2 01 1 0707-0712
1 LAMP ASM; HEAD
(B) OUTER TYPE 2 24V 75/70W 		1-82110-485-0 01 1 0801-
4 HEADLAMP UNIT
(A) TYPE 1 24V 70W 		1-82191-032-0 02 1 0707-
4 HEADLAMP UNIT
(B) TYPE 2 24V 75/70W 		1-82191-037-0 02 1 0707-
5 BULB; HEADLAMP
(B) 24V 75/70W 		1-82193-006-0 02 1 0707-
5 BULB; HEADLAMP
(A) 24V 70W 		1-82193-007-0 02 1 0707-
6 RIM; HEADLAMP
(A) 24V 70W 		1-82114-018-0 02 1 0707-
6 RIM; HEADLAMP
(B) 24V 75/70W 		1-82114-019-0 02 1 0707-
7 NUT; FRT COMB LAMP
M5 		0-91110-505-0 08 1 0707-
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		8-97203-926-0 02 1 0707-
16 BRACKET; HEADLAMP
(A) 		1-53456-310-0 02 1 0707-
16 BRACKET; HEADLAMP
(B) 		9-82615-154-2 04 1 0707-
19 NUT; HEADLAMP
(A) M6 FLANGE 		0-91180-106-0 08 1 0707-
19 NUT; HEADLAMP
(B) 		1-82119-056-0 04 1 0707-
19 NUT; HEADLAMP
(B) 		1-82119-056-0 04 1 0707-
20 SCREW; HEADLAMP 1-82119-023-0 08 1 0707-
20 SCREW; HEADLAMP 1-82119-023-0 08 1 0707-
21 SPRING; ADJ HEADLAMP 1-82119-105-0 02 1 0707-
21 SPRING; ADJ HEADLAMP 1-82119-105-0 02 1 0707-
22 SCREW; ADJ,HEADLAMP 1-82119-095-0 04 1 0707-
22 SCREW; ADJ,HEADLAMP 1-82119-095-0 04 1 0707-
25 SCREW; LAMP
M5X16 W/LK WASHER 		0-36220-516-0 16 1 0707-
26 BRACKET ASM; HEADLAMP 1-82117-188-0 04 1 0707-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97353-954-1 01 1 0707-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97353-955-1 01 1 0707-
39 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97357-929-0 02 1 0707-
42 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97357-931-0 04 1 0707-
49 BRACKET; LAMP 1-53456-342-0 01 1 0707-
60 LAMP ASM; FRT COMB
TAIWAN EQUIPMENT(WW5) (B) 		8-98020-167-1 01 1 0806-
60 LAMP ASM; FRT COMB
TAIWAN EQUIPMENT(WW5) (B) 		8-98020-168-1 01 1 0806-
60 LAMP ASM; FRT COMB
(B) 		1-82210-257-1 01 1 0707-0805
60 LAMP ASM; FRT COMB
EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-82210-257-1 01 1 0806-
60 LAMP ASM; FRT COMB
(B) 		1-82210-258-1 01 1 0707-0805
60 LAMP ASM; FRT COMB
EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-82210-258-1 01 1 0806-
60 LAMP ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> (A) 		1-86830-272-0 01 1 0707-0805
60 LAMP ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> EXC. TAIWAN EQUIPMENT(WW5) (A) 		1-86830-272-0 01 1 0806-
60 LAMP ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> (A) 		1-86830-273-0 01 1 0707-0805
60 LAMP ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> EXC. TAIWAN EQUIPMENT(WW5) (A) 		1-86830-273-0 01 1 0806-
67 GASKET; FRT COMB LAMP
TAIWAN EQUIPMENT(WW5) (A) 		8-98056-334-0 01 1 0806-
67 GASKET; FRT COMB LAMP
TAIWAN EQUIPMENT(WW5) (A) 		8-98056-335-0 01 1 0806-
67 GASKET; FRT COMB LAMP
(A) 		1-82216-003-0 01 1 0707-0805
67 GASKET; FRT COMB LAMP
EXC. TAIWAN EQUIPMENT(WW5) (A) 		1-82216-003-0 01 1 0806-
67 GASKET; FRT COMB LAMP
(A) 		1-82216-004-0 01 1 0707-0805
67 GASKET; FRT COMB LAMP
EXC. TAIWAN EQUIPMENT(WW5) (A) 		1-82216-004-0 01 1 0806-
67 GASKET; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> (B) 		8-94149-259-0 02 1 0707-0805
67 GASKET; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> EXC. TAIWAN EQUIPMENT(WW5) (B) 		8-94149-259-0 02 1 0806-
68 BULB; FRT COMB LAMP
(D) 24V 10W 		1-82194-037-0 02 1 0707-
68 BULB; FRT COMB LAMP
(C) 24V 21W 		1-82194-104-0 04 1 0707-
68 BULB; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> (A) 24V 5W 		1-82194-089-0 02 1 0707-0805
68 BULB; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> EXC. TAIWAN EQUIPMENT(WW5) (A) 24V 5W 		1-82194-089-0 02 1 0806-
68 BULB; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> (B) 24V 21W 		1-82194-090-0 02 1 0707-0805
68 BULB; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> EXC. TAIWAN EQUIPMENT(WW5) (B) 24V 21W 		1-82194-090-0 02 1 0806-
73 BOLT; BRKT,HEADLAMP
(B) M6X20 FLANGE 		0-28650-620-0 08 1 0707-
73 BOLT; BRKT,HEADLAMP
(A) M10X30 FLANGE 		0-28651-030-0 12 1 0707-
75 SCREW; FRT COMB LAMP
(C) M5X16 W/LK WASHER 		0-36220-516-0 08 1 0707-
75 SCREW; FRT COMB LAMP
(A) M4X50 		1-09106-004-0 04 1 0707-
75 SCREW; FRT COMB LAMP
(B) M4X16 		1-09106-005-0 04 1 0707-
75 SCREW; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> (D) 		0-91190-435-0 04 1 0707-0805
75 SCREW; FRT COMB LAMP
LIGHTING SYSTEM ECE<SLC> EXC. TAIWAN EQUIPMENT(WW5) (D) 		0-91190-435-0 04 1 0806-
77 SHADE; FRT TURN SIGNAL LAMP
TAIWAN EQUIPMENT(WW5) (A) 		1-82219-027-0 01 1 0806-
77 SHADE; FRT TURN SIGNAL LAMP
TAIWAN EQUIPMENT(WW5) (B) 		1-82219-028-0 01 1 0806-
77 SHADE; FRT TURN SIGNAL LAMP
EXC. TAIWAN EQUIPMENT(WW5) (A) 		1-82219-020-0 02 1 0806-
77 SHADE; FRT TURN SIGNAL LAMP
EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-82219-021-0 02 1 0806-
77 SHADE; FRT TURN SIGNAL LAMP
(A) 		1-82219-020-0 02 1 0707-0805
77 SHADE; FRT TURN SIGNAL LAMP
TAIWAN EQUIPMENT(WW5) (A) 		1-82219-020-0 01 1 0806-
77 SHADE; FRT TURN SIGNAL LAMP
(B) 		1-82219-021-0 02 1 0707-0805
77 SHADE; FRT TURN SIGNAL LAMP
TAIWAN EQUIPMENT(WW5) (B) 		1-82219-021-0 01 1 0806-
78 LENS ASM; FRT COMB
TAIWAN EQUIPMENT(WW5) (A) 		8-98252-895-0 01 1 0806-
78 LENS ASM; FRT COMB
TAIWAN EQUIPMENT(WW5) (A) 		8-98252-896-0 01 1 0806-
78 LENS ASM; FRT COMB
(A) 		1-82215-006-0 01 1 0707-0805
78 LENS ASM; FRT COMB
EXC. TAIWAN EQUIPMENT(WW5) (A) 		1-82215-006-0 01 1 0806-
78 LENS ASM; FRT COMB
(A) 		1-82215-007-0 01 1 0707-0805
78 LENS ASM; FRT COMB
EXC. TAIWAN EQUIPMENT(WW5) (A) 		1-82215-007-0 01 1 0806-
78 LENS ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> (B) 		8-94151-264-0 01 1 0707-0805
78 LENS ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> EXC. TAIWAN EQUIPMENT(WW5) (B) 		8-94151-264-0 01 1 0806-
78 LENS ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> (B) 		8-94151-265-0 01 1 0707-0805
78 LENS ASM; FRT COMB
LIGHTING SYSTEM ECE<SLC> EXC. TAIWAN EQUIPMENT(WW5) (B) 		8-94151-265-0 01 1 0806-
131 NUT; BRKT,HEADLAMP
M10 FLANGE 		0-91180-210-0 12 1 0707-
140 NUT
M5 		0-91110-505-0 12 1 0707-
161 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0707-
227 SEAT; SET SCREW,FRT COMB LAMP 1-09503-132-0 08 1 0707-
257 BOLT; BRKT HD LAMP
M10X35 FLANGE 		0-28651-035-0 02 1 0707-
277 CLIP; LENS,FOG LAMP
FOG LAMP<T96> 		8-97357-930-0 02 1 0707-
