Sayfa 0-60 - Isuzu EPC

0-60 — ENGINE ELECTRICAL CONTROL PARTS (#3939) — 332 parça

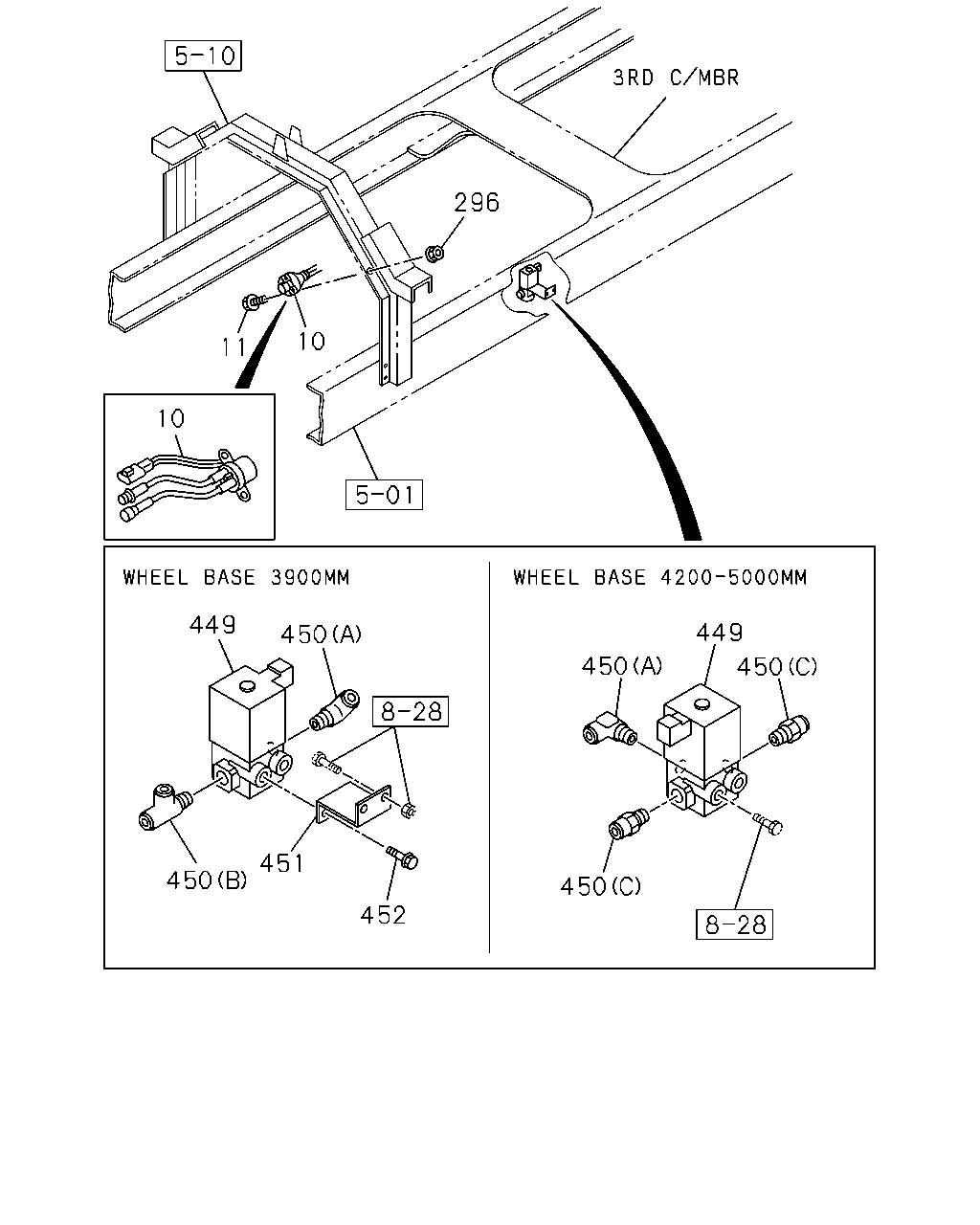

296 10 11 10 449 449 450 450 450 451 450 450 452

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
10	RELAY; STARTER NIKKO	1-81171-075-0	01	1	9803-0004	●
10	RELAY; STARTER HITACHI	1-81171-087-0	01	1	0005-0303	●	●
10	RELAY; STARTER NIKKO	1-81171-075-1	01	1	0304-	●	●
10	RELAY; STARTER HITACHI	1-81171-087-0	01	1	9904-9907	●
10	RELAY; STARTER EXC. NIKKO<Y70> EXC. STARTER DENSO(RC6) HITACHI	1-81171-087-0	01	1	9908-0004	●
10	RELAY; STARTER DENSO	1-81171-070-0	01	1	9511-			●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●		●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	9607-9801	●		●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28680-820-0	02	1	9802-0004	●		●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●	●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28650-820-0	02	1	0601-0607	●	●	●	●
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28650-820-0	02	1	0608-	●	●	●	●	●
296	NUT; RELAY,STARTER M8	9-09110-408-0	02	1	9510-9606	●		●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9607-0004	●		●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	0603-0607	●	●	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	0608-	●	●	●	●	●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN>	1-82563-599-5	01	1	0005-			●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN>	1-82563-778-3	01	1	0005-			●
450	CONNECTOR; MAG VLV,INL PORT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0005-			●
450	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> (B) DIN8X2 & R1/4 3WAY	1-09661-006-0	01	1	0005-			●
450	CONNECTOR; MAG VLV,INL PORT WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W), WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> (C) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	0005-			●
451	BRACKET; MAG VLV,VSS WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN>	1-82569-208-0	01	1	0005-			●
452	BOLT; VSS MAG VLV WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28080-820-0	02	1	0005-0512			●
452	BOLT; VSS MAG VLV WHEEL BASE 3900MM(39W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28050-820-0	02	1	0601-			●

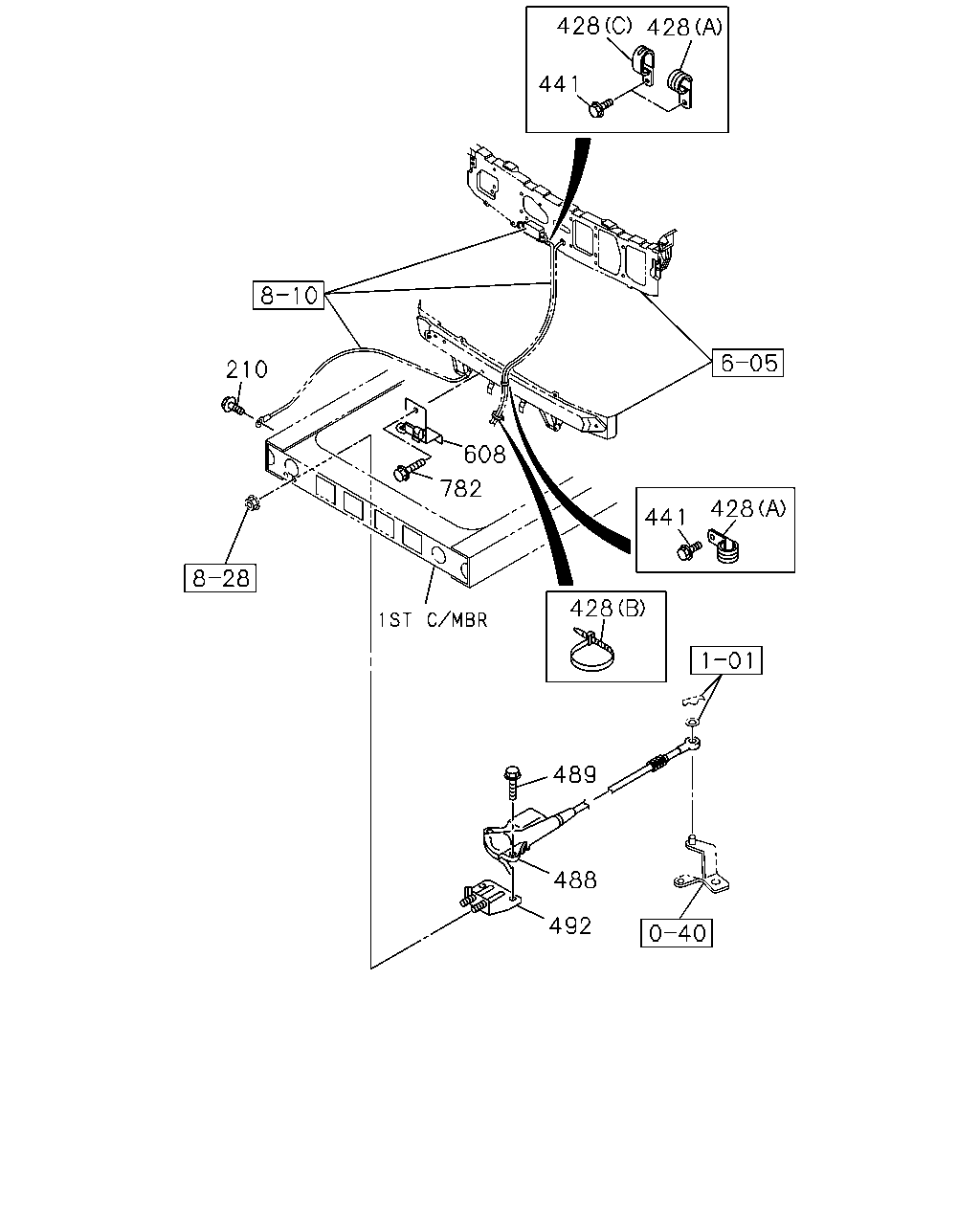

428 428 441 210 608 782 428 441 428 489 488 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
210	BOLT; CABLE FIX M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	9510-9907	●		●	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	9908-0004	●		●	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0005-0607	●	●	●	●
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0608-1201	●	●	●	●	●
210	BOLT; CABLE FIX M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-	●	●	●	●
428	CLIP; HARNESS (B) L=300	1-09707-001-1	07	1	0608-					●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	01	1	0105-	●				●
428	CLIP; HARNESS EXC. EURO2 SPECIFICATION<THN> (A) ID=35 L=50	1-09701-214-0	01	1	0105-			●	●
428	CLIP; HARNESS (C) ID=30X2 L=28	1-09701-266-0	01	1	0105-	●				●
428	CLIP; HARNESS EXC. EURO2 SPECIFICATION<THN> (C) ID=30X2 L=28	1-09701-266-0	01	1	0105-			●	●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	9510-0004	●		●	●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	0005-0104	●	●	●	●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	0105-0607	●
428	CLIP; HARNESS EXC. EURO2 SPECIFICATION<THN> (A) ID=35 L=50	1-09701-214-0	02	1	0105-0607			●	●
428	CLIP; HARNESS (A) ID=35 L=50	1-09701-214-0	02	1	0608-	●				●
428	CLIP; HARNESS EXC. EURO2 SPECIFICATION<THN> (A) ID=35 L=50	1-09701-214-0	02	1	0608-			●	●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (B) L=300	1-09707-001-1	04	1	9710-0004				●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (B) L=300	1-09707-001-1	05	1	0005-			●	●
428	CLIP; HARNESS (B) L=300	1-09707-001-1	05	1	0005-		●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9510-9606	●		●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	9607-0004	●		●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●	●	●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-0607	●	●	●	●
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0608-	●	●	●	●	●
488	STOPPER; ENG	1-82840-128-2	01	1	9510-0004	●		●
488	STOPPER; ENG	1-82840-128-3	01	1	0005-	●	●
488	STOPPER; ENG EXC. EURO2 SPECIFICATION<THN>	1-82840-128-3	01	1	0005-			●	●
488	STOPPER; ENG EURO2 SPECIFICATION<THN>	1-82840-153-1	01	1	9710-0004				●
488	STOPPER; ENG EURO2 SPECIFICATION<THN>	1-82840-153-2	01	1	0005-			●	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9510-0004	●		●	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	0005-0512	●	●	●	●
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50640-825-0	02	1	0601-	●	●	●	●
492	BRACKET; ENG STOPPER	1-82849-067-0	01	1	9510-0004	●		●	●
492	BRACKET; ENG STOPPER	1-82849-067-0	01	1	0005-	●	●	●	●
608	SENSOR; AIR TEMP	1-83544-031-0	01	1	0608-					●
782	BOLT; SENSOR M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	0608-					●

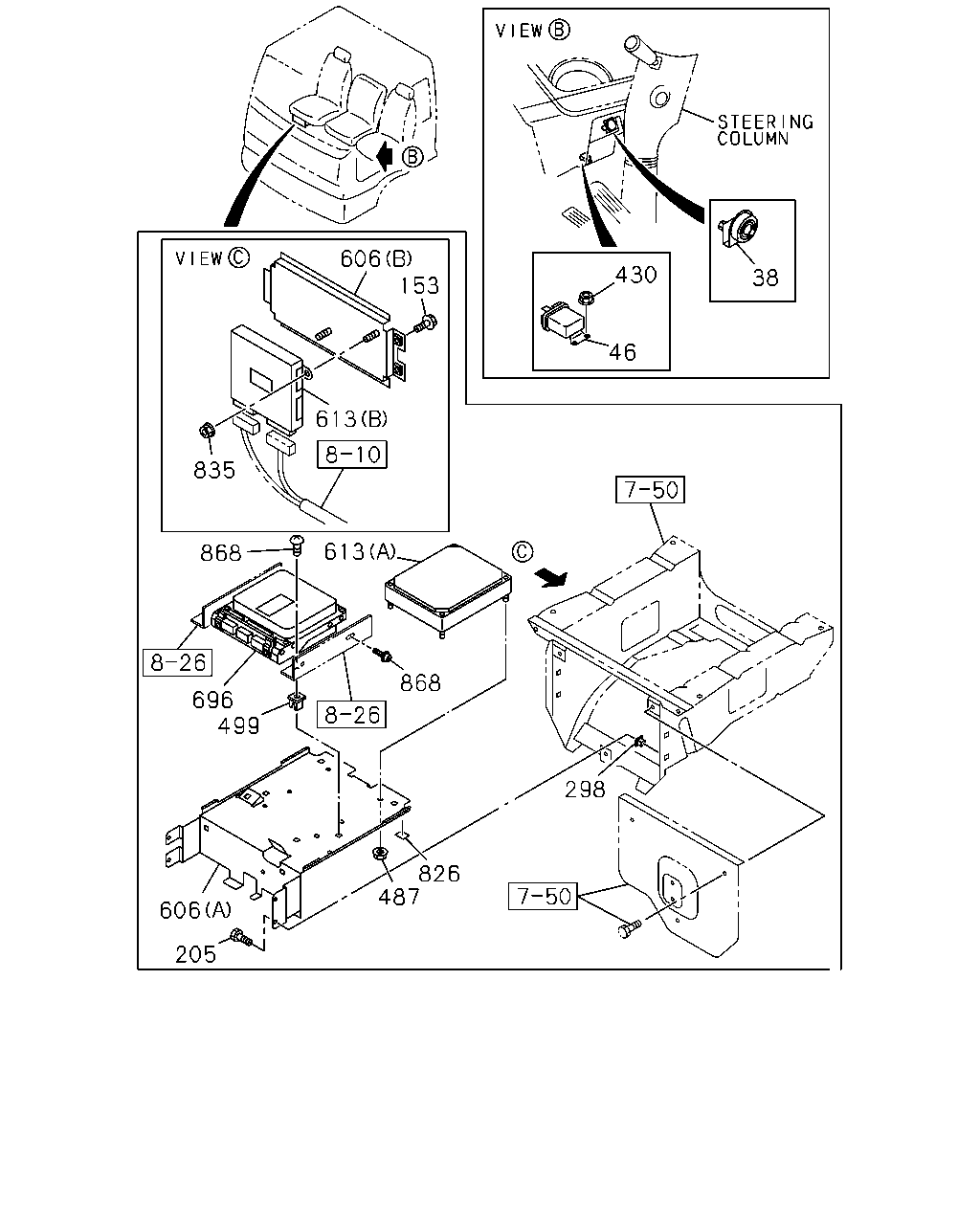

606 153 430 38 46 613 835 613 868 868 696 499 298 826 487 606 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	9510-0004	●		●	●
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	0005-0607	●	●	●	●
38	RESISTOR; CONT,GLOW PLUG	1-81402-008-0	01	1	0608-	●	●	●	●	●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	9510-0004	●		●	●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	0005-0607	●	●	●	●
46	RELAY; GLOW PLUG	8-94258-014-0	01	1	0608-	●	●	●	●	●
153	BOLT; BRKT FIX EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0009-0210	●	●	●	●
153	BOLT; BRKT FIX EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	0211-0703		●
153	BOLT; BRKT FIX EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6X12 W/LK&PL WASHER	0-36230-612-0	02	1	0704-		●
205	SCREW; BRKT EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	9805-0004				●
205	SCREW; BRKT EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0005-0607		●	●	●
205	SCREW; BRKT EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0608-		●	●	●
205	SCREW; BRKT EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0608-					●
298	GROMMET; SCREW EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8	8-94222-314-0	04	1	9710-9802				●
298	GROMMET; SCREW EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8	8-94222-314-0	04	1	9805-0004				●
298	GROMMET; SCREW EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8	8-94222-314-0	04	1	0005-0607		●	●	●
298	GROMMET; SCREW EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8	8-94222-314-0	04	1	0608-		●	●	●
298	GROMMET; SCREW EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> D=9.7X9.7 L=8	8-94222-314-0	04	1	0608-					●
430	NUT; RELAY FIX M6 FLANGE	0-91150-106-0	02	1	9510-9601	●		●
430	NUT; RELAY FIX M6 FLANGE	0-91150-106-0	01	1	9602-0004	●		●	●
430	NUT; RELAY FIX M6 FLANGE	0-91150-106-0	01	1	0005-0602	●	●	●	●
430	NUT; RELAY FIX M6 FLANGE	0-91180-106-0	01	1	0603-0607	●	●	●	●
430	NUT; RELAY FIX M6 FLANGE	0-91180-106-0	01	1	0608-	●	●	●	●	●
487	NUT EURO2 SPECIFICATION<THN> M6 FLANGE	0-91150-106-0	04	1	9710-0004				●
487	NUT EURO2 SPECIFICATION<THN> M6 FLANGE	0-91150-106-0	04	1	0005-0602		●	●	●
487	NUT EURO2 SPECIFICATION<THN> M6 FLANGE	0-91180-106-0	04	1	0603-		●	●	●
499	GROMMET EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> D=9.7X9.7 L=8	8-94222-314-0	04	1	0608-					●
606	BRACKET; CONT UNIT EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> (A)	1-75558-552-9	01	1	0608-					●
606	BRACKET; CONT UNIT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	1-75558-567-0	01	1	0009-0210	●	●	●	●
606	BRACKET; CONT UNIT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	1-75558-567-0	01	1	0211-		●
606	BRACKET; CONT UNIT EURO2 SPECIFICATION<THN> (A)	1-75558-534-7	01	1	9710-0004				●
606	BRACKET; CONT UNIT EURO2 SPECIFICATION<THN> (A)	1-75558-534-9	01	1	0005-		●	●	●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN> (A)	1-80110-178-0	01	1	0005-			●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN> (A)	1-80110-179-0	01	1	9710-				●
613	CONTROL UNIT; ENG EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B)	8-97600-899-0	01	1	0005-		●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN> (B)	8-94392-232-2	01	1	0005-		●
696	CONTROL UNIT	8-94392-865-1	01	1	0608-					●
826	SEAL; NOISE INSULATION EURO2 SPECIFICATION<THN> 30X30	8-97866-626-0	03	1	9710-0004				●
826	SEAL; NOISE INSULATION EURO2 SPECIFICATION<THN> 30X30	8-97866-626-0	03	1	0005-0309		●	●	●
826	SEAL; NOISE INSULATION EURO2 SPECIFICATION<THN> 30X30	1-74998-128-1	03	1	0310-0607		●	●	●
826	SEAL; NOISE INSULATION EURO2 SPECIFICATION<THN> 30X30	1-74998-128-1	03	1	0608-0908		●	●	●
826	SEAL; NOISE INSULATION EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> 30X30	1-74998-128-1	03	1	0608-0908					●
826	SEAL; NOISE INSULATION EURO2 SPECIFICATION<THN> 30X30	8-98142-344-0	03	1	0909-		●	●	●
826	SEAL; NOISE INSULATION EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> 30X30	8-98142-344-0	03	1	0909-					●
835	NUT; ECU EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6 FLANGE	0-91150-106-0	02	1	0009-0210	●	●	●	●
835	NUT; ECU EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6 FLANGE	0-91150-106-0	02	1	0211-0602		●
835	NUT; ECU EMISSION SYSTEM ECE REQUIREMENTS<SFV> M6 FLANGE	0-91180-106-0	02	1	0603-		●
868	SCREW EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	0608-					●
868	SCREW EMIS SYSTEM '98 US FEDERAL REQUIREMENT<NDZ> M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	0608-					●

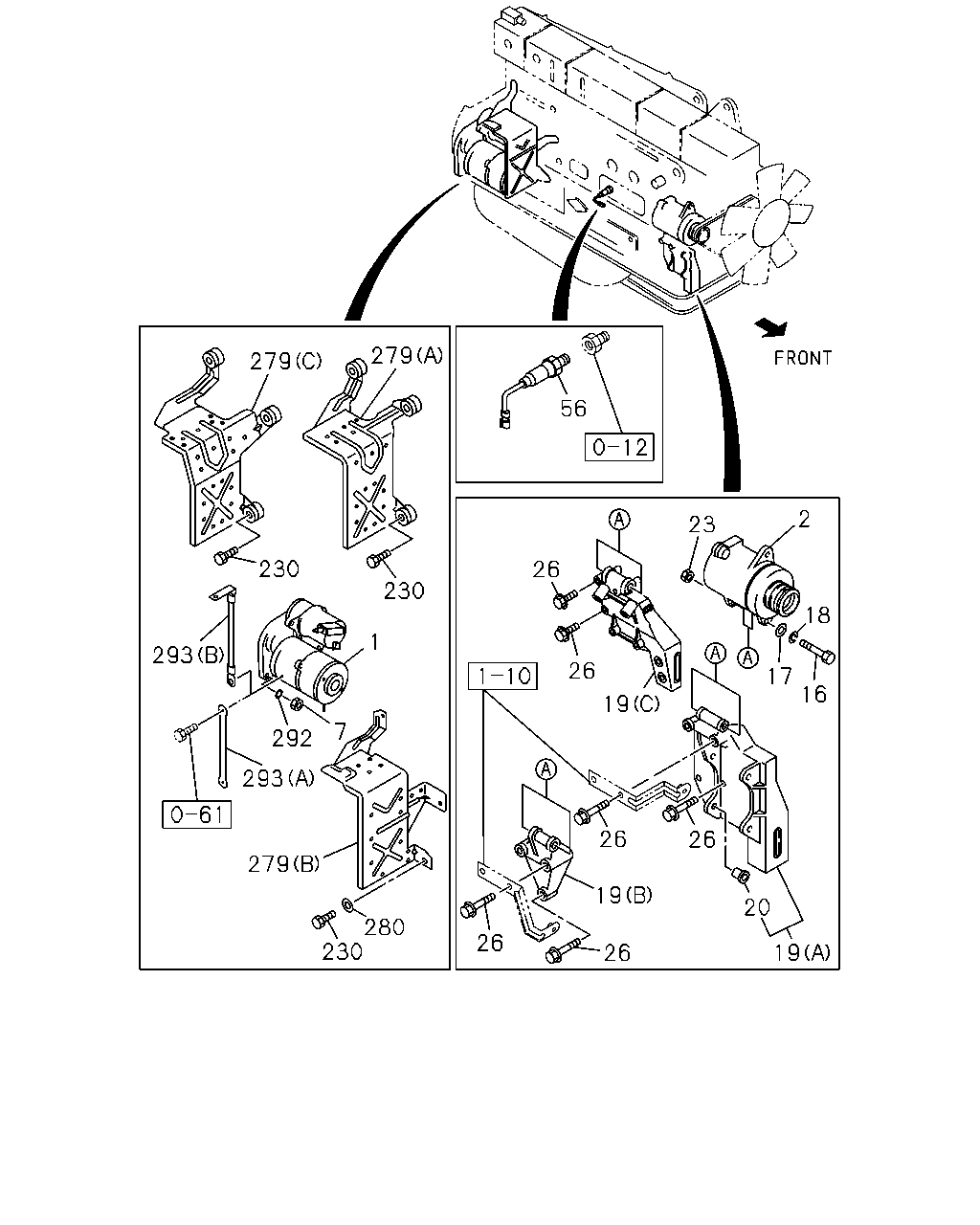

279 279 56 2 23 230 26 230 18 1 293 26 17 16 19 7 292 293 26 26 279 19 20 280 230 26 19 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO	1-81100-307-0	01	1	9510-9708	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO	1-81100-323-1	01	1	9709-	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO	1-81100-308-0	01	1	9510-9708	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO	1-81100-324-0	01	1	9709-0004	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO	1-81100-324-0	01	1	0005-0010	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO	1-81100-324-0	01	1	0005-0010		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW NIKKO	1-81100-324-1	01	1	0011-	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> 24V 4.5KW NIKKO	1-81100-324-1	01	1	0011-		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-94399-159-3	01	1	9511-9709			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO	8-94399-159-4	01	1	9710-9904			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW DENSO	8-94399-159-4	01	1	9905-9907	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-94399-159-4	01	1	9905-9907			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO	8-94399-159-4	01	1	9908-0108			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO	8-97602-167-1	01	1	0109-			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO	8-94394-151-2	01	1	9710-9904			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-94394-151-2	01	1	9710-9904				●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. FLYWHEEL HOUSING FC<E1R> 24V 4.5KW DENSO	8-94394-151-2	01	1	9905-9907	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-94394-151-2	01	1	9905-9907				●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO	8-94394-151-2	01	1	9908-0108			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-94394-151-2	01	1	9908-0108				●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO	8-97602-169-1	01	1	0109-0607			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-97602-169-1	01	1	0109-0607				●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EURO2 SPECIFICATION<THN> 24V 4.5KW DENSO	8-97602-169-1	01	1	0608-			●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO	8-97602-169-1	01	1	0608-				●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 24V 5.0KW MITSUBISHI	1-81100-414-2	01	1	0011-0609		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 24V 5.0KW MITSUBISHI	8-98060-854-0	01	1	0610-0909		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 24V 5.0KW MITSUBISHI	8-98141-206-3	01	1	0910-1409		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> 24V 5.0KW MITSUBISHI	8-98261-669-0	01	1	1410-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI	1-81200-599-5	01	1	0608-					●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-4	01	1	9510-0004	●		●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-416-5	01	1	0005-	●	●	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-521-0	01	1	9904-9905	●		●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-577-0	01	1	9906-9907	●		●	●
7	NUT; STARTER M14	9-99110-414-0	02	1	9510-0004	●		●	●
7	NUT; STARTER M14	9-99110-414-0	02	1	0005-0512	●	●	●	●
7	NUT; STARTER M14	0-91110-514-0	02	1	0601-0607	●	●	●	●
7	NUT; STARTER M14	0-91110-514-0	02	1	0608-	●	●	●	●	●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	9510-0004	●		●	●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	0005-0607	●	●	●	●
16	BOLT; GEN M14X135	1-09000-133-1	01	1	0608-	●	●	●	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9510-0004	●		●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	0005-0605	●	●	●	●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0606-0607	●	●	●	●
17	WASHER; PL,GEN ID=15	0-91610-514-0	01	1	0608-	●	●	●	●	●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	9510-0004	●		●	●
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	0005-0603	●	●	●	●
18	WASHER; LK,GEN ID=14.2	0-91510-514-0	01	1	0604-0607	●	●	●	●
18	WASHER; LK,GEN ID=14.2	0-91510-514-0	01	1	0608-	●	●	●	●	●
19	BRACKET; GEN AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-94390-589-1	01	1	0608-0704					●
19	BRACKET; GEN AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-97609-149-0	01	1	0705-0803					●
19	BRACKET; GEN AIR COMPRESSOR HEAVY DUTY(E1Q) (C)	8-98082-615-1	01	1	0804-					●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94395-470-2	01	1	9510-0004	●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94395-470-2	01	1	0005-0010		●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL(C60) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-470-2	01	1	0011-0112		●
19	BRACKET; GEN HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A)	8-94395-470-2	01	1	0011-0112		●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94395-470-3	01	1	0201-0302	●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL(C60) EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A)	8-94395-470-3	01	1	0201-0302		●
19	BRACKET; GEN HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A)	8-94395-470-3	01	1	0201-0302		●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94395-470-3	01	1	0303-0607	●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL(C60) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A)	8-94395-470-3	01	1	0303-0607		●
19	BRACKET; GEN EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A)	8-94395-470-3	01	1	0303-0607		●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94395-470-5	01	1	0608-	●
19	BRACKET; GEN AIR CONDITIONER MANUAL CONTROL(C60) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A)	8-94395-470-5	01	1	0608-		●
19	BRACKET; GEN EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A)	8-94395-470-5	01	1	0608-		●
19	BRACKET; GEN EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-470-5	01	1	0608-					●
19	BRACKET; GEN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94396-297-0	01	1	9510-0004	●
19	BRACKET; GEN (B)	8-94396-297-0	01	1	9510-0004			●	●
19	BRACKET; GEN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94396-297-0	01	1	0005-0112	●
19	BRACKET; GEN (B)	8-94396-297-0	01	1	0005-0112			●	●
19	BRACKET; GEN EMISSION SYSTEM ECE REQUIREMENTS<SFV> HEATER & DEFROSTER(C41) (B)	8-94396-297-0	01	1	0005-0112		●
19	BRACKET; GEN EURO2 SPECIFICATION<THN> (B)	8-94396-297-0	01	1	0005-0112		●
19	BRACKET; GEN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97602-318-0	01	1	0201-0302	●
19	BRACKET; GEN (B)	8-97602-318-0	01	1	0201-0302			●	●
19	BRACKET; GEN EMISSION SYSTEM ECE REQUIREMENTS<SFV> HEATER & DEFROSTER(C41) (B)	8-97602-318-0	01	1	0201-0302		●
19	BRACKET; GEN EURO2 SPECIFICATION<THN> (B)	8-97602-318-0	01	1	0201-0302		●
19	BRACKET; GEN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97602-318-0	01	1	0303-0803	●
19	BRACKET; GEN (B)	8-97602-318-0	01	1	0303-0803			●	●
19	BRACKET; GEN EMISSION SYSTEM ECE REQUIREMENTS<SFV> HEATER & DEFROSTER(C41) (B)	8-97602-318-0	01	1	0303-0803		●
19	BRACKET; GEN EURO2 SPECIFICATION<THN> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97602-318-0	01	1	0303-0803		●
19	BRACKET; GEN EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97602-318-0	01	1	0804-	●
19	BRACKET; GEN HEATER & DEFROSTER(C41) (B)	8-97602-318-0	01	1	0804-			●
19	BRACKET; GEN (B)	8-97602-318-0	01	1	0804-				●
19	BRACKET; GEN EMISSION SYSTEM ECE REQUIREMENTS<SFV> HEATER & DEFROSTER(C41) (B)	8-97602-318-0	01	1	0804-		●
19	BRACKET; GEN EURO2 SPECIFICATION<THN> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-97602-318-0	01	1	0804-		●
20	COLLAR; BRKT,GEN AIR CONDITIONER MANUAL CONTROL(C60)	8-94201-057-1	02	1	9510-0004	●
20	COLLAR; BRKT,GEN AIR CONDITIONER MANUAL CONTROL(C60)	8-94201-057-1	02	1	0005-0010		●
20	COLLAR; BRKT,GEN AIR CONDITIONER MANUAL CONTROL(C60) EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94201-057-1	02	1	0011-0112		●
20	COLLAR; BRKT,GEN HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN>	8-94201-057-1	02	1	0011-0112		●
20	COLLAR; BRKT,GEN AIR CONDITIONER MANUAL CONTROL(C60)	8-94201-057-1	02	1	0201-0302	●
20	COLLAR; BRKT,GEN AIR CONDITIONER MANUAL CONTROL(C60) EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94201-057-1	02	1	0201-0302		●
20	COLLAR; BRKT,GEN HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN>	8-94201-057-1	02	1	0201-0302		●
20	COLLAR; BRKT,GEN AIR CONDITIONER MANUAL CONTROL(C60)	8-94201-057-1	02	1	0303-0607	●
20	COLLAR; BRKT,GEN AIR CONDITIONER MANUAL CONTROL(C60) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	8-94201-057-1	02	1	0303-0607		●
20	COLLAR; BRKT,GEN EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN>	8-94201-057-1	02	1	0303-0607		●
20	COLLAR; BRKT,GEN AIR CONDITIONER MANUAL CONTROL(C60)	8-94201-057-1	02	1	0608-1302	●
20	COLLAR; BRKT,GEN AIR CONDITIONER MANUAL CONTROL(C60) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN>	8-94201-057-1	02	1	0608-1302		●
20	COLLAR; BRKT,GEN EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN>	8-94201-057-1	02	1	0608-1302		●
20	COLLAR; BRKT,GEN EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94201-057-1	02	1	0608-1302					●
23	NUT; GEN M14	9-99110-414-0	01	1	9510-0004	●		●	●
23	NUT; GEN M14	9-99110-414-0	01	1	0005-0512	●	●	●	●
23	NUT; GEN M14	0-91110-514-0	01	1	0601-0607	●	●	●	●
23	NUT; GEN M14	0-91110-514-0	01	1	0608-	●	●	●	●	●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	02	1	9510-0004	●
26	BOLT; GEN BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X40 FLANGE	0-28181-040-0	02	1	0005-0007		●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	02	1	0008-0010		●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X40 FLANGE	0-28181-040-0	02	1	0011-0112		●
26	BOLT; GEN BRKT HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M10X40 FLANGE	0-28181-040-0	02	1	0011-0112		●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	02	1	0201-0302	●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X40 FLANGE	0-28181-040-0	02	1	0201-0302		●
26	BOLT; GEN BRKT HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M10X40 FLANGE	0-28181-040-0	02	1	0201-0302		●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	02	1	0303-0512	●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M10X40 FLANGE	0-28181-040-0	02	1	0303-0512		●
26	BOLT; GEN BRKT EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M10X40 FLANGE	0-28181-040-0	02	1	0303-0512		●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28151-040-0	02	1	0601-0607	●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M10X40 FLANGE	0-28151-040-0	02	1	0601-0607		●
26	BOLT; GEN BRKT EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M10X40 FLANGE	0-28151-040-0	02	1	0601-0607		●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28151-040-0	02	1	0608-	●				●
26	BOLT; GEN BRKT AIR CONDITIONER MANUAL CONTROL(C60) EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M10X40 FLANGE	0-28151-040-0	02	1	0608-		●
26	BOLT; GEN BRKT EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M10X40 FLANGE	0-28151-040-0	02	1	0608-		●
26	BOLT; GEN BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	01	1	9510-0004	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	9510-0004			●	●
26	BOLT; GEN BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	01	1	0005-0007	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	0005-0007			●	●
26	BOLT; GEN BRKT EURO2 SPECIFICATION<THN> M10X40 FLANGE	0-28181-040-0	01	1	0005-0007		●
26	BOLT; GEN BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	01	1	0008-0107	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	0008-0107			●	●
26	BOLT; GEN BRKT HEATER & DEFROSTER(C41) EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X40 FLANGE	0-28181-040-0	01	1	0008-0107		●
26	BOLT; GEN BRKT EURO2 SPECIFICATION<THN> M10X40 FLANGE	0-28181-040-0	01	1	0008-0107		●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	0108-0111	●		●	●
26	BOLT; GEN BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M10X40 FLANGE	0-28181-040-0	01	1	0108-0111		●
26	BOLT; GEN BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	01	1	0112-0302	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	0112-0302			●	●
26	BOLT; GEN BRKT HEATER & DEFROSTER(C41) EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X40 FLANGE	0-28181-040-0	01	1	0112-0302		●
26	BOLT; GEN BRKT EURO2 SPECIFICATION<THN> M10X40 FLANGE	0-28181-040-0	01	1	0112-0302		●
26	BOLT; GEN BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	01	1	0303-0512	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	0303-0512			●	●
26	BOLT; GEN BRKT HEATER & DEFROSTER(C41) EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X40 FLANGE	0-28181-040-0	01	1	0303-0512		●
26	BOLT; GEN BRKT EURO2 SPECIFICATION<THN> EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28181-040-0	01	1	0303-0512		●
26	BOLT; GEN BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28151-040-0	01	1	0601-0803	●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28151-040-0	01	1	0601-0803			●	●
26	BOLT; GEN BRKT HEATER & DEFROSTER(C41) EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X40 FLANGE	0-28151-040-0	01	1	0601-0803		●
26	BOLT; GEN BRKT EURO2 SPECIFICATION<THN> EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28151-040-0	01	1	0601-0803		●
26	BOLT; GEN BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28151-040-0	01	1	0804-	●
26	BOLT; GEN BRKT HEATER & DEFROSTER(C41) M10X40 FLANGE	0-28151-040-0	01	1	0804-			●
26	BOLT; GEN BRKT M10X40 FLANGE	0-28151-040-0	01	1	0804-				●
26	BOLT; GEN BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV> HEATER & DEFROSTER(C41) M10X40 FLANGE	0-28151-040-0	01	1	0804-		●
26	BOLT; GEN BRKT EURO2 SPECIFICATION<THN> EXC. AIR CONDITIONER MANUAL CONTROL(C60) M10X40 FLANGE	0-28151-040-0	01	1	0804-		●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	9510-0004	●		●	●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	0005-0512	●	●	●	●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28151-080-0	02	1	0601-0607	●	●	●	●
26	BOLT; GEN BRKT M10X80 FLANGE	0-28151-080-0	02	1	0608-	●	●	●	●
26	BOLT; GEN BRKT AIR COMPRESSOR HEAVY DUTY(E1Q) M10X80 FLANGE	0-28151-080-0	02	1	0608-					●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	9510-0004	●		●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	0005-0607	●	●	●	●
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	0608-	●	●	●	●	●
230	BOLT; HEAT PROTECTOR CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) M8X14	0-20800-814-0	03	1	9510-9512	●
230	BOLT; HEAT PROTECTOR EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M8X28 FLANGE	0-28080-828-0	01	1	9510-9802	●
230	BOLT; HEAT PROTECTOR M8X28 FLANGE	0-28080-828-0	01	1	9510-9802			●
230	BOLT; HEAT PROTECTOR FLYWHEEL HOUSING FC<E1R> M8X28 FLANGE	0-28080-828-0	01	1	9803-0004	●
230	BOLT; HEAT PROTECTOR M8X28 FLANGE	0-28080-828-0	01	1	9803-0004			●
230	BOLT; HEAT PROTECTOR FLYWHEEL HOUSING FC<E1R> M8X28 FLANGE	0-28080-828-0	01	1	0005-	●
230	BOLT; HEAT PROTECTOR EXC. EURO2 SPECIFICATION<THN> M8X28 FLANGE	0-28080-828-0	01	1	0005-			●
230	BOLT; HEAT PROTECTOR EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M10X30 FLANGE	0-28181-030-0	01	1	9510-9802	●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28181-030-0	01	1	9510-9802			●
230	BOLT; HEAT PROTECTOR FLYWHEEL HOUSING FC<E1R> M10X30 FLANGE	0-28181-030-0	01	1	9803-0004	●
230	BOLT; HEAT PROTECTOR M10X30 FLANGE	0-28181-030-0	01	1	9803-0004			●
230	BOLT; HEAT PROTECTOR FLYWHEEL HOUSING FC<E1R> M10X30 FLANGE	0-28181-030-0	01	1	0005-0512	●
230	BOLT; HEAT PROTECTOR EXC. EURO2 SPECIFICATION<THN> M10X30 FLANGE	0-28181-030-0	01	1	0005-0512			●
230	BOLT; HEAT PROTECTOR FLYWHEEL HOUSING FC<E1R> M10X30 FLANGE	0-28151-030-0	01	1	0601-	●
230	BOLT; HEAT PROTECTOR EXC. EURO2 SPECIFICATION<THN> M10X30 FLANGE	0-28151-030-0	01	1	0601-			●
279	PROTECTOR; STARTER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) (B)	8-94394-435-2	01	1	9510-9512	●
279	PROTECTOR; STARTER EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A)	8-94394-952-1	01	1	9510-9802	●
279	PROTECTOR; STARTER FLYWHEEL HOUSING FC<E1R> (A)	8-94394-952-1	01	1	9803-	●
279	PROTECTOR; STARTER (C)	8-94394-501-0	01	1	9511-9709			●
279	PROTECTOR; STARTER EXC. EURO2 SPECIFICATION<THN> (C)	8-94394-501-0	01	1	9710-			●
280	WASHER; PL,HEAT PROTECTOR CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) ID=8.4 OD=18	9-09160-608-0	03	1	9510-9512	●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	9510-0004	●		●	●
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	0005-0603	●	●	●	●
292	WASHER; LK,STARTER ID=14.2	0-91510-514-0	02	1	0604-0607	●	●	●	●
292	WASHER; LK,STARTER ID=14.2	0-91510-514-0	02	1	0608-	●	●	●	●	●
293	CABLE; STARTER EARTH (B) L=350	1-82650-266-0	01	1	0608-					●
293	CABLE; STARTER EARTH FLYWHEEL HOUSING FC<E1R> (A) L=360	1-82650-230-1	01	1	9510-0004	●
293	CABLE; STARTER EARTH (A) L=360	1-82650-230-1	01	1	9510-0004			●
293	CABLE; STARTER EARTH FLYWHEEL HOUSING FC<E1R> (A) L=360	1-82650-230-1	01	1	0005-0006	●
293	CABLE; STARTER EARTH EXC. EURO2 SPECIFICATION<THN> (A) L=360	1-82650-230-1	01	1	0005-0006			●
293	CABLE; STARTER EARTH FLYWHEEL HOUSING FC<E1R> (A) L=360	1-82650-230-1	01	1	0007-	●
293	CABLE; STARTER EARTH EXC. FLYWHEEL HOUSING FC<E1R> (A) L=350	1-82650-266-0	01	1	9510-0001	●
293	CABLE; STARTER EARTH (A) L=350	1-82650-266-0	01	1	9510-0001				●
293	CABLE; STARTER EARTH EXC. FLYWHEEL HOUSING FC<E1R> (A) L=350	1-82650-266-0	01	1	0002-0004	●
293	CABLE; STARTER EARTH EXC. FLYWHEEL HOUSING FC<E1R> (A) L=350	1-82650-266-0	01	1	0005-0005	●
293	CABLE; STARTER EARTH (A) L=350	1-82650-266-0	01	1	0005-0005		●
293	CABLE; STARTER EARTH EXC. EURO2 SPECIFICATION<THN> (A) L=300	1-82650-223-0	01	1	0007-			●
293	CABLE; STARTER EARTH EURO2 SPECIFICATION<THN> (A) L=320	1-82650-324-0	01	1	0002-0005			●
293	CABLE; STARTER EARTH (A) L=320	1-82650-324-0	01	1	0002-0005				●
293	CABLE; STARTER EARTH EXC. FLYWHEEL HOUSING FC<E1R> (A) L=320	1-82650-324-0	01	1	0006-	●
293	CABLE; STARTER EARTH EURO2 SPECIFICATION<THN> (A) L=320	1-82650-324-0	01	1	0006-			●
293	CABLE; STARTER EARTH (A) L=320	1-82650-324-0	01	1	0006-		●		●

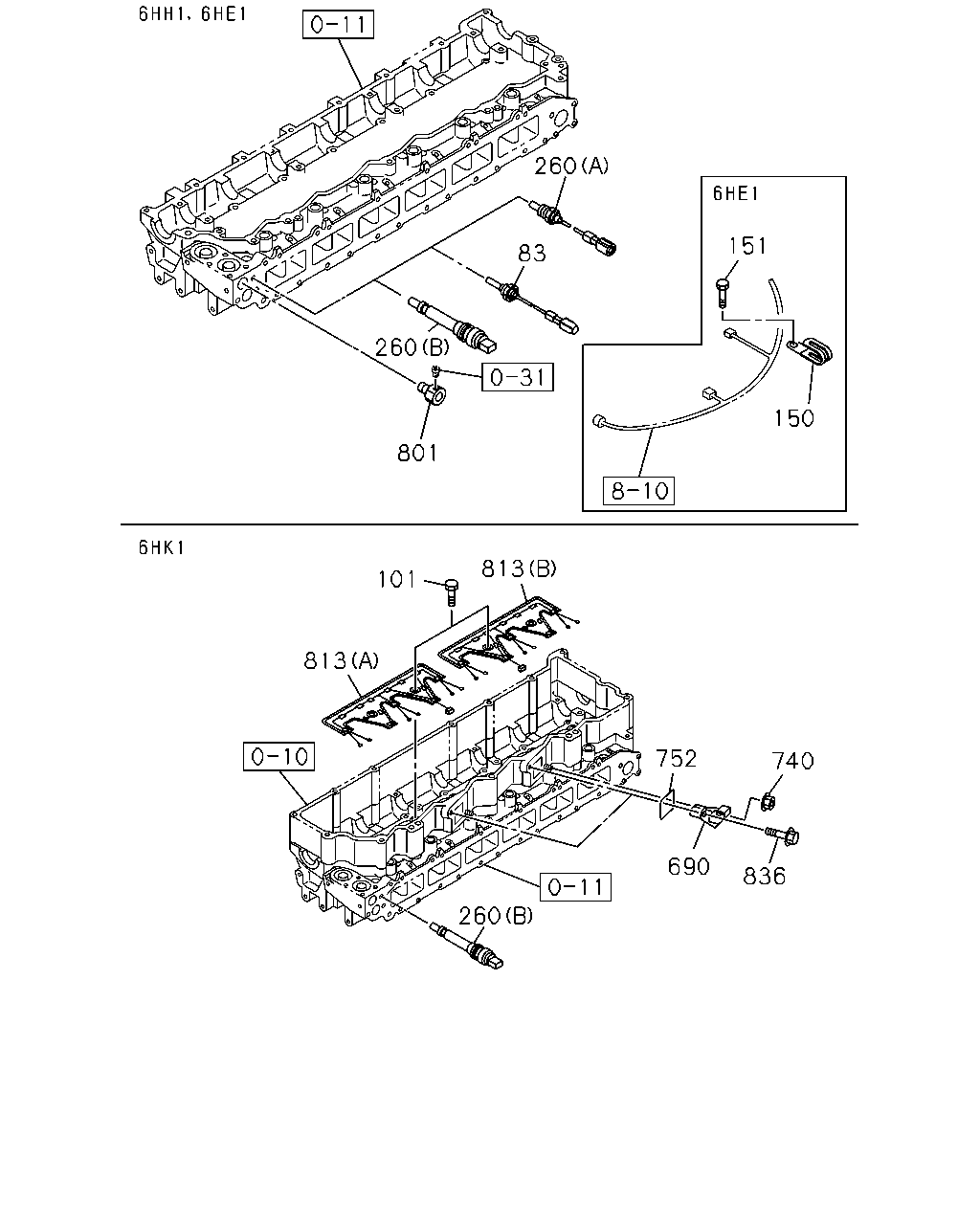

260 151 83 260 150 801 813 101 813 752 740 690 836 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
83	THERMOMETER UNIT	1-83161-031-1	01	1	9510-0004	●		●
83	THERMOMETER UNIT	1-83161-031-1	01	1	0005-	●
83	THERMOMETER UNIT EXC. EURO2 SPECIFICATION<THN>	1-83161-031-1	01	1	0005-			●
101	BOLT; HARNESS M8X40 FLANGE	0-28650-840-0	04	1	0608-					●
150	CLIP; HARNESS,SOLENOID VLV EURO2 SPECIFICATION<THN> ID=18 L=44	8-94225-185-0	02	1	9710-0801			●
150	CLIP; HARNESS,SOLENOID VLV ID=18 L=44	8-94225-185-0	02	1	9710-0801				●
150	CLIP; HARNESS,SOLENOID VLV EURO2 SPECIFICATION<THN> ID=18 L=44	8-97367-985-1	02	1	0802-			●
150	CLIP; HARNESS,SOLENOID VLV ID=18 L=44	8-97367-985-1	02	1	0802-				●
151	BOLT; HARNESS CLIP,SOLENOID VLV EURO2 SPECIFICATION<THN> M8X12 FLANGE	0-28080-812-0	02	1	9710-0512			●
151	BOLT; HARNESS CLIP,SOLENOID VLV M8X12 FLANGE	0-28080-812-0	02	1	9710-0512				●
151	BOLT; HARNESS CLIP,SOLENOID VLV EURO2 SPECIFICATION<THN> M8X12 FLANGE	0-28050-812-0	02	1	0601-			●
151	BOLT; HARNESS CLIP,SOLENOID VLV M8X12 FLANGE	0-28050-812-0	02	1	0601-				●
260	SENSOR; WATER TEMP EURO2 SPECIFICATION<THN> (A)	1-80210-004-0	01	1	9710-			●
260	SENSOR; WATER TEMP (A)	1-80210-004-0	01	1	9710-				●
260	SENSOR; WATER TEMP (B)	1-80210-005-1	01	1	0005-0607		●
260	SENSOR; WATER TEMP (B)	1-80210-005-1	01	1	0608-		●			●
690	CONNECTOR	8-94390-858-1	02	1	0608-					●
740	NUT M8 FLANGE	0-91180-108-0	04	1	0608-1011					●
740	NUT M8 FLANGE	0-91180-108-0	02	1	1012-					●
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	02	1	0608-					●
801	ADAPTER; THERMO SWITCH EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN>	8-94395-851-1	01	1	0011-1008		●
801	ADAPTER; THERMO SWITCH EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN>	8-98177-501-0	01	1	1009-		●
813	HARNESS; INJECTOR (A) FRONT	8-94391-302-3	01	1	0608-					●
813	HARNESS; INJECTOR (B) REAR	8-94391-303-3	01	1	0608-					●
836	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	02	1	1012-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
