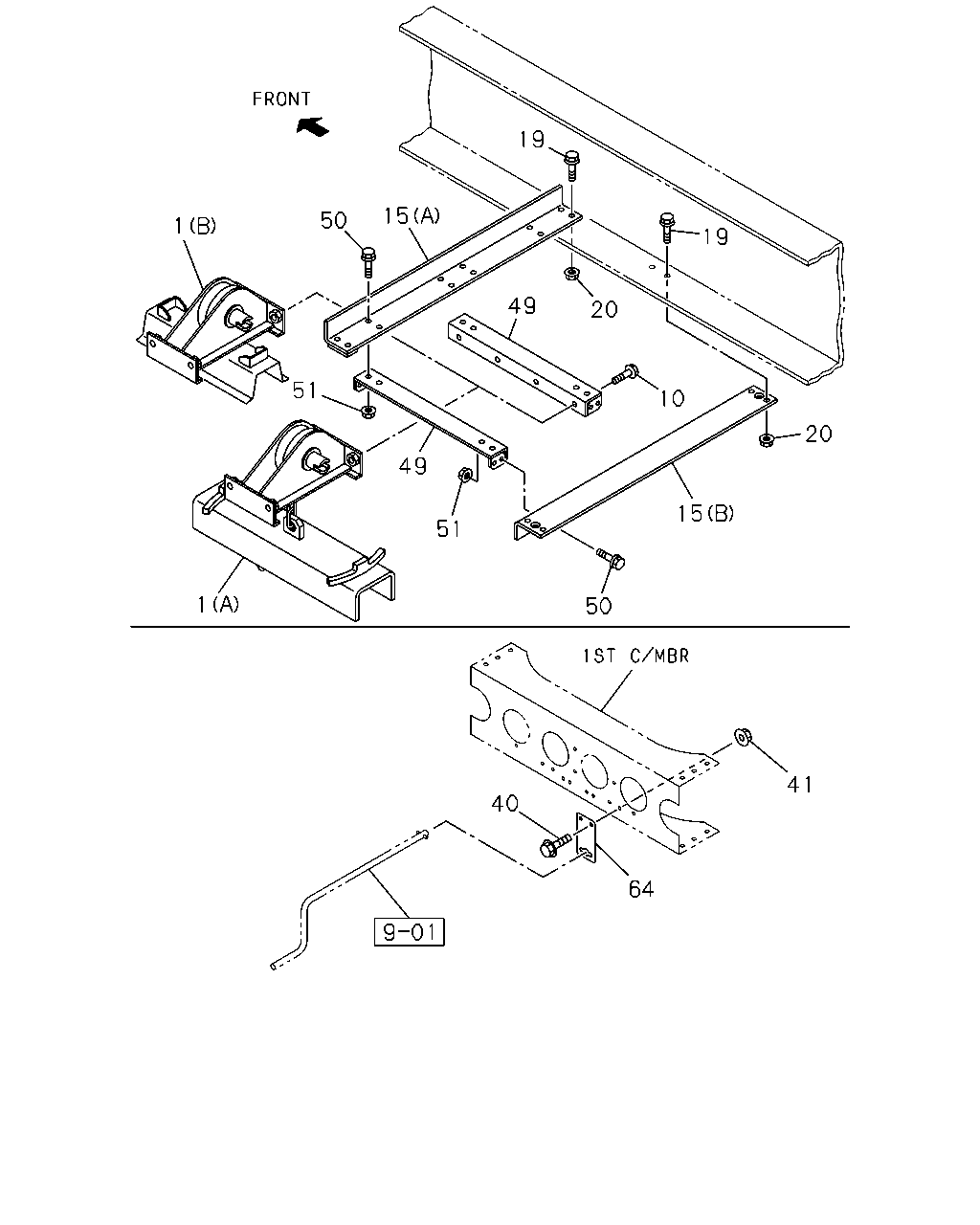

5-30 — SPARE TIRE CARRIER AND COVER (#39384) — 26 parça

19 15 50 1 19 49 20 51 10 20 49 15 51 1 50 41 40 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANGER ASM; TIRE FT INTERNATIONAL STANDARD ISO 10STUD<B3V> SPARE WHEEL CARRIER<SFB> (A)	1-53630-210-1	01	1	0707-0906
1	HANGER ASM; TIRE FT INTERNATIONAL STANDARD ISO 10STUD<B3V> SPARE WHEEL CARRIER<SFB> EXC. UNDER FOLLR COCKPIT<Y53> (A)	1-53630-210-4	01	1	0907-
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER<SFB> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-53630-208-1	01	1	0707-0906
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER<SFB> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>,UNDER FOLLR COCKPIT<Y53> (B)	1-53630-208-3	01	1	0907-
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER<SFB> M12X30 FLANGE	0-28651-230-0	04	1	0707-0906
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER<SFB> EXC. UNDER FOLLR COCKPIT<Y53> M12X30 FLANGE	0-28651-230-0	04	1	0907-
15	MEMBER; CROSS,SPARE TIRE SPARE WHEEL CARRIER<SFB> (A)	1-53618-056-2	01	1	0707-0906
15	MEMBER; CROSS,SPARE TIRE SPARE WHEEL CARRIER<SFB> EXC. UNDER FOLLR COCKPIT<Y53> (A)	1-53618-056-3	01	1	0907-
15	MEMBER; CROSS,SPARE TIRE SPARE WHEEL CARRIER<SFB> (B)	1-53618-057-1	01	1	0707-0906
15	MEMBER; CROSS,SPARE TIRE SPARE WHEEL CARRIER<SFB> EXC. UNDER FOLLR COCKPIT<Y53> (B)	1-53618-057-2	01	1	0907-
19	BOLT; C/MBR SPARE WHEEL CARRIER<SFB> M12X40 FLANGE	0-28651-240-0	08	1	0707-0906
19	BOLT; C/MBR SPARE WHEEL CARRIER<SFB> EXC. UNDER FOLLR COCKPIT<Y53> M12X40 FLANGE	0-28651-240-0	08	1	0907-
20	NUT; C/MBR SPARE WHEEL CARRIER<SFB> M12 FLANGE	0-91180-212-0	08	1	0707-0906
20	NUT; C/MBR SPARE WHEEL CARRIER<SFB> EXC. UNDER FOLLR COCKPIT<Y53> M12 FLANGE	0-91180-212-0	08	1	0907-
40	BOLT; GUIDE TO FRAME SPARE WHEEL CARRIER<SFB> M8X25 FLANGE	0-28650-825-0	02	1	0707-0906
40	BOLT; GUIDE TO FRAME SPARE WHEEL CARRIER<SFB> EXC. UNDER FOLLR COCKPIT<Y53> M8X25 FLANGE	0-28650-825-0	02	1	0907-
41	NUT; GUIDE SPARE WHEEL CARRIER<SFB> M8 FLANGE	0-91180-108-0	02	1	0707-0906
41	NUT; GUIDE SPARE WHEEL CARRIER<SFB> EXC. UNDER FOLLR COCKPIT<Y53> M8 FLANGE	0-91180-108-0	02	1	0907-
49	STAY; TIRE CARRIER SPARE WHEEL CARRIER<SFB>	1-53618-066-0	02	1	0707-0906
49	STAY; TIRE CARRIER SPARE WHEEL CARRIER<SFB> EXC. UNDER FOLLR COCKPIT<Y53>	1-53618-066-0	02	1	0907-
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER<SFB> M12X35 FLANGE	0-28651-235-0	08	1	0707-0906
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER<SFB> EXC. UNDER FOLLR COCKPIT<Y53> M12X35 FLANGE	0-28651-235-0	08	1	0907-
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER<SFB> M12 FLANGE	0-91180-212-0	08	1	0707-0906
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER<SFB> EXC. UNDER FOLLR COCKPIT<Y53> M12 FLANGE	0-91180-212-0	08	1	0907-
64	GUIDE; HANDLE SPARE WHEEL CARRIER<SFB>	1-53631-465-0	01	1	0707-0906
64	GUIDE; HANDLE SPARE WHEEL CARRIER<SFB> EXC. UNDER FOLLR COCKPIT<Y53>	1-53631-465-0	01	1	0907-
