Isuzu WW
▶
BUSES
▶
LV
▶
11100 - LV434(LHD) EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-57 - FRONT LEVELING VALVE
▶

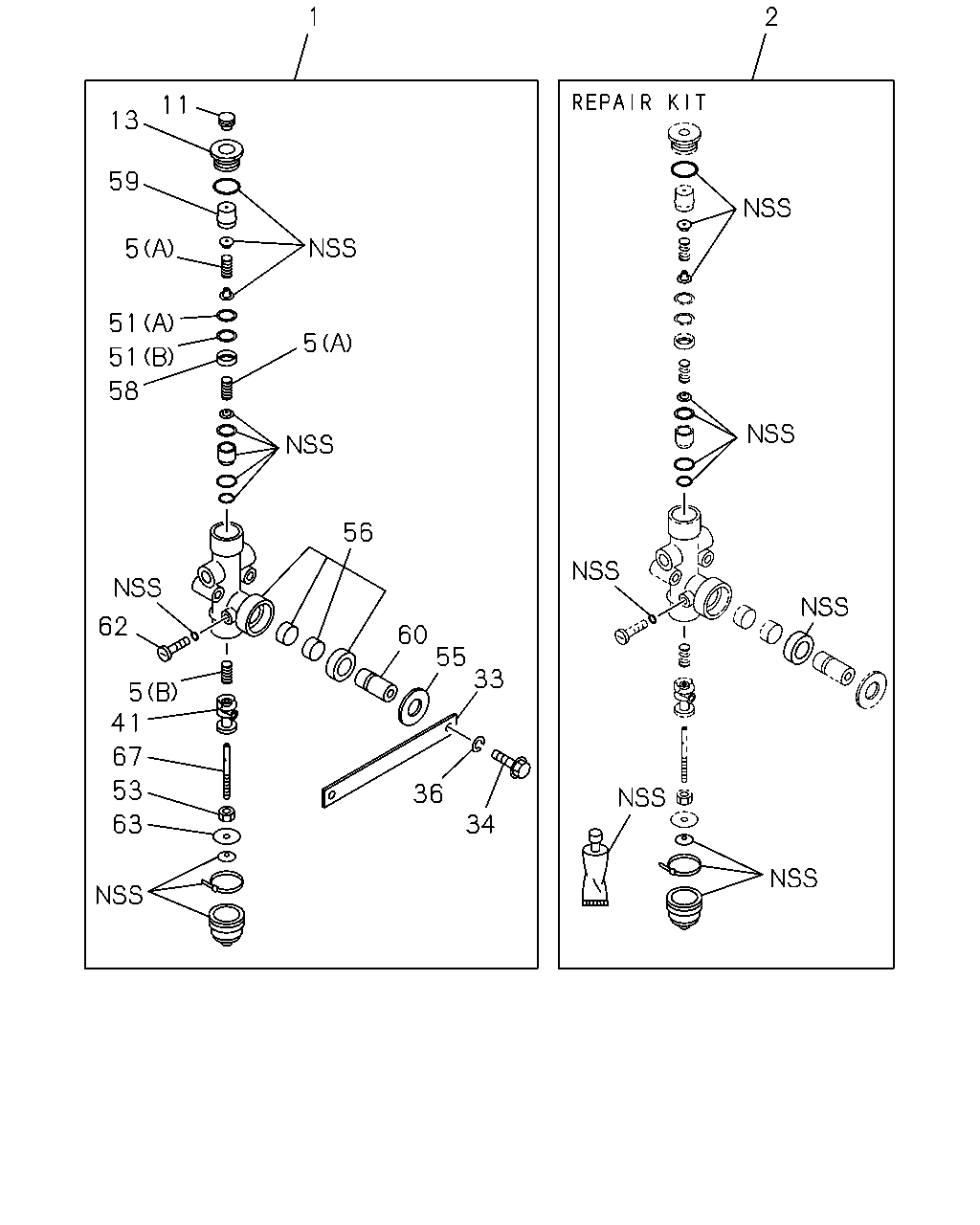

4-57 — FRONT LEVELING VALVE
(#39374) — 23 parça
2
1
11
13
59
5
51
5
51
58
56
62
60
55
33
5
41
67
53
36
63
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; LEVELING,FRT SUSP
1-52130-105-0
01
1
0707-0710
1
VALVE; LEVELING,FRT SUSP
1-52130-107-1
01
1
0711-
2
REPAIR KIT; LEVELING VALVE
1-85573-009-0
01
1
0707-
5
SPRING; VALVE,LEVELING VLV
(A)
1-52139-053-0
02
1
0707-
5
SPRING; VALVE,LEVELING VLV
(B)
1-52139-057-0
01
1
0707-
11
FILTER; LEVELING VLV
1-53457-081-0
01
1
0707-
13
PLUG; VALVE,LEVELING VLV
1-52139-055-0
01
1
0707-
33
LEVER; LEVELING VLV
1-52137-045-0
01
1
0707-0710
33
LEVER; LEVELING VLV
1-52137-047-0
01
1
0711-
34
BOLT; LEVER FIX,LEVELING VLV
1-52139-060-0
01
1
0707-
36
WASHER; LK,LEVER,LEVELING VLV
1-52139-061-0
01
1
0707-
41
PISTON; LEVELING VLV
1-52135-011-0
01
1
0707-
51
SHIM; LEVELING VLV
(A) T=0.2
1-52139-067-0
AR
1
0707-
51
SHIM; LEVELING VLV
(B) T=0.1
1-52139-068-0
AR
1
0707-
53
NUT; LEVELING VLV
1-52139-058-0
01
1
0707-
55
WASHER; LEVELING VLV
1-52139-059-0
01
1
0707-
56
BODY ASM; LEVELING VALVE
1-52139-046-0
01
1
0707-
58
SPACER; LEVELING VALVE
1-52139-050-0
01
1
0707-
59
SEAT; VALVE,LEVELING VALVE
1-52132-003-0
01
1
0707-
60
SHAFT; LEVELING VALVE
1-52135-009-0
01
1
0707-
62
BOLT; STOPPER,LEVELING VALVE
1-52139-069-0
01
1
0707-
63
PLATE; LEVELING VALVE
1-52139-091-0
01
1
0707-
67
SPOOL; LEVELING VALVE
1-52139-092-0
01
1
0707-
