Sayfa 0-52 - Isuzu EPC

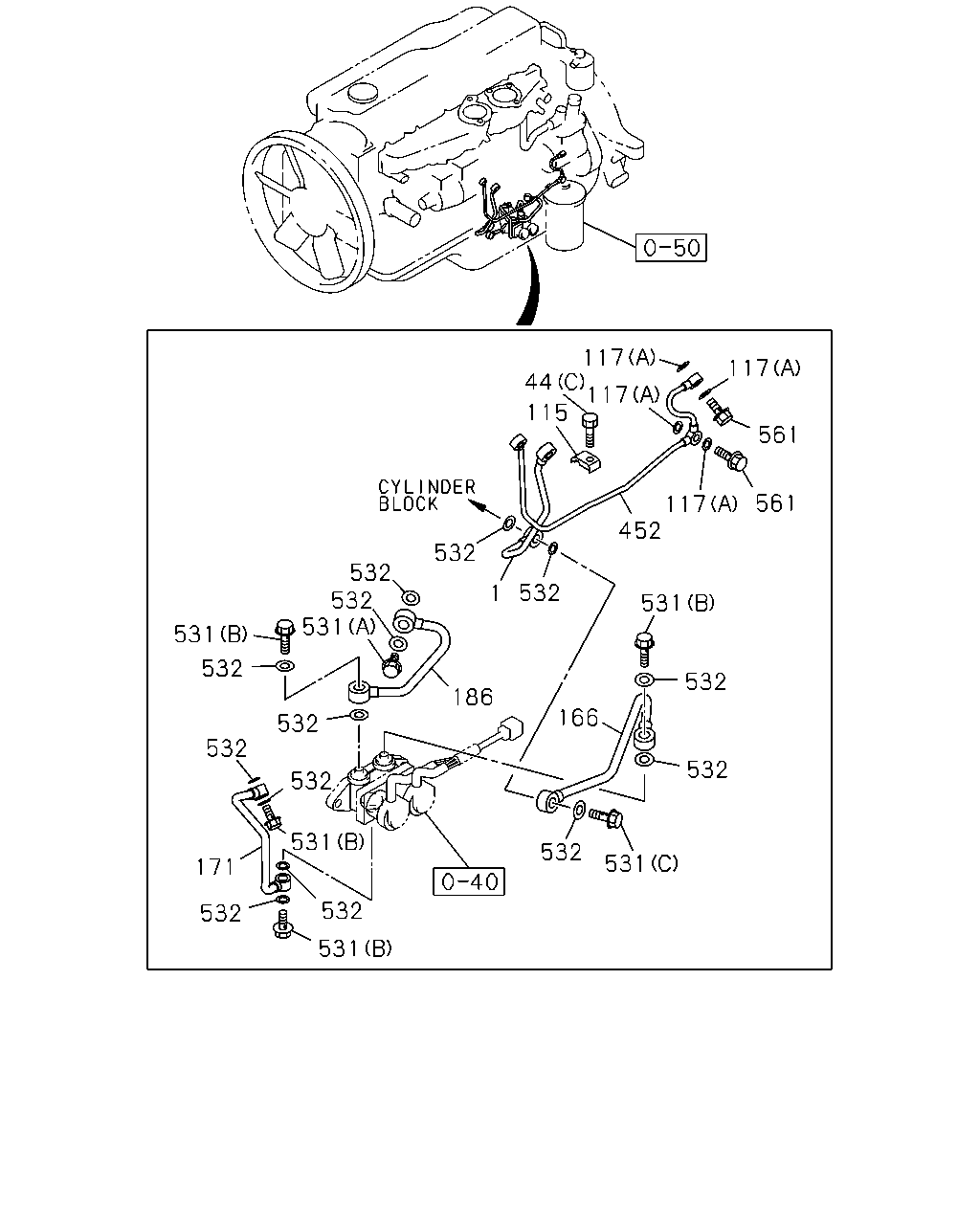

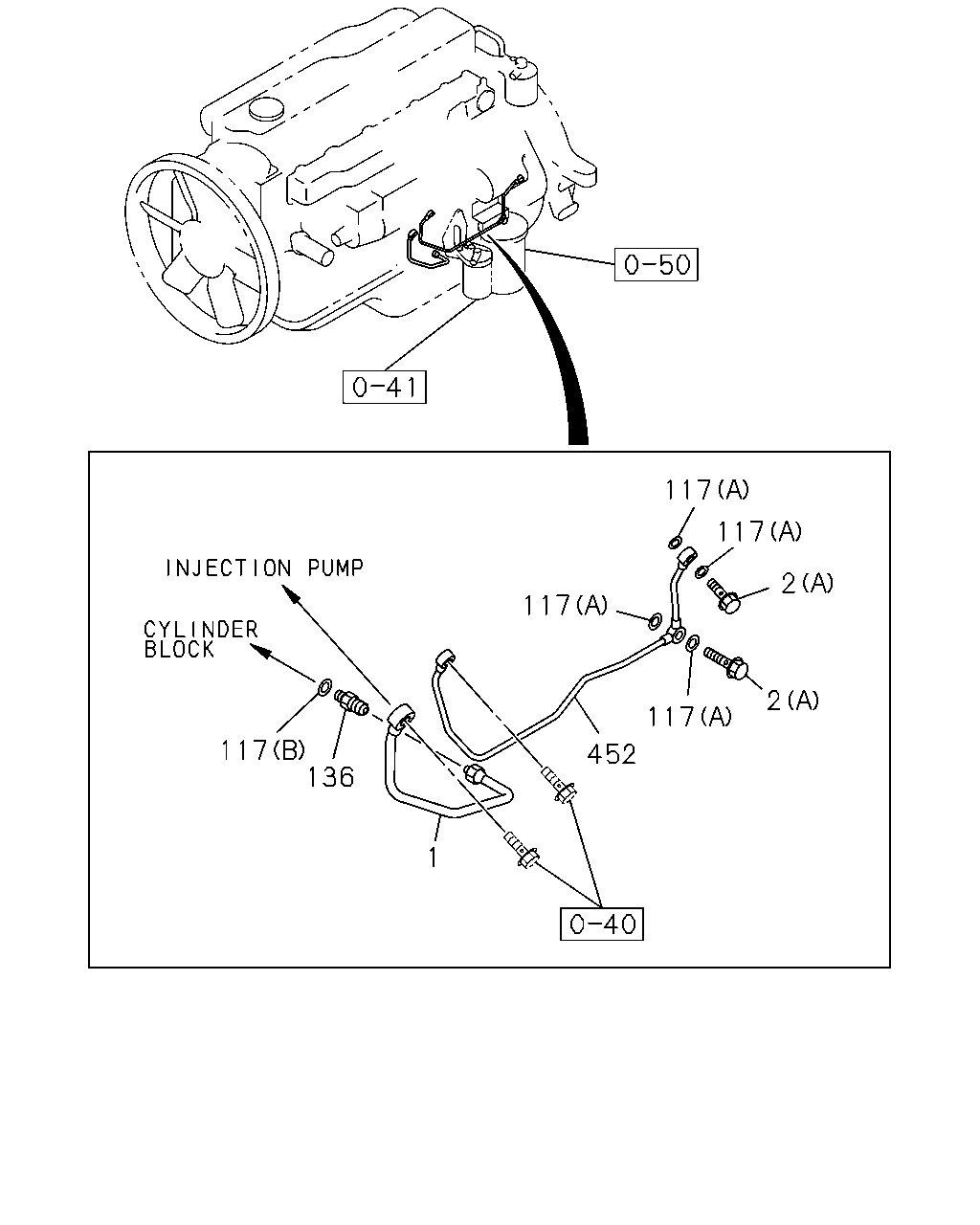

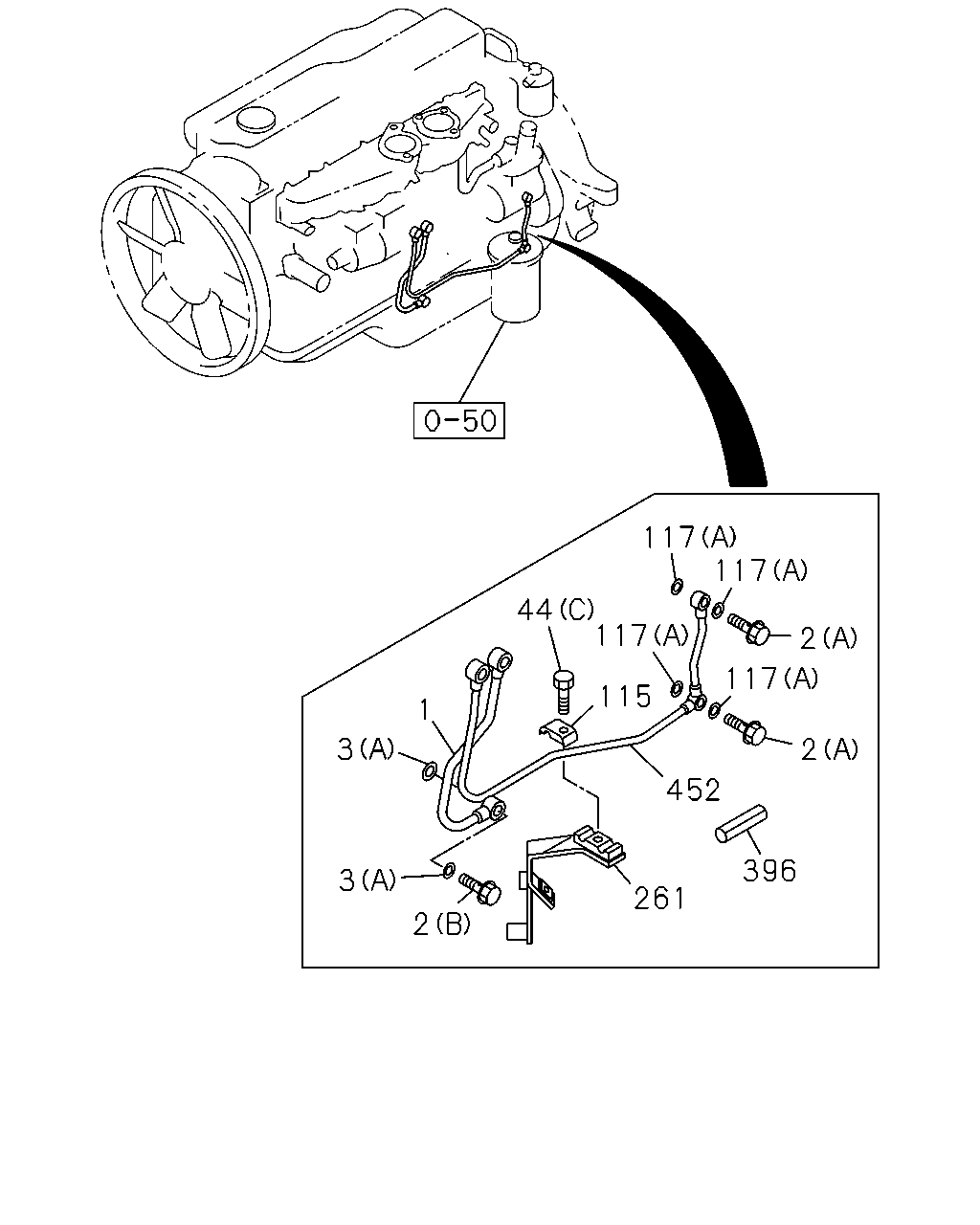

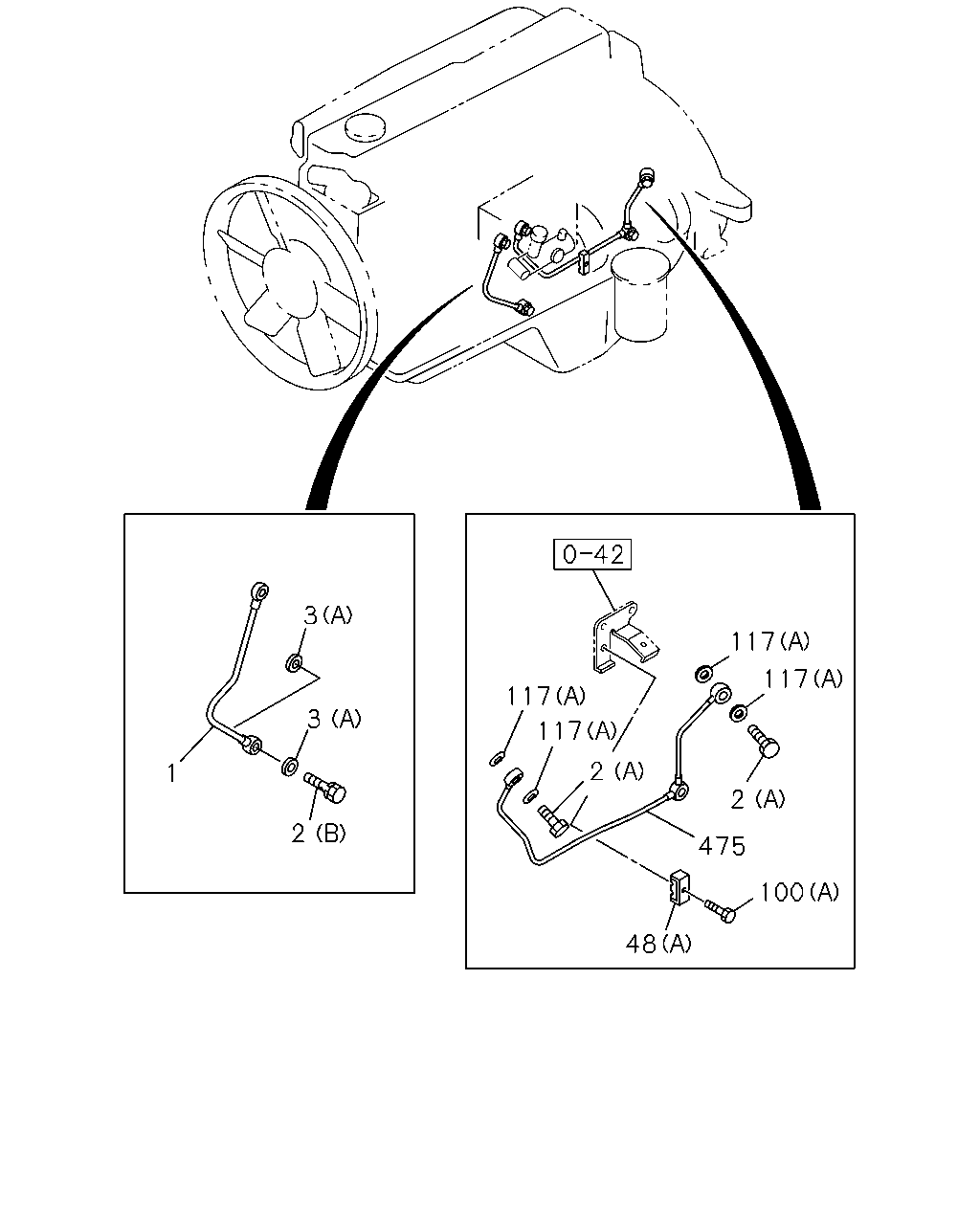

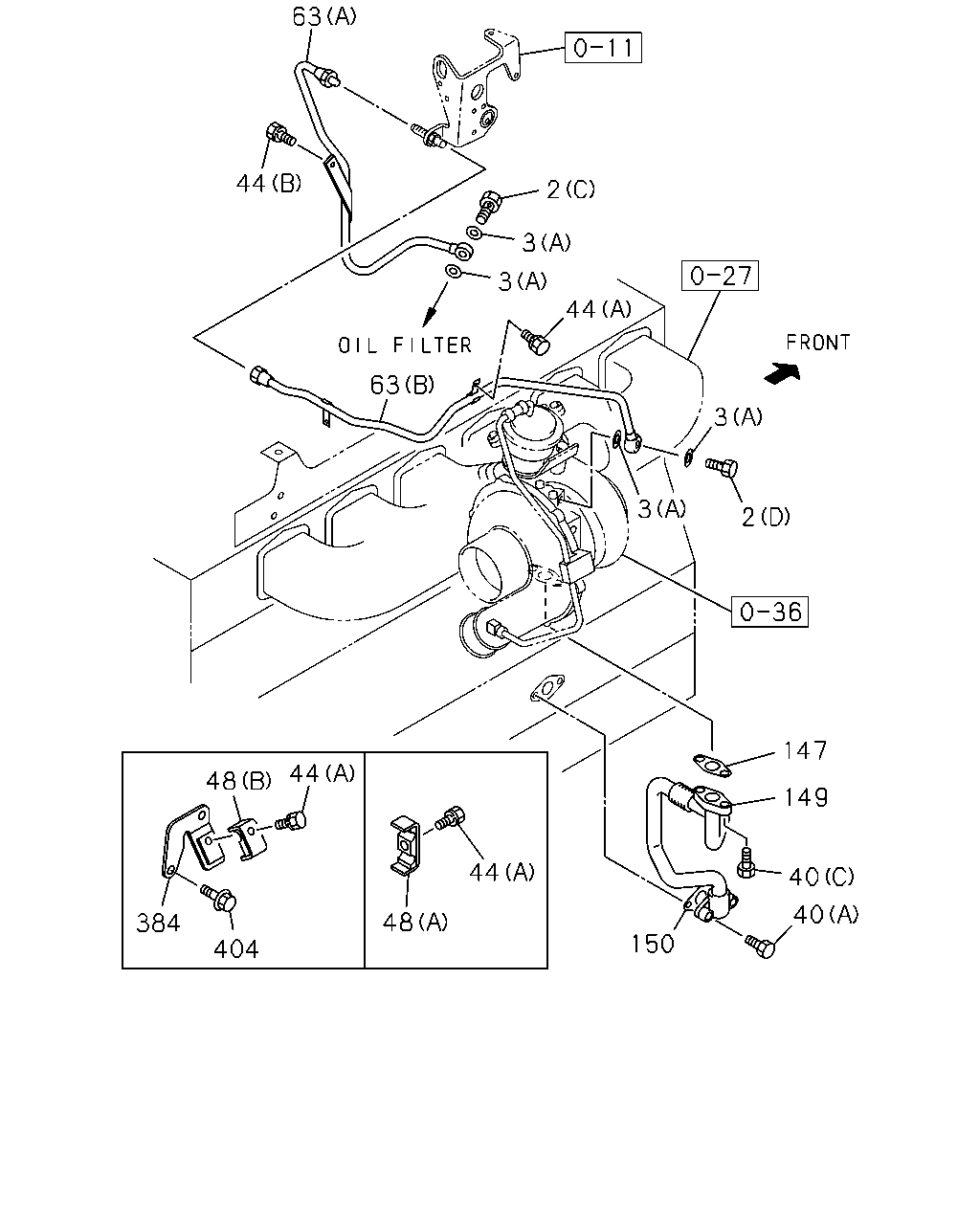

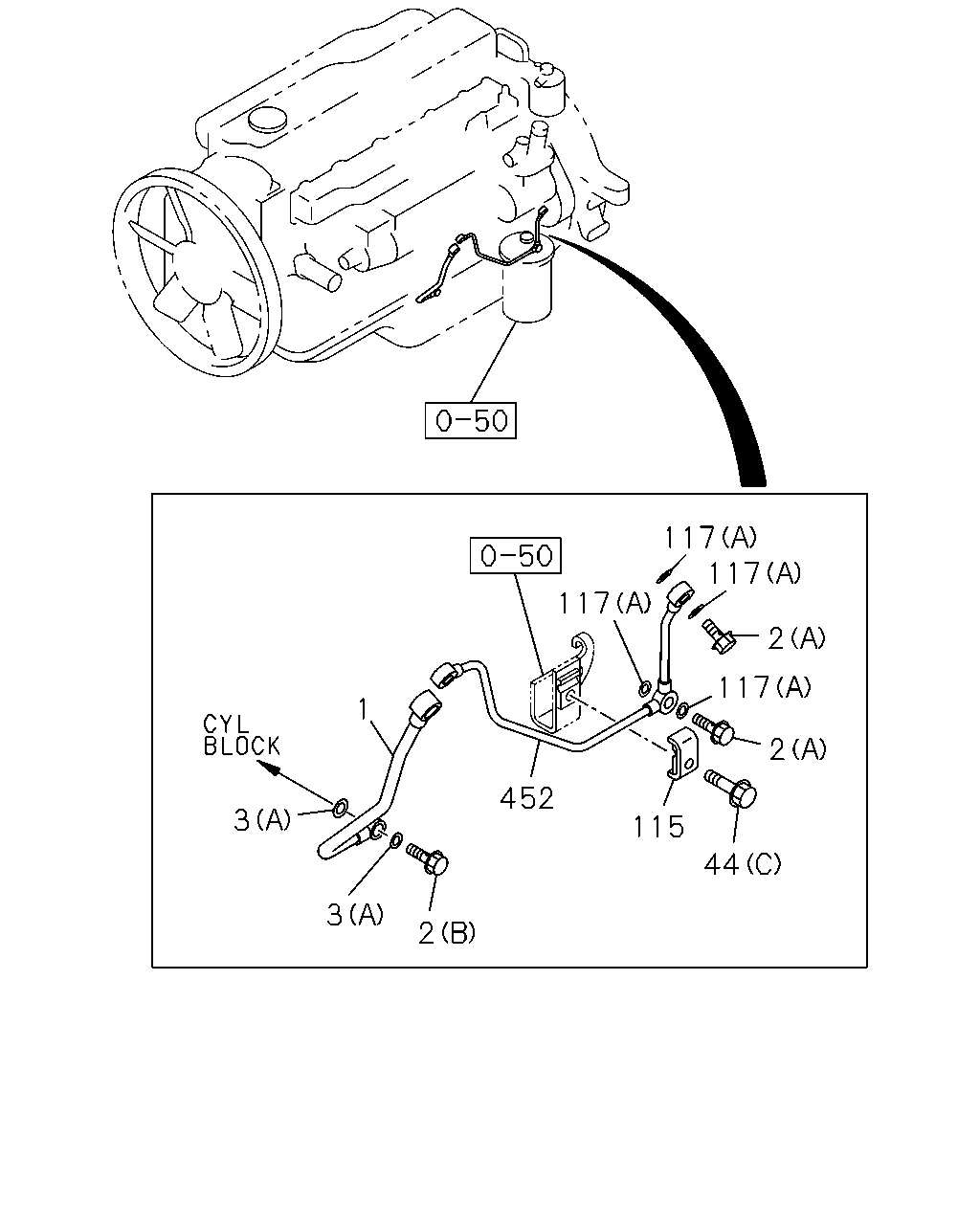

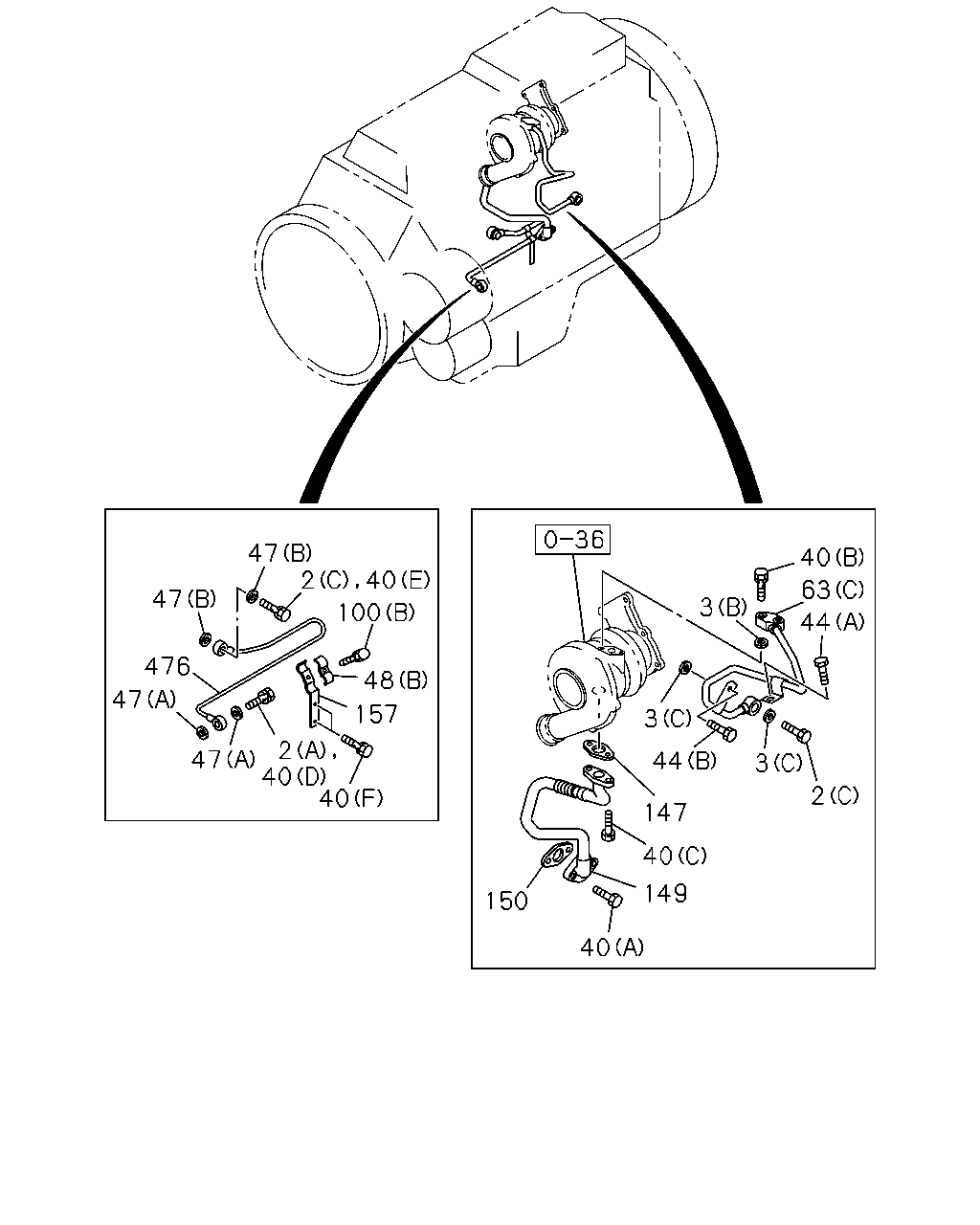

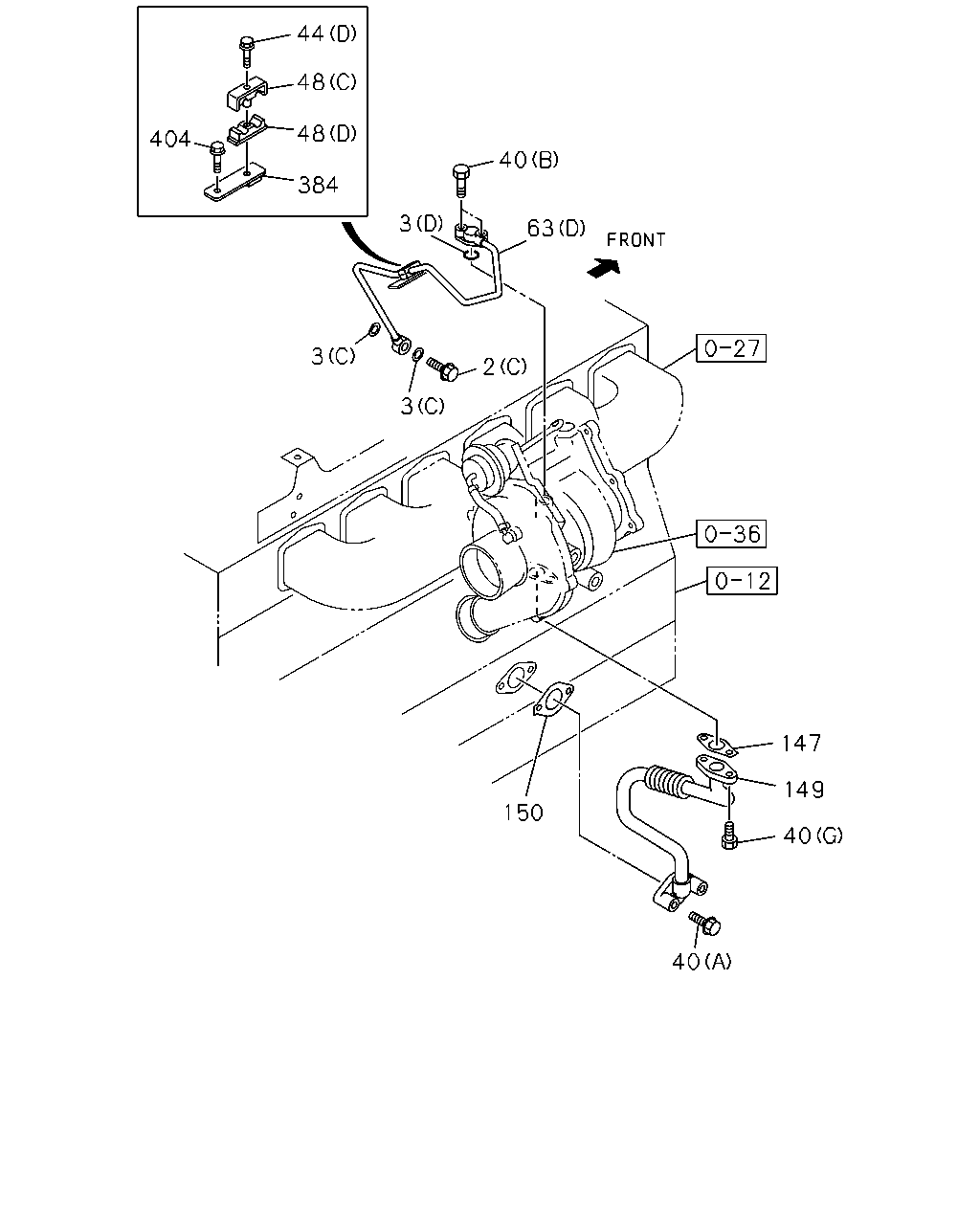

0-52 — OIL AND VACUUM PIPING; ENGINE (#3937) — 781 parça

117 117 2 117 2 117 117 136 452 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9510-0004	●	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	0005-		●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EURO2 SPECIFICATION<THN>	8-94394-276-0	01	1	0005-	●
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION<THN>	8-94395-795-0	01	1	9710-	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	9710-			●
1	PIPE; OIL,INJ PUMP TO C/BL EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94390-666-0	01	1	0005-				●
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94392-964-0	01	1	0005-0010				●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-964-0	01	1	0011-				●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94390-823-0	01	1	0608-					●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0608-					●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9510-9709	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9510-9802	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9710-0004	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010		●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0607		●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0607	●
2	BOLT; EYE,OIL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0607				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0608-0805		●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0608-0805	●
2	BOLT; EYE,OIL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE	1-09675-077-0	02	1	0608-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-		●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●
2	BOLT; EYE,OIL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-				●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9803-0607	●	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0608-	●	●	●		●
2	BOLT; EYE,OIL PIPE (D) M12X33 FLANGE	1-09675-083-0	01	1	9511-9709	●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (D) M12X33 FLANGE	1-09675-083-0	01	1	9710-	●
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	9511-9709	●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M12X25	5-09675-006-1	01	1	9710-	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0805	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0805			●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-			●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-			●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE	1-09675-086-0	01	1	9710-0004	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9710-0004			●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9510-0004	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0005-0607	●	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0608-	●	●	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) ID=12.2	1-09630-084-0	01	1	0005-0010				●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=12.2	1-09630-084-0	01	1	0011-1312				●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=12.2	8-98251-344-0	01	1	1401-				●
136	UNION EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94392-422-0	01	1	0005-0010				●
136	UNION EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-422-0	01	1	0011-				●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-570-0	01	1	0608-					●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94390-073-0	01	1	9510-9709		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-94390-073-0	01	1	9510-9709	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94390-073-0	01	1	9710-9906		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EXC. EURO2 SPECIFICATION<THN>	8-94390-073-0	01	1	9710-9906	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-97600-569-0	01	1	9907-		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EXC. EURO2 SPECIFICATION<THN>	8-97600-569-0	01	1	9907-	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94395-595-1	01	1	9510-9906		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97600-573-0	01	1	9907-		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97600-632-0	01	1	0005-				●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-97600-571-0	01	1	0005-0010				●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97600-571-0	01	1	0011-				●

117 117 44 117 2 117 115 1 3 2 452 396 3 261 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9510-0004	●	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	0005-		●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EURO2 SPECIFICATION<THN>	8-94394-276-0	01	1	0005-	●
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION<THN>	8-94395-795-0	01	1	9710-	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	9710-			●
1	PIPE; OIL,INJ PUMP TO C/BL EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94390-666-0	01	1	0005-				●
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94392-964-0	01	1	0005-0010				●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-964-0	01	1	0011-				●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94390-823-0	01	1	0608-					●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0608-					●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9510-9709	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9510-9802	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9710-0004	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010		●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0607		●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0607	●
2	BOLT; EYE,OIL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0607				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0608-0805		●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0608-0805	●
2	BOLT; EYE,OIL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE	1-09675-077-0	02	1	0608-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-		●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●
2	BOLT; EYE,OIL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-				●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9803-0607	●	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0608-	●	●	●		●
2	BOLT; EYE,OIL PIPE (D) M12X33 FLANGE	1-09675-083-0	01	1	9511-9709	●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (D) M12X33 FLANGE	1-09675-083-0	01	1	9710-	●
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	9511-9709	●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M12X25	5-09675-006-1	01	1	9710-	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0805	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0805			●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-			●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-			●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE	1-09675-086-0	01	1	9710-0004	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9710-0004			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0608-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0608-1312			●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9510-9510	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=12.2	1-09630-084-0	04	1	9511-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=12.2	8-98251-344-0	04	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9511-0607	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0608-1312	●	●	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●	●	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (B) ID=12.3	1-09623-481-0	01	1	9710-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	9710-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0607	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0607			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0608-					●
44	BOLT; CLIP,OIL PIPE (D) M6X35 FLANGE	0-28650-635-0	01	1	0608-					●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9510-0004	●	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0607		●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0607	●
44	BOLT; CLIP,OIL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0607				●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0608-		●			●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0608-	●
44	BOLT; CLIP,OIL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M6X22 FLANGE	0-28080-622-0	01	1	0608-				●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9511-9709	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	9511-9709	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	02	1	9710-9812	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M6X35 FLANGE	0-28680-635-0	02	1	9901-0512	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M6X35 FLANGE	0-28650-635-0	02	1	0601-	●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9710-9812	●		●
44	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28080-816-0	01	1	9901-0512	●		●
44	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●		●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	01	1	9710-9812	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	9710-9812			●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE	0-28080-812-0	01	1	9901-0512	●
44	BOLT; CLIP,OIL PIPE (A) M8X12 FLANGE	0-28080-812-0	01	1	9901-0512			●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-			●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	9510-0004	●	●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0005-0607		●
115	CLIP; PIPE,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-09701-091-0	01	1	0005-0607	●
115	CLIP; PIPE,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-09701-091-0	01	1	0005-0607				●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0608-		●			●
115	CLIP; PIPE,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-09701-091-0	01	1	0608-	●
115	CLIP; PIPE,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-09701-091-0	01	1	0608-				●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9510-0004	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0005-0607	●	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0608-	●	●	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) ID=12.2	1-09630-084-0	01	1	0005-0010				●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=12.2	1-09630-084-0	01	1	0011-1312				●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=12.2	8-98251-344-0	01	1	1401-				●
261	BRACKET; CLIP,OIL PIPE	8-94394-410-3	01	1	9510-0004	●	●
261	BRACKET; CLIP,OIL PIPE	8-94394-410-3	01	1	0005-		●
261	BRACKET; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN>	8-94394-410-3	01	1	0005-	●
396	SLEEVE; RUBBER,OIL PIPE ID=10 OD=14 L=30	9-09956-682-0	01	1	0002-		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-570-0	01	1	0608-					●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94390-073-0	01	1	9510-9709		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-94390-073-0	01	1	9510-9709	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94390-073-0	01	1	9710-9906		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EXC. EURO2 SPECIFICATION<THN>	8-94390-073-0	01	1	9710-9906	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-97600-569-0	01	1	9907-		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EXC. EURO2 SPECIFICATION<THN>	8-97600-569-0	01	1	9907-	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94395-595-1	01	1	9510-9906		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97600-573-0	01	1	9907-		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97600-632-0	01	1	0005-				●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-97600-571-0	01	1	0005-0010				●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97600-571-0	01	1	0011-				●

3 117 117 117 3 117 2 1 2 475 100 48 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9510-0004	●	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	0005-		●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EURO2 SPECIFICATION<THN>	8-94394-276-0	01	1	0005-	●
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION<THN>	8-94395-795-0	01	1	9710-	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	9710-			●
1	PIPE; OIL,INJ PUMP TO C/BL EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94390-666-0	01	1	0005-				●
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94392-964-0	01	1	0005-0010				●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-964-0	01	1	0011-				●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94390-823-0	01	1	0608-					●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0608-					●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9510-9709	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9510-9802	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9710-0004	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010		●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0607		●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0607	●
2	BOLT; EYE,OIL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0607				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0608-0805		●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0608-0805	●
2	BOLT; EYE,OIL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE	1-09675-077-0	02	1	0608-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-		●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●
2	BOLT; EYE,OIL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-				●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9803-0607	●	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0608-	●	●	●		●
2	BOLT; EYE,OIL PIPE (D) M12X33 FLANGE	1-09675-083-0	01	1	9511-9709	●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (D) M12X33 FLANGE	1-09675-083-0	01	1	9710-	●
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	9511-9709	●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M12X25	5-09675-006-1	01	1	9710-	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0805	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0805			●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-			●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-			●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE	1-09675-086-0	01	1	9710-0004	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9710-0004			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0608-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0608-1312			●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9510-9510	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=12.2	1-09630-084-0	04	1	9511-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=12.2	8-98251-344-0	04	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9511-0607	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0608-1312	●	●	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●	●	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (B) ID=12.3	1-09623-481-0	01	1	9710-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	9710-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0607	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0607			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0608-					●
48	CLIP; OIL PIPE (C) ID=7 & 9 L=25	1-09701-228-3	01	1	0608-					●
48	CLIP; OIL PIPE (D) ID=7 & 9 L=25	1-09701-229-2	01	1	0608-					●
48	CLIP; OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) ID=9 & 11 L=28	1-09701-265-1	01	1	9901-	●
48	CLIP; OIL PIPE EXC. EURO2 SPECIFICATION<THN> (B)	8-94396-860-0	01	1	9901-	●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<THN> (A)	1-09701-091-0	01	1	9710-	●
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	9710-			●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<THN> (B)	8-94395-170-0	01	1	9710-	●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	9710-			●
100	BOLT; CLIP EURO2 SPECIFICATION<THN> (B) M6X16 FLANGE	0-28080-616-0	01	1	9710-0512	●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	9710-0512			●
100	BOLT; CLIP EURO2 SPECIFICATION<THN> (B) M6X16 FLANGE	0-28050-616-0	01	1	0601-	●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28050-616-0	01	1	0601-			●
100	BOLT; CLIP EURO2 SPECIFICATION<THN> (A) M6X22 FLANGE	0-28080-622-0	01	1	9710-	●
100	BOLT; CLIP (A) M6X22 FLANGE	0-28080-622-0	01	1	9710-			●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9510-0004	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0005-0607	●	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0608-	●	●	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) ID=12.2	1-09630-084-0	01	1	0005-0010				●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=12.2	1-09630-084-0	01	1	0011-1312				●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=12.2	8-98251-344-0	01	1	1401-				●
475	PIPE; OIL,OIL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	8-94390-488-0	01	1	9710-9906	●
475	PIPE; OIL,OIL FILTER TO INJ PUMP	8-94390-488-0	01	1	9710-9906			●
475	PIPE; OIL,OIL FILTER TO INJ PUMP EURO2 SPECIFICATION<THN>	8-97600-567-1	01	1	9907-	●
475	PIPE; OIL,OIL FILTER TO INJ PUMP	8-97600-567-1	01	1	9907-			●

63 44 2 3 3 44 63 3 3 2 147 44 48 149 44 40 40 48 384 150 404

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0608-					●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9510-9709	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9510-9802	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9710-0004	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010		●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0607		●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0607	●
2	BOLT; EYE,OIL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0607				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0608-0805		●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0608-0805	●
2	BOLT; EYE,OIL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE	1-09675-077-0	02	1	0608-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-		●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●
2	BOLT; EYE,OIL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-				●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9803-0607	●	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0608-	●	●	●		●
2	BOLT; EYE,OIL PIPE (D) M12X33 FLANGE	1-09675-083-0	01	1	9511-9709	●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (D) M12X33 FLANGE	1-09675-083-0	01	1	9710-	●
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	9511-9709	●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M12X25	5-09675-006-1	01	1	9710-	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0805	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0805			●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-			●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-			●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE	1-09675-086-0	01	1	9710-0004	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9710-0004			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0608-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0608-1312			●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9510-9510	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=12.2	1-09630-084-0	04	1	9511-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=12.2	8-98251-344-0	04	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9511-0607	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0608-1312	●	●	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●	●	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (B) ID=12.3	1-09623-481-0	01	1	9710-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	9710-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0607	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0607			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0608-					●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28050-830-0	02	1	0608-	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0608-			●		●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	9511-0512	●		●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-0607	●		●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0608-	●		●		●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	9511-	●		●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28080-830-0	02	1	9710-0512	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	9710-0512			●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-0607	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-0607			●
40	BOLT; OIL PIPE (G) M8X25 FLANGE	0-28650-825-0	02	1	0608-					●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (F) M10X16 FLANGE	0-28181-016-0	02	1	9710-0512	●
40	BOLT; OIL PIPE (F) M10X16 FLANGE	0-28181-016-0	02	1	9710-0512			●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (F) M10X16 FLANGE	0-28151-016-0	02	1	0601-	●
40	BOLT; OIL PIPE (F) M10X16 FLANGE	0-28151-016-0	02	1	0601-			●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (D) M10X21 FLANGE	1-09675-077-0	01	1	9710-0004	●
40	BOLT; OIL PIPE (D) M10X21 FLANGE	1-09675-077-0	01	1	9710-0004			●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (E) M14X27 FLANGE	1-09675-086-0	01	1	9710-0004	●
40	BOLT; OIL PIPE (E) M14X27 FLANGE	1-09675-086-0	01	1	9710-0004			●
44	BOLT; CLIP,OIL PIPE (D) M6X35 FLANGE	0-28650-635-0	01	1	0608-					●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9510-0004	●	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0607		●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0607	●
44	BOLT; CLIP,OIL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0607				●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0608-		●			●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0608-	●
44	BOLT; CLIP,OIL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M6X22 FLANGE	0-28080-622-0	01	1	0608-				●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9511-9709	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	9511-9709	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	02	1	9710-9812	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M6X35 FLANGE	0-28680-635-0	02	1	9901-0512	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M6X35 FLANGE	0-28650-635-0	02	1	0601-	●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9710-9812	●		●
44	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28080-816-0	01	1	9901-0512	●		●
44	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●		●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	01	1	9710-9812	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	9710-9812			●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE	0-28080-812-0	01	1	9901-0512	●
44	BOLT; CLIP,OIL PIPE (A) M8X12 FLANGE	0-28080-812-0	01	1	9901-0512			●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-			●
48	CLIP; OIL PIPE (C) ID=7 & 9 L=25	1-09701-228-3	01	1	0608-					●
48	CLIP; OIL PIPE (D) ID=7 & 9 L=25	1-09701-229-2	01	1	0608-					●
48	CLIP; OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) ID=9 & 11 L=28	1-09701-265-1	01	1	9901-	●
48	CLIP; OIL PIPE EXC. EURO2 SPECIFICATION<THN> (B)	8-94396-860-0	01	1	9901-	●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<THN> (A)	1-09701-091-0	01	1	9710-	●
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	9710-			●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<THN> (B)	8-94395-170-0	01	1	9710-	●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	9710-			●
63	PIPE; OIL,TURBOCHARGER FEED (D)	8-97602-629-0	01	1	0608-					●
63	PIPE; OIL,TURBOCHARGER FEED (B)	8-94301-581-0	01	1	9511-9709	●
63	PIPE; OIL,TURBOCHARGER FEED EXC. EURO2 SPECIFICATION<THN> (B)	8-94301-581-0	01	1	9710-9812	●
63	PIPE; OIL,TURBOCHARGER FEED EXC. EURO2 SPECIFICATION<THN> (B)	8-97600-198-0	01	1	9901-	●
63	PIPE; OIL,TURBOCHARGER FEED (A)	8-94395-102-0	01	1	9511-9709	●
63	PIPE; OIL,TURBOCHARGER FEED EXC. EURO2 SPECIFICATION<THN> (A)	8-94395-102-0	01	1	9710-	●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<THN> (C)	8-94390-652-0	01	1	9710-9808	●
63	PIPE; OIL,TURBOCHARGER FEED (C)	8-94390-652-0	01	1	9710-9808			●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<THN> (C)	8-94392-976-0	01	1	9809-	●
63	PIPE; OIL,TURBOCHARGER FEED (C)	8-94392-976-0	01	1	9809-			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0608-					●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-2	01	1	9511-	●		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-643-1	01	1	0608-					●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94395-380-0	01	1	9511-9709	●
149	PIPE; OIL RETURN,TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94395-380-0	01	1	9710-	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<THN>	8-94390-653-0	01	1	9710-9808	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-653-0	01	1	9710-9808			●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<THN>	8-94392-977-0	01	1	9809-	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94392-977-0	01	1	9809-			●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	9511-0607	●		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0608-	●		●		●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER	1-13319-041-0	01	1	0608-					●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-97600-199-0	01	1	9901-	●
404	BOLT; BRKT M8X15	1-09000-114-0	01	1	0608-					●
404	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> M8X12 FLANGE	0-28080-812-0	02	1	9901-0512	●
404	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> M8X12 FLANGE	0-28050-812-0	02	1	0601-	●

47 40 63 47 3 100 44 476 48 47 157 3 2 40 40 47 44 3 2 147 40 149 150 40 2 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0608-					●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9510-9709	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9510-9802	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9710-0004	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010		●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0607		●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0607	●
2	BOLT; EYE,OIL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0607				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0608-0805		●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0608-0805	●
2	BOLT; EYE,OIL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE	1-09675-077-0	02	1	0608-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-		●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●
2	BOLT; EYE,OIL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-				●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9803-0607	●	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0608-	●	●	●		●
2	BOLT; EYE,OIL PIPE (D) M12X33 FLANGE	1-09675-083-0	01	1	9511-9709	●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (D) M12X33 FLANGE	1-09675-083-0	01	1	9710-	●
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	9511-9709	●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M12X25	5-09675-006-1	01	1	9710-	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0805	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0805			●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-			●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-			●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE	1-09675-086-0	01	1	9710-0004	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9710-0004			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0608-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0608-1312			●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9510-9510	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=12.2	1-09630-084-0	04	1	9511-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=12.2	8-98251-344-0	04	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9511-0607	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0608-1312	●	●	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●	●	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (B) ID=12.3	1-09623-481-0	01	1	9710-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	9710-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0607	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0607			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0608-					●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28050-830-0	02	1	0608-	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0608-			●		●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	9511-0512	●		●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-0607	●		●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0608-	●		●		●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	9511-	●		●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28080-830-0	02	1	9710-0512	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	9710-0512			●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-0607	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-0607			●
40	BOLT; OIL PIPE (G) M8X25 FLANGE	0-28650-825-0	02	1	0608-					●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (F) M10X16 FLANGE	0-28181-016-0	02	1	9710-0512	●
40	BOLT; OIL PIPE (F) M10X16 FLANGE	0-28181-016-0	02	1	9710-0512			●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (F) M10X16 FLANGE	0-28151-016-0	02	1	0601-	●
40	BOLT; OIL PIPE (F) M10X16 FLANGE	0-28151-016-0	02	1	0601-			●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (D) M10X21 FLANGE	1-09675-077-0	01	1	9710-0004	●
40	BOLT; OIL PIPE (D) M10X21 FLANGE	1-09675-077-0	01	1	9710-0004			●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (E) M14X27 FLANGE	1-09675-086-0	01	1	9710-0004	●
40	BOLT; OIL PIPE (E) M14X27 FLANGE	1-09675-086-0	01	1	9710-0004			●
44	BOLT; CLIP,OIL PIPE (D) M6X35 FLANGE	0-28650-635-0	01	1	0608-					●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9510-0004	●	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0607		●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0607	●
44	BOLT; CLIP,OIL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0607				●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0608-		●			●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0608-	●
44	BOLT; CLIP,OIL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M6X22 FLANGE	0-28080-622-0	01	1	0608-				●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9511-9709	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	9511-9709	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	02	1	9710-9812	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M6X35 FLANGE	0-28680-635-0	02	1	9901-0512	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M6X35 FLANGE	0-28650-635-0	02	1	0601-	●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9710-9812	●		●
44	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28080-816-0	01	1	9901-0512	●		●
44	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●		●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	01	1	9710-9812	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	9710-9812			●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE	0-28080-812-0	01	1	9901-0512	●
44	BOLT; CLIP,OIL PIPE (A) M8X12 FLANGE	0-28080-812-0	01	1	9901-0512			●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-			●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9710-	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	9710-			●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-1312	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-1312			●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●
48	CLIP; OIL PIPE (C) ID=7 & 9 L=25	1-09701-228-3	01	1	0608-					●
48	CLIP; OIL PIPE (D) ID=7 & 9 L=25	1-09701-229-2	01	1	0608-					●
48	CLIP; OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) ID=9 & 11 L=28	1-09701-265-1	01	1	9901-	●
48	CLIP; OIL PIPE EXC. EURO2 SPECIFICATION<THN> (B)	8-94396-860-0	01	1	9901-	●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<THN> (A)	1-09701-091-0	01	1	9710-	●
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	9710-			●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<THN> (B)	8-94395-170-0	01	1	9710-	●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	9710-			●
63	PIPE; OIL,TURBOCHARGER FEED (D)	8-97602-629-0	01	1	0608-					●
63	PIPE; OIL,TURBOCHARGER FEED (B)	8-94301-581-0	01	1	9511-9709	●
63	PIPE; OIL,TURBOCHARGER FEED EXC. EURO2 SPECIFICATION<THN> (B)	8-94301-581-0	01	1	9710-9812	●
63	PIPE; OIL,TURBOCHARGER FEED EXC. EURO2 SPECIFICATION<THN> (B)	8-97600-198-0	01	1	9901-	●
63	PIPE; OIL,TURBOCHARGER FEED (A)	8-94395-102-0	01	1	9511-9709	●
63	PIPE; OIL,TURBOCHARGER FEED EXC. EURO2 SPECIFICATION<THN> (A)	8-94395-102-0	01	1	9710-	●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<THN> (C)	8-94390-652-0	01	1	9710-9808	●
63	PIPE; OIL,TURBOCHARGER FEED (C)	8-94390-652-0	01	1	9710-9808			●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<THN> (C)	8-94392-976-0	01	1	9809-	●
63	PIPE; OIL,TURBOCHARGER FEED (C)	8-94392-976-0	01	1	9809-			●
100	BOLT; CLIP EURO2 SPECIFICATION<THN> (B) M6X16 FLANGE	0-28080-616-0	01	1	9710-0512	●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	9710-0512			●
100	BOLT; CLIP EURO2 SPECIFICATION<THN> (B) M6X16 FLANGE	0-28050-616-0	01	1	0601-	●
100	BOLT; CLIP (B) M6X16 FLANGE	0-28050-616-0	01	1	0601-			●
100	BOLT; CLIP EURO2 SPECIFICATION<THN> (A) M6X22 FLANGE	0-28080-622-0	01	1	9710-	●
100	BOLT; CLIP (A) M6X22 FLANGE	0-28080-622-0	01	1	9710-			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0608-					●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-2	01	1	9511-	●		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-643-1	01	1	0608-					●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94395-380-0	01	1	9511-9709	●
149	PIPE; OIL RETURN,TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94395-380-0	01	1	9710-	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<THN>	8-94390-653-0	01	1	9710-9808	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-653-0	01	1	9710-9808			●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<THN>	8-94392-977-0	01	1	9809-	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94392-977-0	01	1	9809-			●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	9511-0607	●		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0608-	●		●		●
157	BRACKET; OIL PIPE EURO2 SPECIFICATION<THN>	8-94395-168-0	01	1	9710-	●
157	BRACKET; OIL PIPE	8-94395-168-0	01	1	9710-			●
476	PIPE; OIL,C/BL TO AIR CMPR EURO2 SPECIFICATION<THN>	8-94394-940-1	01	1	9710-	●
476	PIPE; OIL,C/BL TO AIR CMPR	8-94394-940-1	01	1	9710-			●

117 44 117 117 115 561 561 117 452 532 532 532 531 532 1 531 531 532 532 186 166 532 532 532 532 531 532 531 171 532 532 531

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9510-0004	●	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	0005-		●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EURO2 SPECIFICATION<THN>	8-94394-276-0	01	1	0005-	●
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION<THN>	8-94395-795-0	01	1	9710-	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	9710-			●
1	PIPE; OIL,INJ PUMP TO C/BL EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94390-666-0	01	1	0005-				●
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94392-964-0	01	1	0005-0010				●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-964-0	01	1	0011-				●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94390-823-0	01	1	0608-					●
44	BOLT; CLIP,OIL PIPE (D) M6X35 FLANGE	0-28650-635-0	01	1	0608-					●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9510-0004	●	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0607		●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0607	●
44	BOLT; CLIP,OIL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0607				●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0608-		●			●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0608-	●
44	BOLT; CLIP,OIL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M6X22 FLANGE	0-28080-622-0	01	1	0608-				●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9511-9709	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	9511-9709	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	02	1	9710-9812	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M6X35 FLANGE	0-28680-635-0	02	1	9901-0512	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M6X35 FLANGE	0-28650-635-0	02	1	0601-	●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9710-9812	●		●
44	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28080-816-0	01	1	9901-0512	●		●
44	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●		●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	01	1	9710-9812	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	9710-9812			●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE	0-28080-812-0	01	1	9901-0512	●
44	BOLT; CLIP,OIL PIPE (A) M8X12 FLANGE	0-28080-812-0	01	1	9901-0512			●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-			●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	9510-0004	●	●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0005-0607		●
115	CLIP; PIPE,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-09701-091-0	01	1	0005-0607	●
115	CLIP; PIPE,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-09701-091-0	01	1	0005-0607				●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0608-		●			●
115	CLIP; PIPE,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-09701-091-0	01	1	0608-	●
115	CLIP; PIPE,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-09701-091-0	01	1	0608-				●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9510-0004	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0005-0607	●	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0608-	●	●	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) ID=12.2	1-09630-084-0	01	1	0005-0010				●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=12.2	1-09630-084-0	01	1	0011-1312				●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=12.2	8-98251-344-0	01	1	1401-				●
166	PIPE; OIL,C/BL TO SOLENOID VLV EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-046-0	01	1	0005-				●
171	PIPE; OIL,SOLENOID VLV TO TIMER EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-045-0	01	1	0005-				●
186	PIPE; OIL,SOLENOID VLV FEED EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-044-0	01	1	0005-				●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-570-0	01	1	0608-					●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94390-073-0	01	1	9510-9709		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-94390-073-0	01	1	9510-9709	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94390-073-0	01	1	9710-9906		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EXC. EURO2 SPECIFICATION<THN>	8-94390-073-0	01	1	9710-9906	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-97600-569-0	01	1	9907-		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EXC. EURO2 SPECIFICATION<THN>	8-97600-569-0	01	1	9907-	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94395-595-1	01	1	9510-9906		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97600-573-0	01	1	9907-		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97600-632-0	01	1	0005-				●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-97600-571-0	01	1	0005-0010				●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97600-571-0	01	1	0011-				●
531	BOLT; EYE,TIMING CONT VLV EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M12X33 FLANGE	1-09675-083-0	01	1	0005-				●
531	BOLT; EYE,TIMING CONT VLV EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M12X27 FLANGE	1-09675-160-0	04	1	0005-0805				●
531	BOLT; EYE,TIMING CONT VLV EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	04	1	0806-				●
531	BOLT; EYE,TIMING CONT VLV EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M12X48 FLANGE	8-94392-722-0	01	1	0005-				●
532	GASKET; JOINT,TIMING CONT VLV EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=12.2	1-09630-084-0	11	1	0005-1312				●
532	GASKET; JOINT,TIMING CONT VLV EMISSION SYSTEM ECE REQUIREMENTS<SFV> ID=12.2	8-98251-344-0	11	1	1401-				●
561	BOLT; EYE,FILTER & AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X21 FLANGE	1-09675-077-0	02	1	0005-0805				●
561	BOLT; EYE,FILTER & AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV> M10X21 FLANGE	8-97372-238-0	02	1	0806-				●

44 48 48 404 40 384 3 63 3 2 3 147 149 150 40 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0608-					●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9510-9709	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9510-9802	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9710-0004	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010		●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0607		●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0607	●
2	BOLT; EYE,OIL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0607				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0608-0805		●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0608-0805	●
2	BOLT; EYE,OIL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE	1-09675-077-0	02	1	0608-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-		●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●
2	BOLT; EYE,OIL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-				●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9803-0607	●	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0608-	●	●	●		●
2	BOLT; EYE,OIL PIPE (D) M12X33 FLANGE	1-09675-083-0	01	1	9511-9709	●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (D) M12X33 FLANGE	1-09675-083-0	01	1	9710-	●
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	9511-9709	●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M12X25	5-09675-006-1	01	1	9710-	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0805	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0805			●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-			●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-			●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE	1-09675-086-0	01	1	9710-0004	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9710-0004			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0608-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0608-1312			●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9510-9510	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=12.2	1-09630-084-0	04	1	9511-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=12.2	8-98251-344-0	04	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9511-0607	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0608-1312	●	●	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●	●	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (B) ID=12.3	1-09623-481-0	01	1	9710-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	9710-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0607	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0607			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0608-					●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28050-830-0	02	1	0608-	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0608-			●		●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	9511-0512	●		●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-0607	●		●
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0608-	●		●		●
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	9511-	●		●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28080-830-0	02	1	9710-0512	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	9710-0512			●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-0607	●
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-0607			●
40	BOLT; OIL PIPE (G) M8X25 FLANGE	0-28650-825-0	02	1	0608-					●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (F) M10X16 FLANGE	0-28181-016-0	02	1	9710-0512	●
40	BOLT; OIL PIPE (F) M10X16 FLANGE	0-28181-016-0	02	1	9710-0512			●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (F) M10X16 FLANGE	0-28151-016-0	02	1	0601-	●
40	BOLT; OIL PIPE (F) M10X16 FLANGE	0-28151-016-0	02	1	0601-			●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (D) M10X21 FLANGE	1-09675-077-0	01	1	9710-0004	●
40	BOLT; OIL PIPE (D) M10X21 FLANGE	1-09675-077-0	01	1	9710-0004			●
40	BOLT; OIL PIPE EURO2 SPECIFICATION<THN> (E) M14X27 FLANGE	1-09675-086-0	01	1	9710-0004	●
40	BOLT; OIL PIPE (E) M14X27 FLANGE	1-09675-086-0	01	1	9710-0004			●
44	BOLT; CLIP,OIL PIPE (D) M6X35 FLANGE	0-28650-635-0	01	1	0608-					●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9510-0004	●	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0607		●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0607	●
44	BOLT; CLIP,OIL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0607				●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0608-		●			●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0608-	●
44	BOLT; CLIP,OIL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M6X22 FLANGE	0-28080-622-0	01	1	0608-				●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9511-9709	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	9511-9709	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	02	1	9710-9812	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M6X35 FLANGE	0-28680-635-0	02	1	9901-0512	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M6X35 FLANGE	0-28650-635-0	02	1	0601-	●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9710-9812	●		●
44	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28080-816-0	01	1	9901-0512	●		●
44	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●		●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	01	1	9710-9812	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	9710-9812			●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE	0-28080-812-0	01	1	9901-0512	●
44	BOLT; CLIP,OIL PIPE (A) M8X12 FLANGE	0-28080-812-0	01	1	9901-0512			●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-			●
48	CLIP; OIL PIPE (C) ID=7 & 9 L=25	1-09701-228-3	01	1	0608-					●
48	CLIP; OIL PIPE (D) ID=7 & 9 L=25	1-09701-229-2	01	1	0608-					●
48	CLIP; OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) ID=9 & 11 L=28	1-09701-265-1	01	1	9901-	●
48	CLIP; OIL PIPE EXC. EURO2 SPECIFICATION<THN> (B)	8-94396-860-0	01	1	9901-	●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<THN> (A)	1-09701-091-0	01	1	9710-	●
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	9710-			●
48	CLIP; OIL PIPE EURO2 SPECIFICATION<THN> (B)	8-94395-170-0	01	1	9710-	●
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	9710-			●
63	PIPE; OIL,TURBOCHARGER FEED (D)	8-97602-629-0	01	1	0608-					●
63	PIPE; OIL,TURBOCHARGER FEED (B)	8-94301-581-0	01	1	9511-9709	●
63	PIPE; OIL,TURBOCHARGER FEED EXC. EURO2 SPECIFICATION<THN> (B)	8-94301-581-0	01	1	9710-9812	●
63	PIPE; OIL,TURBOCHARGER FEED EXC. EURO2 SPECIFICATION<THN> (B)	8-97600-198-0	01	1	9901-	●
63	PIPE; OIL,TURBOCHARGER FEED (A)	8-94395-102-0	01	1	9511-9709	●
63	PIPE; OIL,TURBOCHARGER FEED EXC. EURO2 SPECIFICATION<THN> (A)	8-94395-102-0	01	1	9710-	●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<THN> (C)	8-94390-652-0	01	1	9710-9808	●
63	PIPE; OIL,TURBOCHARGER FEED (C)	8-94390-652-0	01	1	9710-9808			●
63	PIPE; OIL,TURBOCHARGER FEED EURO2 SPECIFICATION<THN> (C)	8-94392-976-0	01	1	9809-	●
63	PIPE; OIL,TURBOCHARGER FEED (C)	8-94392-976-0	01	1	9809-			●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0608-					●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-2	01	1	9511-	●		●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-643-1	01	1	0608-					●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94395-380-0	01	1	9511-9709	●
149	PIPE; OIL RETURN,TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94395-380-0	01	1	9710-	●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<THN>	8-94390-653-0	01	1	9710-9808	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94390-653-0	01	1	9710-9808			●
149	PIPE; OIL RETURN,TURBOCHARGER EURO2 SPECIFICATION<THN>	8-94392-977-0	01	1	9809-	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-94392-977-0	01	1	9809-			●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	9511-0607	●		●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0608-	●		●		●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER	1-13319-041-0	01	1	0608-					●
384	BRACKET; CLIP,OIL PIPE,TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-97600-199-0	01	1	9901-	●
404	BOLT; BRKT M8X15	1-09000-114-0	01	1	0608-					●
404	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> M8X12 FLANGE	0-28080-812-0	02	1	9901-0512	●
404	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> M8X12 FLANGE	0-28050-812-0	02	1	0601-	●

117 117 117 2 117 1 2 452 3 115 44 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	9510-0004	●	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94394-276-0	01	1	0005-		●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EURO2 SPECIFICATION<THN>	8-94394-276-0	01	1	0005-	●
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION<THN>	8-94395-795-0	01	1	9710-	●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	9710-			●
1	PIPE; OIL,INJ PUMP TO C/BL EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94390-666-0	01	1	0005-				●
1	PIPE; OIL,INJ PUMP TO C/BL EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-94392-964-0	01	1	0005-0010				●
1	PIPE; OIL,INJ PUMP TO C/BL EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94392-964-0	01	1	0011-				●
1	PIPE; OIL,INJ PUMP TO C/BL	8-94390-823-0	01	1	0608-					●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	0608-					●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9510-9709	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9510-9802	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	9710-0004	●	●	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010		●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0005-0010				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0607		●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0607	●
2	BOLT; EYE,OIL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE	1-09675-077-0	02	1	0011-0607				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	02	1	0608-0805		●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	02	1	0608-0805	●
2	BOLT; EYE,OIL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE	1-09675-077-0	02	1	0608-0805				●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-		●			●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-	●
2	BOLT; EYE,OIL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X21 FLANGE	8-97372-238-0	02	1	0806-				●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	9803-0607	●	●	●
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0608-	●	●	●		●
2	BOLT; EYE,OIL PIPE (D) M12X33 FLANGE	1-09675-083-0	01	1	9511-9709	●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (D) M12X33 FLANGE	1-09675-083-0	01	1	9710-	●
2	BOLT; EYE,OIL PIPE (C) M12X25	5-09675-006-1	01	1	9511-9709	●
2	BOLT; EYE,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M12X25	5-09675-006-1	01	1	9710-	●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0805	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0005-0805			●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-	●
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-			●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0005-			●
2	BOLT; EYE,OIL PIPE EURO2 SPECIFICATION<THN> (C) M14X27 FLANGE	1-09675-086-0	01	1	9710-0004	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9710-0004			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0608-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0608-1312			●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9510-9510	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=12.2	1-09630-084-0	04	1	9511-1312	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=12.2	8-98251-344-0	04	1	1401-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	9511-0607	●	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0608-1312	●	●	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-	●	●	●		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (B) ID=12.3	1-09623-481-0	01	1	9710-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	9710-			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0607	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	9710-0607			●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=10.8	1-09623-274-0	01	1	0608-					●
44	BOLT; CLIP,OIL PIPE (D) M6X35 FLANGE	0-28650-635-0	01	1	0608-					●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	9510-0004	●	●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0607		●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0607	●
44	BOLT; CLIP,OIL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M6X22 FLANGE	0-28080-622-0	01	1	0005-0607				●
44	BOLT; CLIP,OIL PIPE (C) M6X22 FLANGE	0-28080-622-0	01	1	0608-		●			●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (C) M6X22 FLANGE	0-28080-622-0	01	1	0608-	●
44	BOLT; CLIP,OIL PIPE EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M6X22 FLANGE	0-28080-622-0	01	1	0608-				●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9511-9709	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	9511-9709	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	02	1	9710-9812	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M6X35 FLANGE	0-28680-635-0	02	1	9901-0512	●
44	BOLT; CLIP,OIL PIPE EXC. EURO2 SPECIFICATION<THN> (A) M6X35 FLANGE	0-28650-635-0	02	1	0601-	●
44	BOLT; CLIP,OIL PIPE (B) M8X12 FLANGE	0-28080-812-0	01	1	9710-9812	●		●
44	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28080-816-0	01	1	9901-0512	●		●
44	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●		●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	01	1	9710-9812	●
44	BOLT; CLIP,OIL PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	9710-9812			●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE	0-28080-812-0	01	1	9901-0512	●
44	BOLT; CLIP,OIL PIPE (A) M8X12 FLANGE	0-28080-812-0	01	1	9901-0512			●
44	BOLT; CLIP,OIL PIPE EURO2 SPECIFICATION<THN> (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●
44	BOLT; CLIP,OIL PIPE (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-			●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	9510-0004	●	●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0005-0607		●
115	CLIP; PIPE,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-09701-091-0	01	1	0005-0607	●
115	CLIP; PIPE,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-09701-091-0	01	1	0005-0607				●
115	CLIP; PIPE,INJ PUMP	1-09701-091-0	01	1	0608-		●			●
115	CLIP; PIPE,INJ PUMP EXC. EURO2 SPECIFICATION<THN>	1-09701-091-0	01	1	0608-	●
115	CLIP; PIPE,INJ PUMP EMISSION SYSTEM ECE REQUIREMENTS<SFV>	1-09701-091-0	01	1	0608-				●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	9510-0004	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0005-0607	●	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	04	1	0608-	●	●	●	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK> (B) ID=12.2	1-09630-084-0	01	1	0005-0010				●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=12.2	1-09630-084-0	01	1	0011-1312				●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (B) ID=12.2	8-98251-344-0	01	1	1401-				●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-97600-570-0	01	1	0608-					●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94390-073-0	01	1	9510-9709		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR	8-94390-073-0	01	1	9510-9709	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94390-073-0	01	1	9710-9906		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EXC. EURO2 SPECIFICATION<THN>	8-94390-073-0	01	1	9710-9906	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-97600-569-0	01	1	9907-		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EXC. EURO2 SPECIFICATION<THN>	8-97600-569-0	01	1	9907-	●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94395-595-1	01	1	9510-9906		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97600-573-0	01	1	9907-		●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97600-632-0	01	1	0005-				●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EURO2 SPECIFICATION<THN> EXC. ANTI NOISE EQUIPMENT ECE<SLK>	8-97600-571-0	01	1	0005-0010				●
452	PIPE; OIL,OIL FILTER TO AIR CMPR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-97600-571-0	01	1	0011-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
