Sayfa 4-35 - Isuzu EPC

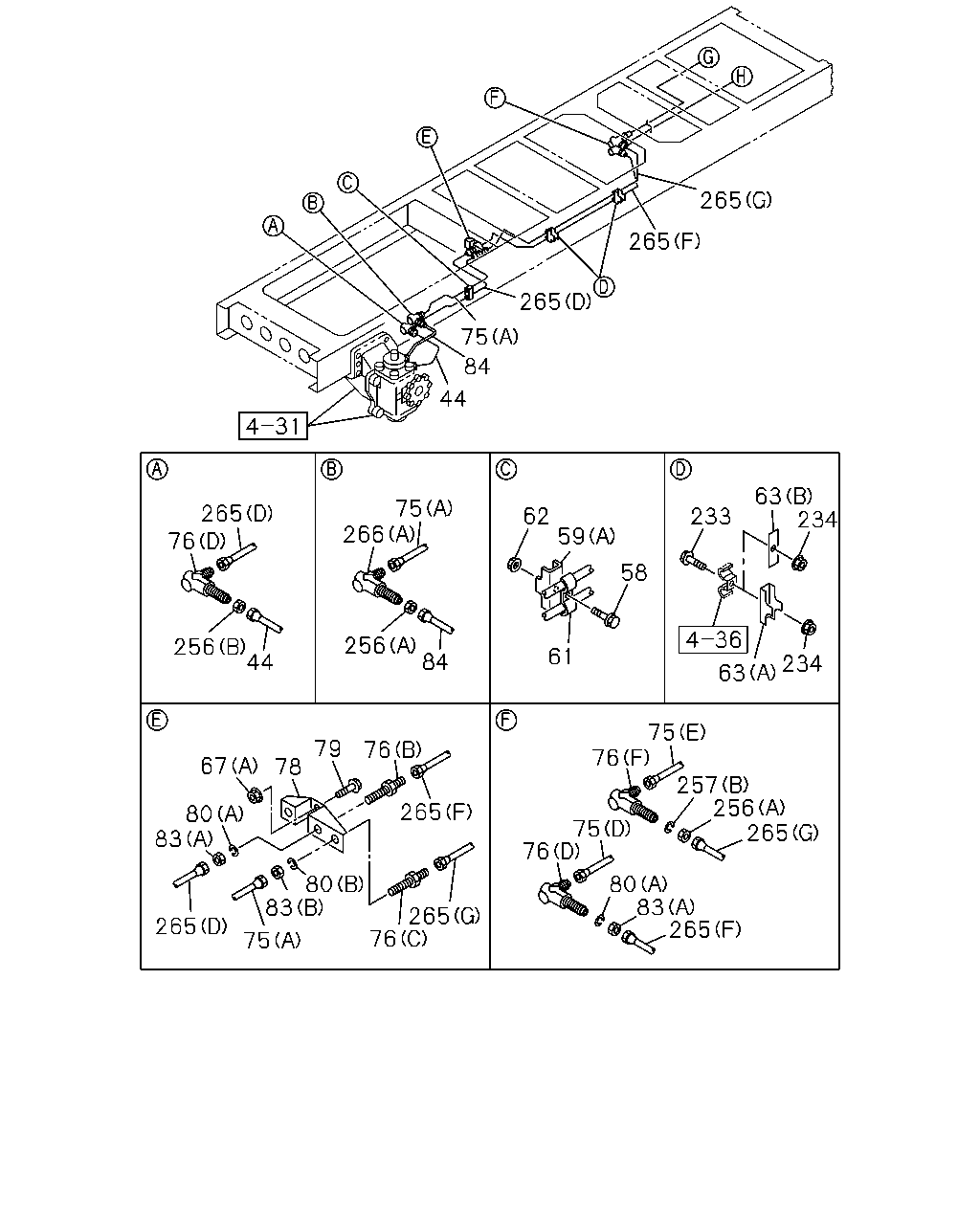

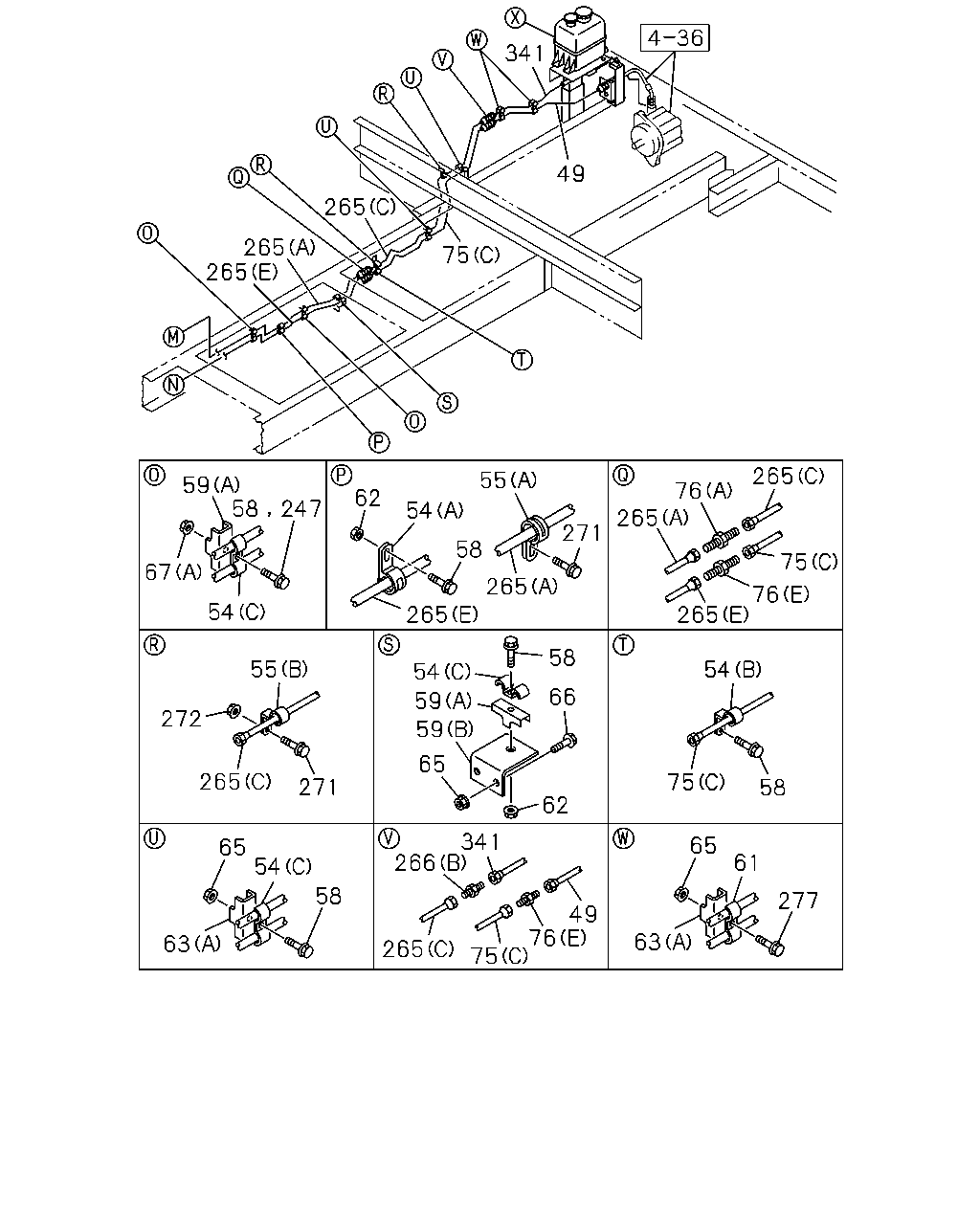

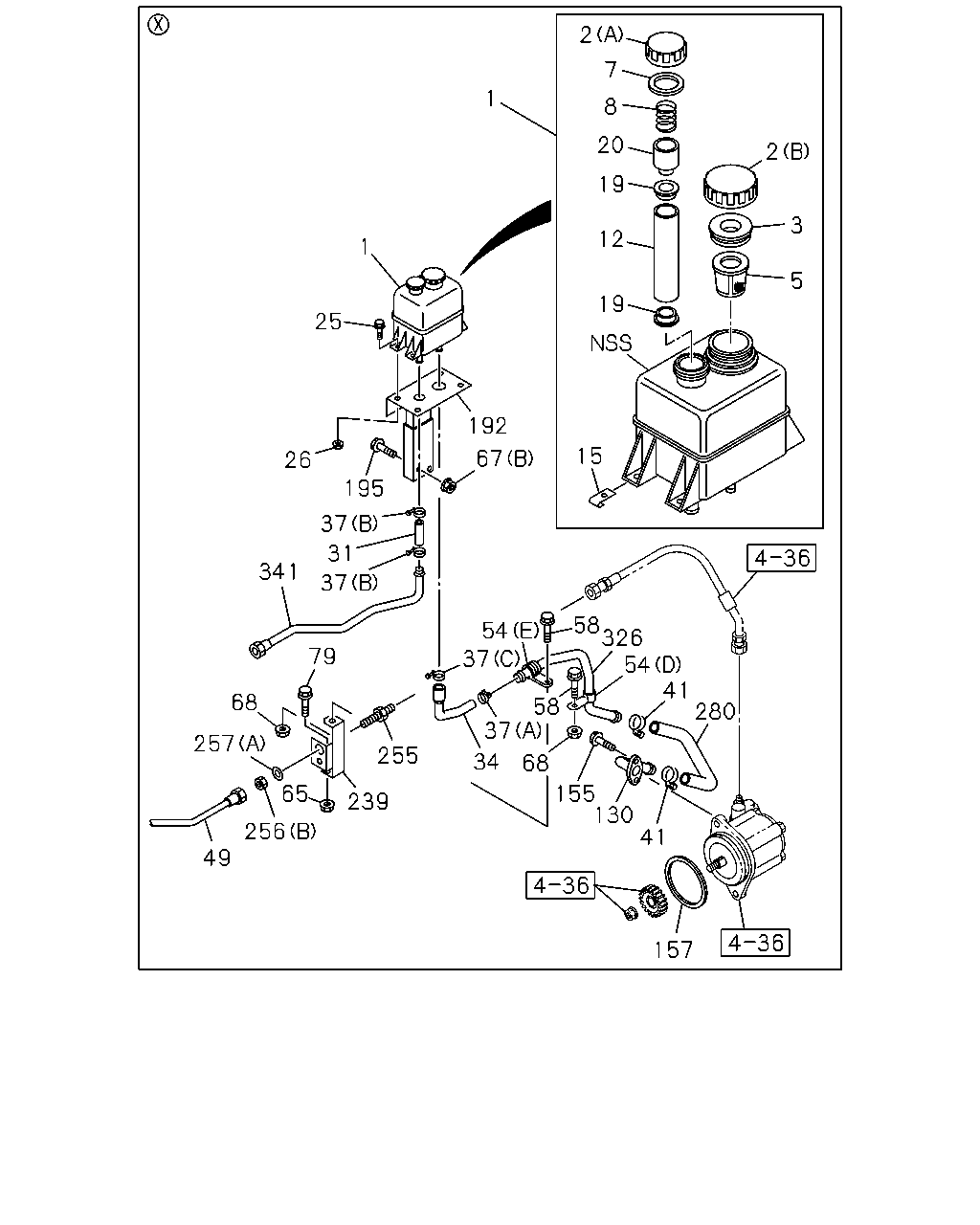

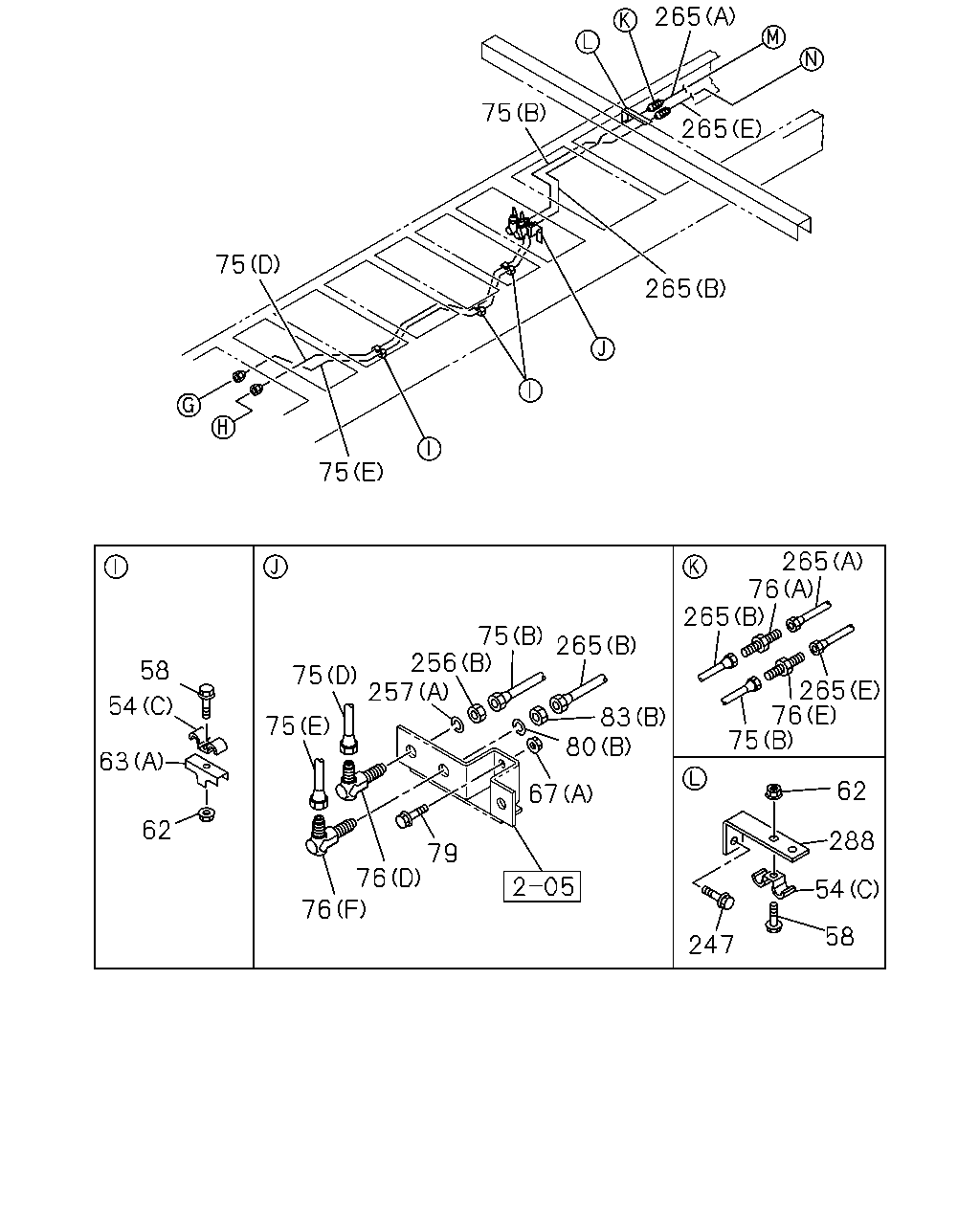

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#39367) — 398 parça

265 265 75 265 75 75 58 54 63 62 76 76 79 75 75 257 256 75 265 83 80 67 247 58 54 288 62 75 76 265 265 76 265

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	PIPE; OIL,P/S UNIT TO UNION UNDER FOLLR COCKPIT<Y53>	8-98109-816-0	01	1	0907-
54	CLIP; OIL PIPE UNDER FOLLR COCKPIT<Y53> (H) ID=16 L=20	0-95235-535-0	01	1	0907-
54	CLIP; OIL PIPE UNDER FOLLR COCKPIT<Y53> (F) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	08	1	0907-
54	CLIP; OIL PIPE UNDER FOLLR COCKPIT<Y53> (G) D=15 L=45	5-09700-076-0	01	1	0907-
54	CLIP; OIL PIPE (A) ID=13 L=20	0-95235-235-0	01	1	0707-0906
54	CLIP; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (A) ID=13 L=20	0-95235-235-0	01	1	0907-
54	CLIP; OIL PIPE (E) ID=19 L=40	0-95235-876-0	01	1	0707-
54	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0707-0906
54	CLIP; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0907-
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	08	1	0707-0906
54	CLIP; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	08	1	0907-
54	CLIP; OIL PIPE (D) ID=19 L=58	1-09700-733-1	01	1	0707-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0707-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	0707-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	07	1	0707-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0707-
63	BRACKET; CLIP,P/S UNDER FOLLR COCKPIT<Y53> (C) 25X37	1-34656-004-0	01	1	0907-
63	BRACKET; CLIP,P/S (B) L=50	1-47475-299-2	01	1	0707-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	08	1	0707-
64	BOLT; CLIP BRKT UNDER FOLLR COCKPIT<Y53> M8X25 FLANGE	0-28650-825-0	01	1	0907-
67	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0707-
67	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0707-
75	PIPE; OIL,P/S,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (I) L=1315	8-98109-659-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (F) L=1508	8-98109-684-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (G) L=744	8-98109-694-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (H) L=1678	8-98146-715-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1130	1-21117-318-0	01	1	0707-0906
75	PIPE; OIL,P/S,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (A) L=1130	1-21117-318-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (B) L=822 SERVICED BY L=900	1-49115-484-0	01	1	0707-0906
75	PIPE; OIL,P/S,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (B) L=822 SERVICED BY L=900	1-49115-484-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (C) L=1533 SERVICED BY L=1600	1-49115-490-0	01	1	0707-0906
75	PIPE; OIL,P/S,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (C) L=1533 SERVICED BY L=1600	1-49115-490-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (D) L=1679 SERVICED BY L=1800	1-49115-491-0	01	1	0707-0906
75	PIPE; OIL,P/S,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (D) L=1679 SERVICED BY L=1800	1-49115-491-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1660	8-97616-159-0	01	1	0707-
76	UNION; OIL PIPE UNDER FOLLR COCKPIT<Y53> (A) M22	0-92123-015-0	04	1	0907-
76	UNION; OIL PIPE UNDER FOLLR COCKPIT<Y53> (F) M22	0-92135-215-0	01	1	0907-
76	UNION; OIL PIPE UNDER FOLLR COCKPIT<Y53> (F) M22	0-92135-215-0	01	1	0907-
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	03	1	0707-0906
76	UNION; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (E) M20 STRAIGHT	0-92123-012-0	03	1	0907-
76	UNION; OIL PIPE (A) M22	0-92123-015-0	02	1	0707-
76	UNION; OIL PIPE (B) M20 & M20	0-92123-312-0	01	1	0707-0906
76	UNION; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (B) M20 & M20	0-92123-312-0	01	1	0907-
76	UNION; OIL PIPE (C) M22	0-92123-315-0	01	1	0707-0906
76	UNION; OIL PIPE (C) M22	0-92123-315-0	01	1	0907-
76	UNION; OIL PIPE UNDER FOLLR COCKPIT<Y53> (C) M22	0-92123-315-0	01	1	0907-
76	UNION; OIL PIPE (D) M20	0-92135-212-0	03	1	0707-0906
76	UNION; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (D) M20	0-92135-212-0	03	1	0907-
76	UNION; OIL PIPE (F) M22	0-92135-215-0	02	1	0707-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	06	1	0707-
80	WASHER; LK,UNION,OIL PIPE UNDER FOLLR COCKPIT<Y53> (B) ID=22.5	0-91510-622-0	01	1	0907-
80	WASHER; LK,UNION,OIL PIPE (A) ID=20.2	0-91510-520-0	02	1	0707-0906
80	WASHER; LK,UNION,OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (A) ID=20.2	0-91510-520-0	02	1	0907-
80	WASHER; LK,UNION,OIL PIPE (B) ID=22.5	0-91510-522-0	02	1	0707-0903
80	WASHER; LK,UNION,OIL PIPE (B) ID=22.5	0-91510-622-0	02	1	0904-
81	WASHER; LK,FLEX HOSE UNDER FOLLR COCKPIT<Y53> ID=22.5	0-91510-622-0	01	1	0907-
82	NUT; FLEX HOSE,P/S UNDER FOLLR COCKPIT<Y53> M22	0-91111-522-0	01	1	0907-
83	NUT; UNION,OIL PIPE UNDER FOLLR COCKPIT<Y53> (B) M22	0-91111-522-0	01	1	0907-
83	NUT; UNION,OIL PIPE (A) M20	0-91111-520-0	02	1	0707-0906
83	NUT; UNION,OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (A) M20	0-91111-520-0	02	1	0907-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	02	1	0707-
142	PLUG; P/S FEED UNDER FOLLR COCKPIT<Y53> PT3/8	1-09605-056-0	01	1	0907-
232	NUT; BRKT UNDER FOLLR COCKPIT<Y53> M8 FLANGE	0-91180-108-0	01	1	0907-
244	GASKET; OIL PIPE,P/S UNDER FOLLR COCKPIT<Y53> ID=18	9-09571-418-0	04	1	0907-
245	BOLT; EYE,OIL PIPE UNDER FOLLR COCKPIT<Y53> M18X40	1-09675-153-0	02	1	0907-
247	BOLT; BRKT,CLIP M8X25 FLANGE	0-28650-825-0	01	1	0707-
256	NUT; UNION (A) M22	0-91111-522-0	02	1	0907-
256	NUT; UNION UNDER FOLLR COCKPIT<Y53> (A) M22	0-91111-522-0	02	1	0907-
256	NUT; UNION (B) M20	0-91111-520-0	03	1	0707-0906
256	NUT; UNION EXC. UNDER FOLLR COCKPIT<Y53> (B) M20	0-91111-520-0	03	1	0907-
256	NUT; UNION (A) M22	0-91111-522-0	02	1	0707-0906
256	NUT; UNION UNDER FOLLR COCKPIT<Y53> (A) M22	0-91111-522-0	01	1	0907-
257	WASHER; LK,UNION UNDER FOLLR COCKPIT<Y53> (B) ID=22.5	0-91510-622-0	02	1	0907-
257	WASHER; LK,UNION (A) ID=20.2	0-91510-520-0	02	1	0707-0906
257	WASHER; LK,UNION EXC. UNDER FOLLR COCKPIT<Y53> (A) ID=20.2	0-91510-520-0	02	1	0907-
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	01	1	0707-0903
257	WASHER; LK,UNION (B) ID=22.5	0-91510-622-0	01	1	0904-
265	PIPE; OIL,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (M) L=1273	8-98109-427-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (L) L=838	8-98109-428-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (N) L=1445	8-98109-438-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (H) L=1404	8-98109-690-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (J)	8-98109-823-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (K) L=1574	8-98137-157-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (I) L=1529	8-98146-714-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (A) L=1323	1-21117-101-0	01	1	0707-0906
265	PIPE; OIL,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (A) L=1323	1-21117-101-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (D) L=1231	1-21117-317-0	01	1	0707-0906
265	PIPE; OIL,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (D) L=1231	1-21117-317-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (B) L=776	1-21117-722-0	01	1	0707-0906
265	PIPE; OIL,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (B) L=776	1-21117-722-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (C) L=1481	1-21117-723-0	01	1	0707-0906
265	PIPE; OIL,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (C) L=1481	1-21117-723-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (E) L=1334 SERVICED BY L=1450	1-49115-489-0	01	1	0707-0906
265	PIPE; OIL,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (E) L=1334 SERVICED BY L=1450	1-49115-489-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (G) L=1515	8-97616-158-0	01	1	0707-0906
265	PIPE; OIL,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (G) L=1515	8-97616-158-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (F) L=1540	8-98082-233-0	01	1	0707-0906
265	PIPE; OIL,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (F) L=1540	8-98082-233-0	01	1	0907-
288	BRACKET; CLIP,P/S	1-47478-918-0	01	1	0707-
307	CONNECTOR; FLEX HOSE UNDER FOLLR COCKPIT<Y53>	9-99220-612-0	01	1	0907-

265 265 265 75 84 44 63 234 75 266 265 76 62 59 233 58 256 84 256 44 61 234 63 75 76 79 76 67 78 257 256 265 265 80 83 75 76 80 83 80 83 265 265 76 265 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	PIPE; OIL,P/S UNIT TO NIPPLE UNDER FOLLR COCKPIT<Y53> (B)	8-98109-820-0	01	1	0907-
44	PIPE; OIL,P/S UNIT TO NIPPLE (A) L=451	1-21116-755-0	01	1	0707-0906
44	PIPE; OIL,P/S UNIT TO NIPPLE EXC. UNDER FOLLR COCKPIT<Y53> (A) L=451	1-21116-755-0	01	1	0907-
45	PIPE; OIL,P/S UNIT TO UNION UNDER FOLLR COCKPIT<Y53>	8-98109-816-0	01	1	0907-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0707-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	0707-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	07	1	0707-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	04	1	0707-
59	BRACKET; CLIP,OIL PIPE (B)	1-47478-408-0	01	1	0707-0906
59	BRACKET; CLIP,OIL PIPE (B)	1-47478-408-0	01	1	0907-
59	BRACKET; CLIP,OIL PIPE UNDER FOLLR COCKPIT<Y53> (B)	1-47478-408-0	01	1	0907-
61	CLIP; OIL PIPE UNDER FOLLR COCKPIT<Y53> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0907-
61	CLIP; OIL PIPE UNDER FOLLR COCKPIT<Y53> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	0907-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0707-0906
61	CLIP; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0907-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0707-
63	BRACKET; CLIP,P/S UNDER FOLLR COCKPIT<Y53> (C) 25X37	1-34656-004-0	01	1	0907-
63	BRACKET; CLIP,P/S (B) L=50	1-47475-299-2	01	1	0707-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	08	1	0707-
64	BOLT; CLIP BRKT UNDER FOLLR COCKPIT<Y53> M8X25 FLANGE	0-28650-825-0	01	1	0907-
67	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0707-
67	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0707-
75	PIPE; OIL,P/S,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (I) L=1315	8-98109-659-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (F) L=1508	8-98109-684-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (G) L=744	8-98109-694-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (H) L=1678	8-98146-715-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1130	1-21117-318-0	01	1	0707-0906
75	PIPE; OIL,P/S,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (A) L=1130	1-21117-318-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (B) L=822 SERVICED BY L=900	1-49115-484-0	01	1	0707-0906
75	PIPE; OIL,P/S,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (B) L=822 SERVICED BY L=900	1-49115-484-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (C) L=1533 SERVICED BY L=1600	1-49115-490-0	01	1	0707-0906
75	PIPE; OIL,P/S,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (C) L=1533 SERVICED BY L=1600	1-49115-490-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (D) L=1679 SERVICED BY L=1800	1-49115-491-0	01	1	0707-0906
75	PIPE; OIL,P/S,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (D) L=1679 SERVICED BY L=1800	1-49115-491-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1660	8-97616-159-0	01	1	0707-
76	UNION; OIL PIPE UNDER FOLLR COCKPIT<Y53> (A) M22	0-92123-015-0	04	1	0907-
76	UNION; OIL PIPE UNDER FOLLR COCKPIT<Y53> (F) M22	0-92135-215-0	01	1	0907-
76	UNION; OIL PIPE UNDER FOLLR COCKPIT<Y53> (F) M22	0-92135-215-0	01	1	0907-
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	03	1	0707-0906
76	UNION; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (E) M20 STRAIGHT	0-92123-012-0	03	1	0907-
76	UNION; OIL PIPE (A) M22	0-92123-015-0	02	1	0707-
76	UNION; OIL PIPE (B) M20 & M20	0-92123-312-0	01	1	0707-0906
76	UNION; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (B) M20 & M20	0-92123-312-0	01	1	0907-
76	UNION; OIL PIPE (C) M22	0-92123-315-0	01	1	0707-0906
76	UNION; OIL PIPE (C) M22	0-92123-315-0	01	1	0907-
76	UNION; OIL PIPE UNDER FOLLR COCKPIT<Y53> (C) M22	0-92123-315-0	01	1	0907-
76	UNION; OIL PIPE (D) M20	0-92135-212-0	03	1	0707-0906
76	UNION; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (D) M20	0-92135-212-0	03	1	0907-
76	UNION; OIL PIPE (F) M22	0-92135-215-0	02	1	0707-
78	BRACKET; UNION UNDER FOLLR COCKPIT<Y53> (B)	8-98109-425-0	01	1	0907-
78	BRACKET; UNION (A)	1-47478-921-0	01	1	0707-0906
78	BRACKET; UNION EXC. UNDER FOLLR COCKPIT<Y53> (A)	1-47478-921-0	01	1	0907-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	06	1	0707-
80	WASHER; LK,UNION,OIL PIPE UNDER FOLLR COCKPIT<Y53> (B) ID=22.5	0-91510-622-0	01	1	0907-
80	WASHER; LK,UNION,OIL PIPE (A) ID=20.2	0-91510-520-0	02	1	0707-0906
80	WASHER; LK,UNION,OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (A) ID=20.2	0-91510-520-0	02	1	0907-
80	WASHER; LK,UNION,OIL PIPE (B) ID=22.5	0-91510-522-0	02	1	0707-0903
80	WASHER; LK,UNION,OIL PIPE (B) ID=22.5	0-91510-622-0	02	1	0904-
81	WASHER; LK,FLEX HOSE UNDER FOLLR COCKPIT<Y53> ID=22.5	0-91510-622-0	01	1	0907-
82	NUT; FLEX HOSE,P/S UNDER FOLLR COCKPIT<Y53> M22	0-91111-522-0	01	1	0907-
83	NUT; UNION,OIL PIPE UNDER FOLLR COCKPIT<Y53> (B) M22	0-91111-522-0	01	1	0907-
83	NUT; UNION,OIL PIPE (A) M20	0-91111-520-0	02	1	0707-0906
83	NUT; UNION,OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (A) M20	0-91111-520-0	02	1	0907-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	02	1	0707-
84	HOSE; FLEX,P/S UNDER FOLLR COCKPIT<Y53> (B) L=550	8-98146-253-0	01	1	0907-
84	HOSE; FLEX,P/S (A) L=520	8-98072-097-0	01	1	0707-0906
84	HOSE; FLEX,P/S EXC. UNDER FOLLR COCKPIT<Y53> (A) L=520	8-98072-097-0	01	1	0907-
142	PLUG; P/S FEED UNDER FOLLR COCKPIT<Y53> PT3/8	1-09605-056-0	01	1	0907-
232	NUT; BRKT UNDER FOLLR COCKPIT<Y53> M8 FLANGE	0-91180-108-0	01	1	0907-
233	BOLT; PIPE CLIP,P/S UNDER FOLLR COCKPIT<Y53> M8X20 FLANGE	0-28650-820-0	01	1	0907-
233	BOLT; PIPE CLIP,P/S M8X40 FLANGE	0-28650-840-0	02	1	0707-
234	NUT; PIPE CLIP,P/S UNDER FOLLR COCKPIT<Y53> M8 FLANGE	0-91180-108-0	01	1	0907-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	02	1	0707-0709
244	GASKET; OIL PIPE,P/S UNDER FOLLR COCKPIT<Y53> ID=18	9-09571-418-0	04	1	0907-
245	BOLT; EYE,OIL PIPE UNDER FOLLR COCKPIT<Y53> M18X40	1-09675-153-0	02	1	0907-
256	NUT; UNION (A) M22	0-91111-522-0	02	1	0907-
256	NUT; UNION UNDER FOLLR COCKPIT<Y53> (A) M22	0-91111-522-0	02	1	0907-
256	NUT; UNION (B) M20	0-91111-520-0	03	1	0707-0906
256	NUT; UNION EXC. UNDER FOLLR COCKPIT<Y53> (B) M20	0-91111-520-0	03	1	0907-
256	NUT; UNION (A) M22	0-91111-522-0	02	1	0707-0906
256	NUT; UNION UNDER FOLLR COCKPIT<Y53> (A) M22	0-91111-522-0	01	1	0907-
257	WASHER; LK,UNION UNDER FOLLR COCKPIT<Y53> (B) ID=22.5	0-91510-622-0	02	1	0907-
257	WASHER; LK,UNION (A) ID=20.2	0-91510-520-0	02	1	0707-0906
257	WASHER; LK,UNION EXC. UNDER FOLLR COCKPIT<Y53> (A) ID=20.2	0-91510-520-0	02	1	0907-
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	01	1	0707-0903
257	WASHER; LK,UNION (B) ID=22.5	0-91510-622-0	01	1	0904-
265	PIPE; OIL,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (M) L=1273	8-98109-427-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (L) L=838	8-98109-428-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (N) L=1445	8-98109-438-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (H) L=1404	8-98109-690-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (J)	8-98109-823-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (K) L=1574	8-98137-157-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (I) L=1529	8-98146-714-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (A) L=1323	1-21117-101-0	01	1	0707-0906
265	PIPE; OIL,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (A) L=1323	1-21117-101-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (D) L=1231	1-21117-317-0	01	1	0707-0906
265	PIPE; OIL,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (D) L=1231	1-21117-317-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (B) L=776	1-21117-722-0	01	1	0707-0906
265	PIPE; OIL,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (B) L=776	1-21117-722-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (C) L=1481	1-21117-723-0	01	1	0707-0906
265	PIPE; OIL,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (C) L=1481	1-21117-723-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (E) L=1334 SERVICED BY L=1450	1-49115-489-0	01	1	0707-0906
265	PIPE; OIL,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (E) L=1334 SERVICED BY L=1450	1-49115-489-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (G) L=1515	8-97616-158-0	01	1	0707-0906
265	PIPE; OIL,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (G) L=1515	8-97616-158-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (F) L=1540	8-98082-233-0	01	1	0707-0906
265	PIPE; OIL,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (F) L=1540	8-98082-233-0	01	1	0907-
266	UNION; OIL PIPE,P/S UNDER FOLLR COCKPIT<Y53> (C) M22 L=117	0-92148-915-0	01	1	0907-
266	UNION; OIL PIPE,P/S (A) M22 & M22 ELBOW	1-09654-163-1	01	1	0707-0906
266	UNION; OIL PIPE,P/S EXC. UNDER FOLLR COCKPIT<Y53> (A) M22 & M22 ELBOW	1-09654-163-1	01	1	0907-
266	UNION; OIL PIPE,P/S (B) M22	1-09654-409-0	01	1	0707-
307	CONNECTOR; FLEX HOSE UNDER FOLLR COCKPIT<Y53>	9-99220-612-0	01	1	0907-

2 7 8 1 20 19 2 3 5 12 19 15 1 25 192 67 26 195 37 31 341 37 79 68 257 255 239 65 256 49 157 41 130 155 68 34 37 58 37 54 58 326 54 41 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0707-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0707-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0707-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0707-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0707-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0707-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0707-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0707-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0707-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0707-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0707-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	0707-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	04	1	0707-
31	HOSE; P/S OIL TANK,INL	0-09814-080-0	01	1	0707-
34	HOSE; P/S OIL TANK,OUTLET	1-21116-094-0	01	1	0707-
37	CLIP; HOSE,P/S (B) ID=26	1-09704-082-0	02	1	0707-
37	CLIP; HOSE,P/S (A) ID=36	1-09704-094-0	01	1	0707-
37	CLIP; HOSE,P/S (C) ID=38	9-09915-041-1	01	1	0707-
41	CLIP; HOSE,P/S ID=36	1-09704-094-0	02	1	0707-
45	PIPE; OIL,P/S UNIT TO UNION UNDER FOLLR COCKPIT<Y53>	8-98109-816-0	01	1	0907-
49	PIPE; OIL,FLEX HOSE TO UNION UNDER FOLLR COCKPIT<Y53> L=680	8-98109-677-0	01	1	0907-
49	PIPE; OIL,FLEX HOSE TO UNION L=687 SERVICED BY L=700	1-49115-481-0	01	1	0707-0906
49	PIPE; OIL,FLEX HOSE TO UNION EXC. UNDER FOLLR COCKPIT<Y53> L=687 SERVICED BY L=700	1-49115-481-0	01	1	0907-
54	CLIP; OIL PIPE UNDER FOLLR COCKPIT<Y53> (H) ID=16 L=20	0-95235-535-0	01	1	0907-
54	CLIP; OIL PIPE UNDER FOLLR COCKPIT<Y53> (F) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	08	1	0907-
54	CLIP; OIL PIPE UNDER FOLLR COCKPIT<Y53> (G) D=15 L=45	5-09700-076-0	01	1	0907-
54	CLIP; OIL PIPE (A) ID=13 L=20	0-95235-235-0	01	1	0707-0906
54	CLIP; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (A) ID=13 L=20	0-95235-235-0	01	1	0907-
54	CLIP; OIL PIPE (E) ID=19 L=40	0-95235-876-0	01	1	0707-
54	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0707-0906
54	CLIP; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0907-
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	08	1	0707-0906
54	CLIP; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	08	1	0907-
54	CLIP; OIL PIPE (D) ID=19 L=58	1-09700-733-1	01	1	0707-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0707-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	0707-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	07	1	0707-
64	BOLT; CLIP BRKT UNDER FOLLR COCKPIT<Y53> M8X25 FLANGE	0-28650-825-0	01	1	0907-
65	NUT; BRKT UNDER FOLLR COCKPIT<Y53> M8 FLANGE	0-91180-108-0	02	1	0907-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0707-
67	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0707-
67	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0707-
68	NUT; CLIP,OIL PIPE UNDER FOLLR COCKPIT<Y53> M8 FLANGE	0-91180-108-0	01	1	0907-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0707-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	06	1	0707-
81	WASHER; LK,FLEX HOSE UNDER FOLLR COCKPIT<Y53> ID=22.5	0-91510-622-0	01	1	0907-
82	NUT; FLEX HOSE,P/S UNDER FOLLR COCKPIT<Y53> M22	0-91111-522-0	01	1	0907-
130	ADAPTER; P/S PUMP	8-94390-583-0	01	1	0707-
142	PLUG; P/S FEED UNDER FOLLR COCKPIT<Y53> PT3/8	1-09605-056-0	01	1	0907-
155	BOLT; CONNECTOR M8X16 FLANGE	0-28050-816-0	02	1	0707-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0707-
192	BRACKET; P/S OIL TANK	8-98068-128-0	01	1	0707-
195	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0707-
232	NUT; BRKT UNDER FOLLR COCKPIT<Y53> M8 FLANGE	0-91180-108-0	01	1	0907-
239	BRACKET; FLEX HOSE UNDER FOLLR COCKPIT<Y53>	8-98109-424-0	01	1	0907-
239	BRACKET; FLEX HOSE	8-98068-129-0	01	1	0707-0906
239	BRACKET; FLEX HOSE EXC. UNDER FOLLR COCKPIT<Y53>	8-98068-129-0	01	1	0907-
244	GASKET; OIL PIPE,P/S UNDER FOLLR COCKPIT<Y53> ID=18	9-09571-418-0	04	1	0907-
245	BOLT; EYE,OIL PIPE UNDER FOLLR COCKPIT<Y53> M18X40	1-09675-153-0	02	1	0907-
255	UNION; FLEX HOSE UNDER FOLLR COCKPIT<Y53> (B)	1-09654-261-1	01	1	0907-
255	UNION; FLEX HOSE UNDER FOLLR COCKPIT<Y53> (C)	1-09660-884-0	02	1	0907-
255	UNION; FLEX HOSE (A)	1-09650-045-1	01	1	0707-0906
255	UNION; FLEX HOSE EXC. UNDER FOLLR COCKPIT<Y53> (A)	1-09650-045-1	01	1	0907-
256	NUT; UNION (A) M22	0-91111-522-0	02	1	0907-
256	NUT; UNION UNDER FOLLR COCKPIT<Y53> (A) M22	0-91111-522-0	02	1	0907-
256	NUT; UNION (B) M20	0-91111-520-0	03	1	0707-0906
256	NUT; UNION EXC. UNDER FOLLR COCKPIT<Y53> (B) M20	0-91111-520-0	03	1	0907-
256	NUT; UNION (A) M22	0-91111-522-0	02	1	0707-0906
256	NUT; UNION UNDER FOLLR COCKPIT<Y53> (A) M22	0-91111-522-0	01	1	0907-
257	WASHER; LK,UNION UNDER FOLLR COCKPIT<Y53> (B) ID=22.5	0-91510-622-0	02	1	0907-
257	WASHER; LK,UNION (A) ID=20.2	0-91510-520-0	02	1	0707-0906
257	WASHER; LK,UNION EXC. UNDER FOLLR COCKPIT<Y53> (A) ID=20.2	0-91510-520-0	02	1	0907-
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	01	1	0707-0903
257	WASHER; LK,UNION (B) ID=22.5	0-91510-622-0	01	1	0904-
280	HOSE; P/S OIL PUMP,INL	1-21117-899-0	01	1	0707-
307	CONNECTOR; FLEX HOSE UNDER FOLLR COCKPIT<Y53>	9-99220-612-0	01	1	0907-
326	PIPE; OIL,OIL TANK TO PUMP	8-98068-100-0	01	1	0707-
341	PIPE; OIL,UNION TO OIL TANK UNDER FOLLR COCKPIT<Y53>	8-98109-447-0	01	1	0907-
341	PIPE; OIL,UNION TO OIL TANK	8-98068-101-0	01	1	0707-0906
341	PIPE; OIL,UNION TO OIL TANK EXC. UNDER FOLLR COCKPIT<Y53>	8-98068-101-0	01	1	0907-

341 49 265 265 265 75 265 76 265 75 76 265 271 55 265 58 54 62 265 247 58 59 67 54 55 272 265 271 54 59 59 65 62 66 58 54 75 58 65 61 277 63 49 76 75 265 266 341 65 54 58 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	PIPE; OIL,P/S UNIT TO UNION UNDER FOLLR COCKPIT<Y53>	8-98109-816-0	01	1	0907-
49	PIPE; OIL,FLEX HOSE TO UNION UNDER FOLLR COCKPIT<Y53> L=680	8-98109-677-0	01	1	0907-
49	PIPE; OIL,FLEX HOSE TO UNION L=687 SERVICED BY L=700	1-49115-481-0	01	1	0707-0906
49	PIPE; OIL,FLEX HOSE TO UNION EXC. UNDER FOLLR COCKPIT<Y53> L=687 SERVICED BY L=700	1-49115-481-0	01	1	0907-
54	CLIP; OIL PIPE UNDER FOLLR COCKPIT<Y53> (H) ID=16 L=20	0-95235-535-0	01	1	0907-
54	CLIP; OIL PIPE UNDER FOLLR COCKPIT<Y53> (F) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	08	1	0907-
54	CLIP; OIL PIPE UNDER FOLLR COCKPIT<Y53> (G) D=15 L=45	5-09700-076-0	01	1	0907-
54	CLIP; OIL PIPE (A) ID=13 L=20	0-95235-235-0	01	1	0707-0906
54	CLIP; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (A) ID=13 L=20	0-95235-235-0	01	1	0907-
54	CLIP; OIL PIPE (E) ID=19 L=40	0-95235-876-0	01	1	0707-
54	CLIP; OIL PIPE (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0707-0906
54	CLIP; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (B) ID=13 H=40 L=25	1-09700-620-0	01	1	0907-
54	CLIP; OIL PIPE (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	08	1	0707-0906
54	CLIP; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (C) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	08	1	0907-
54	CLIP; OIL PIPE (D) ID=19 L=58	1-09700-733-1	01	1	0707-
55	CLIP; P/S RUBBER HOSE (A) ID=16 L=20	0-95235-535-0	01	1	0707-
55	CLIP; P/S RUBBER HOSE (B) ID=15 H=30 L=30	1-09700-832-0	02	1	0707-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0707-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	05	1	0707-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	07	1	0707-
59	BRACKET; CLIP,OIL PIPE (A)	1-47475-427-1	04	1	0707-
59	BRACKET; CLIP,OIL PIPE (B)	1-47478-408-0	01	1	0707-0906
59	BRACKET; CLIP,OIL PIPE (B)	1-47478-408-0	01	1	0907-
59	BRACKET; CLIP,OIL PIPE UNDER FOLLR COCKPIT<Y53> (B)	1-47478-408-0	01	1	0907-
61	CLIP; OIL PIPE UNDER FOLLR COCKPIT<Y53> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0907-
61	CLIP; OIL PIPE UNDER FOLLR COCKPIT<Y53> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	02	1	0907-
61	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0707-0906
61	CLIP; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0907-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0707-
63	BRACKET; CLIP,P/S UNDER FOLLR COCKPIT<Y53> (C) 25X37	1-34656-004-0	01	1	0907-
63	BRACKET; CLIP,P/S (B) L=50	1-47475-299-2	01	1	0707-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	08	1	0707-
64	BOLT; CLIP BRKT UNDER FOLLR COCKPIT<Y53> M8X25 FLANGE	0-28650-825-0	01	1	0907-
65	NUT; BRKT UNDER FOLLR COCKPIT<Y53> M8 FLANGE	0-91180-108-0	02	1	0907-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	0707-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0707-0906
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0907-
66	BOLT; BRKT,OIL PIPE UNDER FOLLR COCKPIT<Y53> M8X25 FLANGE	0-28650-825-0	02	1	0907-
67	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0707-
67	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0707-
75	PIPE; OIL,P/S,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (I) L=1315	8-98109-659-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (F) L=1508	8-98109-684-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (G) L=744	8-98109-694-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (H) L=1678	8-98146-715-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1130	1-21117-318-0	01	1	0707-0906
75	PIPE; OIL,P/S,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (A) L=1130	1-21117-318-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (B) L=822 SERVICED BY L=900	1-49115-484-0	01	1	0707-0906
75	PIPE; OIL,P/S,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (B) L=822 SERVICED BY L=900	1-49115-484-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (C) L=1533 SERVICED BY L=1600	1-49115-490-0	01	1	0707-0906
75	PIPE; OIL,P/S,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (C) L=1533 SERVICED BY L=1600	1-49115-490-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (D) L=1679 SERVICED BY L=1800	1-49115-491-0	01	1	0707-0906
75	PIPE; OIL,P/S,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (D) L=1679 SERVICED BY L=1800	1-49115-491-0	01	1	0907-
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1660	8-97616-159-0	01	1	0707-
76	UNION; OIL PIPE UNDER FOLLR COCKPIT<Y53> (A) M22	0-92123-015-0	04	1	0907-
76	UNION; OIL PIPE UNDER FOLLR COCKPIT<Y53> (F) M22	0-92135-215-0	01	1	0907-
76	UNION; OIL PIPE UNDER FOLLR COCKPIT<Y53> (F) M22	0-92135-215-0	01	1	0907-
76	UNION; OIL PIPE (E) M20 STRAIGHT	0-92123-012-0	03	1	0707-0906
76	UNION; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (E) M20 STRAIGHT	0-92123-012-0	03	1	0907-
76	UNION; OIL PIPE (A) M22	0-92123-015-0	02	1	0707-
76	UNION; OIL PIPE (B) M20 & M20	0-92123-312-0	01	1	0707-0906
76	UNION; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (B) M20 & M20	0-92123-312-0	01	1	0907-
76	UNION; OIL PIPE (C) M22	0-92123-315-0	01	1	0707-0906
76	UNION; OIL PIPE (C) M22	0-92123-315-0	01	1	0907-
76	UNION; OIL PIPE UNDER FOLLR COCKPIT<Y53> (C) M22	0-92123-315-0	01	1	0907-
76	UNION; OIL PIPE (D) M20	0-92135-212-0	03	1	0707-0906
76	UNION; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (D) M20	0-92135-212-0	03	1	0907-
76	UNION; OIL PIPE (F) M22	0-92135-215-0	02	1	0707-
81	WASHER; LK,FLEX HOSE UNDER FOLLR COCKPIT<Y53> ID=22.5	0-91510-622-0	01	1	0907-
82	NUT; FLEX HOSE,P/S UNDER FOLLR COCKPIT<Y53> M22	0-91111-522-0	01	1	0907-
142	PLUG; P/S FEED UNDER FOLLR COCKPIT<Y53> PT3/8	1-09605-056-0	01	1	0907-
232	NUT; BRKT UNDER FOLLR COCKPIT<Y53> M8 FLANGE	0-91180-108-0	01	1	0907-
244	GASKET; OIL PIPE,P/S UNDER FOLLR COCKPIT<Y53> ID=18	9-09571-418-0	04	1	0907-
245	BOLT; EYE,OIL PIPE UNDER FOLLR COCKPIT<Y53> M18X40	1-09675-153-0	02	1	0907-
247	BOLT; BRKT,CLIP M8X25 FLANGE	0-28650-825-0	01	1	0707-
265	PIPE; OIL,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (M) L=1273	8-98109-427-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (L) L=838	8-98109-428-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (N) L=1445	8-98109-438-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (H) L=1404	8-98109-690-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (J)	8-98109-823-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (K) L=1574	8-98137-157-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (I) L=1529	8-98146-714-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (A) L=1323	1-21117-101-0	01	1	0707-0906
265	PIPE; OIL,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (A) L=1323	1-21117-101-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (D) L=1231	1-21117-317-0	01	1	0707-0906
265	PIPE; OIL,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (D) L=1231	1-21117-317-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (B) L=776	1-21117-722-0	01	1	0707-0906
265	PIPE; OIL,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (B) L=776	1-21117-722-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (C) L=1481	1-21117-723-0	01	1	0707-0906
265	PIPE; OIL,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (C) L=1481	1-21117-723-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (E) L=1334 SERVICED BY L=1450	1-49115-489-0	01	1	0707-0906
265	PIPE; OIL,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (E) L=1334 SERVICED BY L=1450	1-49115-489-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (G) L=1515	8-97616-158-0	01	1	0707-0906
265	PIPE; OIL,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (G) L=1515	8-97616-158-0	01	1	0907-
265	PIPE; OIL,UNION TO UNION (F) L=1540	8-98082-233-0	01	1	0707-0906
265	PIPE; OIL,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (F) L=1540	8-98082-233-0	01	1	0907-
266	UNION; OIL PIPE,P/S UNDER FOLLR COCKPIT<Y53> (C) M22 L=117	0-92148-915-0	01	1	0907-
266	UNION; OIL PIPE,P/S (A) M22 & M22 ELBOW	1-09654-163-1	01	1	0707-0906
266	UNION; OIL PIPE,P/S EXC. UNDER FOLLR COCKPIT<Y53> (A) M22 & M22 ELBOW	1-09654-163-1	01	1	0907-
266	UNION; OIL PIPE,P/S (B) M22	1-09654-409-0	01	1	0707-
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28650-825-0	03	1	0707-
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91180-108-0	01	1	0707-
277	BOLT; HOSE CLIP M8X40 FLANGE	0-28650-840-0	02	1	0707-
307	CONNECTOR; FLEX HOSE UNDER FOLLR COCKPIT<Y53>	9-99220-612-0	01	1	0907-
341	PIPE; OIL,UNION TO OIL TANK UNDER FOLLR COCKPIT<Y53>	8-98109-447-0	01	1	0907-
341	PIPE; OIL,UNION TO OIL TANK	8-98068-101-0	01	1	0707-0906
341	PIPE; OIL,UNION TO OIL TANK EXC. UNDER FOLLR COCKPIT<Y53>	8-98068-101-0	01	1	0907-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
