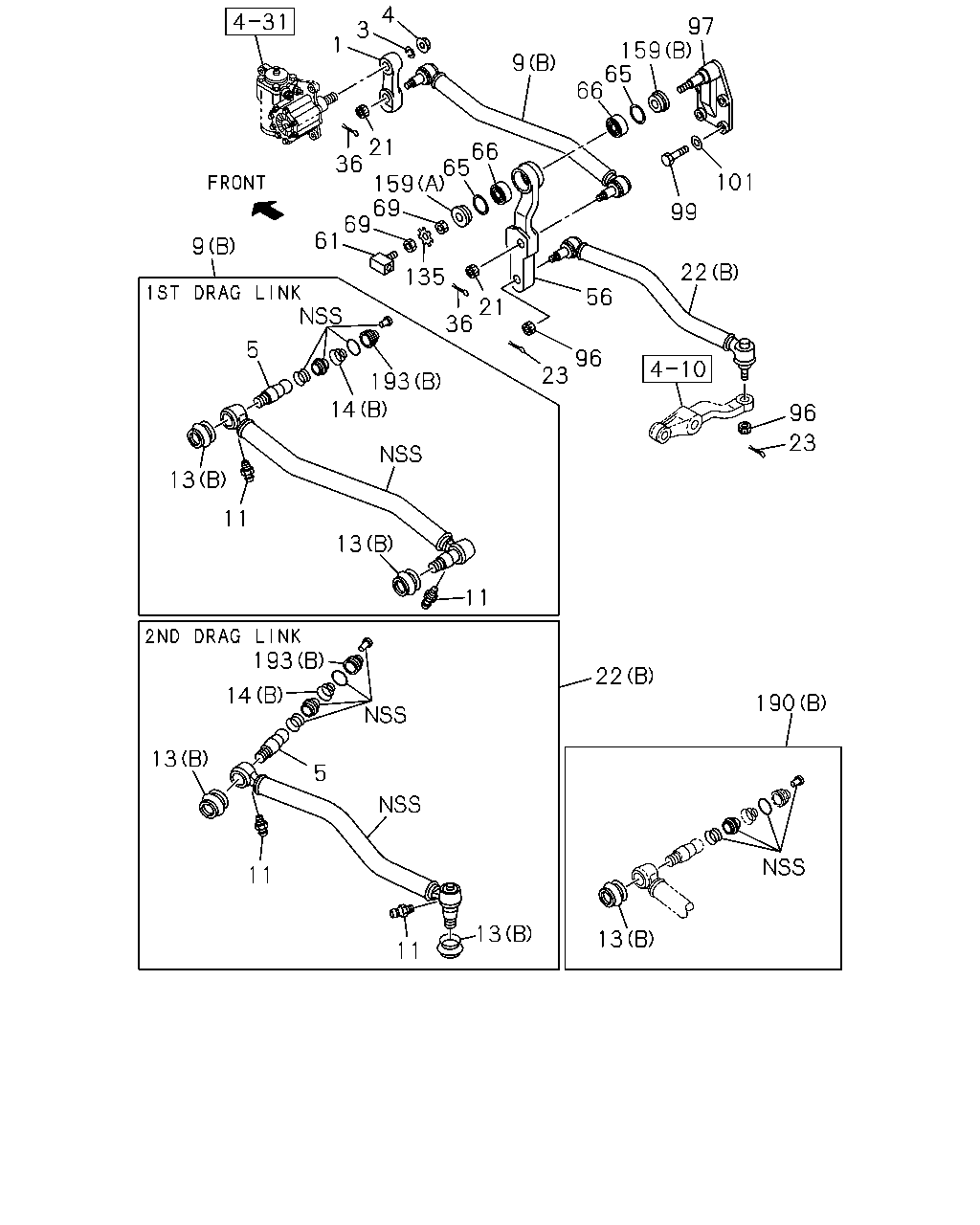

4-33 — STEERING LINKAGE (#39366) — 128 parça

4 97 159 65 66 3 1 9 21 36 66 65 101 159 69 69 61 99 9 22 135 56 21 36 193 8 96 23 14 5 96 23 8 13 193 14 5 13 193 8 14 22 190 193 5 8 14 13 5 13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ARM; PITMAN,STRG UNDER FOLLR COCKPIT<Y53> (B)	8-98109-839-0	01	1	0907-
1	ARM; PITMAN,STRG (A)	1-44341-473-3	01	1	0707-0906
1	ARM; PITMAN,STRG EXC. UNDER FOLLR COCKPIT<Y53> (A)	1-44341-473-3	01	1	0907-
3	WASHER; LK,PITMAN ARM ID=36.5	1-09500-021-0	01	1	0707-
4	NUT; PITMAN ARM M36 FLANGE	1-09440-013-0	01	1	0707-0805
4	NUT; PITMAN ARM M36 FLANGE	1-09440-098-0	01	1	0806-
5	BALL; JOINT,DRAG LINK UNDER FOLLR COCKPIT<Y53>	1-44361-105-1	02	1	0907-
5	BALL; JOINT,DRAG LINK	1-44361-105-1	04	1	0707-0906
5	BALL; JOINT,DRAG LINK EXC. UNDER FOLLR COCKPIT<Y53>	1-44361-105-1	04	1	0907-
8	SEAT; SPR,ROD END	1-43159-075-0	04	1	0707-0801
9	LINK; DRAG UNDER FOLLR COCKPIT<Y53> (C)	8-98109-840-0	01	1	0907-
9	LINK; DRAG (A)	1-44380-289-0	01	1	0707-0801
9	LINK; DRAG (B)	8-98098-102-1	01	1	0802-0906
9	LINK; DRAG EXC. UNDER FOLLR COCKPIT<Y53> (B)	8-98098-102-1	01	1	0907-
13	BOOT; DRAG LINK UNDER FOLLR COCKPIT<Y53> (B)	1-43159-131-0	02	1	0907-
13	BOOT; DRAG LINK (A)	1-43159-107-0	04	1	0707-0801
13	BOOT; DRAG LINK (B)	1-43159-131-0	04	1	0802-0906
13	BOOT; DRAG LINK EXC. UNDER FOLLR COCKPIT<Y53> (B)	1-43159-131-0	04	1	0907-
14	SPRING; COIL,DRAG LINK UNDER FOLLR COCKPIT<Y53> (B)	1-43159-129-0	02	1	0907-
14	SPRING; COIL,DRAG LINK (A)	1-43159-074-0	04	1	0707-0801
14	SPRING; COIL,DRAG LINK (B)	1-43159-129-0	04	1	0802-0906
14	SPRING; COIL,DRAG LINK EXC. UNDER FOLLR COCKPIT<Y53> (B)	1-43159-129-0	04	1	0907-
21	NUT; LK,JOINT BALL M24 SLOTTED	1-09442-020-0	02	1	0707-0805
21	NUT; LK,JOINT BALL M24	1-09442-032-0	02	1	0806-
22	LINK; DRAG,2ND (A)	1-44380-251-1	01	1	0707-0801
22	LINK; DRAG,2ND (B)	8-98098-103-1	01	1	0802-0906
22	LINK; DRAG,2ND EXC. UNDER FOLLR COCKPIT<Y53> (B)	8-98098-103-1	01	1	0907-
23	PIN; SPLIT DRAG LINK 3RD OD=4.6 L=35	0-81125-035-0	02	1	0707-0906
23	PIN; SPLIT DRAG LINK 3RD EXC. UNDER FOLLR COCKPIT<Y53> OD=4.6 L=35	0-81125-035-0	02	1	0907-
36	PIN; SPLIT,DRAG LINK OD=4.6 L=35	0-81125-035-0	02	1	0707-
56	ARM; LINK,FRT,W/JOINT BALL	1-44345-174-0	01	1	0707-0906
56	ARM; LINK,FRT,W/JOINT BALL EXC. UNDER FOLLR COCKPIT<Y53>	1-44345-174-0	01	1	0907-
61	NIPPLE; PIN LINK ARM PT1/8 ELBOW	0-90301-610-0	01	1	0707-0906
61	NIPPLE; PIN LINK ARM EXC. UNDER FOLLR COCKPIT<Y53> PT1/8 ELBOW	0-90301-610-0	01	1	0907-
65	SEAL; DUST,LINK ARM	9-44349-040-1	02	1	0707-0906
65	SEAL; DUST,LINK ARM EXC. UNDER FOLLR COCKPIT<Y53>	9-44349-040-1	02	1	0907-
66	BEARING; LINK ARM	9-00030-207-0	02	1	0707-0906
66	BEARING; LINK ARM EXC. UNDER FOLLR COCKPIT<Y53>	9-00030-207-0	02	1	0907-
69	NUT; LINK ARM M24	9-09840-264-0	02	1	0707-0906
69	NUT; LINK ARM EXC. UNDER FOLLR COCKPIT<Y53> M24	9-09840-264-0	02	1	0907-
96	NUT; LINK ARM M24 SLOTTED	1-09442-020-0	02	1	0707-0805
96	NUT; LINK ARM M24	1-09442-032-0	02	1	0806-0906
96	NUT; LINK ARM EXC. UNDER FOLLR COCKPIT<Y53> M24	1-09442-032-0	02	1	0907-
97	BRACKET; LINK ARM	1-44348-078-1	01	1	0707-0906
97	BRACKET; LINK ARM EXC. UNDER FOLLR COCKPIT<Y53>	1-44348-078-1	01	1	0907-
99	BOLT; BRKT M14X50	0-20951-450-0	04	1	0707-0906
99	BOLT; BRKT EXC. UNDER FOLLR COCKPIT<Y53> M14X50	0-20951-450-0	04	1	0907-
101	WASHER; PL,BRKT ID=14.2	1-09503-050-0	04	1	0707-0906
101	WASHER; PL,BRKT EXC. UNDER FOLLR COCKPIT<Y53> ID=14.2	1-09503-050-0	04	1	0907-
135	WASHER; LK,PIN SET,LINK ARM	9-09853-842-0	01	1	0707-0906
135	WASHER; LK,PIN SET,LINK ARM EXC. UNDER FOLLR COCKPIT<Y53>	9-09853-842-0	01	1	0907-
159	WASHER; LINK ARM (A) ID=24 T=8	9-44349-039-0	01	1	0707-0906
159	WASHER; LINK ARM EXC. UNDER FOLLR COCKPIT<Y53> (A) ID=24 T=8	9-44349-039-0	01	1	0907-
159	WASHER; LINK ARM (B) ID=35 T=9	9-44349-046-0	01	1	0707-0906
159	WASHER; LINK ARM EXC. UNDER FOLLR COCKPIT<Y53> (B) ID=35 T=9	9-44349-046-0	01	1	0907-
190	REPAIR KIT; DRAG LINK UNDER FOLLR COCKPIT<Y53> (B)	1-85574-089-0	02	1	0907-
190	REPAIR KIT; DRAG LINK (A)	1-85574-041-0	04	1	0707-0801
190	REPAIR KIT; DRAG LINK (B)	1-85574-089-0	04	1	0802-0906
190	REPAIR KIT; DRAG LINK EXC. UNDER FOLLR COCKPIT<Y53> (B)	1-85574-089-0	04	1	0907-
193	PLUG; END,DRAG LINK UNDER FOLLR COCKPIT<Y53> (B)	1-43159-130-0	02	1	0907-
193	PLUG; END,DRAG LINK (A)	1-43159-093-0	04	1	0707-0801
193	PLUG; END,DRAG LINK (B)	1-43159-130-0	04	1	0802-0906
193	PLUG; END,DRAG LINK EXC. UNDER FOLLR COCKPIT<Y53> (B)	1-43159-130-0	04	1	0907-

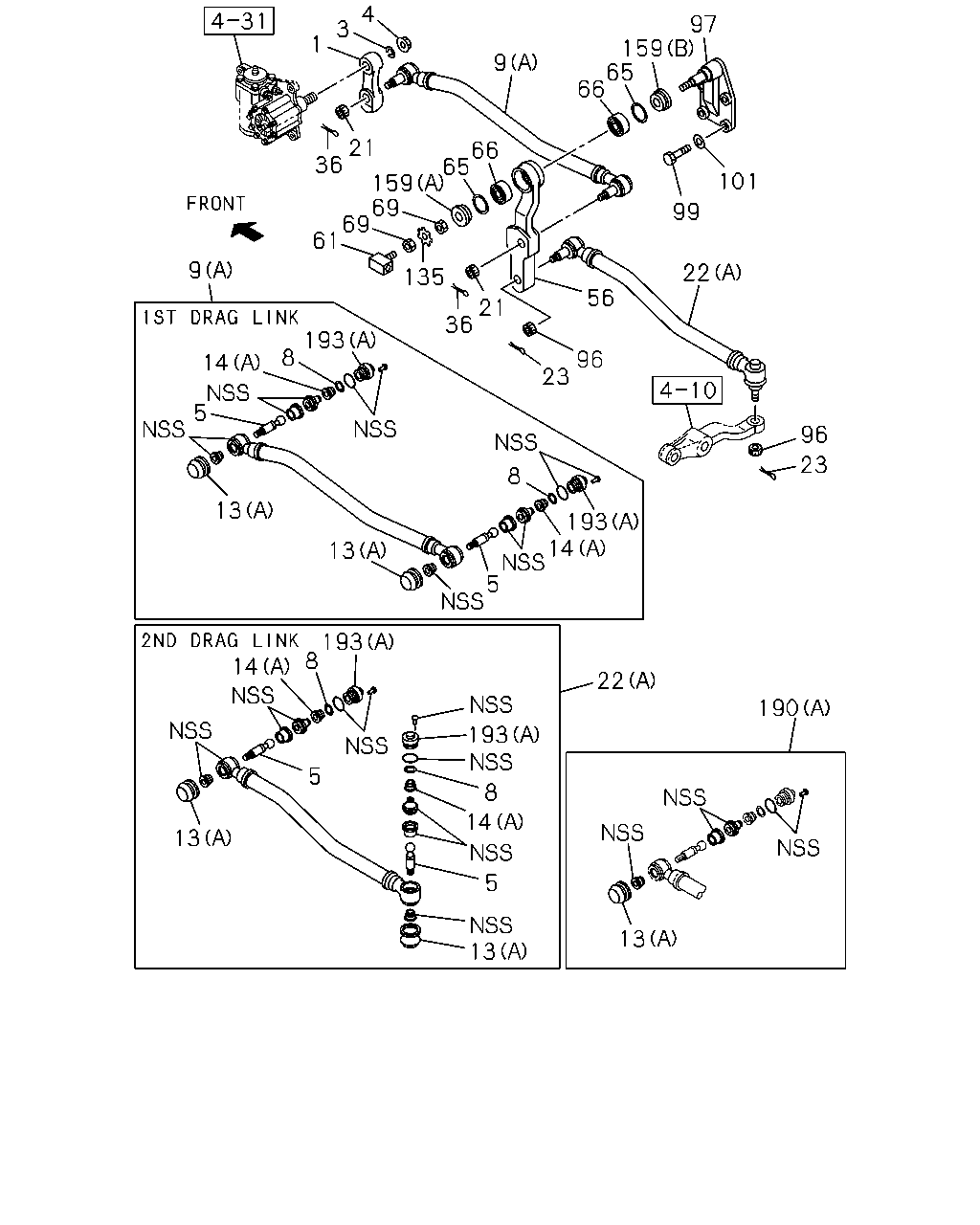

4 97 159 65 66 3 1 9 21 36 66 65 101 159 69 69 61 99 9 22 135 56 21 36 5 96 23 193 14 96 23 13 11 13 11 193 22 14 190 13 5 11 13 13 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	ARM; PITMAN,STRG UNDER FOLLR COCKPIT<Y53> (B)	8-98109-839-0	01	1	0907-
1	ARM; PITMAN,STRG (A)	1-44341-473-3	01	1	0707-0906
1	ARM; PITMAN,STRG EXC. UNDER FOLLR COCKPIT<Y53> (A)	1-44341-473-3	01	1	0907-
3	WASHER; LK,PITMAN ARM ID=36.5	1-09500-021-0	01	1	0707-
4	NUT; PITMAN ARM M36 FLANGE	1-09440-013-0	01	1	0707-0805
4	NUT; PITMAN ARM M36 FLANGE	1-09440-098-0	01	1	0806-
5	BALL; JOINT,DRAG LINK UNDER FOLLR COCKPIT<Y53>	1-44361-105-1	02	1	0907-
5	BALL; JOINT,DRAG LINK	1-44361-105-1	04	1	0707-0906
5	BALL; JOINT,DRAG LINK EXC. UNDER FOLLR COCKPIT<Y53>	1-44361-105-1	04	1	0907-
9	LINK; DRAG UNDER FOLLR COCKPIT<Y53> (C)	8-98109-840-0	01	1	0907-
9	LINK; DRAG (A)	1-44380-289-0	01	1	0707-0801
9	LINK; DRAG (B)	8-98098-102-1	01	1	0802-0906
9	LINK; DRAG EXC. UNDER FOLLR COCKPIT<Y53> (B)	8-98098-102-1	01	1	0907-
11	NIPPLE; GREASE,DRAG LINK UNDER FOLLR COCKPIT<Y53>	1-43159-132-0	02	1	0907-
11	NIPPLE; GREASE,DRAG LINK	1-43159-132-0	04	1	0802-0906
11	NIPPLE; GREASE,DRAG LINK EXC. UNDER FOLLR COCKPIT<Y53>	1-43159-132-0	04	1	0907-
13	BOOT; DRAG LINK UNDER FOLLR COCKPIT<Y53> (B)	1-43159-131-0	02	1	0907-
13	BOOT; DRAG LINK (A)	1-43159-107-0	04	1	0707-0801
13	BOOT; DRAG LINK (B)	1-43159-131-0	04	1	0802-0906
13	BOOT; DRAG LINK EXC. UNDER FOLLR COCKPIT<Y53> (B)	1-43159-131-0	04	1	0907-
14	SPRING; COIL,DRAG LINK UNDER FOLLR COCKPIT<Y53> (B)	1-43159-129-0	02	1	0907-
14	SPRING; COIL,DRAG LINK (A)	1-43159-074-0	04	1	0707-0801
14	SPRING; COIL,DRAG LINK (B)	1-43159-129-0	04	1	0802-0906
14	SPRING; COIL,DRAG LINK EXC. UNDER FOLLR COCKPIT<Y53> (B)	1-43159-129-0	04	1	0907-
21	NUT; LK,JOINT BALL M24 SLOTTED	1-09442-020-0	02	1	0707-0805
21	NUT; LK,JOINT BALL M24	1-09442-032-0	02	1	0806-
22	LINK; DRAG,2ND (A)	1-44380-251-1	01	1	0707-0801
22	LINK; DRAG,2ND (B)	8-98098-103-1	01	1	0802-0906
22	LINK; DRAG,2ND EXC. UNDER FOLLR COCKPIT<Y53> (B)	8-98098-103-1	01	1	0907-
23	PIN; SPLIT DRAG LINK 3RD OD=4.6 L=35	0-81125-035-0	02	1	0707-0906
23	PIN; SPLIT DRAG LINK 3RD EXC. UNDER FOLLR COCKPIT<Y53> OD=4.6 L=35	0-81125-035-0	02	1	0907-
36	PIN; SPLIT,DRAG LINK OD=4.6 L=35	0-81125-035-0	02	1	0707-
56	ARM; LINK,FRT,W/JOINT BALL	1-44345-174-0	01	1	0707-0906
56	ARM; LINK,FRT,W/JOINT BALL EXC. UNDER FOLLR COCKPIT<Y53>	1-44345-174-0	01	1	0907-
61	NIPPLE; PIN LINK ARM PT1/8 ELBOW	0-90301-610-0	01	1	0707-0906
61	NIPPLE; PIN LINK ARM EXC. UNDER FOLLR COCKPIT<Y53> PT1/8 ELBOW	0-90301-610-0	01	1	0907-
65	SEAL; DUST,LINK ARM	9-44349-040-1	02	1	0707-0906
65	SEAL; DUST,LINK ARM EXC. UNDER FOLLR COCKPIT<Y53>	9-44349-040-1	02	1	0907-
66	BEARING; LINK ARM	9-00030-207-0	02	1	0707-0906
66	BEARING; LINK ARM EXC. UNDER FOLLR COCKPIT<Y53>	9-00030-207-0	02	1	0907-
69	NUT; LINK ARM M24	9-09840-264-0	02	1	0707-0906
69	NUT; LINK ARM EXC. UNDER FOLLR COCKPIT<Y53> M24	9-09840-264-0	02	1	0907-
96	NUT; LINK ARM M24 SLOTTED	1-09442-020-0	02	1	0707-0805
96	NUT; LINK ARM M24	1-09442-032-0	02	1	0806-0906
96	NUT; LINK ARM EXC. UNDER FOLLR COCKPIT<Y53> M24	1-09442-032-0	02	1	0907-
97	BRACKET; LINK ARM	1-44348-078-1	01	1	0707-0906
97	BRACKET; LINK ARM EXC. UNDER FOLLR COCKPIT<Y53>	1-44348-078-1	01	1	0907-
99	BOLT; BRKT M14X50	0-20951-450-0	04	1	0707-0906
99	BOLT; BRKT EXC. UNDER FOLLR COCKPIT<Y53> M14X50	0-20951-450-0	04	1	0907-
101	WASHER; PL,BRKT ID=14.2	1-09503-050-0	04	1	0707-0906
101	WASHER; PL,BRKT EXC. UNDER FOLLR COCKPIT<Y53> ID=14.2	1-09503-050-0	04	1	0907-
135	WASHER; LK,PIN SET,LINK ARM	9-09853-842-0	01	1	0707-0906
135	WASHER; LK,PIN SET,LINK ARM EXC. UNDER FOLLR COCKPIT<Y53>	9-09853-842-0	01	1	0907-
159	WASHER; LINK ARM (A) ID=24 T=8	9-44349-039-0	01	1	0707-0906
159	WASHER; LINK ARM EXC. UNDER FOLLR COCKPIT<Y53> (A) ID=24 T=8	9-44349-039-0	01	1	0907-
159	WASHER; LINK ARM (B) ID=35 T=9	9-44349-046-0	01	1	0707-0906
159	WASHER; LINK ARM EXC. UNDER FOLLR COCKPIT<Y53> (B) ID=35 T=9	9-44349-046-0	01	1	0907-
190	REPAIR KIT; DRAG LINK UNDER FOLLR COCKPIT<Y53> (B)	1-85574-089-0	02	1	0907-
190	REPAIR KIT; DRAG LINK (A)	1-85574-041-0	04	1	0707-0801
190	REPAIR KIT; DRAG LINK (B)	1-85574-089-0	04	1	0802-0906
190	REPAIR KIT; DRAG LINK EXC. UNDER FOLLR COCKPIT<Y53> (B)	1-85574-089-0	04	1	0907-
193	PLUG; END,DRAG LINK UNDER FOLLR COCKPIT<Y53> (B)	1-43159-130-0	02	1	0907-
193	PLUG; END,DRAG LINK (A)	1-43159-093-0	04	1	0707-0801
193	PLUG; END,DRAG LINK (B)	1-43159-130-0	04	1	0802-0906
193	PLUG; END,DRAG LINK EXC. UNDER FOLLR COCKPIT<Y53> (B)	1-43159-130-0	04	1	0907-
