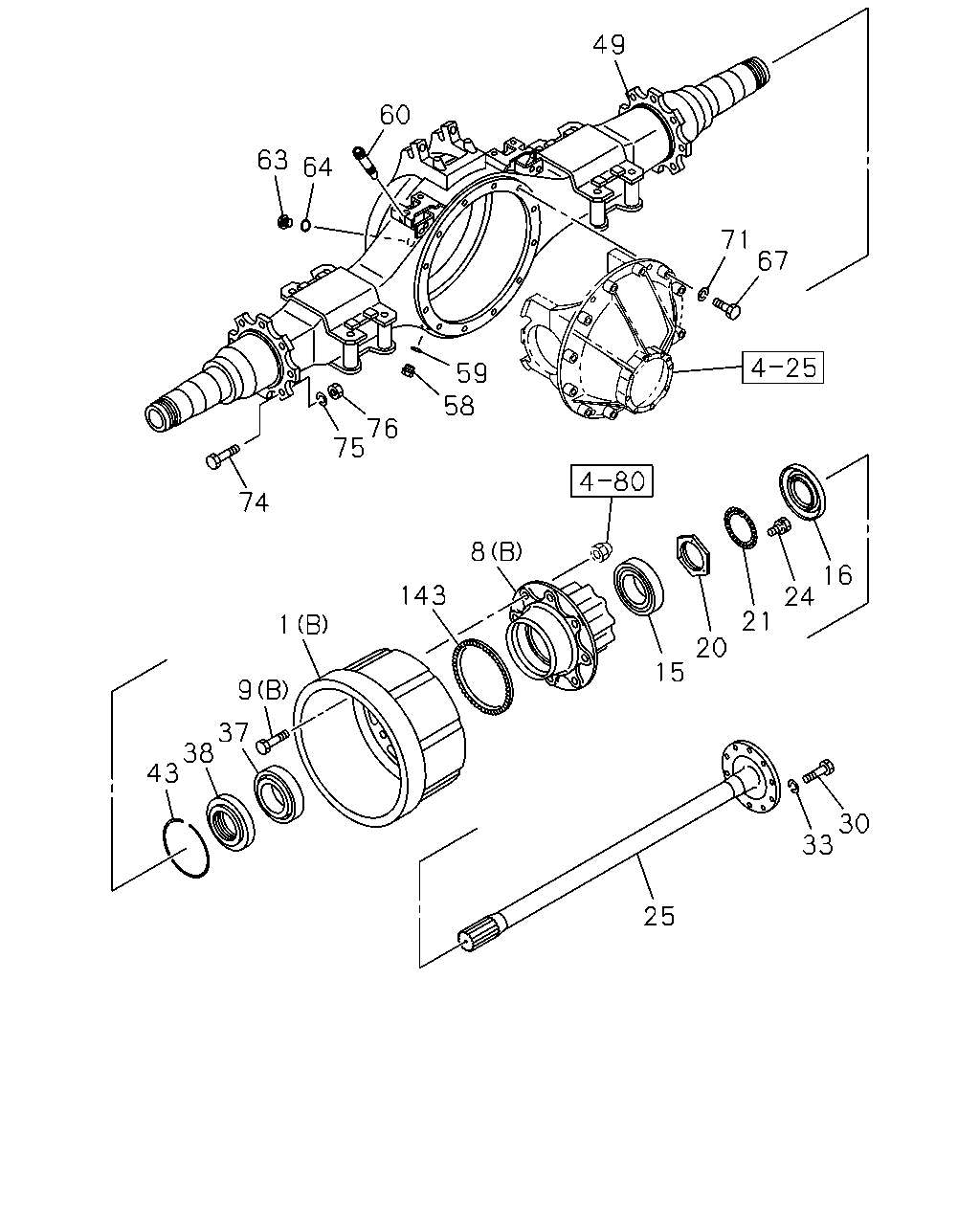

4-20 — REAR AXLE CASE AND SHAFT (#39362) — 142 parça

49 60 63 64 71 67 59 58 76 75 74 8 16 24 143 21 1 20 15 9 37 38 43 30 33 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR FINAL GEAR 39/7 17.5"(W3Z) INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42315-377-2	02	1	0707-0906
1	DRUM; BRK,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42315-377-2	02	1	0907-
1	DRUM; BRK,RR FINAL GEAR 39/7 17.5"(W3Z) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42315-358-0	02	1	0707-0906
1	DRUM; BRK,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42315-358-0	02	1	0907-
8	HUB; RR AXLE FINAL GEAR 39/7 17.5"(W3Z) INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42311-094-0	02	1	0707-0906
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42311-094-0	02	1	0907-
8	HUB; RR AXLE FINAL GEAR 39/7 17.5"(W3Z) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42311-105-0	02	1	0707-0906
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42311-105-0	02	1	0907-
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/7 17.5"(W3Z) INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M22X93 RH THREAD	1-42337-066-2	20	1	0707-0906
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M22X93 RH THREAD	1-42337-066-2	20	1	0907-
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/7 17.5"(W3Z) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	0707-0906
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	0907-
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/7 17.5"(W3Z) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	0707-0906
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	0907-
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/7 17.5"(W3Z) JTEKT	1-09812-232-0	02	1	0707-0906
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0907-
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 39/7 17.5"(W3Z) TKK	1-09625-444-0	02	1	0707-0906
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	0907-
20	NUT; BRG,RR HUB FINAL GEAR 39/7 17.5"(W3Z) M88	9-09843-062-2	04	1	0707-0906
20	NUT; BRG,RR HUB M88	9-09843-062-2	04	1	0907-
21	WASHER; LK,BRG NUT FINAL GEAR 39/7 17.5"(W3Z) ID=88	9-09854-112-0	02	1	0707-0906
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0907-
24	BOLT; LK WASHER FINAL GEAR 39/7 17.5"(W3Z) M6X16 FLANGE	0-28650-616-0	06	1	0707-0906
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0907-
25	SHAFT; AXLE,RR FINAL GEAR 39/7 17.5"(W3Z)	1-42171-382-0	02	1	0707-0906
25	SHAFT; AXLE,RR	1-42171-382-0	02	1	0907-0910
25	SHAFT; AXLE,RR	8-98146-165-0	02	1	0911-
30	BOLT; HUB TO AXLE SHAFT FINAL GEAR 39/7 17.5"(W3Z) M14X58	1-09000-582-0	20	1	0707-0906
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0907-
33	WASHER; AXLE SHAFT FINAL GEAR 39/7 17.5"(W3Z) ID=14.2	0-91510-814-0	20	1	0707-0906
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	0907-
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1209-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/7 17.5"(W3Z) JTEKT	1-09812-233-0	02	1	0707-0906
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0907-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/7 17.5"(W3Z) NOK	1-09625-265-0	02	1	0707-0906
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0907-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/7 17.5"(W3Z) TKK	1-09625-350-0	02	1	0707-0906
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0907-
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 39/7 17.5"(W3Z) OD=179	1-09587-057-0	02	1	0707-0906
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0907-
49	CASE; RR AXLE FINAL GEAR 39/7 17.5"(W3Z)	1-42190-497-2	01	1	0707-0906
49	CASE; RR AXLE	1-42190-497-2	01	1	0907-
58	PLUG; DRAIN,AXLE CASE FINAL GEAR 39/7 17.5"(W3Z) M24X17 FLANGE	1-09604-023-0	01	1	0707-0906
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0907-
59	GASKET; DRAIN PLUG FINAL GEAR 39/7 17.5"(W3Z) ID=26.8	9-09920-605-0	01	1	0707-0906
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0907-
60	BREATHER; RR AXLE CASE	9-36122-015-1	01	1	0707-
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 39/7 17.5"(W3Z) M24X17 FLANGE	1-09604-022-0	01	1	0707-0906
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0907-
64	GASKET; OIL FILLER,AXLE CASE FINAL GEAR 39/7 17.5"(W3Z) ID=26.8	9-09920-605-0	01	1	0707-0906
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0907-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/7 17.5"(W3Z) M16X70	0-10956-670-0	04	1	0707-0906
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	0907-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/7 17.5"(W3Z) M16X40	0-20951-640-0	08	1	0707-0906
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	08	1	0907-
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 39/7 17.5"(W3Z) ID=16.2	0-91510-816-0	12	1	0707-0906
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	0907-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 17.5"(W3Z) M14X50	1-09040-066-0	10	1	0707-0906
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	10	1	0907-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 17.5"(W3Z) M14X80	9-92621-480-0	04	1	0707-0906
74	BOLT; RR BRK ASM SETTING M14X80	9-92621-480-0	04	1	0907-
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 39/7 17.5"(W3Z) ID=14.2	0-91510-814-0	16	1	0707-0906
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0907-
76	NUT; RR BRK ASM SETTING FINAL GEAR 39/7 17.5"(W3Z) M14	0-91110-514-0	16	1	0707-0906
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0907-
143	RING; EXCITER FINAL GEAR 39/7 17.5"(W3Z)	1-42319-173-0	02	1	0707-0906
143	RING; EXCITER	1-42319-173-0	02	1	0907-

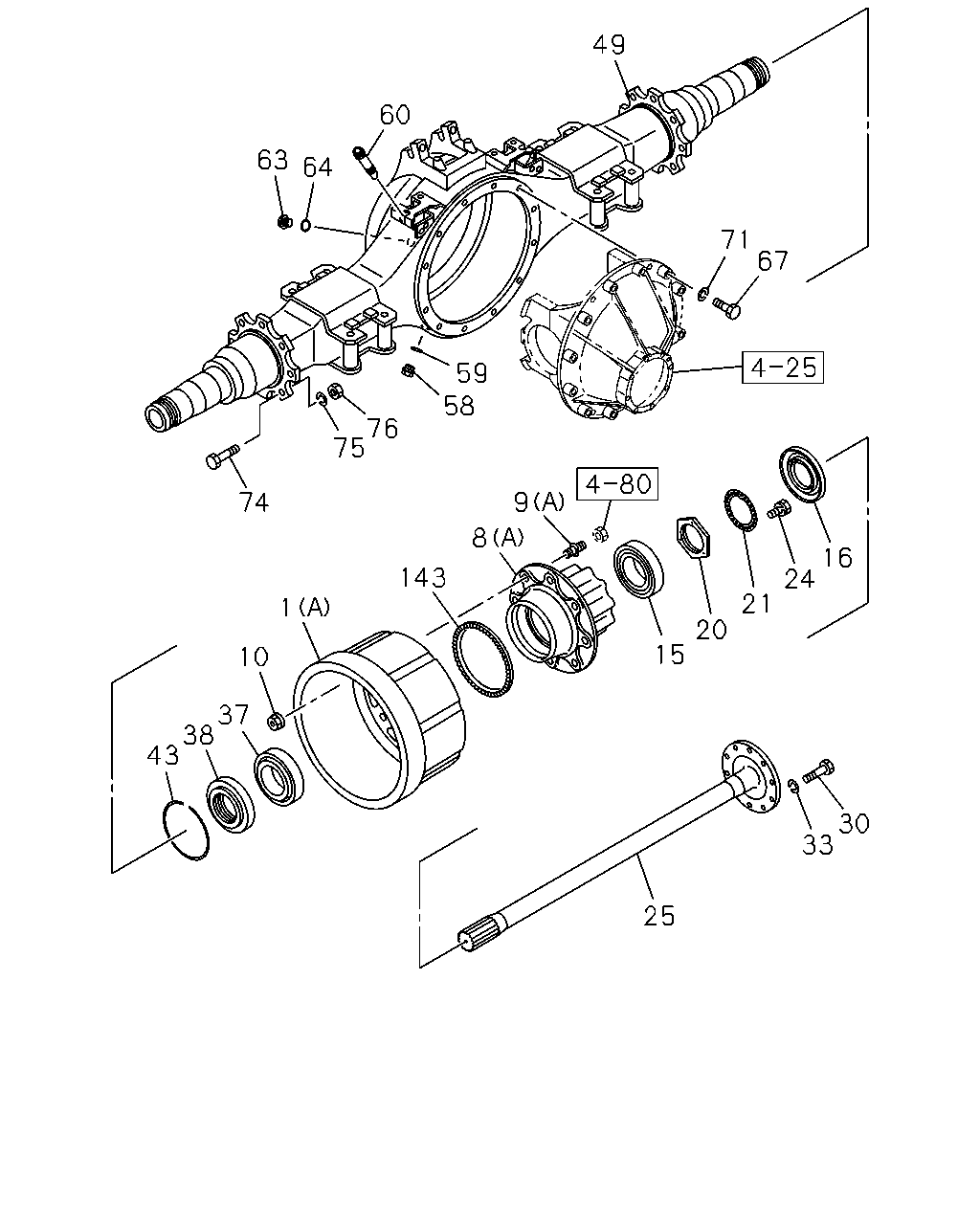

49 60 63 64 71 67 59 58 76 75 9 74 8 16 24 143 21 1 20 15 10 37 38 43 30 33 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR FINAL GEAR 39/7 17.5"(W3Z) INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42315-377-2	02	1	0707-0906
1	DRUM; BRK,RR INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42315-377-2	02	1	0907-
1	DRUM; BRK,RR FINAL GEAR 39/7 17.5"(W3Z) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42315-358-0	02	1	0707-0906
1	DRUM; BRK,RR EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42315-358-0	02	1	0907-
8	HUB; RR AXLE FINAL GEAR 39/7 17.5"(W3Z) INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42311-094-0	02	1	0707-0906
8	HUB; RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-42311-094-0	02	1	0907-
8	HUB; RR AXLE FINAL GEAR 39/7 17.5"(W3Z) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42311-105-0	02	1	0707-0906
8	HUB; RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-42311-105-0	02	1	0907-
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/7 17.5"(W3Z) INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M22X93 RH THREAD	1-42337-066-2	20	1	0707-0906
9	PIN; WHEEL,RR AXLE INTERNATIONAL STANDARD ISO 10STUD<B3V> (B) M22X93 RH THREAD	1-42337-066-2	20	1	0907-
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/7 17.5"(W3Z) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	0707-0906
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M20X34.5,M22X51.5 RH THREAD	1-42331-110-2	08	1	0907-
9	PIN; WHEEL,RR AXLE FINAL GEAR 39/7 17.5"(W3Z) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	0707-0906
9	PIN; WHEEL,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A) M20X34.5 LH THREAD,M22X51.5 RH THREAD	1-42332-110-2	08	1	0907-
10	NUT; WHEEL PIN,RR AXLE FINAL GEAR 39/7 17.5"(W3Z) EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 FLANGE	1-09440-065-0	16	1	0707-0906
10	NUT; WHEEL PIN,RR AXLE EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> M22 FLANGE	1-09440-065-0	16	1	0907-
15	BEARING; HUB OUTER,RR AXLE SKF	1-09812-256-0	02	1	1209-
15	BEARING; HUB OUTER,RR AXLE BEST VALUE PARTS	1-87610-136-0	02	1	1209-
15	BEARING; HUB OUTER,RR AXLE FINAL GEAR 39/7 17.5"(W3Z) JTEKT	1-09812-232-0	02	1	0707-0906
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-232-0	02	1	0907-
16	SEAL; OIL,RR HUB,OUTER FINAL GEAR 39/7 17.5"(W3Z) TKK	1-09625-444-0	02	1	0707-0906
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-444-0	02	1	0907-
20	NUT; BRG,RR HUB FINAL GEAR 39/7 17.5"(W3Z) M88	9-09843-062-2	04	1	0707-0906
20	NUT; BRG,RR HUB M88	9-09843-062-2	04	1	0907-
21	WASHER; LK,BRG NUT FINAL GEAR 39/7 17.5"(W3Z) ID=88	9-09854-112-0	02	1	0707-0906
21	WASHER; LK,BRG NUT ID=88	9-09854-112-0	02	1	0907-
24	BOLT; LK WASHER FINAL GEAR 39/7 17.5"(W3Z) M6X16 FLANGE	0-28650-616-0	06	1	0707-0906
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	0907-
25	SHAFT; AXLE,RR FINAL GEAR 39/7 17.5"(W3Z)	1-42171-382-0	02	1	0707-0906
25	SHAFT; AXLE,RR	1-42171-382-0	02	1	0907-0910
25	SHAFT; AXLE,RR	8-98146-165-0	02	1	0911-
30	BOLT; HUB TO AXLE SHAFT FINAL GEAR 39/7 17.5"(W3Z) M14X58	1-09000-582-0	20	1	0707-0906
30	BOLT; HUB TO AXLE SHAFT M14X58	1-09000-582-0	20	1	0907-
33	WASHER; AXLE SHAFT FINAL GEAR 39/7 17.5"(W3Z) ID=14.2	0-91510-814-0	20	1	0707-0906
33	WASHER; AXLE SHAFT ID=14.2	0-91510-814-0	20	1	0907-
37	BEARING; HUB INNER,RR AXLE SKF	1-09812-257-0	02	1	1209-
37	BEARING; HUB INNER,RR AXLE BEST VALUE PARTS	1-87610-138-0	02	1	1209-
37	BEARING; HUB INNER,RR AXLE FINAL GEAR 39/7 17.5"(W3Z) JTEKT	1-09812-233-0	02	1	0707-0906
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-233-0	02	1	0907-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/7 17.5"(W3Z) NOK	1-09625-265-0	02	1	0707-0906
38	SEAL; OIL,RR HUB,INNER NOK	1-09625-265-0	02	1	0907-
38	SEAL; OIL,RR HUB,INNER FINAL GEAR 39/7 17.5"(W3Z) TKK	1-09625-350-0	02	1	0707-0906
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-350-0	02	1	0907-
43	RING; SNAP,HUB SEAL,RR AXLE FINAL GEAR 39/7 17.5"(W3Z) OD=179	1-09587-057-0	02	1	0707-0906
43	RING; SNAP,HUB SEAL,RR AXLE OD=179	1-09587-057-0	02	1	0907-
49	CASE; RR AXLE FINAL GEAR 39/7 17.5"(W3Z)	1-42190-497-2	01	1	0707-0906
49	CASE; RR AXLE	1-42190-497-2	01	1	0907-
58	PLUG; DRAIN,AXLE CASE FINAL GEAR 39/7 17.5"(W3Z) M24X17 FLANGE	1-09604-023-0	01	1	0707-0906
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0907-
59	GASKET; DRAIN PLUG FINAL GEAR 39/7 17.5"(W3Z) ID=26.8	9-09920-605-0	01	1	0707-0906
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0907-
60	BREATHER; RR AXLE CASE	9-36122-015-1	01	1	0707-
63	PLUG; OIL FILLER,AXLE CASE FINAL GEAR 39/7 17.5"(W3Z) M24X17 FLANGE	1-09604-022-0	01	1	0707-0906
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	0907-
64	GASKET; OIL FILLER,AXLE CASE FINAL GEAR 39/7 17.5"(W3Z) ID=26.8	9-09920-605-0	01	1	0707-0906
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	0907-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/7 17.5"(W3Z) M16X70	0-10956-670-0	04	1	0707-0906
67	BOLT; FINAL DRIVE SETTING M16X70	0-10956-670-0	04	1	0907-
67	BOLT; FINAL DRIVE SETTING FINAL GEAR 39/7 17.5"(W3Z) M16X40	0-20951-640-0	08	1	0707-0906
67	BOLT; FINAL DRIVE SETTING M16X40	0-20951-640-0	08	1	0907-
71	WASHER; LK,FINAL DRIVE SETTING FINAL GEAR 39/7 17.5"(W3Z) ID=16.2	0-91510-816-0	12	1	0707-0906
71	WASHER; LK,FINAL DRIVE SETTING ID=16.2	0-91510-816-0	12	1	0907-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 17.5"(W3Z) M14X50	1-09040-066-0	10	1	0707-0906
74	BOLT; RR BRK ASM SETTING M14X50	1-09040-066-0	10	1	0907-
74	BOLT; RR BRK ASM SETTING FINAL GEAR 39/7 17.5"(W3Z) M14X80	9-92621-480-0	04	1	0707-0906
74	BOLT; RR BRK ASM SETTING M14X80	9-92621-480-0	04	1	0907-
75	WASHER; LK,RR BRK ASM SETTING FINAL GEAR 39/7 17.5"(W3Z) ID=14.2	0-91510-814-0	16	1	0707-0906
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	0907-
76	NUT; RR BRK ASM SETTING FINAL GEAR 39/7 17.5"(W3Z) M14	0-91110-514-0	16	1	0707-0906
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	0907-
143	RING; EXCITER FINAL GEAR 39/7 17.5"(W3Z)	1-42319-173-0	02	1	0707-0906
143	RING; EXCITER	1-42319-173-0	02	1	0907-
