3-78 — FIXING PARTS; AIR PIPING (#39358) — 119 parça

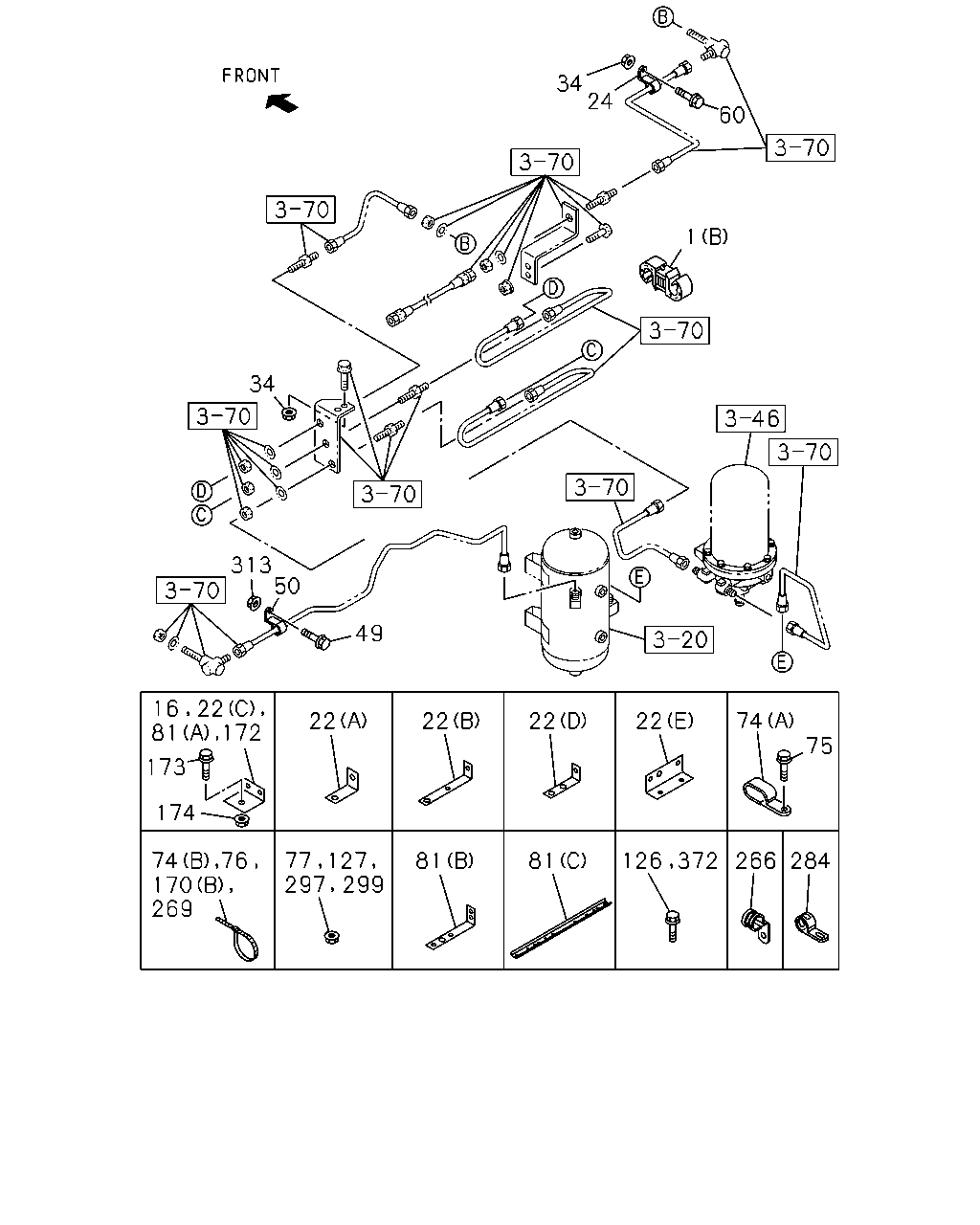

çizim 177978
34 24 60 1 34 313 50 49 81 172 22 22 22 22 74 75 173 174 170 269 77 297 81 81 126 266 284 16 22 74 76 127 299 372
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 03 1 0707-0711
1 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 04 1 0712-
1 CLIP; AIR PIPE
(B) ID=6.35 & 15 		1-09709-276-1 01 1 0707-
16 BRACKET; PIPE CLIP 1-47478-422-0 01 1 0707-
22 BRACKET; CLIP
(B) L=60 H=30 		1-47477-716-1 01 1 0707-
22 BRACKET; CLIP
(C) 		1-47478-422-0 01 1 0707-
22 BRACKET; CLIP
(D) 		1-47478-901-0 02 1 0707-1404
22 BRACKET; CLIP
(D) 		8-98259-391-0 02 1 1405-
22 BRACKET; CLIP
(E) 		1-47478-924-0 01 1 0707-
22 BRACKET; CLIP
(A) L=59 B=20 		1-47479-048-0 01 1 0707-
24 CLIP; PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 0707-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0707-
49 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0707-
50 CLIP; AIR PIPE
ID=15 H=24 L=20 		1-09700-606-0 02 1 0707-
60 BOLT; CLIP FIX
M8X25 FLANGE 		0-28650-825-0 01 1 0707-
67 BRACKET; CLIP
UNDER FOLLR COCKPIT<Y53> 		1-47471-434-0 01 1 0907-
74 CLIP; NYLON TUBE
(A) ID=13X2 L=16 		0-95325-225-0 02 1 0707-
74 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 12 1 0707-
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0707-
75 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0707-
76 CLIP; NYLON TUBE
L=250 		1-09707-126-0 11 1 0707-0904
76 CLIP; NYLON TUBE
L=250 		1-09707-126-0 13 1 0905-
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 14 1 0801-0906
77 NUT; CLIP BRKT
EXC. UNDER FOLLR COCKPIT<Y53> M8 FLANGE 		0-91180-108-0 14 1 0907-
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 18 1 0707-0712
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801-
81 BRACKET; CLIP
(B) 		1-47471-254-0 12 1 0707-
81 BRACKET; CLIP
(C) 		1-47471-256-0 05 1 0707-
81 BRACKET; CLIP
(D) L=68 		1-47475-525-0 01 1 0707-
81 BRACKET; CLIP
(A) 		1-47478-422-0 01 1 0707-
81 BRACKET; CLIP
(E) L=95 		1-82699-085-0 01 1 0707-0904
81 BRACKET; CLIP
(E) L=115 H=30 		1-47477-715-3 01 1 0905-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0707-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0707-
170 CLIP; NYLON TUBE
(A) ID=39 H=28 L=32 		1-09701-263-0 01 1 0707-0712
170 CLIP; NYLON TUBE
(A) ID=39 H=28 L=32 		1-09701-263-0 02 1 0801-
170 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 13 1 0707-0712
170 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 12 1 0801-1306
170 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 13 1 1307-
172 BRACKET; TUBE CLIP
UNDER FOLLR COCKPIT<Y53> (B) L=150 H=30 		1-47477-629-2 01 1 0907-
172 BRACKET; TUBE CLIP
UNDER FOLLR COCKPIT<Y53> (E) L=40 		1-47478-410-0 01 1 0907-
172 BRACKET; TUBE CLIP
UNDER FOLLR COCKPIT<Y53> (A) 		8-97614-149-0 01 1 0907-
172 BRACKET; TUBE CLIP
UNDER FOLLR COCKPIT<Y53> (C) 		8-98053-702-0 01 1 0907-
172 BRACKET; TUBE CLIP
(D) 		1-47478-408-0 01 1 0801-0906
172 BRACKET; TUBE CLIP
EXC. UNDER FOLLR COCKPIT<Y53> (D) 		1-47478-408-0 01 1 0907-
173 BOLT; CLIP BRKT
EXC. UNDER FOLLR COCKPIT<Y53> M8X25 FLANGE 		0-28650-825-0 02 1 0907-
173 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0801-0906
173 BOLT; CLIP BRKT
UNDER FOLLR COCKPIT<Y53> M8X25 FLANGE 		0-28650-825-0 08 1 0907-
174 NUT; CLIP BRKT
EXC. UNDER FOLLR COCKPIT<Y53> M8 FLANGE 		0-91180-108-0 02 1 0907-
174 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0801-0906
174 NUT; CLIP BRKT
UNDER FOLLR COCKPIT<Y53> M8 FLANGE 		0-91180-108-0 08 1 0907-
266 CLIP; NYLON TUBE
ID=39 H=28 L=32 		1-09701-263-0 02 1 0707-0709
266 CLIP; NYLON TUBE
ID=39 H=28 L=32 		1-09701-263-0 03 1 0710-0710
266 CLIP; NYLON TUBE
ID=39 H=28 L=32 		1-09701-263-0 02 1 0710-0904
266 CLIP; NYLON TUBE
ID=34.5 H=23 L=27.5 		1-09700-905-0 02 1 0905-
269 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 07 1 0905-
269 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 09 1 0707-0904
269 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 02 1 0905-
284 CLIP; FLEX HOSE
ID=14.5 L=20 		1-09701-012-0 04 1 0707-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 26 1 0707-0801
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 28 1 0802-
297 NUT; BRKT
M8 FLANGE 		0-91180-208-0 02 1 0707-0801
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0707-
313 NUT; PIPE CLIP
M8 FLANGE 		0-91180-208-0 02 1 0707-0801
313 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0802-
372 BOLT; CLIP BRKT
EXC. UNDER FOLLR COCKPIT<Y53> M8X25 FLANGE 		0-28650-825-0 14 1 0907-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 50 1 0801-0906
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 36 1 0907-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 54 1 0707-0712
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0801-
372 BOLT; CLIP BRKT
M8X40 FLANGE 		0-28650-840-0 04 1 0707-
372 BOLT; CLIP BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0707-

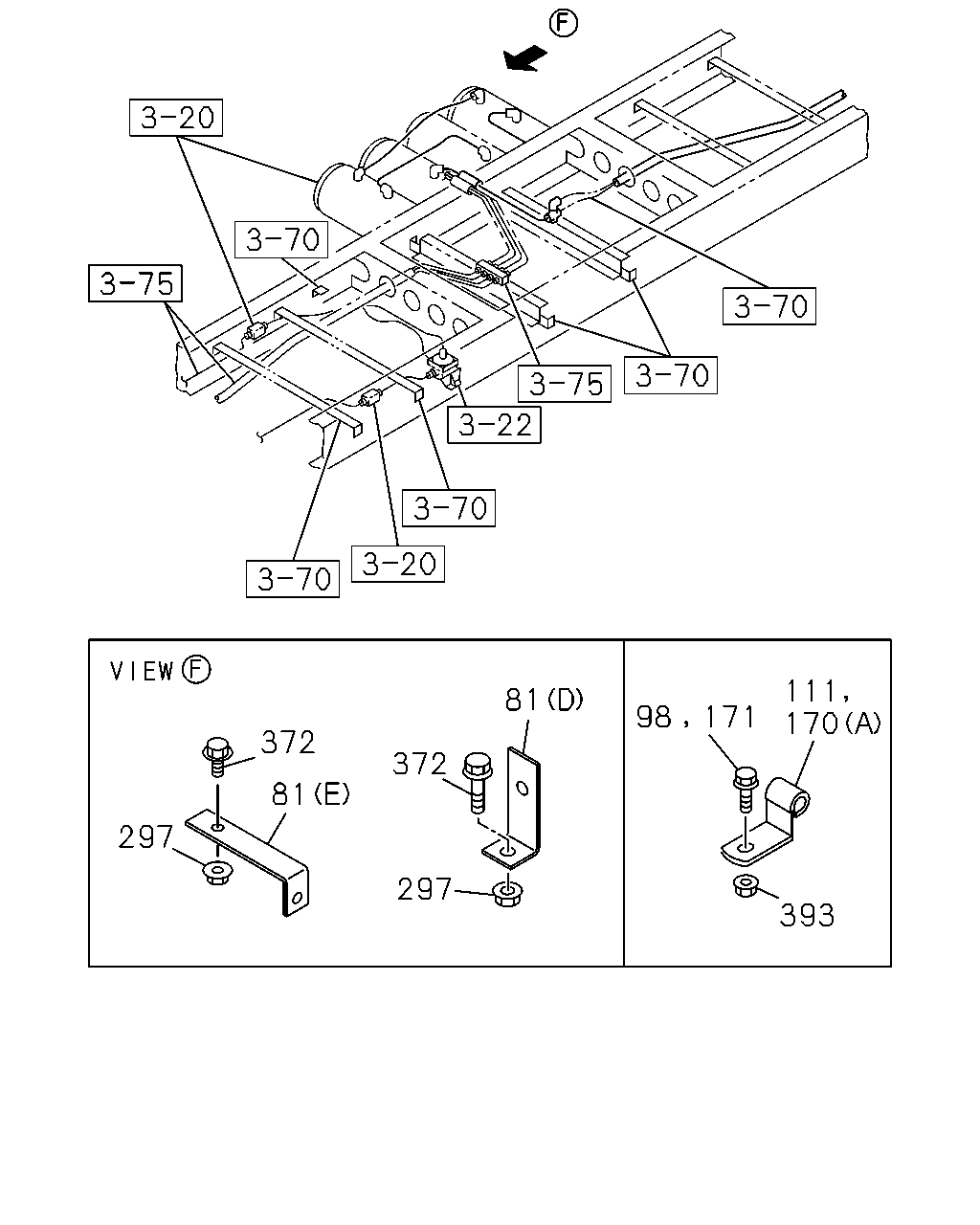

çizim 177979
111 170 81 98 171 372 372 81 297 297 393
BalonParca AdiParca NoAdetTipApplied Date
67 BRACKET; CLIP
UNDER FOLLR COCKPIT<Y53> 		1-47471-434-0 01 1 0907-
81 BRACKET; CLIP
(B) 		1-47471-254-0 12 1 0707-
81 BRACKET; CLIP
(C) 		1-47471-256-0 05 1 0707-
81 BRACKET; CLIP
(D) L=68 		1-47475-525-0 01 1 0707-
81 BRACKET; CLIP
(A) 		1-47478-422-0 01 1 0707-
81 BRACKET; CLIP
(E) L=95 		1-82699-085-0 01 1 0707-0904
81 BRACKET; CLIP
(E) L=115 H=30 		1-47477-715-3 01 1 0905-
98 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 1112-
111 CLIP; AIR PIPE
ID=25 H=30 L=35 		1-09700-875-0 01 1 1112-
170 CLIP; NYLON TUBE
(A) ID=39 H=28 L=32 		1-09701-263-0 01 1 0707-0712
170 CLIP; NYLON TUBE
(A) ID=39 H=28 L=32 		1-09701-263-0 02 1 0801-
170 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 13 1 0707-0712
170 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 12 1 0801-1306
170 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 13 1 1307-
171 BOLT; TUBE CLIP
EXC. UNDER FOLLR COCKPIT<Y53> M8X25 FLANGE 		0-28650-825-0 02 1 0907-
171 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0707-0712
171 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0801-0906
171 BOLT; TUBE CLIP
UNDER FOLLR COCKPIT<Y53> M8X25 FLANGE 		0-28650-825-0 01 1 0907-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 26 1 0707-0801
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 28 1 0802-
297 NUT; BRKT
M8 FLANGE 		0-91180-208-0 02 1 0707-0801
372 BOLT; CLIP BRKT
EXC. UNDER FOLLR COCKPIT<Y53> M8X25 FLANGE 		0-28650-825-0 14 1 0907-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 50 1 0801-0906
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 36 1 0907-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 54 1 0707-0712
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0801-
372 BOLT; CLIP BRKT
M8X40 FLANGE 		0-28650-840-0 04 1 0707-
372 BOLT; CLIP BRKT
M12X35 FLANGE 		0-28651-235-0 04 1 0707-
393 NUT; UNION
EXC. UNDER FOLLR COCKPIT<Y53> M8 FLANGE 		0-91180-108-0 02 1 0907-
393 NUT; UNION
M8 FLANGE 		0-91180-108-0 01 1 0707-0712
393 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 0801-0906
393 NUT; UNION
UNDER FOLLR COCKPIT<Y53> M8 FLANGE 		0-91180-108-0 01 1 0907-

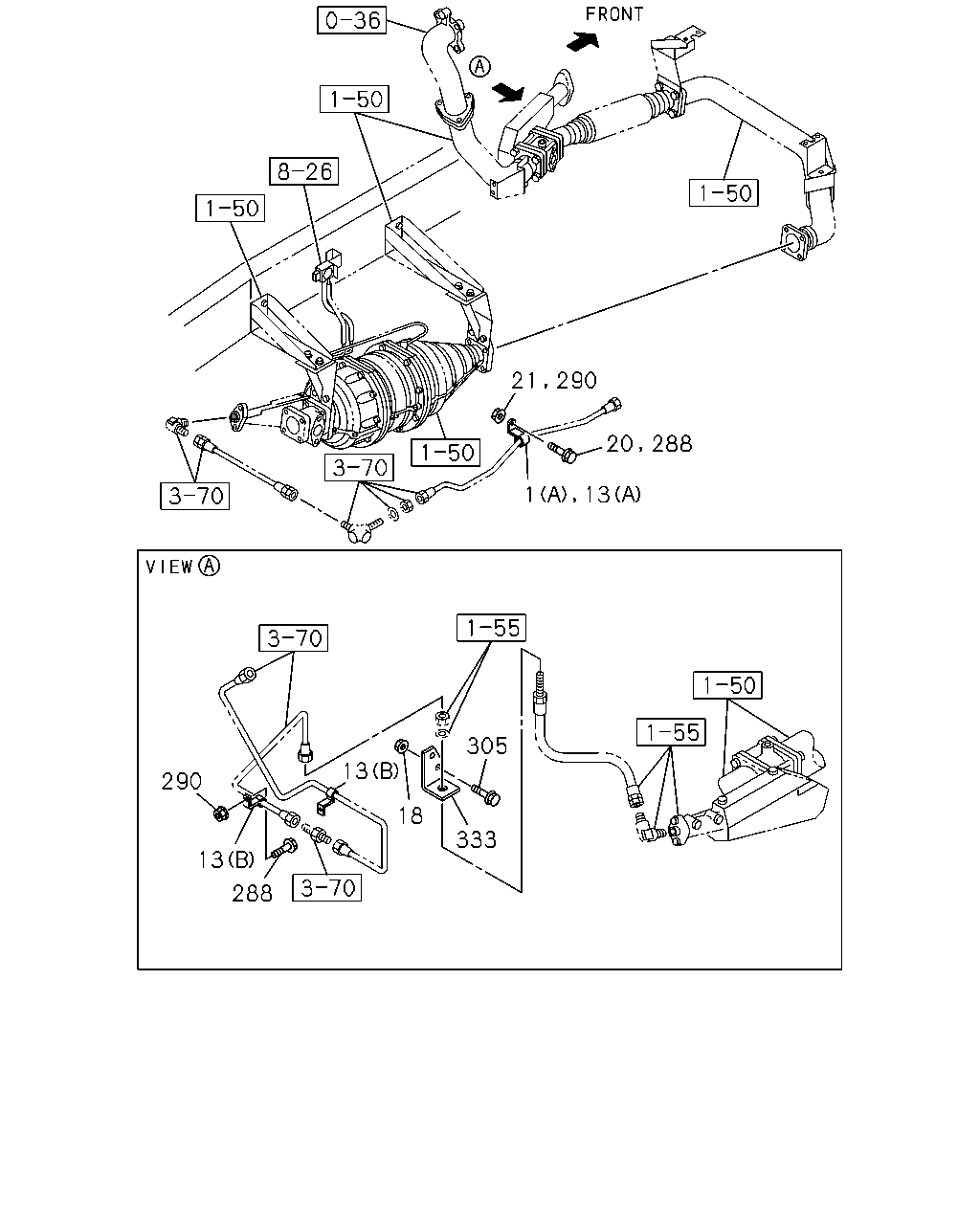

çizim 177983
21 290 13 1 305 13 290 18 333 13 288 20 288
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 03 1 0707-0711
1 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 04 1 0712-
1 CLIP; AIR PIPE
(B) ID=6.35 & 15 		1-09709-276-1 01 1 0707-
13 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0707-
13 CLIP; AIR PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 01 1 0707-
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712-
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0707-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0707-0711
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 04 1 0712-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 03 1 0707-
67 BRACKET; CLIP
UNDER FOLLR COCKPIT<Y53> 		1-47471-434-0 01 1 0907-
288 BOLT; CLIP,AIR PIPE
M8X30 FLANGE 		0-28650-830-0 02 1 0707-
290 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 0707-
305 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0707-
333 BRACKET; BRK AIR PIPE 1-47475-721-0 01 1 0707-
