◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11100 - LV434(LHD) EURO4 ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#39351) — 88 parça

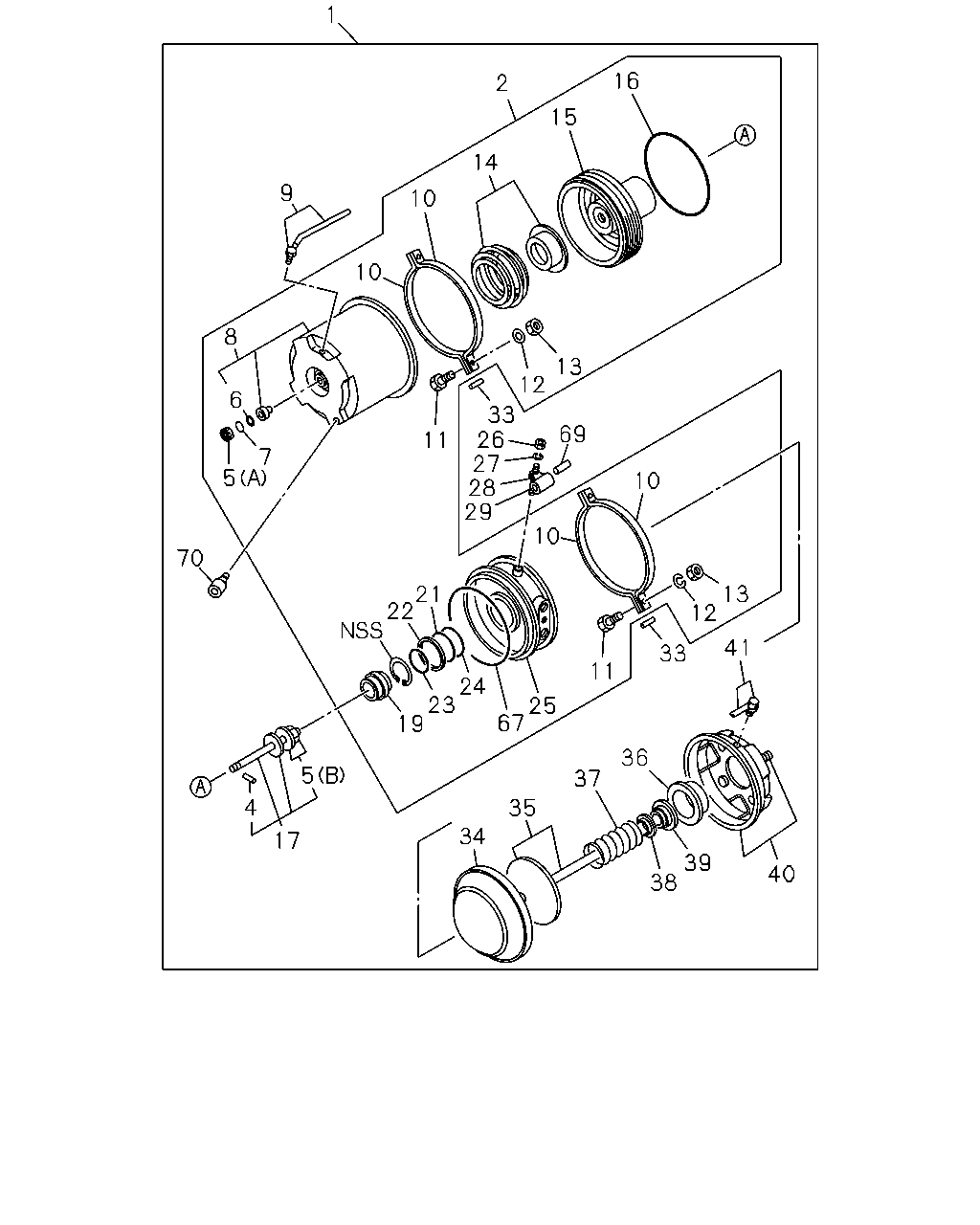

çizim 177968
1 16 2 15 14 9 10 10 8 13 12 6 33 26 27 28 29 69 11 7 5 10 10 70 13 12 21 22 41 33 11 24 23 19 25 67 36 5 37 4 35 34 17 39 38 40
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
FINAL GEAR 39/7 17.5"(W3Z) 		1-48250-732-1 01 1 0707-0906
1 CHAMBER ASM; SPRING 1-48250-732-1 01 1 0907-
1 CHAMBER ASM; SPRING
FINAL GEAR 39/7 17.5"(W3Z) 		1-48250-733-1 01 1 0707-0906
1 CHAMBER ASM; SPRING 1-48250-733-1 01 1 0907-
2 CHAMBER; EMERGENCY
FINAL GEAR 39/7 17.5"(W3Z) 		1-48252-014-0 01 1 0707-0906
2 CHAMBER; EMERGENCY 1-48252-014-0 01 1 0907-
2 CHAMBER; EMERGENCY
FINAL GEAR 39/7 17.5"(W3Z) 		1-48252-015-0 01 1 0707-0906
2 CHAMBER; EMERGENCY 1-48252-015-0 01 1 0907-
4 PIN; STRAIGHT,SPR CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-056-0 04 1 0707-0906
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 0907-
5 NUT; SHELL
FINAL GEAR 39/7 17.5"(W3Z) (A) 		1-48259-054-0 02 1 0707-0906
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 0907-
5 NUT; SHELL
FINAL GEAR 39/7 17.5"(W3Z) (B) 		1-48259-074-0 02 1 0707-0906
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 0907-
6 GASKET; SHELL
FINAL GEAR 39/7 17.5"(W3Z) 		9-09920-268-0 02 1 0707-0906
6 GASKET; SHELL 9-09920-268-0 02 1 0907-
7 GASKET
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-055-0 02 1 0707-0906
7 GASKET 1-48259-055-0 02 1 0907-
8 SHELL; CYL,SPR CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-069-0 01 1 0707-0906
8 SHELL; CYL,SPR CHAMBER 1-48259-069-0 01 1 0907-
8 SHELL; CYL,SPR CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-070-0 01 1 0707-0906
8 SHELL; CYL,SPR CHAMBER 1-48259-070-0 01 1 0907-
9 PIPE ASM; SHELL
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-076-0 02 1 0707-0906
9 PIPE ASM; SHELL 1-48259-076-0 02 1 0907-
10 RING; CLAMP,SPR CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-016-0 08 1 0707-0906
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 08 1 0907-
11 BOLT; CLAMP RING
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-092-0 08 1 0707-0906
11 BOLT; CLAMP RING 1-48259-092-0 08 1 0907-
12 WASHER; LK,CLAMP RING
FINAL GEAR 39/7 17.5"(W3Z) ID=10.2 		9-09150-510-0 08 1 0707-0906
12 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 08 1 0907-
13 NUT; CLAMP RING
FINAL GEAR 39/7 17.5"(W3Z) 		9-83315-080-0 08 1 0707-0906
13 NUT; CLAMP RING 9-83315-080-0 08 1 0907-
14 SPRING & SEAT SET
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-037-1 02 1 0707-0906
14 SPRING & SEAT SET 1-48259-037-1 02 1 0907-
15 PISTON
FINAL GEAR 39/7 17.5"(W3Z) 		1-48262-005-0 02 1 0707-0906
15 PISTON 1-48262-005-0 02 1 0907-
16 GASKET
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-048-0 02 1 0707-0906
16 GASKET 1-48259-048-0 02 1 0907-
17 BOLT ASM; EMERGENCY
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-073-0 02 1 0707-0906
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 0907-
19 COVER; PISTON
FINAL GEAR 39/7 17.5"(W3Z) 		1-48269-011-0 02 1 0707-0906
19 COVER; PISTON 1-48269-011-0 02 1 0907-
21 GASKET; SPR CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-049-0 02 1 0707-0906
21 GASKET; SPR CHAMBER 1-48259-049-0 02 1 0907-
22 RING; BACKUP,SPR CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-019-0 02 1 0707-0906
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 0907-
23 GASKET; SPR CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-047-0 02 1 0707-0906
23 GASKET; SPR CHAMBER 1-48259-047-0 02 1 0907-
24 BEARING; SPR CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-020-0 02 1 0707-0906
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 0907-
25 PLATE; PRESSURE,SPR CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-077-0 01 1 0707-0906
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-077-0 01 1 0907-
25 PLATE; PRESSURE,SPR CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-078-0 01 1 0707-0906
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-078-0 01 1 0907-
26 NUT; PRESSURE PLATE
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-058-0 04 1 0707-0906
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 0907-
27 WASHER; PRESSURE PLATE
FINAL GEAR 39/7 17.5"(W3Z) ID=8.2 		9-09150-508-0 02 1 0707-0906
27 WASHER; PRESSURE PLATE
ID=8.2 		9-09150-508-0 02 1 0907-
28 BRACKET; PRESSURE PLATE,HOSE
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-059-0 02 1 0707-0906
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 0907-
29 STUD; PRESSURE PLATE
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-050-0 02 1 0707-0906
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 0907-
33 RETAINER; DIAPH
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-044-0 04 1 0707-0906
33 RETAINER; DIAPH 1-48259-044-0 04 1 0907-
34 DIAPHRAGM
FINAL GEAR 39/7 17.5"(W3Z) 		1-48252-056-0 02 1 0707-0906
34 DIAPHRAGM 1-48252-056-0 02 1 0907-
35 PLATE; ROD END,SPR CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) 		1-48253-062-0 02 1 0707-0906
35 PLATE; ROD END,SPR CHAMBER 1-48253-062-0 02 1 0907-
36 RETAINER; SPR CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-043-0 02 1 0707-0906
36 RETAINER; SPR CHAMBER 1-48259-043-0 02 1 0907-
37 SPRING; LWR,SPR CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) 		1-48255-016-0 02 1 0707-0906
37 SPRING; LWR,SPR CHAMBER 1-48255-016-0 02 1 0907-
38 COVER; ROD & PLATE
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-066-0 02 1 0707-0906
38 COVER; ROD & PLATE 1-48259-066-0 02 1 0907-
39 COVER; ROD & PLATE
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-065-0 02 1 0707-0906
39 COVER; ROD & PLATE 1-48259-065-0 02 1 0907-
40 COVER ASM; LWR,SPR CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-067-1 01 1 0707-0906
40 COVER ASM; LWR,SPR CHAMBER 1-48259-067-1 01 1 0907-
40 COVER ASM; LWR,SPR CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-068-1 01 1 0707-0906
40 COVER ASM; LWR,SPR CHAMBER 1-48259-068-1 01 1 0907-
41 PIPE ASM; LWR COVER
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-075-0 02 1 0707-0906
41 PIPE ASM; LWR COVER 1-48259-075-0 02 1 0907-
67 GASKET; SPR CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-053-0 02 1 0707-0906
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 0907-
69 HOSE; PRESSURE PLATE
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-051-0 02 1 0707-0906
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 0907-
70 COVER; EXH,SPR CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) 		1-48259-052-0 02 1 0707-0906
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 02 1 0907-
