Sayfa 0-50 - Isuzu EPC

0-50 — OIL COOLER AND OIL FILTER (#3935) — 444 parça

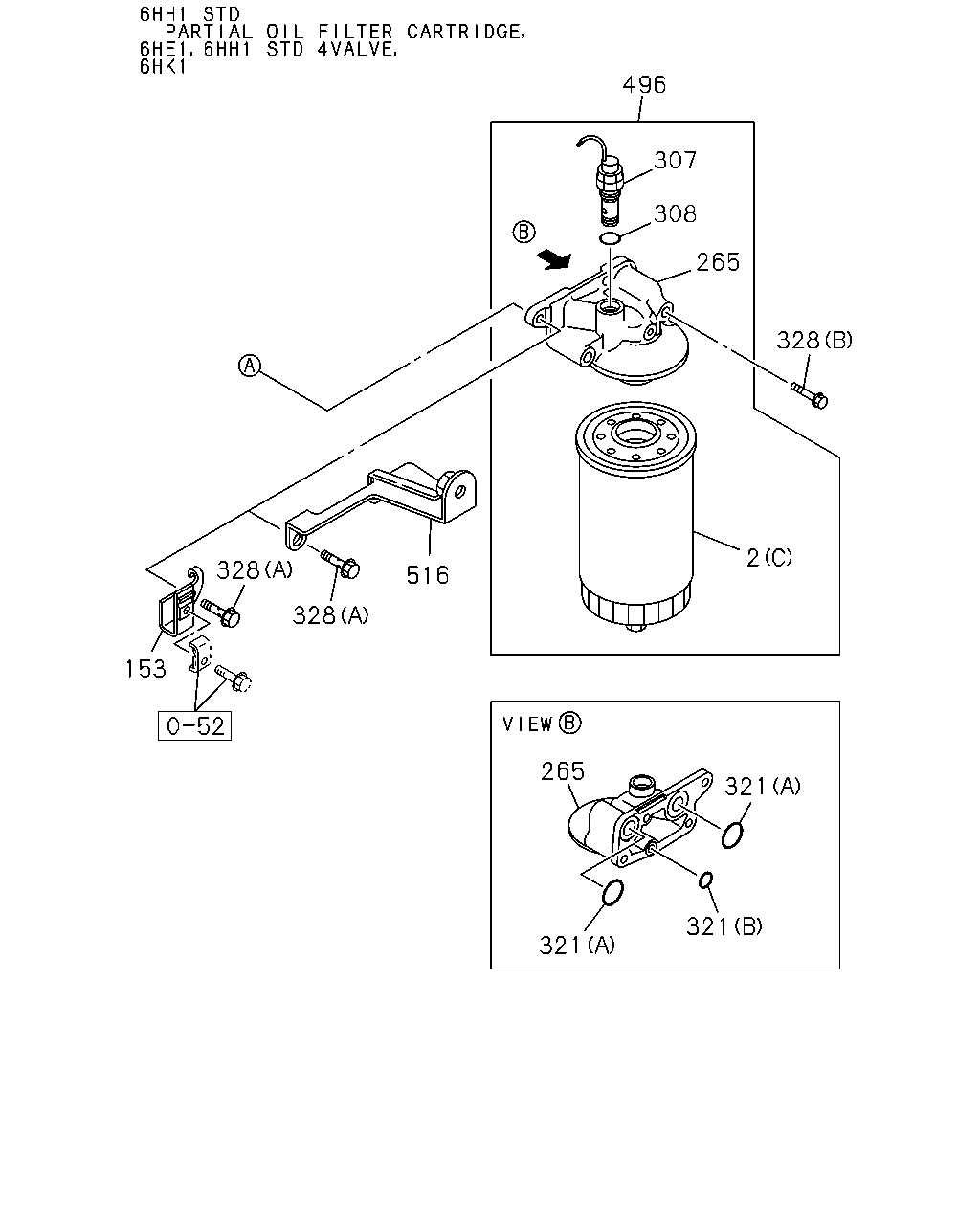

496 307 308 265 328 2 328 516 328 153 265 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94396-375-4	01	1	9510-9609	●
2	ELEMENT; OIL FILTER (C)	8-94396-375-4	01	1	9510-9609		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94391-049-0	01	1	9610-0004	●
2	ELEMENT; OIL FILTER (C)	8-94391-049-0	01	1	9610-0004		●	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94391-049-2	01	1	0005-0607	●
2	ELEMENT; OIL FILTER (C)	8-94391-049-2	01	1	0005-0607		●	●	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94391-049-4	01	1	0608-	●
2	ELEMENT; OIL FILTER (C)	8-94391-049-4	01	1	0608-		●	●	●	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13240-132-0	01	1	9510-0904	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	8-98140-515-0	01	1	0905-1406	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	8-98274-487-0	01	1	1407-	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-87810-372-1	01	1	9510-1406	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	8-98274-486-0	01	1	1407-	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) BEST VALUE PARTS	1-87610-064-0	01	1	0608-	●
2	ELEMENT; OIL FILTER (C) BEST VALUE PARTS	1-87610-064-0	01	1	0608-		●	●	●	●
153	BRACKET; OIL PIPE	8-94392-297-0	01	1	0608-					●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-701-0	01	1	9510-9609	●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-016-2	01	1	9610-0004	●
265	BODY; OIL FILTER	8-94391-016-2	01	1	9610-0004			●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-016-3	01	1	0005-0106	●
265	BODY; OIL FILTER EURO2 SPECIFICATION<THN>	8-94391-016-3	01	1	0005-0106		●		●
265	BODY; OIL FILTER	8-94391-016-3	01	1	0005-0106			●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-016-4	01	1	0107-0607	●
265	BODY; OIL FILTER EURO2 SPECIFICATION<THN>	8-94391-016-4	01	1	0107-0607		●
265	BODY; OIL FILTER	8-94391-016-4	01	1	0107-0607			●
265	BODY; OIL FILTER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-016-4	01	1	0107-0607				●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-016-4	01	1	0608-	●
265	BODY; OIL FILTER EURO2 SPECIFICATION<THN>	8-94391-016-4	01	1	0608-		●
265	BODY; OIL FILTER	8-94391-016-4	01	1	0608-			●		●
265	BODY; OIL FILTER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-016-4	01	1	0608-				●
265	BODY; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94393-503-0	01	1	9510-	●
265	BODY; OIL FILTER	8-94394-001-1	01	1	9511-9609		●
265	BODY; OIL FILTER	8-94391-020-0	01	1	9610-9709		●
265	BODY; OIL FILTER EXC. EURO2 SPECIFICATION<THN>	8-94391-020-2	01	1	9710-0004		●
265	BODY; OIL FILTER EXC. EURO2 SPECIFICATION<THN>	8-94391-020-4	01	1	0005-		●
265	BODY; OIL FILTER EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-020-4	01	1	0005-				●
307	VALVE; OVERFLOW PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-700-0	01	1	9510-9603	●
307	VALVE; OVERFLOW PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-700-0	01	1	9604-9607	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	9604-9607		●
307	VALVE; OVERFLOW PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-700-0	01	1	9610-0004	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	9610-0004		●	●
307	VALVE; OVERFLOW PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-700-0	01	1	0005-0607	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	0005-0607		●	●	●
307	VALVE; OVERFLOW PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-700-0	01	1	0608-	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	0608-		●	●	●	●
307	VALVE; OVERFLOW PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13260-066-1	01	1	9510-9809	●
307	VALVE; OVERFLOW PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97015-672-0	01	1	9810-	●
307	VALVE; OVERFLOW	8-94393-829-0	01	1	9511-9603		●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9510-0004	●	●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0005-0607	●	●	●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0608-	●	●	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9510-0004	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0005-0106	●	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94399-339-0	01	1	0107-0607	●	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=9.8	8-94399-339-0	01	1	0107-0607	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94399-339-0	01	1	0608-	●	●	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=9.8	8-94399-339-0	01	1	0608-	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9510-0004	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	0005-0607	●	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	0608-	●	●	●	●	●
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE	0-28181-090-0	02	1	9510-0004	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28181-090-0	02	1	9510-0004		●	●
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE	0-28181-090-0	02	1	0005-0512	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28181-090-0	02	1	0005-0512		●	●	●
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE	0-28151-090-0	02	1	0601-0607	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0601-0607		●	●	●
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE	0-28151-090-0	02	1	0608-	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0608-		●	●	●	●
328	BOLT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) M10X135	8-94397-139-1	03	1	9510-	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28181-030-0	02	1	9510-0004	●	●	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28181-030-0	02	1	0005-0512	●	●	●	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0601-0607	●	●	●	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0608-	●	●	●	●	●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-686-0	01	1	9510-9609	●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-015-2	01	1	9610-0004	●
496	FILTER ASM; OIL	8-94391-015-2	01	1	9610-0004			●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-015-3	01	1	0005-0106	●
496	FILTER ASM; OIL EURO2 SPECIFICATION<THN>	8-94391-015-3	01	1	0005-0106		●		●
496	FILTER ASM; OIL	8-94391-015-3	01	1	0005-0106			●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-015-5	01	1	0107-0607	●
496	FILTER ASM; OIL EURO2 SPECIFICATION<THN>	8-94391-015-5	01	1	0107-0607		●
496	FILTER ASM; OIL	8-94391-015-5	01	1	0107-0607			●
496	FILTER ASM; OIL EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-015-5	01	1	0107-0607				●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-015-8	01	1	0608-	●
496	FILTER ASM; OIL EURO2 SPECIFICATION<THN>	8-94391-015-8	01	1	0608-		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	0608-			●		●
496	FILTER ASM; OIL EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-015-8	01	1	0608-				●
496	FILTER ASM; OIL PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94393-427-1	01	1	9510-9809	●
496	FILTER ASM; OIL PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94392-898-2	01	1	9810-1406	●
496	FILTER ASM; OIL PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-98274-485-0	01	1	1407-	●
496	FILTER ASM; OIL	8-94393-998-1	01	1	9511-9603		●
496	FILTER ASM; OIL	8-94390-794-0	01	1	9604-9609		●
496	FILTER ASM; OIL	8-94391-018-0	01	1	9610-9709		●
496	FILTER ASM; OIL EXC. EURO2 SPECIFICATION<THN>	8-94391-018-2	01	1	9710-0004		●
496	FILTER ASM; OIL EXC. EURO2 SPECIFICATION<THN>	8-94391-018-8	01	1	0005-		●
496	FILTER ASM; OIL EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-018-8	01	1	0005-				●
516	BRACKET; COVER CAUTIONS ARABIAN<WJ7>	8-94394-986-2	01	1	0211-	●
516	BRACKET; COVER CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2)	8-94394-986-2	01	1	9510-0004	●

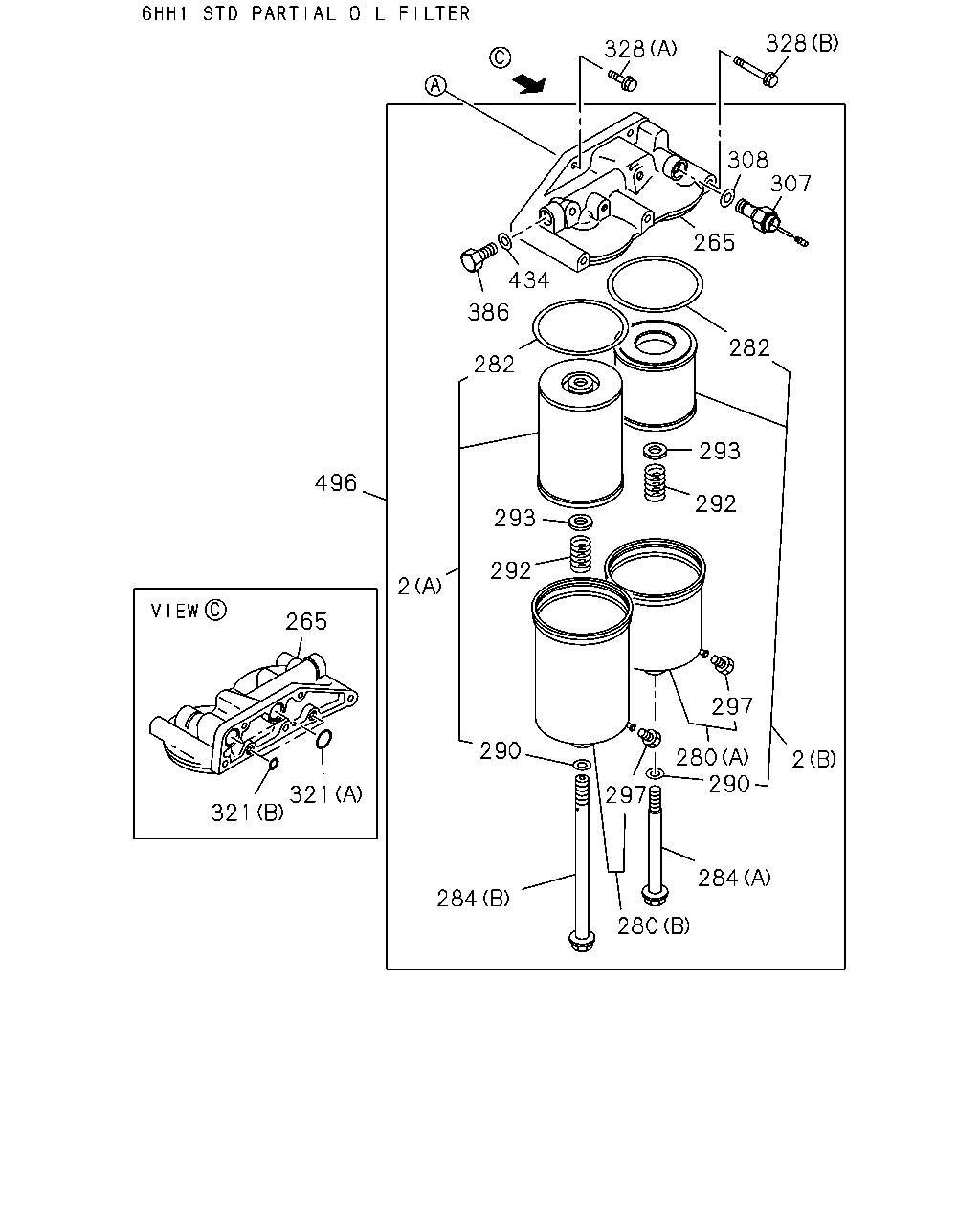

328 328 308 307 265 434 386 282 282 293 496 292 293 292 2 265 297 290 280 290 2 297 321 321 284 284 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94396-375-4	01	1	9510-9609	●
2	ELEMENT; OIL FILTER (C)	8-94396-375-4	01	1	9510-9609		●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94391-049-0	01	1	9610-0004	●
2	ELEMENT; OIL FILTER (C)	8-94391-049-0	01	1	9610-0004		●	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94391-049-2	01	1	0005-0607	●
2	ELEMENT; OIL FILTER (C)	8-94391-049-2	01	1	0005-0607		●	●	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C)	8-94391-049-4	01	1	0608-	●
2	ELEMENT; OIL FILTER (C)	8-94391-049-4	01	1	0608-		●	●	●	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13240-132-0	01	1	9510-0904	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	8-98140-515-0	01	1	0905-1406	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	8-98274-487-0	01	1	1407-	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-87810-372-1	01	1	9510-1406	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	8-98274-486-0	01	1	1407-	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (C) BEST VALUE PARTS	1-87610-064-0	01	1	0608-	●
2	ELEMENT; OIL FILTER (C) BEST VALUE PARTS	1-87610-064-0	01	1	0608-		●	●	●	●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-701-0	01	1	9510-9609	●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-016-2	01	1	9610-0004	●
265	BODY; OIL FILTER	8-94391-016-2	01	1	9610-0004			●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-016-3	01	1	0005-0106	●
265	BODY; OIL FILTER EURO2 SPECIFICATION<THN>	8-94391-016-3	01	1	0005-0106		●		●
265	BODY; OIL FILTER	8-94391-016-3	01	1	0005-0106			●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-016-4	01	1	0107-0607	●
265	BODY; OIL FILTER EURO2 SPECIFICATION<THN>	8-94391-016-4	01	1	0107-0607		●
265	BODY; OIL FILTER	8-94391-016-4	01	1	0107-0607			●
265	BODY; OIL FILTER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-016-4	01	1	0107-0607				●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-016-4	01	1	0608-	●
265	BODY; OIL FILTER EURO2 SPECIFICATION<THN>	8-94391-016-4	01	1	0608-		●
265	BODY; OIL FILTER	8-94391-016-4	01	1	0608-			●		●
265	BODY; OIL FILTER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-016-4	01	1	0608-				●
265	BODY; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94393-503-0	01	1	9510-	●
265	BODY; OIL FILTER	8-94394-001-1	01	1	9511-9609		●
265	BODY; OIL FILTER	8-94391-020-0	01	1	9610-9709		●
265	BODY; OIL FILTER EXC. EURO2 SPECIFICATION<THN>	8-94391-020-2	01	1	9710-0004		●
265	BODY; OIL FILTER EXC. EURO2 SPECIFICATION<THN>	8-94391-020-4	01	1	0005-		●
265	BODY; OIL FILTER EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-020-4	01	1	0005-				●
280	CASE ASM; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	8-94393-504-1	01	1	9510-	●
280	CASE ASM; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	8-94393-505-1	01	1	9510-	●
282	GASKET; BODY TO CASE PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09920-311-0	02	1	9510-1406	●
282	GASKET; BODY TO CASE PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-98274-489-0	02	1	1407-	●
284	BOLT; CENTER,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (A)	1-13231-069-0	01	1	9510-	●
284	BOLT; CENTER,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B)	1-13231-070-1	01	1	9510-	●
290	GASKET; PLUG,OIL DRAIN PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=15.5	9-09920-694-0	02	1	9510-1406	●
290	GASKET; PLUG,OIL DRAIN PARTIAL OIL FILTER ELEMENT TYPE<KC1> ID=15.5	8-98274-488-0	02	1	1407-	●
292	SPRING; ELEMENT PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09941-283-0	02	1	9510-	●
293	SEAT; SPR PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-13239-025-0	02	1	9510-	●
297	PLUG; COVER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13219-275-0	02	1	9510-	●
307	VALVE; OVERFLOW PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-700-0	01	1	9510-9603	●
307	VALVE; OVERFLOW PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-700-0	01	1	9604-9607	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	9604-9607		●
307	VALVE; OVERFLOW PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-700-0	01	1	9610-0004	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	9610-0004		●	●
307	VALVE; OVERFLOW PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-700-0	01	1	0005-0607	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	0005-0607		●	●	●
307	VALVE; OVERFLOW PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-700-0	01	1	0608-	●
307	VALVE; OVERFLOW	8-94395-700-0	01	1	0608-		●	●	●	●
307	VALVE; OVERFLOW PARTIAL OIL FILTER ELEMENT TYPE<KC1>	1-13260-066-1	01	1	9510-9809	●
307	VALVE; OVERFLOW PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-97015-672-0	01	1	9810-	●
307	VALVE; OVERFLOW	8-94393-829-0	01	1	9511-9603		●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9510-0004	●	●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0005-0607	●	●	●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	0608-	●	●	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9510-0004	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0005-0106	●	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94399-339-0	01	1	0107-0607	●	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=9.8	8-94399-339-0	01	1	0107-0607	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94399-339-0	01	1	0608-	●	●	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) ID=9.8	8-94399-339-0	01	1	0608-	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9510-0004	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	0005-0607	●	●	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	0608-	●	●	●	●	●
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE	0-28181-090-0	02	1	9510-0004	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28181-090-0	02	1	9510-0004		●	●
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE	0-28181-090-0	02	1	0005-0512	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28181-090-0	02	1	0005-0512		●	●	●
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE	0-28151-090-0	02	1	0601-0607	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0601-0607		●	●	●
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE TYPE<KC2> (B) M10X90 FLANGE	0-28151-090-0	02	1	0608-	●
328	BOLT; OIL FILTER (B) M10X90 FLANGE	0-28151-090-0	02	1	0608-		●	●	●	●
328	BOLT; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> (B) M10X135	8-94397-139-1	03	1	9510-	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28181-030-0	02	1	9510-0004	●	●	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28181-030-0	02	1	0005-0512	●	●	●	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0601-0607	●	●	●	●
328	BOLT; OIL FILTER (A) M10X30 FLANGE	0-28151-030-0	02	1	0608-	●	●	●	●	●
386	PLUG; OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1> M16X9	9-13226-011-0	01	1	9510-	●
434	GASKET; PLUG,OIL FILTER PARTIAL OIL FILTER ELEMENT TYPE<KC1>	9-09920-526-0	01	1	9510-	●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94395-686-0	01	1	9510-9609	●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-015-2	01	1	9610-0004	●
496	FILTER ASM; OIL	8-94391-015-2	01	1	9610-0004			●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-015-3	01	1	0005-0106	●
496	FILTER ASM; OIL EURO2 SPECIFICATION<THN>	8-94391-015-3	01	1	0005-0106		●		●
496	FILTER ASM; OIL	8-94391-015-3	01	1	0005-0106			●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-015-5	01	1	0107-0607	●
496	FILTER ASM; OIL EURO2 SPECIFICATION<THN>	8-94391-015-5	01	1	0107-0607		●
496	FILTER ASM; OIL	8-94391-015-5	01	1	0107-0607			●
496	FILTER ASM; OIL EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-015-5	01	1	0107-0607				●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE TYPE<KC2>	8-94391-015-8	01	1	0608-	●
496	FILTER ASM; OIL EURO2 SPECIFICATION<THN>	8-94391-015-8	01	1	0608-		●
496	FILTER ASM; OIL	8-94391-015-8	01	1	0608-			●		●
496	FILTER ASM; OIL EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-015-8	01	1	0608-				●
496	FILTER ASM; OIL PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94393-427-1	01	1	9510-9809	●
496	FILTER ASM; OIL PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-94392-898-2	01	1	9810-1406	●
496	FILTER ASM; OIL PARTIAL OIL FILTER ELEMENT TYPE<KC1>	8-98274-485-0	01	1	1407-	●
496	FILTER ASM; OIL	8-94393-998-1	01	1	9511-9603		●
496	FILTER ASM; OIL	8-94390-794-0	01	1	9604-9609		●
496	FILTER ASM; OIL	8-94391-018-0	01	1	9610-9709		●
496	FILTER ASM; OIL EXC. EURO2 SPECIFICATION<THN>	8-94391-018-2	01	1	9710-0004		●
496	FILTER ASM; OIL EXC. EURO2 SPECIFICATION<THN>	8-94391-018-8	01	1	0005-		●
496	FILTER ASM; OIL EMISSION SYSTEM ECE REQUIREMENTS<SFV>	8-94391-018-8	01	1	0005-				●

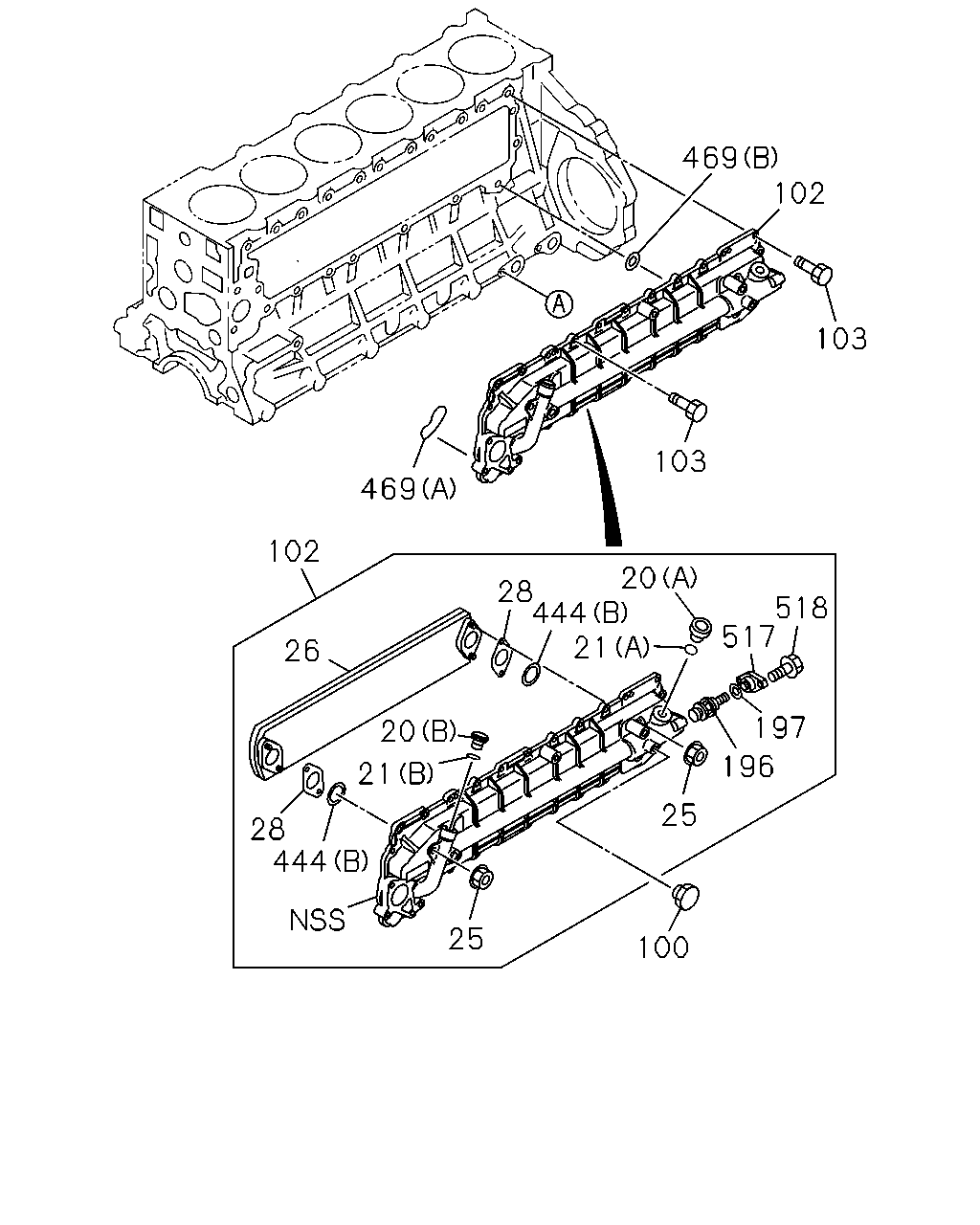

469 102 103 103 469 102 20 28 444 21 518 517 26 197 20 196 21 25 28 444 25 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
20	PLUG; COOLER BODY (A)	8-94396-753-0	01	1	9510-0004	●
20	PLUG; COOLER BODY (A)	8-94396-753-0	01	1	0005-0607	●			●
20	PLUG; COOLER BODY (A)	8-94396-753-0	01	1	0608-	●			●	●
20	PLUG; COOLER BODY (B)	8-94393-604-0	01	1	0005-0607				●
20	PLUG; COOLER BODY (B)	8-94393-604-0	01	1	0608-				●	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9510-0004	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0005-0607	●			●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0608-	●			●	●
21	GASKET; PLUG (B)	1-13219-253-0	01	1	0005-0607				●
21	GASKET; PLUG (B)	1-13219-253-0	01	1	0608-				●	●
25	NUT; CORE TO BODY M10	9-09111-410-0	04	1	9510-0512	●
25	NUT; CORE TO BODY M10	0-91111-510-0	04	1	0601-	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0005-0607				●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0608-				●	●
26	CORE ASM; OIL COOLER	8-94391-739-0	01	1	0608-					●
26	CORE ASM; OIL COOLER	8-94395-711-0	01	1	9510-9612	●
26	CORE ASM; OIL COOLER THERMOSTAT VAR 1<Q1U>	8-94395-712-0	01	1	9701-	●
26	CORE ASM; OIL COOLER EXC. THERMOSTAT VAR 1<Q1U>	8-94395-711-0	01	1	9701-	●
26	CORE ASM; OIL COOLER	8-94391-738-1	01	1	0005-				●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	9510-0004	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	0005-0607	●			●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	0608-	●			●	●
100	PLUG; OIL COOLER EMISSION SYSTEM ECE REQUIREMENTS<SFV> M14	8-94399-225-0	01	1	0005-0607				●
100	PLUG; OIL COOLER EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14	8-94399-225-0	01	1	0005-0607				●
100	PLUG; OIL COOLER EMISSION SYSTEM ECE REQUIREMENTS<SFV> M14	8-94399-225-0	01	1	0608-				●
100	PLUG; OIL COOLER EURO2 SPECIFICATION<THN> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14	8-94399-225-0	01	1	0608-				●
100	PLUG; OIL COOLER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M14	8-94399-225-0	01	1	0608-					●
102	COOLER ASM; OIL	8-94392-620-1	01	1	0608-					●
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENG OIL PUMP HEAVY DUTY<Q1V>	8-94390-074-3	01	1	9510-0004	●
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-074-4	01	1	0005-	●
102	COOLER ASM; OIL EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-075-2	01	1	9510-9612	●
102	COOLER ASM; OIL EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V>	8-94390-075-4	01	1	9701-	●
102	COOLER ASM; OIL ENG OIL PUMP HEAVY DUTY<Q1V> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-077-4	01	1	9701-0208	●
102	COOLER ASM; OIL THERMOSTAT VAR 1<Q1U>	8-94390-077-4	01	1	0608-	●
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94394-992-1	01	1	9511-9802		●
102	COOLER ASM; OIL INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-94394-992-1	01	1	9803-0004		●
102	COOLER ASM; OIL INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EURO2 SPECIFICATION<THN>	8-94394-992-1	01	1	0005-		●
102	COOLER ASM; OIL EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-917-0	01	1	9606-9704		●
102	COOLER ASM; OIL INJ PUMP Q SET SPECIAL -20%Q(T1J)	8-94395-917-0	01	1	9705-0004		●
102	COOLER ASM; OIL INJ PUMP Q SET SPECIAL -20%Q(T1J) EXC. EURO2 SPECIFICATION<THN>	8-94395-917-0	01	1	0005-		●
102	COOLER ASM; OIL EURO2 SPECIFICATION<THN>	8-94390-536-0	01	1	9710-		●
102	COOLER ASM; OIL	8-94390-536-0	01	1	9710-			●
102	COOLER ASM; OIL	8-94392-618-1	01	1	0005-				●
102	COOLER ASM; OIL ENG OIL PUMP HEAVY DUTY<Q1V> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-077-4	01	1	0209-	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9510-	●	●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9510-0512	●	●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	02	1	0601-	●	●	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	24	1	0005-0607				●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	24	1	0608-				●	●
103	BOLT; OIL COOLER EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28080-835-0	03	1	0005-0512				●
103	BOLT; OIL COOLER EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28050-835-0	03	1	0601-				●
103	BOLT; OIL COOLER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28080-835-0	01	1	0011-0512				●
103	BOLT; OIL COOLER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28050-835-0	01	1	0601-0607				●
103	BOLT; OIL COOLER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28050-835-0	01	1	0608-				●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	01	1	0608-					●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	9510-0004	●	●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	0005-0111	●	●	●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-935-0	01	1	0112-		●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0112-0607	●			●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0608-	●			●	●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	9510-0004	●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	0005-0607	●			●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	0608-	●			●	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9510-9709	●	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9710-0004	●	●	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	0005-0607	●	●	●	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	0608-	●	●	●	●	●
444	GASKET; ELEMENT TO BODY (A)	8-94396-754-0	02	1	9511-0004		●
444	GASKET; ELEMENT TO BODY EXC. EURO2 SPECIFICATION<THN> (A)	8-94396-754-0	02	1	0005-		●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<THN> (A)	8-94394-930-0	02	1	9710-		●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	9710-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9510-0004	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0005-0607	●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0608-	●	●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9510-0004	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	0005-0606	●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0607-0607	●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0608-	●	●	●	●	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94395-191-0	01	1	9510-	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-740-0	01	1	0005-0607				●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-740-0	01	1	0608-				●	●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28080-816-0	02	1	9510-0004	●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●			●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	0601-0607	●			●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	0608-	●			●	●

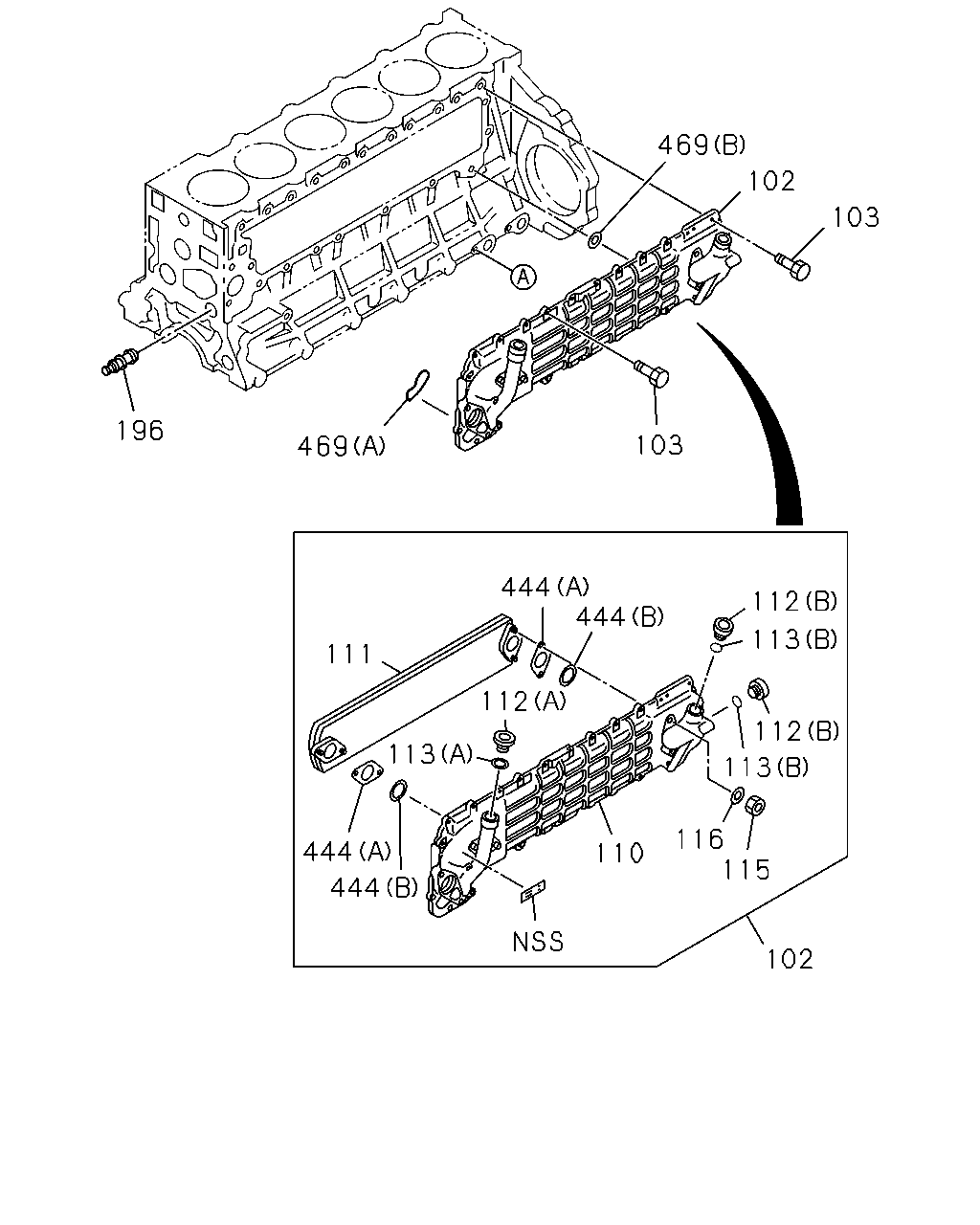

469 102 103 196 103 469 444 444 112 113 111 112 112 113 113 116 115 444 110 444 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
102	COOLER ASM; OIL	8-94392-620-1	01	1	0608-					●
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENG OIL PUMP HEAVY DUTY<Q1V>	8-94390-074-3	01	1	9510-0004	●
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-074-4	01	1	0005-	●
102	COOLER ASM; OIL EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-075-2	01	1	9510-9612	●
102	COOLER ASM; OIL EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V>	8-94390-075-4	01	1	9701-	●
102	COOLER ASM; OIL ENG OIL PUMP HEAVY DUTY<Q1V> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-077-4	01	1	9701-0208	●
102	COOLER ASM; OIL THERMOSTAT VAR 1<Q1U>	8-94390-077-4	01	1	0608-	●
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94394-992-1	01	1	9511-9802		●
102	COOLER ASM; OIL INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-94394-992-1	01	1	9803-0004		●
102	COOLER ASM; OIL INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EURO2 SPECIFICATION<THN>	8-94394-992-1	01	1	0005-		●
102	COOLER ASM; OIL EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-917-0	01	1	9606-9704		●
102	COOLER ASM; OIL INJ PUMP Q SET SPECIAL -20%Q(T1J)	8-94395-917-0	01	1	9705-0004		●
102	COOLER ASM; OIL INJ PUMP Q SET SPECIAL -20%Q(T1J) EXC. EURO2 SPECIFICATION<THN>	8-94395-917-0	01	1	0005-		●
102	COOLER ASM; OIL EURO2 SPECIFICATION<THN>	8-94390-536-0	01	1	9710-		●
102	COOLER ASM; OIL	8-94390-536-0	01	1	9710-			●
102	COOLER ASM; OIL	8-94392-618-1	01	1	0005-				●
102	COOLER ASM; OIL ENG OIL PUMP HEAVY DUTY<Q1V> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-077-4	01	1	0209-	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9510-	●	●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9510-0512	●	●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	02	1	0601-	●	●	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	24	1	0005-0607				●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	24	1	0608-				●	●
103	BOLT; OIL COOLER EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28080-835-0	03	1	0005-0512				●
103	BOLT; OIL COOLER EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28050-835-0	03	1	0601-				●
103	BOLT; OIL COOLER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28080-835-0	01	1	0011-0512				●
103	BOLT; OIL COOLER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28050-835-0	01	1	0601-0607				●
103	BOLT; OIL COOLER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28050-835-0	01	1	0608-				●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	01	1	0608-					●
110	BODY; CASE,OIL COOLER AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94393-606-3	01	1	9511-9802		●
110	BODY; CASE,OIL COOLER INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-94393-606-3	01	1	9803-0004		●
110	BODY; CASE,OIL COOLER INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EURO2 SPECIFICATION<THN>	8-94393-606-3	01	1	0005-		●
110	BODY; CASE,OIL COOLER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94393-602-3	01	1	9606-9704		●
110	BODY; CASE,OIL COOLER INJ PUMP Q SET SPECIAL -20%Q(T1J)	8-94393-602-3	01	1	9705-0004		●
110	BODY; CASE,OIL COOLER INJ PUMP Q SET SPECIAL -20%Q(T1J) EXC. EURO2 SPECIFICATION<THN>	8-94393-602-3	01	1	0005-		●
110	BODY; CASE,OIL COOLER EURO2 SPECIFICATION<THN>	8-94395-283-4	01	1	9710-		●
110	BODY; CASE,OIL COOLER	8-94395-283-4	01	1	9710-			●
111	CORE; OIL COOLER	8-94395-918-0	01	1	9511-0004		●
111	CORE; OIL COOLER EXC. EURO2 SPECIFICATION<THN>	8-94395-918-0	01	1	0005-		●
111	CORE; OIL COOLER EURO2 SPECIFICATION<THN>	8-94390-537-0	01	1	9710-		●
111	CORE; OIL COOLER	8-94390-537-0	01	1	9710-			●
112	PLUG; OIL COOLER CASE (A)	8-94393-604-0	01	1	9511-		●	●
112	PLUG; OIL COOLER CASE (B)	8-94396-753-0	02	1	9511-		●	●
113	GASKET; PLUG,OIL COOLER CASE (A)	1-09623-499-0	01	1	9511-		●	●
113	GASKET; PLUG,OIL COOLER CASE (B) M24	8-94396-755-0	02	1	9511-		●	●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9511-0512		●	●
115	NUT; ELEMENT M10	0-91111-510-0	04	1	0601-		●	●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9511-		●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	9510-0004	●	●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	0005-0111	●	●	●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-935-0	01	1	0112-		●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0112-0607	●			●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0608-	●			●	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9510-9709	●	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9710-0004	●	●	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	0005-0607	●	●	●	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	0608-	●	●	●	●	●
444	GASKET; ELEMENT TO BODY (A)	8-94396-754-0	02	1	9511-0004		●
444	GASKET; ELEMENT TO BODY EXC. EURO2 SPECIFICATION<THN> (A)	8-94396-754-0	02	1	0005-		●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<THN> (A)	8-94394-930-0	02	1	9710-		●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	9710-			●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9510-0004	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0005-0607	●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0608-	●	●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9510-0004	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	0005-0606	●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0607-0607	●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0608-	●	●	●	●	●

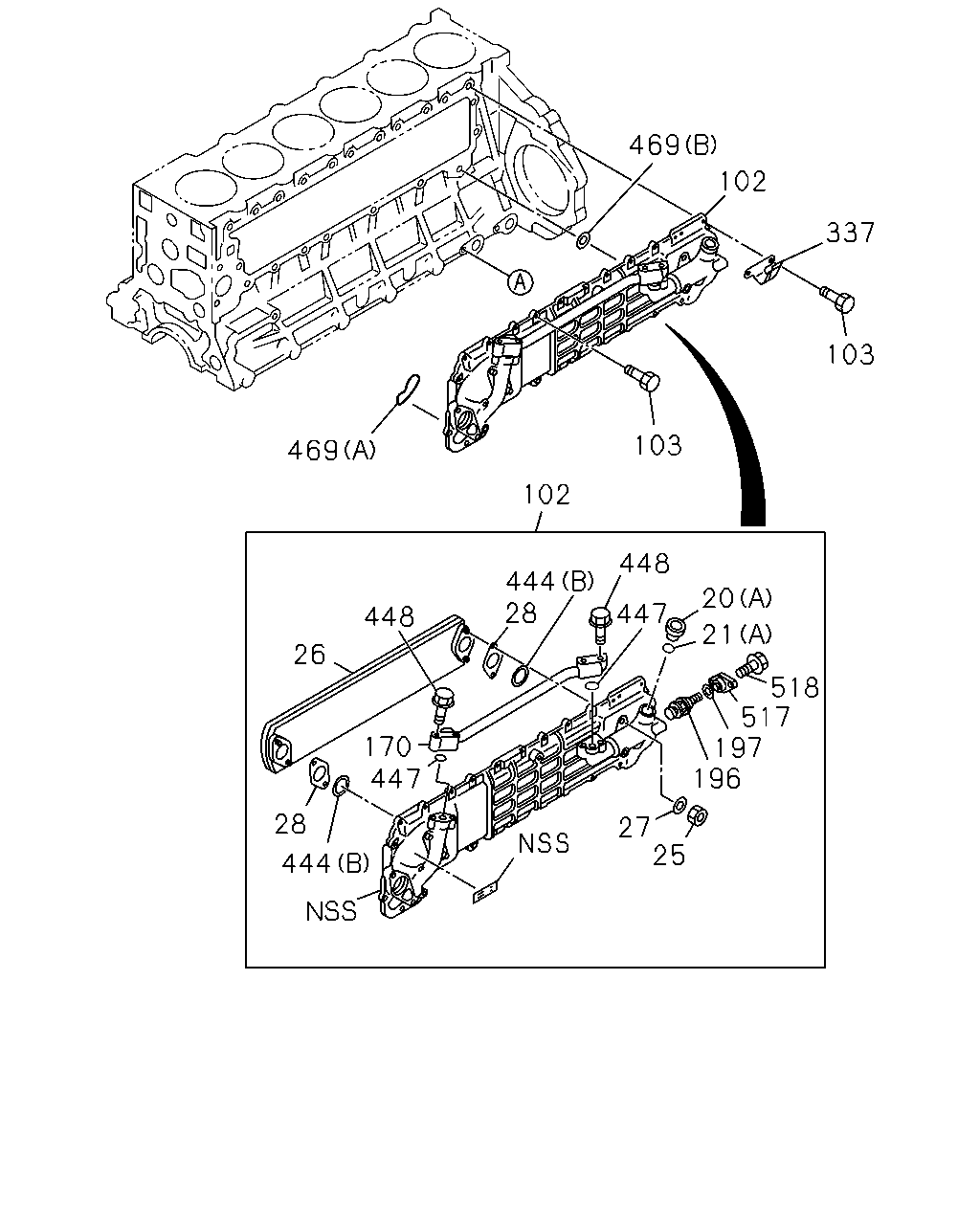

469 102 337 103 103 469 102 448 444 28 20 447 448 21 26 518 517 197 196 170 447 28 27 25 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
20	PLUG; COOLER BODY (A)	8-94396-753-0	01	1	9510-0004	●
20	PLUG; COOLER BODY (A)	8-94396-753-0	01	1	0005-0607	●			●
20	PLUG; COOLER BODY (A)	8-94396-753-0	01	1	0608-	●			●	●
20	PLUG; COOLER BODY (B)	8-94393-604-0	01	1	0005-0607				●
20	PLUG; COOLER BODY (B)	8-94393-604-0	01	1	0608-				●	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	9510-0004	●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0005-0607	●			●
21	GASKET; PLUG (A) M24	8-94396-755-0	01	1	0608-	●			●	●
21	GASKET; PLUG (B)	1-13219-253-0	01	1	0005-0607				●
21	GASKET; PLUG (B)	1-13219-253-0	01	1	0608-				●	●
25	NUT; CORE TO BODY M10	9-09111-410-0	04	1	9510-0512	●
25	NUT; CORE TO BODY M10	0-91111-510-0	04	1	0601-	●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0005-0607				●
25	NUT; CORE TO BODY M10 FLANGE	1-13219-324-0	04	1	0608-				●	●
26	CORE ASM; OIL COOLER	8-94391-739-0	01	1	0608-					●
26	CORE ASM; OIL COOLER	8-94395-711-0	01	1	9510-9612	●
26	CORE ASM; OIL COOLER THERMOSTAT VAR 1<Q1U>	8-94395-712-0	01	1	9701-	●
26	CORE ASM; OIL COOLER EXC. THERMOSTAT VAR 1<Q1U>	8-94395-711-0	01	1	9701-	●
26	CORE ASM; OIL COOLER	8-94391-738-1	01	1	0005-				●
27	WASHER; PL,CORE TO BODY ID=10.5	9-09164-510-0	04	1	9510-	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	9510-0004	●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	0005-0607	●			●
28	GASKET; CORE TO BODY	8-94394-930-0	02	1	0608-	●			●	●
102	COOLER ASM; OIL	8-94392-620-1	01	1	0608-					●
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENG OIL PUMP HEAVY DUTY<Q1V>	8-94390-074-3	01	1	9510-0004	●
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-074-4	01	1	0005-	●
102	COOLER ASM; OIL EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-075-2	01	1	9510-9612	●
102	COOLER ASM; OIL EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENG OIL PUMP HEAVY DUTY<Q1V>	8-94390-075-4	01	1	9701-	●
102	COOLER ASM; OIL ENG OIL PUMP HEAVY DUTY<Q1V> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-077-4	01	1	9701-0208	●
102	COOLER ASM; OIL THERMOSTAT VAR 1<Q1U>	8-94390-077-4	01	1	0608-	●
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94394-992-1	01	1	9511-9802		●
102	COOLER ASM; OIL INJ PUMP Q SET SPECIAL +5%Q(T1A)	8-94394-992-1	01	1	9803-0004		●
102	COOLER ASM; OIL INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EURO2 SPECIFICATION<THN>	8-94394-992-1	01	1	0005-		●
102	COOLER ASM; OIL EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-917-0	01	1	9606-9704		●
102	COOLER ASM; OIL INJ PUMP Q SET SPECIAL -20%Q(T1J)	8-94395-917-0	01	1	9705-0004		●
102	COOLER ASM; OIL INJ PUMP Q SET SPECIAL -20%Q(T1J) EXC. EURO2 SPECIFICATION<THN>	8-94395-917-0	01	1	0005-		●
102	COOLER ASM; OIL EURO2 SPECIFICATION<THN>	8-94390-536-0	01	1	9710-		●
102	COOLER ASM; OIL	8-94390-536-0	01	1	9710-			●
102	COOLER ASM; OIL	8-94392-618-1	01	1	0005-				●
102	COOLER ASM; OIL ENG OIL PUMP HEAVY DUTY<Q1V> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94390-077-4	01	1	0209-	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9510-	●	●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9510-0512	●	●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	02	1	0601-	●	●	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	24	1	0005-0607				●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	24	1	0608-				●	●
103	BOLT; OIL COOLER EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28080-835-0	03	1	0005-0512				●
103	BOLT; OIL COOLER EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28050-835-0	03	1	0601-				●
103	BOLT; OIL COOLER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28080-835-0	01	1	0011-0512				●
103	BOLT; OIL COOLER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28050-835-0	01	1	0601-0607				●
103	BOLT; OIL COOLER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M8X35 FLANGE	0-28050-835-0	01	1	0608-				●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28050-835-0	01	1	0608-					●
170	PIPE; BYPASS	8-94390-078-2	01	1	9510-	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	9510-0004	●	●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-94394-815-2	01	1	0005-0111	●	●	●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-935-0	01	1	0112-		●	●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0112-0607	●			●
196	THERMOSTAT; OIL COOLER 90 CELSIUS	8-97600-936-0	01	1	0608-	●			●	●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	9510-0004	●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	0005-0607	●			●
197	GASKET; THERMOSTAT ID=25.7	8-94399-279-0	01	1	0608-	●			●	●
337	BRACKET; FUEL PIPE	8-94396-688-1	01	1	9510-	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9510-9709	●	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9710-0004	●	●	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	0005-0607	●	●	●	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	0608-	●	●	●	●	●
444	GASKET; ELEMENT TO BODY (A)	8-94396-754-0	02	1	9511-0004		●
444	GASKET; ELEMENT TO BODY EXC. EURO2 SPECIFICATION<THN> (A)	8-94396-754-0	02	1	0005-		●
444	GASKET; ELEMENT TO BODY EURO2 SPECIFICATION<THN> (A)	8-94394-930-0	02	1	9710-		●
444	GASKET; ELEMENT TO BODY (A)	8-94394-930-0	02	1	9710-			●
447	GASKET; BYPASS PIPE ID=17.8	1-09623-588-0	02	1	9510-	●
448	BOLT; BYPASS PIPE M8X30 FLANGE	0-28080-830-0	04	1	9510-0512	●
448	BOLT; BYPASS PIPE M8X30 FLANGE	0-28050-830-0	04	1	0601-	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9510-0004	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0005-0607	●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	0608-	●	●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9510-0004	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	0005-0606	●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0607-0607	●	●	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20	8-98045-449-0	01	1	0608-	●	●	●	●	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94395-191-0	01	1	9510-	●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-740-0	01	1	0005-0607				●
517	PLUG; THERMOSTAT,OIL COOLER	8-94391-740-0	01	1	0608-				●	●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28080-816-0	02	1	9510-0004	●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28080-816-0	02	1	0005-0512	●			●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	0601-0607	●			●
518	BOLT; PLUG,THERMOSTAT M8X16 FLANGE	0-28050-816-0	02	1	0608-	●			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
