Isuzu WW
▶
BUSES
▶
LV
▶
11100 - LV434(LHD) EURO4
▶
3 - Brakes, Brake System
▶
3-22 - AIR CONTROL PARTS
▶
3-22 — AIR CONTROL PARTS
(#39348) — 63 parça
◀
[322A] FIXING NO.2 (16 parça)
[322A] REPAIR KIT;PROTECTION VALVE (2 parça)
[322A] FIXING NO.1 (26 parça)
[322A] COMPONENT AND REPAIR KIT;RELAY VALVE (19 parça)
▶
81
79
14
1
82
25
209
6
14
181
14
107
143
7
154
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; RELAY RWD RR
1-48210-278-0
01
1
0707-
6
BOLT; VLV
M10X40 FLANGE
0-28651-040-0
02
1
0707-0903
6
BOLT; VLV
M10X35 FLANGE
0-28651-035-0
02
1
0904-
7
NUT; RELAY VLV
M10 FLANGE
0-91180-210-0
02
1
0707-
14
CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0707-
14
CONNECTOR; RELAY VLV
(C) DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
0707-
14
CONNECTOR; RELAY VLV
(A) DIN12 & R1/2 STRAIGHT
1-09660-966-0
01
1
0707-
25
SWITCH; PRESSURE
1-82410-163-1
02
1
0707-
79
CONNECTOR; RELAY VLV
DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0707-
81
BRACKET; RELAY VLV,PARKING BRK
1-47471-342-0
01
1
0707-
82
BOLT; BRKT,RELAY VLV
M10X25 FLANGE
0-28651-025-0
02
1
0707-
107
BOLT; VLV
M8X70 FLANGE
0-28050-870-0
02
1
0707-
143
NUT; VLV
M8 FLANGE
0-91180-108-0
02
1
0707-
154
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
0707-1003
181
ADAPTER; PRESSURE SW
M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
0707-
209
CONNECTOR; 3WAY,DEL
1-09656-673-0
01
1
0707-

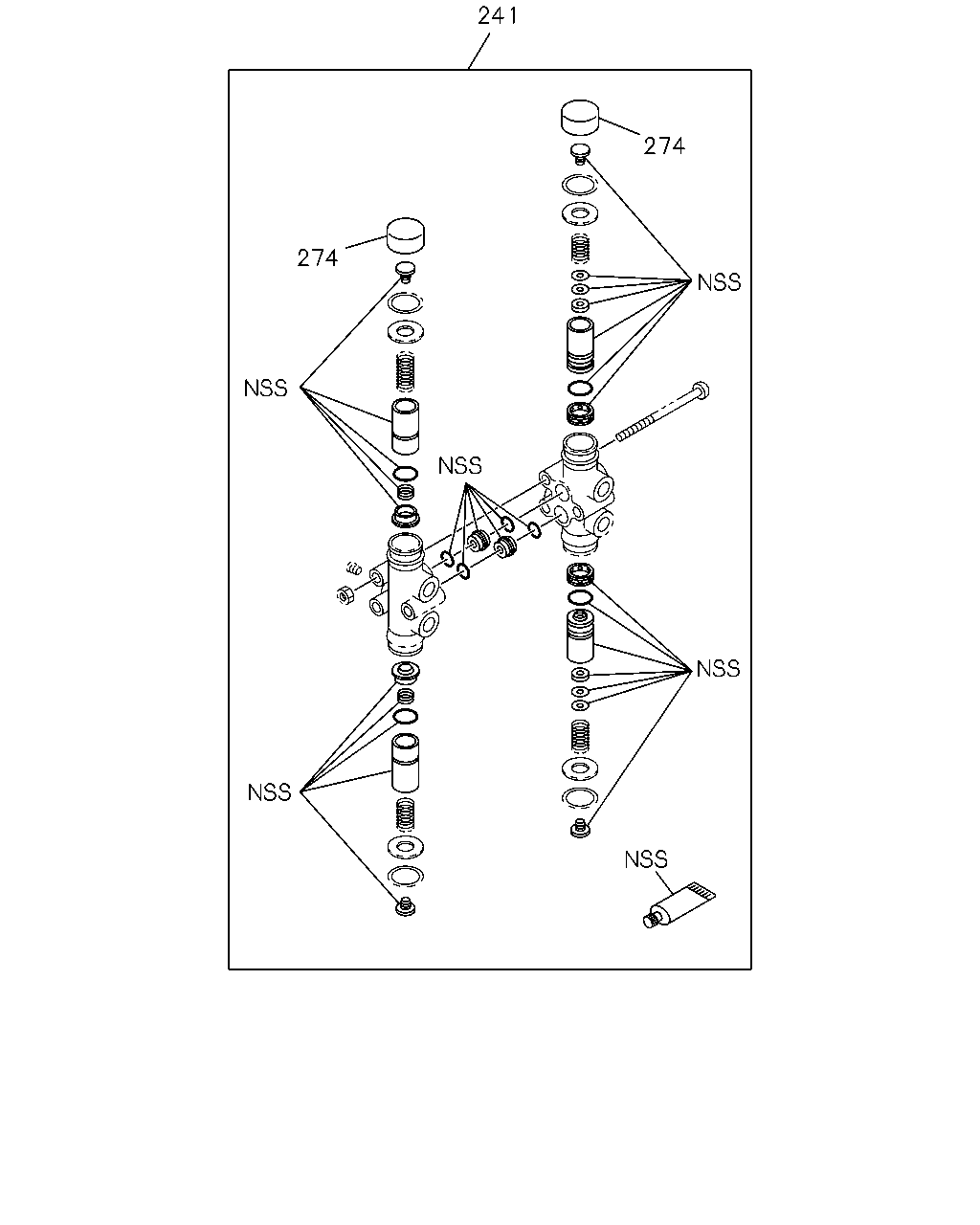

241
274
274
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
241
REPAIR KIT; PROTECTION VALVE
1-85576-224-0
01
1
0707-
274
COVER; DUST
1-48119-450-0
02
1
0707-

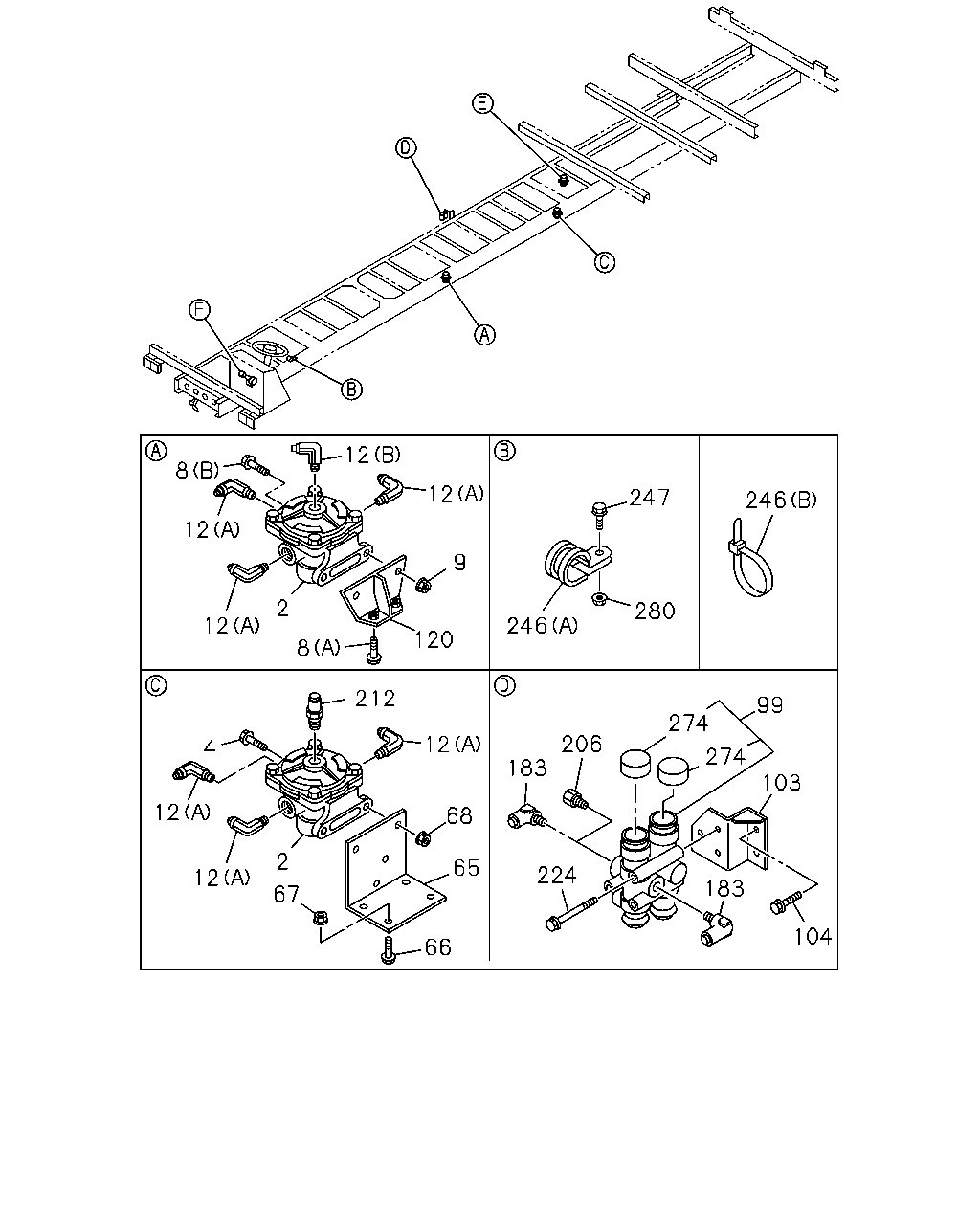

8
12
12
9
247
246
280
246
120
8
2
12
212
12
68
4
12
12
2
67
66
65
183
274
99
274
206
224
183
103
104
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
VALVE; RELAY
1-48210-278-0
01
1
0707-
2
VALVE; RELAY
1-48210-278-0
01
1
0707-
4
BOLT; RELAY VLV TO BRKT
M10X35 FLANGE
0-28651-035-0
02
1
0707-
8
BOLT; BRKT
(A) M10X25 FLANGE
0-28651-025-0
02
1
0707-
8
BOLT; BRKT
(B) M10X35 FLANGE
0-28651-035-0
02
1
0707-
9
NUT
M10 FLANGE
0-91180-210-0
02
1
0707-
12
CONNECTOR; RELAY VLV
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0707-
12
CONNECTOR; RELAY VLV
(A) DIN12 & R1/2 ELBOW
1-09660-960-0
03
1
0707-
12
CONNECTOR; RELAY VLV
(A) DIN12 & R1/2 ELBOW
1-09660-960-0
03
1
0707-
65
BRACKET; RELAY VLV RR
1-47471-343-0
01
1
0707-
66
BOLT; BRKT,RELAY VLV RR
M10X35 FLANGE
0-28651-035-0
02
1
0707-
67
NUT; BRKT,RELAY VLV RR
M10 FLANGE
0-91180-210-0
02
1
0710-
68
NUT; RELAY VLV TO BRKT
M10 FLANGE
0-91180-210-0
02
1
0707-
99
VALVE; PROTECTION
1-48110-103-5
01
1
0707-
103
BRACKET; PROTECTION VALVE
1-47478-544-0
01
1
0707-
104
BOLT; BRKT,VALVE
M8X25 FLANGE
0-28650-825-0
02
1
0707-
120
BRACKET; VLV
1-48219-145-0
01
1
0707-
183
CONNECTOR; PROTECTION VLV
DIN12 & R3/8 ELBOW
1-09660-959-0
05
1
0707-
206
ADAPTER; NYLON TUBE
PT3/8
1-09664-210-0
02
1
0707-
212
CONNECTOR; 2WAY
DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
0707-
224
NUT; PROTECTION VALVE
M8 FLANGE
0-91180-108-0
03
1
0707-
246
CLIP; NYLON TUBE
(B) L=250
1-09707-126-0
03
1
0710-
246
CLIP; NYLON TUBE
(A) ID=19 L=60
0-95235-896-0
01
1
0707-0809
247
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0707-0809
274
COVER; DUST
1-48119-450-0
02
1
0707-
280
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
0707-0809

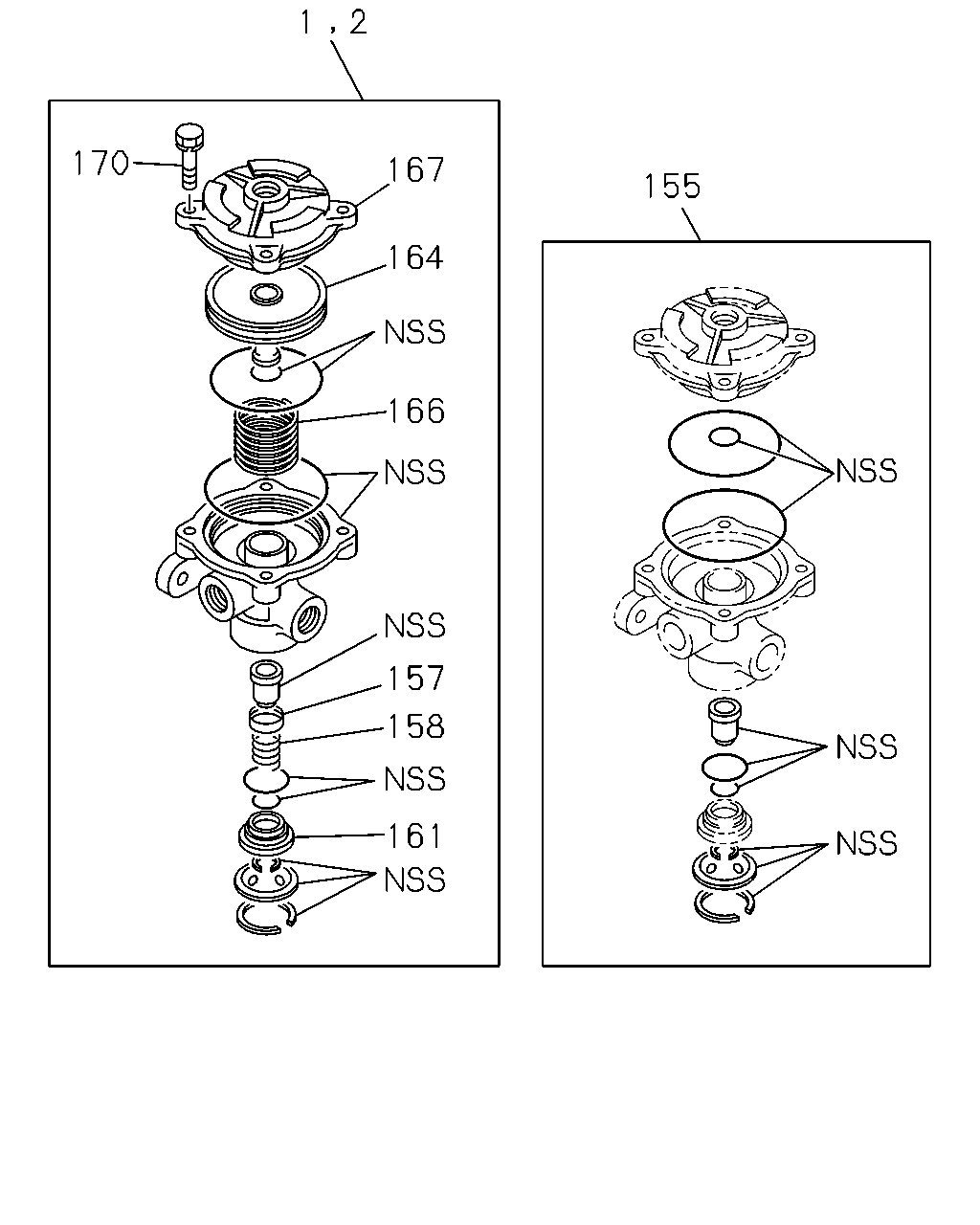

2
1
170
167
155
164
166
157
158
161
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; RELAY RWD RR
1-48210-278-0
01
1
0707-
2
VALVE; RELAY
1-48210-278-0
01
1
0707-
2
VALVE; RELAY
1-48210-278-0
01
1
0707-
155
REPAIR KIT; RELAY VALVE
1-85576-033-0
01
1
0707-
155
REPAIR KIT; RELAY VALVE
1-85576-033-0
02
1
0707-
157
RETAINER; VALVE
1-48213-002-0
01
1
0707-
157
RETAINER; VALVE
1-48213-002-0
02
1
0707-
158
SPRING; VALVE
1-47819-089-0
01
1
0707-
158
SPRING; VALVE
1-47819-089-0
02
1
0707-
161
GUIDE; VALVE
1-48129-014-0
01
1
0707-
161
GUIDE; VALVE
1-48129-014-0
02
1
0707-
164
PISTON; RELAY VALVE
1-48219-071-0
01
1
0707-
164
PISTON; RELAY VALVE
1-48219-071-0
02
1
0707-
166
SPRING; PISTON
1-47819-090-0
01
1
0707-
166
SPRING; PISTON
1-47819-090-0
02
1
0707-
167
COVER; VALVE
1-48219-070-0
01
1
0707-
167
COVER; VALVE
1-48219-070-0
02
1
0707-
170
SCREW; COVER TO BODY
1-48219-039-0
04
1
0707-
170
SCREW; COVER TO BODY
1-48219-039-0
08
1
0707-
