◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LV ▶ 11100 - LV434(LHD) EURO4 ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶

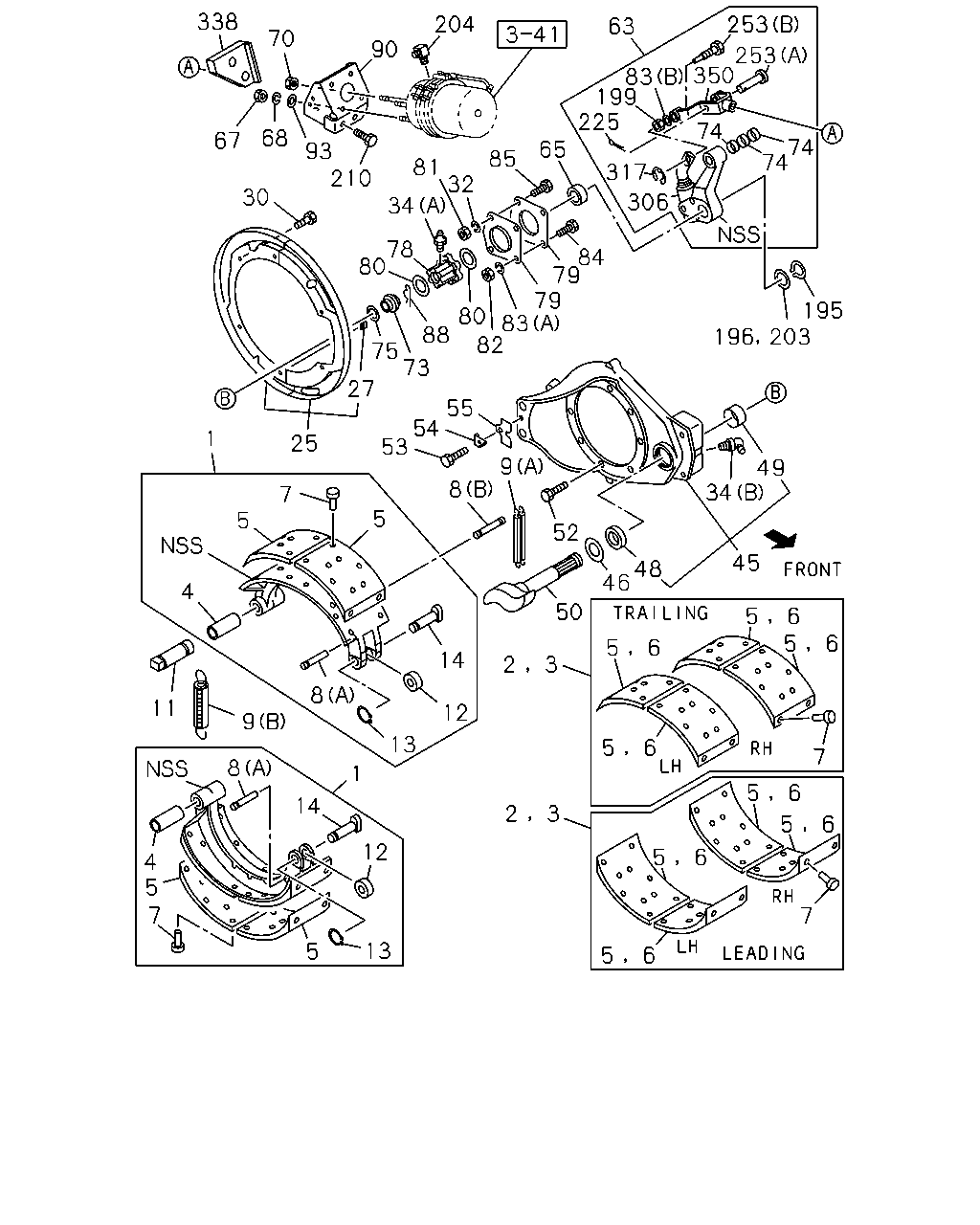

3-05 — REAR WHEEL BRAKE (#39343) — 151 parça
çizim 177960
338 204 253 63 70 90 253 199 225 74 68 67 74 74 65 93 210 85 81 317 32 30 306 34 78 80 84 79 79 83 82 195 80 88 75 73 27 55 54 53 1 25 9 8 49 34 7 5 5 52 45 48 46 4 50 5 6 5 6 5 6 14 2 3 8 11 12 9 13 5 6 7 8 1 5 6 14 2 3 5 6 6 12 5 4 5 7 7 13 5 5 6 350 196 203
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR
FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47120-341-0 01 1 0707-0906
1 SHOE; BRK,RR
TRAILING 		1-47120-341-0 01 1 0907-
1 SHOE; BRK,RR
FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47120-343-0 01 1 0707-0906
1 SHOE; BRK,RR
TRAILING 		1-47120-343-0 01 1 0907-
1 SHOE; BRK,RR
FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47170-398-0 01 1 0707-0906
1 SHOE; BRK,RR
LEADING 		1-47170-398-0 01 1 0907-
1 SHOE; BRK,RR
FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47170-399-0 01 1 0707-0906
1 SHOE; BRK,RR
LEADING 		1-47170-399-0 01 1 0907-
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-88311-435-0 01 1 0707-0906
2 LINING SET; RR BRK,STANDARD
LEADING 		1-88311-435-0 01 1 0907-
2 LINING SET; RR BRK,STANDARD
FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-88310-319-0 01 1 0707-0906
2 LINING SET; RR BRK,STANDARD
TRAILING 		1-88310-319-0 01 1 0907-
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-88311-436-0 01 1 0707-0906
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88311-436-0 01 1 0907-
3 LINING SET; RR BRK,OVER SIZE
FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-88310-320-0 01 1 0707-0906
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88310-320-0 01 1 0907-
4 BUSHING; BRK SHOE,RR WHEEL
FINAL GEAR 39/7 17.5"(W3Z) 		1-47112-012-0 04 1 0707-0906
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 0907-
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47125-440-0 04 1 0707-0906
5 LINING; RR BRK SHOE,STANDARD
TRAILING 		1-47125-440-0 04 1 0907-
5 LINING; RR BRK SHOE,STANDARD
FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47126-712-0 04 1 0707-0906
5 LINING; RR BRK SHOE,STANDARD
LEADING 		1-47126-712-0 04 1 0907-
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/7 17.5"(W3Z) TRAILING 		1-47125-442-0 04 1 0707-0906
6 LINING; RR BRK SHOE,OVER SIZE
TRAILING 		1-47125-442-0 04 1 0907-
6 LINING; RR BRK SHOE,OVER SIZE
FINAL GEAR 39/7 17.5"(W3Z) LEADING 		1-47126-713-0 04 1 0707-0906
6 LINING; RR BRK SHOE,OVER SIZE
LEADING 		1-47126-713-0 04 1 0907-
7 RIVET; LINING,RR BRK
FINAL GEAR 39/7 17.5"(W3Z) L=19.5 		1-09732-035-0 AR 1 0707-0906
7 RIVET; LINING,RR BRK
L=19.5 		1-09732-035-0 AR 1 0907-
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/7 17.5"(W3Z) (B) 		1-09744-074-0 04 1 0707-0906
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-09744-074-0 04 1 0907-
8 PIN; RETURN SPRING,RR BRK SHOE
FINAL GEAR 39/7 17.5"(W3Z) (A) 		1-47119-029-0 04 1 0707-0906
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-029-0 04 1 0907-
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 39/7 17.5"(W3Z) (A) 		1-09583-210-0 02 1 0707-0906
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-210-0 02 1 0907-
9 SPRING; RETURN,BRK SHOE
FINAL GEAR 39/7 17.5"(W3Z) (B) 		1-09583-277-2 02 1 0707-0906
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-277-2 02 1 0907-
11 PIN; ANCHOR,RR WHEEL BRK
FINAL GEAR 39/7 17.5"(W3Z) L=121.5 		1-47131-039-0 04 1 0707-0906
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 0907-
12 ROLLER; CAM,BRK SHOE
FINAL GEAR 39/7 17.5"(W3Z) 		1-47113-005-0 04 1 0707-0906
12 ROLLER; CAM,BRK SHOE 1-47113-005-0 04 1 0907-
13 CLIP; ROLLER PIN,BRK SHOE
FINAL GEAR 39/7 17.5"(W3Z) 		9-47119-022-0 04 1 0707-0906
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 04 1 0907-
14 PIN; CAM ROLLER,BRK SHOE
FINAL GEAR 39/7 17.5"(W3Z) 		1-09744-061-0 04 1 0707-0906
14 PIN; CAM ROLLER,BRK SHOE 1-09744-061-0 04 1 0907-
25 COVER SET; RR BRK DRUM
FINAL GEAR 39/7 17.5"(W3Z) 		1-47151-487-1 02 1 0707-0906
25 COVER SET; RR BRK DRUM 1-47151-487-1 02 1 0907-
27 COVER; CHECK HOLE,DRUM COVER
FINAL GEAR 39/7 17.5"(W3Z) 		1-09333-151-0 04 1 0707-0906
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0907-
30 BOLT; DRUM COVER
FINAL GEAR 39/7 17.5"(W3Z) M10X12 		1-47159-187-0 12 1 0707-0906
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0907-
32 WASHER; LK
FINAL GEAR 39/7 17.5"(W3Z) ID=10.2 		0-91510-510-0 04 1 0707-0906
32 WASHER; LK
ID=10.2 		0-91510-510-0 04 1 0907-
34 NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 39/7 17.5"(W3Z) (A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0707-0906
34 NIPPLE; GREASE,CHAMBER BRKT
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0907-
34 NIPPLE; GREASE,CHAMBER BRKT
FINAL GEAR 39/7 17.5"(W3Z) (B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0707-0906
34 NIPPLE; GREASE,CHAMBER BRKT
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0907-
45 BRACKET; ANCHOR PIN,W/BUSHING
FINAL GEAR 39/7 17.5"(W3Z) 		1-47137-488-0 01 1 0707-0906
45 BRACKET; ANCHOR PIN,W/BUSHING 1-47137-488-0 01 1 0907-
45 BRACKET; ANCHOR PIN,W/BUSHING
FINAL GEAR 39/7 17.5"(W3Z) 		1-47137-489-0 01 1 0707-0906
45 BRACKET; ANCHOR PIN,W/BUSHING 1-47137-489-0 01 1 0907-
46 RING; SPACER,CM/SHF,RR BRK
FINAL GEAR 39/7 17.5"(W3Z) 		1-47143-005-0 02 1 0707-0906
46 RING; SPACER,CM/SHF,RR BRK 1-47143-005-0 02 1 0907-
48 SEAL; OIL,CM/SHF,RR BRK
FINAL GEAR 39/7 17.5"(W3Z) 		1-09625-228-0 02 1 0707-0906
48 SEAL; OIL,CM/SHF,RR BRK 1-09625-228-0 02 1 0907-
49 BUSHING; CM/SHF,RR BRK
FINAL GEAR 39/7 17.5"(W3Z) 		1-47146-009-0 02 1 0707-0906
49 BUSHING; CM/SHF,RR BRK 1-47146-009-0 02 1 0907-
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 39/7 17.5"(W3Z) 		1-47141-128-0 01 1 0707-0906
50 CAMSHAFT; BRK,RR BRK 1-47141-128-0 01 1 0907-
50 CAMSHAFT; BRK,RR BRK
FINAL GEAR 39/7 17.5"(W3Z) 		1-47141-129-0 01 1 0707-0906
50 CAMSHAFT; BRK,RR BRK 1-47141-129-0 01 1 0907-
52 BOLT; ANCHOR BRKT
FINAL GEAR 39/7 17.5"(W3Z) M14X50 		1-09040-066-0 02 1 0707-0906
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 0907-
53 BOLT; LOCK PLATE
FINAL GEAR 39/7 17.5"(W3Z) M10X16 		0-20851-016-0 02 1 0707-0906
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0907-
54 WASHER; LK,ANCHOR PIN,RR BRK
FINAL GEAR 39/7 17.5"(W3Z) 		1-47133-011-0 02 1 0707-0906
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0907-
55 PLATE; LK,RR WHEEL CYL
FINAL GEAR 39/7 17.5"(W3Z) 		1-47133-005-0 02 1 0707-0906
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 0907-
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 39/7 17.5"(W3Z) 		1-48270-097-0 01 1 0707-0906
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-097-0 01 1 0907-
63 ADJUSTER ASM; SLACK,RR BRK
FINAL GEAR 39/7 17.5"(W3Z) 		1-48270-098-0 01 1 0707-0906
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-098-0 01 1 0907-
65 SPACER; SLACK ADJ,BRK
FINAL GEAR 39/7 17.5"(W3Z) 		1-47143-014-0 02 1 0707-0906
65 SPACER; SLACK ADJ,BRK 1-47143-014-0 02 1 0907-
67 NUT; POWER CHAMBER FIX
FINAL GEAR 39/7 17.5"(W3Z) M16 		0-91110-516-0 08 1 0707-0906
67 NUT; POWER CHAMBER FIX
M16 		0-91110-516-0 08 1 0907-
68 WASHER; LK,CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) ID=16.2 		0-91510-516-0 08 1 0707-0802
68 WASHER; LK,CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) ID=16.2 		0-91510-816-0 08 1 0803-0906
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-816-0 08 1 0907-
70 NUT; LK,JAW JOINT
FINAL GEAR 39/7 17.5"(W3Z) M16 		0-91111-516-0 02 1 0707-0906
70 NUT; LK,JAW JOINT
M16 		0-91111-516-0 02 1 0907-
73 COLLAR; FELT RING,CM/SHF
FINAL GEAR 39/7 17.5"(W3Z) 		1-47143-016-0 02 1 0707-0906
73 COLLAR; FELT RING,CM/SHF 1-47143-016-0 02 1 0907-
74 BUSHING; SLACK ADJ
FINAL GEAR 39/7 17.5"(W3Z) 		1-48279-078-0 06 1 0707-0906
74 BUSHING; SLACK ADJ 1-48279-078-0 06 1 0907-
75 RING; FELT,CM/SHF
FINAL GEAR 39/7 17.5"(W3Z) 		1-09620-009-0 02 1 0707-0906
75 RING; FELT,CM/SHF 1-09620-009-0 02 1 0907-
78 BUSHING; BRKT
FINAL GEAR 39/7 17.5"(W3Z) 		1-47146-008-0 02 1 0707-0906
78 BUSHING; BRKT 1-47146-008-0 02 1 0907-
79 BRACKET; CM/SHF
FINAL GEAR 39/7 17.5"(W3Z) 		9-47145-013-0 04 1 0707-0906
79 BRACKET; CM/SHF 9-47145-013-0 04 1 0907-
80 GASKET; BUSHING
FINAL GEAR 39/7 17.5"(W3Z) ID=39.7 		9-09561-340-0 04 1 0707-0906
80 GASKET; BUSHING
ID=39.7 		9-09561-340-0 04 1 0907-
81 NUT
FINAL GEAR 39/7 17.5"(W3Z) M10 		0-91110-510-0 04 1 0707-0906
81 NUT
M10 		0-91110-510-0 04 1 0907-
82 NUT
FINAL GEAR 39/7 17.5"(W3Z) M16 		0-91110-516-0 04 1 0707-0906
82 NUT
M16 		0-91110-516-0 04 1 0907-
83 WASHER; PL
FINAL GEAR 39/7 17.5"(W3Z) (B) 		1-48279-033-0 02 1 0707-0906
83 WASHER; PL
(B) 		1-48279-033-0 02 1 0907-
83 WASHER; PL
FINAL GEAR 39/7 17.5"(W3Z) (A) ID=16.2 		9-09851-672-2 08 1 0707-0906
83 WASHER; PL
(A) ID=16.2 		9-09851-672-2 08 1 0907-
84 BOLT; BRKT TO CASE
FINAL GEAR 39/7 17.5"(W3Z) M16X40 		0-20951-640-0 04 1 0707-0906
84 BOLT; BRKT TO CASE
M16X40 		0-20951-640-0 04 1 0907-
85 BOLT; CM/SHF BRKT
FINAL GEAR 39/7 17.5"(W3Z) M10X20 		0-20851-020-0 04 1 0707-0906
85 BOLT; CM/SHF BRKT
M10X20 		0-20851-020-0 04 1 0907-
88 CLIP; BRKT
FINAL GEAR 39/7 17.5"(W3Z) 		1-09589-018-0 02 1 0707-0906
88 CLIP; BRKT 1-09589-018-0 02 1 0907-
90 BRACKET; CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) 		1-42129-449-0 01 1 0707-0906
90 BRACKET; CHAMBER 1-42129-449-0 01 1 0907-
90 BRACKET; CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) 		1-42129-450-0 01 1 0707-0906
90 BRACKET; CHAMBER 1-42129-450-0 01 1 0907-
93 WASHER; PL,CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) ID=17 OD=32 		9-09160-616-0 08 1 0707-0906
93 WASHER; PL,CHAMBER
ID=17 OD=32 		9-09160-616-0 08 1 0907-
195 RING; SNAP,CM/SHF
FINAL GEAR 39/7 17.5"(W3Z) 		9-09180-038-0 02 1 0707-0906
195 RING; SNAP,CM/SHF 9-09180-038-0 02 1 0907-
196 DISTANCE; CM/SHF
FINAL GEAR 39/7 17.5"(W3Z) 		1-47143-004-0 01 1 0707-0906
196 DISTANCE; CM/SHF 1-47143-004-0 01 1 0907-
199 NUT
FINAL GEAR 39/7 17.5"(W3Z) 		1-48279-034-0 02 1 0707-0906
199 NUT 1-48279-034-0 02 1 0907-
203 DISTANCE; CM/SHF
FINAL GEAR 39/7 17.5"(W3Z) 		1-47143-004-0 01 1 0707-0906
203 DISTANCE; CM/SHF 1-47143-004-0 01 1 0907-
204 CONNECTOR; SPR CHAMBER
FINAL GEAR 39/7 17.5"(W3Z) M16 & PT3/8 ELBOW 		1-09650-438-0 04 1 0707-0906
204 CONNECTOR; SPR CHAMBER
M16 & PT3/8 ELBOW 		1-09650-438-0 04 1 0907-
210 BOLT; BRKT FIX
FINAL GEAR 39/7 17.5"(W3Z) M16X50 FLANGE 		0-28861-650-0 04 1 0707-0906
210 BOLT; BRKT FIX
M16X50 FLANGE 		0-28861-650-0 04 1 0907-
210 BOLT; BRKT FIX
FINAL GEAR 39/7 17.5"(W3Z) M16X30 FLANGE 		0-28891-630-0 04 1 0707-0906
210 BOLT; BRKT FIX
M16X30 FLANGE 		0-28891-630-0 04 1 0907-
225 PIN; SPLIT
FINAL GEAR 39/7 17.5"(W3Z) 		1-48279-031-0 02 1 0707-0906
225 PIN; SPLIT 1-48279-031-0 02 1 0907-
253 PIN; CLEVIS
FINAL GEAR 39/7 17.5"(W3Z) (A) 		1-48279-029-0 02 1 0707-0906
253 PIN; CLEVIS
(A) 		1-48279-029-0 02 1 0907-
253 PIN; CLEVIS
FINAL GEAR 39/7 17.5"(W3Z) (B) 		1-48279-030-0 02 1 0707-0906
253 PIN; CLEVIS
(B) 		1-48279-030-0 02 1 0907-
306 BOOT; SLACK ADJ
FINAL GEAR 39/7 17.5"(W3Z) 		1-48279-044-0 02 1 0707-0906
306 BOOT; SLACK ADJ 1-48279-044-0 02 1 0907-
317 RING; RETAINER
FINAL GEAR 39/7 17.5"(W3Z) 		1-48279-032-0 02 1 0707-0906
317 RING; RETAINER 1-48279-032-0 02 1 0907-
338 PLATE; DISTANCE
FINAL GEAR 39/7 17.5"(W3Z) 		1-42129-505-0 02 1 0707-0906
338 PLATE; DISTANCE 1-42129-505-0 02 1 0907-
350 CLEVIS; SLACK ADJ
FINAL GEAR 39/7 17.5"(W3Z) 		1-48279-060-0 02 1 0707-0906
350 CLEVIS; SLACK ADJ 1-48279-060-0 02 1 0907-
