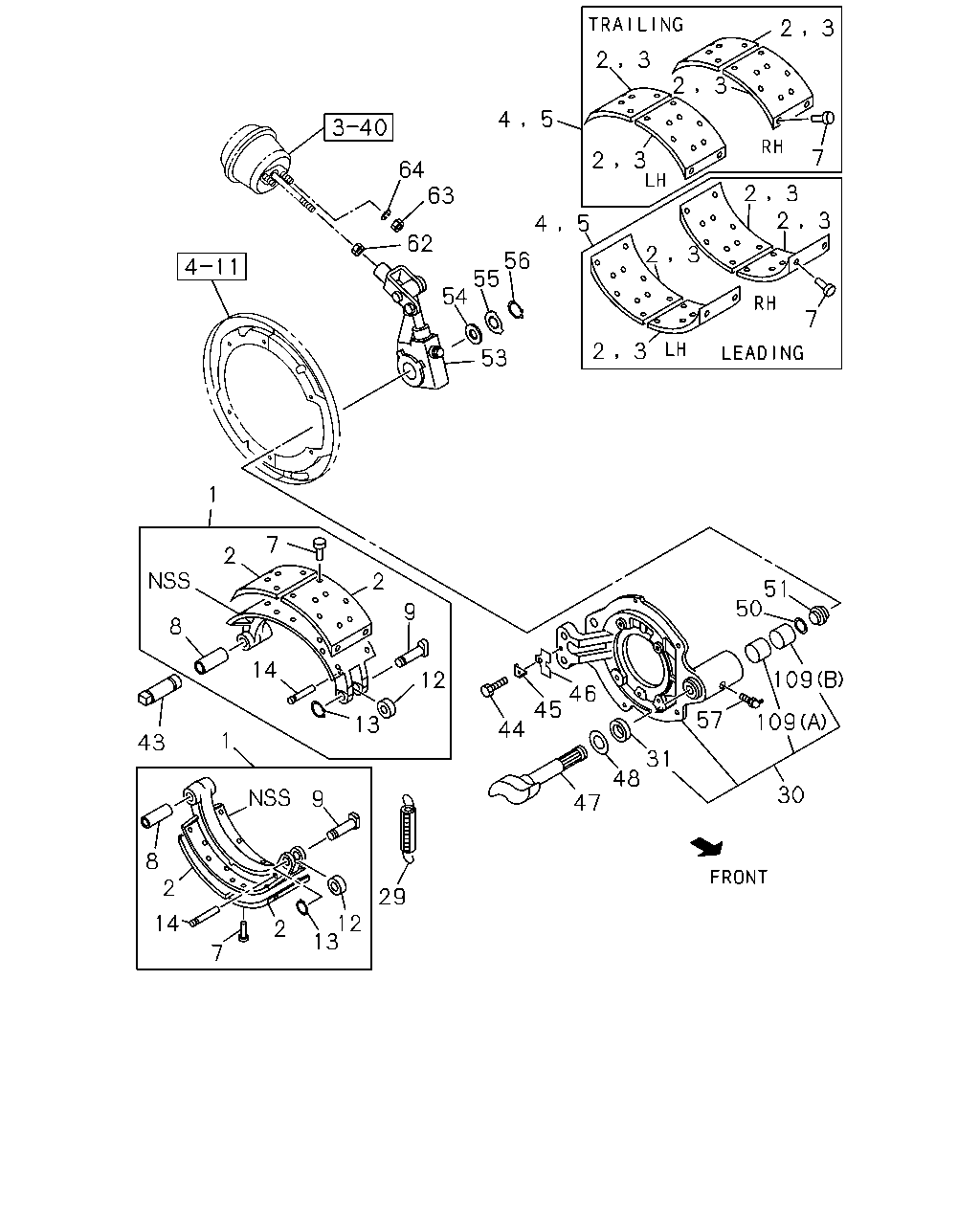

3-01 — FRONT WHEEL BRAKE
(#39342) — 42 parça
2
3
3
2
3
2
5
4
7
2
3
64
63
3
2
2
3
5
4
62
3
2
56
55
54
7
53
2
3
1
7
2
2
51
50
9
8
4
109
12
46
45
44
13
57
109
1
43
31
48
30
9
47
8
2
29
12
13
14
2
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,FRT
TRAILING
1-47170-268-0
01
1
0707-
1
SHOE; BRK,FRT
TRAILING
1-47170-271-0
01
1
0707-
1
SHOE; BRK,FRT
LEADING
1-47170-394-0
01
1
0707-
1
SHOE; BRK,FRT
LEADING
1-47170-396-0
01
1
0707-
2
LINING; FRT BRK SHOE,STANDARD
TRAILING
1-47126-659-0
04
1
0707-
2
LINING; FRT BRK SHOE,STANDARD
LEADING
1-47126-709-0
04
1
0707-
3
LINING; FRT BRK SHOE,OVER SIZE
TRAILING
1-47126-660-0
04
1
0707-
3
LINING; FRT BRK SHOE,OVER SIZE
LEADING
1-47126-710-0
04
1
0707-
4
LINING SET; FRT BRK,STANDARD
TRAILING
1-88311-251-0
01
1
0707-
4
LINING SET; FRT BRK,STANDARD
LEADING
1-88311-312-0
01
1
0707-
5
LINING SET; FRT BRK,OVER SIZE
TRAILING
1-88311-253-0
01
1
0707-
5
LINING SET; FRT BRK,OVER SIZE
LEADING
1-88311-313-0
01
1
0707-
7
RIVET; LINING,FRT BRK
L=18.5
1-09732-034-0
AR
1
0707-
8
BUSHING; BRK SHOE
1-47112-011-0
04
1
0707-
9
PIN; SHOE HOLDER
1-09744-060-0
04
1
0707-
12
ROLLER; CAM,BRK SHOE
1-47113-007-0
04
1
0707-
13
CLIP; ROLLER PIN,BRK SHOE
9-47119-022-0
04
1
0707-
14
PIN; SHOE RETURN SPR
L=73.5
1-47119-017-1
04
1
0707-
29
SPRING; RETURN,FRT BRK SHOE
1-09583-185-2
02
1
0707-
30
BRACKET; ANCHOR,FRT
1-47137-573-0
01
1
0707-
30
BRACKET; ANCHOR,FRT
1-47137-574-0
01
1
0707-
31
SEAL; OIL,CM/SHF
1-09625-228-0
02
1
0707-
43
PIN; ANCHOR
L=106.5
1-47131-038-0
04
1
0707-
44
BOLT; LOCK,ANCHOR PIN
M10X16
0-20851-016-0
02
1
0707-
45
WASHER; LK
1-47133-011-0
02
1
0707-
46
PLATE; LOCK
1-47133-005-0
02
1
0707-
47
CAMSHAFT; FRT BRK
1-47141-051-0
01
1
0707-
47
CAMSHAFT; FRT BRK
1-47141-052-0
01
1
0707-
48
RING; SPACER,CM/SHF
1-47143-005-0
02
1
0707-
50
RING; FELT,CM/SHF
1-09620-009-0
02
1
0707-
51
COLLAR; RING,CM/SHF
1-47143-013-0
02
1
0707-
53
ADJUSTER ASM; SLACK
1-48270-071-0
01
1
0707-
53
ADJUSTER ASM; SLACK
1-48270-072-0
01
1
0707-
54
SPACER; CM/SHF
1-47143-004-0
04
1
0707-
55
PLATE; STOPPER,CM/SHF
1-47149-086-0
02
1
0707-
56
CLIP; ANCHOR PIN
9-09180-038-0
02
1
0707-
57
NIPPLE; GREASE,ANCHOR BRKT
PT1/8 ELBOW 67.5 DEGREES
0-90301-510-0
02
1
0707-
62
NUT; LK,JAW JOINT
M16
0-91111-516-0
02
1
0707-
63
NUT; POWER CHAMBER
M16
0-91110-516-0
04
1
0707-
64
WASHER; LK,POWER CHAMBER
ID=16.2
0-91510-516-0
04
1
0707-
109
BUSHING; CM/SHF,FRT BRK
(A)
1-47146-003-1
02
1
0707-
109
BUSHING; CM/SHF,FRT BRK
(B)
1-47146-019-0
02
1
0707-
