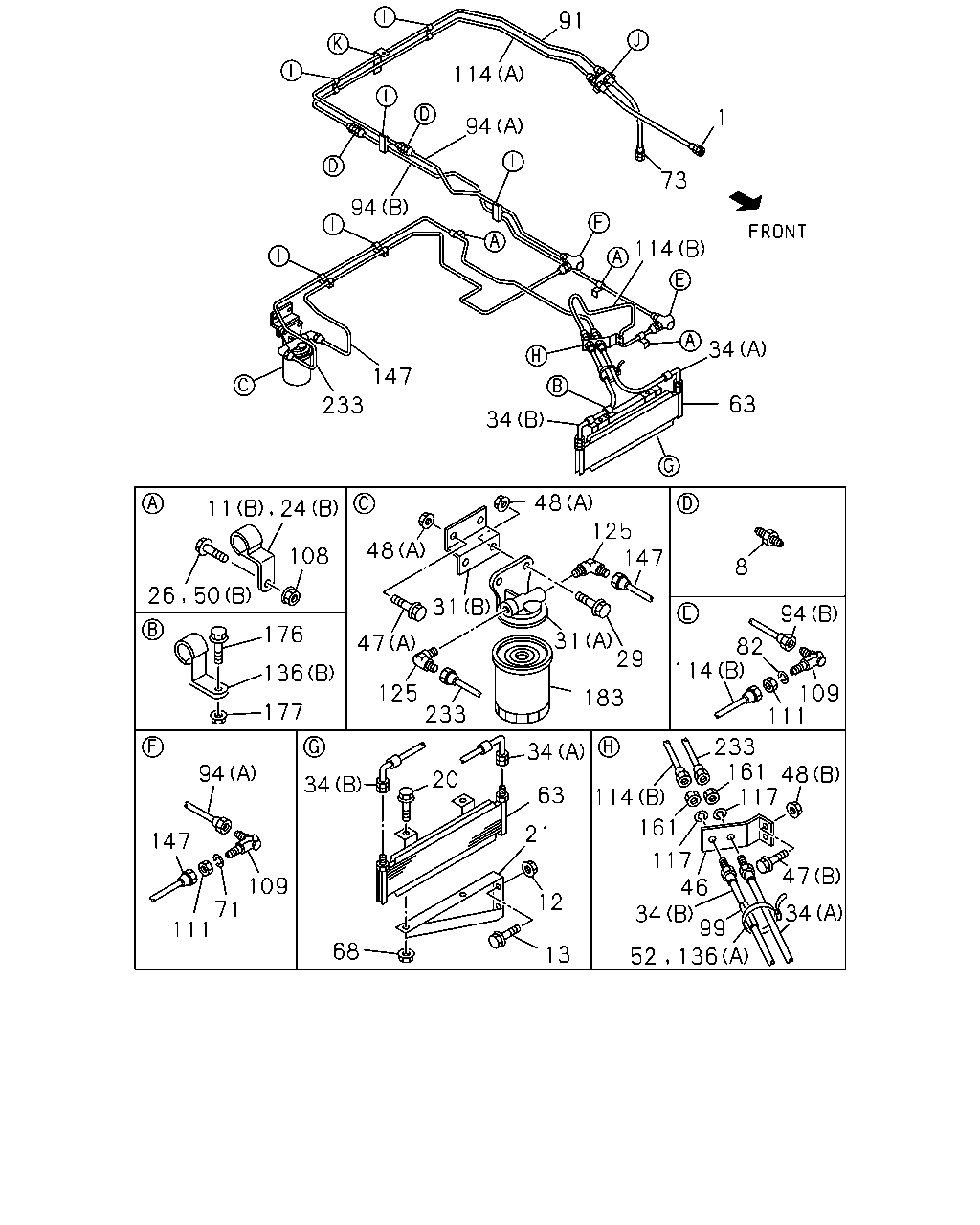

1 |
HOSE; ATF
L=500
|
1-09365-150-0 |
01 |
1 |
0707- |
| |
8 |
UNION
M16 L=42
|
0-92123-010-0 |
02 |
1 |
0707- |
| |
11 |
CLIP; PIPE
(A)
ID=11 & 11 L=21.5 & 21.5
|
1-09700-660-0 |
04 |
1 |
0707- |
| |
11 |
CLIP; PIPE
(B)
ID=11 H=20 L=20
|
8-98033-780-0 |
05 |
1 |
0707- |
| |
12 |
NUT; BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0707- |
| |
12 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0707- |
| |
13 |
BOLT; BRKT
M10X30 FLANGE
|
0-28651-030-0 |
02 |
1 |
0707- |
| |
20 |
BOLT; COOLER TO BRKT
M10X25 FLANGE
|
0-28651-025-0 |
02 |
1 |
0707- |
| |
21 |
BRACKET; COOLER
|
8-98090-657-1 |
01 |
1 |
0707- |
| |
24 |
CLIP; OIL PIPE
(A)
ID=11 & 11 L=21.5 & 21.5
|
1-09700-660-0 |
02 |
1 |
0707- |
| |
24 |
CLIP; OIL PIPE
(B)
ID=11 H=20 L=20
|
8-98033-780-0 |
01 |
1 |
0707- |
| |
26 |
BOLT; PIPE CLIP
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0707- |
| |
29 |
BOLT; FILTER TO BRKT
M10X35 FLANGE
|
0-28651-035-0 |
02 |
1 |
0707- |
| |
31 |
BRACKET; OIL FILTER
(B)
|
1-32569-081-0 |
01 |
1 |
0707- |
| |
31 |
BRACKET; OIL FILTER
(A)
|
1-33119-222-0 |
01 |
1 |
0707- |
| |
34 |
HOSE; FLEX,RAD TO OIL COOLER PIPE
(A)
L=420
|
1-09364-991-0 |
01 |
1 |
0707- |
| |
34 |
HOSE; FLEX,RAD TO OIL COOLER PIPE
(B)
|
1-09365-083-0 |
01 |
1 |
0707- |
| |
46 |
BRACKET; OIL PIPE
|
1-47478-516-1 |
01 |
1 |
0707- |
| |
47 |
BOLT; BRKT TO FRAME
(B)
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
0707- |
| |
47 |
BOLT; BRKT TO FRAME
(A)
M10X25 FLANGE
|
0-28651-025-0 |
02 |
1 |
0707- |
| |
48 |
NUT; BRKT
(B)
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0707-0709 |
| |
48 |
NUT; BRKT
(B)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0710- |
| |
48 |
NUT; BRKT
(A)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0707- |
| |
50 |
BOLT; CLIP
(A)
M8X40 FLANGE
|
0-28050-840-0 |
02 |
1 |
0707- |
| |
50 |
BOLT; CLIP
(B)
M8X25 FLANGE
|
0-28650-825-0 |
06 |
1 |
0707- |
| |
50 |
BOLT; CLIP
(C)
M8X40 FLANGE
|
0-28650-840-0 |
03 |
1 |
0707- |
| |
52 |
CLIP; FLEX HOSE,A/T
L=140
|
5-09707-031-1 |
01 |
1 |
0707- |
| |
63 |
COOLER; OIL
|
1-21700-394-0 |
01 |
1 |
0707-1405 |
| |
63 |
COOLER; OIL
|
8-98269-766-0 |
01 |
1 |
1406- |
| |
68 |
NUT; COOLER
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0707- |
| |
71 |
WASHER; CLIP
ID=16.2
|
0-91510-516-0 |
01 |
1 |
0707- |
| |
73 |
HOSE; FLEX,TRANS
L=430
|
1-09364-872-0 |
01 |
1 |
0707- |
| |
82 |
WASHER; LK,UNION
ID=16.2
|
0-91510-516-0 |
01 |
1 |
0707- |
| |
91 |
PIPE; OIL,FLEX HOSE TO UNION
L=1649
SERVICED BY L=1700
|
1-47428-880-0 |
01 |
1 |
0707- |
| |
94 |
PIPE; OIL,UNION TO UNION
(A)
L=1408
SERVICED BY L=1550
|
1-47428-879-0 |
01 |
1 |
0707- |
| |
94 |
PIPE; OIL,UNION TO UNION
(B)
L=1427
SERVICED BY L=1550
|
1-47428-879-0 |
01 |
1 |
0707- |
| |
99 |
SLEEVE; RUBBER,FLEX HOSE
ID=17 OD=21 L=40
|
1-09337-012-0 |
02 |
1 |
0707- |
| |
108 |
NUT; PIPE CLIP
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0707- |
| |
109 |
UNION
M16 ELBOW
|
0-92135-210-0 |
02 |
1 |
0707- |
| |
111 |
NUT; UNION
M16
|
0-91111-516-0 |
02 |
1 |
0707- |
| |
114 |
PIPE; OIL,UNION TO FLEX HOSE
(B)
L=881
SERVICED BY L=900
|
1-47428-873-0 |
01 |
1 |
0707- |
| |
114 |
PIPE; OIL,UNION TO FLEX HOSE
(A)
L=1377
SERVICED BY L=1400
|
1-47428-878-0 |
01 |
1 |
0707- |
| |
117 |
WASHER; LK,FLEX HOSE
ID=16.2
|
0-91510-516-0 |
03 |
1 |
0707- |
| |
125 |
CONNECTOR; OIL FILTER
M16 & PT1/4 ELBOW
|
0-92134-310-0 |
02 |
1 |
0707- |
| |
136 |
CLIP; FLEX HOSE
(B)
ID=18 L=38 H=23
|
1-09701-147-0 |
01 |
1 |
0906- |
| |
136 |
CLIP; FLEX HOSE
(A)
L=140
|
5-09707-031-1 |
01 |
1 |
0707- |
| |
147 |
PIPE; OIL,UNION TO FILTER
L=1799
SERVICED BY L=1900
|
1-47428-881-0 |
01 |
1 |
0707- |
| |
161 |
NUT; FLEX HOSE
M16
|
0-91111-516-0 |
02 |
1 |
0707- |
| |
176 |
BOLT; HOSE CLIP
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0906- |
| |
177 |
NUT; HOSE CLIP
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0906- |
| |
183 |
CARTRIDGE; OIL FILTER
|
8-94459-700-1 |
01 |
1 |
0707- |
| |
233 |
PIPE; OIL,FILTER TO HOSE
L=1183
SERVICED BY L=1250
|
1-47428-876-0 |
01 |
1 |
0707- |
