2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#39338) — 122 parça

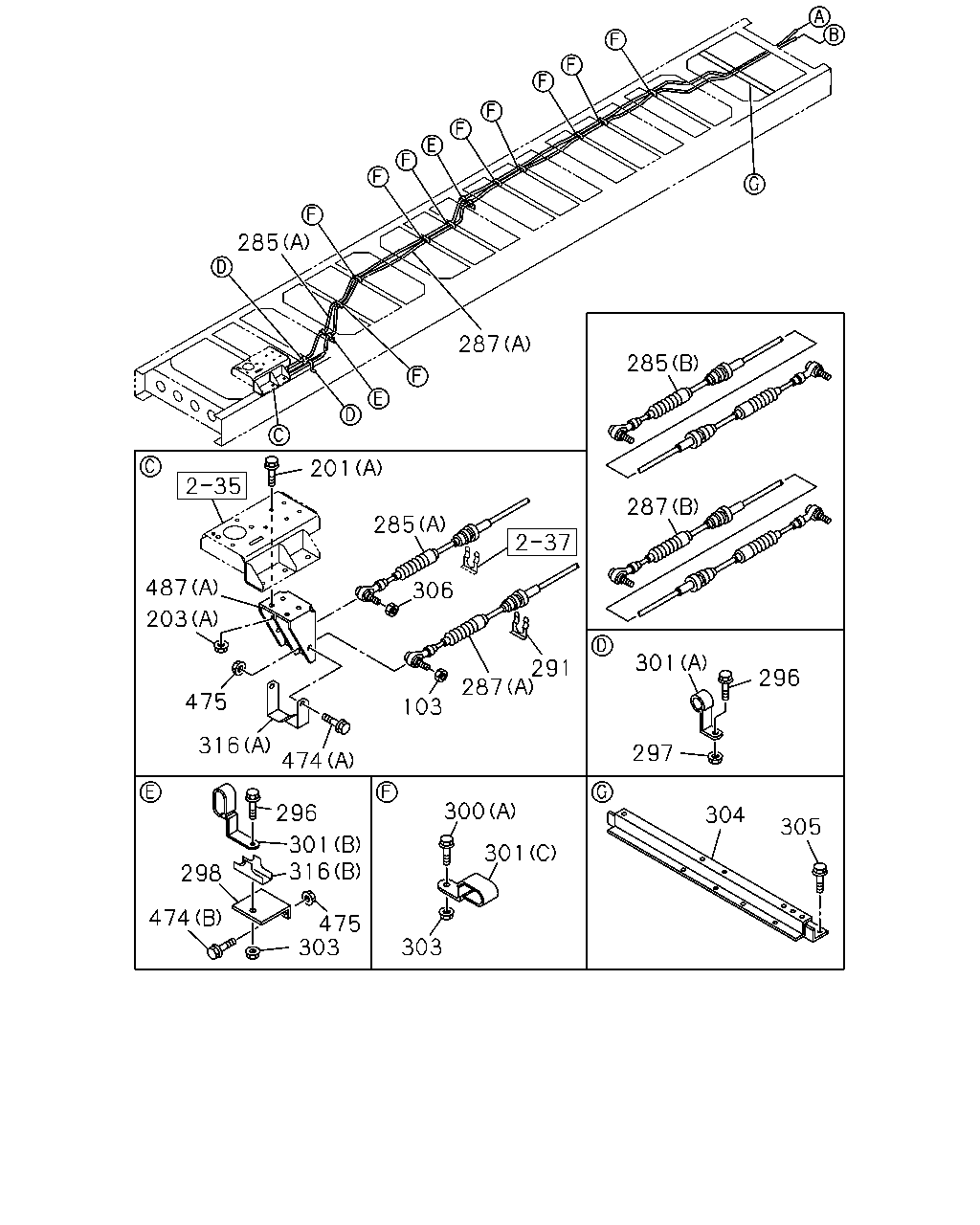

çizim 177934
285 287 285 201 287 285 487 306 203 301 291 296 287 475 103 316 297 474 300 296 304 305 301 316 301 298 474 475 303 303
BalonParca AdiParca NoAdetTipApplied Date
103 NUT
M8 FLANGE 		1-09440-062-1 01 1 0707-
201 BOLT; BRKT
(C) M6X20 FLANGE 		0-28050-620-0 01 1 1212-
201 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0707-1211
201 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1212-
201 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0707-
203 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 06 1 0707-1211
203 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 1212-
203 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0707-
268 BRACKET; LINK ROD
UNDER FOLLR COCKPIT<Y53> L=160 B=25 		1-53441-518-0 01 1 0907-
285 WIRE; SHIFT,TRANS CONT
UNDER FOLLR COCKPIT<Y53> (B) L=8945 		8-98109-969-1 01 1 0907-
285 WIRE; SHIFT,TRANS CONT
UNDER FOLLR COCKPIT<Y53> (A) L=5714 		8-98147-161-1 01 1 0907-
285 WIRE; SHIFT,TRANS CONT
(A) L=5312 		8-98082-229-0 01 1 0707-0906
285 WIRE; SHIFT,TRANS CONT
EXC. UNDER FOLLR COCKPIT<Y53> (A) L=5312 		8-98082-229-1 01 1 0907-
285 WIRE; SHIFT,TRANS CONT
FRAME BUS<B1D>,SUPER HIGH DECKER BUS<C3Q> (B) L=8390 		8-98082-688-0 01 1 0707-0906
285 WIRE; SHIFT,TRANS CONT
FRAME BUS<B1D>,SUPER HIGH DECKER BUS<C3Q> EXC. UNDER FOLLR COCKPIT<Y53> (B) L=8390 		8-98082-688-1 01 1 0907-
285 WIRE; SHIFT,TRANS CONT
HIGH DECKER BUS<B5L> (B) L=8752 		8-98082-230-0 01 1 0707-0906
285 WIRE; SHIFT,TRANS CONT
HIGH DECKER BUS<B5L> EXC. UNDER FOLLR COCKPIT<Y53> (B) L=8752 		8-98082-230-1 01 1 0907-
287 WIRE; SELECT,TRANS CONT
UNDER FOLLR COCKPIT<Y53> (B) L=8900 		8-98109-970-0 01 1 0907-
287 WIRE; SELECT,TRANS CONT
UNDER FOLLR COCKPIT<Y53> (A) L=5651 		8-98147-162-0 01 1 0907-
287 WIRE; SELECT,TRANS CONT
(A) L=5260 		8-98082-231-0 01 1 0707-0906
287 WIRE; SELECT,TRANS CONT
EXC. UNDER FOLLR COCKPIT<Y53> (A) L=5260 		8-98082-231-0 01 1 0907-
287 WIRE; SELECT,TRANS CONT
FRAME BUS<B1D>,SUPER HIGH DECKER BUS<C3Q> (B) L=8353 		8-98082-689-0 01 1 0707-0906
287 WIRE; SELECT,TRANS CONT
FRAME BUS<B1D>,SUPER HIGH DECKER BUS<C3Q> EXC. UNDER FOLLR COCKPIT<Y53> (B) L=8353 		8-98082-689-0 01 1 0907-
287 WIRE; SELECT,TRANS CONT
HIGH DECKER BUS<B5L> (B) L=8715 		8-98082-232-0 01 1 0707-0906
287 WIRE; SELECT,TRANS CONT
HIGH DECKER BUS<B5L> EXC. UNDER FOLLR COCKPIT<Y53> (B) L=8715 		8-98082-232-0 01 1 0907-
291 CLIP; SHIFT TO SELECT,FRAME
ID=22.2 		1-09701-209-1 01 1 0707-
296 BOLT; CLIP,SHIFT & SELECT
EXC. UNDER FOLLR COCKPIT<Y53> M8X20 FLANGE 		0-28650-820-0 02 1 0907-
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28650-820-0 03 1 0707-0906
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28650-820-0 01 1 0907-
296 BOLT; CLIP,SHIFT & SELECT
UNDER FOLLR COCKPIT<Y53> M8X20 FLANGE 		0-28650-820-0 01 1 0907-
297 NUT; CLIP
EXC. UNDER FOLLR COCKPIT<Y53> M8 FLANGE 		0-91180-108-0 02 1 0907-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0707-0906
297 NUT; CLIP
UNDER FOLLR COCKPIT<Y53> M8 FLANGE 		0-91180-108-0 01 1 0907-
298 BRACKET
L=40 		1-47478-410-0 04 1 0707-
300 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 08 1 0707-
300 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0707-
301 CLIP; WIRE
UNDER FOLLR COCKPIT<Y53> (B) ID=13 & 13 L=20 H=21.5 		8-98033-769-0 01 1 0907-
301 CLIP; WIRE
(A) ID=13 H=40 L=25 		1-09700-620-0 02 1 0707-0906
301 CLIP; WIRE
EXC. UNDER FOLLR COCKPIT<Y53> (A) ID=13 H=40 L=25 		1-09700-620-0 02 1 0907-
301 CLIP; WIRE
(C) ID=13 & 13 L=20 H=21.5 		1-09700-975-0 08 1 0707-0906
301 CLIP; WIRE
(B) ID=13 & 13 L=20 H=21.5 		8-98033-769-0 01 1 0707-0906
301 CLIP; WIRE
(B) ID=13 & 13 L=20 H=21.5 		8-98033-769-0 09 1 0907-
303 NUT; CLIP
M8 FLANGE 		0-91180-108-0 10 1 0707-
304 BRACKET; WIRE,TRANS CONT 1-47478-902-2 01 1 0707-
305 BOLT; WIRE BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0707-
306 NUT; WIRE BRKT
M10 FLANGE 		1-09440-061-0 01 1 0707-
316 BRACKET; CLIP
(A) 		1-33657-736-0 01 1 0707-
316 BRACKET; CLIP
(B) 		1-47475-427-1 04 1 0707-0709
474 BOLT; BRKT
UNDER FOLLR COCKPIT<Y53> (B) M8X25 FLANGE 		0-28650-825-0 01 1 0907-
474 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0707-
474 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0707-
474 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 02 1 0707-
475 NUT; BRKT
UNDER FOLLR COCKPIT<Y53> M8 FLANGE 		0-91180-108-0 01 1 0907-
475 NUT; BRKT
M8 FLANGE 		0-91180-108-0 06 1 0707-
487 BRACKET; CONT CABLE
(A) 		1-33657-725-0 01 1 0707-
487 BRACKET; CONT CABLE
(B) 		1-33657-783-0 01 1 0707-1211

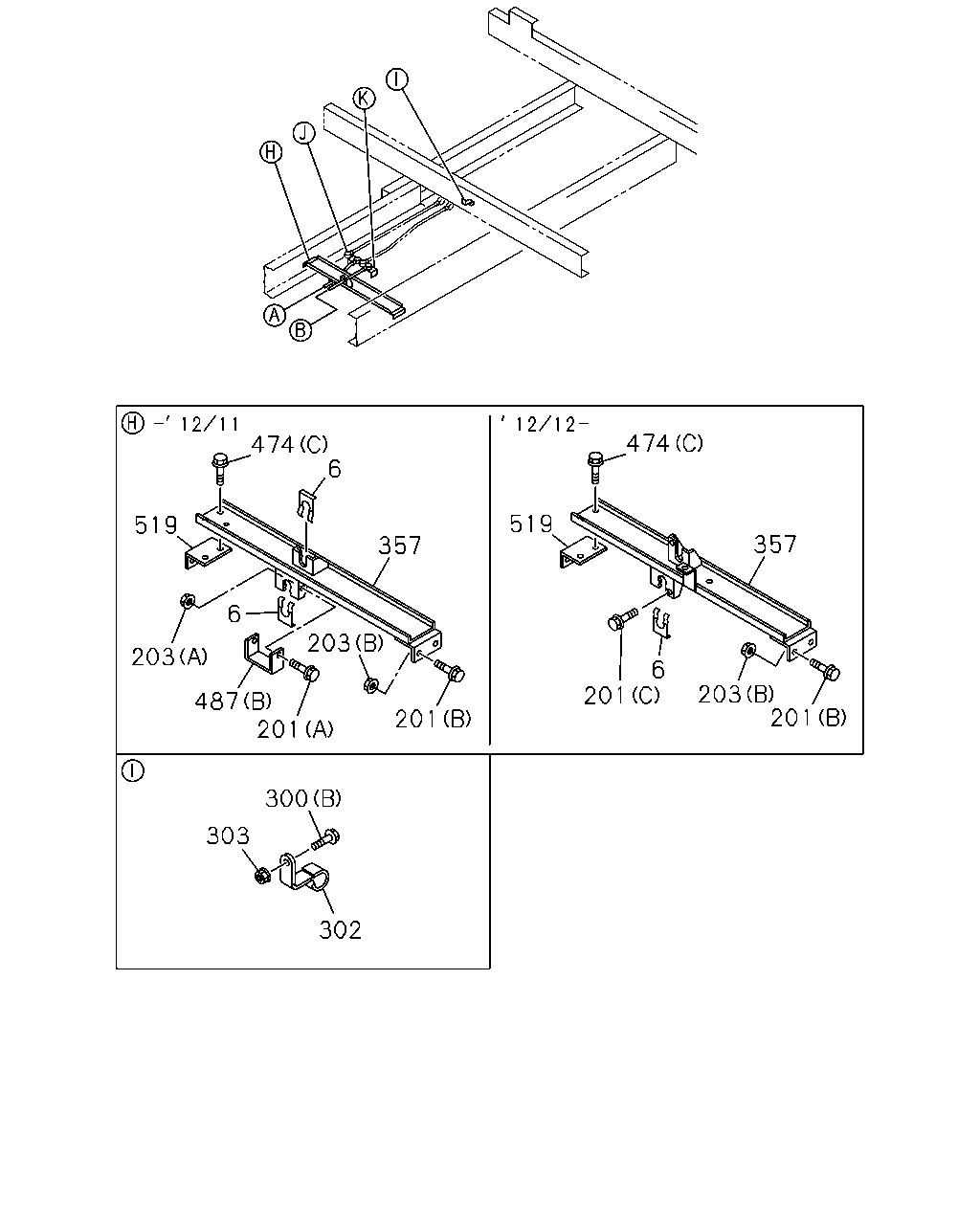

çizim 177941
474 357 519 203 487 201 201 203 519 474 357 201 203 201 302 300 303 6 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 CLIP; CABLE
ID=22.2 		1-09701-209-1 02 1 0707-
201 BOLT; BRKT
(C) M6X20 FLANGE 		0-28050-620-0 01 1 1212-
201 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0707-1211
201 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1212-
201 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0707-
203 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 06 1 0707-1211
203 NUT; BRKT FIX
(A) M8 FLANGE 		0-91180-108-0 04 1 1212-
203 NUT; BRKT FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0707-
268 BRACKET; LINK ROD
UNDER FOLLR COCKPIT<Y53> L=160 B=25 		1-53441-518-0 01 1 0907-
300 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 08 1 0707-
300 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0707-
302 CLIP; BAND
ID=6 H=20 L=20 		1-09700-603-0 01 1 0707-
303 NUT; CLIP
M8 FLANGE 		0-91180-108-0 10 1 0707-
357 BRACKET; RELAY LEVER 1-33657-787-1 01 1 0707-1211
357 BRACKET; RELAY LEVER 8-98230-474-0 01 1 1212-
474 BOLT; BRKT
UNDER FOLLR COCKPIT<Y53> (B) M8X25 FLANGE 		0-28650-825-0 01 1 0907-
474 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0707-
474 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0707-
474 BOLT; BRKT
(C) M10X35 FLANGE 		0-28651-035-0 02 1 0707-
487 BRACKET; CONT CABLE
(A) 		1-33657-725-0 01 1 0707-
487 BRACKET; CONT CABLE
(B) 		1-33657-783-0 01 1 0707-1211
519 BRACKET; FRAME 1-33657-782-0 01 1 0707-

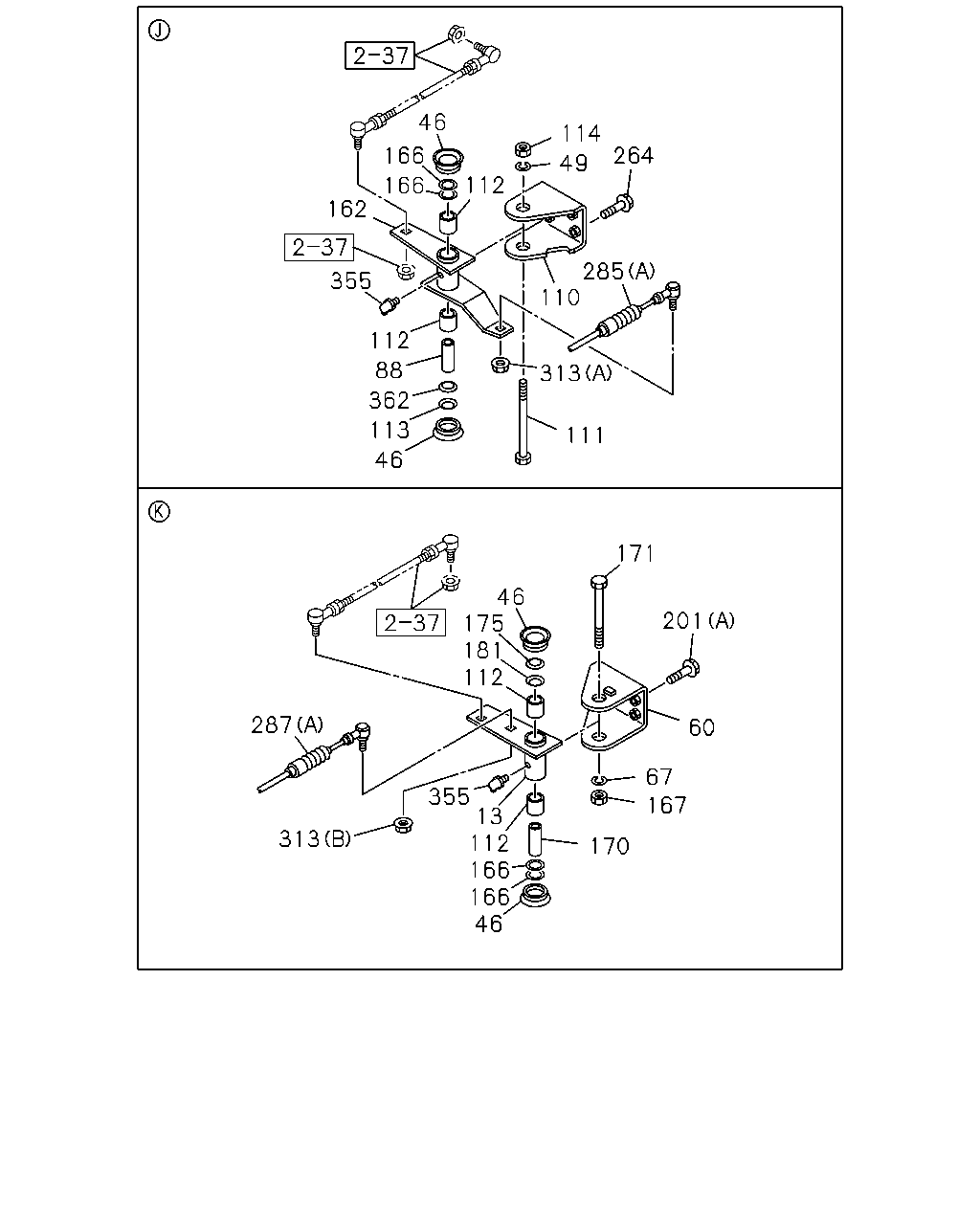

çizim 177942
46 114 166 264 49 112 166 162 285 110 355 112 88 313 362 113 111 46 171 46 175 181 112 201 287 60 67 355 13 112 166 166 46 167 313 170
BalonParca AdiParca NoAdetTipApplied Date
13 LEVER; RELAY,1ST SELECT INNER 1-33651-787-0 01 1 0707-
46 SEAL; DUST,RELAY LEVER 1-33659-113-0 04 1 0707-
49 WASHER; LK
ID=14.2 		0-91510-514-0 01 1 0707-
60 BRACKET; RELAY LEVER,SELECT ROD 1-33657-543-0 01 1 0707-
67 WASHER; LK,RELAY LEVER,SELECT ROD
ID=14.2 		0-91510-514-0 01 1 0707-
88 COLLAR; RELAY LEVER 1-33659-146-0 01 1 0707-
110 BRACKET; RELAY LEVER,1ST 1-33657-786-0 01 1 0707-
111 SHAFT; RELAY LEVER,1ST 1-33619-210-0 01 1 0707-
112 BUSHING; RELAY LEVER
ID=22 OD=25 L=18 		1-09330-050-0 04 1 0707-
113 WASHER; RELAY LEVER 1-33659-093-0 01 1 0707-
114 NUT; RELAY LEVER
M14 		0-91111-514-0 01 1 0707-
162 LEVER; RELAY 1-33651-788-0 01 1 0707-
166 WASHER; NYLON,RELAY LEVER 1-09503-187-0 04 1 0707-
167 NUT; RELAY LEVER,SELECT ROD
M14 		0-91111-514-0 01 1 0707-
170 COLLAR; RELAY LEVER,SELECT ROD,1ST 1-33659-146-0 01 1 0707-
171 SHAFT; RELAY LEVER,SELECT ROD,1ST 1-33619-210-0 01 1 0707-
175 WASHER; RELAY LEVER,SELECT CONT ROD 1-33659-093-0 01 1 0707-
181 SHIM; RELAY LEVER,SELECT ROD 1-33659-092-0 01 1 0707-
201 BOLT; BRKT
(C) M6X20 FLANGE 		0-28050-620-0 01 1 1212-
201 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0707-1211
201 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 1212-
201 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 04 1 0707-
264 BOLT; BRKT,RELAY LEVER
M8X25 FLANGE 		0-28650-825-0 08 1 0707-
268 BRACKET; LINK ROD
UNDER FOLLR COCKPIT<Y53> L=160 B=25 		1-53441-518-0 01 1 0907-
285 WIRE; SHIFT,TRANS CONT
UNDER FOLLR COCKPIT<Y53> (B) L=8945 		8-98109-969-1 01 1 0907-
285 WIRE; SHIFT,TRANS CONT
UNDER FOLLR COCKPIT<Y53> (A) L=5714 		8-98147-161-1 01 1 0907-
285 WIRE; SHIFT,TRANS CONT
(A) L=5312 		8-98082-229-0 01 1 0707-0906
285 WIRE; SHIFT,TRANS CONT
EXC. UNDER FOLLR COCKPIT<Y53> (A) L=5312 		8-98082-229-1 01 1 0907-
285 WIRE; SHIFT,TRANS CONT
FRAME BUS<B1D>,SUPER HIGH DECKER BUS<C3Q> (B) L=8390 		8-98082-688-0 01 1 0707-0906
285 WIRE; SHIFT,TRANS CONT
FRAME BUS<B1D>,SUPER HIGH DECKER BUS<C3Q> EXC. UNDER FOLLR COCKPIT<Y53> (B) L=8390 		8-98082-688-1 01 1 0907-
285 WIRE; SHIFT,TRANS CONT
HIGH DECKER BUS<B5L> (B) L=8752 		8-98082-230-0 01 1 0707-0906
285 WIRE; SHIFT,TRANS CONT
HIGH DECKER BUS<B5L> EXC. UNDER FOLLR COCKPIT<Y53> (B) L=8752 		8-98082-230-1 01 1 0907-
287 WIRE; SELECT,TRANS CONT
UNDER FOLLR COCKPIT<Y53> (B) L=8900 		8-98109-970-0 01 1 0907-
287 WIRE; SELECT,TRANS CONT
UNDER FOLLR COCKPIT<Y53> (A) L=5651 		8-98147-162-0 01 1 0907-
287 WIRE; SELECT,TRANS CONT
(A) L=5260 		8-98082-231-0 01 1 0707-0906
287 WIRE; SELECT,TRANS CONT
EXC. UNDER FOLLR COCKPIT<Y53> (A) L=5260 		8-98082-231-0 01 1 0907-
287 WIRE; SELECT,TRANS CONT
FRAME BUS<B1D>,SUPER HIGH DECKER BUS<C3Q> (B) L=8353 		8-98082-689-0 01 1 0707-0906
287 WIRE; SELECT,TRANS CONT
FRAME BUS<B1D>,SUPER HIGH DECKER BUS<C3Q> EXC. UNDER FOLLR COCKPIT<Y53> (B) L=8353 		8-98082-689-0 01 1 0907-
287 WIRE; SELECT,TRANS CONT
HIGH DECKER BUS<B5L> (B) L=8715 		8-98082-232-0 01 1 0707-0906
287 WIRE; SELECT,TRANS CONT
HIGH DECKER BUS<B5L> EXC. UNDER FOLLR COCKPIT<Y53> (B) L=8715 		8-98082-232-0 01 1 0907-
313 NUT; CLIP BRKT
(A) M10 FLANGE 		1-09440-061-0 01 1 0707-
313 NUT; CLIP BRKT
(B) M8 FLANGE 		1-09440-062-1 01 1 0707-
355 NIPPLE; GREASE,RELAY LEVER
PT1/8 ELBOW 		0-90301-610-0 02 1 0707-
362 SHIM 1-33659-092-0 01 1 0707-
