2-05 — CLUTCH PIPING (#39329) — 109 parça

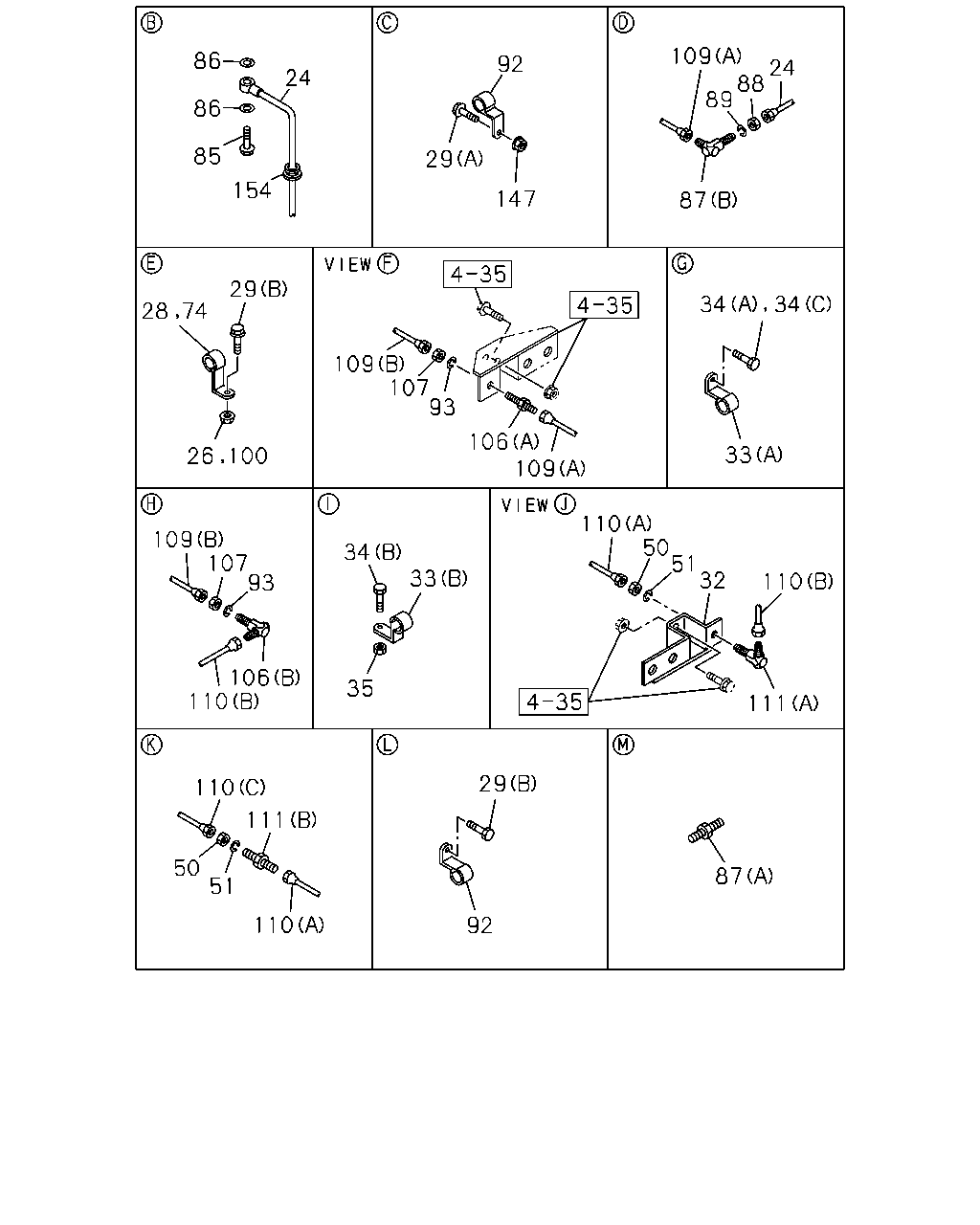

109 24 88 89 86 92 24 86 85 29 154 147 87 29 34 34 109 107 93 106 109 33 110 50 51 32 109 107 93 34 33 110 106 110 35 111 29 110 111 50 87 51 110 92 28 74 26 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION UNDER FOLLR COCKPIT<Y53>	8-98109-892-0	01	1	0907-
24	PIPE ASM; CLU,M/CYL TO UNION	1-49164-414-0	01	1	0707-0906
24	PIPE ASM; CLU,M/CYL TO UNION EXC. UNDER FOLLR COCKPIT<Y53>	1-49164-414-0	01	1	0907-
26	NUT; CLIP,OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> M8 FLANGE	0-91180-108-0	02	1	0907-
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0707-0906
26	NUT; CLIP,OIL PIPE UNDER FOLLR COCKPIT<Y53> M8 FLANGE	0-91180-108-0	03	1	0907-
28	CLIP; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> ID=8 H=20 L=20	1-09700-604-0	02	1	0907-
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0707-0906
28	CLIP; OIL PIPE UNDER FOLLR COCKPIT<Y53> ID=8 H=20 L=20	1-09700-604-0	03	1	0907-
29	BOLT; CLIP,OIL PIPE UNDER FOLLR COCKPIT<Y53> (B) M8X25 FLANGE	0-28650-825-0	03	1	0907-
29	BOLT; CLIP,OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (B) M8X25 FLANGE	0-28650-825-0	02	1	0907-
29	BOLT; CLIP,OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (A) M8X20 FLANGE	0-28650-820-0	01	1	0907-
29	BOLT; CLIP,OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (A) M8X20 FLANGE	0-28650-820-0	01	1	0907-
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	01	1	0707-0709
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0906
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	01	1	0710-0906
29	BOLT; CLIP,OIL PIPE UNDER FOLLR COCKPIT<Y53> (A) M8X20 FLANGE	0-28650-820-0	02	1	0907-
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	03	1	0707-0709
29	BOLT; CLIP,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	05	1	0707-0709
29	BOLT; CLIP,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	07	1	0710-0906
29	BOLT; CLIP,OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	05	1	0907-
30	BOLT; BRKT UNDER FOLLR COCKPIT<Y53> M8X25 FLANGE	0-28650-825-0	01	1	0907-
31	NUT; BRKT UNDER FOLLR COCKPIT<Y53> M8 FLANGE	0-91180-108-0	01	1	0907-
32	BRACKET; CLIP OIL PIPE UNDER FOLLR COCKPIT<Y53> (B) L=40	1-47478-410-0	01	1	0907-
32	BRACKET; CLIP OIL PIPE UNDER FOLLR COCKPIT<Y53> (A)	8-98109-426-0	01	1	0907-
32	BRACKET; CLIP OIL PIPE (A)	1-47471-344-0	01	1	0707-0906
32	BRACKET; CLIP OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (A)	1-47471-344-0	01	1	0907-
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0707-
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	02	1	0707-
34	BOLT; PIPE CLIP (B) M8X20 FLANGE	0-28050-820-0	02	1	0707-
34	BOLT; PIPE CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	0707-
34	BOLT; PIPE CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	0707-
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0707-
50	NUT; UNION M14	0-91111-514-0	02	1	0707-
51	WASHER; LK ID=14.2	0-91510-514-0	02	1	0707-0903
51	WASHER; LK ID=14.2	0-91510-814-0	02	1	0904-
74	CLIP; CLU OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0707-0906
74	CLIP; CLU OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> ID=8 H=20 L=20	1-09700-604-0	01	1	0907-
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE-BOLT	9-09906-325-1	01	1	0707-
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	0707-
87	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0707-0906
87	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0707-0906
87	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0907-
87	UNION; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> (A) M14 STRAIGHT	0-92113-008-0	01	1	0907-
87	UNION; OIL PIPE (B) M14	0-92125-108-0	01	1	0707-
88	NUT; PIPE UNION M14	0-91111-514-0	01	1	0707-0906
88	NUT; PIPE UNION EXC. UNDER FOLLR COCKPIT<Y53> M14	0-91111-514-0	01	1	0907-
89	WASHER; LK,PIPE UNION ID=14.2	0-91510-514-0	01	1	0707-0903
89	WASHER; LK,PIPE UNION ID=14.2	0-91510-814-0	01	1	0904-0906
89	WASHER; LK,PIPE UNION EXC. UNDER FOLLR COCKPIT<Y53> ID=14.2	0-91510-814-0	01	1	0907-
92	CLIP; OIL PIPE UNDER FOLLR COCKPIT<Y53> ID=8 H=20 L=20	1-09700-604-0	02	1	0907-
92	CLIP; OIL PIPE EXC. UNDER FOLLR COCKPIT<Y53> ID=8 H=20 L=20	1-09700-604-0	01	1	0907-
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	06	1	0707-0906
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	05	1	0907-
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-514-0	02	1	0707-0903
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-814-0	02	1	0904-
100	NUT; BRK PIPE,RR AXLE M8 FLANGE	0-91180-108-0	01	1	0707-0906
100	NUT; BRK PIPE,RR AXLE EXC. UNDER FOLLR COCKPIT<Y53> M8 FLANGE	0-91180-108-0	01	1	0907-
106	UNION; OIL PIPE (A) M14	0-92113-308-0	01	1	0707-
106	UNION; OIL PIPE (B) M14	0-92125-108-0	01	1	0707-
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	02	1	0707-
109	PIPE; AIR,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (A) L=1882 SERVICED BY L=1950	1-47428-769-0	01	1	0907-
109	PIPE; AIR,UNION TO UNION (C) L=705 SERVICED BY L=730	1-47428-758-0	01	1	0707-0906
109	PIPE; AIR,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (C) L=705 SERVICED BY L=730	1-47428-758-0	01	1	0907-
109	PIPE; AIR,UNION TO UNION (A) L=1375 SERVICED BY L=1400	1-47428-765-0	01	1	0707-0711
109	PIPE; AIR,UNION TO UNION (A) L=1372 SERVICED BY L=1400	1-47428-765-0	01	1	0712-0906
109	PIPE; AIR,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (A) L=1372 SERVICED BY L=1400	1-47428-765-0	01	1	0907-
109	PIPE; AIR,UNION TO UNION (B) L=1772 SERVICED BY L=1800	1-47428-768-0	01	1	0707-
110	PIPE; OIL,UNION TO UNION (A) L=564 SERVICED BY L=570	1-47428-754-0	01	1	0707-
110	PIPE; OIL,UNION TO UNION (B) L=1755 SERVICED BY L=1800	1-47428-768-0	01	1	0707-
110	PIPE; OIL,UNION TO UNION (C) L=2130	1-49165-978-0	01	1	0707-
111	UNION; OIL PIPE (B) M14	0-92113-308-0	01	1	0707-
111	UNION; OIL PIPE (A) M14	0-92125-108-0	01	1	0707-
147	NUT; CLIP FIX EXC. UNDER FOLLR COCKPIT<Y53> M8 FLANGE	0-91180-108-0	01	1	0907-
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0707-0906
147	NUT; CLIP FIX UNDER FOLLR COCKPIT<Y53> M8 FLANGE	0-91180-108-0	02	1	0907-
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	0707-

153 115 38 116 37 36 47 48 54 9 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0707-
30	BOLT; BRKT UNDER FOLLR COCKPIT<Y53> M8X25 FLANGE	0-28650-825-0	01	1	0907-
31	NUT; BRKT UNDER FOLLR COCKPIT<Y53> M8 FLANGE	0-91180-108-0	01	1	0907-
36	BRACKET; CLIP	1-47478-929-0	01	1	0707-
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28650-840-0	02	1	0707-0903
37	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	02	1	0904-
38	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0707-
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	0707-
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0707-
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0707-
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	0707-
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0707-
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0707-0903
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	0904-
153	PIPE ASM; CLU,UNION TO FLEX L=424	1-49167-552-0	01	1	0707-

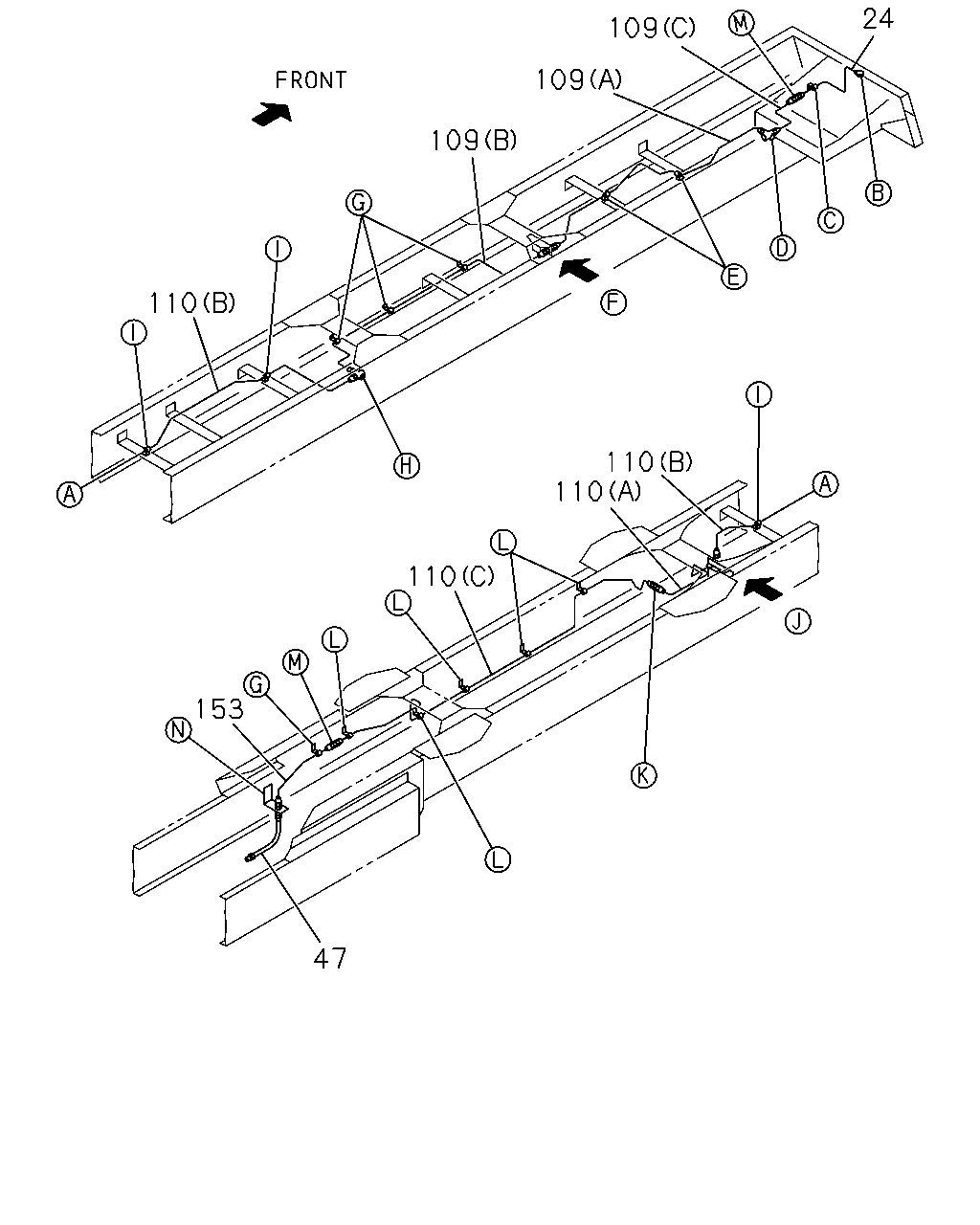

24 109 109 109 110 110 110 110 153 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	PIPE ASM; CLU,M/CYL TO UNION UNDER FOLLR COCKPIT<Y53>	8-98109-892-0	01	1	0907-
24	PIPE ASM; CLU,M/CYL TO UNION	1-49164-414-0	01	1	0707-0906
24	PIPE ASM; CLU,M/CYL TO UNION EXC. UNDER FOLLR COCKPIT<Y53>	1-49164-414-0	01	1	0907-
30	BOLT; BRKT UNDER FOLLR COCKPIT<Y53> M8X25 FLANGE	0-28650-825-0	01	1	0907-
31	NUT; BRKT UNDER FOLLR COCKPIT<Y53> M8 FLANGE	0-91180-108-0	01	1	0907-
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	0707-
109	PIPE; AIR,UNION TO UNION UNDER FOLLR COCKPIT<Y53> (A) L=1882 SERVICED BY L=1950	1-47428-769-0	01	1	0907-
109	PIPE; AIR,UNION TO UNION (C) L=705 SERVICED BY L=730	1-47428-758-0	01	1	0707-0906
109	PIPE; AIR,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (C) L=705 SERVICED BY L=730	1-47428-758-0	01	1	0907-
109	PIPE; AIR,UNION TO UNION (A) L=1375 SERVICED BY L=1400	1-47428-765-0	01	1	0707-0711
109	PIPE; AIR,UNION TO UNION (A) L=1372 SERVICED BY L=1400	1-47428-765-0	01	1	0712-0906
109	PIPE; AIR,UNION TO UNION EXC. UNDER FOLLR COCKPIT<Y53> (A) L=1372 SERVICED BY L=1400	1-47428-765-0	01	1	0907-
109	PIPE; AIR,UNION TO UNION (B) L=1772 SERVICED BY L=1800	1-47428-768-0	01	1	0707-
110	PIPE; OIL,UNION TO UNION (A) L=564 SERVICED BY L=570	1-47428-754-0	01	1	0707-
110	PIPE; OIL,UNION TO UNION (B) L=1755 SERVICED BY L=1800	1-47428-768-0	01	1	0707-
110	PIPE; OIL,UNION TO UNION (C) L=2130	1-49165-978-0	01	1	0707-
153	PIPE ASM; CLU,UNION TO FLEX L=424	1-49167-552-0	01	1	0707-
