7-10 — CAUTION PLATE AND LABEL (#39305) — 32 parça

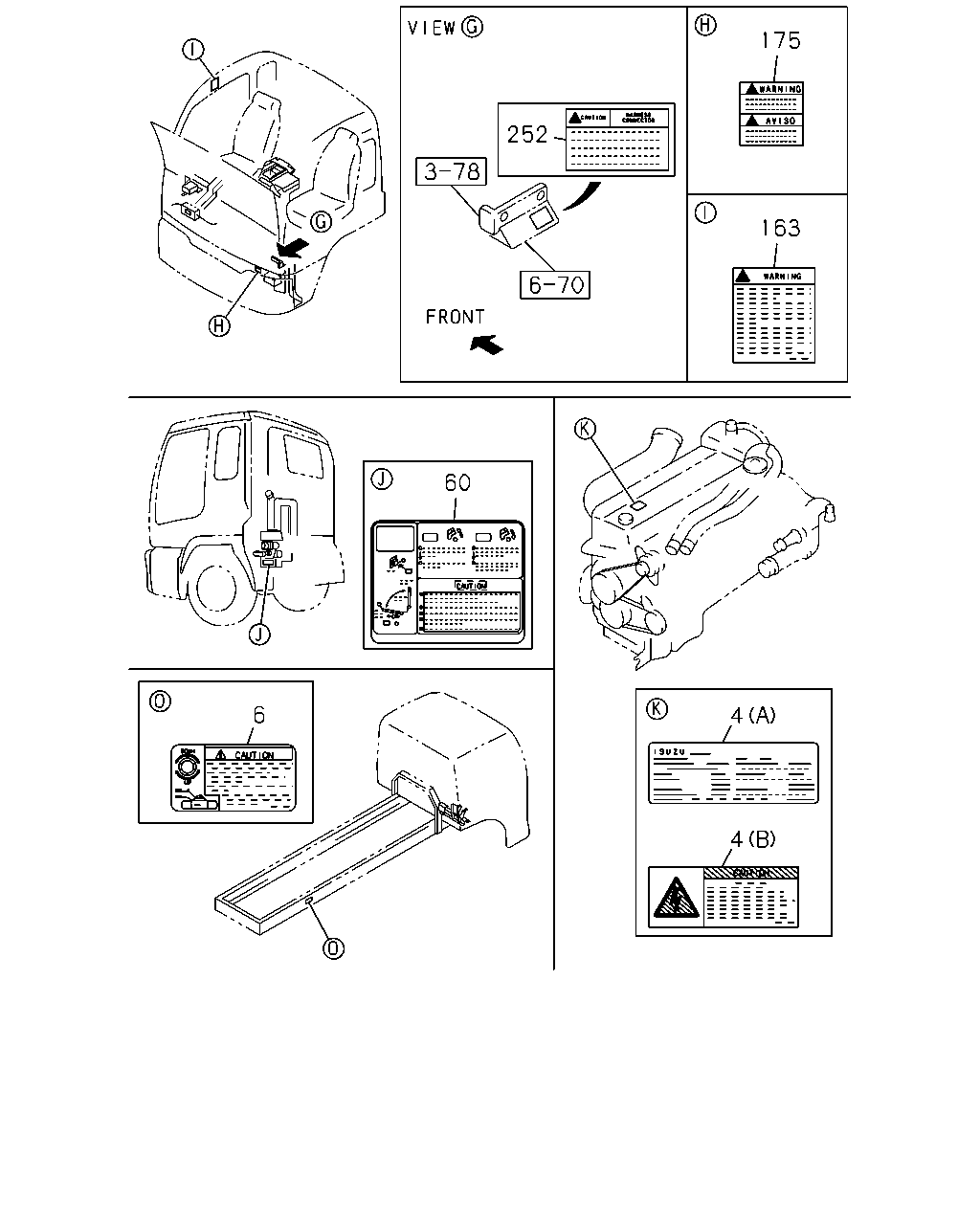

çizim 180395
252 175 163 4 4 6 60
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
(A) 		1-85875-350-2 01 1 0710-
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 0710-
6 PLATE; CAUTION,SPARE TIRE 8-98082-437-0 01 1 0710-
60 PLATE; CAUTION,CAB TILT 1-85883-234-0 01 1 0710-
163 PLATE; NAME,AIR BAG 1-85878-485-0 01 1 0710-
175 LABEL; STRG,AIR BAG 1-85878-116-0 02 1 0710-
252 PLATE; CAUTION,HARNESS 1-85878-488-1 01 1 0710-

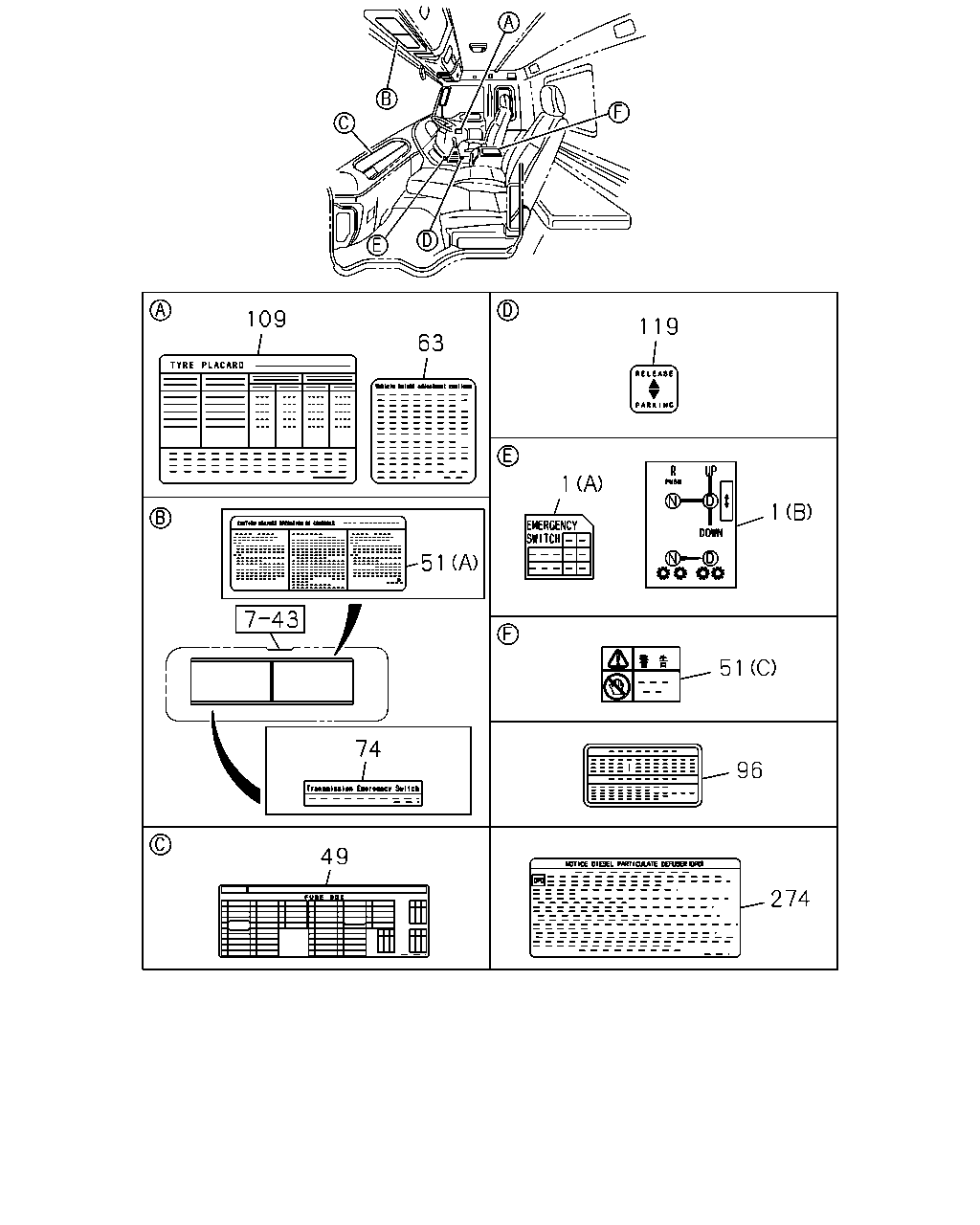

çizim 180397
109 63 51 74 49 274 96 51 1 1 119
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN
(B) 		1-85881-842-0 01 1 0710-
1 PLATE; CAUTION,SHIFT PATTERN
(A) 		1-85881-879-1 01 1 0710-
49 PLATE; CAUTION,FUSE BOX 8-97619-856-0 01 1 0710-
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0710-
51 PLATE; CAUTION,WARNING
(C) 		1-85878-571-0 01 1 0710-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 0710-
63 PLATE; CAUTION,SEAT AIR 1-85881-861-0 01 1 0710-
74 PLATE; CAUTION,CHANGE LEV 1-85881-869-0 01 1 0710-
96 PLATE; CAUTION,ENGINE OIL 8-98036-732-0 01 1 0710-
109 PLATE; CAUTION,TIRE PLACARD 1-85881-933-0 01 1 0710-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0710-
274 PLATE; CAUTION,DPD 8-97616-473-0 01 1 0710-

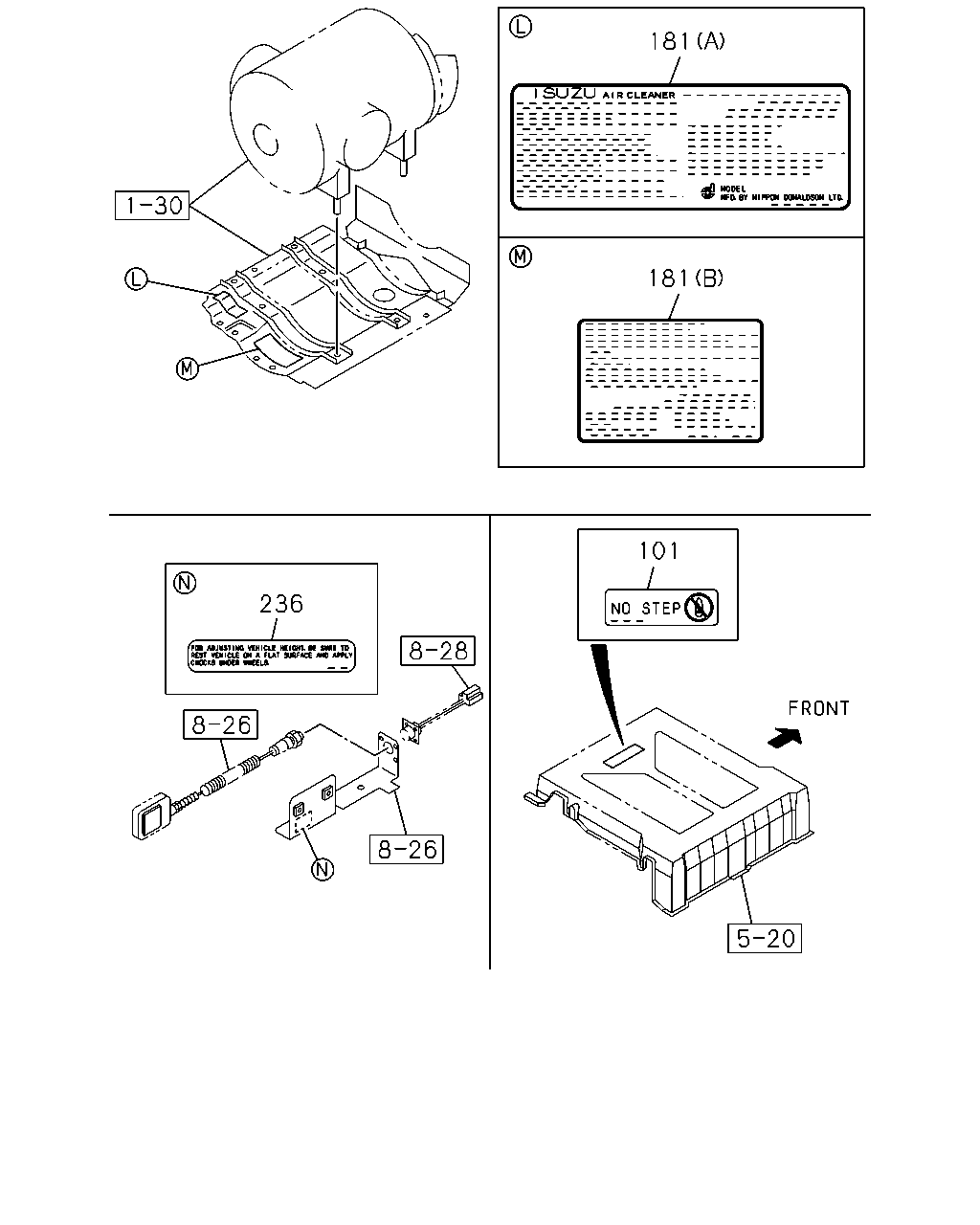

çizim 180401
181 181 101 236
BalonParca AdiParca NoAdetTipApplied Date
101 PLATE; CAUTION,NO STEP 8-97624-096-0 01 1 0710-
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 0710-
181 PLATE; CAUTION,AIR CLEANER
(B) 		1-85886-813-1 01 1 0710-
236 PLATE; CAUTION,AIR SUS 1-85881-823-0 01 1 0710-

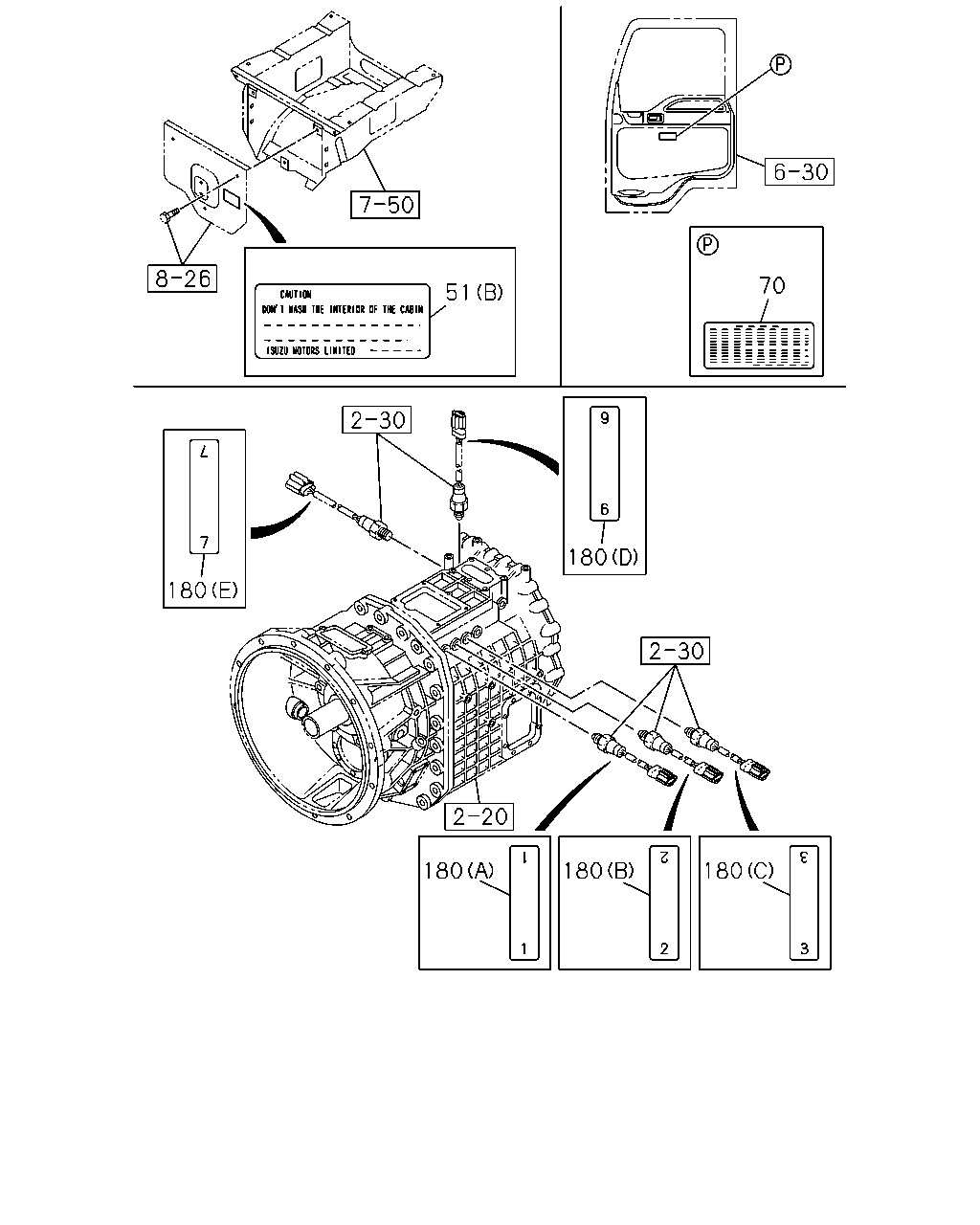

çizim 180406
51 180 180 180 180 180 70
BalonParca AdiParca NoAdetTipApplied Date
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0710-
51 PLATE; CAUTION,WARNING
(C) 		1-85878-571-0 01 1 0710-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 0710-
70 PLATE; CAUTION,ACT 1-85878-484-0 01 1 0710-
180 PLATE; CAUTION,SWITCH
(A) 		1-85881-871-0 01 1 0710-
180 PLATE; CAUTION,SWITCH
(B) 		1-85881-872-0 01 1 0710-
180 PLATE; CAUTION,SWITCH
(C) 		1-85881-873-0 01 1 0710-
180 PLATE; CAUTION,SWITCH
(D) 		1-85881-880-0 01 1 0710-
180 PLATE; CAUTION,SWITCH
(E) 		1-85881-881-0 01 1 0710-
