6-87 — TRUNK ROOM PACKAGE AND REAR PARCEL (#39302) — 20 parça

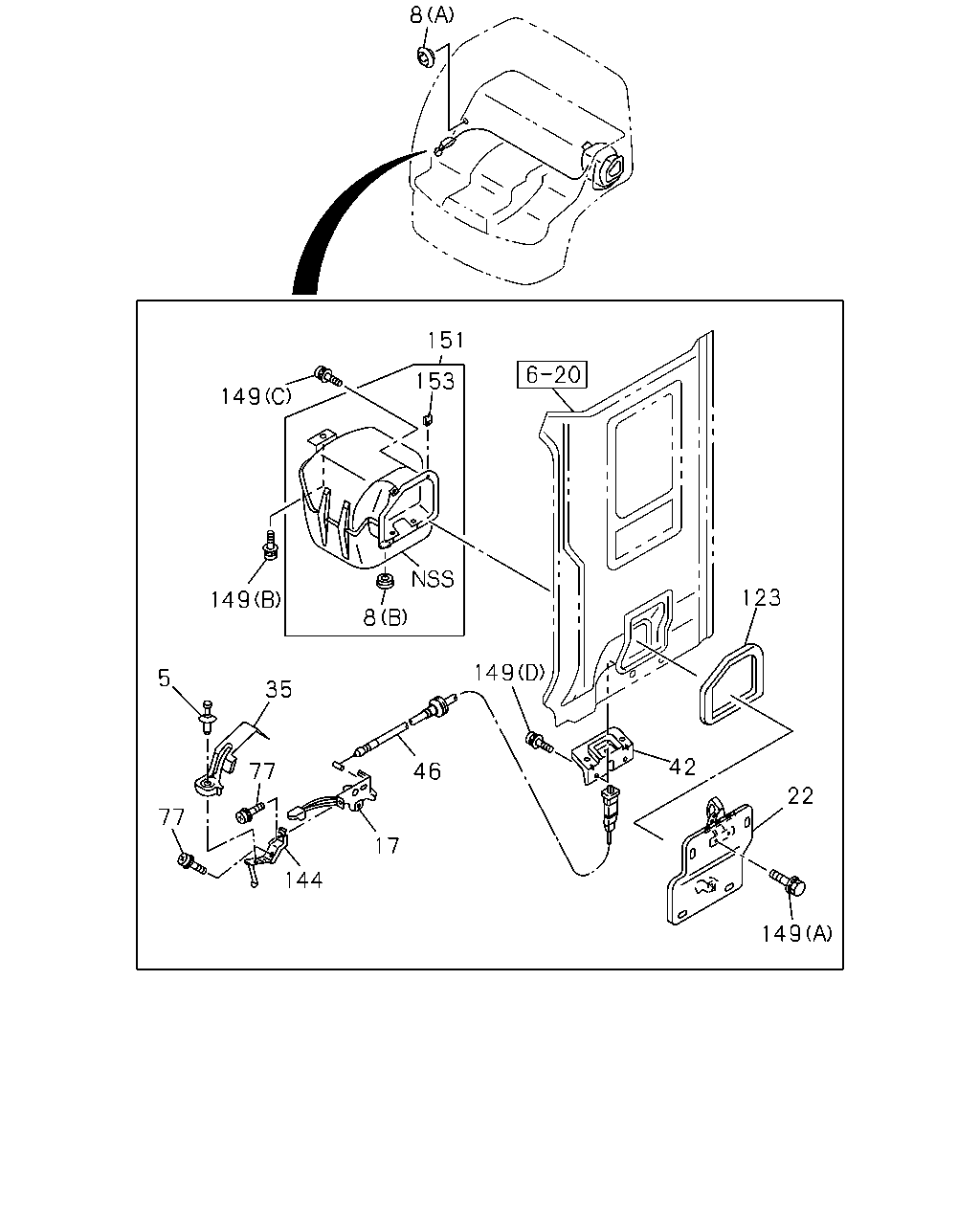

çizim 180408
8 151 153 149 149 8 149 46 17 144 77 35 5 77 42 22 149 123
BalonParca AdiParca NoAdetTipApplied Date
5 FASTENER
BAGGAGE BOX CAB RR SIDE<TBM> ID=6X6 OD=8 		1-09987-194-0 01 1 0710-
8 GROMMET; BOARD FIX
(A) OD=28 		8-94279-720-0 01 1 0710-
8 GROMMET; BOARD FIX
(B) OD=44 		8-94279-727-0 01 1 0710-
17 KNOB; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-73328-018-0 01 1 0710-
22 LID; LUGGAGE SIDE
BODY COLOR TOLL GREEN(543) 		8-98213-931-0 01 1 1203-
22 LID; LUGGAGE SIDE 1-71707-063-0 01 1 0710-1202
22 LID; LUGGAGE SIDE
BODY COLOR ARC WHITE(729) 		1-71707-063-0 01 1 1203-
35 COVER; LUGGAGE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-79517-005-1 01 1 0710-
42 BRACKET ASM; HOOK
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-068-1 01 1 0710-
46 LOCK; RR COMPT LID
L=2842 		1-79517-008-0 01 1 0710-
77 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> M6X20 W/LK&PL WASHER 		8-94279-403-0 02 1 0710-
123 SEAL; REAR 1-71797-061-1 01 1 0710-
144 BRACKET
BAGGAGE BOX CAB RR SIDE<TBM> 		1-73907-267-2 01 1 0710-
149 SCREW; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904
149 SCREW; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
149 SCREW; BRKT
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0710-
149 SCREW; BRKT
(C) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0710-
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (D) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0710-
151 BOX ASM 1-71797-951-2 01 1 0710-
153 J-NUT 8-94279-056-0 02 1 0710-
