Sayfa 0-36 - Isuzu EPC

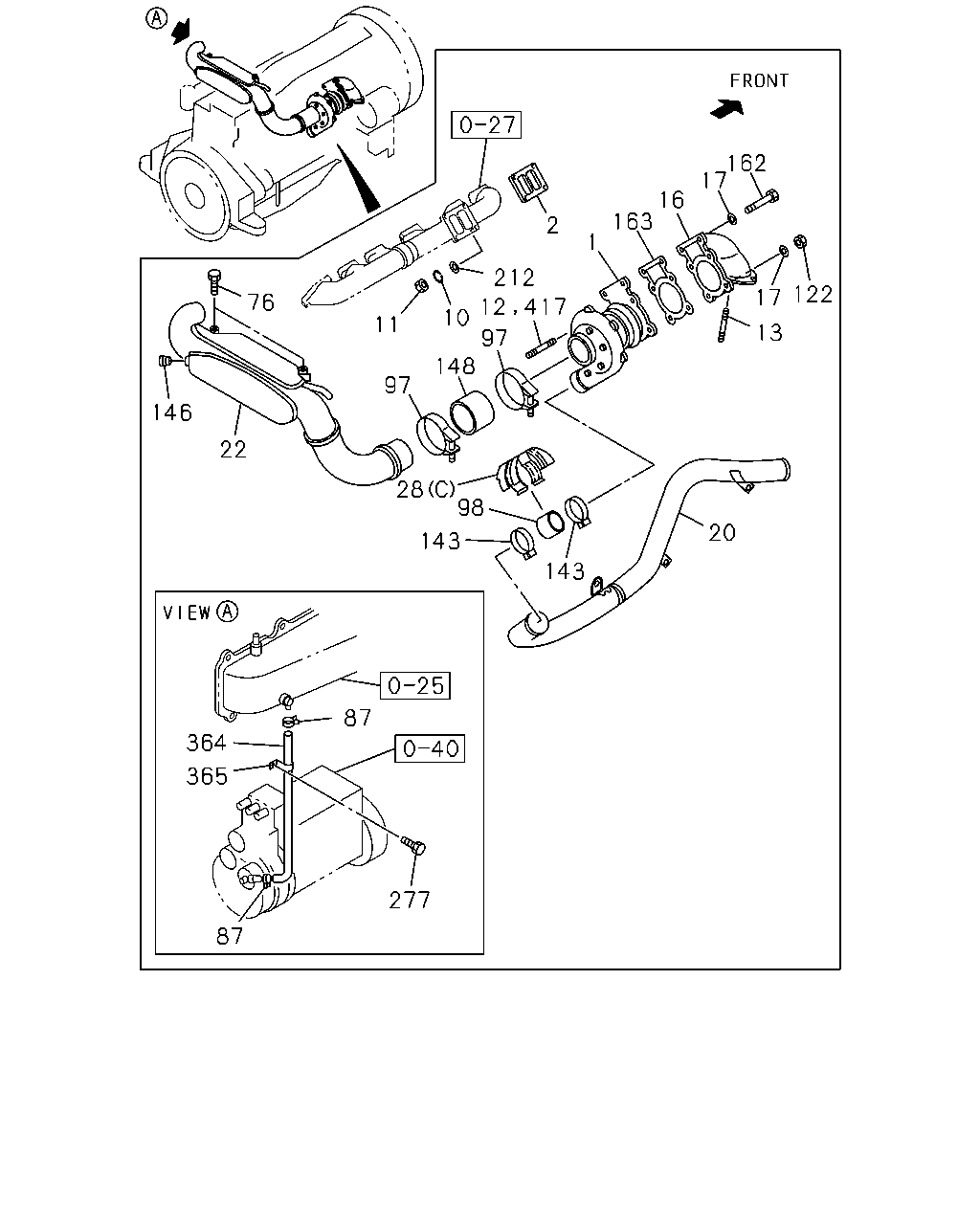

0-36 — TURBOCHARGER SYSTEM (#3928) — 349 parça

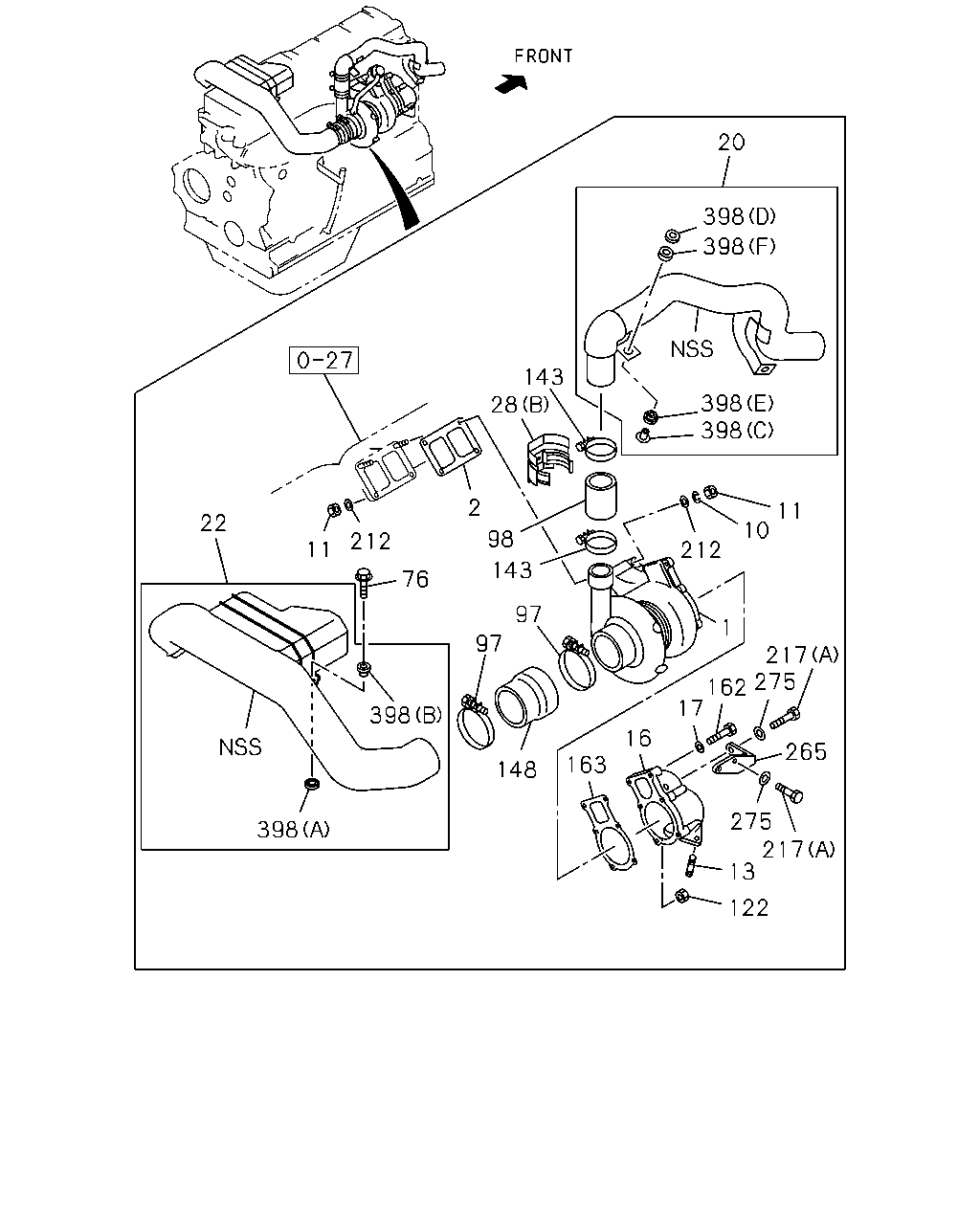

162 17 16 163 2 1 212 17 122 76 12 10 11 13 97 148 97 146 22 28 98 20 143 143 87 364 365 277 87 417

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94394-457-2	01	1	9511-9709	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	8-94394-457-3	01	1	9710-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-94390-650-0	01	1	0005-1007	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-98162-141-0	01	1	1008-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-94390-651-0	01	1	9710-0004	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-651-0	01	1	9710-0004		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-651-0	01	1	0005-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97602-809-0	01	1	0608-			●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-121-0	01	1	9511-9709	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	1-14145-121-1	01	1	9710-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	9710-0607	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	9710-0607		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0608-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0608-		●	●
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION<THN> T=2.2	1-09556-015-0	02	1	9710-0607	●
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	9710-0607		●
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION<THN> T=2.2	1-09556-015-0	02	1	0608-	●
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	0608-		●	●
11	NUT; TURBOCHARGER M10	1-09420-005-0	04	1	9511-0607	●	●
11	NUT; TURBOCHARGER M10	1-09420-005-0	04	1	0608-	●	●	●
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<THN> M10X80	9-04731-080-0	02	1	1008-	●
13	STUD; EXH PIPE M12X123 L=141	1-09302-012-0	02	1	0608-			●
13	STUD; EXH PIPE EURO2 SPECIFICATION<THN> M12X103 L=123	8-94394-656-0	01	1	9710-	●
13	STUD; EXH PIPE M12X103 L=123	8-94394-656-0	01	1	9710-		●
16	ADAPTER; EXH PIPE	8-97600-283-0	01	1	0608-			●
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<THN>	8-94391-161-1	01	1	9710-	●
16	ADAPTER; EXH PIPE	8-94391-161-1	01	1	9710-		●
17	WASHER; PL,ADAPTER ID=12.2	9-09851-933-0	04	1	9511-9709	●
17	WASHER; PL,ADAPTER EXC. EURO2 SPECIFICATION<THN> ID=12.2	9-09851-933-0	04	1	9710-	●
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<THN> T=1.9	5-09500-012-0	06	1	9710-0607	●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	9710-0607		●
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<THN> T=1.9	5-09500-012-0	06	1	0608-	●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	0608-		●	●
20	PIPE; INL,TURBOCHARGER OUT	8-97600-383-1	01	1	0608-			●
20	PIPE; INL,TURBOCHARGER OUT	8-94394-399-0	01	1	9511-9709	●
20	PIPE; INL,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN>	8-94394-399-1	01	1	9710-	●
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<THN>	8-94390-649-2	01	1	9710-	●
20	PIPE; INL,TURBOCHARGER OUT	8-94390-649-2	01	1	9710-		●
22	DUCT; INL,ACL TO TURBOCHARGER	8-97600-071-1	01	1	0608-			●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94394-401-1	01	1	9511-9709	●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94394-401-1	01	1	9710-	●
22	DUCT; INL,ACL TO TURBOCHARGER EURO2 SPECIFICATION<THN>	8-94390-407-0	01	1	9710-	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94390-407-0	01	1	9710-		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (A)	1-14181-220-0	01	1	9511-9709	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (A)	1-14181-220-0	01	1	9710-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	9511-9709	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	9710-0607	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	0608-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	0608-			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EURO2 SPECIFICATION<THN> (C)	1-14181-264-0	01	1	9710-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (C)	1-14181-264-0	01	1	9710-		●
76	BOLT; AIR DUCT M8X35 FLANGE	0-28650-835-0	02	1	0608-			●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	9511-0512	●	●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28050-850-0	02	1	0601-	●	●
87	CLIP; RUBBER HOSE FIX EURO2 SPECIFICATION<THN> ID=11	8-94238-570-0	02	1	9710-	●
87	CLIP; RUBBER HOSE FIX ID=11	8-94238-570-0	02	1	9710-		●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	04	1	0608-0810			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	02	1	0811-0811			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0811-0811			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	04	1	0812-			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9511-9709	●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN> ID=86	9-09915-592-0	02	1	9710-	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-114-0	02	1	9710-0306	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	02	1	9710-0306		●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-198-0	04	1	0307-0810	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-198-0	04	1	0307-0810		●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-114-0	04	1	0811-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	04	1	0811-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=58.5 OD=65.5 L=80	8-94392-854-0	01	1	0608-			●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9511-9709	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	1-09360-797-1	01	1	9710-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	8-98245-240-0	01	1	1409-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN>	1-09360-782-0	01	1	9710-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-782-0	01	1	9710-		●
122	NUT; ADAPTER EURO2 SPECIFICATION<THN> M8	1-09400-118-1	01	1	9710-0607	●
122	NUT; ADAPTER M8	1-09400-118-1	01	1	9710-0607		●
122	NUT; ADAPTER EURO2 SPECIFICATION<THN> M8	1-09400-118-1	01	1	0608-	●
122	NUT; ADAPTER M8	1-09400-118-1	01	1	0608-		●	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9511-9709	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	9710-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0307-0607	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0608-0811	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0608-0811			●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	0812-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0812-			●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-69	8-94316-991-0	02	1	9710-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	9710-0306		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-65	1-09707-204-0	02	1	0307-0810	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-65	1-09707-204-0	02	1	0307-0810		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-69	8-94316-991-0	02	1	0811-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	0811-		●
146	PLUG; INL PIPE EURO2 SPECIFICATION<THN> PT1	1-09605-021-0	01	1	9710-0004	●
146	PLUG; INL PIPE PT1	1-09605-021-0	01	1	9710-0004		●
146	PLUG; INL PIPE PT1	1-09605-021-1	01	1	0005-		●
148	HOSE; TURBOCHARGER,INL	8-94392-853-0	01	1	0608-			●
148	HOSE; TURBOCHARGER,INL	1-09360-600-0	01	1	9511-9709	●
148	HOSE; TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN>	1-09360-600-0	01	1	9710-	●
148	HOSE; TURBOCHARGER,INL EURO2 SPECIFICATION<THN>	5-09360-846-0	01	1	9710-	●
148	HOSE; TURBOCHARGER,INL	5-09360-846-0	01	1	9710-		●
162	BOLT; ADAPTER M12X30	8-94394-324-0	02	1	9511-9709	●
162	BOLT; ADAPTER EXC. EURO2 SPECIFICATION<THN> M12X30	8-94394-324-0	02	1	9710-	●
162	BOLT; ADAPTER EURO2 SPECIFICATION<THN> M8X57	5-09000-275-0	05	1	9710-0607	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	9710-0607		●
162	BOLT; ADAPTER EURO2 SPECIFICATION<THN> M8X57	5-09000-275-0	05	1	0608-	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	0608-		●	●
163	GASKET; ADAPTER TO EXH PIPE EURO2 SPECIFICATION<THN>	1-14145-162-0	01	1	9710-0607	●
163	GASKET; ADAPTER TO EXH PIPE	1-14145-162-0	01	1	9710-0607		●
163	GASKET; ADAPTER TO EXH PIPE EURO2 SPECIFICATION<THN>	1-14145-162-2	01	1	0608-	●
163	GASKET; ADAPTER TO EXH PIPE	1-14145-162-2	01	1	0608-		●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	9511-0607	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0608-	●	●	●
277	BOLT; CLIP EURO2 SPECIFICATION<THN> M6X10 FLANGE	0-28080-610-0	01	1	9710-0512	●
277	BOLT; CLIP M6X10 FLANGE	0-28080-610-0	01	1	9710-0512		●
277	BOLT; CLIP EURO2 SPECIFICATION<THN> M6X10 FLANGE	0-28050-610-0	01	1	0601-	●
277	BOLT; CLIP M6X10 FLANGE	0-28050-610-0	01	1	0601-		●
364	HOSE; BOOST EURO2 SPECIFICATION<THN> L=200 SERVICED BY L=3000	0-04770-300-0	01	1	9710-	●
364	HOSE; BOOST L=200 SERVICED BY L=3000	0-04770-300-0	01	1	9710-		●
365	CLIP; RUBBER HOSE,BOOST EURO2 SPECIFICATION<THN> D=11 H=40 L=20	8-94246-610-0	01	1	9710-	●
365	CLIP; RUBBER HOSE,BOOST D=11 H=40 L=20	8-94246-610-0	01	1	9710-		●
417	STUD; ADAPTER TO EXH PIPE EURO2 SPECIFICATION<THN> M8X25	9-04130-825-0	01	1	1008-	●

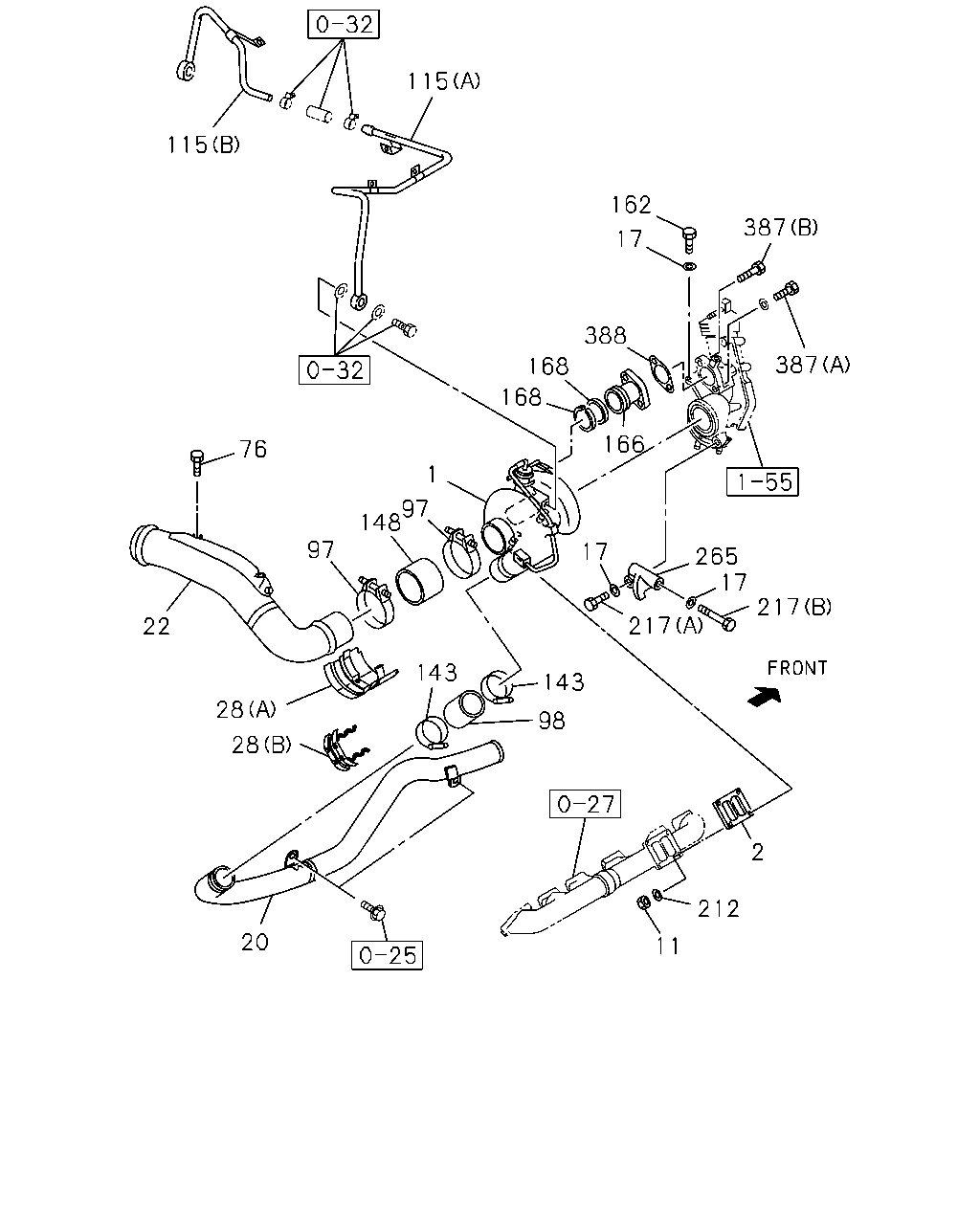

115 115 162 387 17 388 387 168 168 166 76 1 97 148 97 17 265 17 217 217 22 143 143 28 98 28 2 212 20 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94394-457-2	01	1	9511-9709	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	8-94394-457-3	01	1	9710-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-94390-650-0	01	1	0005-1007	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-98162-141-0	01	1	1008-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-94390-651-0	01	1	9710-0004	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-651-0	01	1	9710-0004		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-651-0	01	1	0005-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97602-809-0	01	1	0608-			●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-121-0	01	1	9511-9709	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	1-14145-121-1	01	1	9710-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	9710-0607	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	9710-0607		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0608-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0608-		●	●
11	NUT; TURBOCHARGER M10	1-09420-005-0	04	1	9511-0607	●	●
11	NUT; TURBOCHARGER M10	1-09420-005-0	04	1	0608-	●	●	●
17	WASHER; PL,ADAPTER ID=12.2	9-09851-933-0	04	1	9511-9709	●
17	WASHER; PL,ADAPTER EXC. EURO2 SPECIFICATION<THN> ID=12.2	9-09851-933-0	04	1	9710-	●
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<THN> T=1.9	5-09500-012-0	06	1	9710-0607	●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	9710-0607		●
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<THN> T=1.9	5-09500-012-0	06	1	0608-	●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	0608-		●	●
20	PIPE; INL,TURBOCHARGER OUT	8-97600-383-1	01	1	0608-			●
20	PIPE; INL,TURBOCHARGER OUT	8-94394-399-0	01	1	9511-9709	●
20	PIPE; INL,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN>	8-94394-399-1	01	1	9710-	●
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<THN>	8-94390-649-2	01	1	9710-	●
20	PIPE; INL,TURBOCHARGER OUT	8-94390-649-2	01	1	9710-		●
22	DUCT; INL,ACL TO TURBOCHARGER	8-97600-071-1	01	1	0608-			●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94394-401-1	01	1	9511-9709	●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94394-401-1	01	1	9710-	●
22	DUCT; INL,ACL TO TURBOCHARGER EURO2 SPECIFICATION<THN>	8-94390-407-0	01	1	9710-	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94390-407-0	01	1	9710-		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (A)	1-14181-220-0	01	1	9511-9709	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (A)	1-14181-220-0	01	1	9710-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	9511-9709	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	9710-0607	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	0608-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	0608-			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EURO2 SPECIFICATION<THN> (C)	1-14181-264-0	01	1	9710-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (C)	1-14181-264-0	01	1	9710-		●
76	BOLT; AIR DUCT M8X35 FLANGE	0-28650-835-0	02	1	0608-			●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	9511-0512	●	●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28050-850-0	02	1	0601-	●	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	04	1	0608-0810			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	02	1	0811-0811			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0811-0811			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	04	1	0812-			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9511-9709	●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN> ID=86	9-09915-592-0	02	1	9710-	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-114-0	02	1	9710-0306	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	02	1	9710-0306		●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-198-0	04	1	0307-0810	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-198-0	04	1	0307-0810		●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-114-0	04	1	0811-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	04	1	0811-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=58.5 OD=65.5 L=80	8-94392-854-0	01	1	0608-			●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9511-9709	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	1-09360-797-1	01	1	9710-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	8-98245-240-0	01	1	1409-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN>	1-09360-782-0	01	1	9710-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-782-0	01	1	9710-		●
115	PIPE; WATER,TURBOCHARGER OUT (A)	8-94394-691-0	01	1	9511-9709	●
115	PIPE; WATER,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN> (A)	8-94394-691-1	01	1	9710-	●
115	PIPE; WATER,TURBOCHARGER OUT (B)	8-94395-454-3	01	1	9511-9709	●
115	PIPE; WATER,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN> (B)	8-94395-454-4	01	1	9710-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9511-9709	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	9710-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0307-0607	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0608-0811	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0608-0811			●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	0812-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0812-			●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-69	8-94316-991-0	02	1	9710-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	9710-0306		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-65	1-09707-204-0	02	1	0307-0810	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-65	1-09707-204-0	02	1	0307-0810		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-69	8-94316-991-0	02	1	0811-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	0811-		●
148	HOSE; TURBOCHARGER,INL	8-94392-853-0	01	1	0608-			●
148	HOSE; TURBOCHARGER,INL	1-09360-600-0	01	1	9511-9709	●
148	HOSE; TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN>	1-09360-600-0	01	1	9710-	●
148	HOSE; TURBOCHARGER,INL EURO2 SPECIFICATION<THN>	5-09360-846-0	01	1	9710-	●
148	HOSE; TURBOCHARGER,INL	5-09360-846-0	01	1	9710-		●
162	BOLT; ADAPTER M12X30	8-94394-324-0	02	1	9511-9709	●
162	BOLT; ADAPTER EXC. EURO2 SPECIFICATION<THN> M12X30	8-94394-324-0	02	1	9710-	●
162	BOLT; ADAPTER EURO2 SPECIFICATION<THN> M8X57	5-09000-275-0	05	1	9710-0607	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	9710-0607		●
162	BOLT; ADAPTER EURO2 SPECIFICATION<THN> M8X57	5-09000-275-0	05	1	0608-	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	0608-		●	●
166	PIPE; EXH	8-94393-151-0	01	1	9511-9709	●
166	PIPE; EXH EXC. EURO2 SPECIFICATION<THN>	8-94393-151-0	01	1	9710-	●
168	RING; SEAL,EXH PIPE	1-14149-083-1	02	1	9511-9709	●
168	RING; SEAL,EXH PIPE EXC. EURO2 SPECIFICATION<THN>	1-14149-083-1	02	1	9710-	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	9511-0607	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0608-	●	●	●
217	BOLT; BRKT (A) M12X30	8-94394-324-0	03	1	0608-			●
217	BOLT; BRKT (A) M12X30	8-94394-324-0	01	1	9511-9709	●
217	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (A) M12X30	8-94394-324-0	01	1	9710-	●
217	BOLT; BRKT (B) M12X85	8-94394-514-0	01	1	9511-9709	●
217	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (B) M12X85	8-94394-514-0	01	1	9710-	●
265	BRACKET; EXH PIPE	8-94395-764-2	01	1	0608-			●
265	BRACKET; EXH PIPE	8-94394-373-0	01	1	9511-9709	●
265	BRACKET; EXH PIPE EXC. EURO2 SPECIFICATION<THN>	8-94394-373-0	01	1	9710-	●
387	BOLT; EXH PIPE (B) M10X40	8-94393-700-0	01	1	9511-9709	●
387	BOLT; EXH PIPE EXC. EURO2 SPECIFICATION<THN> (B) M10X40	8-94393-700-0	01	1	9710-	●
387	BOLT; EXH PIPE (A) M10X70	8-94394-698-0	01	1	9511-9709	●
387	BOLT; EXH PIPE EXC. EURO2 SPECIFICATION<THN> (A) M10X70	8-94394-698-0	01	1	9710-	●
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-139-0	01	1	9511-9709	●
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	1-14145-139-0	01	1	9710-	●

20 398 398 143 28 398 398 2 11 22 10 98 212 212 11 143 76 97 1 97 217 275 162 17 398 16 265 163 148 275 217 13 398 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94394-457-2	01	1	9511-9709	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EXC. EURO2 SPECIFICATION<THN>	8-94394-457-3	01	1	9710-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-94390-650-0	01	1	0005-1007	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-98162-141-0	01	1	1008-	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<THN>	8-94390-651-0	01	1	9710-0004	●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-651-0	01	1	9710-0004		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-94390-651-0	01	1	0005-		●
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-97602-809-0	01	1	0608-			●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-121-0	01	1	9511-9709	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<THN>	1-14145-121-1	01	1	9710-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	9710-0607	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	9710-0607		●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0608-	●
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0608-		●	●
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION<THN> T=2.2	1-09556-015-0	02	1	9710-0607	●
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	9710-0607		●
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION<THN> T=2.2	1-09556-015-0	02	1	0608-	●
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	0608-		●	●
11	NUT; TURBOCHARGER M10	1-09420-005-0	04	1	9511-0607	●	●
11	NUT; TURBOCHARGER M10	1-09420-005-0	04	1	0608-	●	●	●
13	STUD; EXH PIPE M12X123 L=141	1-09302-012-0	02	1	0608-			●
13	STUD; EXH PIPE EURO2 SPECIFICATION<THN> M12X103 L=123	8-94394-656-0	01	1	9710-	●
13	STUD; EXH PIPE M12X103 L=123	8-94394-656-0	01	1	9710-		●
16	ADAPTER; EXH PIPE	8-97600-283-0	01	1	0608-			●
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<THN>	8-94391-161-1	01	1	9710-	●
16	ADAPTER; EXH PIPE	8-94391-161-1	01	1	9710-		●
17	WASHER; PL,ADAPTER ID=12.2	9-09851-933-0	04	1	9511-9709	●
17	WASHER; PL,ADAPTER EXC. EURO2 SPECIFICATION<THN> ID=12.2	9-09851-933-0	04	1	9710-	●
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<THN> T=1.9	5-09500-012-0	06	1	9710-0607	●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	9710-0607		●
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<THN> T=1.9	5-09500-012-0	06	1	0608-	●
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	0608-		●	●
20	PIPE; INL,TURBOCHARGER OUT	8-97600-383-1	01	1	0608-			●
20	PIPE; INL,TURBOCHARGER OUT	8-94394-399-0	01	1	9511-9709	●
20	PIPE; INL,TURBOCHARGER OUT EXC. EURO2 SPECIFICATION<THN>	8-94394-399-1	01	1	9710-	●
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<THN>	8-94390-649-2	01	1	9710-	●
20	PIPE; INL,TURBOCHARGER OUT	8-94390-649-2	01	1	9710-		●
22	DUCT; INL,ACL TO TURBOCHARGER	8-97600-071-1	01	1	0608-			●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94394-401-1	01	1	9511-9709	●
22	DUCT; INL,ACL TO TURBOCHARGER EXC. EURO2 SPECIFICATION<THN>	8-94394-401-1	01	1	9710-	●
22	DUCT; INL,ACL TO TURBOCHARGER EURO2 SPECIFICATION<THN>	8-94390-407-0	01	1	9710-	●
22	DUCT; INL,ACL TO TURBOCHARGER	8-94390-407-0	01	1	9710-		●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (A)	1-14181-220-0	01	1	9511-9709	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (A)	1-14181-220-0	01	1	9710-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	9511-9709	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	9710-0607	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EXC. EURO2 SPECIFICATION<THN> (B)	8-94393-182-0	01	1	0608-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (B)	8-94393-182-0	01	1	0608-			●
28	PROTECTOR; HEAT,HOSE,AIR DUCT EURO2 SPECIFICATION<THN> (C)	1-14181-264-0	01	1	9710-	●
28	PROTECTOR; HEAT,HOSE,AIR DUCT (C)	1-14181-264-0	01	1	9710-		●
76	BOLT; AIR DUCT M8X35 FLANGE	0-28650-835-0	02	1	0608-			●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28080-850-0	02	1	9511-0512	●	●
76	BOLT; AIR DUCT M8X50 FLANGE	0-28050-850-0	02	1	0601-	●	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	04	1	0608-0810			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-113	1-09707-199-0	02	1	0811-0811			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	02	1	0811-0811			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=87-116	1-09707-144-0	04	1	0812-			●
97	CLIP; HOSE,TURBOCHARGER,INL ID=86	9-09915-592-0	02	1	9511-9709	●
97	CLIP; HOSE,TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN> ID=86	9-09915-592-0	02	1	9710-	●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-114-0	02	1	9710-0306	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	02	1	9710-0306		●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-198-0	04	1	0307-0810	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-198-0	04	1	0307-0810		●
97	CLIP; HOSE,TURBOCHARGER,INL EURO2 SPECIFICATION<THN> ID=77-95	1-09707-114-0	04	1	0811-	●
97	CLIP; HOSE,TURBOCHARGER,INL ID=77-95	1-09707-114-0	04	1	0811-		●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=58.5 OD=65.5 L=80	8-94392-854-0	01	1	0608-			●
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	9511-9709	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	1-09360-797-1	01	1	9710-1408	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=62 L=70	8-98245-240-0	01	1	1409-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN>	1-09360-782-0	01	1	9710-	●
98	HOSE; RUBBER,TURBOCHARGER OUTLET	1-09360-782-0	01	1	9710-		●
122	NUT; ADAPTER EURO2 SPECIFICATION<THN> M8	1-09400-118-1	01	1	9710-0607	●
122	NUT; ADAPTER M8	1-09400-118-1	01	1	9710-0607		●
122	NUT; ADAPTER EURO2 SPECIFICATION<THN> M8	1-09400-118-1	01	1	0608-	●
122	NUT; ADAPTER M8	1-09400-118-1	01	1	0608-		●	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	9511-9709	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	9710-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0307-0607	●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-76	1-09707-203-0	02	1	0608-0811	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0608-0811			●
143	CLIP; HOSE,TURBOCHARGER OUTLET EXC. EURO2 SPECIFICATION<THN> ID=58-79	8-94126-771-0	02	1	0812-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-79	8-94126-771-0	02	1	0812-			●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-69	8-94316-991-0	02	1	9710-0306	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	9710-0306		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-65	1-09707-204-0	02	1	0307-0810	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-65	1-09707-204-0	02	1	0307-0810		●
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<THN> ID=50-69	8-94316-991-0	02	1	0811-	●
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=50-69	8-94316-991-0	02	1	0811-		●
148	HOSE; TURBOCHARGER,INL	8-94392-853-0	01	1	0608-			●
148	HOSE; TURBOCHARGER,INL	1-09360-600-0	01	1	9511-9709	●
148	HOSE; TURBOCHARGER,INL EXC. EURO2 SPECIFICATION<THN>	1-09360-600-0	01	1	9710-	●
148	HOSE; TURBOCHARGER,INL EURO2 SPECIFICATION<THN>	5-09360-846-0	01	1	9710-	●
148	HOSE; TURBOCHARGER,INL	5-09360-846-0	01	1	9710-		●
162	BOLT; ADAPTER M12X30	8-94394-324-0	02	1	9511-9709	●
162	BOLT; ADAPTER EXC. EURO2 SPECIFICATION<THN> M12X30	8-94394-324-0	02	1	9710-	●
162	BOLT; ADAPTER EURO2 SPECIFICATION<THN> M8X57	5-09000-275-0	05	1	9710-0607	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	9710-0607		●
162	BOLT; ADAPTER EURO2 SPECIFICATION<THN> M8X57	5-09000-275-0	05	1	0608-	●
162	BOLT; ADAPTER M8X57	5-09000-275-0	05	1	0608-		●	●
163	GASKET; ADAPTER TO EXH PIPE EURO2 SPECIFICATION<THN>	1-14145-162-0	01	1	9710-0607	●
163	GASKET; ADAPTER TO EXH PIPE	1-14145-162-0	01	1	9710-0607		●
163	GASKET; ADAPTER TO EXH PIPE EURO2 SPECIFICATION<THN>	1-14145-162-2	01	1	0608-	●
163	GASKET; ADAPTER TO EXH PIPE	1-14145-162-2	01	1	0608-		●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	9511-0607	●	●
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0608-	●	●	●
217	BOLT; BRKT (A) M12X30	8-94394-324-0	03	1	0608-			●
217	BOLT; BRKT (A) M12X30	8-94394-324-0	01	1	9511-9709	●
217	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (A) M12X30	8-94394-324-0	01	1	9710-	●
217	BOLT; BRKT (B) M12X85	8-94394-514-0	01	1	9511-9709	●
217	BOLT; BRKT EXC. EURO2 SPECIFICATION<THN> (B) M12X85	8-94394-514-0	01	1	9710-	●
265	BRACKET; EXH PIPE	8-94395-764-2	01	1	0608-			●
265	BRACKET; EXH PIPE	8-94394-373-0	01	1	9511-9709	●
265	BRACKET; EXH PIPE EXC. EURO2 SPECIFICATION<THN>	8-94394-373-0	01	1	9710-	●
275	WASHER; PL ID=12.2	1-09503-008-0	03	1	0608-			●
398	MOUNTING (F) ID=19 OD=26	8-94160-177-0	01	1	0608-			●
398	MOUNTING (A) ID=19.5	8-94202-456-3	02	1	0608-			●
398	MOUNTING (C) OD=28	8-94390-551-1	01	1	0608-			●
398	MOUNTING (D) ID=13 OD=28	8-94394-504-0	01	1	0608-			●
398	MOUNTING (E) OD=26	8-94394-529-0	01	1	0608-			●
398	MOUNTING (B)	8-97600-053-0	02	1	0608-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
