Isuzu WW
▶
TRUCKS
▶
EXD
▶
11114 - EXD AUST JAPAN NEW LONG TERM 2005
▶
5 - Frame, Cab Mounting
▶

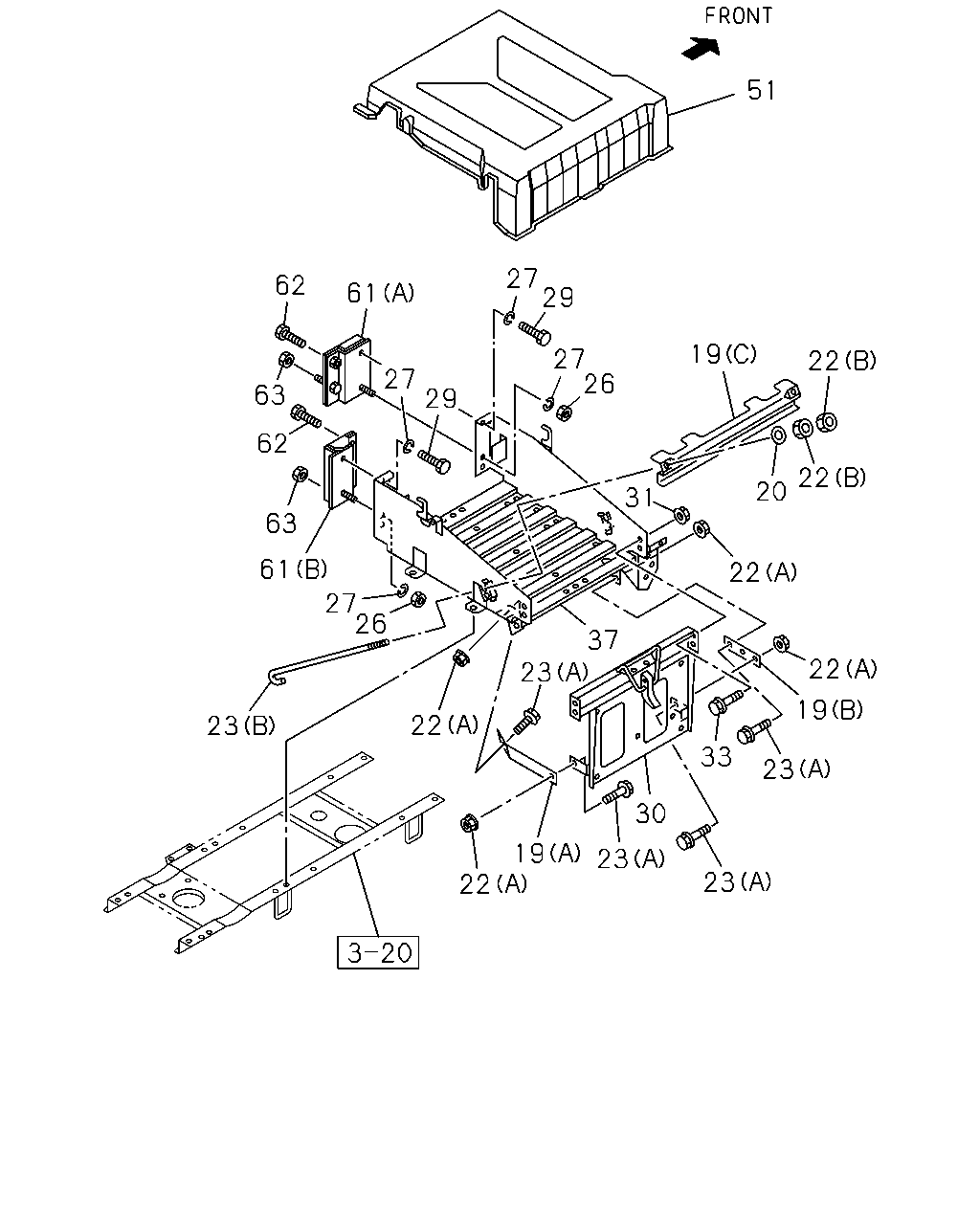

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#39279) — 22 parça
51
62
61
27
29
27
26
19
22
22
20
31
29
27
63
62
63
61
27
26
23
22
23
19
22
23
30
33
23
19
22
23
37
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
(B)
1-47479-118-0
01
1
0710-
19
STAY; BATTERY
(A)
1-47479-874-0
01
1
0710-
19
STAY; BATTERY
(C)
1-53618-039-2
01
1
0710-
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
0710-
22
NUT; STAY
(B) M8
0-91110-508-0
04
1
0710-
22
NUT; STAY
(A) M8 FLANGE
0-91180-108-0
02
1
0710-
23
BOLT; STAY
(A) M8X20 FLANGE
0-28650-820-0
04
1
0710-
23
BOLT; STAY
(B) L=250
1-53616-108-0
02
1
0710-
26
NUT; BRKT
M14
0-91110-514-0
02
1
0710-
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
12
1
0710-
29
BOLT; BRKT TO FRAME
M14X30
0-20851-430-0
02
1
0710-
30
PLATE; BATTERY
1-53619-148-1
01
1
0710-
31
NUT; PLATE
M8 FLANGE
0-91180-108-0
04
1
0710-
33
BOLT; PLATE TO BRKT
M8X25 FLANGE
0-28650-825-0
04
1
0710-1007
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1008-
37
BRACKET; BATTERY
1-53610-159-2
01
1
0710-
51
COVER; BATTERY
1-53612-068-0
01
1
0710-
61
DISTANCE; BRKT,BATTERY
(A)
1-53613-504-0
01
1
0710-
61
DISTANCE; BRKT,BATTERY
(B)
1-53613-505-0
01
1
0710-
62
BOLT; DIST TO FRAME,BATTERY
M14X45
1-09000-764-0
02
1
0710-
62
BOLT; DIST TO FRAME,BATTERY
M14X60
1-09000-778-0
02
1
0710-
63
NUT; DIST TO FRAME
M14
1-09440-072-0
04
1
0710-
