Isuzu WW
▶
TRUCKS
▶
EXD
▶
11114 - EXD AUST JAPAN NEW LONG TERM 2005
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#39274) — 55 parça
◀

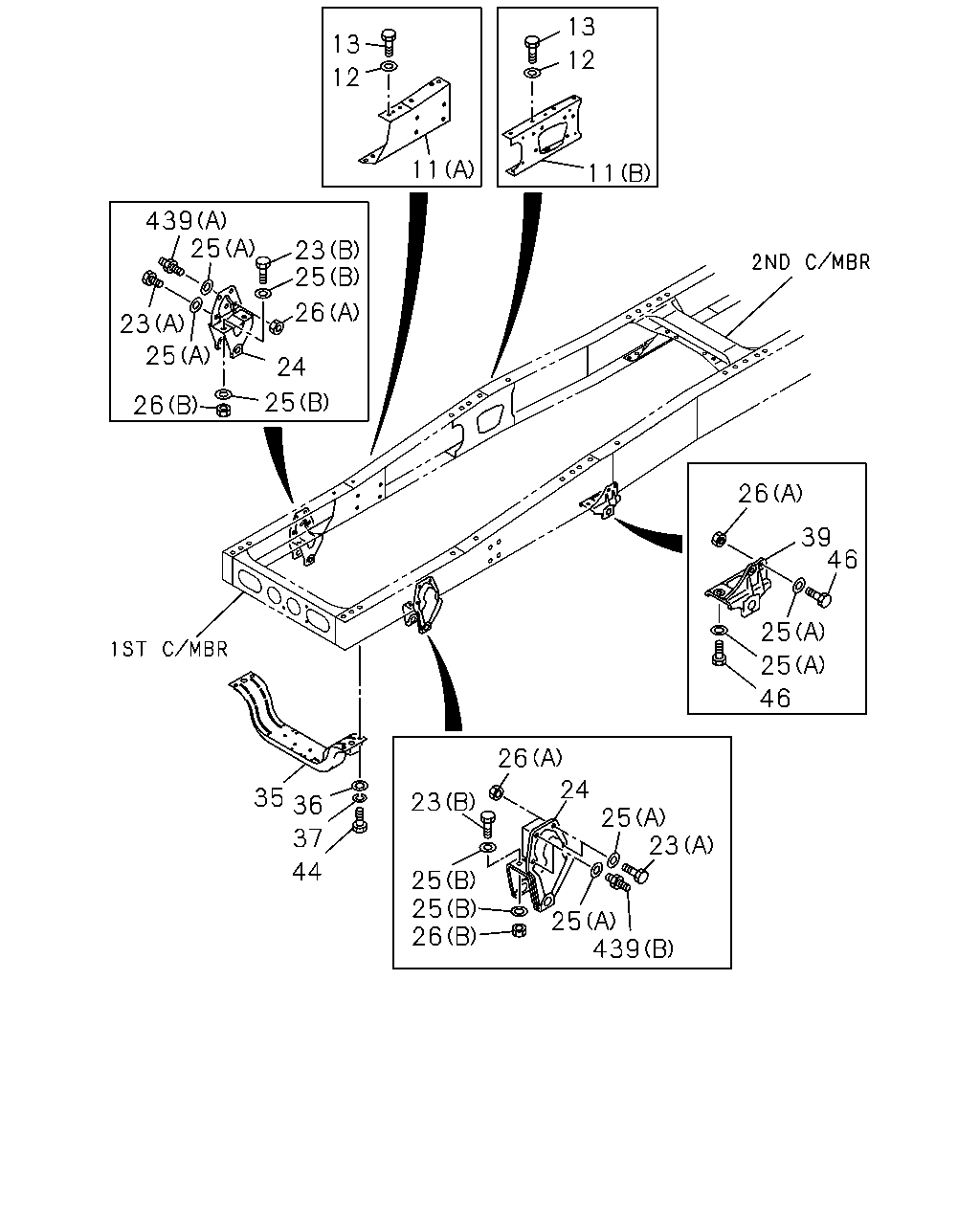

[501A] BRACKET;FRONT AND UNDER MEMBER (25 parça)

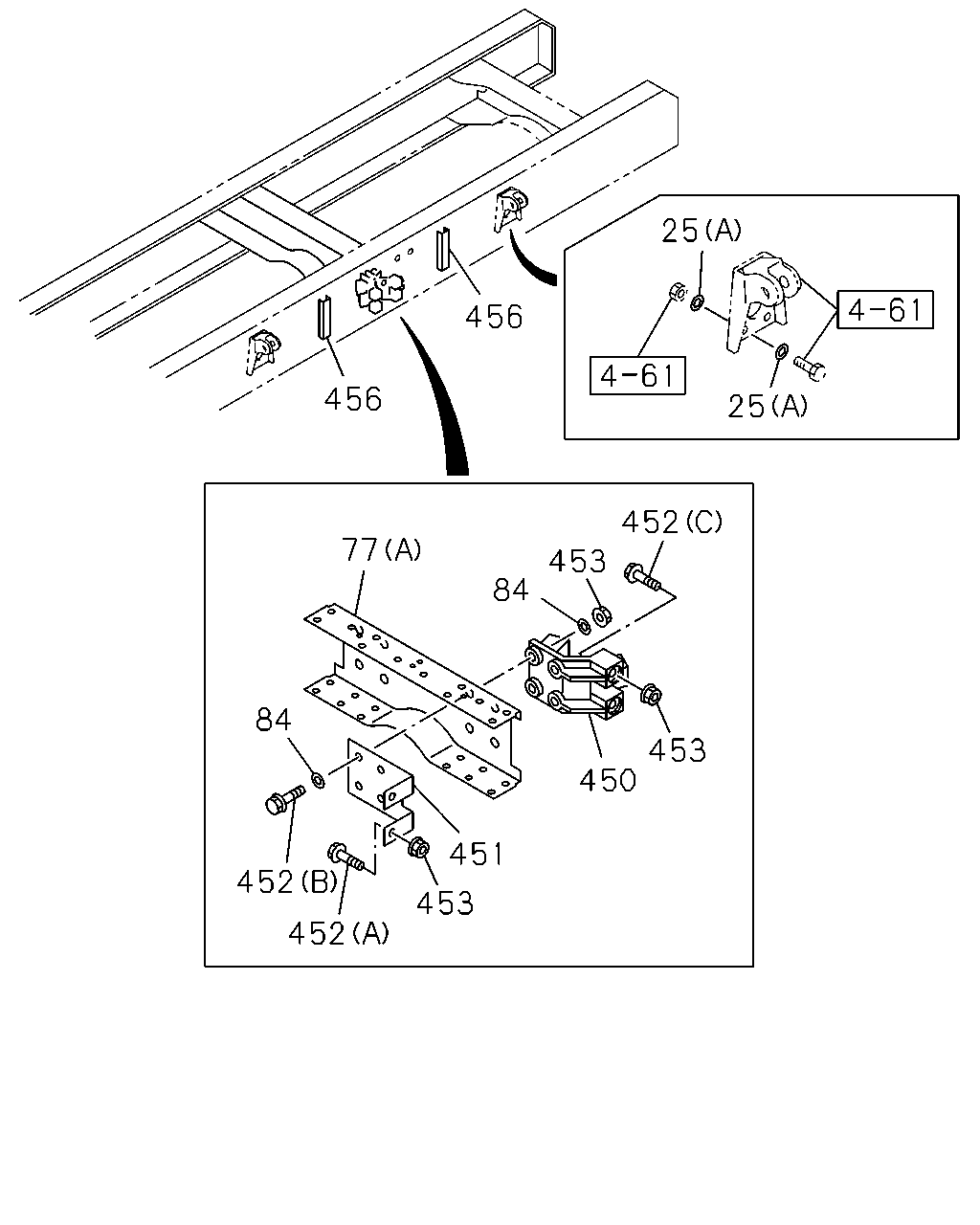

[501A] BRACKET;REAR (14 parça)

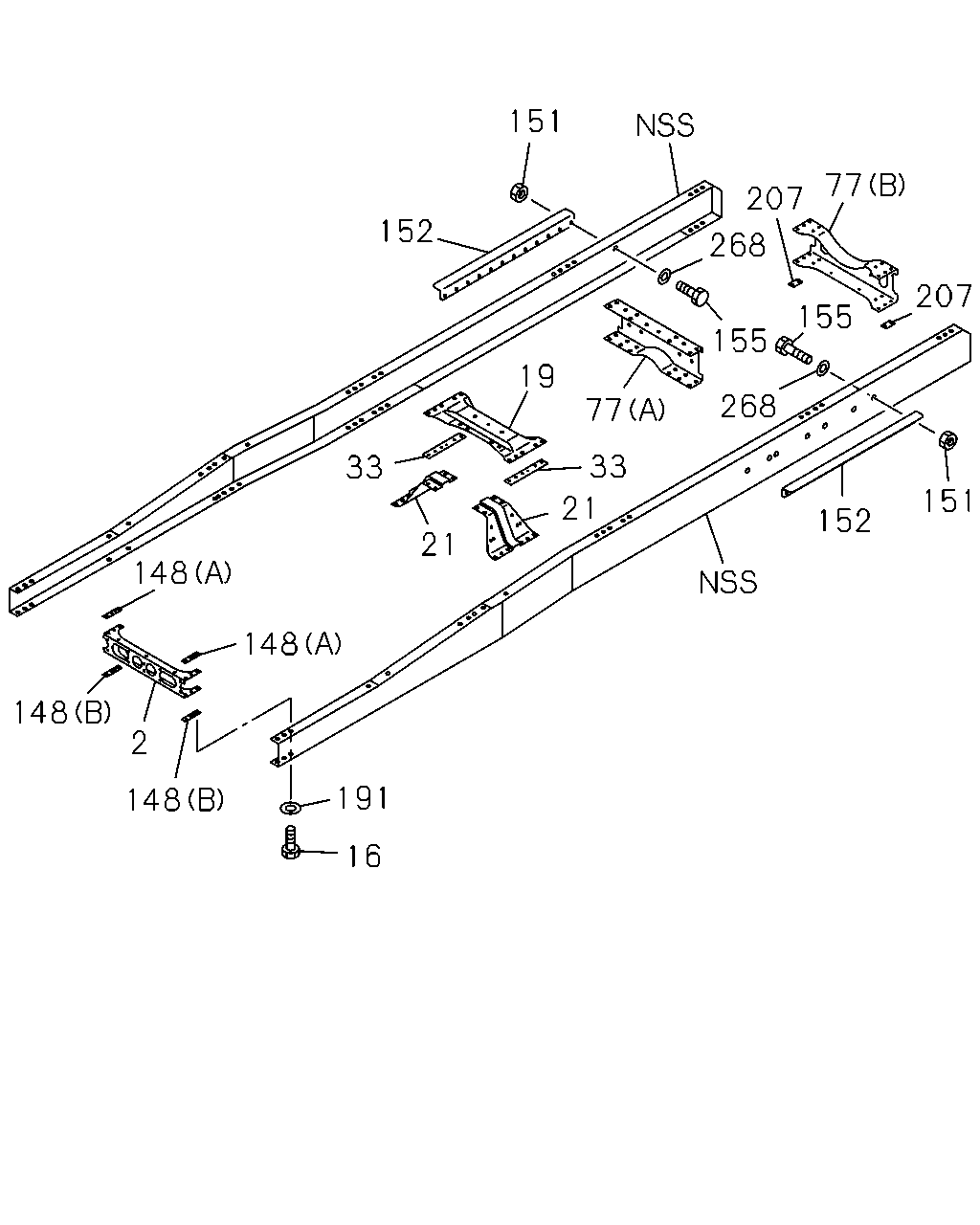

[501A] CROSS MEMBER (16 parça)
▶
13
12
13
12
11
11
439
25
23
25
26
24
25
23
25
26
26
39
46
25
25
46
35
36
37
44
23
26
24
25
23
439
25
25
25
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53211-367-1
01
1
0710-
11
BRACKET; ENG MTG
(A)
1-53211-368-1
01
1
0710-
11
BRACKET; ENG MTG
(B)
8-98056-611-1
01
1
0710-
11
BRACKET; ENG MTG
(B)
8-98056-612-0
01
1
0710-
12
WASHER; PL,BRKT,ENG MTG
ID=15
9-09651-069-0
02
1
0710-1201
12
WASHER; PL,BRKT,ENG MTG
ID=15
8-98010-627-1
02
1
1202-
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
02
1
0710-
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
05
1
0710-
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
0710-
24
BRACKET; FRT SPR,FRT
1-53351-237-1
01
1
0710-
24
BRACKET; FRT SPR,FRT
1-53351-238-1
01
1
0710-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0710-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
26
1
0710-1201
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
26
1
1202-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
12
1
0710-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
0710-
35
MEMBER; UNDER
1-53174-263-2
01
1
0710-
36
WASHER; PL,UNDER MBR
ID=17
9-09164-516-0
04
1
0710-
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
0710-
39
BRACKET; FRT SPR,RR
1-53352-179-0
01
1
0710-
39
BRACKET; FRT SPR,RR
1-53352-180-0
01
1
0710-
44
BOLT; UNDER MBR
M16X60
0-20951-660-0
04
1
0710-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
0710-
439
STUD; BRKT,SPR
(A) M12X35,M14X45 L=100
1-09029-075-0
01
1
0710-
439
STUD; BRKT,SPR
(B) M12X25,M14X45 L=81
1-09029-103-0
02
1
0710-
25
456
456
452
453
84
77
84
453
450
451
453
452
452
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-223-0
08
1
0710-
25
WASHER; PL,BRKT
(A) ID=15
9-09651-069-0
26
1
0710-1201
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
26
1
1202-
77
MEMBER; CROSS,TRUNNION RR
(B)
1-53181-970-3
01
1
0710-
77
MEMBER; CROSS,TRUNNION RR
(A)
1-53182-096-1
01
1
0710-
84
WASHER; PL,BRKT
ID=16.2
1-09503-223-0
16
1
0710-
450
BRACKET; V ROD
1-53353-122-1
02
1
0710-
451
GUSSET; V ROD
1-53167-641-0
01
1
0710-
451
GUSSET; V ROD
1-53167-642-0
01
1
0710-
452
BOLT; V ROD
(B) M16X70
1-09000-673-0
08
1
0710-
452
BOLT; V ROD
(C) M16X90
1-09000-675-0
04
1
0710-
452
BOLT; V ROD
(A) M16X50
1-09000-679-0
04
1
0710-
453
NUT; V ROD
M16 FLANGE
1-09440-066-0
16
1
0710-
456
PATCH; STOPPER
1-53119-203-0
04
1
0710-
151
77
207
152
268
155
207
155
19
268
77
33
33
151
21
152
148
21
148
148
2
191
148
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97604-959-3
01
1
0710-
16
BOLT; 1ST C/MBR TO S/MBR
M16X40
0-20951-640-0
02
1
1111-
19
MEMBER; CROSS,2ND
1-53174-231-1
01
1
0710-
21
GUSSET; 2ND CROSS
1-53164-185-1
02
1
0710-
33
SPACER; 2ND C/MBR,UPR
1-53168-351-1
02
1
0710-
77
MEMBER; CROSS,TRUNNION RR
(B)
1-53181-970-3
01
1
0710-
77
MEMBER; CROSS,TRUNNION RR
(A)
1-53182-096-1
01
1
0710-
148
SPACER; C/MBR
(A)
1-53168-400-1
02
1
0710-
148
SPACER; C/MBR
(B)
1-53168-403-1
02
1
0710-
151
NUT; OUTRIGGER
M16
0-91110-516-0
37
1
0710-
152
OUTRIGGER
8-97620-817-1
01
1
0710-
152
OUTRIGGER
8-97620-818-1
01
1
0710-
155
BOLT; OUTRIGGER
M16X40
0-20951-640-0
37
1
0710-
191
WASHER; PL,1ST C/MBR TO S/MBR
ID=16.2
1-09503-316-0
02
1
1111-
207
SPACER; 4TH C/MBR
1-53168-171-1
02
1
0710-
268
WASHER; PL,OUTRIGGER
ID=17 OD=30
9-09851-935-0
37
1
0710-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
