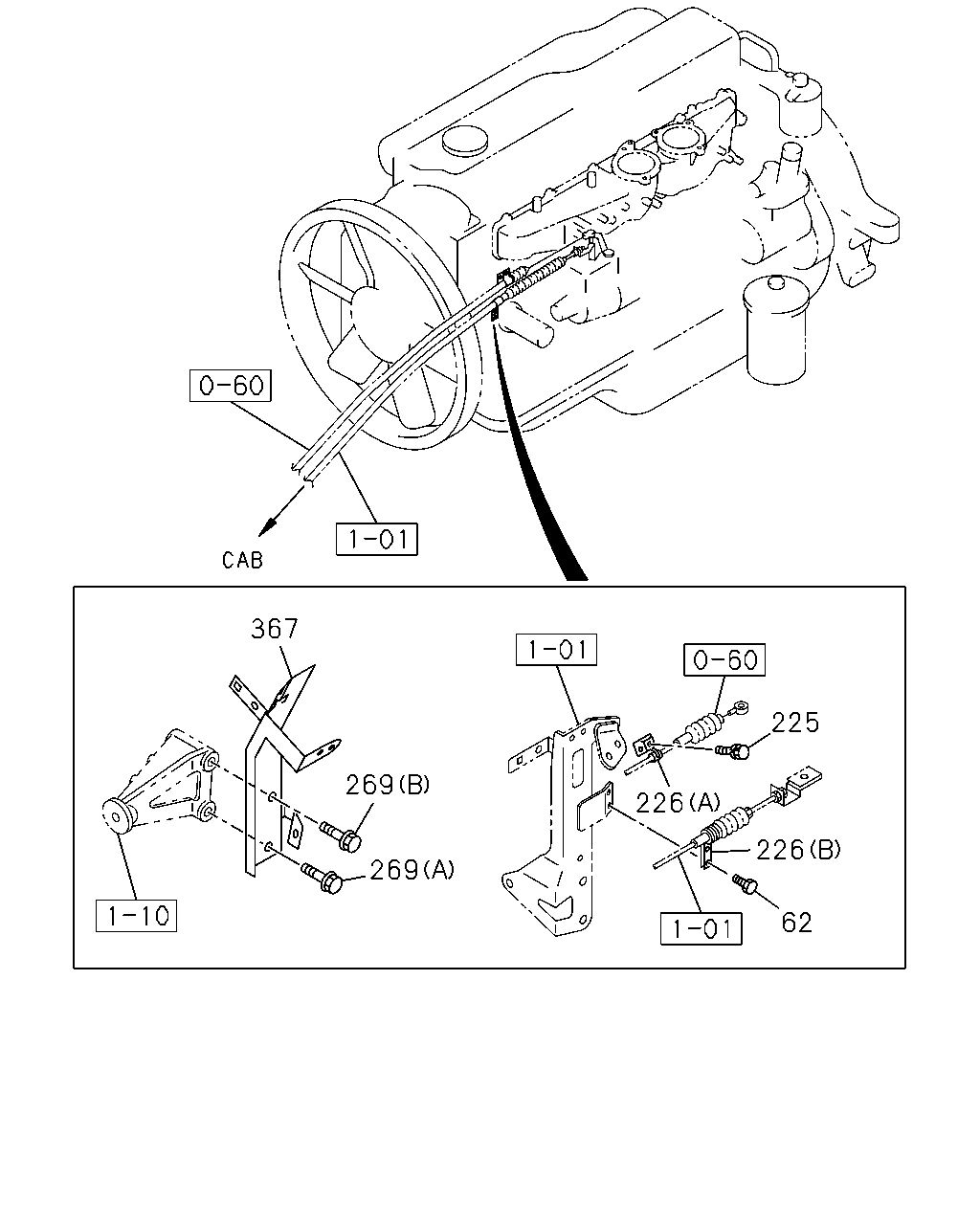

0-35 — ENGINE CONTROL VALVE AND LEVER (#3927) — 31 parça

367 225 269 226 226 269 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
62	BOLT; CABLE END M6X20 FLANGE	0-28080-620-0	02	1	9510-9606	●	●
62	BOLT; CABLE END M6X25 FLANGE	0-28680-625-0	02	1	9607-9702	●	●
62	BOLT; CABLE END M6X20 FLANGE	0-28680-620-0	02	1	9703-0004	●	●
62	BOLT; CABLE END M6X20 FLANGE	0-28680-620-0	02	1	0005-0512	●	●	●
62	BOLT; CABLE END M6X20 FLANGE	0-28650-620-0	02	1	0601-	●	●	●
62	BOLT; CABLE END M8X20 FLANGE	0-28680-820-0	02	1	0109-0302				●
62	BOLT; CABLE END EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28680-820-0	02	1	0303-0512				●
62	BOLT; CABLE END EURO2 SPECIFICATION<THN> M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28080-820-0	02	1	9510-9606	●	●
225	BOLT; CLIP FIX M8X25 FLANGE	0-28680-825-0	02	1	9607-9612	●	●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	9701-0004	●	●		●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	0005-0512	●	●	●	●
225	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●	●
226	CLIP; CABLE END (B) L=30	1-09700-326-0	01	1	9510-0004	●	●
226	CLIP; CABLE END SHORT CHASSIS(FT***C) (A)	1-09700-787-1	01	1	0005-0302	●	●
226	CLIP; CABLE END MIDDLE CHASSIS(FT***F) EXC. EURO2 SPECIFICATION<THN> (A)	1-09700-787-1	01	1	0005-0302	●	●
226	CLIP; CABLE END EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A)	1-09700-787-1	01	1	0005-0302			●
226	CLIP; CABLE END SHORT CHASSIS(FT***C) (A)	1-09700-787-1	01	1	0303-	●	●
226	CLIP; CABLE END MIDDLE CHASSIS(FT***F) EXC. EURO2 SPECIFICATION<THN> (A)	1-09700-787-1	01	1	0303-	●	●
226	CLIP; CABLE END (A)	1-09700-787-1	01	1	0303-			●
226	CLIP; CABLE END (A)	1-09700-787-1	01	1	9510-0004	●	●
226	CLIP; CABLE END (B) L=30	1-09700-326-0	01	1	0005-0302	●	●
226	CLIP; CABLE END (B) L=30	1-09700-326-0	01	1	0303-	●	●	●
226	CLIP; CABLE END EURO2 SPECIFICATION<THN> (A)	1-23219-032-0	01	1	9710-				●
226	CLIP; CABLE END EURO2 SPECIFICATION<THN> (B)	8-94397-228-0	01	1	9710-9802				●
226	CLIP; CABLE END EURO2 SPECIFICATION<THN> (B)	8-94397-228-0	01	1	9805-				●
269	BOLT; BRKT FIX EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A) M10X60 FLANGE	0-28181-060-0	01	1	0011-0512			●
269	BOLT; BRKT FIX EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A) M10X60 FLANGE	0-28151-060-0	01	1	0601-			●
269	BOLT; BRKT FIX EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (B) M10X90 FLANGE	0-28181-090-0	01	1	0011-0512			●
269	BOLT; BRKT FIX EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (B) M10X90 FLANGE	0-28151-090-0	01	1	0601-			●
367	BRACKET; ENG CONT WIRE,INL PIPE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN>	8-94391-047-3	01	1	0011-			●
