Isuzu WW
▶
TRUCKS
▶
EXD
▶
11114 - EXD AUST JAPAN NEW LONG TERM 2005
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

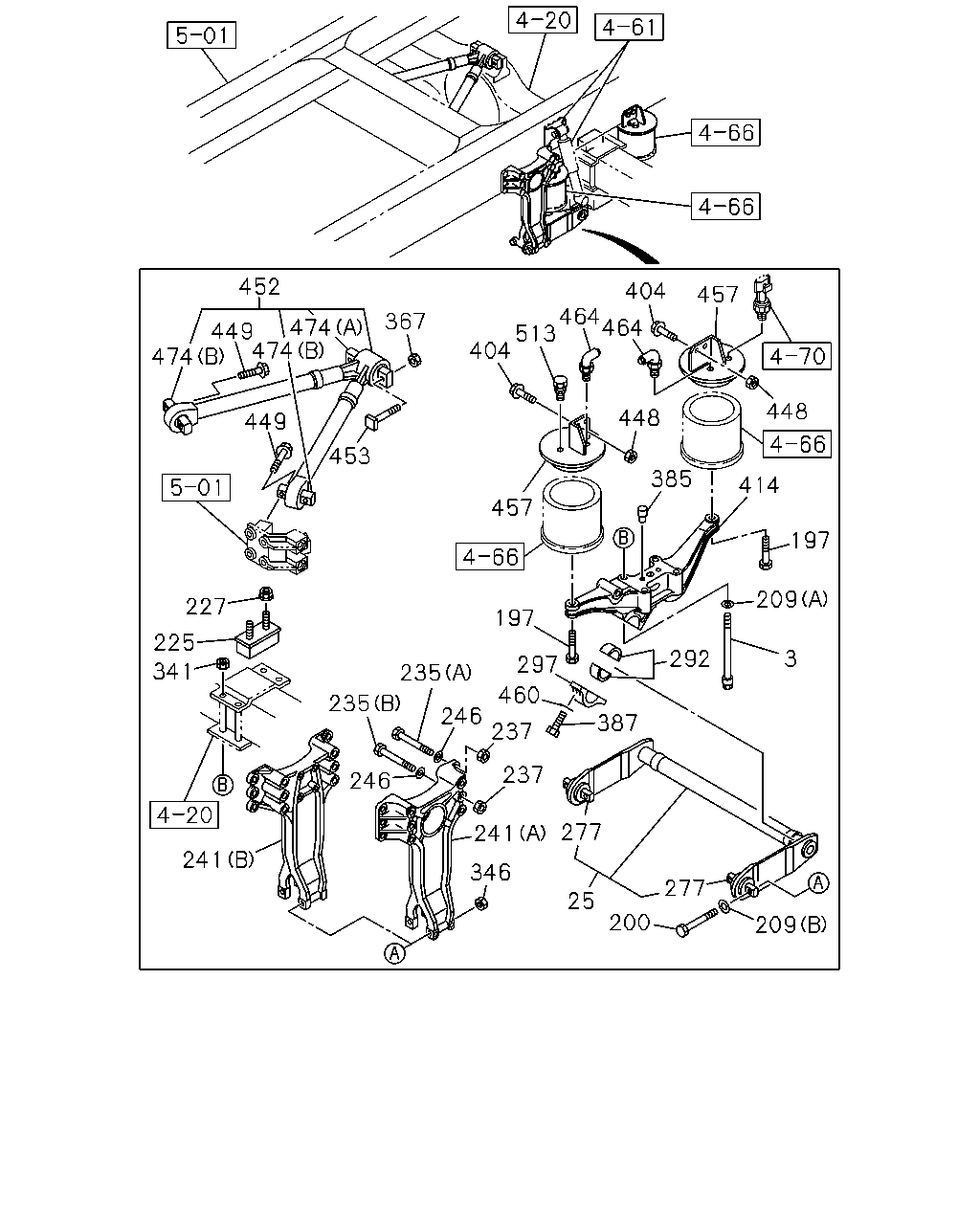

4-60 — REAR SUSPENSION
(#39268) — 51 parça
452
449
474
367
474
474
449
453
227
225
341
241
246
235
235
246
237
237
241
346
277
25
200
277
209
387
292
460
297
197
457
404
513
464
464
404
457
448
385
448
414
197
209
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
BOLT; BEAM
1-09000-762-1
08
1
0710-0805
3
BOLT; BEAM
8-98019-969-0
08
1
0806-
25
BAR ASM; STAB,RR SUSP
1-51771-224-4
01
1
0710-1212
25
BAR ASM; STAB,RR SUSP
8-98235-513-0
01
1
1301-
197
BOLT
1-09044-116-0
04
1
0710-
200
BOLT; BRKT
M18X170
1-09000-755-1
04
1
0710-1303
200
BOLT; BRKT
M18X170
8-98240-456-0
04
1
1304-
209
WASHER; PL
(A) ID=25
1-09503-282-0
08
1
0710-
209
WASHER; PL
(B) ID=19
9-09160-518-0
04
1
0710-1212
225
RUBBER; CUSHION,RR SPR
1-53366-081-1
02
1
0710-
227
NUT; CUSHION RUBBER
M12 FLANGE
0-91180-212-0
04
1
0710-
235
BOLT; TORQUE ROD
(A) M20X60
8-98010-410-0
12
1
0710-1212
235
BOLT; TORQUE ROD
(A) M20X60
8-98225-110-0
12
1
1301-
235
BOLT; TORQUE ROD
(B) M20X150
8-98010-546-0
12
1
0710-1212
235
BOLT; TORQUE ROD
(B) M20X110
8-98225-111-0
12
1
1301-
237
NUT; TORQUE ROD
M20
0-91110-520-0
22
1
0710-
241
BRACKET; TORQUE ROD
(A)
1-53361-089-1
02
1
0710-1212
241
BRACKET; TORQUE ROD
(B)
8-98215-727-1
02
1
1301-
246
WASHER; TORQUE ROD
ID=21
8-98010-403-0
24
1
0710-
277
BUSHING; STAB,RR UPR
1-51519-184-0
02
1
0710-1212
277
BUSHING; STAB,RR UPR
8-98226-232-0
02
1
1301-
292
BUSHING; RUBBER,STAB
1-51779-126-0
02
1
0710-
297
CAP; STAB BAR
1-52175-025-0
02
1
0710-
341
NUT; BEAM
M24
0-91110-524-0
08
1
0710-
346
NUT; BRKT
M18 SELF LOCK
1-09464-032-0
04
1
0710-0805
346
NUT; BRKT
M18 SELF LOCK
8-98010-391-0
04
1
0806-
367
NUT
M24 FLANGE
8-98019-963-0
02
1
0710-
385
PIN; KNOCK,SUSP BEAM
1-52179-036-2
04
1
0710-
387
BOLT; CAP FIX,STAB BAR
M18X55
1-09000-757-2
04
1
0710-0805
387
BOLT; CAP FIX,STAB BAR
M18X55
8-98019-973-0
04
1
0806-
404
BOLT; PLATE
M14X45 FLANGE
8-98019-971-0
08
1
0710-
414
BEAM; AIR SPR
1-52171-300-1
01
1
0710-0805
414
BEAM; AIR SPR
8-97604-492-5
01
1
0806-1402
414
BEAM; AIR SPR
8-98257-385-0
01
1
1403-
414
BEAM; AIR SPR
1-52171-301-1
01
1
0710-0805
414
BEAM; AIR SPR
8-97604-493-5
01
1
0806-1402
414
BEAM; AIR SPR
8-98257-386-0
01
1
1403-
448
NUT; PLATE
M14 FLANGE
8-98010-395-0
08
1
0710-
449
BOLT; FRAME
M18X70 FLANGE
8-98010-540-0
04
1
0710-1102
449
BOLT; FRAME
M18X70 FLANGE
8-98183-506-0
04
1
1103-
452
ROD ASM; V
8-97609-115-0
01
1
0710-
453
PIN; AXLE
M24X78 SQUARE HEAD
1-09749-038-1
02
1
0710-0805
453
PIN; AXLE
M24X78 SQUARE HEAD
8-98010-551-0
02
1
0806-
457
PLATE; AIR SPRING,UPR
FRONT LH,REAR RH
8-97605-116-0
02
1
0710-
457
PLATE; AIR SPRING,UPR
FRONT RH,REAR LH
8-97605-117-0
02
1
0710-
460
WASHER; CAP
ID=19
1-09503-312-0
04
1
0710-
464
UNION; AIR
DIN8 & M16 ELBOW
1-09661-520-0
04
1
0710-
474
REPAIR KIT; V-ROD
(A)
8-97609-171-0
01
1
0710-
474
REPAIR KIT; V-ROD
(B)
8-97609-172-0
02
1
0710-
513
PLUG; PLATE
1-09661-522-0
02
1
0710-0805
513
PLUG; PLATE
9-09204-510-0
02
1
0806-
