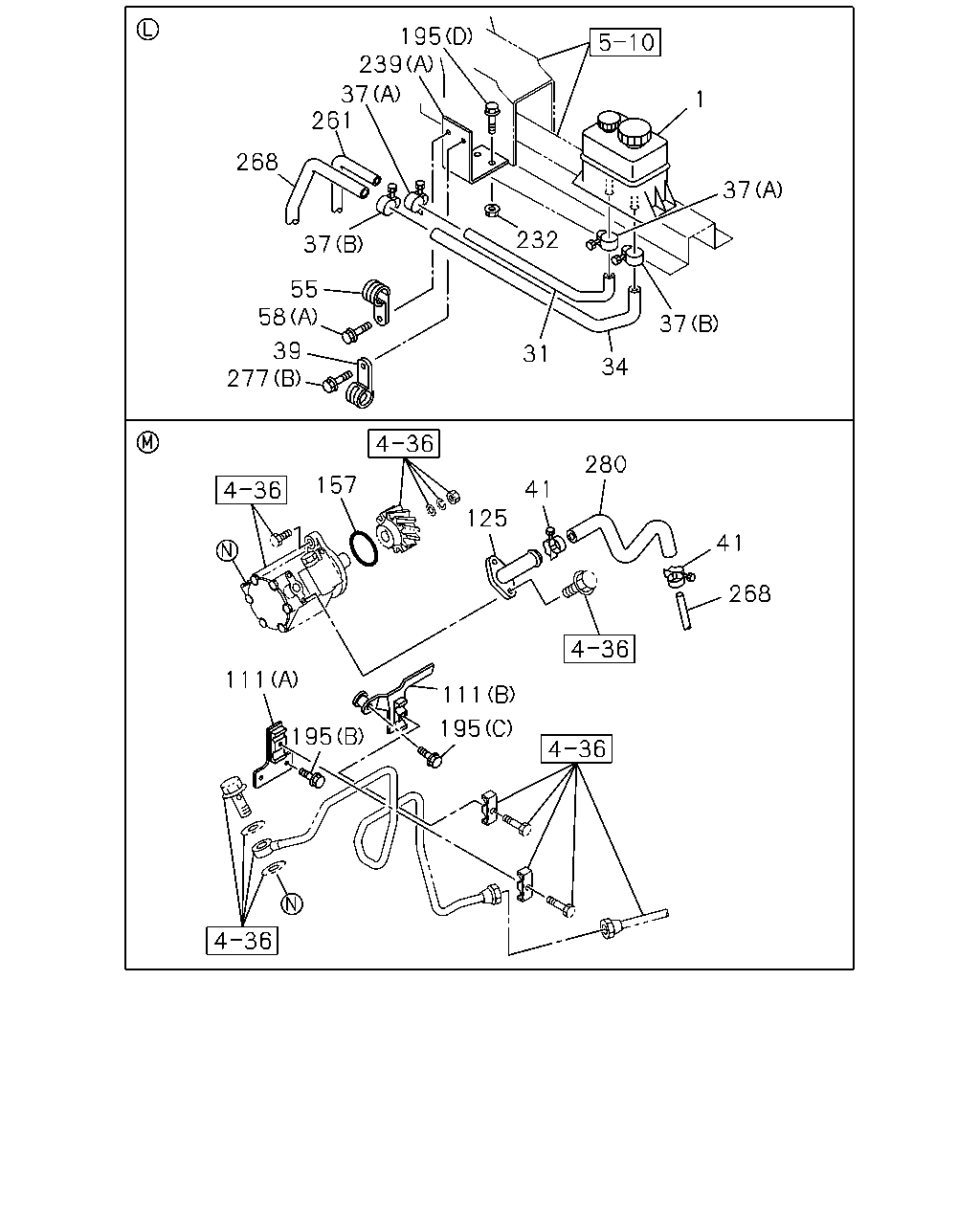

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#39262) — 93 parça

195 239 37 261 268 1 37 37 232 31 34 37 55 58 277 39 157 111 125 41 280 41 268 111 195 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0710-
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	0710-0711
31	HOSE; P/S OIL TANK,INL	8-98105-151-0	01	1	0712-
34	HOSE; P/S OIL TANK,OUTLET	8-98035-000-0	01	1	0710-0711
34	HOSE; P/S OIL TANK,OUTLET	8-98105-152-0	01	1	0712-
37	CLIP; HOSE,P/S (B) ID=38	9-09915-041-1	02	1	0710-
37	CLIP; HOSE,P/S (A) ID=28	9-09915-672-1	02	1	0710-
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	0710-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	0710-
55	CLIP; P/S RUBBER HOSE ID=28 L=32	1-09701-107-1	01	1	0710-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	05	1	0710-
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	02	1	0710-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	0710-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	0710-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	0710-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	0710-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	0710-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	0710-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	0710-
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	0710-
232	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0710-
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	0710-
239	BRACKET; FLEX HOSE (B)	1-47471-227-0	01	1	0710-
261	PIPE; OIL,UNION TO HOSE	8-98034-831-0	01	1	0710-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1340	8-98034-832-0	01	1	0710-
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	04	1	0710-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0710-

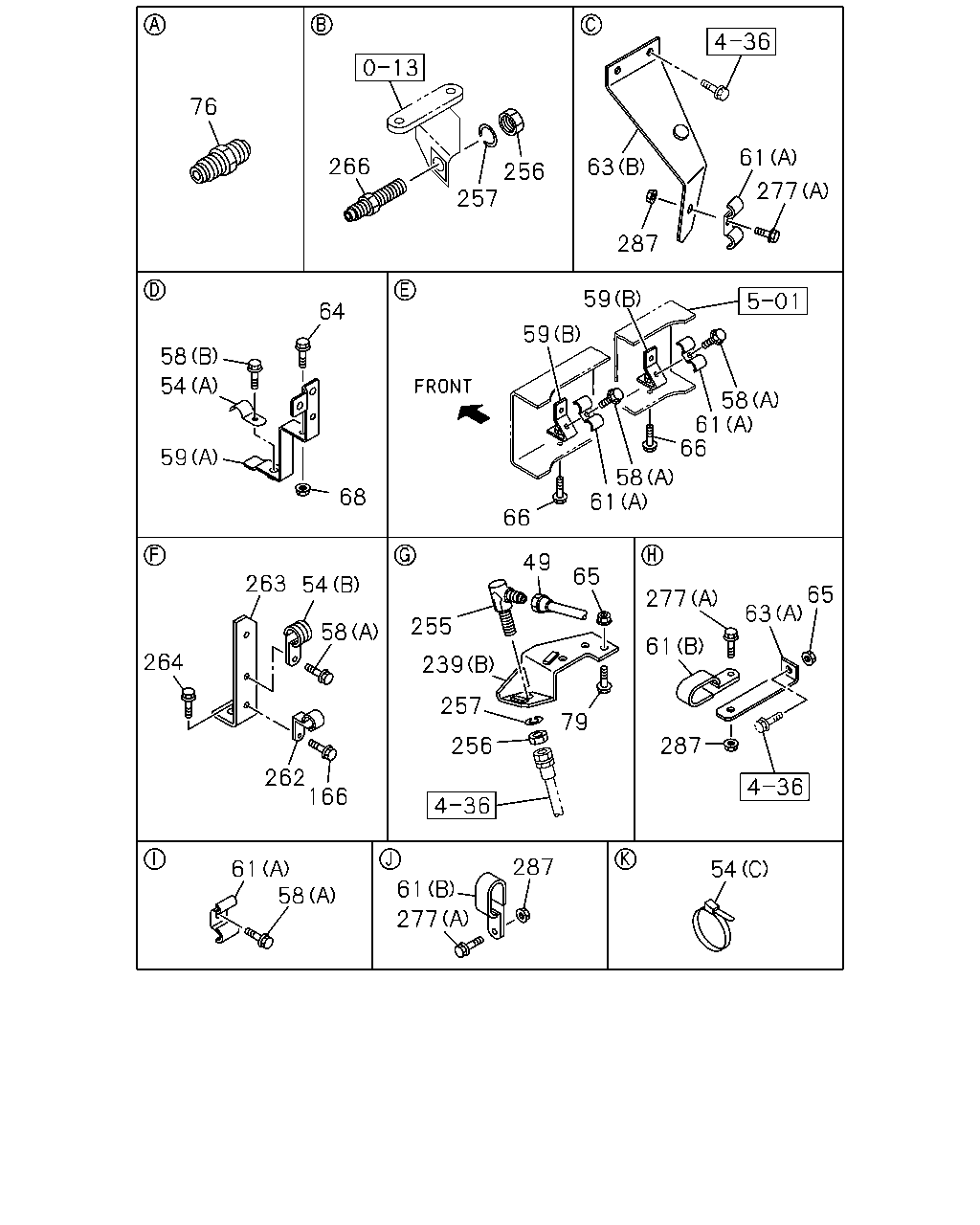

76 266 257 256 63 61 287 277 59 59 58 61 58 66 61 66 68 64 58 59 54 263 58 54 262 166 264 239 257 255 49 65 277 63 287 65 61 79 256 287 61 277 58 61 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
49	PIPE; OIL,FLEX HOSE TO UNION L=2074	1-21117-850-0	01	1	0710-
54	CLIP; OIL PIPE (C) L=350	1-09707-183-0	02	1	1310-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	0710-
54	CLIP; OIL PIPE (B) ID=26 L=27	1-09701-006-0	01	1	0710-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	05	1	0710-
58	BOLT; CLIP (B) M10X20 FLANGE	0-28651-020-0	02	1	0710-
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	0710-
59	BRACKET; CLIP,OIL PIPE (A)	8-98063-710-0	01	1	0710-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	03	1	0710-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	04	1	0710-
63	BRACKET; CLIP,P/S (B)	1-47471-146-0	01	1	0710-
63	BRACKET; CLIP,P/S (A) L=112	1-47475-694-1	01	1	0710-
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28050-825-0	01	1	0710-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0710-
66	BOLT; BRKT,OIL PIPE M8X20 FLANGE	0-28650-820-0	02	1	0710-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0710-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	02	1	0710-
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	0710-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0710-
239	BRACKET; FLEX HOSE (A)	1-21464-780-0	01	1	0710-
239	BRACKET; FLEX HOSE (B)	1-47471-227-0	01	1	0710-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09654-163-1	01	1	0710-
256	NUT; UNION M22	0-91111-522-0	01	1	0710-
256	NUT; UNION M22	0-91111-522-0	01	1	0710-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0710-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	0710-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	0710-
263	BRACKET; P/S PIPE	1-47471-191-1	01	1	0710-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	0710-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	0710-
277	BOLT; HOSE CLIP (B) M8X20 FLANGE	0-28650-820-0	01	1	0710-
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	04	1	0710-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0710-

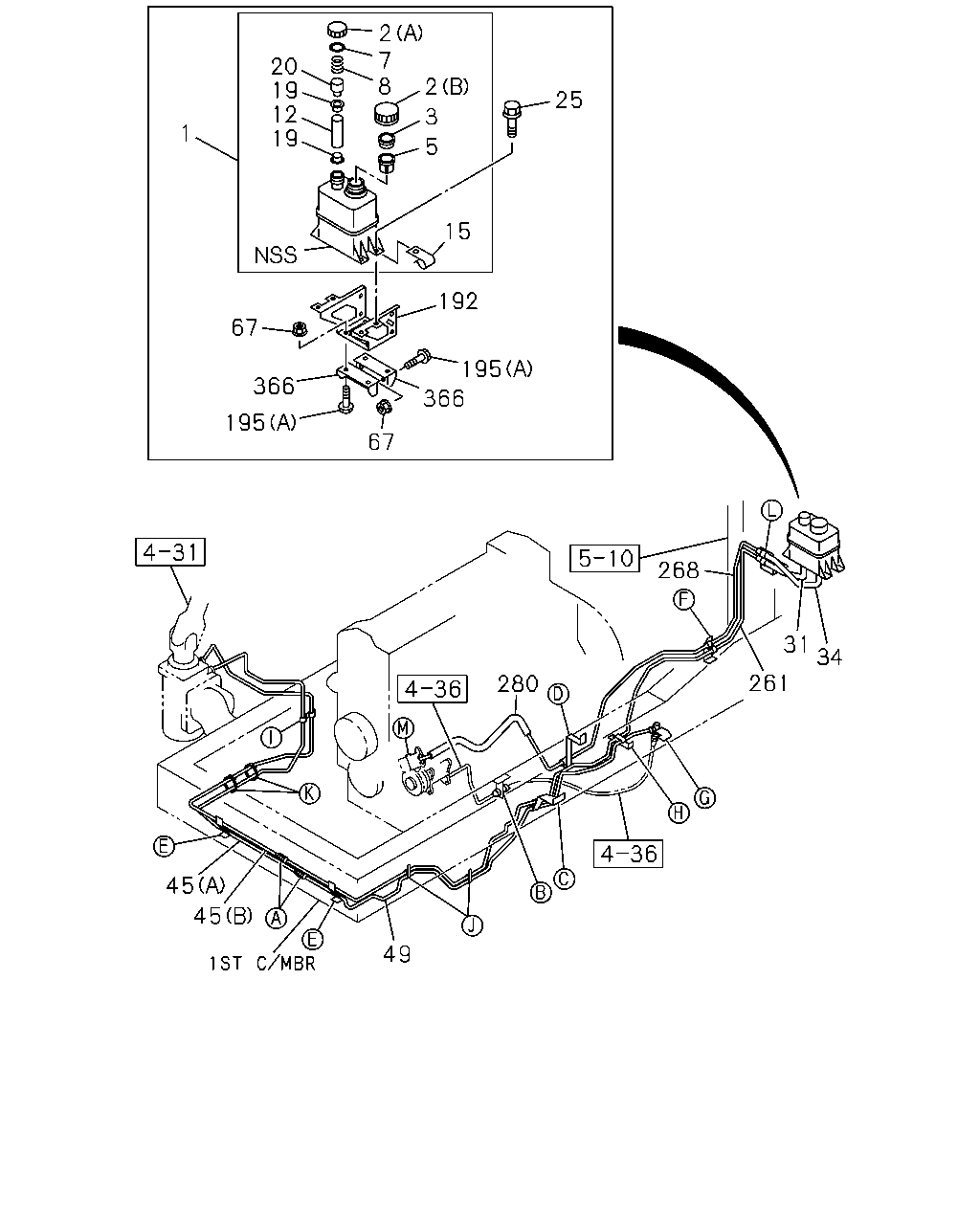

2 2 7 5 3 15 192 195 366 67 195 366 67 1 20 19 12 19 8 25 45 45 49 280 268 261 31 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	0710-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	0710-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	0710-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	0710-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	0710-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	0710-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	0710-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0710-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0710-
19	SEAT; OIL TANK	1-21262-001-0	02	1	0710-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	0710-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	0710-
31	HOSE; P/S OIL TANK,INL	8-98034-999-0	01	1	0710-0711
31	HOSE; P/S OIL TANK,INL	8-98105-151-0	01	1	0712-
34	HOSE; P/S OIL TANK,OUTLET	8-98035-000-0	01	1	0710-0711
34	HOSE; P/S OIL TANK,OUTLET	8-98105-152-0	01	1	0712-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98056-504-0	01	1	0710-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98056-505-0	01	1	0710-1309
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98257-649-0	01	1	1310-
49	PIPE; OIL,FLEX HOSE TO UNION L=2074	1-21117-850-0	01	1	0710-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0710-
192	BRACKET; P/S OIL TANK	1-21489-200-1	01	1	0710-0710
192	BRACKET; P/S OIL TANK	8-98105-149-0	01	1	0711-1009
192	BRACKET; P/S OIL TANK	8-98137-323-0	01	1	1010-
195	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	02	1	0710-
195	BOLT; BRKT (C) M10X35 FLANGE	0-28151-035-0	01	1	0710-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	08	1	0710-
195	BOLT; BRKT (D) M10X20 FLANGE	0-28651-020-0	02	1	0710-
261	PIPE; OIL,UNION TO HOSE	8-98034-831-0	01	1	0710-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1340	8-98034-832-0	01	1	0710-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	0710-
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	0710-
