◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 11114 - EXD AUST JAPAN NEW LONG TERM 2005 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#39258) — 79 parça

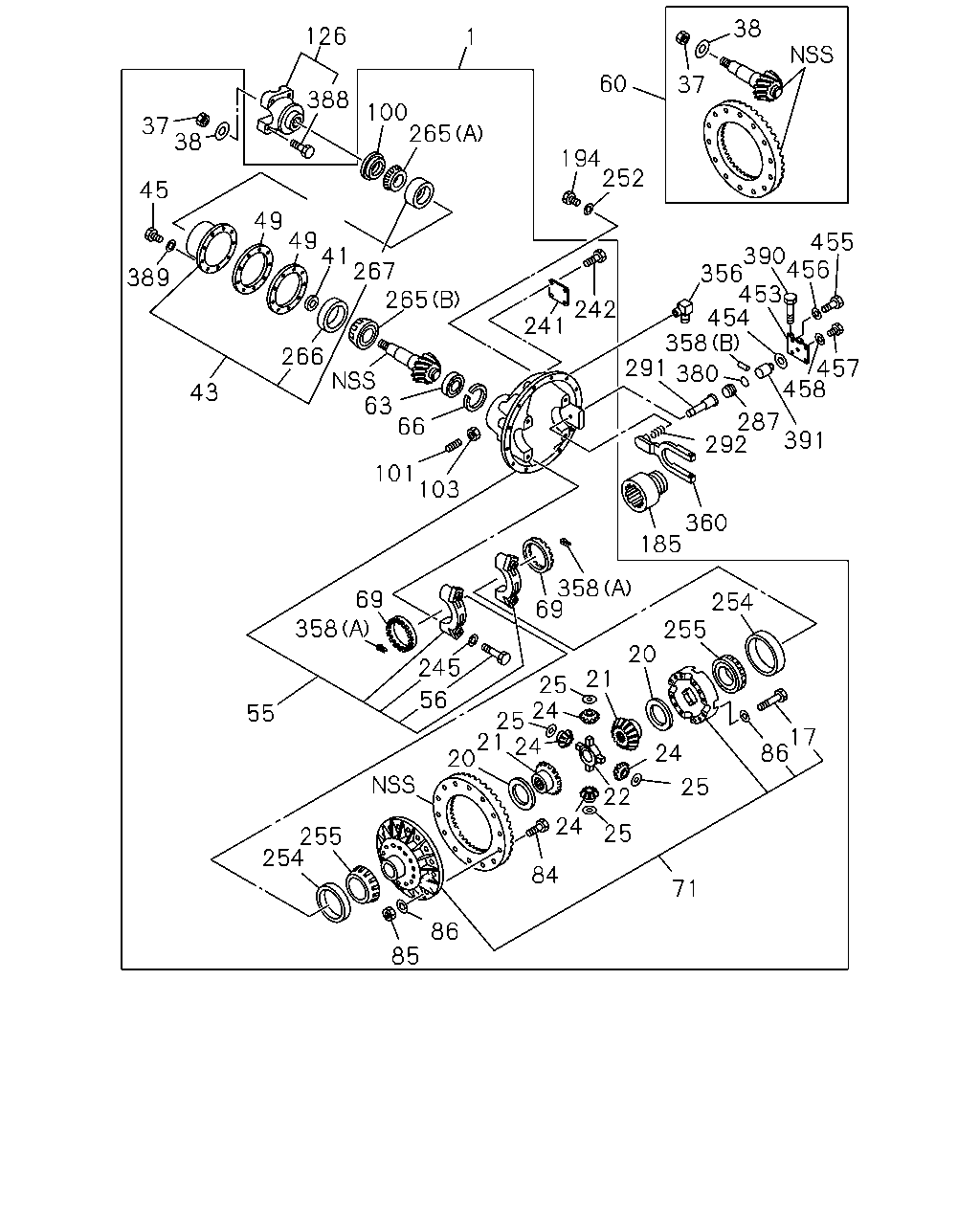

çizim 180241
126 37 38 388 45 389 100 265 49 49 41 267 265 266 43 63 66 101 103 241 242 252 194 60 37 38 291 380 358 356 454 453 390 456 455 185 360 292 287 391 458 457 55 358 69 56 245 69 358 254 255 20 24 21 25 24 25 21 20 255 254 85 86 84 24 25 22 25 24 86 17 71 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRIVE ASM; FINAL,RR
41/10 		1-41002-931-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
43/11 		1-41002-932-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
41/11 		1-41002-933-0 01 1 0710- ●
1 DRIVE ASM; FINAL,RR
43/12 		1-41002-934-0 01 1 0710- ●
17 BOLT; DIFF CAGE SETTING 1-41519-095-0 12 1 0710- ● ● ● ●
20 WASHER; THRUST,SIDE GEAR 1-41562-269-0 02 1 0710- ● ● ● ●
21 GEAR; SIDE,DIFF 1-41561-113-0 02 1 0710- ● ● ● ●
22 SPIDER; DIFF PINION 1-41521-054-0 01 1 0710- ● ● ● ●
24 GEAR; PINION,DIFF 1-41551-035-0 04 1 0710- ● ● ● ●
25 WASHER; THRUST,PINION 1-41552-037-0 04 1 0710- ● ● ● ●
37 NUT; DRIVING PINION 1-41219-028-0 01 1 0710- ● ● ● ●
38 WASHER; PL,DRIVING PINION 1-41210-689-0 01 1 0710- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.35 		1-41229-372-0 01 1 0710- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.38 		1-41229-373-0 01 1 0710- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.40 		1-41229-374-0 01 1 0710- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.43 		1-41229-375-0 01 1 0710- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.45 		1-41229-376-0 01 1 0710- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.50 		1-41229-377-0 01 1 0710- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.60 		1-41229-378-0 01 1 0710- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.63 		1-41229-379-0 01 1 0710- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.65 		1-41229-380-0 01 1 0710- ● ● ● ●
41 SPACER; FINAL DRIVE PINION BRG
T=6.68 		1-41229-381-0 01 1 0710- ● ● ● ●
43 CAGE; FINAL PINION 1-41151-103-0 01 1 0710- ● ● ● ●
45 BOLT; FINAL PINION CAGE 1-41159-059-0 08 1 0710- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.125 		1-41154-115-0 AR 1 0710- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.200 		1-41154-116-0 AR 1 0710- ● ● ● ●
49 SHIM; FINAL PINION CAGE
T=0.500 		1-41154-117-0 AR 1 0710- ● ● ● ●
55 CARRIER; DIFF 1-41110-127-0 01 1 0710- ● ● ● ●
56 BOLT; BRG CAP 1-41119-066-0 04 1 0710- ● ● ● ●
60 GEAR SET; FINAL DRIVE,RR
41/10 		1-41210-683-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
43/11 		1-41210-682-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
41/11 		1-41210-681-0 01 1 0710- ●
60 GEAR SET; FINAL DRIVE,RR
43/12 		1-41210-680-0 01 1 0710- ●
63 BEARING; PINION PILOT 1-41219-034-0 01 1 0710- ● ● ● ●
66 RING; SNAP,PILOT BRG 1-41219-035-0 01 1 0710- ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-052-0 01 1 0710- ● ● ● ●
69 NUT; ADJ,DIFF CAGE 1-41121-053-0 01 1 0710- ● ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-333-0 01 1 0710- ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-313-0 01 1 0710- ● ● ●
84 BOLT; FINAL DRIVE GEAR 1-41519-036-0 16 1 0710- ● ● ● ●
85 NUT; DIFF CAGE SETTING 1-41519-034-0 16 1 0710- ● ● ● ●
86 WASHER; PL,DIFF CAGE SETTING 1-41519-035-0 28 1 0710- ● ● ● ●
100 SEAL; OIL,FINAL PINION 1-41349-184-0 01 1 0710- ● ● ● ●
101 BOLT; ADJ,DRIVEN GEAR THRUST 1-41259-001-0 01 1 0710- ● ● ● ●
103 NUT; ADJ BOLT 1-41259-002-0 01 1 0710- ● ● ● ●
126 COUPLING; DRIVING PINION 1-37245-373-0 01 1 0710- ● ● ● ●
185 COLLAR; SHIFT FORK 1-48269-210-0 01 1 0710- ● ● ● ●
194 PLUG 1-41119-072-0 01 1 0710- ● ● ● ●
241 COVER; SHIFT HSG 1-48269-220-0 01 1 0710- ● ● ● ●
242 BOLT; COVER 1-48269-221-0 04 1 0710-0901 ● ● ● ●
242 BOLT; COVER 1-48269-260-0 04 1 0902- ● ● ● ●
245 WASHER; PL,BRG CAP 1-41119-065-0 04 1 0710- ● ● ● ●
252 GASKET; CARRIER 1-48269-219-0 02 1 0710- ● ● ● ●
254 CUP; DIFF BRG 1-41519-091-0 01 1 0710- ● ● ● ●
254 CUP; DIFF BRG 1-41519-092-0 01 1 0710- ● ● ● ●
255 CONE; DIFF BRG 1-41519-093-0 01 1 0710- ● ● ● ●
255 CONE; DIFF BRG 1-41519-094-0 01 1 0710- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(B) 		1-41219-033-0 01 1 0710- ● ● ● ●
265 CONE; BRG,FINAL DRIVE PINION
(A) 		1-41219-135-0 01 1 0710- ● ● ● ●
266 CUP; BRG,FINAL DRIVE PINION,INNER 1-41219-137-0 01 1 0710- ● ● ● ●
267 CUP; BRG,FINAL DRIVE PINION,OUTER 1-41219-136-0 01 1 0710- ● ● ● ●
287 PISTON; SHIFT UNIT 1-48262-029-0 01 1 0710- ● ● ● ●
291 ROD; PUSH 1-48269-211-0 01 1 0710- ● ● ● ●
292 SPRING; PISTON 1-48265-012-0 01 1 0710- ● ● ● ●
356 NIPPLE; SHIFT UNIT 1-09650-490-0 01 1 0710- ● ● ● ●
358 PIN; SPR
(A) 		1-41129-020-0 02 1 0710- ● ● ● ●
358 PIN; SPR
(B) 		1-48269-218-0 01 1 0710- ● ● ● ●
360 FORK; SHIFT 1-48269-207-0 01 1 0710- ● ● ● ●
380 GASKET; PISTON 1-48269-215-0 01 1 0710- ● ● ● ●
388 BOLT; COUPLING
M14X48.5 		1-09046-013-0 04 1 0710- ● ● ● ●
389 WASHER; FINAL PINION CAGE 1-41159-009-0 08 1 0710- ● ● ● ●
390 BOLT; CAGING 1-48269-213-0 01 1 0710- ● ● ● ●
391 CYLINDER; SHIFT 1-48269-206-0 01 1 0710- ● ● ● ●
453 COVER; CYLINDER 1-48269-212-0 01 1 0710- ● ● ● ●
454 GASKET; CYLINDER 1-48269-208-0 01 1 0710- ● ● ● ●
455 BOLT; CYLINDER COVER 1-48269-216-0 04 1 0710- ● ● ● ●
456 WASHER; CYLINDER COVER 1-48269-217-0 04 1 0710- ● ● ● ●
457 CAP; SCREW,DIFF LOCK 1-48269-214-0 01 1 0710- ● ● ● ●
458 GASKET; CYLINDER CAP 1-48269-209-0 01 1 0710- ● ● ● ●
