Isuzu WW
▶
TRUCKS
▶
EXD
▶
11114 - EXD AUST JAPAN NEW LONG TERM 2005
▶
3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶
3-80 — BRAKE PIPING; TRAILER
(#39252) — 29 parça
◀

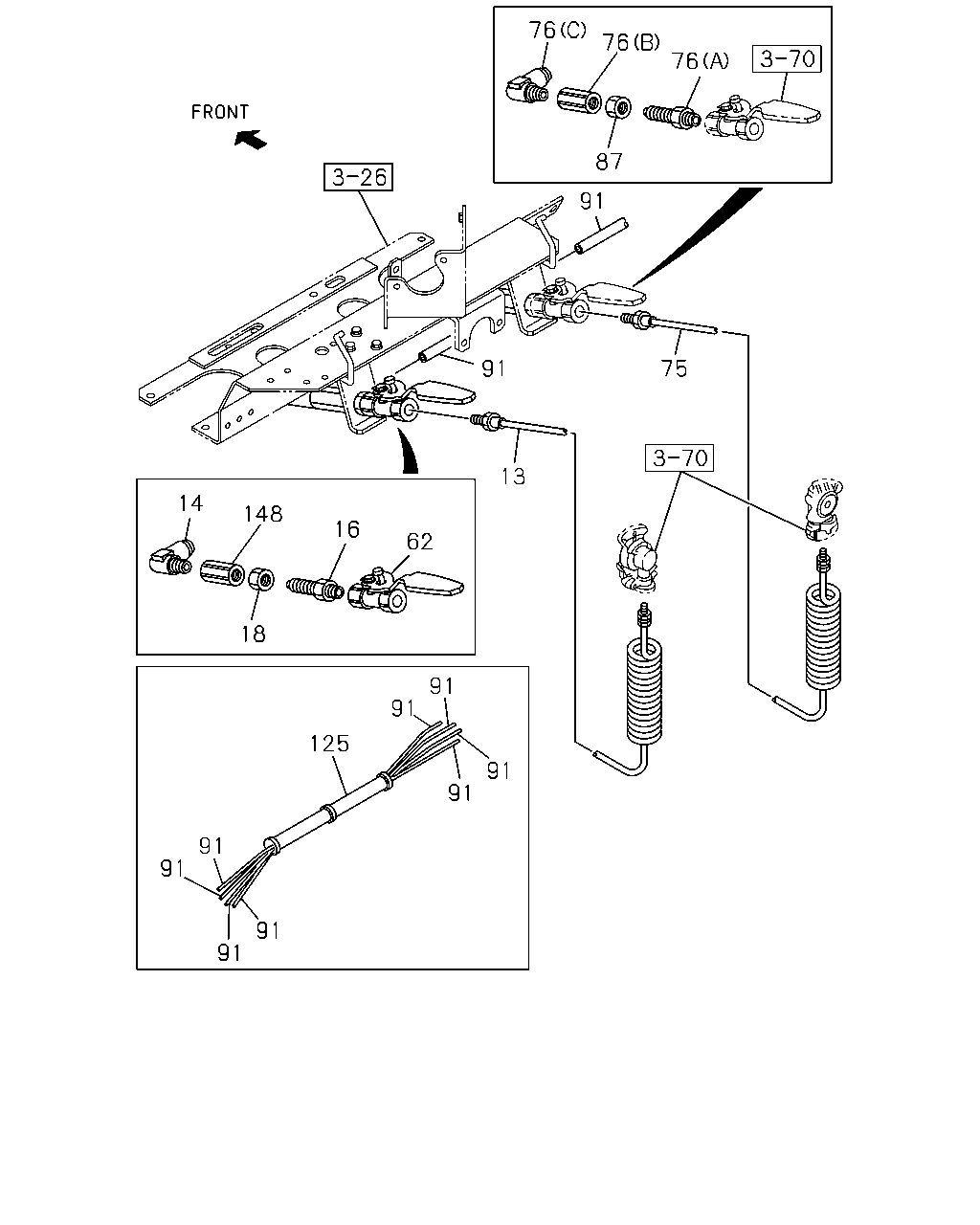

[380A] FRAME SIDE (18 parça)
[380A] CAB SIDE (11 parça)
▶
76
76
76
87
91
91
75
13
14
148
16
62
18
91
91
91
91
125
91
91
91
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HOSE; FLEX,TRAILER SERVICE
1-49215-539-1
01
1
0710-
14
CONNECTOR; AIR PIPE
DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0710-
16
UNION; AIR PIPE
1-09650-121-1
01
1
0710-
18
NUT; UNION
M16
0-91111-516-0
01
1
0710-
62
COCK; AIR PIPE
YELLOW
1-09680-093-0
01
1
0710-
75
HOSE; FLEX,TRAILER EMERGENCY
1-49215-539-1
01
1
0710-
76
NIPPLE; AIR PIPE
(A)
1-09650-121-1
01
1
0710-
76
NIPPLE; AIR PIPE
(B) M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
0710-
76
NIPPLE; AIR PIPE
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0710-
87
NUT
M16
0-91111-516-0
01
1
0710-
91
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0710-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0710-
91
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87411-012-0
AR
1
0710-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0710-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0710-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87411-029-0
AR
1
0710-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0710-
148
ADAPTER; NYLON TUBE
M16 & RC3/8 STRAIGHT
1-09660-882-0
01
1
0710-
106
106
105
107
144
104
47
99
140
118
140
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
47
PIPE; AIR,UNION TO UNION
1-49121-763-2
01
1
0710-
99
PIPE; AIR,JOINT TO JOINT
1-49122-058-1
01
1
0710-
104
PIPE; AIR,JOINT TO PARKING BRK VLV
1-49121-477-0
01
1
0710-
105
PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000
9-09914-701-0
01
1
0710-
106
CLIP; PIPE
ID=14
8-94238-572-0
02
1
0710-
107
PIPE; AIR,JOINT TO PARKING BRK VLV
1-47495-160-0
01
1
0710-
118
JOINT; AIR PIPE
1-47470-608-1
01
1
0710-
126
CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0710-
140
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0710-0904
140
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
144
CLIP; BAND
L=140
5-09707-031-1
01
1
0710-
