Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#3925) — 362 parça

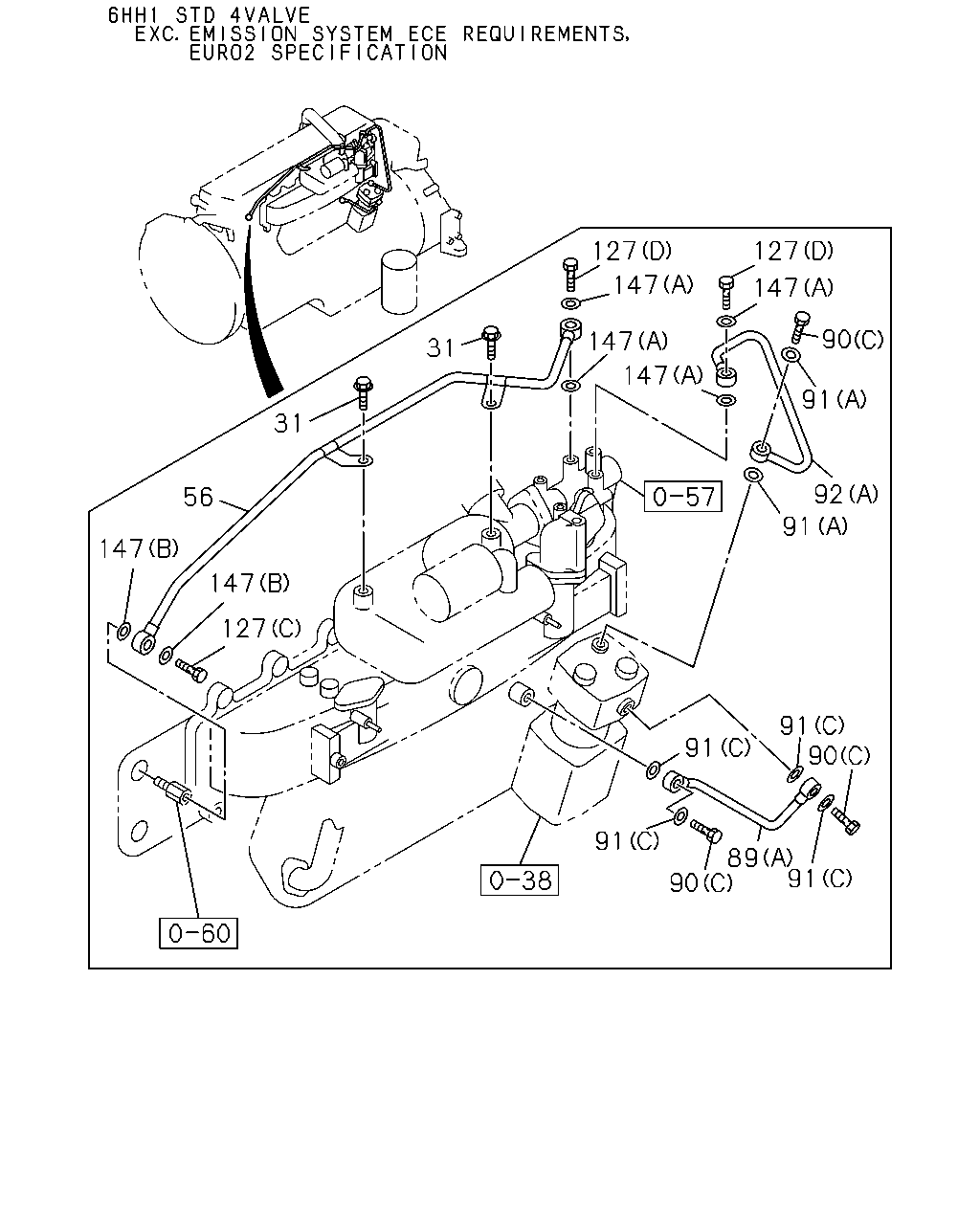

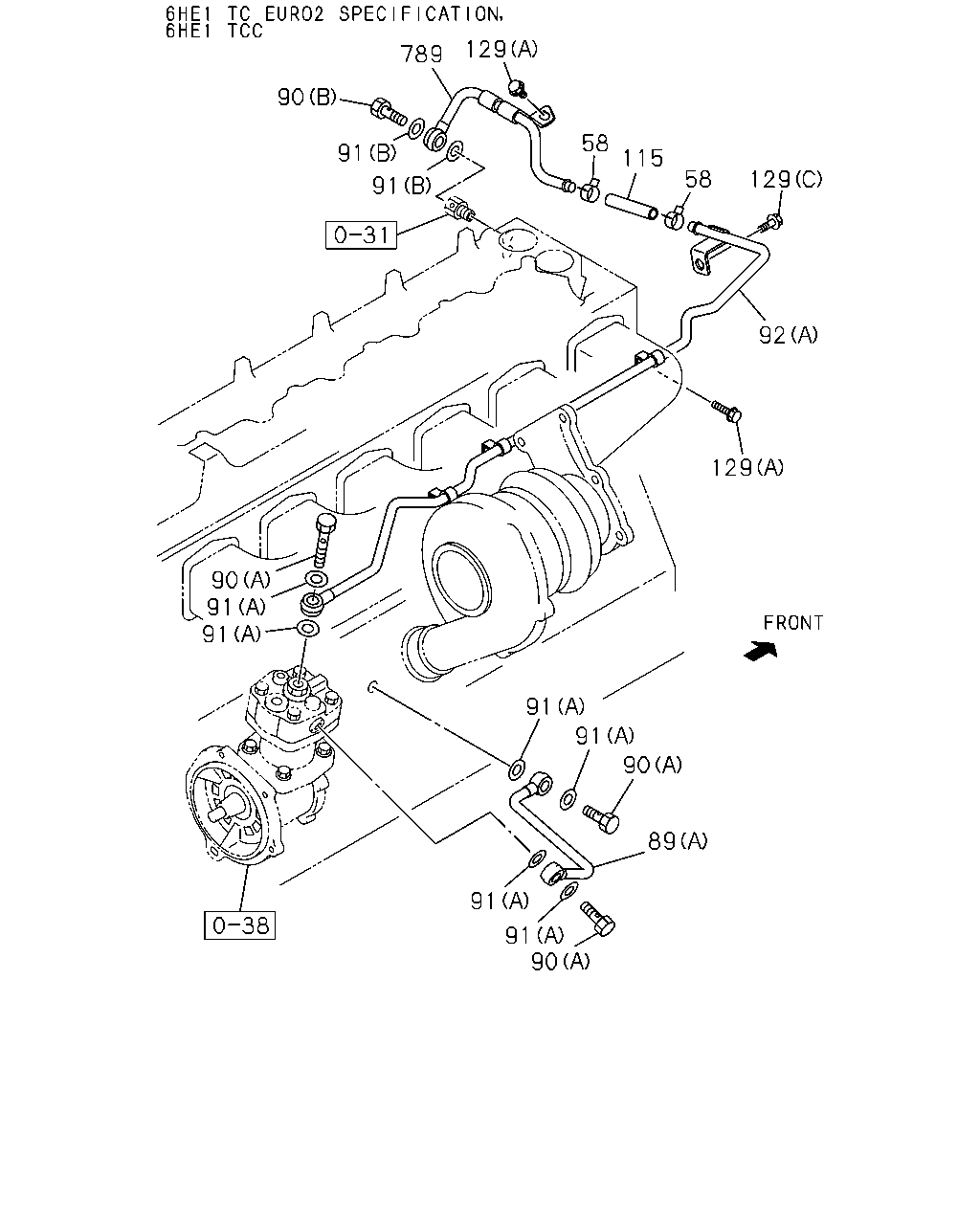

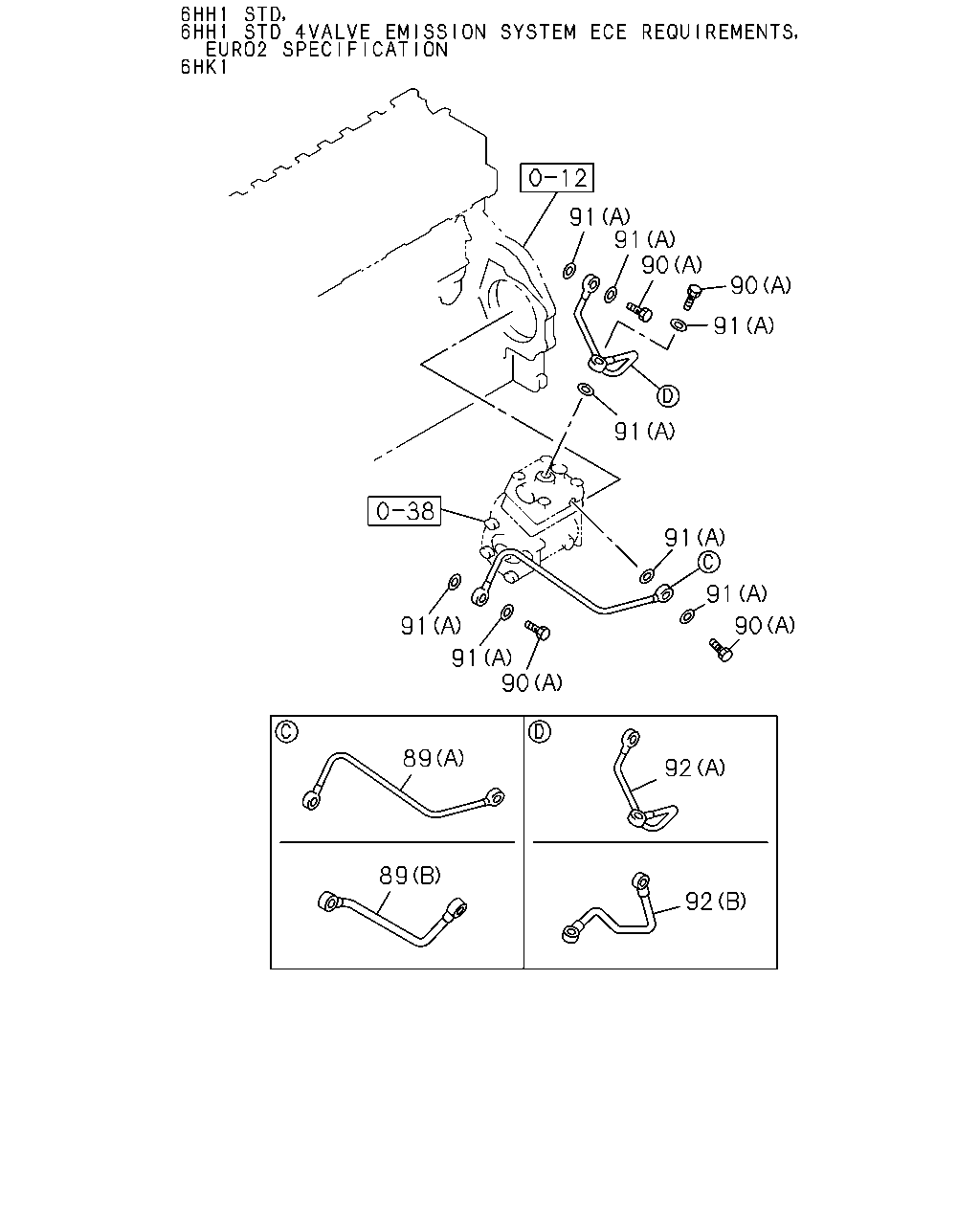

91 91 90 90 91 91 91 91 90 91 91 90 89 92 89 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94391-114-0	01	1	0608-	●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-178-1	01	1	9510-		●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94397-035-1	01	1	9511-9802			●
89	PIPE; WATER,AIR CMPR,IN INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	8-94397-035-1	01	1	9803-0004			●
89	PIPE; WATER,AIR CMPR,IN INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EURO2 SPECIFICATION<THN> (A)	8-94397-035-2	01	1	0005-			●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<THN> (A)	8-94395-452-2	01	1	9710-			●
89	PIPE; WATER,AIR CMPR,IN (A)	8-94395-452-2	01	1	9710-				●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94391-037-0	01	1	0005-0010					●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94391-037-0	01	1	0011-					●
89	PIPE; WATER,AIR CMPR,IN EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A)	8-94391-037-0	01	1	0011-					●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	9510-0004		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-0607		●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-0607			●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0608-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0608-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	9710-0004			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	9710-0004				●
90	BOLT; EYE,WATER PIPE,AIR CMPR EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0005-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0005-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR EURO2 SPECIFICATION<THN> (B) M16X25	5-09675-028-2	01	1	9710-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	9710-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0005-0005				●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0005-0005					●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0005-0005					●
90	BOLT; EYE,WATER PIPE,AIR CMPR EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0006-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0006-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0006-					●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0006-					●
90	BOLT; EYE,WATER PIPE,AIR CMPR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0011-					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	9510-0004		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-0607		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-0607			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0608-1312	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0608-1312			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9710-0004			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9710-0004				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	9710-			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	9710-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0005-0005				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0005-0005					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0005-0005					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0006-1312			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0006-1312				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0006-1312					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0006-1312					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (C) ID=14.2 OD=19.2	1-09630-085-0	06	1	0011-1312					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (C) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-					●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-97603-477-0	01	1	0608-	●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-742-1	01	1	9510-		●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94397-036-2	01	1	9511-9802			●
92	PIPE; WATER,AIR CMPR,OUT INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	8-94397-036-2	01	1	9803-0004			●
92	PIPE; WATER,AIR CMPR,OUT INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EURO2 SPECIFICATION<THN> (A)	8-94397-036-2	01	1	0005-			●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<THN> (A)	8-94390-070-0	01	1	9710-0004			●
92	PIPE; WATER,AIR CMPR,OUT (A)	8-94390-070-0	01	1	9710-0004				●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94390-070-0	01	1	0005-0005			●
92	PIPE; WATER,AIR CMPR,OUT (A)	8-94390-070-0	01	1	0005-0005				●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<THN> (A)	8-94390-070-0	01	1	0006-			●
92	PIPE; WATER,AIR CMPR,OUT (A)	8-94390-070-0	01	1	0006-				●
92	PIPE; WATER,AIR CMPR,OUT EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A)	8-97600-475-0	01	1	0011-					●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94390-952-1	01	1	0005-0307					●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-97603-546-0	01	1	0308-					●

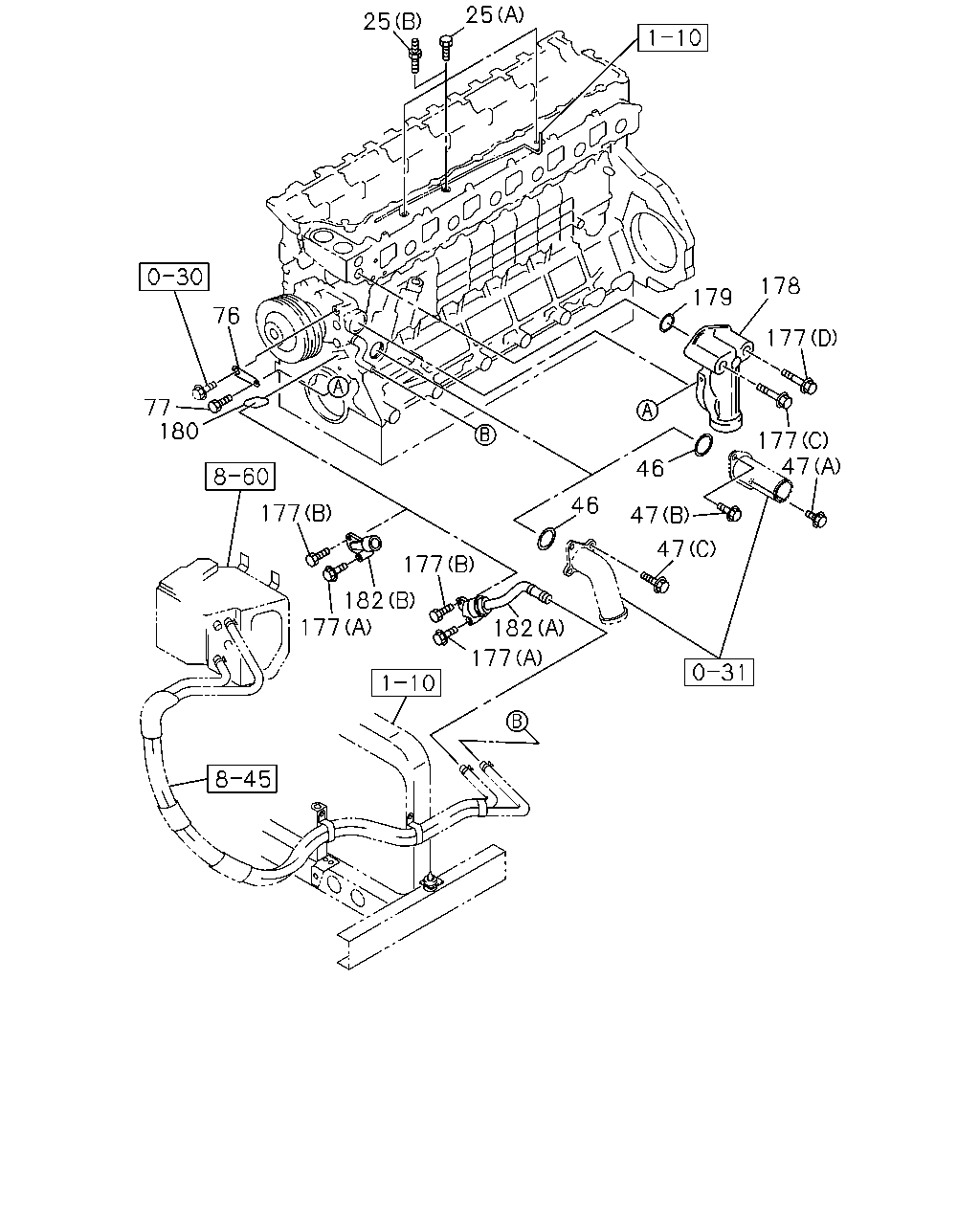

25 25 178 179 76 177 77 180 177 47 46 46 177 47 47 177 182 177 182 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28050-812-0	02	1	0608-	●
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28080-812-0	03	1	9510-0512		●
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28050-812-0	03	1	0601-		●
25	BOLT; WATER PIPE (B) M8X14,M8X14 L=33	1-09300-058-1	02	1	0005-					●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	9510-0004		●	●	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0005-0607		●	●	●	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0608-	●	●	●	●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X16 FLANGE	0-28080-816-0	01	1	9510-9611		●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28080-845-0	01	1	9612-0004		●	●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28080-845-0	01	1	0005-0111		●	●	●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28080-845-0	01	1	0112-0512		●	●	●
47	BOLT; DUCT,TO OIL COOLER EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X45 FLANGE	0-28080-845-0	01	1	0112-0512					●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	0601-0607		●	●	●
47	BOLT; DUCT,TO OIL COOLER EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X45 FLANGE	0-28050-845-0	01	1	0601-0607					●
47	BOLT; DUCT,TO OIL COOLER (A) M8X45 FLANGE	0-28050-845-0	01	1	0608-	●	●	●	●
47	BOLT; DUCT,TO OIL COOLER EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (A) M8X45 FLANGE	0-28050-845-0	01	1	0608-					●
47	BOLT; DUCT,TO OIL COOLER (B) M8X40 FLANGE	0-28080-840-0	01	1	9510-9611		●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28680-825-0	01	1	9612-0004		●	●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28680-825-0	01	1	0005-0009		●	●	●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28680-825-0	01	1	0010-0512		●	●	●
47	BOLT; DUCT,TO OIL COOLER EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE	0-28680-825-0	01	1	0010-0512					●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-0607		●	●	●
47	BOLT; DUCT,TO OIL COOLER EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-0607					●
47	BOLT; DUCT,TO OIL COOLER (B) M8X25 FLANGE	0-28650-825-0	01	1	0608-	●	●	●	●
47	BOLT; DUCT,TO OIL COOLER EMISSION SYSTEM ECE REQUIREMENTS<SFV>,EURO2 SPECIFICATION<THN> (B) M8X25 FLANGE	0-28650-825-0	01	1	0608-					●
47	BOLT; DUCT,TO OIL COOLER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (C) M8X45 FLANGE	0-28080-845-0	03	1	0011-0512					●
47	BOLT; DUCT,TO OIL COOLER EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (C) M8X45 FLANGE	0-28050-845-0	03	1	0601-					●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	9510-0004		●	●	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0005-0607		●	●	●	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0608-	●	●	●	●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9510-9906		●	●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	9907-0004		●	●
77	BOLT; BRKT,WATER DUCT EURO2 SPECIFICATION<THN> M8X50 FLANGE	0-28080-850-0	02	1	9907-0004			●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	02	1	9907-0004				●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	0005-0106		●	●	●	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	0005-0106				●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	0107-0512		●	●	●	●
77	BOLT; BRKT,WATER DUCT EURO2 SPECIFICATION<THN> M8X50 FLANGE	0-28080-850-0	01	1	0107-0512			●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	0107-0512				●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0601-0607		●	●	●	●
77	BOLT; BRKT,WATER DUCT EURO2 SPECIFICATION<THN> M8X50 FLANGE	0-28050-850-0	01	1	0601-0607			●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0601-0607				●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0608-	●	●	●	●	●
77	BOLT; BRKT,WATER DUCT EURO2 SPECIFICATION<THN> M8X50 FLANGE	0-28050-850-0	01	1	0608-			●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0608-				●
177	BOLT; WATER DUCT (B) M8X22 FLANGE	0-28080-822-0	01	1	9510-9709		●	●
177	BOLT; WATER DUCT (C) M8X79 FLANGE	8-94311-617-1	01	1	9510-9611		●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	9510-9802		●	●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	9510-0004		●	●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0005-0607		●	●	●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0608-	●	●	●	●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	9612-0004		●	●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	0005-0512		●	●	●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0601-0607		●	●	●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0608-	●	●	●	●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	9710-0004		●	●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	0005-0512		●	●	●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-0607		●	●	●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0608-	●	●	●	●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	9803-0004		●	●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0005-0607		●	●	●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0608-	●	●	●	●	●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	9510-0004		●	●	●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	0005-0607		●	●	●	●
178	DUCT; WATER,BYPASS	8-94396-627-3	01	1	0608-	●	●	●	●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	9510-0004		●	●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0005-0607		●	●	●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0608-1408	●	●	●	●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-	●	●	●	●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	9510-0004		●	●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0005-0607		●	●	●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0608-	●	●	●	●	●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94396-724-4	01	1	9510-0004		●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41) (A)	8-94396-724-4	01	1	0005-0112		●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94396-724-4	01	1	0005-0112					●
182	DUCT; WATER,HTR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-94396-724-4	01	1	0201-		●			●
182	DUCT; WATER,HTR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-283-0	01	1	9510-0004		●
182	DUCT; WATER,HTR EXC. HEATER & DEFROSTER(C41) (B)	8-94390-283-0	01	1	0005-0012		●
182	DUCT; WATER,HTR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-283-0	01	1	0005-0012					●
182	DUCT; WATER,HTR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-283-0	01	1	0101-0302		●			●
182	DUCT; WATER,HTR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-283-0	01	1	0303-		●
182	DUCT; WATER,HTR EURO2 SPECIFICATION<THN> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-94390-283-0	01	1	0303-					●
182	DUCT; WATER,HTR (A)	8-94394-348-5	01	1	9511-0607			●	●
182	DUCT; WATER,HTR (A)	8-94394-348-5	01	1	0608-	●		●	●

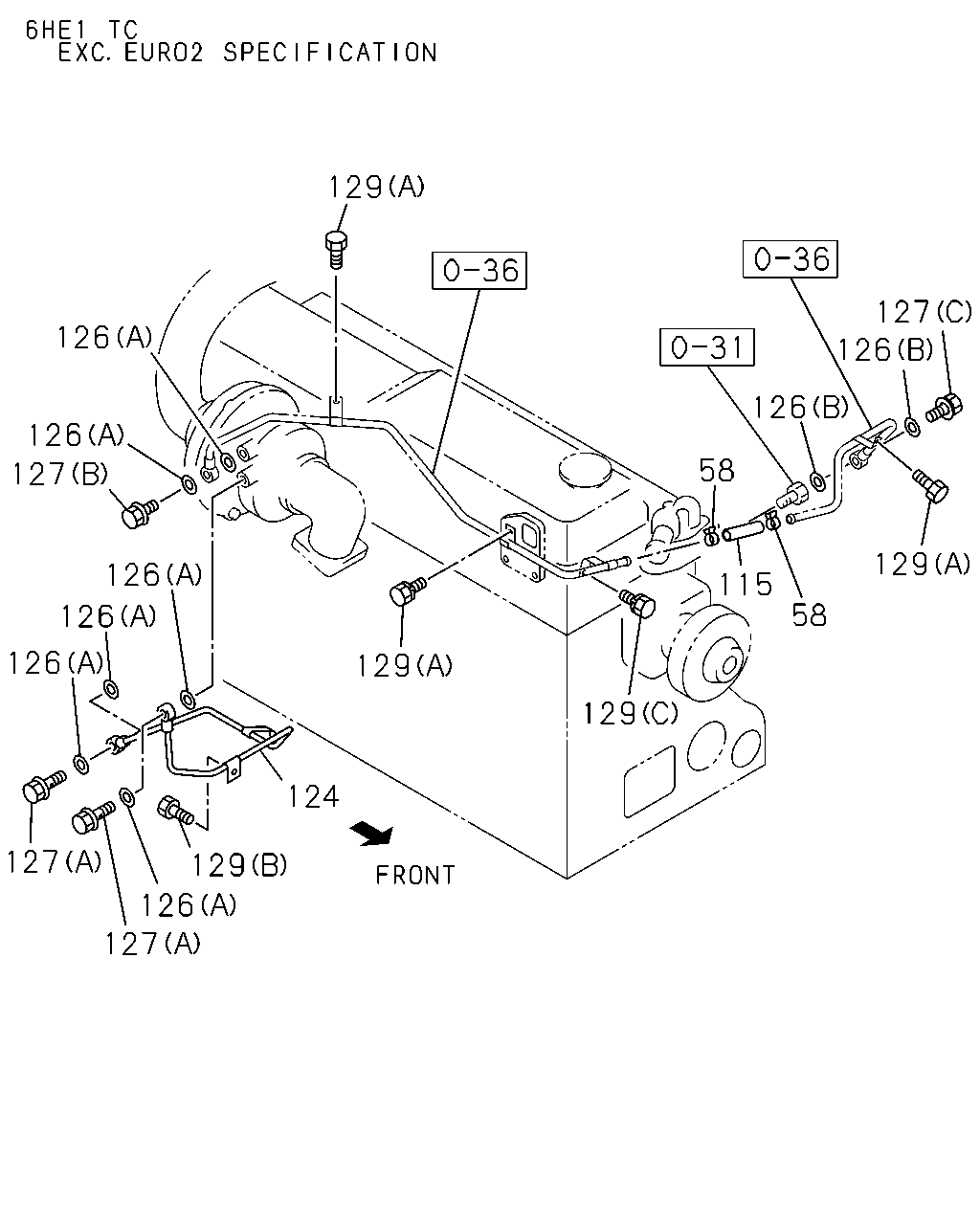

129 127 126 126 126 126 58 127 129 126 115 58 126 126 129 129 124 127 129 126 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D	E
58	CLIP; RUBBER HOSE ID=19	9-09915-505-1	02	1	9511-9808	●	●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	9809-	●	●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03711-300-0	01	1	9511-0206	●	●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0207-	●	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	8-94394-534-1	01	1	9511-9709	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG EXC. EURO2 SPECIFICATION<THN>	8-94394-534-2	01	1	9710-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9511-9709	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9710-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	02	1	9511-9709	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (B) ID=16.2	1-09630-086-0	02	1	9710-	●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	9511-9709	●
127	BOLT; EYE EXC. EURO2 SPECIFICATION<THN> (A) M14X31	1-09675-191-0	02	1	9710-	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	9511-9709	●
127	BOLT; EYE EXC. EURO2 SPECIFICATION<THN> (B) M14X27 FLANGE	1-09675-192-0	01	1	9710-	●
127	BOLT; EYE (C) M16X25	5-09675-028-2	01	1	9511-9709	●
127	BOLT; EYE EXC. EURO2 SPECIFICATION<THN> (C) M16X25	5-09675-028-2	01	1	9710-0010	●
127	BOLT; EYE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (D) M12X33 FLANGE	1-09675-083-0	02	1	0011-			●
127	BOLT; EYE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (C) M16X25	5-09675-028-2	01	1	0011-	●
127	BOLT; EYE HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (C) M16X25	5-09675-028-2	01	1	0011-			●
129	BOLT; WATER PIPE TO BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9511-9709	●
129	BOLT; WATER PIPE TO BRKT EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE	0-28080-812-0	01	1	9710-0512	●
129	BOLT; WATER PIPE TO BRKT EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	03	1	9511-9709	●
129	BOLT; WATER PIPE TO BRKT EXC. EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	03	1	9710-0512	●
129	BOLT; WATER PIPE TO BRKT EXC. EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-	●
129	BOLT; WATER PIPE TO BRKT (C) M12X20 W/LK WASHER	0-50051-220-0	01	1	9511-9709	●
129	BOLT; WATER PIPE TO BRKT (C) M12X20 W/LK WASHER	0-50051-220-0	01	1	9710-	●	●
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	04	1	9710-0512	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	04	1	9710-0512		●
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-		●

129 789 90 58 91 115 58 129 91 92 129 90 91 91 91 91 90 89 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
58	CLIP; RUBBER HOSE ID=19	9-09915-505-1	02	1	9511-9808			●	●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	9809-			●	●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94391-114-0	01	1	0608-	●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-178-1	01	1	9510-		●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94397-035-1	01	1	9511-9802			●
89	PIPE; WATER,AIR CMPR,IN INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	8-94397-035-1	01	1	9803-0004			●
89	PIPE; WATER,AIR CMPR,IN INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EURO2 SPECIFICATION<THN> (A)	8-94397-035-2	01	1	0005-			●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<THN> (A)	8-94395-452-2	01	1	9710-			●
89	PIPE; WATER,AIR CMPR,IN (A)	8-94395-452-2	01	1	9710-				●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94391-037-0	01	1	0005-0010					●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94391-037-0	01	1	0011-					●
89	PIPE; WATER,AIR CMPR,IN EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A)	8-94391-037-0	01	1	0011-					●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	9510-0004		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-0607		●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-0607			●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0608-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0608-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	9710-0004			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	9710-0004				●
90	BOLT; EYE,WATER PIPE,AIR CMPR EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0005-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0005-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR EURO2 SPECIFICATION<THN> (B) M16X25	5-09675-028-2	01	1	9710-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	9710-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0005-0005				●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0005-0005					●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0005-0005					●
90	BOLT; EYE,WATER PIPE,AIR CMPR EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0006-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0006-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0006-					●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0006-					●
90	BOLT; EYE,WATER PIPE,AIR CMPR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0011-					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	9510-0004		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-0607		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-0607			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0608-1312	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0608-1312			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9710-0004			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9710-0004				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	9710-			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	9710-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0005-0005				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0005-0005					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0005-0005					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0006-1312			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0006-1312				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0006-1312					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0006-1312					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (C) ID=14.2 OD=19.2	1-09630-085-0	06	1	0011-1312					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (C) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-					●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-97603-477-0	01	1	0608-	●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-742-1	01	1	9510-		●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94397-036-2	01	1	9511-9802			●
92	PIPE; WATER,AIR CMPR,OUT INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	8-94397-036-2	01	1	9803-0004			●
92	PIPE; WATER,AIR CMPR,OUT INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EURO2 SPECIFICATION<THN> (A)	8-94397-036-2	01	1	0005-			●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<THN> (A)	8-94390-070-0	01	1	9710-0004			●
92	PIPE; WATER,AIR CMPR,OUT (A)	8-94390-070-0	01	1	9710-0004				●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94390-070-0	01	1	0005-0005			●
92	PIPE; WATER,AIR CMPR,OUT (A)	8-94390-070-0	01	1	0005-0005				●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<THN> (A)	8-94390-070-0	01	1	0006-			●
92	PIPE; WATER,AIR CMPR,OUT (A)	8-94390-070-0	01	1	0006-				●
92	PIPE; WATER,AIR CMPR,OUT EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A)	8-97600-475-0	01	1	0011-					●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94390-952-1	01	1	0005-0307					●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-97603-546-0	01	1	0308-					●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03711-300-0	01	1	9511-0206			●	●
115	HOSE; RUBBER L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0207-			●	●
129	BOLT; WATER PIPE TO BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9511-9709			●
129	BOLT; WATER PIPE TO BRKT EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE	0-28080-812-0	01	1	9710-0512			●
129	BOLT; WATER PIPE TO BRKT EXC. EURO2 SPECIFICATION<THN> (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-			●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	03	1	9511-9709			●
129	BOLT; WATER PIPE TO BRKT EXC. EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	03	1	9710-0512			●
129	BOLT; WATER PIPE TO BRKT EXC. EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-			●
129	BOLT; WATER PIPE TO BRKT (C) M12X20 W/LK WASHER	0-50051-220-0	01	1	9511-9709			●
129	BOLT; WATER PIPE TO BRKT (C) M12X20 W/LK WASHER	0-50051-220-0	01	1	9710-			●	●
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28080-816-0	04	1	9710-0512			●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	04	1	9710-0512				●
129	BOLT; WATER PIPE TO BRKT EURO2 SPECIFICATION<THN> (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-			●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-				●
789	PIPE; WATER,AIR CMPR TO CYL HD EURO2 SPECIFICATION<THN>	8-94395-454-4	01	1	9710-			●
789	PIPE; WATER,AIR CMPR TO CYL HD	8-94395-454-4	01	1	9710-				●

127 127 147 147 147 31 147 91 31 92 56 91 147 147 127 91 90 91 91 89 90 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
31	BOLT; CLIP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M8X16 FLANGE	0-28080-816-0	05	1	0011-0512					●
31	BOLT; CLIP EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> M8X16 FLANGE	0-28050-816-0	05	1	0601-					●
56	PIPE; WATER OUTLET EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN>	8-94392-324-2	01	1	0011-					●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-94391-114-0	01	1	0608-	●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-178-1	01	1	9510-		●
89	PIPE; WATER,AIR CMPR,IN AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94397-035-1	01	1	9511-9802			●
89	PIPE; WATER,AIR CMPR,IN INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	8-94397-035-1	01	1	9803-0004			●
89	PIPE; WATER,AIR CMPR,IN INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EURO2 SPECIFICATION<THN> (A)	8-94397-035-2	01	1	0005-			●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<THN> (A)	8-94395-452-2	01	1	9710-			●
89	PIPE; WATER,AIR CMPR,IN (A)	8-94395-452-2	01	1	9710-				●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94391-037-0	01	1	0005-0010					●
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94391-037-0	01	1	0011-					●
89	PIPE; WATER,AIR CMPR,IN EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A)	8-94391-037-0	01	1	0011-					●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	9510-0004		●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-0607		●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-0607			●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0608-	●	●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0608-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	9710-0004			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	9710-0004				●
90	BOLT; EYE,WATER PIPE,AIR CMPR EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0005-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	01	1	0005-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR EURO2 SPECIFICATION<THN> (B) M16X25	5-09675-028-2	01	1	9710-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	9710-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0005-0005				●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0005-0005					●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0005-0005					●
90	BOLT; EYE,WATER PIPE,AIR CMPR EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0006-			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0006-				●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0006-					●
90	BOLT; EYE,WATER PIPE,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) M14X27 EYE-BOLT	1-09675-193-0	02	1	0006-					●
90	BOLT; EYE,WATER PIPE,AIR CMPR EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0011-					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	9510-0004		●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-0607		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-0607			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0608-1312	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0608-1312			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-	●	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9710-0004			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	9710-0004				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-1312				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	9710-			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	9710-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0005-0005				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0005-0005					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0005-0005					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0006-1312			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0006-1312				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0006-1312					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0006-1312					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-				●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) EURO2 SPECIFICATION<THN> (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (C) ID=14.2 OD=19.2	1-09630-085-0	06	1	0011-1312					●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (C) ID=14.2 OD=19.2	8-98251-345-0	06	1	1401-					●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	8-97603-477-0	01	1	0608-	●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94395-742-1	01	1	9510-		●
92	PIPE; WATER,AIR CMPR,OUT AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94397-036-2	01	1	9511-9802			●
92	PIPE; WATER,AIR CMPR,OUT INJ PUMP Q SET SPECIAL +5%Q(T1A) (A)	8-94397-036-2	01	1	9803-0004			●
92	PIPE; WATER,AIR CMPR,OUT INJ PUMP Q SET SPECIAL +5%Q(T1A) EXC. EURO2 SPECIFICATION<THN> (A)	8-94397-036-2	01	1	0005-			●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<THN> (A)	8-94390-070-0	01	1	9710-0004			●
92	PIPE; WATER,AIR CMPR,OUT (A)	8-94390-070-0	01	1	9710-0004				●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94390-070-0	01	1	0005-0005			●
92	PIPE; WATER,AIR CMPR,OUT (A)	8-94390-070-0	01	1	0005-0005				●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<THN> (A)	8-94390-070-0	01	1	0006-			●
92	PIPE; WATER,AIR CMPR,OUT (A)	8-94390-070-0	01	1	0006-				●
92	PIPE; WATER,AIR CMPR,OUT EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A)	8-97600-475-0	01	1	0011-					●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-94390-952-1	01	1	0005-0307					●
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<THN> AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	8-97603-546-0	01	1	0308-					●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	9511-9709			●
127	BOLT; EYE EXC. EURO2 SPECIFICATION<THN> (A) M14X31	1-09675-191-0	02	1	9710-			●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	9511-9709			●
127	BOLT; EYE EXC. EURO2 SPECIFICATION<THN> (B) M14X27 FLANGE	1-09675-192-0	01	1	9710-			●
127	BOLT; EYE (C) M16X25	5-09675-028-2	01	1	9511-9709			●
127	BOLT; EYE EXC. EURO2 SPECIFICATION<THN> (C) M16X25	5-09675-028-2	01	1	9710-0010			●
127	BOLT; EYE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (D) M12X33 FLANGE	1-09675-083-0	02	1	0011-					●
127	BOLT; EYE EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (C) M16X25	5-09675-028-2	01	1	0011-			●
127	BOLT; EYE HEATER & DEFROSTER(C41) EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (C) M16X25	5-09675-028-2	01	1	0011-					●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A) ID=12.2	1-09630-084-0	04	1	0011-1312					●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (A) ID=12.2	8-98251-344-0	04	1	1401-					●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV>, EURO2 SPECIFICATION<THN> (B) ID=16.2	1-09630-086-0	02	1	0011-					●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
