3-22 — AIR CONTROL PARTS (#39239) — 109 parça

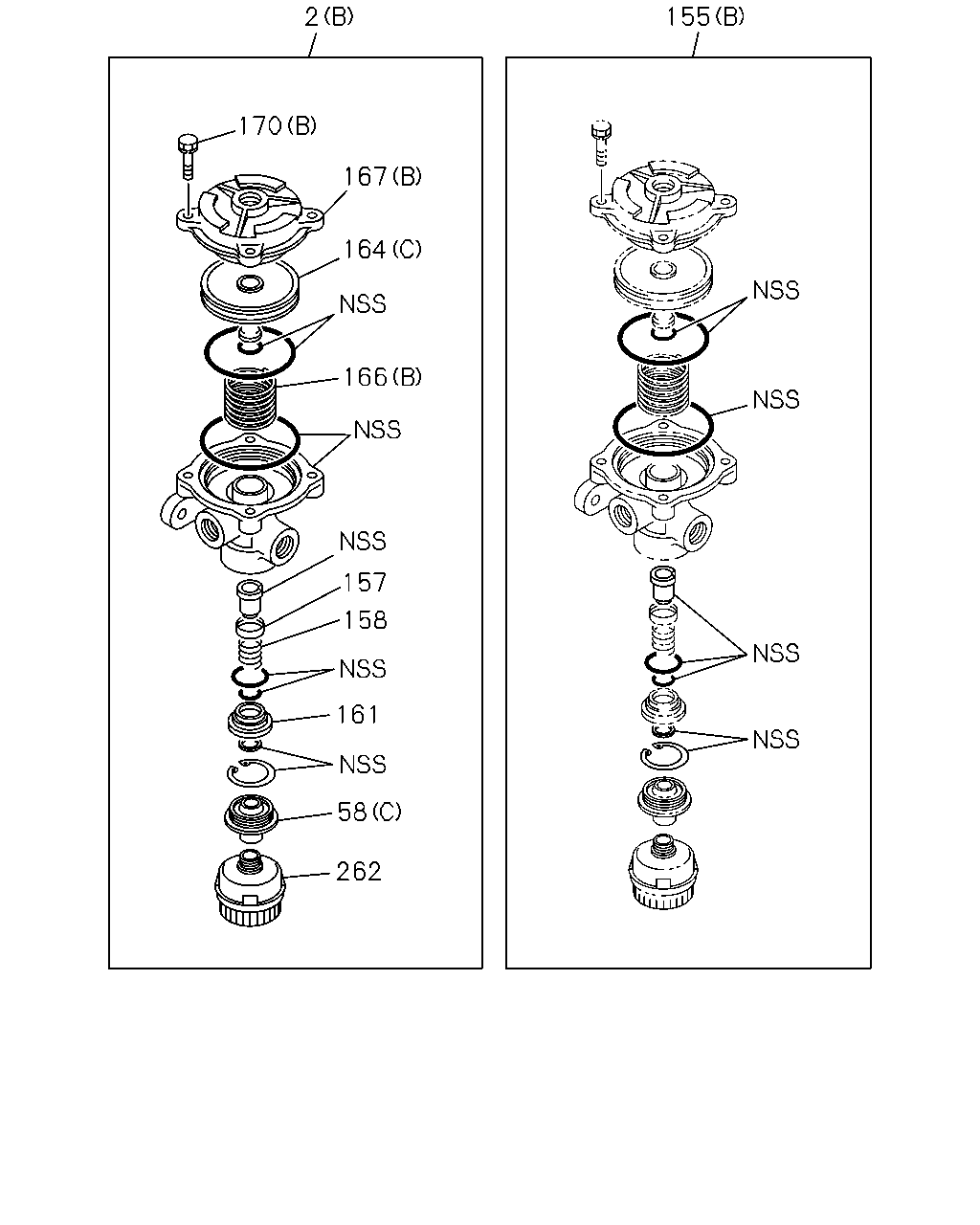

çizim 180101
2 155 170 167 164 166 157 158 161 58 262
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY
(B) 		1-48210-997-0 01 1 0710-
2 VALVE; RELAY
(A) 		1-48240-245-1 01 1 0710-
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0710-
58 ADAPTER
(B) PT3/8 		1-09664-210-0 01 1 0710-
58 ADAPTER
(C) 		1-48219-154-0 01 1 0710-1005
58 ADAPTER
(C) 		1-48219-154-0 02 1 1006-
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-294-0 01 1 1006-
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-453-0 01 1 0710-
157 RETAINER; VALVE 1-48213-002-0 01 1 0710-1005
157 RETAINER; VALVE 1-48213-002-0 02 1 1006-
158 SPRING; VALVE 1-47819-089-0 01 1 0710-1005
158 SPRING; VALVE 1-47819-089-0 02 1 1006-
161 GUIDE; VALVE 1-48129-014-0 01 1 0710-1005
161 GUIDE; VALVE 1-48129-014-0 02 1 1006-
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1006-
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 0710-
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 0710-
166 SPRING; PISTON
(B) 		1-47819-090-0 01 1 1006-
166 SPRING; PISTON
(A) 		1-48219-048-0 01 1 0710-
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1006-
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 0710-
170 SCREW; COVER TO BODY
(B) 		1-48219-039-0 04 1 1006-
170 SCREW; COVER TO BODY
(A) 		1-48219-041-0 04 1 0710-
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-1005
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1006-

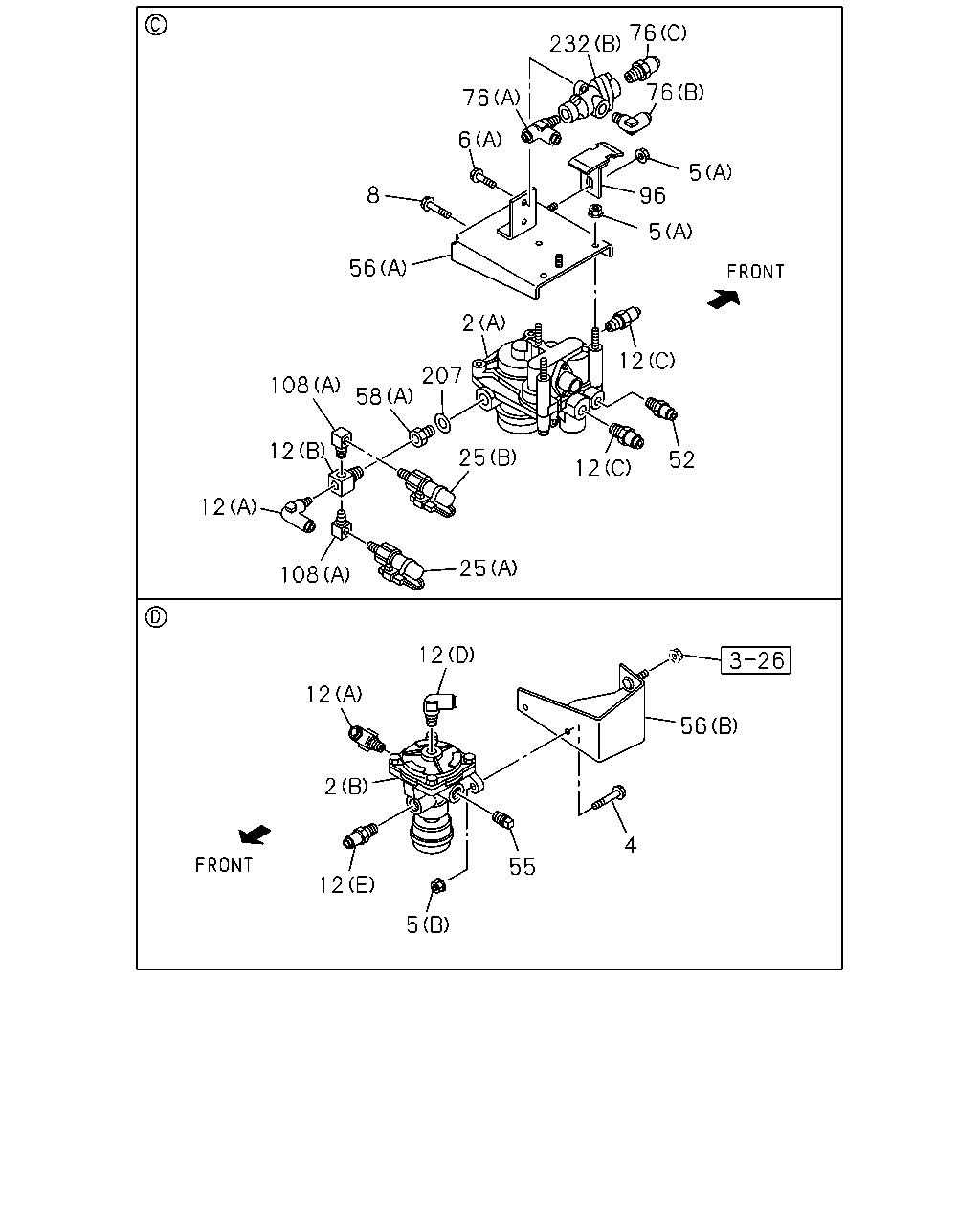

çizim 180200
76 232 76 76 6 5 8 96 5 56 2 12 207 108 58 12 25 52 12 12 25 108 12 12 56 2 4 55 12 5
BalonParca AdiParca NoAdetTipApplied Date
2 VALVE; RELAY
(B) 		1-48210-997-0 01 1 0710-
2 VALVE; RELAY
(A) 		1-48240-245-1 01 1 0710-
4 BOLT; RELAY VLV TO BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0710-
5 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0710-
5 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0710-
6 BOLT; VLV
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0710-
6 BOLT; VLV
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0710-
8 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0710-
12 CONNECTOR; RELAY VLV
(D) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-
12 CONNECTOR; RELAY VLV
(E) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0710-
12 CONNECTOR; RELAY VLV
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0710-
12 CONNECTOR; RELAY VLV
(C) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 0710-
12 CONNECTOR; RELAY VLV
(B) PT3/8 4WAY 		1-09661-489-0 01 1 0710-
25 SWITCH; PRESSURE
(B) GREEN 		1-82410-176-1 01 1 0710-
25 SWITCH; PRESSURE
(A) 		8-97383-820-1 01 1 0710-
52 CONNECTOR; RELAY VLV
DIN8 & M16 STRAIGHT 		1-09661-530-0 01 1 0710-
55 PLUG; SUPPLY
PT3/8 		9-09204-517-0 01 1 0710-
56 BRACKET; RELAY VLV
(B) 		8-98168-322-0 01 1 0710-
56 BRACKET; RELAY VLV
(A) 		8-98082-693-0 01 1 0710-
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0710-
58 ADAPTER
(B) PT3/8 		1-09664-210-0 01 1 0710-
58 ADAPTER
(C) 		1-48219-154-0 01 1 0710-1005
58 ADAPTER
(C) 		1-48219-154-0 02 1 1006-
76 CONNECTOR; CONT VLV
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-
76 CONNECTOR; CONT VLV
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0710-
76 CONNECTOR; CONT VLV
(A) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0710-
96 BRACKET 1-47479-693-0 01 1 0710-
108 CONNECTOR; ELBOW
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0710-
108 CONNECTOR; ELBOW
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-
207 GASKET; ADAPTER
ID=22.5 		9-09571-422-0 01 1 0710-
232 VALVE; CHECK
(A) 		1-48320-031-1 01 1 0710-
232 VALVE; CHECK
(B) 		1-48410-531-1 01 1 0710-

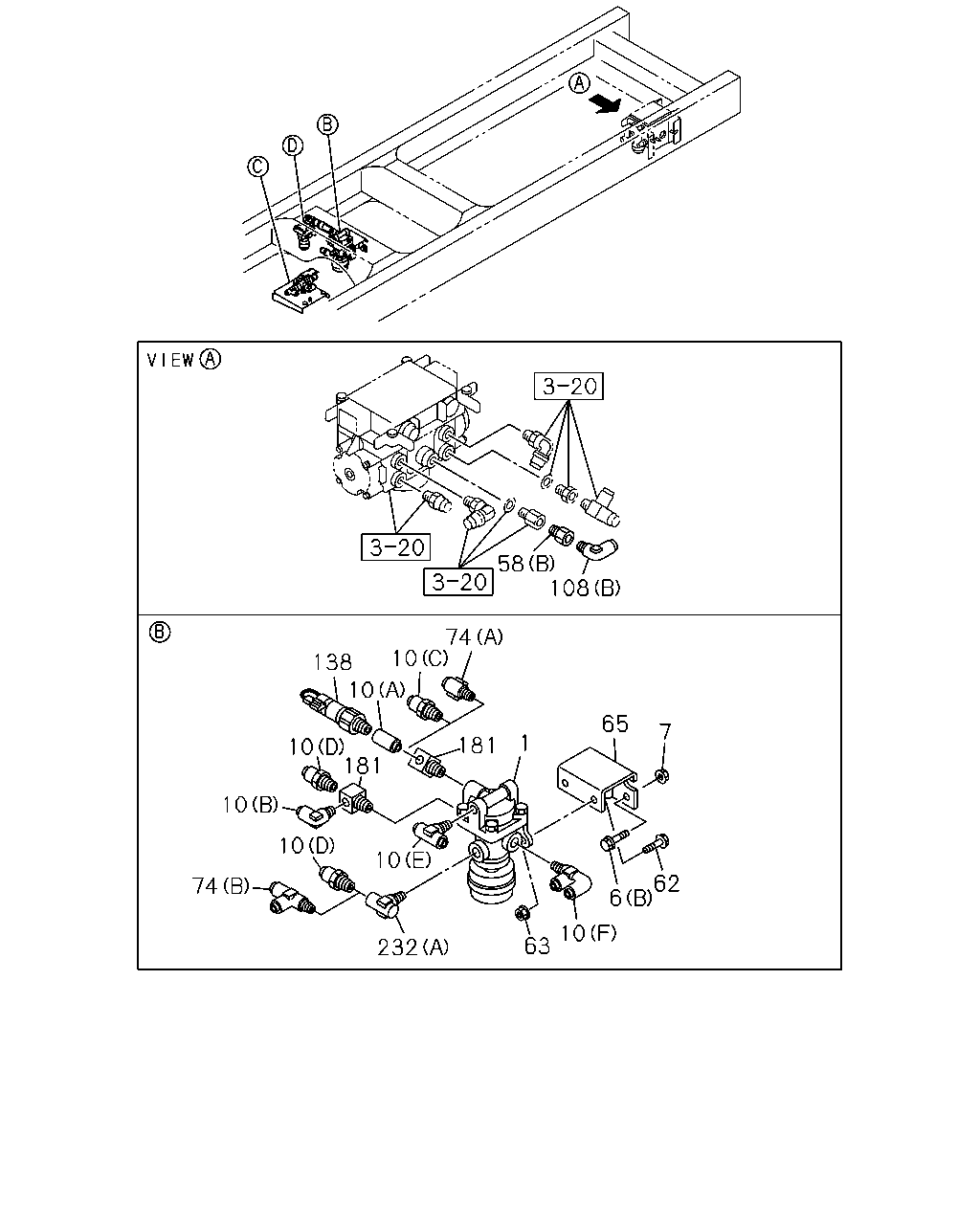

çizim 180204
58 108 74 10 138 10 65 7 1 181 10 181 10 10 10 62 6 74 10 63 232
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-469-0 01 1 0710-
6 BOLT; VLV
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0710-
6 BOLT; VLV
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0710-
7 NUT; RELAY VLV
M10 FLANGE 		0-91180-210-0 02 1 0710-
10 CONNECTOR
(A) DIN8 & RC1/4 & R3/8 3WAY 		8-97620-116-0 01 1 0710-1005
10 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-1005
10 CONNECTOR
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0710-1005
10 CONNECTOR
(A) 		1-09661-537-0 01 1 1006-
10 CONNECTOR
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0710-1005
10 CONNECTOR
(D) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 1006-
10 CONNECTOR
(E) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0710-
10 CONNECTOR
(F) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 0710-
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0710-
58 ADAPTER
(B) PT3/8 		1-09664-210-0 01 1 0710-
58 ADAPTER
(C) 		1-48219-154-0 01 1 0710-1005
58 ADAPTER
(C) 		1-48219-154-0 02 1 1006-
62 BOLT; BRKT FIX
M10X35 FLANGE 		0-28651-035-0 02 1 0710-
63 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 02 1 0710-
65 BRACKET; RELAY VLV RR 8-98072-286-0 01 1 0710-
74 CONNECTOR; 3WAY
(A) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 1006-
74 CONNECTOR; 3WAY
(B) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1006-
108 CONNECTOR; ELBOW
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 02 1 0710-
108 CONNECTOR; ELBOW
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0710-
138 SWITCH; RELAY VALVE 1-48340-067-0 01 1 0710-
181 ADAPTER; PRESSURE SW
PT3/8 3WAY 		1-09661-300-0 02 1 0710-1005
181 ADAPTER; PRESSURE SW
PT3/8 3WAY 		1-09661-300-0 01 1 1006-
232 VALVE; CHECK
(A) 		1-48320-031-1 01 1 0710-
232 VALVE; CHECK
(B) 		1-48410-531-1 01 1 0710-

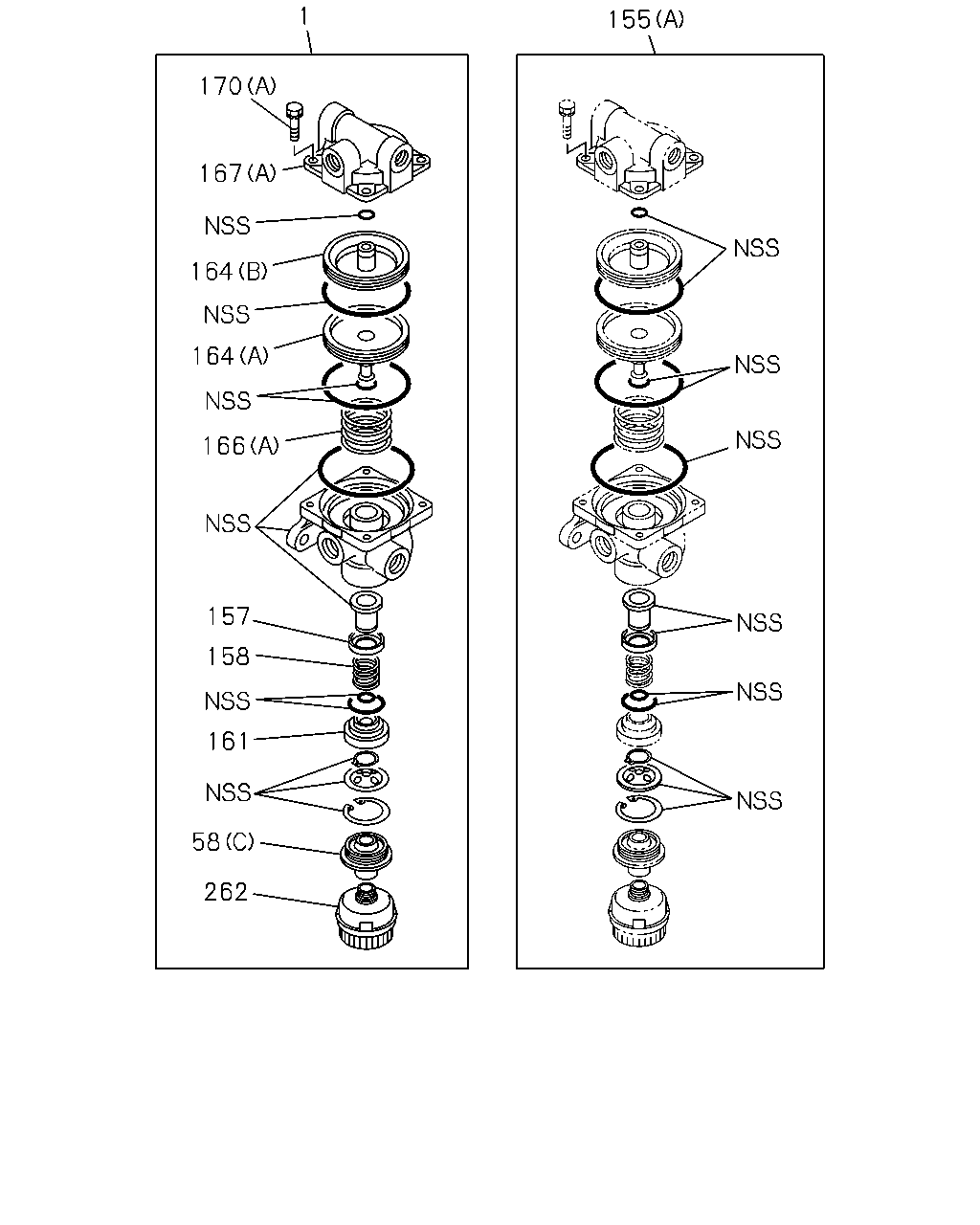

çizim 180374
1 155 170 167 164 164 166 157 158 161 58 262
BalonParca AdiParca NoAdetTipApplied Date
1 VALVE; RELAY RWD RR 1-48240-469-0 01 1 0710-
58 ADAPTER
(A) INNER PT3/8,OUTER M22 		1-09650-494-1 01 1 0710-
58 ADAPTER
(B) PT3/8 		1-09664-210-0 01 1 0710-
58 ADAPTER
(C) 		1-48219-154-0 01 1 0710-1005
58 ADAPTER
(C) 		1-48219-154-0 02 1 1006-
155 REPAIR KIT; RELAY VALVE
(B) 		1-85576-294-0 01 1 1006-
155 REPAIR KIT; RELAY VALVE
(A) 		1-85576-453-0 01 1 0710-
157 RETAINER; VALVE 1-48213-002-0 01 1 0710-1005
157 RETAINER; VALVE 1-48213-002-0 02 1 1006-
158 SPRING; VALVE 1-47819-089-0 01 1 0710-1005
158 SPRING; VALVE 1-47819-089-0 02 1 1006-
161 GUIDE; VALVE 1-48129-014-0 01 1 0710-1005
161 GUIDE; VALVE 1-48129-014-0 02 1 1006-
164 PISTON; RELAY VALVE
(C) 		1-48219-071-0 01 1 1006-
164 PISTON; RELAY VALVE
(A) 		1-48219-032-0 01 1 0710-
164 PISTON; RELAY VALVE
(B) 		1-48219-047-0 01 1 0710-
166 SPRING; PISTON
(B) 		1-47819-090-0 01 1 1006-
166 SPRING; PISTON
(A) 		1-48219-048-0 01 1 0710-
167 COVER; VALVE
(B) 		1-48219-070-0 01 1 1006-
167 COVER; VALVE
(A) 		1-48219-050-1 01 1 0710-
170 SCREW; COVER TO BODY
(B) 		1-48219-039-0 04 1 1006-
170 SCREW; COVER TO BODY
(A) 		1-48219-041-0 04 1 0710-
262 SILENCER; RELAY VALVE 1-48219-149-0 01 1 0710-1005
262 SILENCER; RELAY VALVE 1-48219-149-0 02 1 1006-
