3-08 — PARKING BRAKE (#39235) — 67 parça

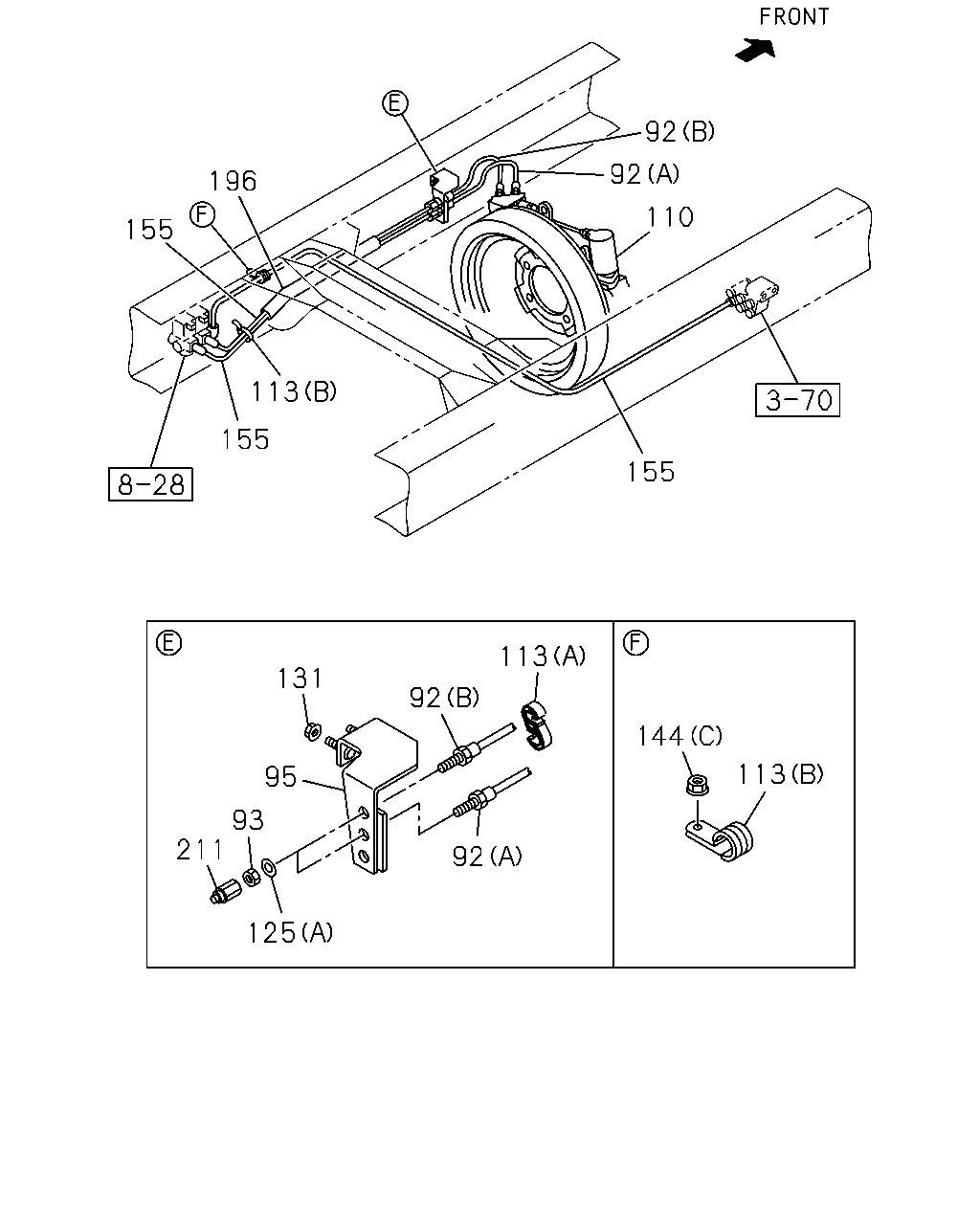

92 92 110 155 196 155 113 155 113 92 131 95 93 211 125 92 144 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> (B) L=280	1-09363-610-0	01	1	0710-
92	HOSE; FLEX,RETARDER BRAKE SYSTEM RETARDER<RE2> (A) L=340	1-09363-622-0	01	1	0710-
93	NUT; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> M12	9-09840-280-0	02	1	0710-
95	BRACKET; FLEX HOSE,RETARDER BRAKE SYSTEM RETARDER<RE2>	8-98084-093-0	01	1	0710-
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-497-3	01	1	0710-
113	CLIP; HOSE BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) ID=23 L=27	1-09700-946-0	01	1	0710-
113	CLIP; HOSE TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> (B) ID=24 L=27	1-09700-809-0	01	1	0710-
113	CLIP; HOSE BRAKE SYSTEM RETARDER<RE2> (A) ID=10 & 10	1-09709-277-1	01	1	0710-
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2	0-91510-512-0	02	1	0710-
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	0710-
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-429-0	02	1	0710-
131	NUT; BRKT BRAKE SYSTEM RETARDER<RE2> M8 FLANGE	0-91180-108-0	02	1	0710-
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	0710-
144	NUT BRAKE SYSTEM RETARDER<RE2> (C) M8 FLANGE	0-91180-108-0	01	1	0710-
144	NUT BRAKE SYSTEM RETARDER<RE2> (A) M12	9-09840-280-0	02	1	0710-
155	TUBE BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=4000 OD=6	1-87411-002-0	01	1	0710-
155	TUBE BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SERVICED BY L=2000 OD=6	1-87411-001-0	02	1	0710-
155	TUBE TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 OD=6	1-87411-001-0	03	1	0710-
196	TUBE; CORRUGATE BRAKE SYSTEM RETARDER<RE2> EXC. TRANSMISSION SIDE PTO HEAVY DUTY(B4P) SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0710-
196	TUBE; CORRUGATE TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0710-
196	TUBE; CORRUGATE TRANSMISSION SIDE PTO HEAVY DUTY(B4P) BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 ID=15	1-87411-025-0	01	1	0710-
211	ADAPTER BRAKE SYSTEM RETARDER<RE2> DIN6 & M12 STRAIGHT	1-09661-379-0	02	1	0710-

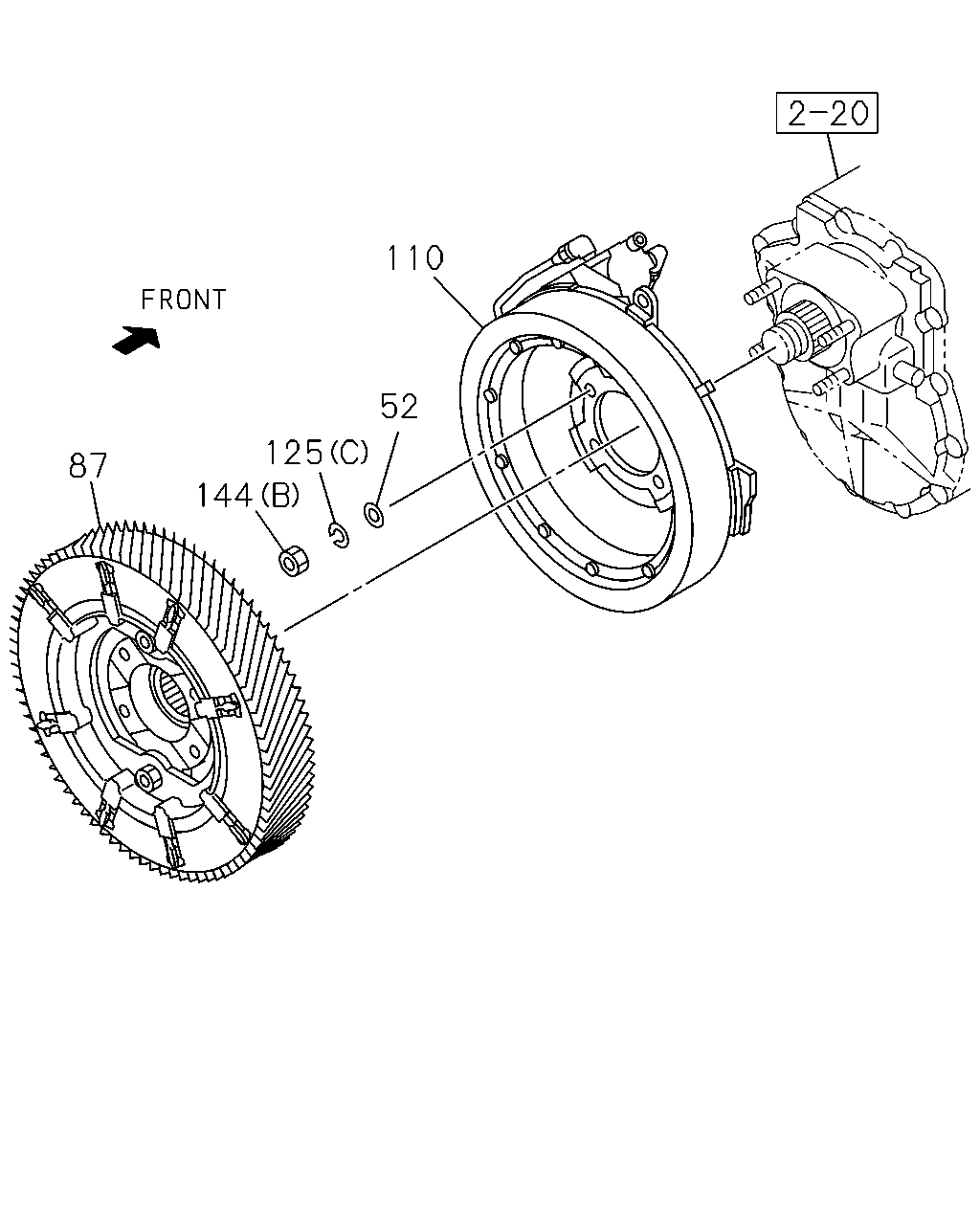

110 52 125 144 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> ID=17	9-09164-516-0	04	1	0710-1011
52	WASHER; PL BRAKE SYSTEM RETARDER<RE2> ID=17	0-91614-516-0	04	1	1012-
87	DRUM; RETARDER,PARKING BRK BRAKE SYSTEM RETARDER<RE2>	1-48610-498-1	01	1	0710-
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-497-3	01	1	0710-
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2	0-91510-512-0	02	1	0710-
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	0710-
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-429-0	02	1	0710-
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	0710-
144	NUT BRAKE SYSTEM RETARDER<RE2> (C) M8 FLANGE	0-91180-108-0	01	1	0710-
144	NUT BRAKE SYSTEM RETARDER<RE2> (A) M12	9-09840-280-0	02	1	0710-

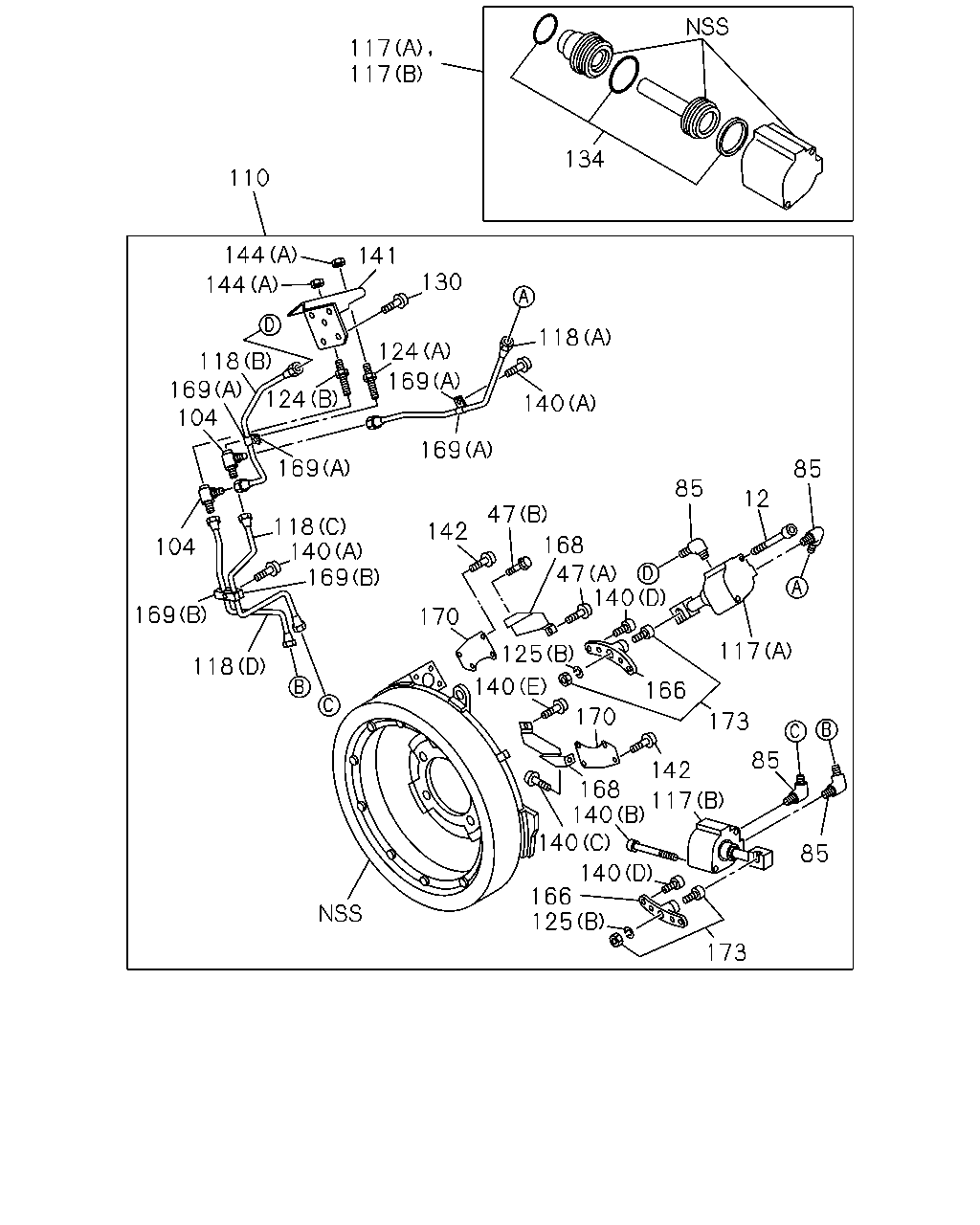

117 117 134 110 144 144 141 118 169 104 104 169 118 169 140 118 169 124 130 124 169 169 142 170 125 166 140 140 140 173 168 117 142 85 85 173 166 170 118 140 47 168 47 125 140 140 85 12 85 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	BOLT; FIX BRAKE SYSTEM RETARDER<RE2>	1-48629-461-0	02	1	0710-
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER<RE2> (B) M6X10 HEX SOCKET	1-48629-133-0	01	1	0710-
47	BOLT; SUPPORT PLATE BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-471-0	01	1	0710-
85	CONNECTOR; RETARDER BRAKE SYSTEM RETARDER<RE2> M12 & PT1/8	0-92124-306-0	04	1	0710-
104	CONNECTOR BRAKE SYSTEM RETARDER<RE2>	1-48629-202-0	02	1	0710-
110	BRAKE ASM; PARKING BRAKE SYSTEM RETARDER<RE2>	1-48610-497-3	01	1	0710-
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-464-0	01	1	0710-
117	CYLINDER ASM; AIR BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-465-0	01	1	0710-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-457-0	01	1	0710-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-458-0	01	1	0710-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (C)	1-48629-459-0	01	1	0710-
118	PIPE ASM; AIR CYL BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-460-0	01	1	0710-
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (A) M12 2WAY	1-09654-257-1	01	1	0710-
124	CONNECTOR; FLEX HOSE BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-452-0	01	1	0710-
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (C) ID=12.2	0-91510-512-0	02	1	0710-
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (A) ID=16.2	0-91510-516-0	04	1	0710-
125	WASHER; LK BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-429-0	02	1	0710-
130	BOLT; BRKT BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET	1-48629-145-0	04	1	0710-
134	REPAIR KIT; AIR CYL BRAKE SYSTEM RETARDER<RE2>	1-48629-463-0	02	1	0710-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (C) M6X10 HEX SOCKET	1-48629-133-0	01	1	0710-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (A) M6X20 HEX SOCKET	1-48629-270-0	03	1	0710-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-461-0	02	1	0710-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (D)	1-48629-462-0	08	1	0710-
140	BOLT BRAKE SYSTEM RETARDER<RE2> (E)	1-48629-471-0	01	1	0710-
141	BRACKET BRAKE SYSTEM RETARDER<RE2>	1-48629-450-0	01	1	0710-
142	SCREW BRAKE SYSTEM RETARDER<RE2> M6X10 HEX SOCKET	1-48629-133-0	08	1	0710-
144	NUT BRAKE SYSTEM RETARDER<RE2> (B) M16	0-91110-516-0	04	1	0710-
144	NUT BRAKE SYSTEM RETARDER<RE2> (C) M8 FLANGE	0-91180-108-0	01	1	0710-
144	NUT BRAKE SYSTEM RETARDER<RE2> (A) M12	9-09840-280-0	02	1	0710-
166	ATTACHMENT; YOKE BRAKE SYSTEM RETARDER<RE2>	1-48629-446-0	02	1	0710-
168	PROTECTOR; HEAT BRAKE SYSTEM RETARDER<RE2>	1-48629-447-0	02	1	0710-
169	CLAMP BRAKE SYSTEM RETARDER<RE2> (A)	1-48629-249-0	04	1	0710-
169	CLAMP BRAKE SYSTEM RETARDER<RE2> (B)	1-48629-276-0	02	1	0710-
170	COVER; CASE BRAKE SYSTEM RETARDER<RE2>	1-48629-448-0	02	1	0710-
173	FOLLOWER BRAKE SYSTEM RETARDER<RE2>	1-48629-468-0	02	1	0710-
