2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#39231) — 32 parça

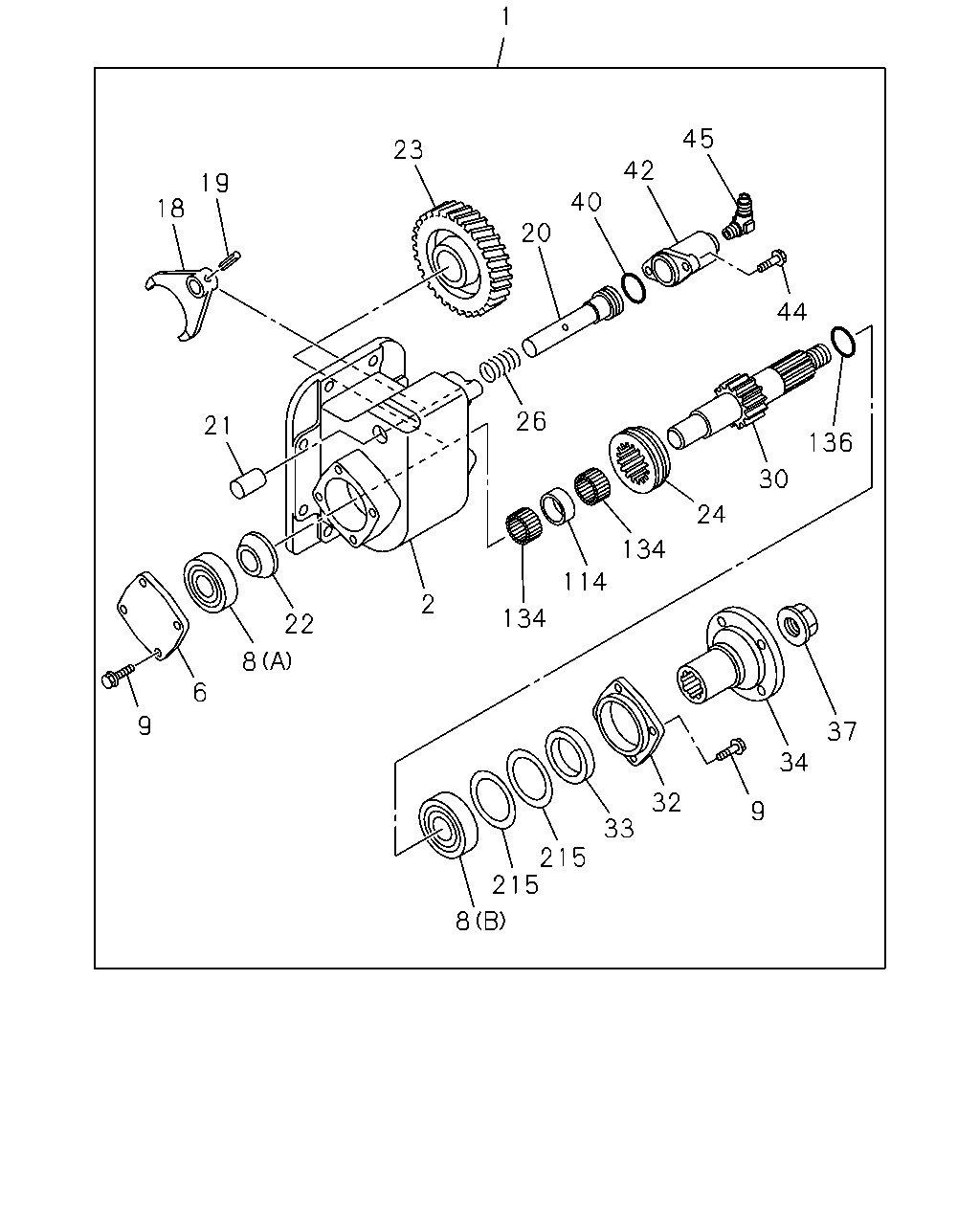

çizim 180178
1 23 19 18 45 42 40 20 44 26 21 22 8 6 9 2 134 114 134 24 30 136 37 34 9 32 33 215 215 8
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; TRANS SIDE
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-38000-380-3 01 1 0710-
2 CASE; GEAR,TRANS SIDE PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-38111-115-0 01 1 0710-
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-38151-022-0 01 1 0710-
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (A) 		1-38225-011-0 01 1 0710-
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) (B) 		1-38225-012-0 01 1 0710-
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M8X20 FLANGE 		0-28080-820-0 08 1 0710-
18 ARM; GEAR SHIFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-38361-036-0 01 1 0710-
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		8-97306-596-0 01 1 0710-
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-38371-058-1 01 1 0710-
21 COVER; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		9-33545-001-0 01 1 0710-
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-38245-023-0 01 1 0710-
23 GEAR; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) Z=23 		1-38241-134-1 01 1 0710-
24 SLEEVE; DOG CLU,TRANS SIDE PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-38225-010-0 01 1 0710-
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-38121-009-0 01 1 0710-
30 SHAFT; OUTPUT,TRANS SIDE PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-38221-056-0 01 1 0710-
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		8-97305-793-0 01 1 0710-
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		8-98036-323-0 01 1 0710-
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-38512-028-0 01 1 0710-
37 NUT; FLANGE FIX,TRANS SIDE PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M24 FLANGE 		8-98189-932-0 01 1 0710-
40 GASKET; AIR SHIFTER ROD,TRANS SIDE PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		9-09561-324-0 01 1 0710-
42 CYLINDER; AIR,TRANS SIDE PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		8-97306-597-0 01 1 0710-
44 BOLT; COVER,TRANS SIDE PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M8X20 FLANGE 		0-28080-820-0 02 1 0710-
45 NIPPLE; AIR CYL,TRANS SIDE PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-
114 COLLAR; OUTPUT SHAFT,TRANS SIDE PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-38229-045-0 01 1 0710-
134 BEARING; NEEDLE,OUTPUT SHAFT
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-09811-412-0 02 1 0710-
136 GASKET; PTO SHAFT
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) 		1-09623-246-0 01 1 0710-
215 SHIM; BEARING,PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.05 		1-38229-013-0 AR 1 0710-
215 SHIM; BEARING,PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.07 		1-38229-014-0 AR 1 0710-
215 SHIM; BEARING,PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.10 		1-38229-015-0 AR 1 0710-
215 SHIM; BEARING,PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.15 		1-38229-016-0 AR 1 0710-
215 SHIM; BEARING,PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.50 		1-38229-017-0 AR 1 0710-
215 SHIM; BEARING,PTO
TRANSMISSION SIDE PTO HEAVY DUTY(B4P) T=0.75 		1-38229-018-0 AR 1 0710-
