2-53 — TRANSMISSION OIL COOLER SYSTEM (#39230) — 30 parça

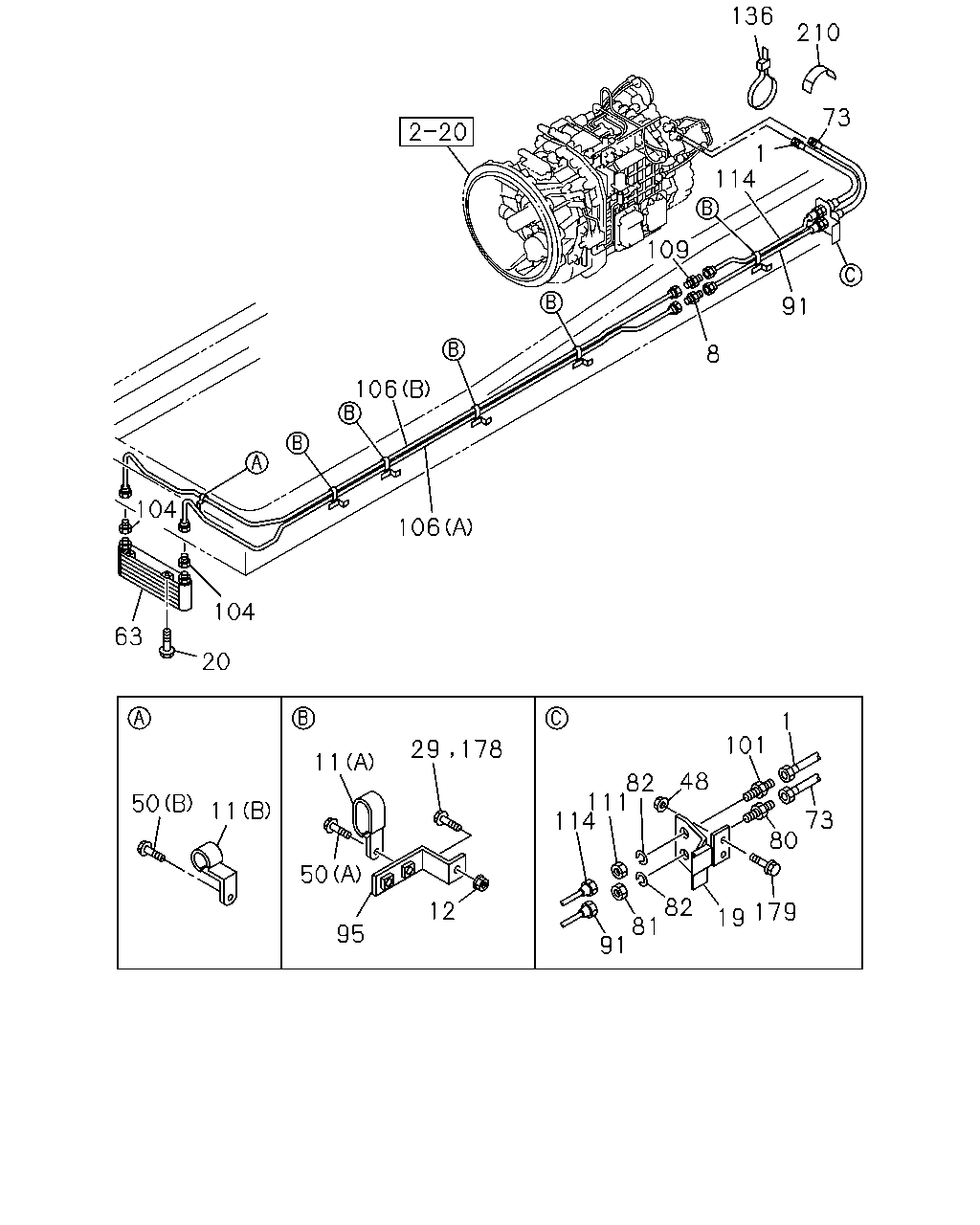

çizim 180181
136 210 73 1 114 109 91 8 106 106 104 104 63 20 50 11 11 29 178 50 95 12 91 81 82 19 179 80 73 1 101 48 82 111 114
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; ATF
L=600 		1-09365-232-0 01 1 0710-
8 UNION
M22 L=51 		0-92123-015-0 01 1 0710-
11 CLIP; PIPE
(A) ID=16X2 L=20 		0-95325-535-0 05 1 0710-
11 CLIP; PIPE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 0710-
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 05 1 0710-
19 BRACKET; FLEX HOSE 1-47479-561-1 01 1 0710-
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28051-020-0 02 1 0710-
29 BOLT; FILTER TO BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0710-
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-
50 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-
50 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 05 1 0710-
63 COOLER; OIL 1-21700-394-0 01 1 0710-1405
63 COOLER; OIL 8-98269-766-0 01 1 1406-
73 HOSE; FLEX,TRANS
L=550 		1-09365-231-0 01 1 0710-
80 UNION; FLEX HOSE
M22 & M22 STRAIGHT 		1-09654-204-2 01 1 0710-
81 NUT; UNION
M22 		0-91111-522-0 01 1 0710-
82 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0710-
91 PIPE; OIL,FLEX HOSE TO UNION
L=931 		8-98055-844-0 01 1 0710-
95 BRACKET; CLIP 1-47479-482-0 05 1 0710-
101 UNION; FLEX HOSE
M22 & M22 STRAIGHT 		1-09654-204-2 01 1 0710-
104 CONNECTOR; COOLER 1-09654-398-0 02 1 0710-
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=1750 		8-98096-141-0 01 1 0710-
106 PIPE ASM; OIL,COOLER TO UNION
(B) L=2344 		8-98056-487-0 01 1 0710-
109 UNION
M22 L=51 		0-92123-015-0 01 1 0710-
111 NUT; UNION
M22 		0-91111-522-0 01 1 0710-
114 PIPE; OIL,UNION TO FLEX HOSE
L=858 		8-98067-363-0 01 1 0710-
136 CLIP; FLEX HOSE
L=350 		1-09707-183-0 01 1 0710-
178 BOLT; BRKT,CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0710-
179 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0710-
