Sayfa 2-31 - Isuzu EPC

2-31 — AIR CONTROL TRANSMISSION (A.C.T.) (#39227) — 167 parça

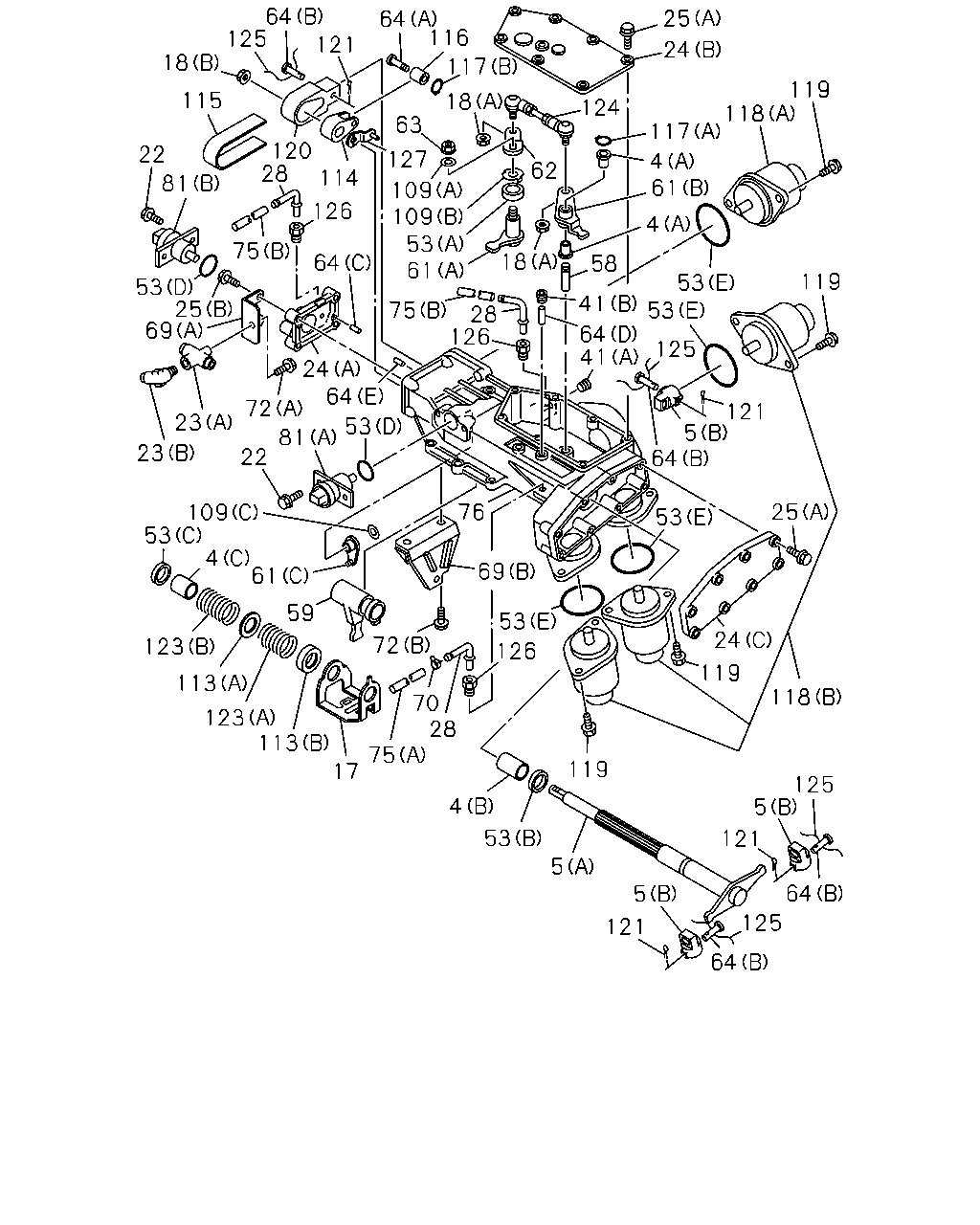

64 125 18 25 64 116 121 24 117 119 115 18 124 118 63 117 62 4 61 120 28 22 127 114 81 109 109 53 61 126 4 75 18 64 58 119 53 53 53 25 69 41 75 28 126 64 41 125 24 64 72 121 5 64 23 53 81 23 22 53 25 76 109 53 4 61 69 59 53 24 72 123 126 119 113 118 70 28 123 113 75 119 17 125 5 4 53 121 5 64 5 125 121 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BUSHING; SHIFT UNIT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-09330-144-0	02	1	-
4	BUSHING; SHIFT UNIT (C), ID=20 OD=23 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-33549-016-0	01	1	-
4	BUSHING; SHIFT UNIT (B), ID=28 OD=32 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-33549-104-0	01	1	-
5	ROD; SHIFT UNIT (B) ASM PART: A = 8-98070-039-1	1-33522-195-0	03	1	-
5	ROD; SHIFT UNIT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98046-922-0	01	1	-
17	YOKE; SHIFT UNIT ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98044-040-0	01	1	-
18	NUT; ROD (A), M6 FLANGE ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0	0-91180-106-0	02	1	-
18	NUT; ROD (B), M10 FLANGE ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-91180-110-0	01	1	-
18	NUT; ROD (A), M8 FLANGE ASM PART: G = 8-98302-714-0	1-09440-062-1	02	1	-
22	BOLT; SW M6X12 FLANGE ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-28050-612-0	04	1	-
23	CONNECTOR; SHIFT UNIT (B), DIN12 & R3/8 ELBOW ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-09660-959-0	01	1	-
23	CONNECTOR; SHIFT UNIT (A), DIN8 & RC3/8 3WAY ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-09661-129-0	01	1	-
24	COVER; SHIFT UNIT (C) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-34141-023-1	01	1	-
24	COVER; SHIFT UNIT (B) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-34141-028-0	01	1	-
24	COVER; SHIFT UNIT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98047-742-0	01	1	-
25	BOLT; COVER (A), M8X16 FLANGE ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-28050-816-0	15	1	-
25	BOLT; COVER (B), M6X25 FLANGE ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-28650-625-0	04	1	-
28	PIPE; SHIFT UNIT ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-97358-318-0	03	1	-
41	PLUG; SHIFT UNIT (B), PT3/8 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-09605-056-0	01	1	-
41	PLUG; SHIFT UNIT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-94403-163-0	02	1	-
53	GASKET (A), ID=26.8 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-09623-058-0	02	1	-
53	GASKET (B) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	9-09561-360-0	04	1	-
58	SHAFT; GEAR SHIFT UNIT ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-33659-240-0	01	1	-
59	LEVER; INNER,GEAR SHIFT UNIT ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-33521-188-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-33522-194-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (C) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0	1-33659-251-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (B) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0	1-33671-943-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (C) ASM PART: D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98186-070-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (B) ASM PART: G = 8-98302-714-0	8-98302-746-0	01	1	-
62	LEVER; OUTER,GEAR SHIFT UNIT ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0	1-33671-942-0	01	1	-
62	LEVER; OUTER,GEAR SHIFT UNIT ASM PART: G = 8-98302-714-0	8-98302-744-0	01	1	-
63	NUT; LEVER,GEAR SHIFT UNIT M10 FLANGE ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-91180-110-0	01	1	-
64	PIN; GEAR SHIFT UNIT (B) ASM PART: B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-82353-827-0	01	1	-
64	PIN; GEAR SHIFT UNIT (B) ASM PART: A = 8-98070-039-1	0-82353-827-0	04	1	-
64	PIN; GEAR SHIFT UNIT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-31424-011-0	01	1	-
64	PIN; GEAR SHIFT UNIT (D), OD=6 L=40 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98036-471-1	01	1	-
64	PIN; GEAR SHIFT UNIT (E), OD=3 L=6.36 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98046-977-0	02	1	-
64	PIN; GEAR SHIFT UNIT (C), OD=5 L=10 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	9-08150-510-0	02	1	-
69	BRACKET; SHIFT UNIT (B) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-82569-396-2	01	1	-
69	BRACKET; SHIFT UNIT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-82698-527-0	01	1	-
70	CLIP; SHIFT UNIT ID=7.8 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-94246-958-0	01	1	-
72	BOLT; BRKT (A), M8X16 FLANGE ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-28050-816-0	01	1	-
72	BOLT; BRKT (B), M12X30 FLANGE ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-28151-230-0	02	1	-
75	HOSE; SHIFT UNIT (B) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98067-939-0	02	1	-
75	HOSE; SHIFT UNIT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98070-399-0	01	1	-
76	CASE; SHIFT UNIT ASM PART: A = 8-98070-039-1	8-98044-034-1	01	1	-
76	CASE; SHIFT UNIT ASM PART: B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0	8-98147-533-0	01	1	-
76	CASE; SHIFT UNIT ASM PART: G = 8-98302-714-0	8-98302-738-0	01	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0	8-97324-827-0	01	1	-
81	SENSOR; SHIFT UNIT (B) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0	8-98061-816-0	01	1	-
81	SENSOR; SHIFT UNIT (B) ASM PART: G = 8-98302-714-0	8-98282-847-0	01	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: G = 8-98302-714-0	8-98282-848-0	01	1	-
109	WASHER; PL (C), ID=12.5 OD=26 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-91610-612-0	01	1	-
109	WASHER; PL (A), ID=10.5 OD=22 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-91614-610-0	01	1	-
109	WASHER; PL (B), OD=40 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-09532-008-0	01	1	-
113	SEAT; SPRING (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-33537-024-0	01	1	-
113	SEAT; SPRING (B) ASM PART: A = 8-98070-039-1	1-33549-397-0	01	1	-
113	SEAT; SPRING (B) ASM PART: B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98147-548-0	01	1	-
114	CAM; GEAR SHIFT UNIT ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98046-921-0	01	1	-
115	GUIDE; PLATE,CAM ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-33549-401-0	01	1	-
116	ROLLER; SHAFT ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-33529-121-0	01	1	-
117	RING; SNAP (B), ID=4 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-91805-504-0	01	1	-
117	RING; SNAP (A), ID=10 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-91805-510-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0	8-98050-197-1	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: A = 8-98070-039-1	8-98052-617-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: B = 8-98147-540-0	8-98148-110-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (A) ASM PART: C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98162-694-1	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: C = 8-98163-035-0, D = 8-98186-515-0	8-98162-740-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: E = 8-98248-186-0	8-98246-833-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: F = 8-98254-316-0, G = 8-98302-714-0	8-98254-312-0	01	1	-
119	BOLT; SOLENOID M10X25 FLANGE ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-28751-025-0	08	1	-
120	PLATE; CAM ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-33529-125-0	01	1	-
121	PIN; SPRIT L=27.7 ASM PART: A = 8-98070-039-1	1-09747-005-0	04	1	-
121	PIN; SPRIT L=27.7 ASM PART: B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-09747-005-0	01	1	-
123	SPRING; SELECT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-09580-586-1	01	1	-
123	SPRING; SELECT (B) ASM PART: A = 8-98070-039-1	1-09580-587-1	01	1	-
124	ROD ASM; LINK ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0	1-33671-944-1	01	1	-
124	ROD ASM; LINK ASM PART: G = 8-98302-714-0	8-98302-741-0	01	1	-
125	WIRE L=200 ASM PART: B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	9-08351-020-0	01	1	-
125	WIRE L=200 ASM PART: A = 8-98070-039-1	9-08351-020-0	04	1	-
126	PLUG; BREATHER ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-33149-023-0	02	1	-
127	PLATE; PIN,CAM TO SHIFT SENSOR ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98046-924-0	01	1	-

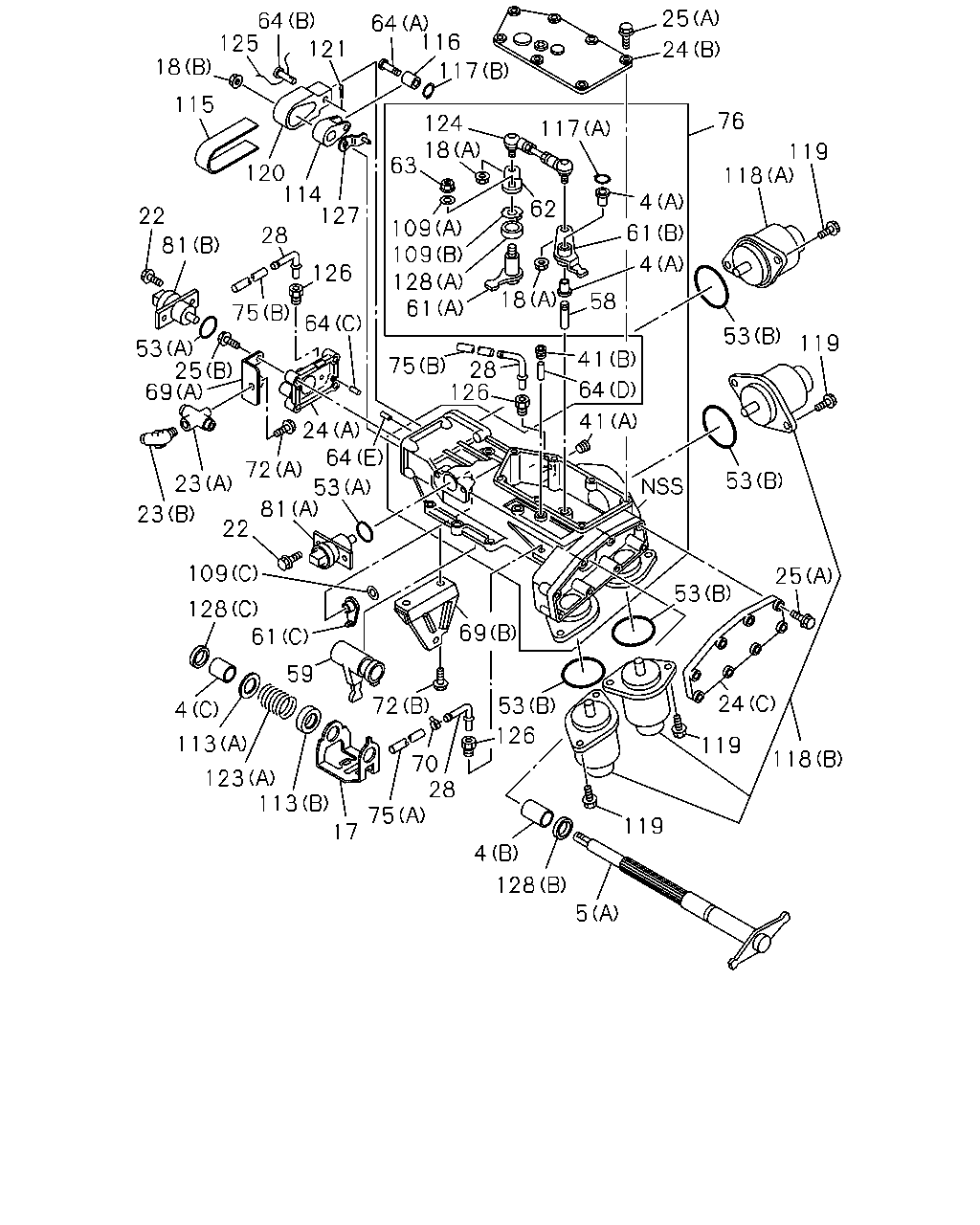

25 64 125 18 64 116 121 24 117 115 76 124 18 63 117 119 120 114 127 62 118 4 22 109 109 128 61 61 28 81 4 126 18 58 75 64 53 119 53 25 69 41 75 28 126 64 24 64 41 72 53 23 53 81 23 22 109 25 53 128 61 69 59 24 53 72 4 126 113 119 118 70 28 123 113 75 119 17 4 128 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BUSHING; SHIFT UNIT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-09330-144-0	02	1	-
4	BUSHING; SHIFT UNIT (C), ID=20 OD=23 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-33549-016-0	01	1	-
4	BUSHING; SHIFT UNIT (B), ID=28 OD=32 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-33549-104-0	01	1	-
5	ROD; SHIFT UNIT (B) ASM PART: A = 8-98070-039-1	1-33522-195-0	03	1	-
5	ROD; SHIFT UNIT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98046-922-0	01	1	-
17	YOKE; SHIFT UNIT ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98044-040-0	01	1	-
18	NUT; ROD (A), M6 FLANGE ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0	0-91180-106-0	02	1	-
18	NUT; ROD (B), M10 FLANGE ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-91180-110-0	01	1	-
18	NUT; ROD (A), M8 FLANGE ASM PART: G = 8-98302-714-0	1-09440-062-1	02	1	-
22	BOLT; SW M6X12 FLANGE ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-28050-612-0	04	1	-
23	CONNECTOR; SHIFT UNIT (B), DIN12 & R3/8 ELBOW ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-09660-959-0	01	1	-
23	CONNECTOR; SHIFT UNIT (A), DIN8 & RC3/8 3WAY ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-09661-129-0	01	1	-
24	COVER; SHIFT UNIT (C) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-34141-023-1	01	1	-
24	COVER; SHIFT UNIT (B) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-34141-028-0	01	1	-
24	COVER; SHIFT UNIT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98047-742-0	01	1	-
25	BOLT; COVER (A), M8X16 FLANGE ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-28050-816-0	15	1	-
25	BOLT; COVER (B), M6X25 FLANGE ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-28650-625-0	04	1	-
28	PIPE; SHIFT UNIT ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-97358-318-0	03	1	-
41	PLUG; SHIFT UNIT (B), PT3/8 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-09605-056-0	01	1	-
41	PLUG; SHIFT UNIT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-94403-163-0	02	1	-
53	GASKET (A), ID=26.8 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-09623-058-0	02	1	-
53	GASKET (B) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	9-09561-360-0	04	1	-
58	SHAFT; GEAR SHIFT UNIT ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-33659-240-0	01	1	-
59	LEVER; INNER,GEAR SHIFT UNIT ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-33521-188-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-33522-194-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (C) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0	1-33659-251-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (B) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0	1-33671-943-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (C) ASM PART: D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98186-070-0	01	1	-
61	LEVER; GEAR SHIFT UNIT (B) ASM PART: G = 8-98302-714-0	8-98302-746-0	01	1	-
62	LEVER; OUTER,GEAR SHIFT UNIT ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0	1-33671-942-0	01	1	-
62	LEVER; OUTER,GEAR SHIFT UNIT ASM PART: G = 8-98302-714-0	8-98302-744-0	01	1	-
63	NUT; LEVER,GEAR SHIFT UNIT M10 FLANGE ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-91180-110-0	01	1	-
64	PIN; GEAR SHIFT UNIT (B) ASM PART: B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-82353-827-0	01	1	-
64	PIN; GEAR SHIFT UNIT (B) ASM PART: A = 8-98070-039-1	0-82353-827-0	04	1	-
64	PIN; GEAR SHIFT UNIT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-31424-011-0	01	1	-
64	PIN; GEAR SHIFT UNIT (D), OD=6 L=40 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98036-471-1	01	1	-
64	PIN; GEAR SHIFT UNIT (E), OD=3 L=6.36 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98046-977-0	02	1	-
64	PIN; GEAR SHIFT UNIT (C), OD=5 L=10 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	9-08150-510-0	02	1	-
69	BRACKET; SHIFT UNIT (B) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-82569-396-2	01	1	-
69	BRACKET; SHIFT UNIT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-82698-527-0	01	1	-
70	CLIP; SHIFT UNIT ID=7.8 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-94246-958-0	01	1	-
72	BOLT; BRKT (A), M8X16 FLANGE ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-28050-816-0	01	1	-
72	BOLT; BRKT (B), M12X30 FLANGE ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-28151-230-0	02	1	-
75	HOSE; SHIFT UNIT (B) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98067-939-0	02	1	-
75	HOSE; SHIFT UNIT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98070-399-0	01	1	-
76	CASE; SHIFT UNIT ASM PART: A = 8-98070-039-1	8-98044-034-1	01	1	-
76	CASE; SHIFT UNIT ASM PART: B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0	8-98147-533-0	01	1	-
76	CASE; SHIFT UNIT ASM PART: G = 8-98302-714-0	8-98302-738-0	01	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0	8-97324-827-0	01	1	-
81	SENSOR; SHIFT UNIT (B) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0	8-98061-816-0	01	1	-
81	SENSOR; SHIFT UNIT (B) ASM PART: G = 8-98302-714-0	8-98282-847-0	01	1	-
81	SENSOR; SHIFT UNIT (A) ASM PART: G = 8-98302-714-0	8-98282-848-0	01	1	-
109	WASHER; PL (C), ID=12.5 OD=26 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-91610-612-0	01	1	-
109	WASHER; PL (A), ID=10.5 OD=22 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-91614-610-0	01	1	-
109	WASHER; PL (B), OD=40 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-09532-008-0	01	1	-
113	SEAT; SPRING (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-33537-024-0	01	1	-
113	SEAT; SPRING (B) ASM PART: A = 8-98070-039-1	1-33549-397-0	01	1	-
113	SEAT; SPRING (B) ASM PART: B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98147-548-0	01	1	-
114	CAM; GEAR SHIFT UNIT ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98046-921-0	01	1	-
115	GUIDE; PLATE,CAM ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-33549-401-0	01	1	-
116	ROLLER; SHAFT ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-33529-121-0	01	1	-
117	RING; SNAP (B), ID=4 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-91805-504-0	01	1	-
117	RING; SNAP (A), ID=10 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-91805-510-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0	8-98050-197-1	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: A = 8-98070-039-1	8-98052-617-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: B = 8-98147-540-0	8-98148-110-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (A) ASM PART: C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98162-694-1	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: C = 8-98163-035-0, D = 8-98186-515-0	8-98162-740-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: E = 8-98248-186-0	8-98246-833-0	01	1	-
118	SOLENOID ASM; GEAR SHIFT UNIT (B) ASM PART: F = 8-98254-316-0, G = 8-98302-714-0	8-98254-312-0	01	1	-
119	BOLT; SOLENOID M10X25 FLANGE ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	0-28751-025-0	08	1	-
120	PLATE; CAM ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-33529-125-0	01	1	-
121	PIN; SPRIT L=27.7 ASM PART: A = 8-98070-039-1	1-09747-005-0	04	1	-
121	PIN; SPRIT L=27.7 ASM PART: B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-09747-005-0	01	1	-
123	SPRING; SELECT (A) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-09580-586-1	01	1	-
123	SPRING; SELECT (B) ASM PART: A = 8-98070-039-1	1-09580-587-1	01	1	-
124	ROD ASM; LINK ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0	1-33671-944-1	01	1	-
124	ROD ASM; LINK ASM PART: G = 8-98302-714-0	8-98302-741-0	01	1	-
125	WIRE L=200 ASM PART: B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	9-08351-020-0	01	1	-
125	WIRE L=200 ASM PART: A = 8-98070-039-1	9-08351-020-0	04	1	-
126	PLUG; BREATHER ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-33149-023-0	02	1	-
127	PLATE; PIN,CAM TO SHIFT SENSOR ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	8-98046-924-0	01	1	-
128	SEAL; OIL,SHIFT UNIT (A), OD=30 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-09625-386-0	01	1	-
128	SEAL; OIL,SHIFT UNIT (C) ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-09625-612-1	01	1	-
128	SEAL; OIL,SHIFT UNIT (B), OD=41 ASM PART: A = 8-98070-039-1, B = 8-98147-540-0, C = 8-98163-035-0, D = 8-98186-515-0, E = 8-98248-186-0, F = 8-98254-316-0, G = 8-98302-714-0	1-09625-647-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
