2-26 — MANUAL TRANSMISSION GEAR (#39225) — 127 parça

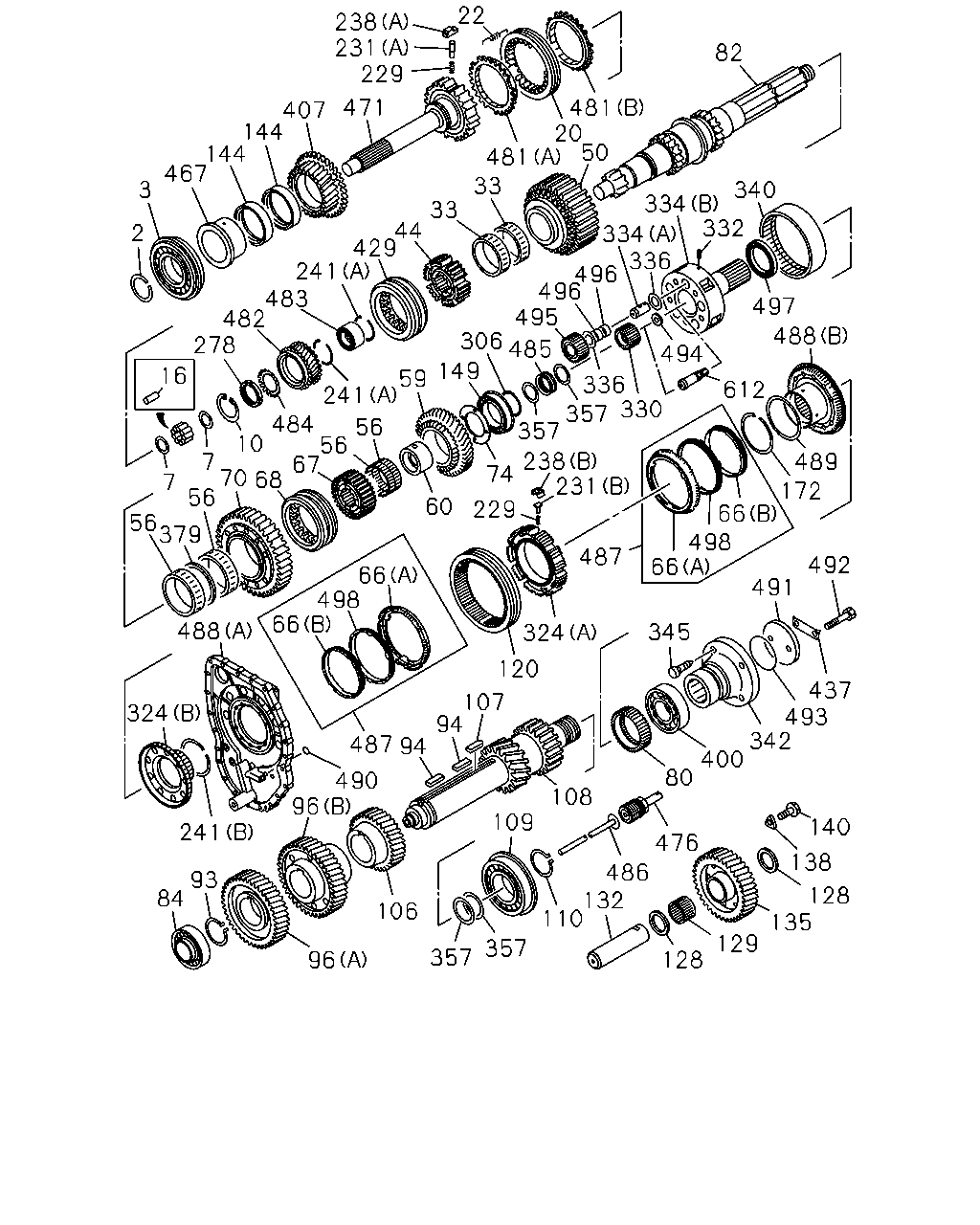

çizim 180190
3 2 467 144 144 407 471 229 231 238 22 481 20 481 33 33 44 429 241 483 482 278 16 7 7 56 379 56 70 68 67 484 10 241 56 56 59 149 306 485 495 496 496 334 50 334 336 340 332 82 494 488 497 336 357 357 74 238 229 231 60 66 498 66 488 324 487 94 94 107 120 324 487 330 612 489 172 66 498 66 491 492 437 493 342 400 345 108 80 109 490 96 241 93 84 96 106 357 357 132 110 486 476 140 138 128 135 129 128
BalonParca AdiParca NoAdetTipApplied Date
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.53 WHITE 		1-09588-181-0 AR 1 0710-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.56 YELLOW 		1-09588-182-0 AR 1 0710-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.60 BLUE 		1-09588-183-0 AR 1 0710-
2 RING; SNAP,TOP GEAR SHAFT
ID=71 T=2.64 GREEN 		1-09588-184-0 AR 1 0710-
3 BEARING; TOP GEAR SHAFT
NSK 		1-09810-278-0 01 1 0710-
7 WASHER; THRUST,MAINSHAFT 1-33239-262-0 02 1 0710-
10 RING; SNAP,PILOT BRG
OD=72.5 		9-09180-168-0 01 1 0710-
16 BEARING; PILOT,MAINSHAFT
NSK 		1-09810-260-0 16 1 0710-
16 BEARING; PILOT,MAINSHAFT
NTN 		1-09810-261-0 16 1 0710-
20 SLEEVE 1-33262-216-1 01 1 0710-
22 SPRING; BLOCK,INSERT 1-09583-363-0 03 1 0710-
33 BEARING; NEEDLE,3RD GEAR
NSK 		1-09811-378-0 02 1 0710-1308
33 BEARING; NEEDLE,3RD GEAR
NTN 		1-09811-379-0 02 1 0710-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-278-1 01 1 0710-
50 GEAR; 2ND,MAINSHAFT
Z=42 		1-33251-423-0 01 1 0710-
56 BEARING; NEEDLE,1ST,REV
NTN 		1-09811-436-0 04 1 0710-
59 GEAR; REV MAINSHAFT
Z=42 		1-33257-090-0 01 1 0710-
60 COLLAR; REV MAIN 1-33234-098-1 01 1 0710-
66 RING; BLOCK,SYN
(A) 		1-33265-588-0 02 1 0710-1312
66 RING; BLOCK,SYN
(A) 		8-98239-909-1 02 1 1401-
66 RING; BLOCK,SYN
(B) 		1-33265-590-0 02 1 0710-1307
66 RING; BLOCK,SYN
(B) 		8-98239-294-0 02 1 1308-1312
66 RING; BLOCK,SYN
(B) 		8-98239-911-1 02 1 1401-
67 HUB; CLU,1ST TO REV 1-33261-285-0 01 1 0710-
68 SLEEVE; 1ST TO REV 1-33262-232-0 01 1 0710-
70 GEAR; 1ST,MAINSHAFT
Z=47 		1-33255-079-0 01 1 0710-
74 WASHER; THRUST,REV GEAR 1-33239-308-0 01 1 0710-
80 GEAR; SPD DRIVE
Z=11 		1-33371-069-0 01 1 0710-
82 SHAFT; MAIN,TRANS
Z=37-40-19 		1-33231-331-1 01 1 0710-
84 BEARING; COUNTER SHAFT,FRT
NSK 		1-09810-221-0 01 1 0710-
84 BEARING; COUNTER SHAFT,FRT
NTN 		1-09810-222-0 01 1 0710-
93 RING; SNAP,COUNTER FRT BRG 1-09588-149-0 01 1 0710-
94 KEY; FEATHER,COUNTER SHAFT
L=70 		1-09735-046-0 02 1 0710-
96 GEAR; COUNTER DRIVE
(A) Z=35 		1-33331-258-2 01 1 0710-
96 GEAR; COUNTER DRIVE
(B) Z=38 		1-33338-374-3 01 1 0710-
106 GEAR; 2ND,COUNTER
Z=35 		1-33338-391-1 01 1 0710-
107 KEY; FEATHER,2ND COUNTER
L=75.3 		1-09735-042-0 01 1 0710-
108 SHAFT; COUNTER
Z=23-23 		1-33311-329-0 01 1 0710-
109 BEARING; COUNTER SHAFT,RR
NSK 		1-09810-186-0 01 1 0710-
109 BEARING; COUNTER SHAFT,RR
NTN 		1-09810-207-0 01 1 0710-
110 RING; SNAP,COUNTER BRG 1-09588-193-1 01 1 0710-
120 SLEEVE 1-33262-229-0 01 1 0710-
128 WASHER; THRUST,REV SHAFT
T=4.0 		9-33363-015-0 02 1 0710-
129 BEARING; NEEDLE,IDLER
NSK 		1-09811-384-0 01 1 0710-
129 BEARING; NEEDLE,IDLER
NTN 		1-09811-385-0 01 1 0710-
132 SHAFT; REV 1-33351-035-1 01 1 0710-
135 GEAR; REV IDLER
Z=30 		1-33361-089-0 01 1 0710-
138 PIECE; LK,REV SHAFT 9-33354-007-0 01 1 0710-
140 BOLT; LK PIECE
M10X25 		1-09049-006-1 01 1 0710-
144 BEARING; NEEDLE,INPUT GEAR
NTN 		1-09811-436-0 02 1 0710-
149 BEARING; NEEDLE,MAINSHAFT,RR
NSK 		1-09810-256-0 01 1 0710-
149 BEARING; NEEDLE,MAINSHAFT,RR
NTN 		1-09810-257-0 01 1 0710-
172 RING; SNAP,CLU HUB
OD=121.2 		1-09587-031-0 01 1 0710-
229 SPRING; PLUNGER
D=3.8 		1-09580-395-0 06 1 1404-
229 SPRING; PLUNGER
D=6.2 		1-09580-091-1 15 1 0710-1403
229 SPRING; PLUNGER
D=6.2 		1-09580-091-1 09 1 1404-
231 PLUNGER
(A) 		1-33263-033-0 06 1 0710-1403
231 PLUNGER
(A) 		8-98273-831-0 06 1 1404-
231 PLUNGER
(B) 		1-33263-038-1 09 1 0710-
238 INSERT
(A) 		1-33263-036-0 06 1 0710-
238 INSERT
(B) 		1-33263-039-0 09 1 0710-
241 RING; SNAP
(A) 		1-09587-023-0 02 1 0710-
241 RING; SNAP
(B) 		1-09587-104-0 01 1 0710-
278 NUT; BRG 1-09449-080-0 01 1 0710-
306 RING; SNAP,MAINSHAFT 1-09588-149-0 01 1 0710-
324 HUB; CLU
(A) 		1-34231-015-0 01 1 0710-
324 HUB; CLU
(B) 		1-34371-017-0 01 1 0710-1307
324 HUB; CLU
(B) 		8-98239-089-0 01 1 1308-
330 GEAR; SUN
Z=24 		1-34311-010-0 01 1 0710-
332 PIN; LOCK,SHAFT 1-09748-025-0 05 1 0710-
334 SHAFT; PLANETARY GEAR
(A) 		1-34353-010-1 05 1 0710-
334 SHAFT; PLANETARY GEAR
(B) 		1-34372-034-0 01 1 0710-1307
334 SHAFT; PLANETARY GEAR
(B) 		8-98238-294-0 01 1 1308-
336 WASHER; THRUST,PLANETARY GEAR 1-09503-230-0 10 1 0710-
340 GEAR; RING
Z=86 OKUBO GEAR 		1-34371-014-0 01 1 0710-
340 GEAR; RING
Z=86 NIPPON GEAR 		1-34371-018-0 01 1 0710-
340 GEAR; RING
Z=86 ISUZU 		1-34371-019-0 01 1 0710-
342 FLANGE; OUTPUT
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-37243-400-2 01 1 0710-
345 BOLT; FLANGE TO YOKE
EXC. BRAKE SYSTEM RETARDER<RE2> M14X48.5 		1-09046-013-0 04 1 0710-
357 RING 1-31349-044-0 04 1 0710-
379 PIECE; DIST,MAINSHAFT 1-33363-034-0 01 1 0710-
400 BEARING; OUTPUT SHAFT RR
NSK W/SNAP RING 		1-09810-254-0 01 1 0710-0910
400 BEARING; OUTPUT SHAFT RR
NSK W/SNAP RING 		8-98153-252-0 01 1 0911-
400 BEARING; OUTPUT SHAFT RR
NTN W/SNAP RING 		1-09810-255-0 01 1 0710-0910
407 GEAR; PRIMARY MAIN
Z=33 		1-33253-717-0 01 1 0710-
429 SLEEVE; 2ND & 3RD 1-33262-222-0 01 1 0710-
437 PLATE; LOCK 1-34252-032-0 01 1 0710-
467 COLLAR; SHAFT 1-33234-091-1 01 1 0710-
471 SHAFT; INPUT 1-33215-020-0 01 1 0710-1102
471 SHAFT; INPUT 8-98174-781-0 01 1 1103-
476 ADAPTER; PUMP DRIVE 1-33339-091-1 01 1 0710-
481 RING; BLOCK
(A) HIGH 		1-33265-516-1 01 1 0710-1407
481 RING; BLOCK
(A) HIGH 		8-98239-518-1 01 1 1408-1410
481 RING; BLOCK
(A) HIGH 		1-33265-516-1 01 1 1411-
481 RING; BLOCK
(B) LOW 		1-33265-532-1 01 1 0710-1407
481 RING; BLOCK
(B) LOW 		8-98239-519-1 01 1 1408-1410
481 RING; BLOCK
(B) LOW 		1-33265-532-1 01 1 1411-
482 GEAR; PRIMARY
Z=29 		1-33253-720-0 01 1 0710-
483 BEARING; TAPER
NTN 		1-09810-281-0 01 1 0710-1007
483 BEARING; TAPER
NTN 		8-98174-410-0 01 1 1008-1504
483 BEARING; TAPER
NTN 		8-98316-126-0 01 1 1505-
484 PLATE; SETTING 1-33313-023-0 01 1 0710-
485 PIECE; GUIDE 1-33363-040-1 01 1 0710-
486 NOZZLE; CONT SHAFT 1-33219-271-1 01 1 0710-0907
486 NOZZLE; CONT SHAFT 1-33219-254-1 01 1 0908-
487 SYNCHRONIZER; RANGE CHANGE 1-33265-616-0 02 1 0710-1307
487 SYNCHRONIZER; RANGE CHANGE 8-98239-293-0 02 1 1308-1312
487 SYNCHRONIZER; RANGE CHANGE 8-98239-908-1 02 1 1401-
488 CLUTCH; DOG,RANGE
(B) 		1-34254-006-1 01 1 0710-1211
488 CLUTCH; DOG,RANGE
(B) 		8-98218-291-0 01 1 1212-1307
488 CLUTCH; DOG,RANGE
(B) 		8-98238-509-0 01 1 1308-
488 CLUTCH; DOG,RANGE
(A) 		8-98060-771-1 01 1 0710-1307
488 CLUTCH; DOG,RANGE
(A) 		8-98239-163-0 01 1 1308-
489 WASHER; THRUST 1-09503-308-0 01 1 0710-
490 GASKET; SEAL,CASE
ID=10 		1-09623-369-0 01 1 0710-
491 PLATE; OUTPUT SHAFT 1-34252-035-1 01 1 0710-
492 BOLT; PLATE 1-09000-750-0 02 1 0710-
493 GASKET; OUTPUT SHAFT 9-09561-385-0 01 1 0710-
494 PLATE; OUTPUT SHAFT 1-34379-020-0 01 1 0710-1307
495 PINION; PLANETARY
Z=30 		1-34361-023-0 05 1 0710-
496 BEARING; PLANETARY 1-09811-437-0 10 1 0710-
497 BEARING; RING GEAR
NSK 		1-09810-276-0 01 1 0710-1307
497 BEARING; RING GEAR
NTN 		1-09810-277-0 01 1 0710-1307
497 BEARING; RING GEAR
NTN 		8-98239-433-0 01 1 1308-
498 CONE; SYN 1-33265-617-0 02 1 0710-1312
498 CONE; SYN 8-98239-910-0 02 1 1401-
612 GALLERY; OIL 8-98239-463-0 01 1 1308-
